Description
A clear hose link for your watering setup

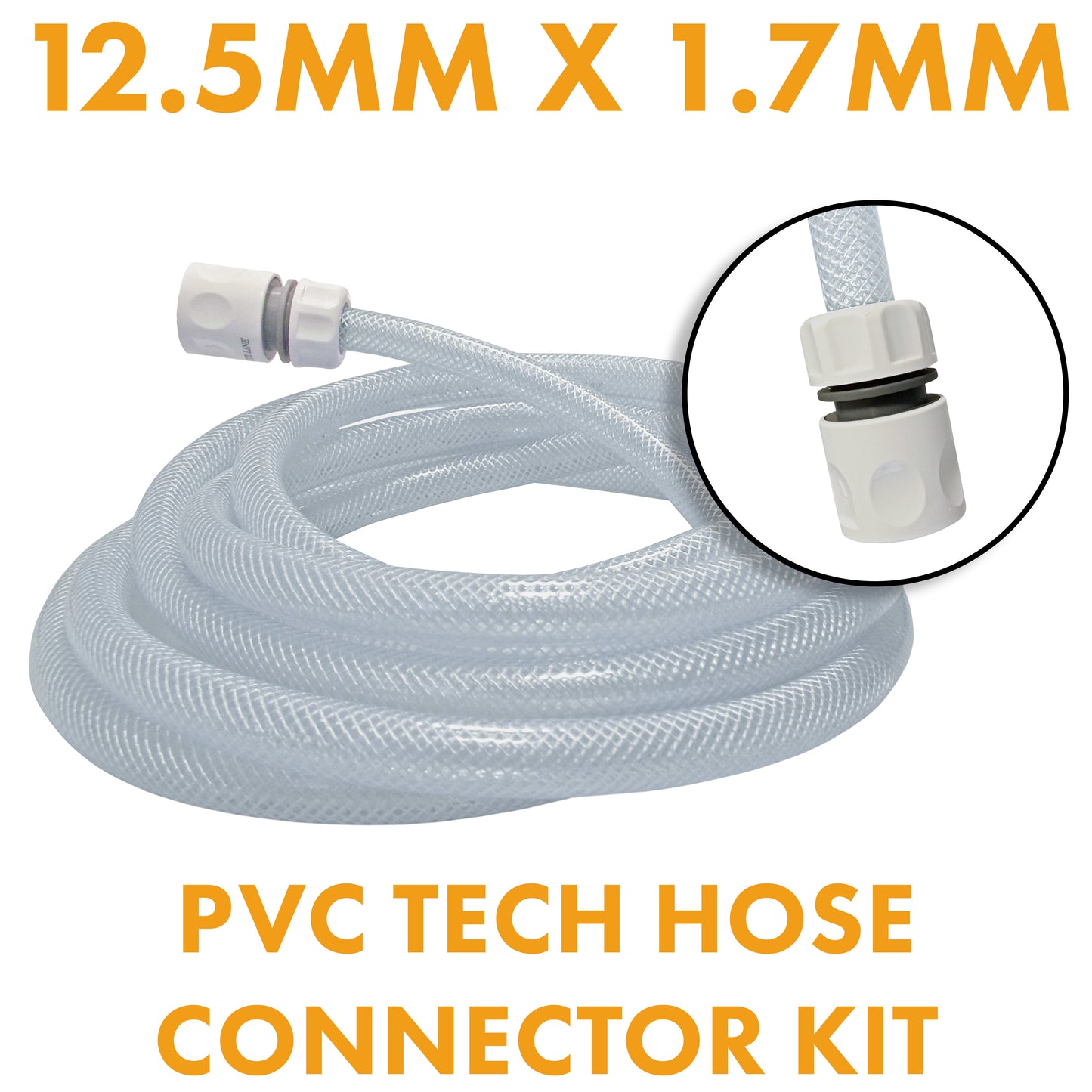

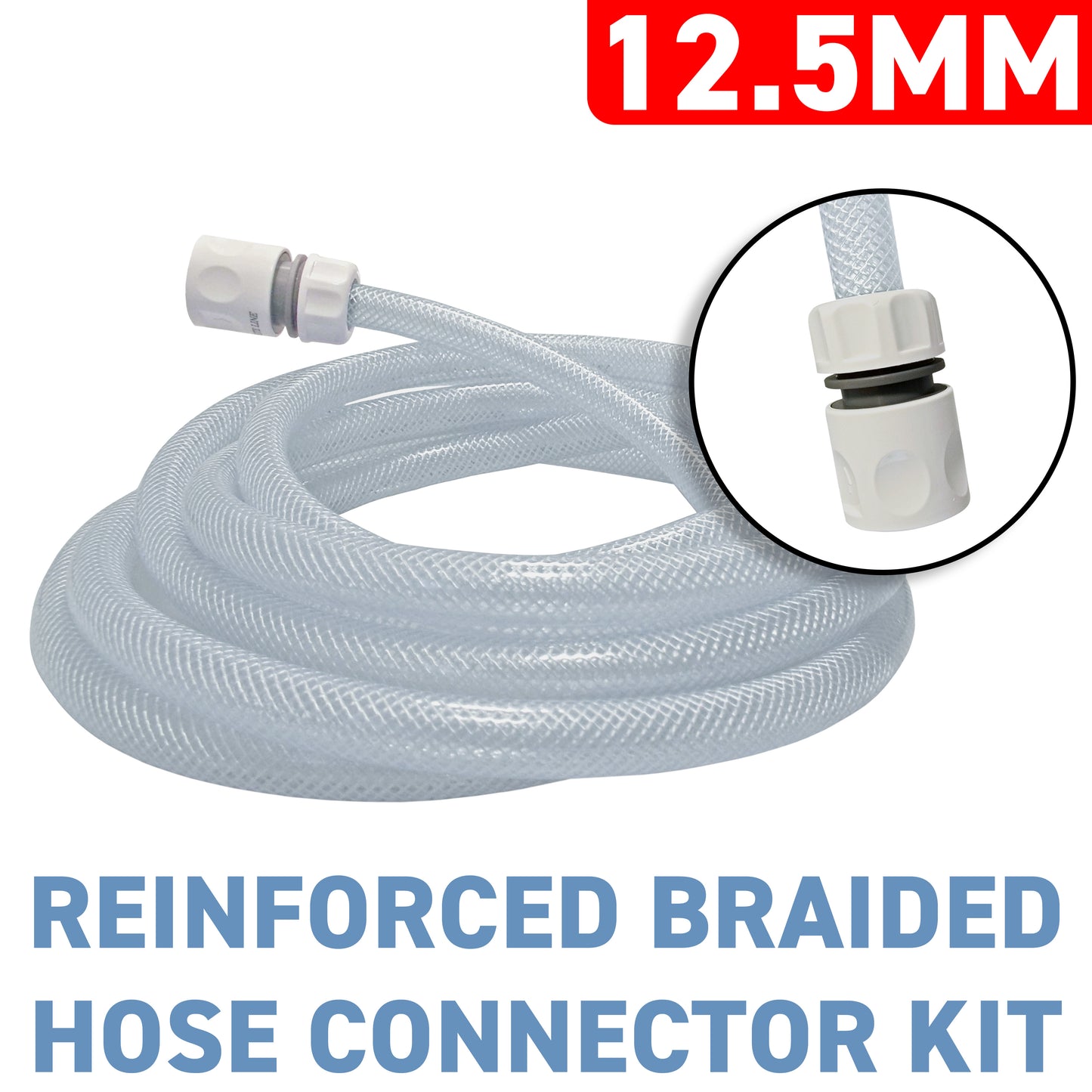

Connect a tap adapter, hose reel or watering tool with clear braided PVC hose and two female garden quick connectors. Choose a short length for nearby equipment or a longer run to reach further around the garden.

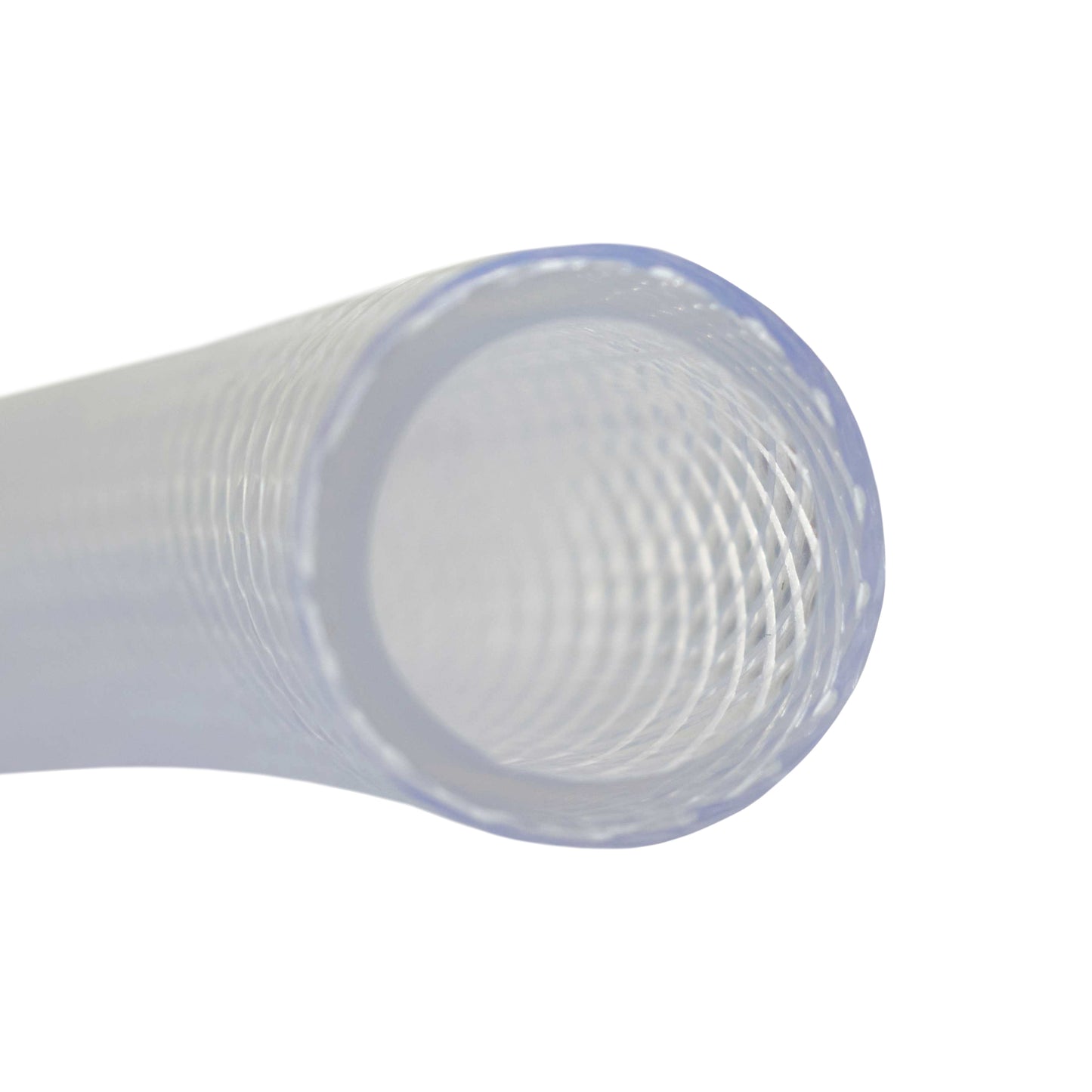

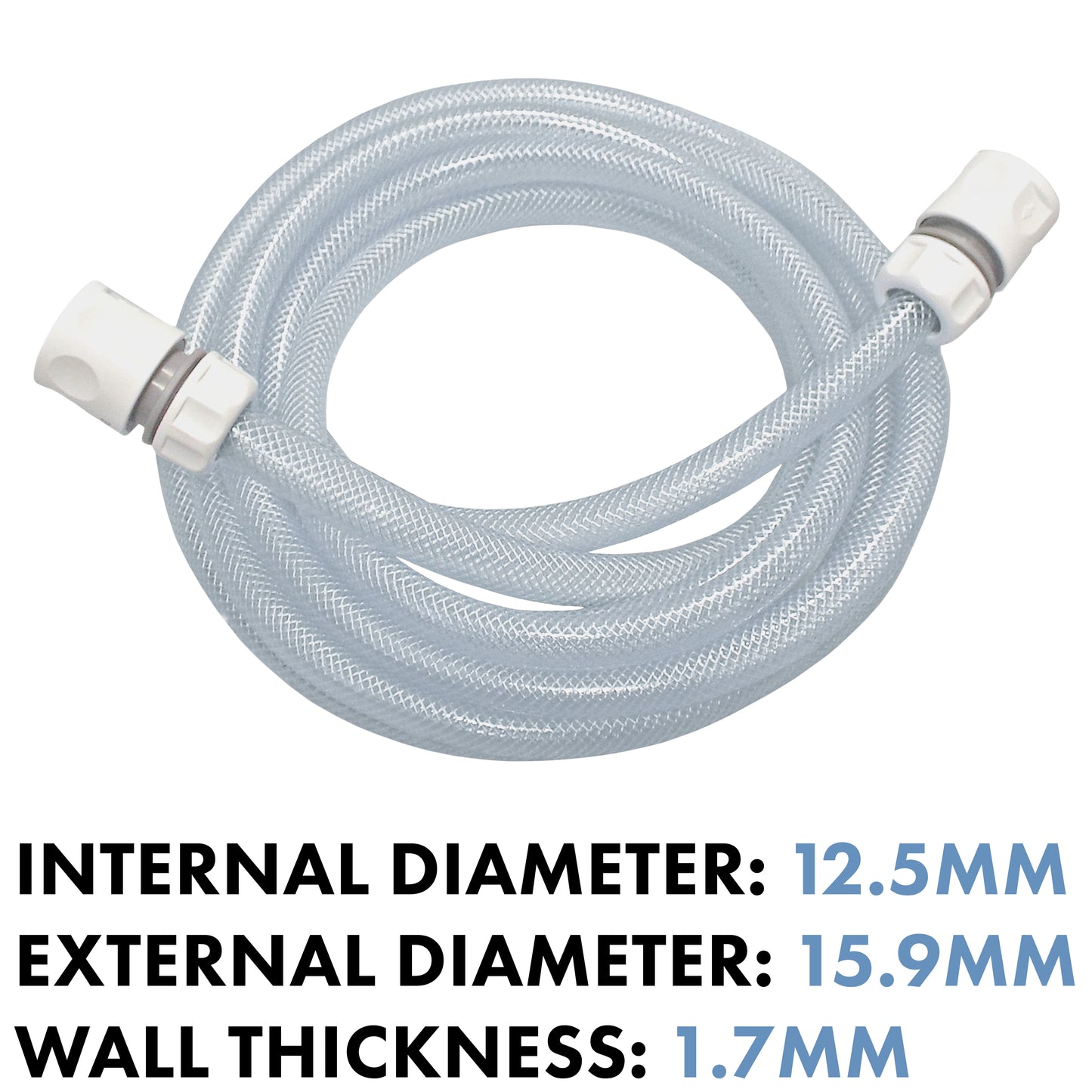

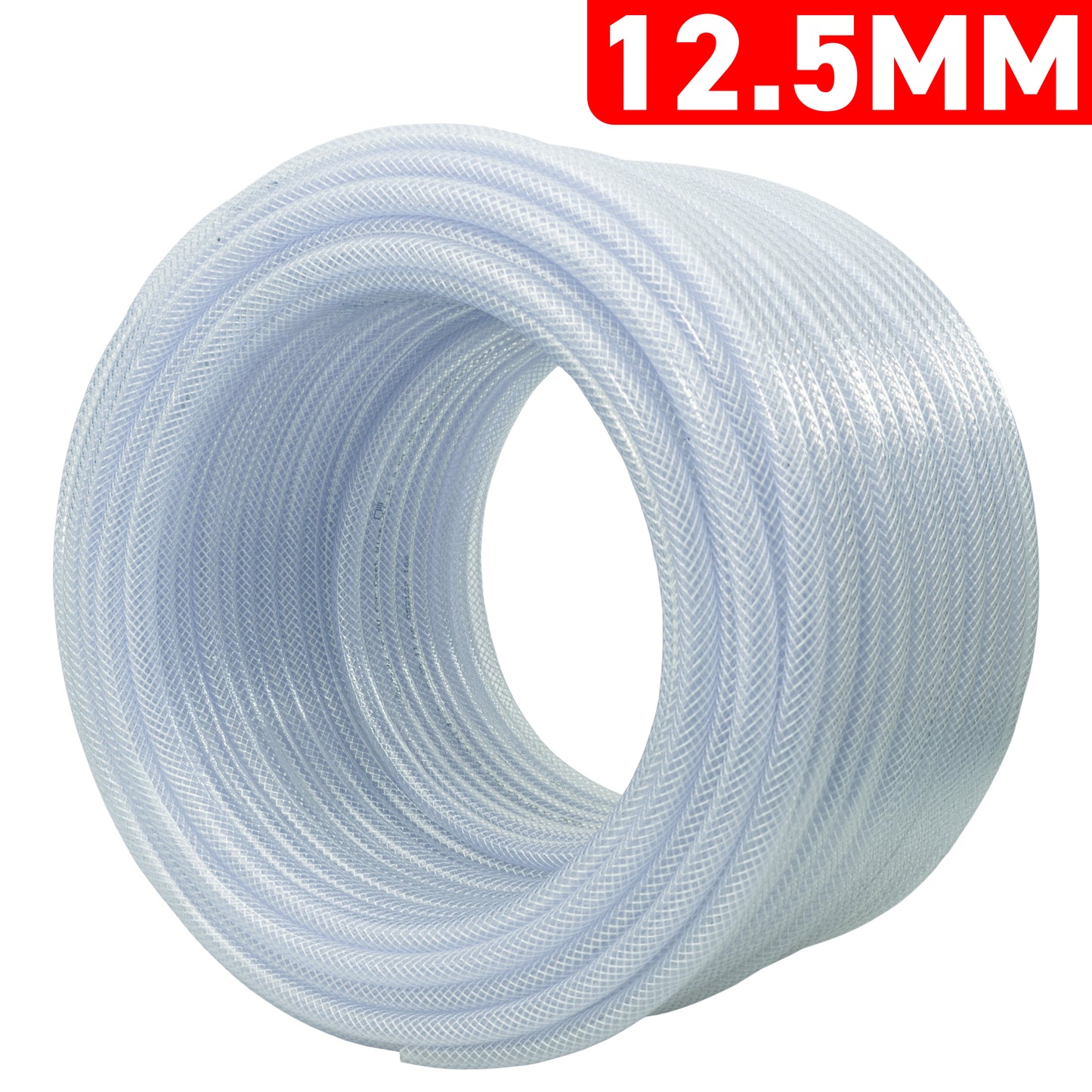

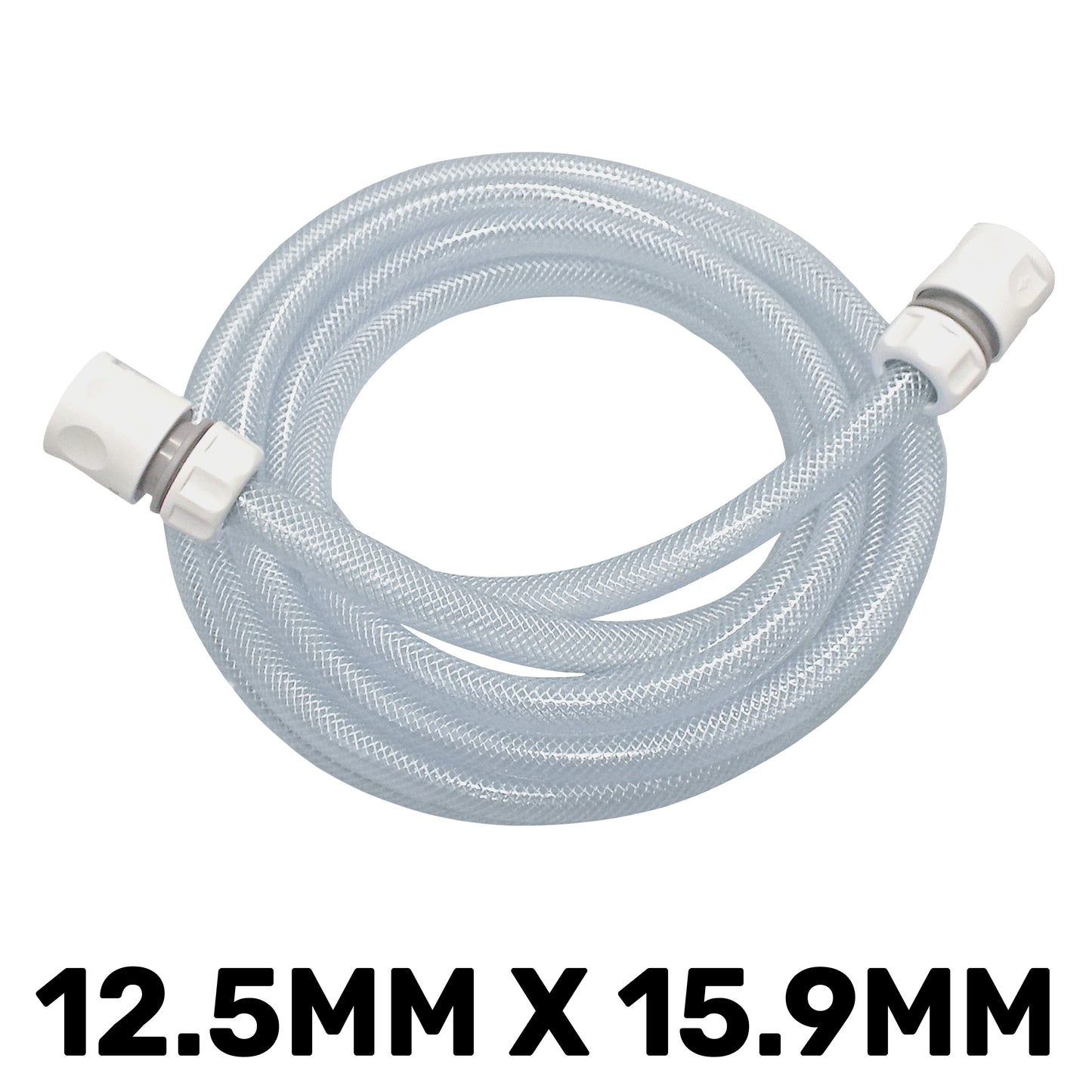

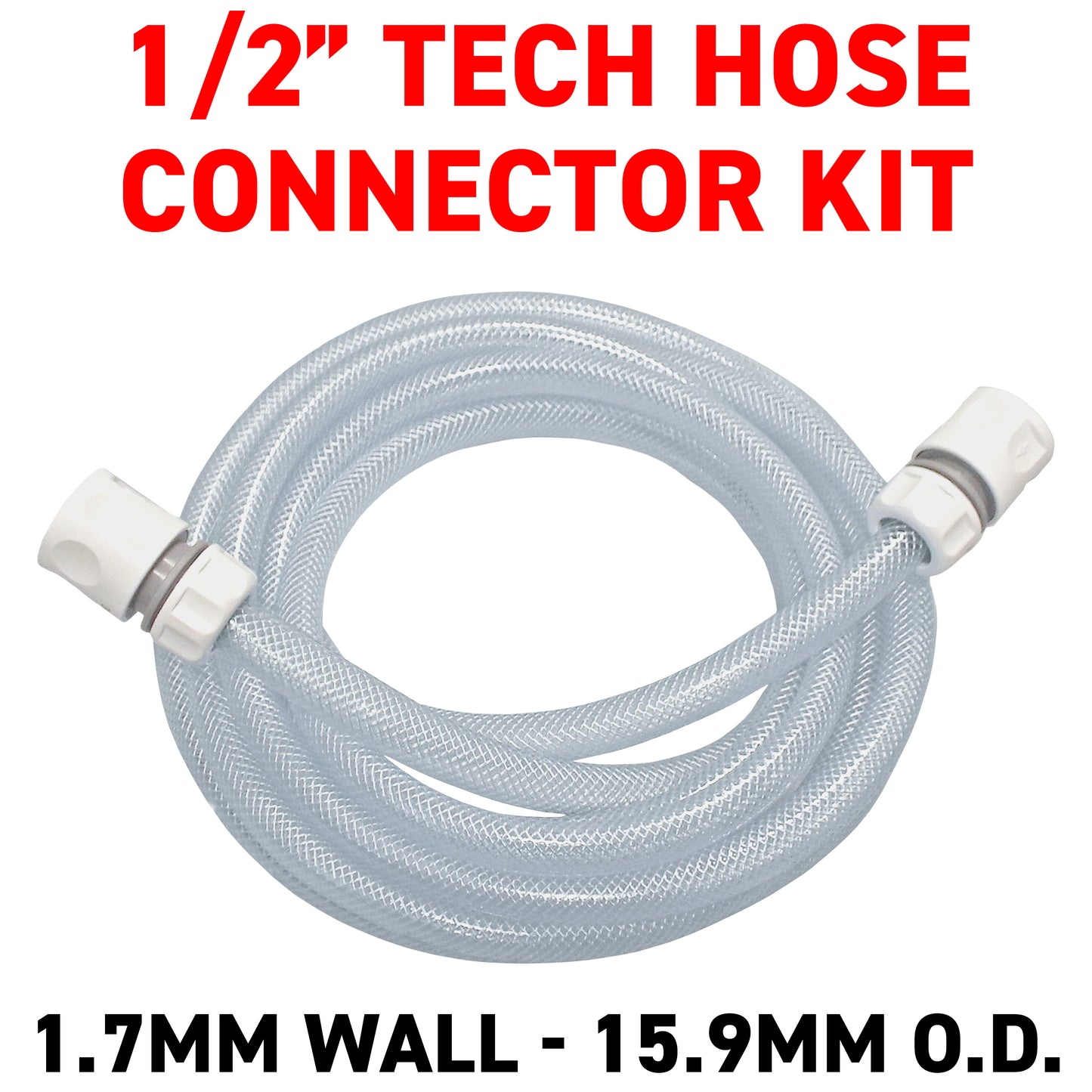

The transparent hose wall reveals the polyester braid and allows visual checks along the pipe. Each option uses the same 12.5mm internal diameter, 15.9mm outside diameter and 1.7mm wall; the length is what changes.

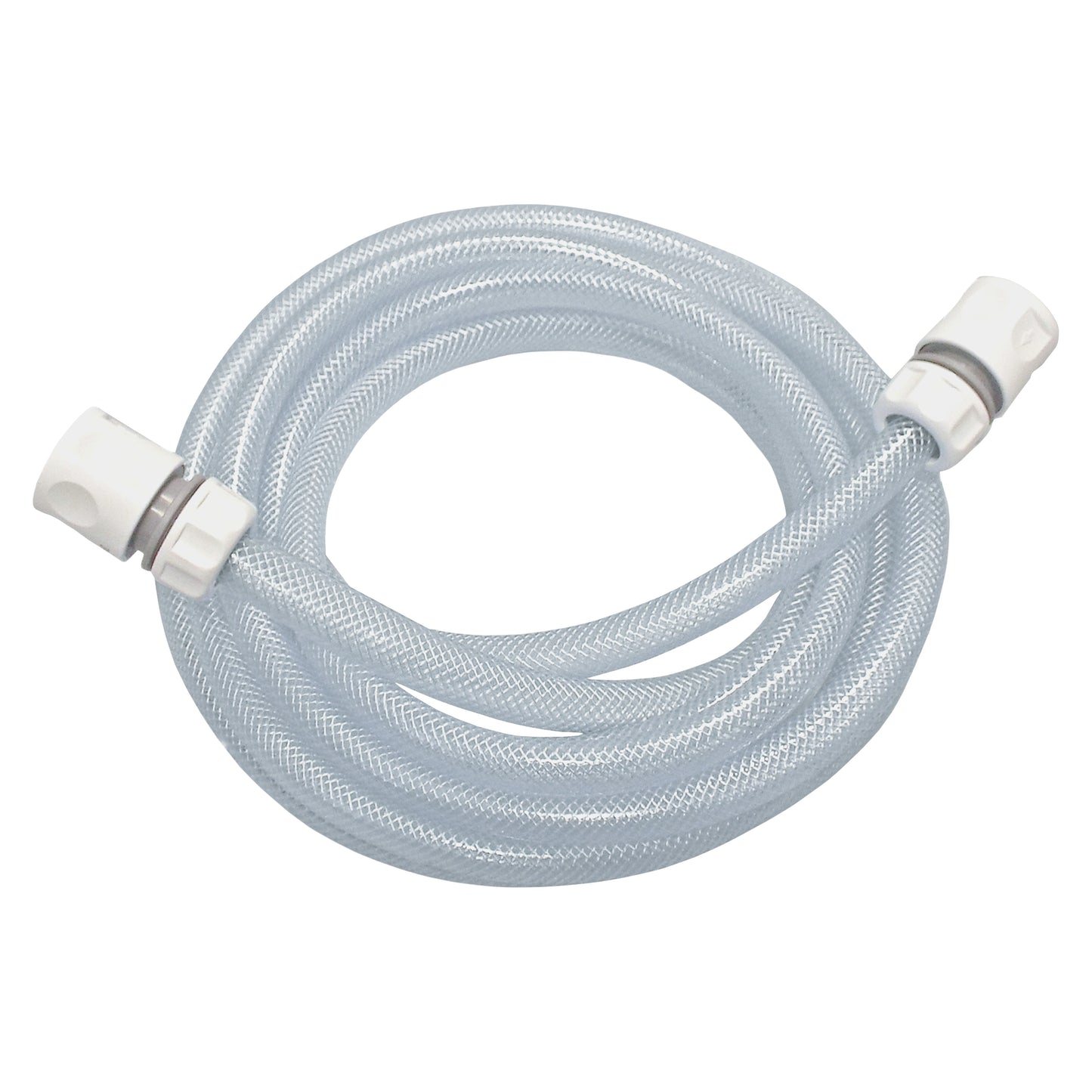

One selected hose length and two grey/white connectors supplied. A matching male tap adapter or watering accessory is needed at the connection points and is sold separately.
Two different connections, one at each end of the fitting
The hose side grips the ½-inch hose. The other side is a female garden quick-connect socket that accepts a matching male plug. A threaded outdoor tap needs its own male quick-connect tap adapter before this kit can attach.

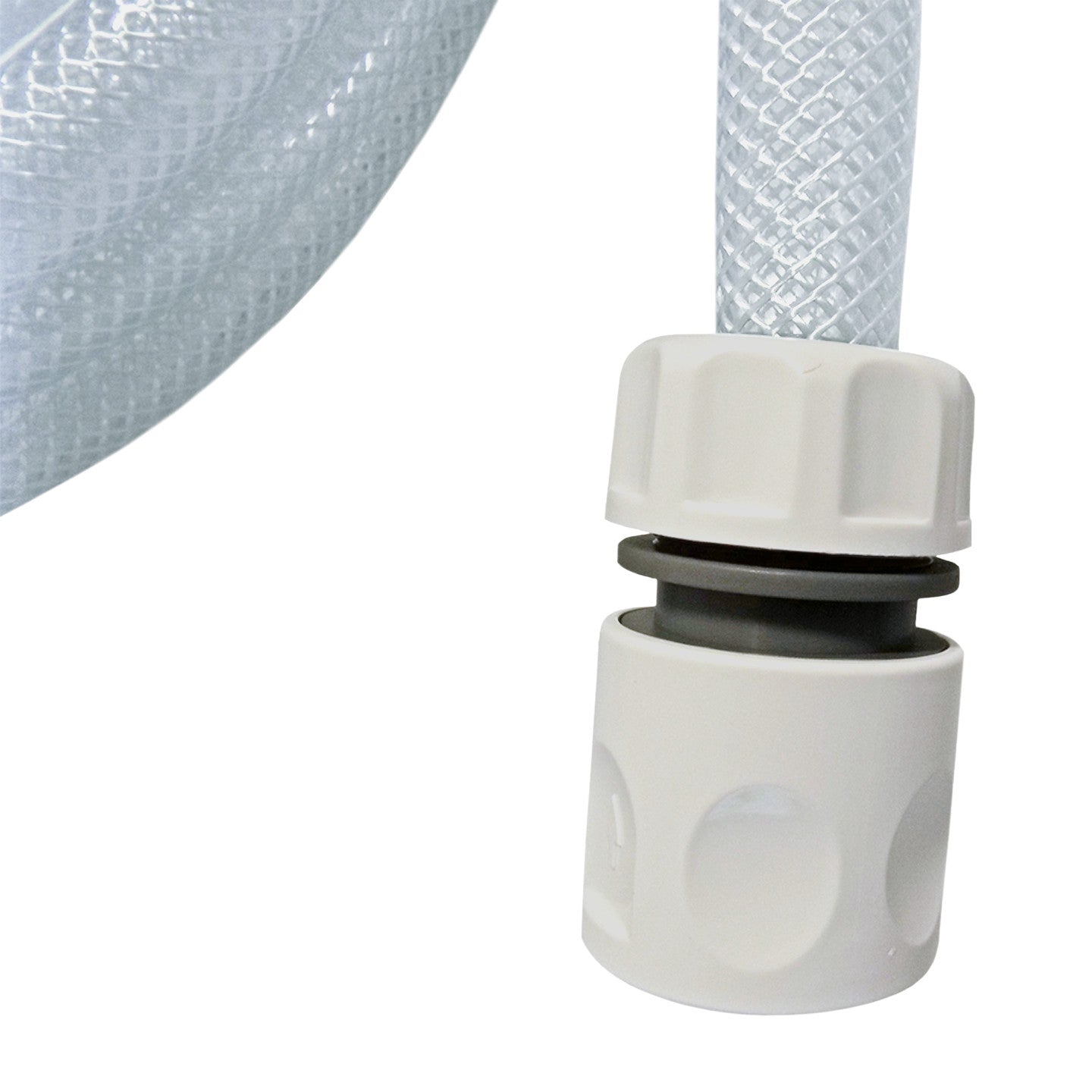

The supplied connectors are grey and white plastic fittings. Their hose-gripping nuts are separate from the quick-release collars used to connect and disconnect equipment. Assemble with the water turned off and test the finished connection gently before use.

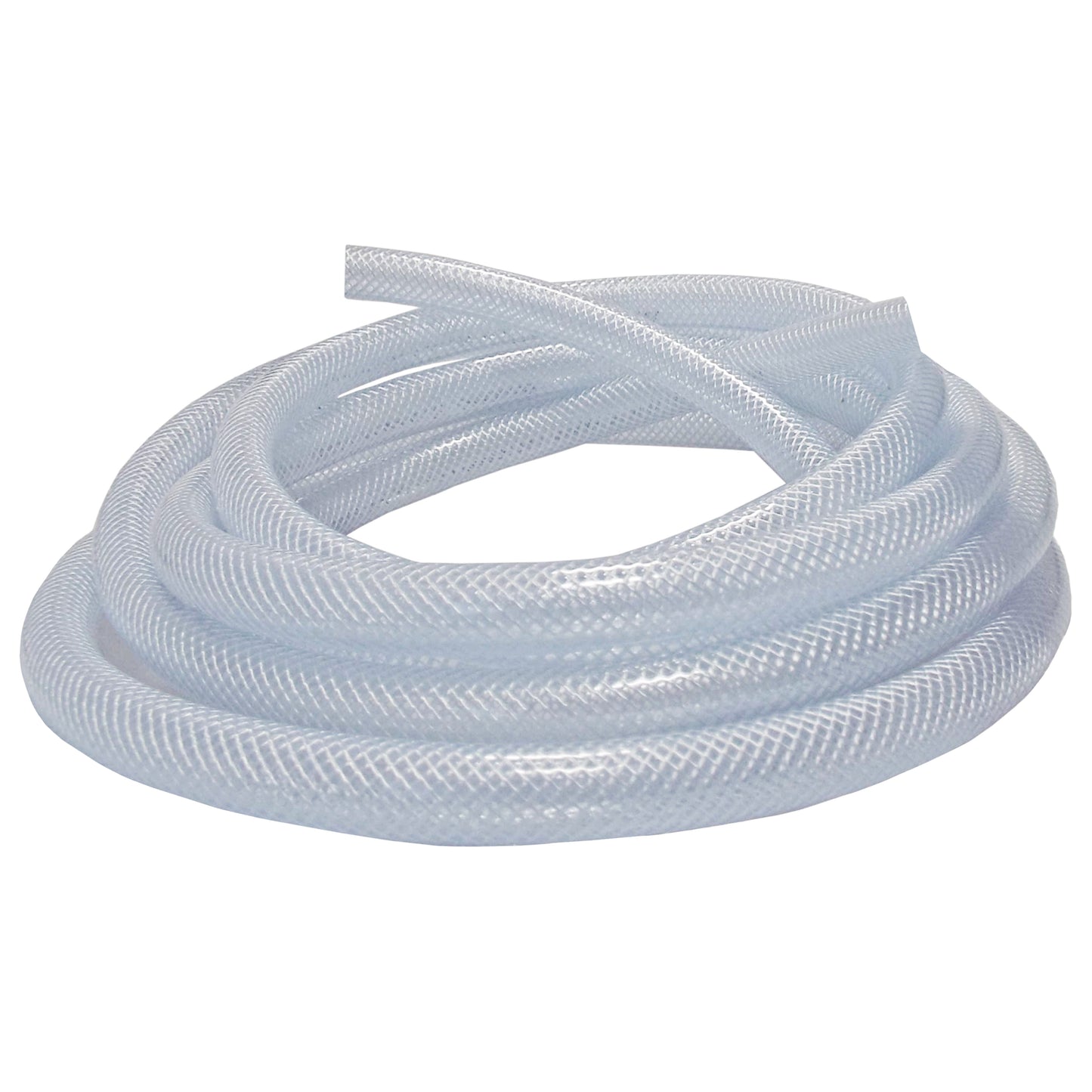

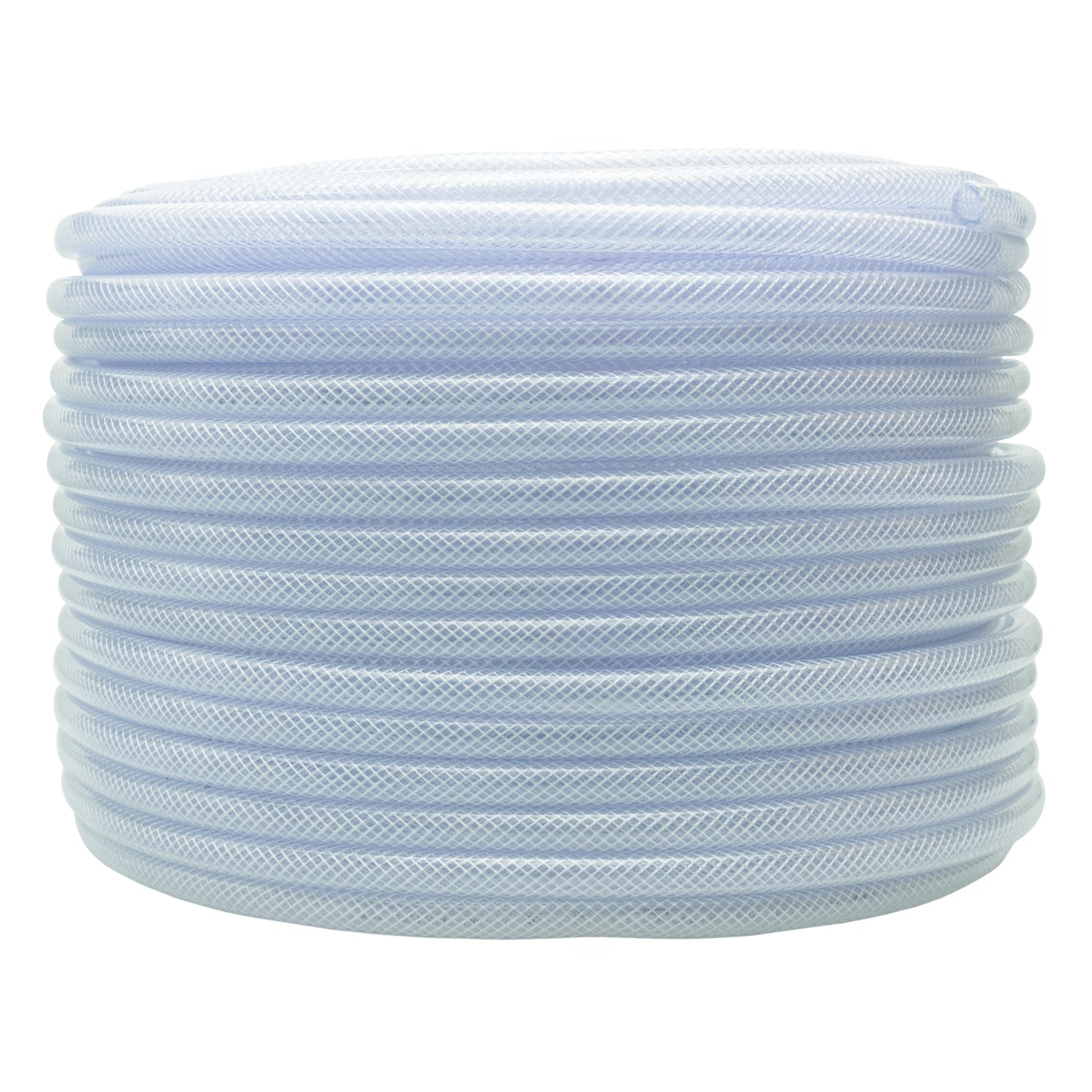

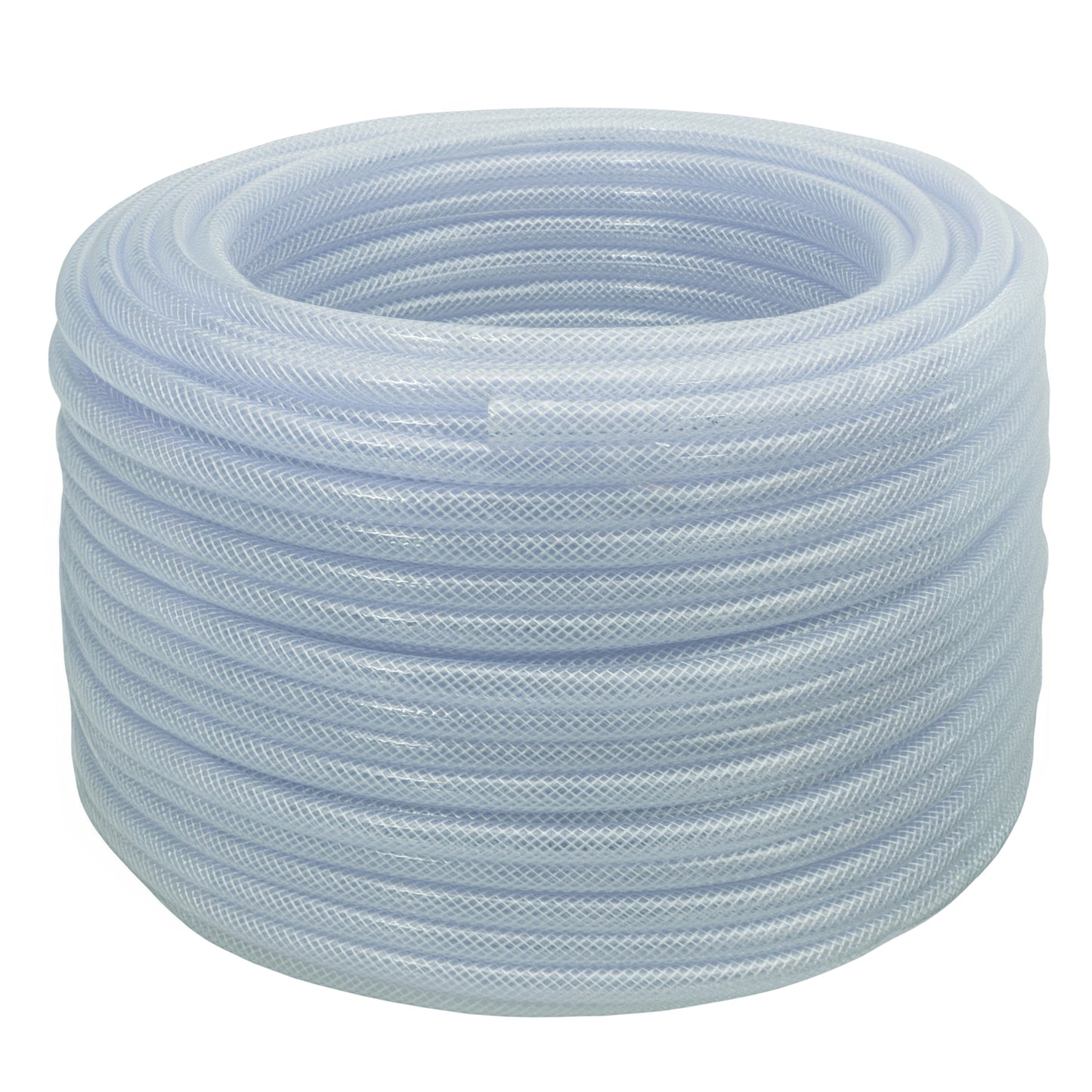

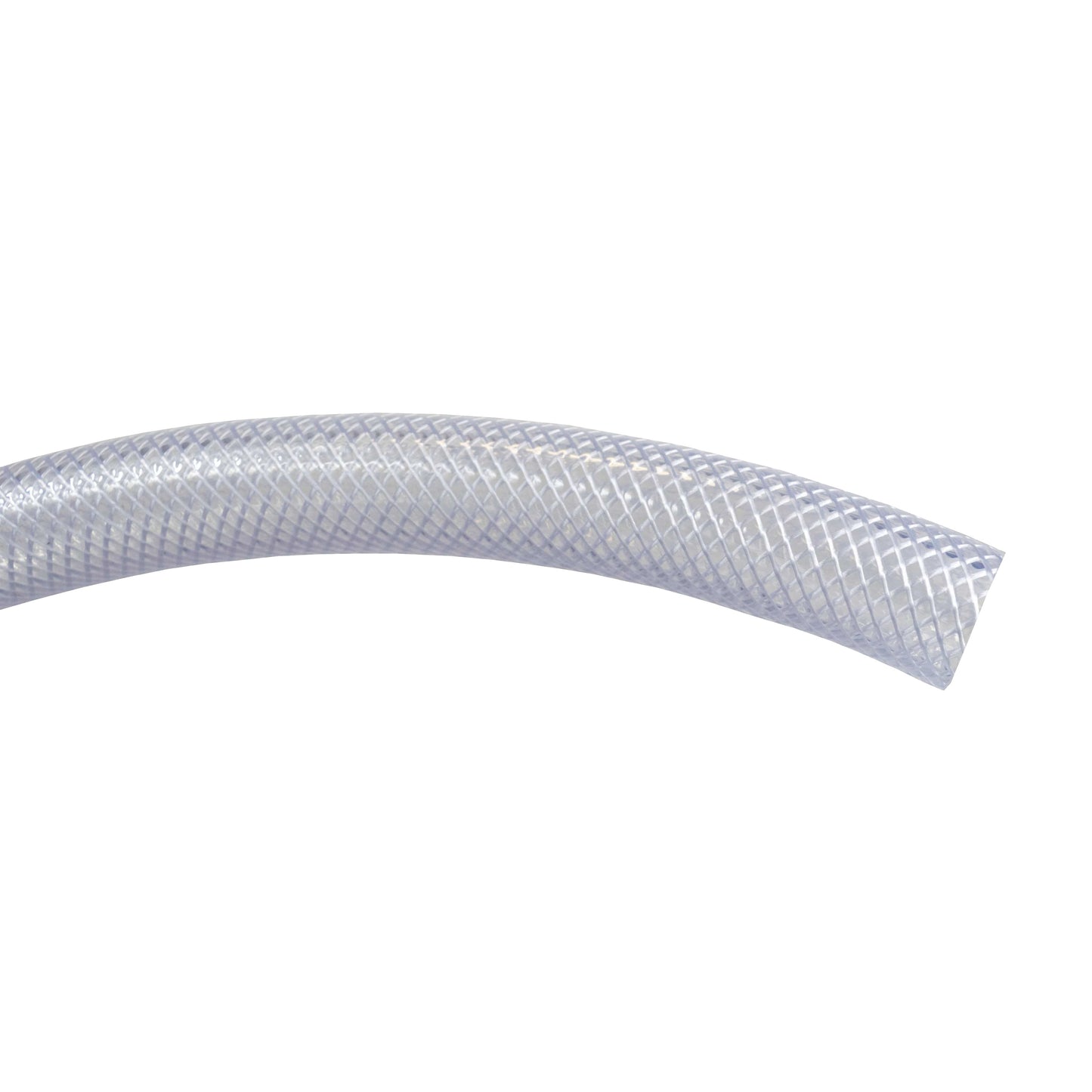

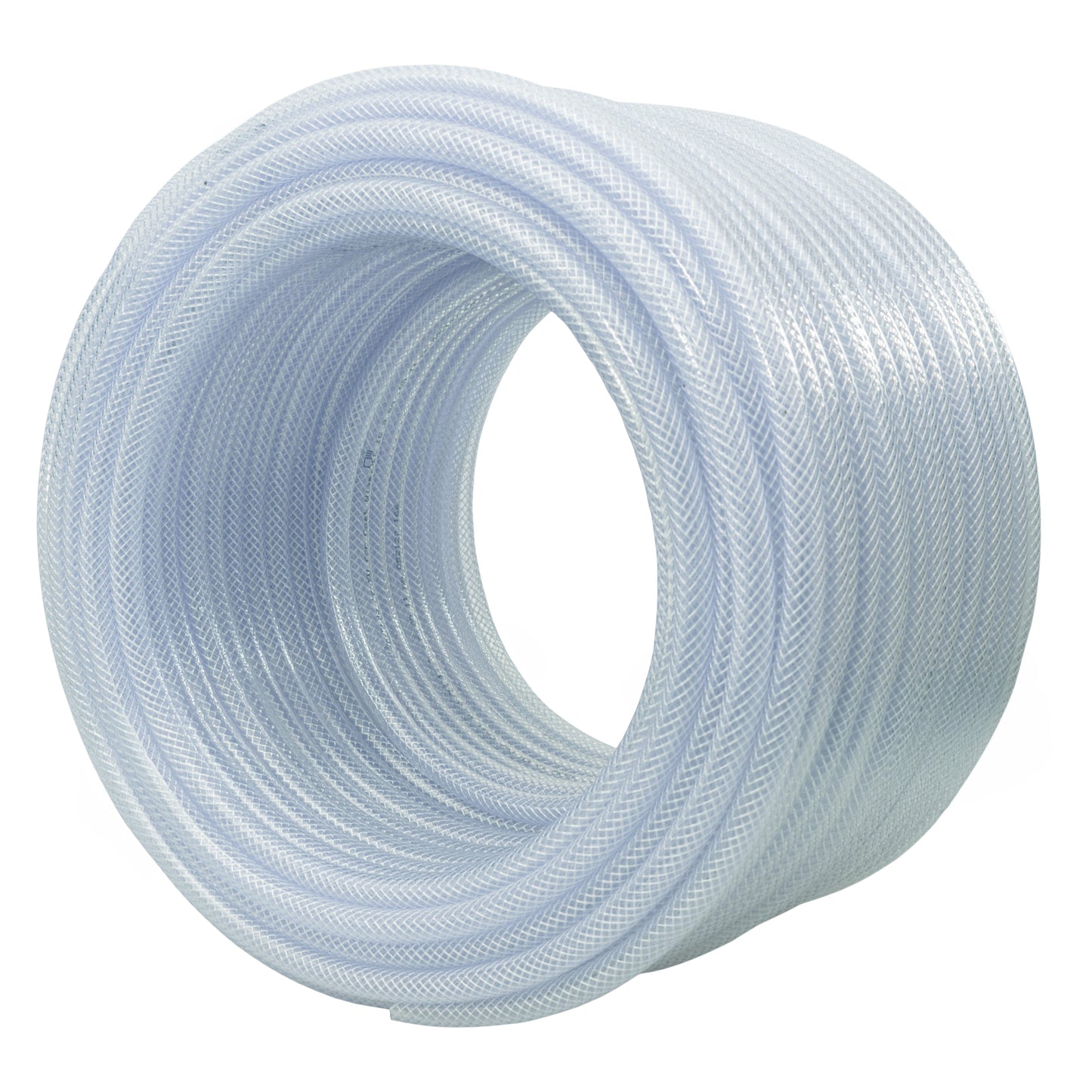

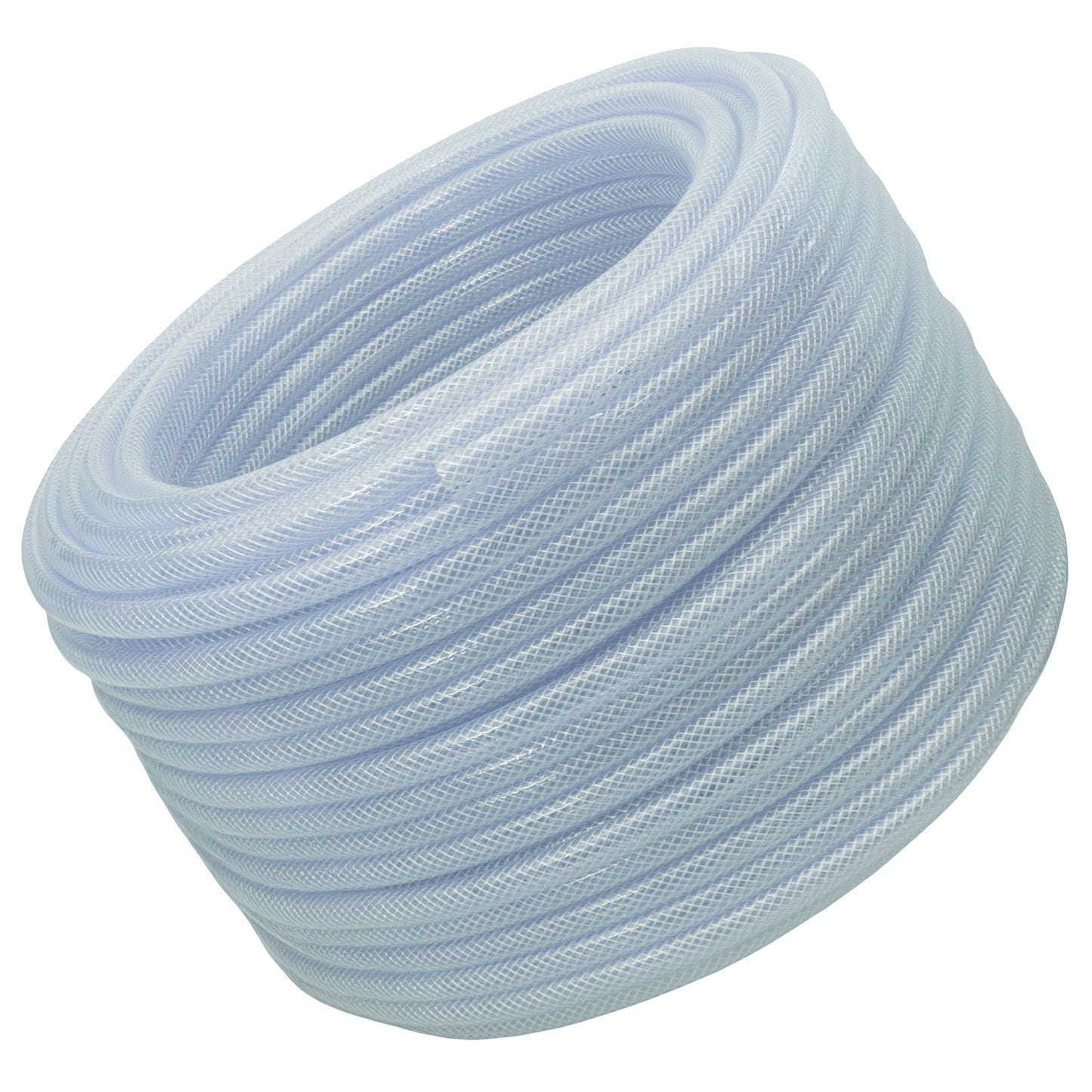

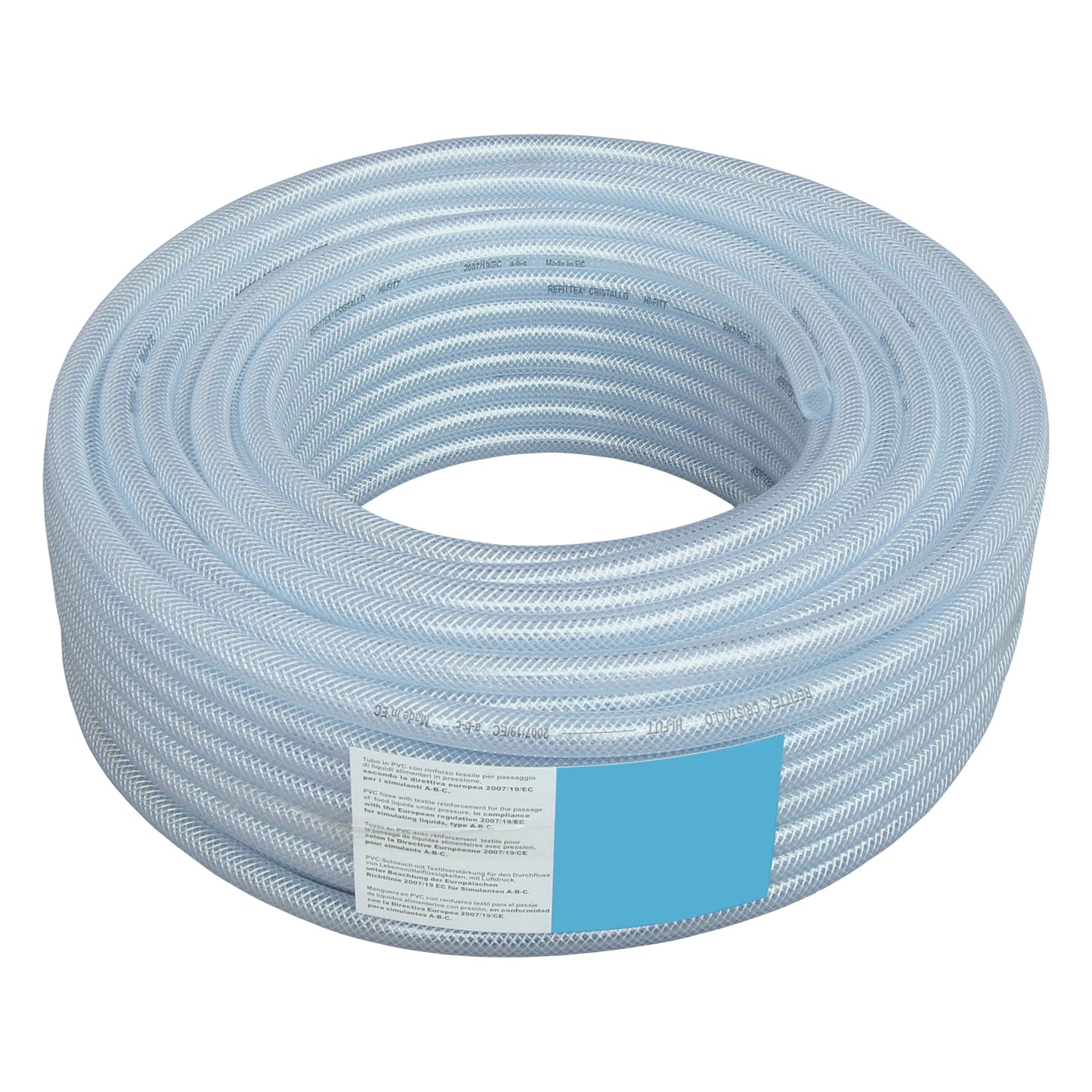

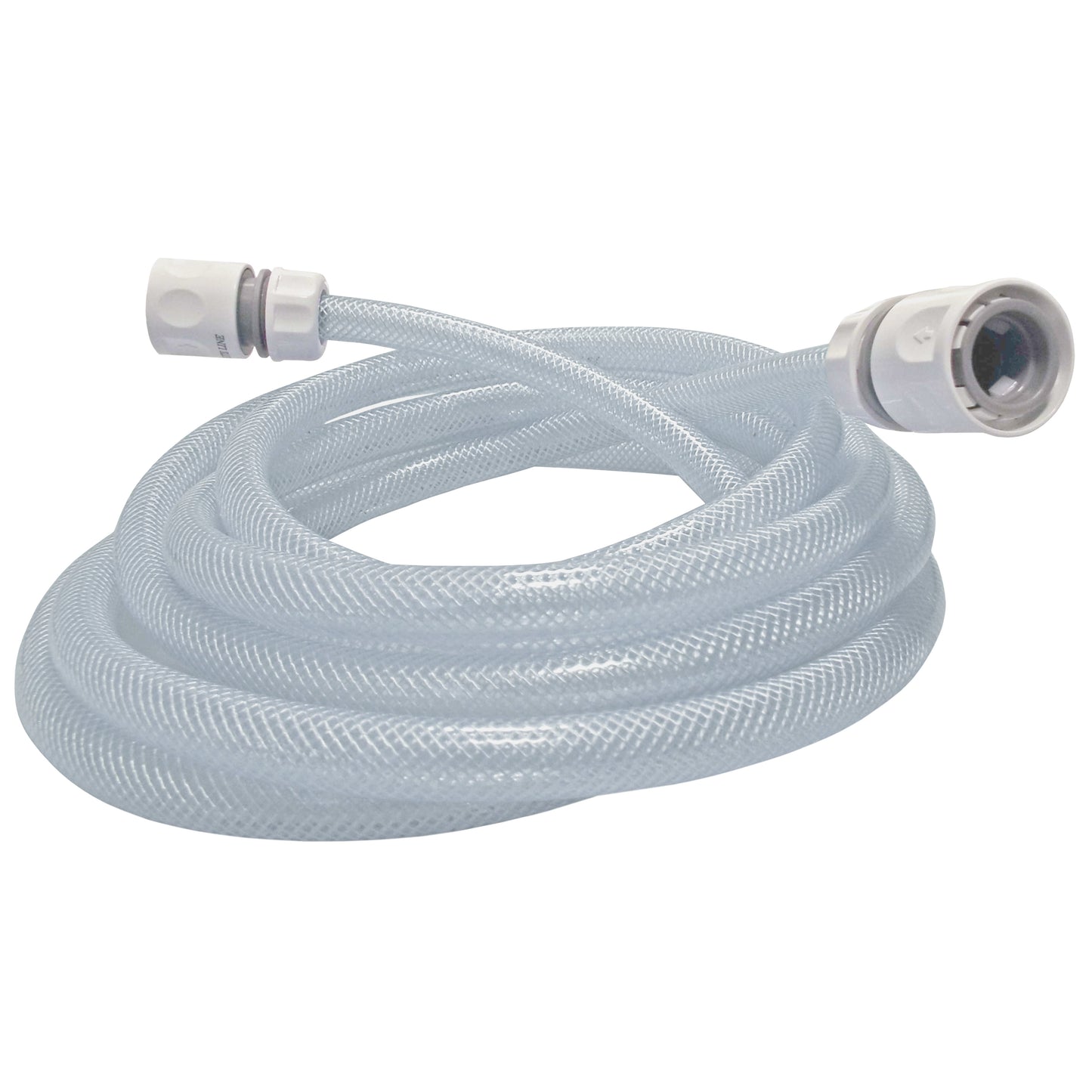

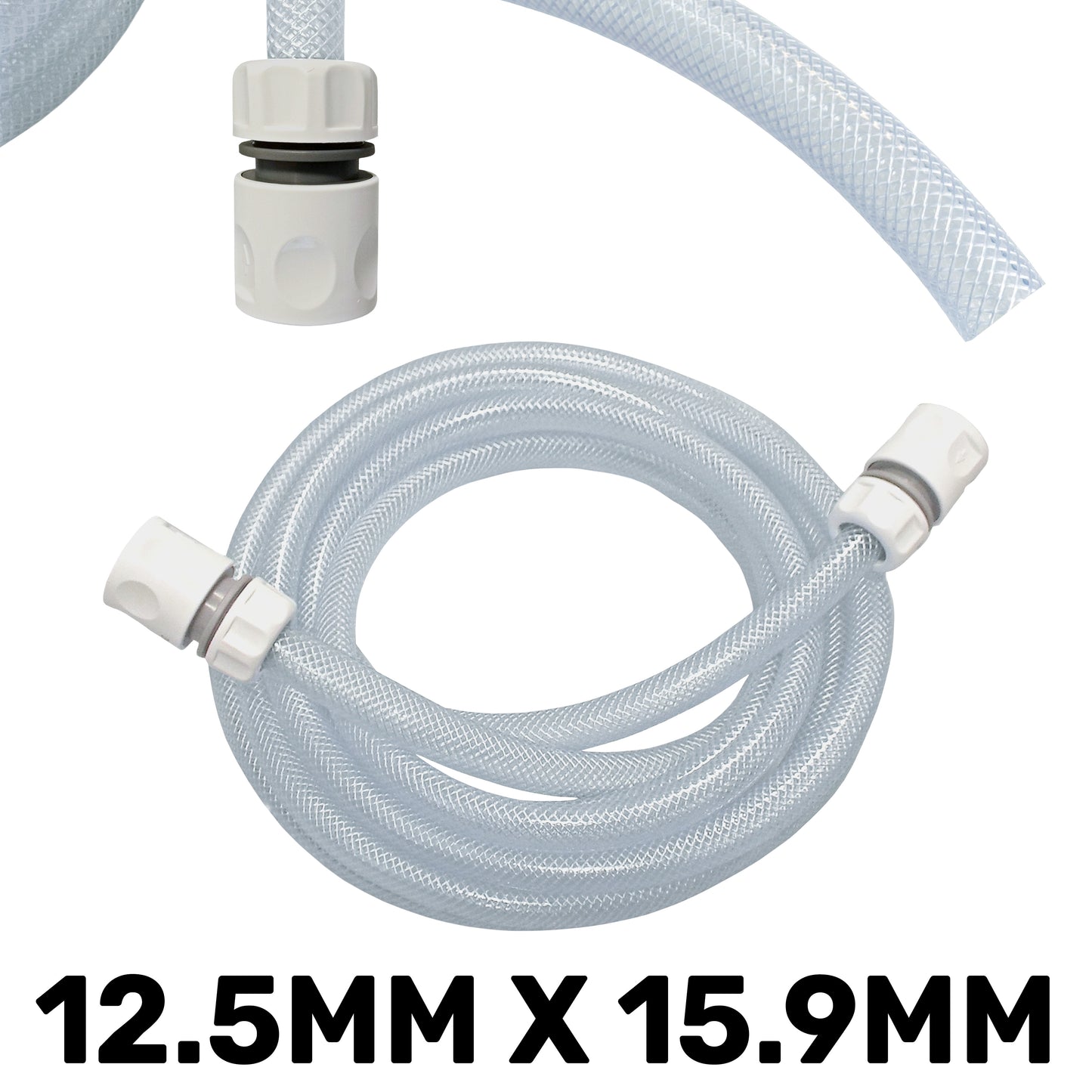

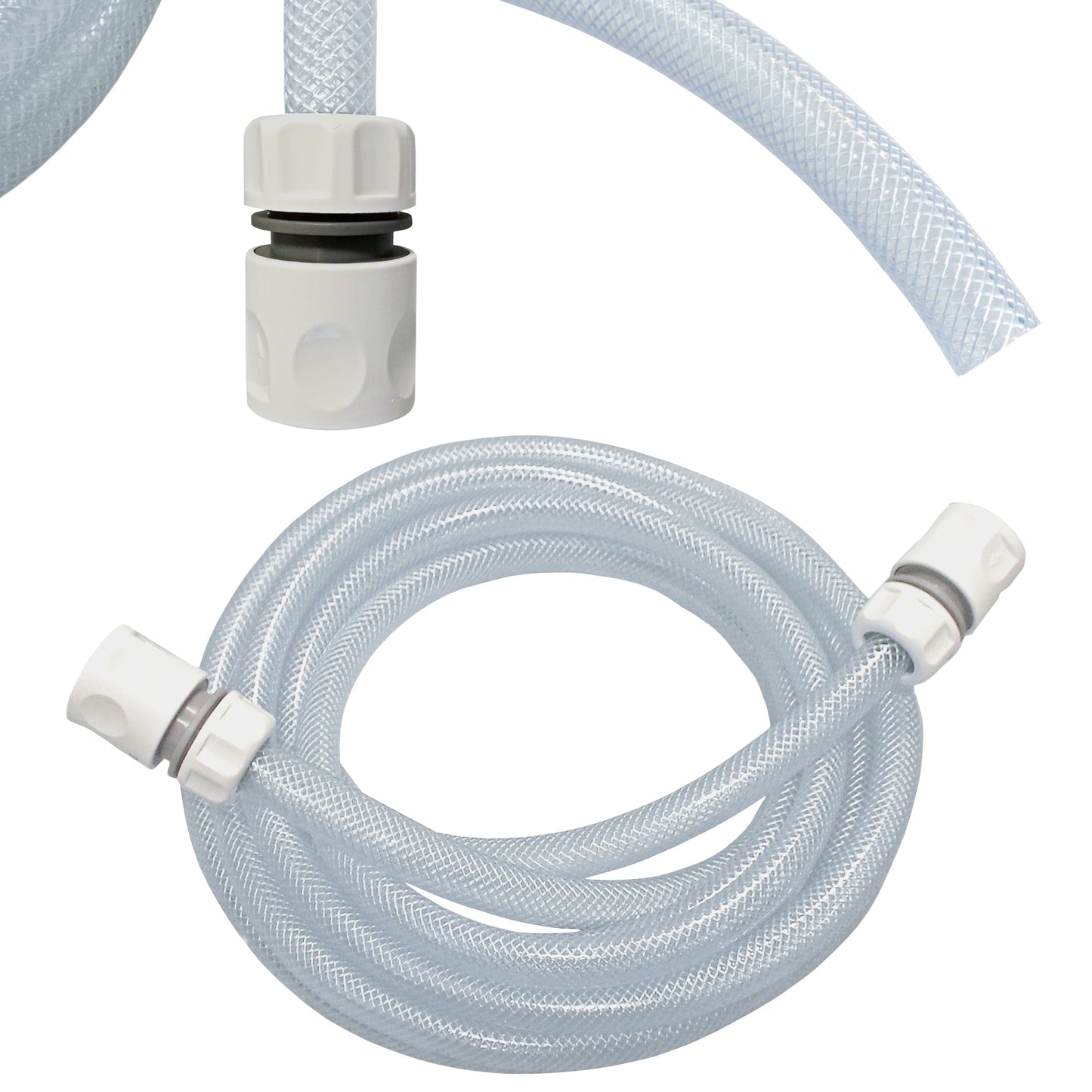

The close-up shows the actual hose braid and connector shape. Additional gallery photos show the hose wall, coil and length options; select the required length using the menu above the purchase buttons.
Measure the route, then check the fittings
Allow for bends and movement so the hose does not pull against its connections.
Choose the length you need

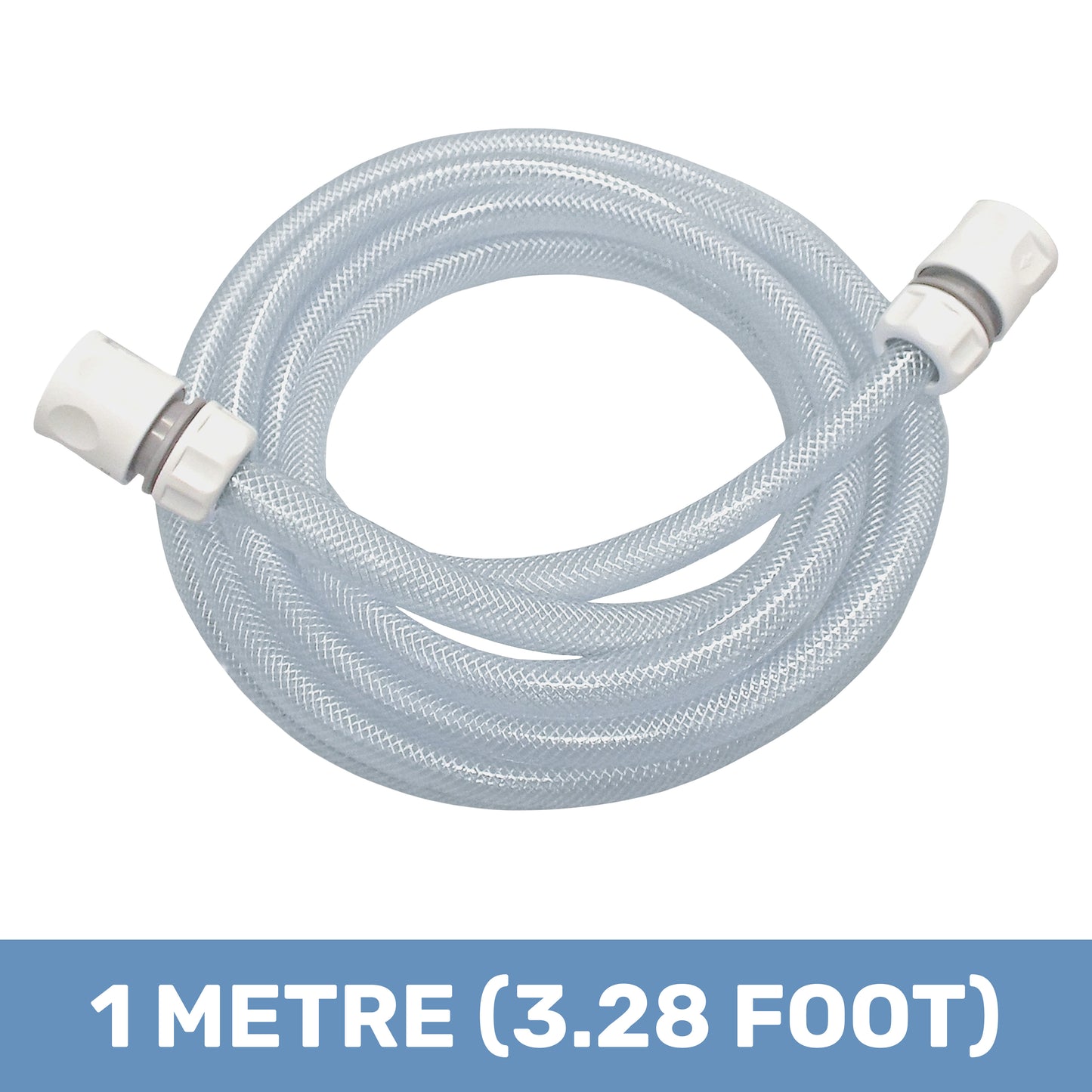

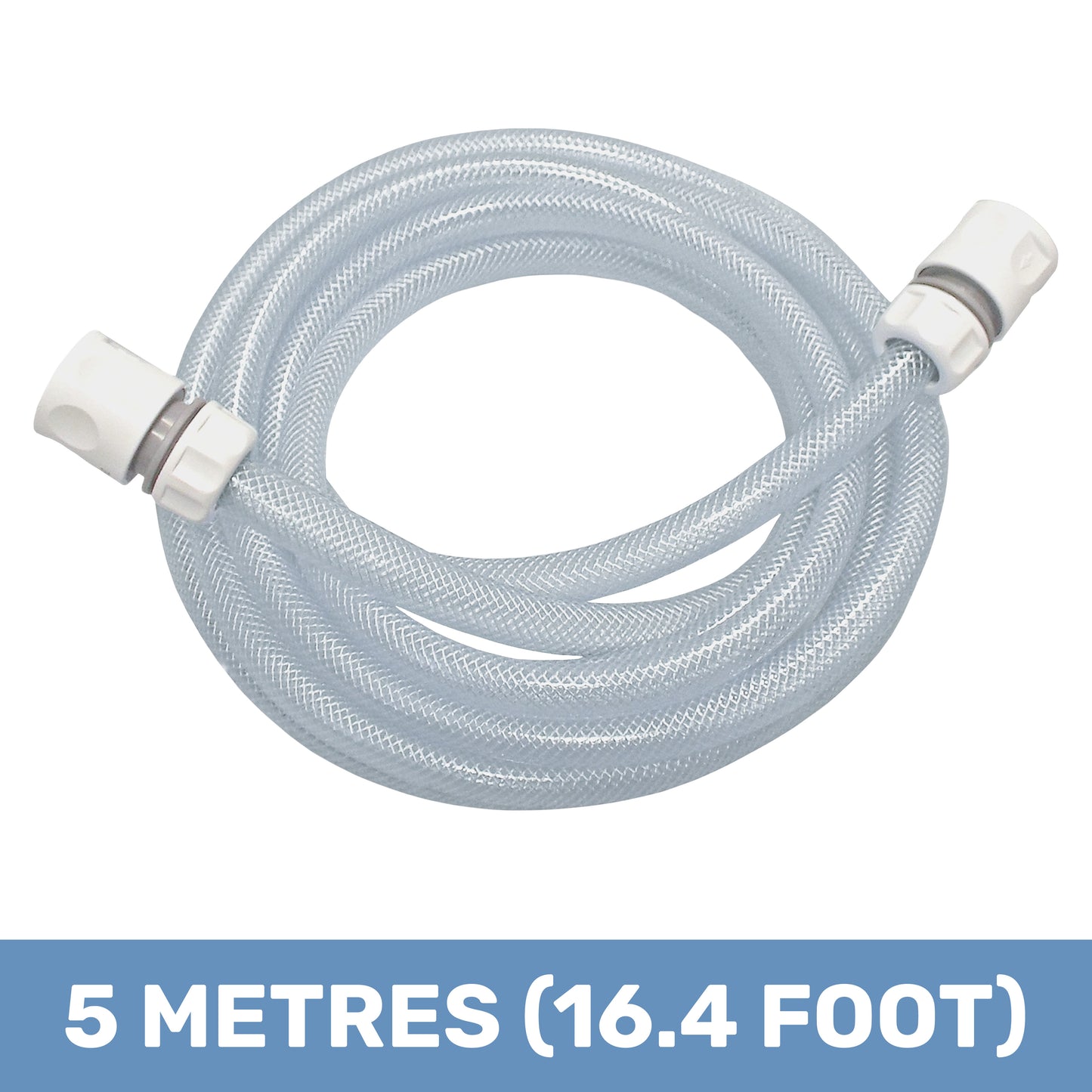

Follow the intended route from one connection point to the other. Choose from 1m, 2m, 3m, 4m, 5m, 10m, 20m and 50m. Every option includes two connectors, so ordering a longer length does not add extra fittings.
Check the whole assembly
The hose-only specification is 10 bar working pressure and −20°C to +60°C. Those figures do not establish the limits of the supplied quick connectors or a completed installation. Use this kit for garden watering; select separately rated components for specialised fluid or pressure duties.
Turn off, release and drain
Close the tap and release remaining water pressure before disconnecting. Avoid sharp kinks and tension at the ends. Drain after use and store away from frost; inspect the hose and fittings before reconnecting.
Hose kit questions
Does every length include two connectors?
Yes. Each option includes the selected hose length and two grey/white female garden quick connectors for ½-inch hose. Tap adapters, spray guns and other accessories are separate.
Will it connect straight to my outdoor tap?
It connects to a compatible male garden quick-connect plug. If your tap has a bare BSP thread, add a tap adapter with the correct thread size and a matching male quick-connect outlet.
Is ½-inch the exact hose diameter?
½-inch is the nominal size used for matching the supplied garden connectors. The hose's specified internal diameter is 12.5mm, its outside diameter is 15.9mm and its wall is 1.7mm thick.

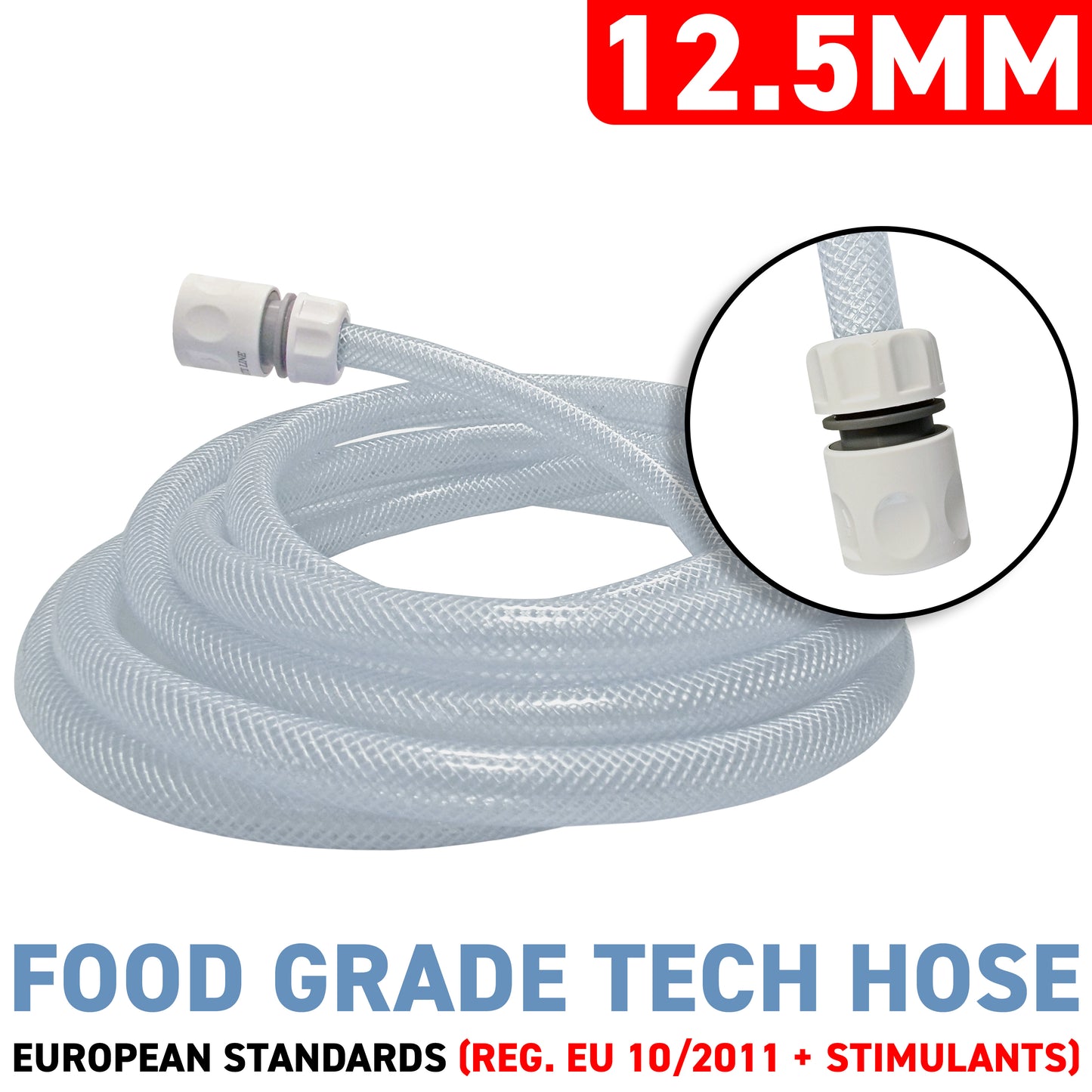

Is this a rated hot-water or drinking-water kit?
No assembled-kit rating is specified for those uses. Hose-only technical data does not certify the supplied connectors or the completed assembly. Choose components explicitly rated for your intended fluid, temperature and pressure.

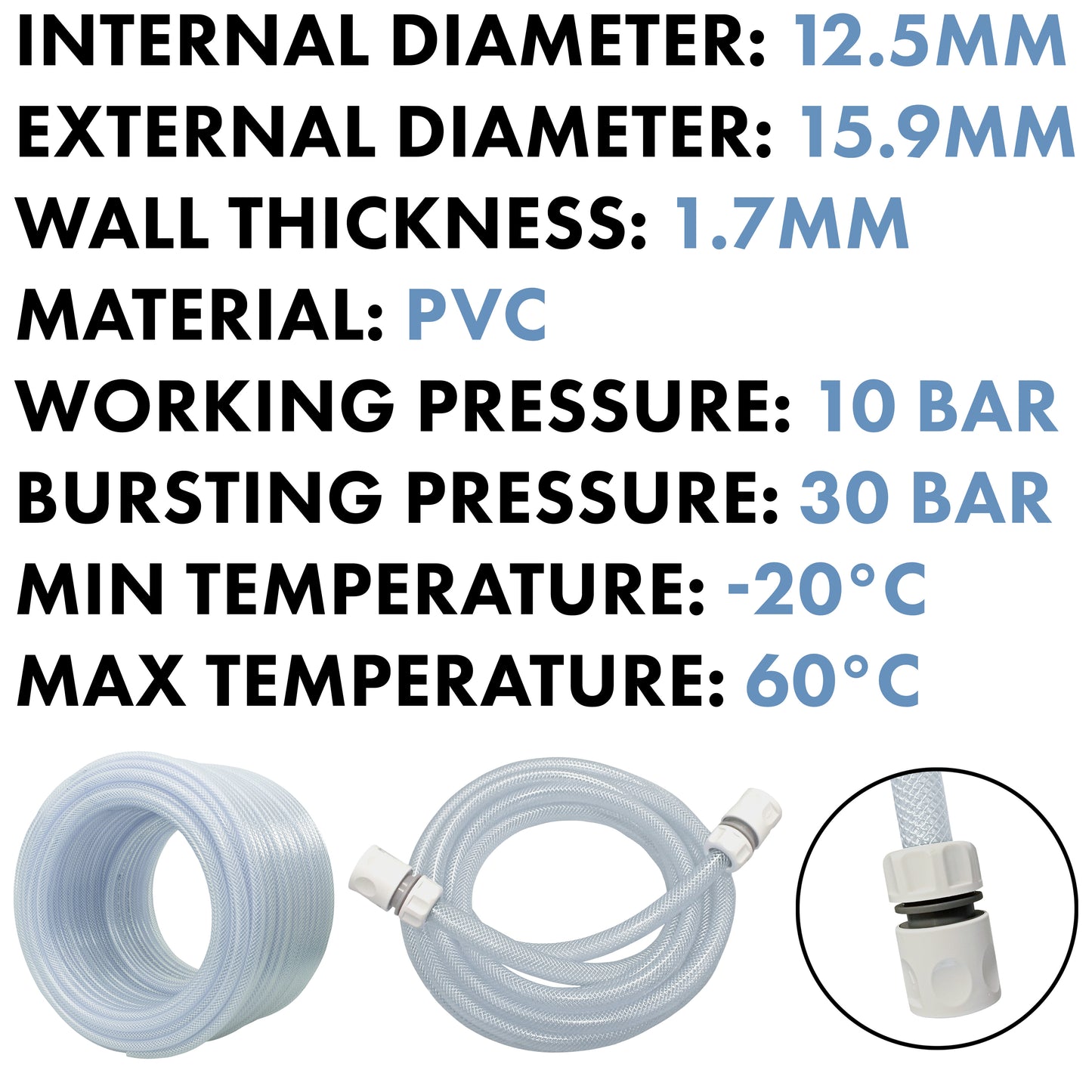

Product information & technical details
| SKU | BRAIDED125*2PVC001+ |
|---|---|
| Product type | |
| Internal diameter | 12.5mm (1/2") |
| Colour | Clear |
| Material | Plastic |
| Outside diameter | 15.9mm |
| Wall thickness | 1.7mm |
| Hose construction | Four-layer reinforced PVC with polyester yarn |
| Available lengths | 1m, 2m, 3m, 4m, 5m, 10m, 20m or 50m |
|---|---|
| Connectors supplied | Two grey/white plastic female garden quick connectors for ½-inch hose |
| Connection interface | Female garden quick-connect socket; matching male plug required |
| Hose-only working pressure | 10 bar; not an assembled-kit pressure rating |
| Hose-only temperature range | −20°C to +60°C; not an assembled-kit temperature rating |
| Intended kit use | Garden watering with compatible fittings |
| Not included | Tap adapter, spray gun and other watering accessories |
