Description
A hose link with a branch for watering
Connect two compatible IBC water stores using blue ½-inch hose and white-and-grey quick-connect fittings. A three-way connector at one tank provides a branch for a separate outgoing hose.
Choose 2m, 3m, 4m or 5m of linking hose. The caps fit S60x6 coarse-thread outlets, and the two ends use different quick-connect arrangements.

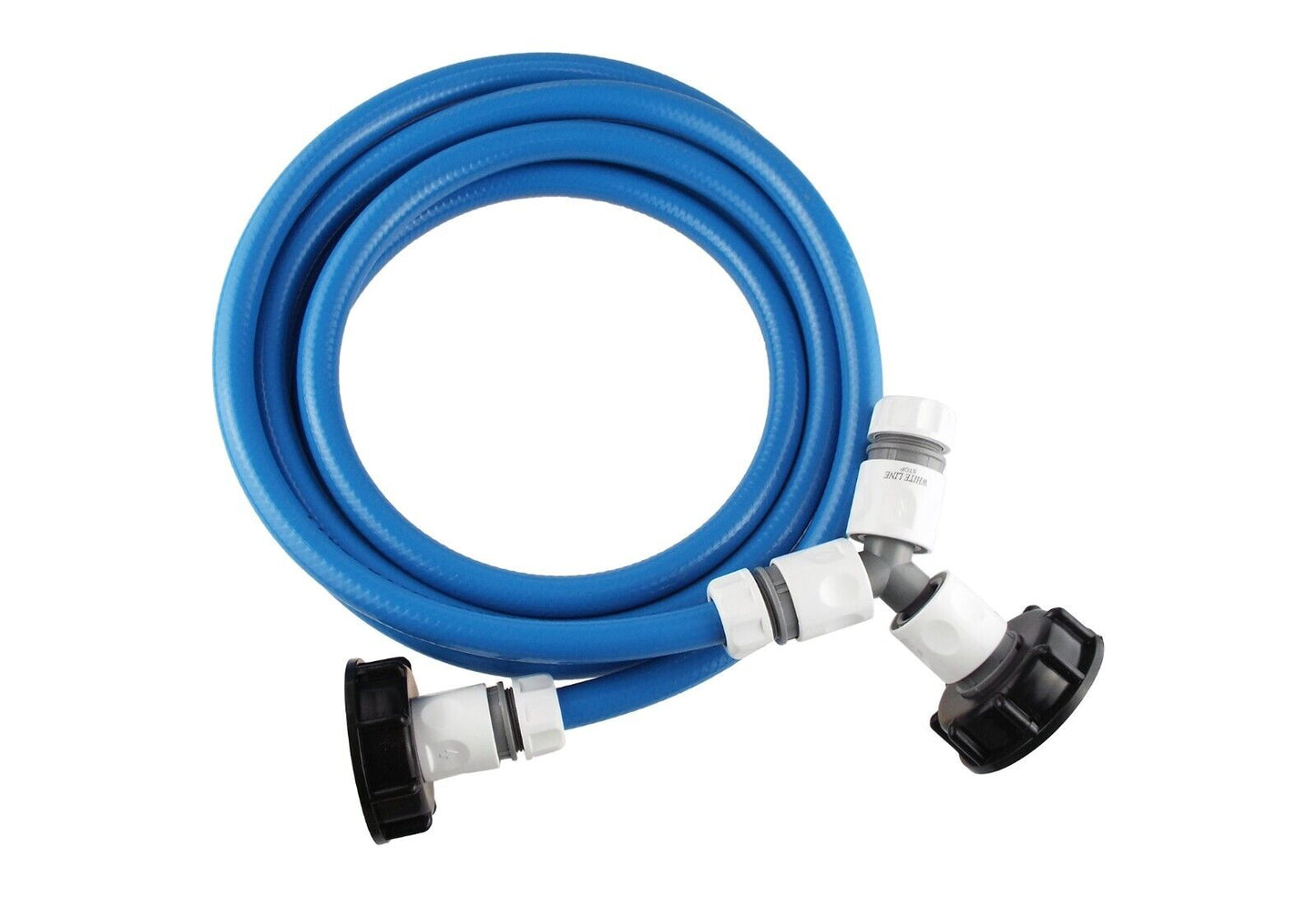

The kit supplies the adapters, three-way fitting, three hose-end connectors and your selected blue hose. IBC tanks, their original valves and a separate outgoing hose are not supplied.

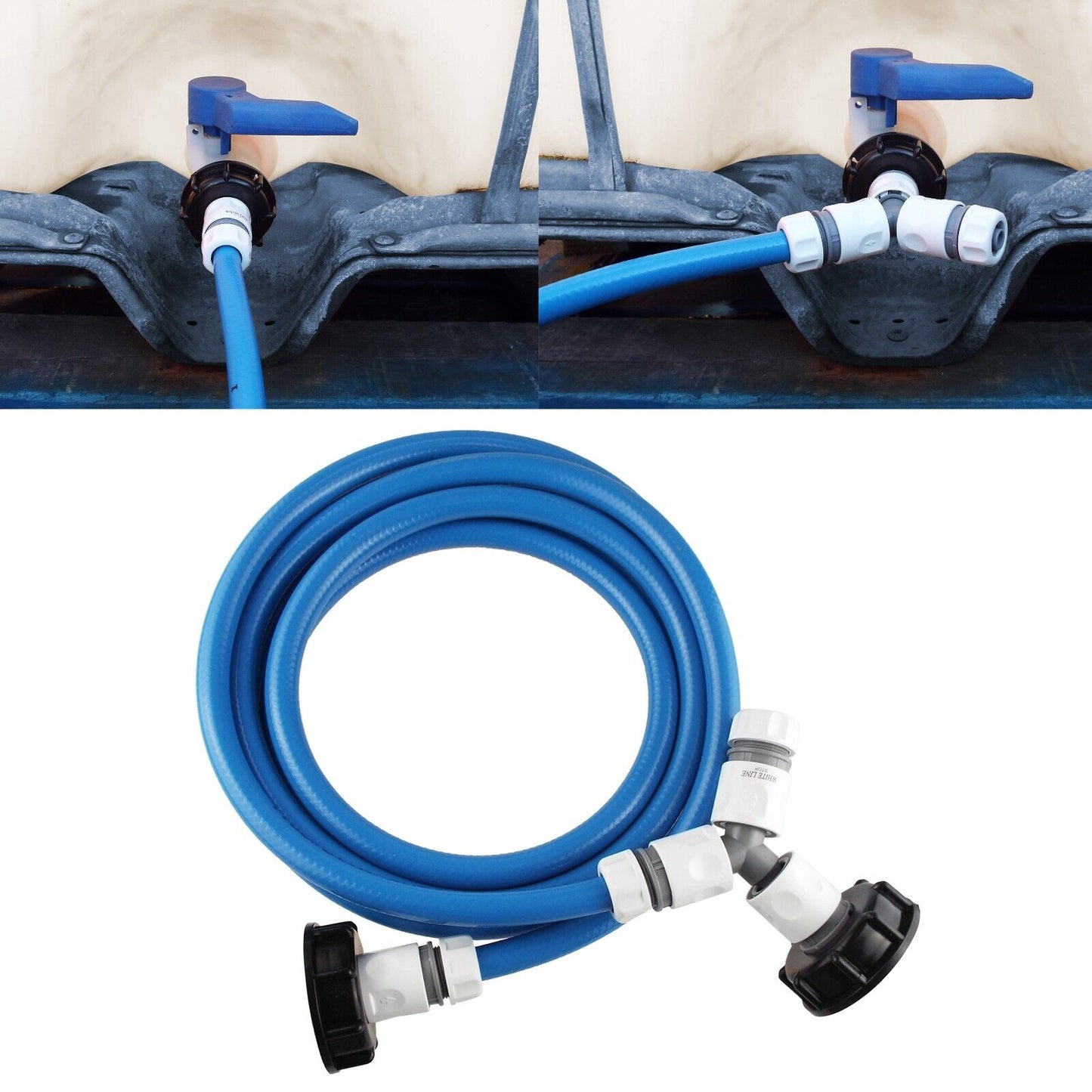

Different connections at each tank

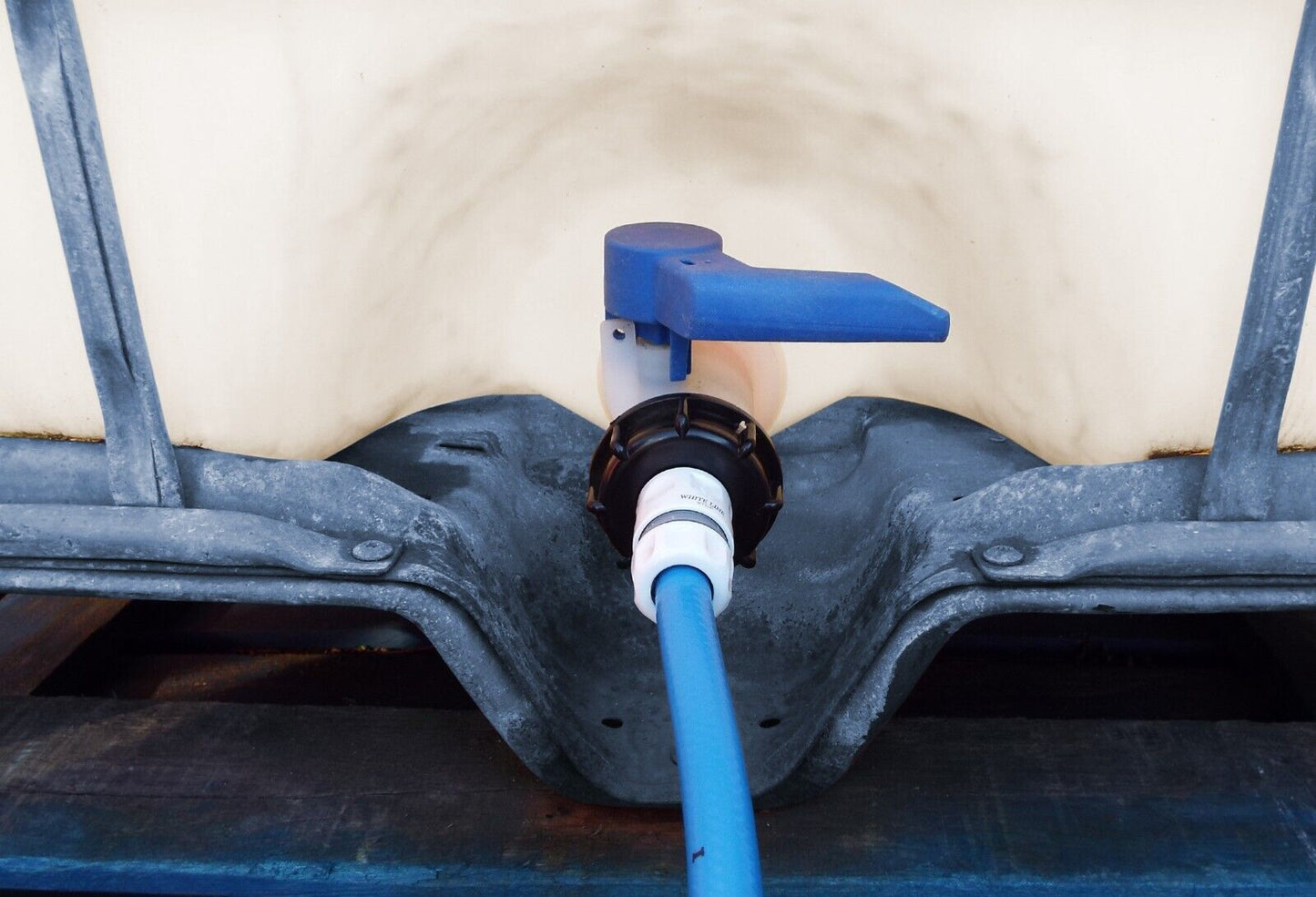

The straight end shown here uses a black S60x6 cap with a male quick-connect plug. A hose-end connector grips the blue hose and clips onto that plug.

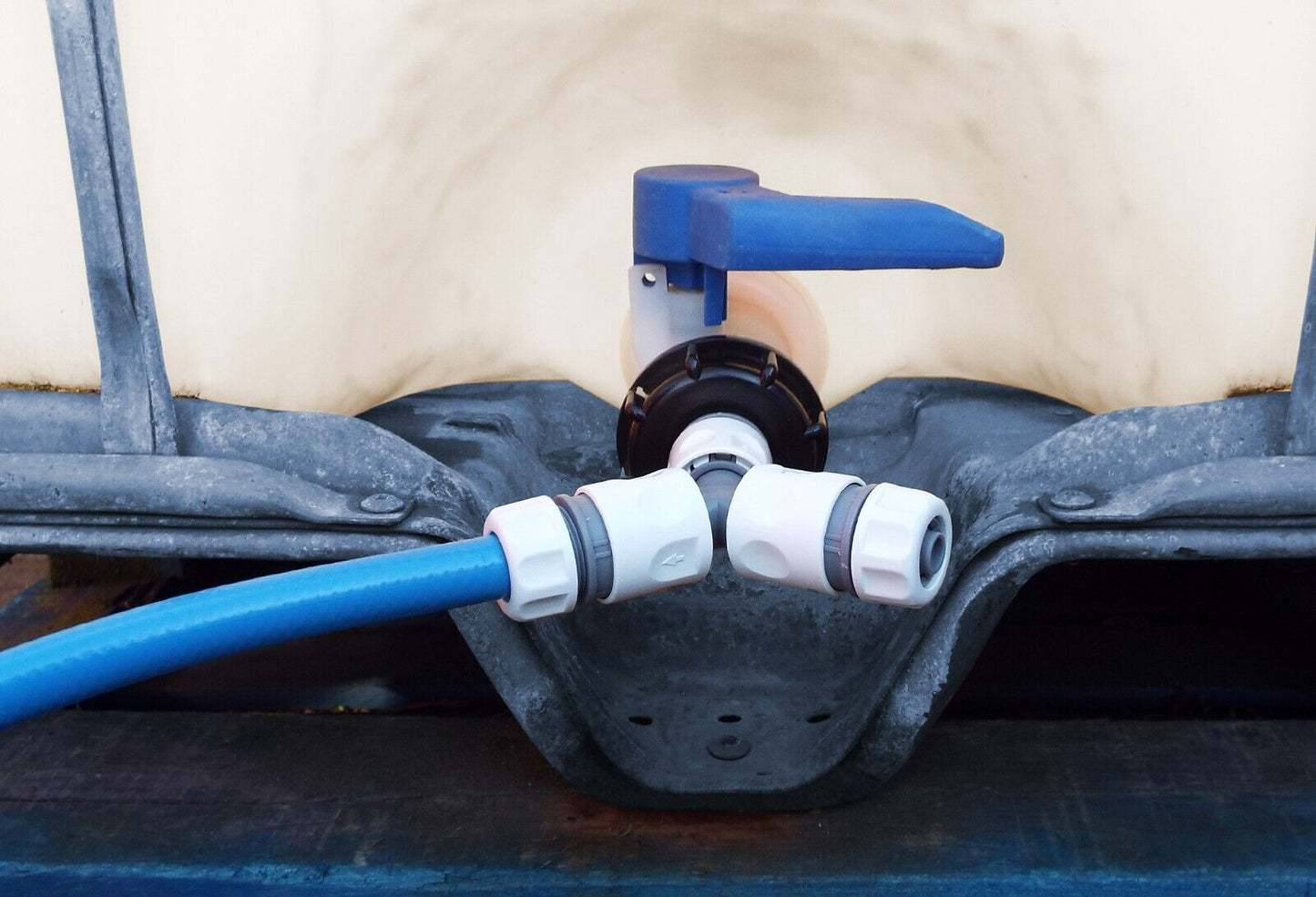

At the three-way end, a second S60x6 cap has a ¾-inch BSP female socket. The threaded female quick-connect adaptor screws into it; one male plug of the three-way fitting clicks into that adaptor.
The other two plugs accept hose-end connectors: one for the blue link to the second tank, and one for your separate outgoing ½-inch hose. Three hose-gripping connectors are supplied; the threaded socket adaptor is a different component.
Plan the connection before ordering
Will this kit fit any two IBC tanks?
Both outlets need S60x6 coarse threads. Check the actual valves on your tanks, not just the tank capacity or cage shape. The ¾-inch BSP thread joins the socket adaptor to one cap; it is not the tank connection.
Can I use the three-way connector like a tap?
No. It joins three connections and has no manual shut-off or selector handles. Use the tanks' existing valves to isolate the supply, and arrange suitable control for your outgoing line before opening them. Do not rely on the three-way fitting itself to close an unused branch. No separate tap valves or pump are included.
How much hose comes with the kit?
Select 2m, 3m, 4m or 5m of blue reinforced PVC hose, with a ½-inch (12.7mm) internal diameter. This is the supplied linking length, not a guaranteed tank-to-tank spacing. Measure the full route and allow gentle curves and access to the fittings. Any separate outgoing watering hose is additional.
Product information & technical details
| SKU | IBCKITWL001A |
|---|---|
| Product type | |
| IBC thread size | S60X6 (2") |
| Kit parts | 1 × threaded S60x6 cap, 1 × male quick-connect S60x6 cap, 1 × threaded socket adaptor, 1 × three-way connector, 3 × hose-end connectors, Selected blue hose length |
| Material | Plastic |
| Hose lengths | 2m, 3m, 4m or 5m, according to option |
| Hose bore | ½-inch (12.7mm internal diameter) |
| Hose material | Reinforced PVC |
|---|---|
| Cap connections | S60x6; one male quick-connect cap and one ¾-inch BSP female cap |
| Threaded socket adaptor | ¾-inch BSP male to female quick-connect |
| Hose-end connectors | 3, each for ½-inch hose |
| Three-way connector | 3 male quick-connect plugs; no manual tap controls |
| Colours | Black, blue, white and grey |
