Description

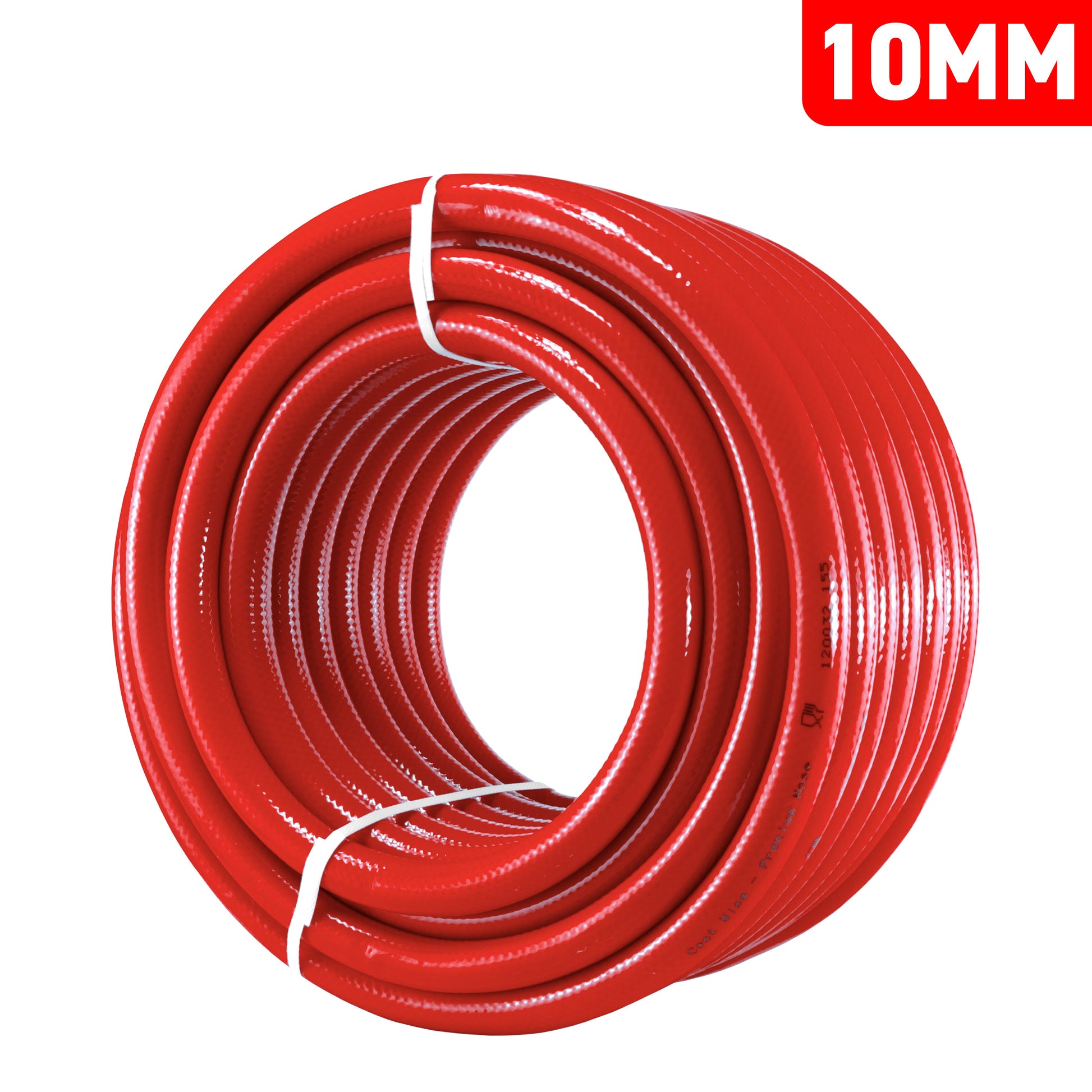

A 10mm water line you can identify at a glance
Red reinforced PVC drinking-water hose for caravan, camping and motorhome connections, supplied without end fittings.
Its 10mm internal diameter and 15mm outside diameter give you two useful measurements when matching a replacement or planning new connections.
Select a length from 1m to 50m to suit your route.
Start with the connection you need to make
Hose bore, outside diameter and threaded outlets describe different things.

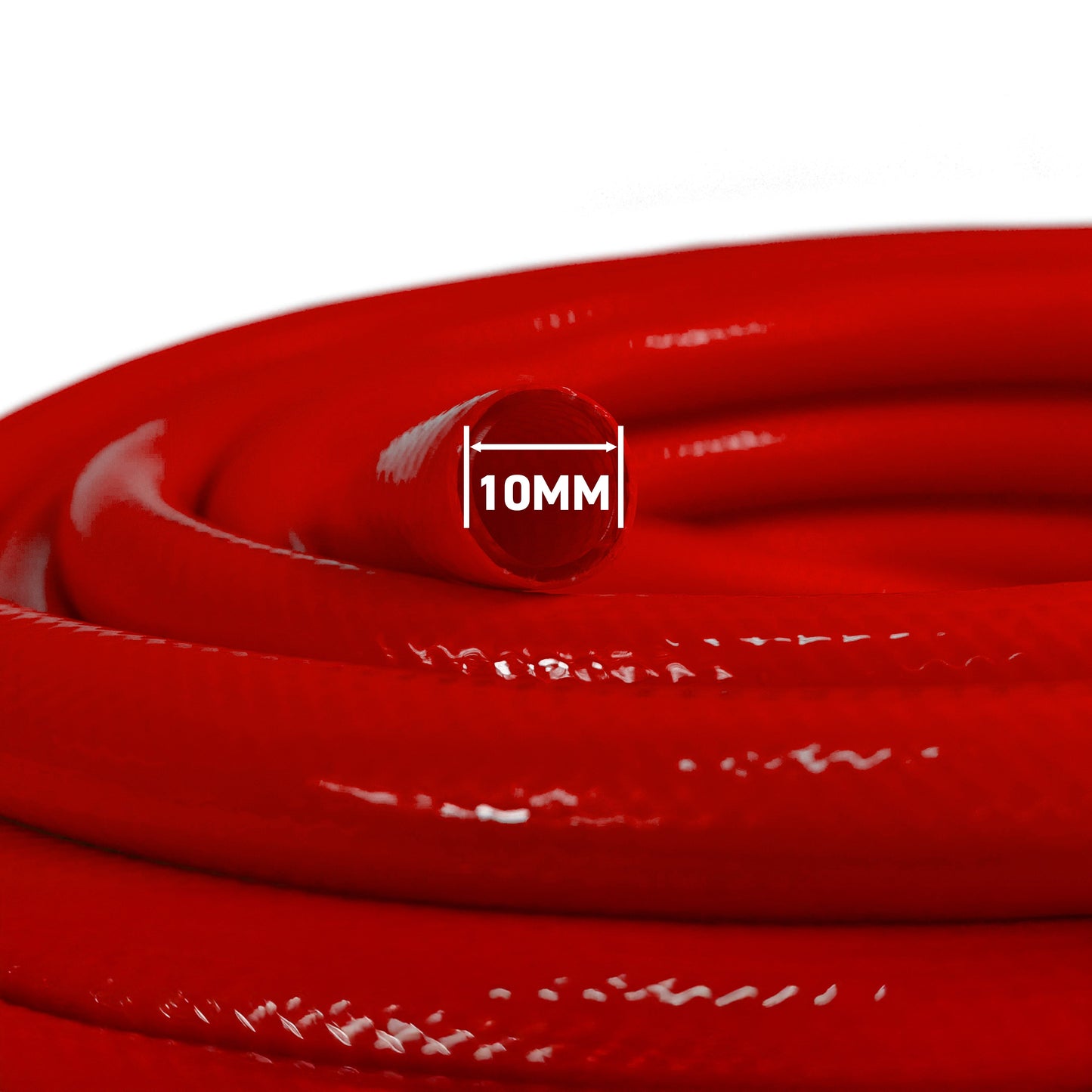

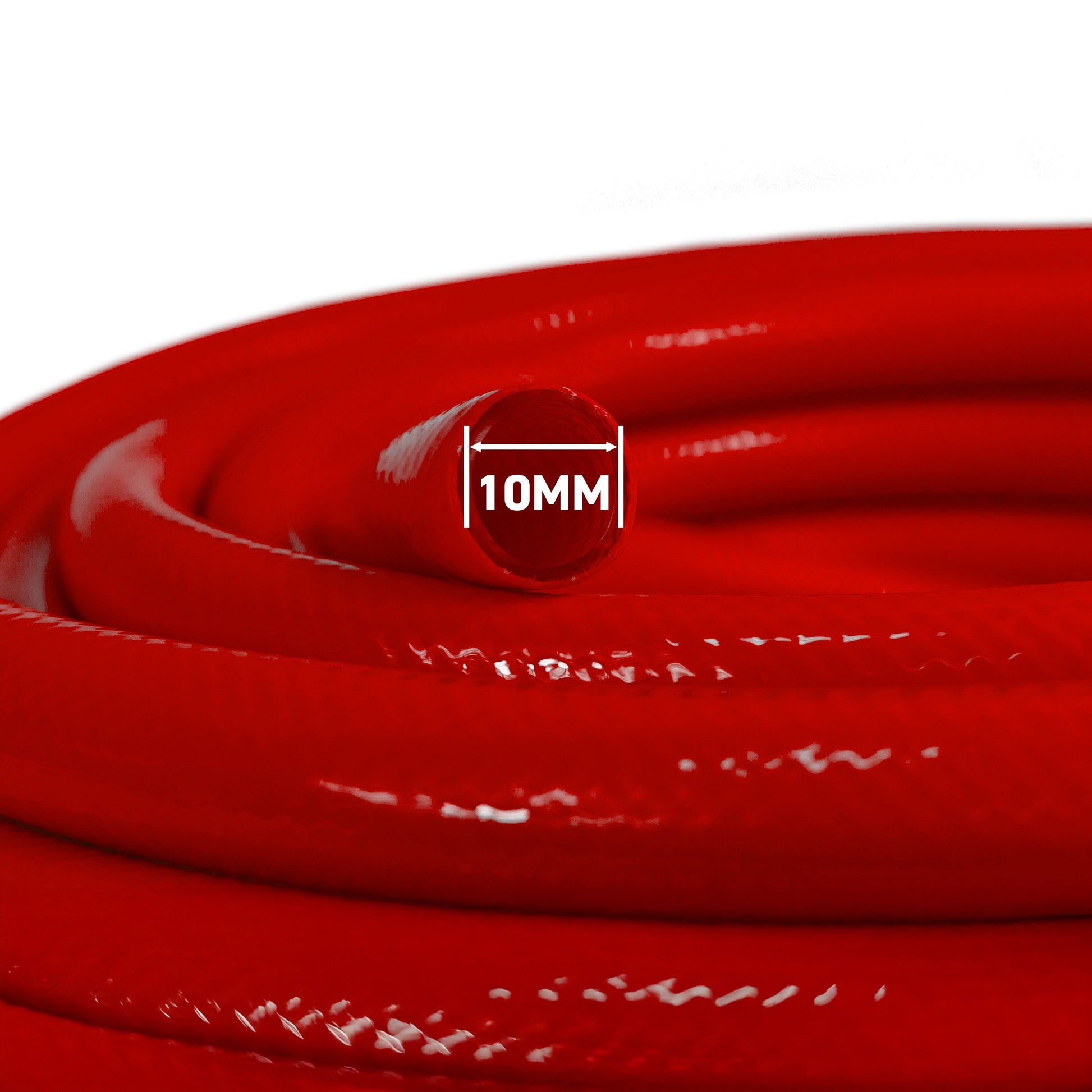

10mm on the inside
The bore is the opening through the hose. Choose a hose-tail intended for 10mm internal-diameter flexible hose, with the securing method recommended for that fitting.
15mm on the outside
The outside measurement includes the hose wall. Check this dimension where a connector grips the outside of the hose, and check that the connector is intended for reinforced flexible PVC.
Check the other end
A BSP thread on a tap or appliance is a separate measurement. Match each end of an adapter to its mating part rather than treating a hose diameter as a thread size.
Choose the length, then give it room to bend
Available lengths are 1m, 2m, 3m, 4m, 5m, 10m and 50m. Measure along the path the hose will follow, allowing space beside fittings and around changes of direction.

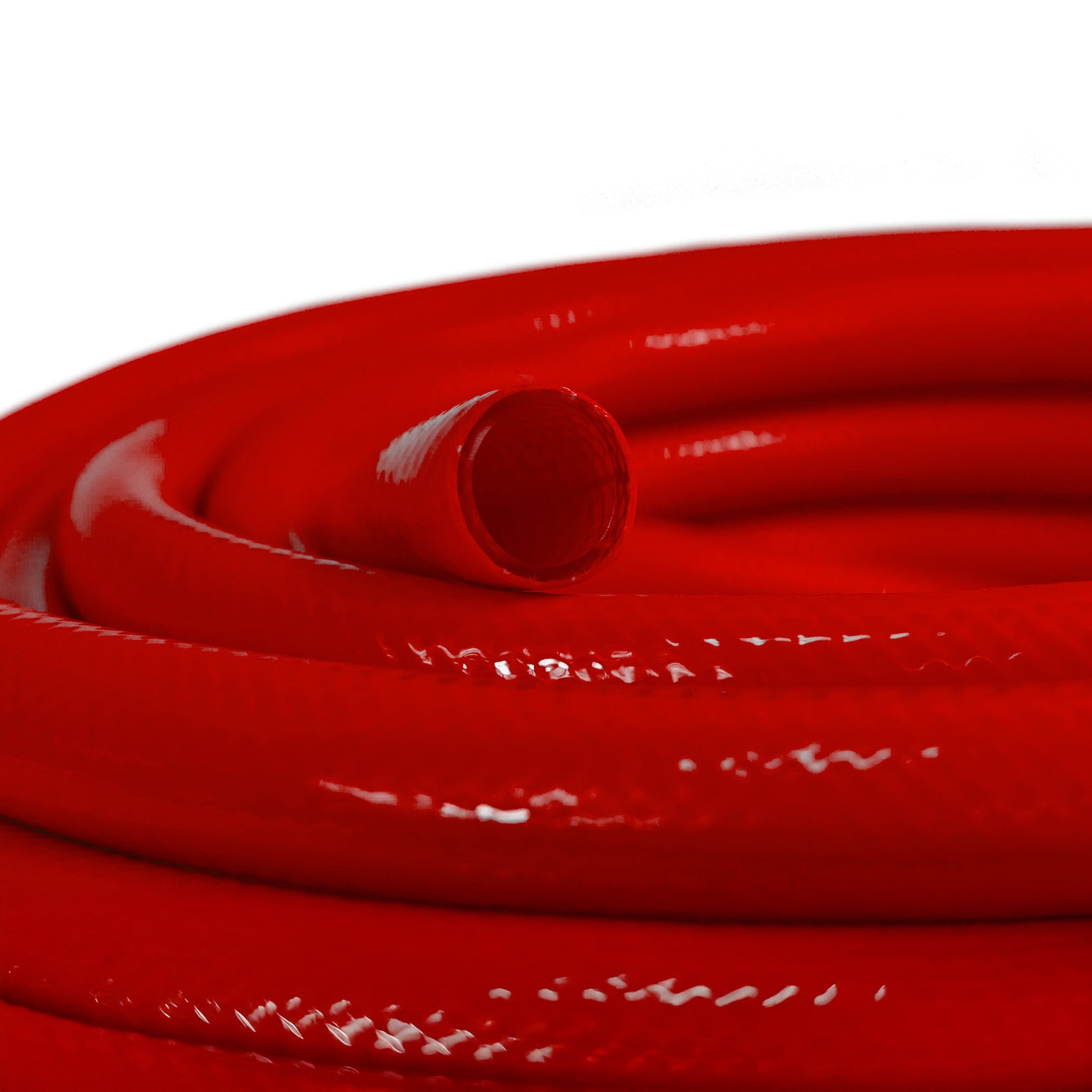

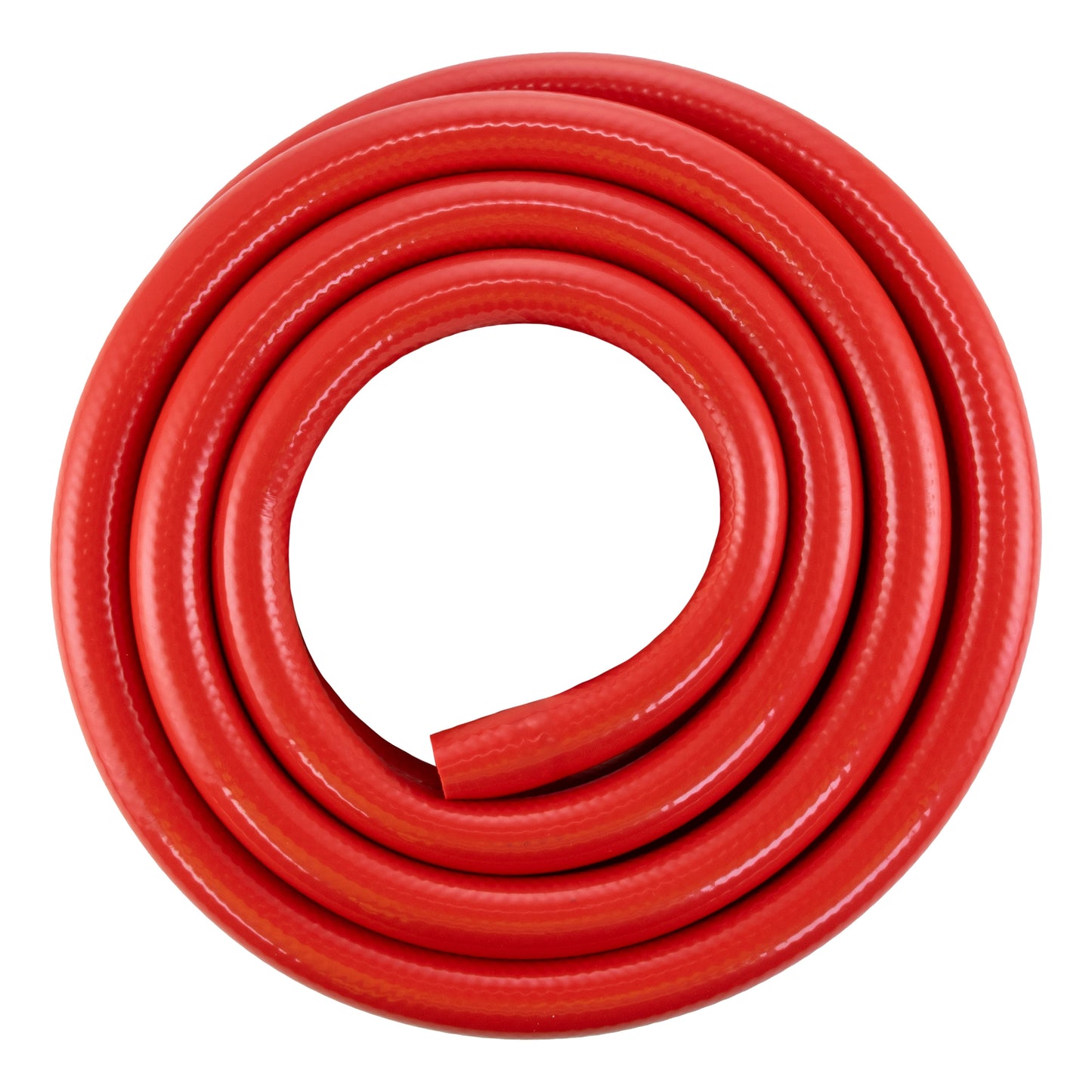

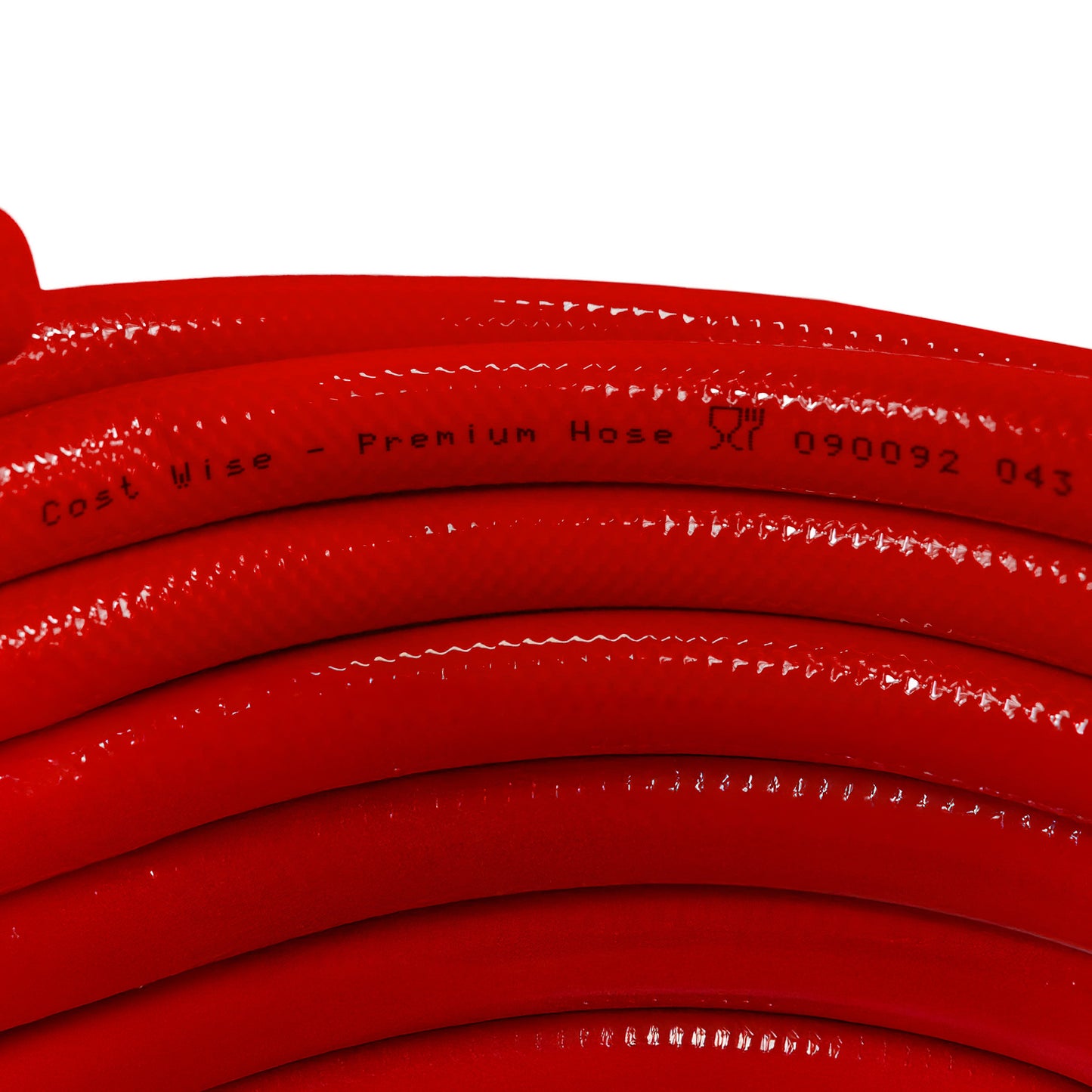

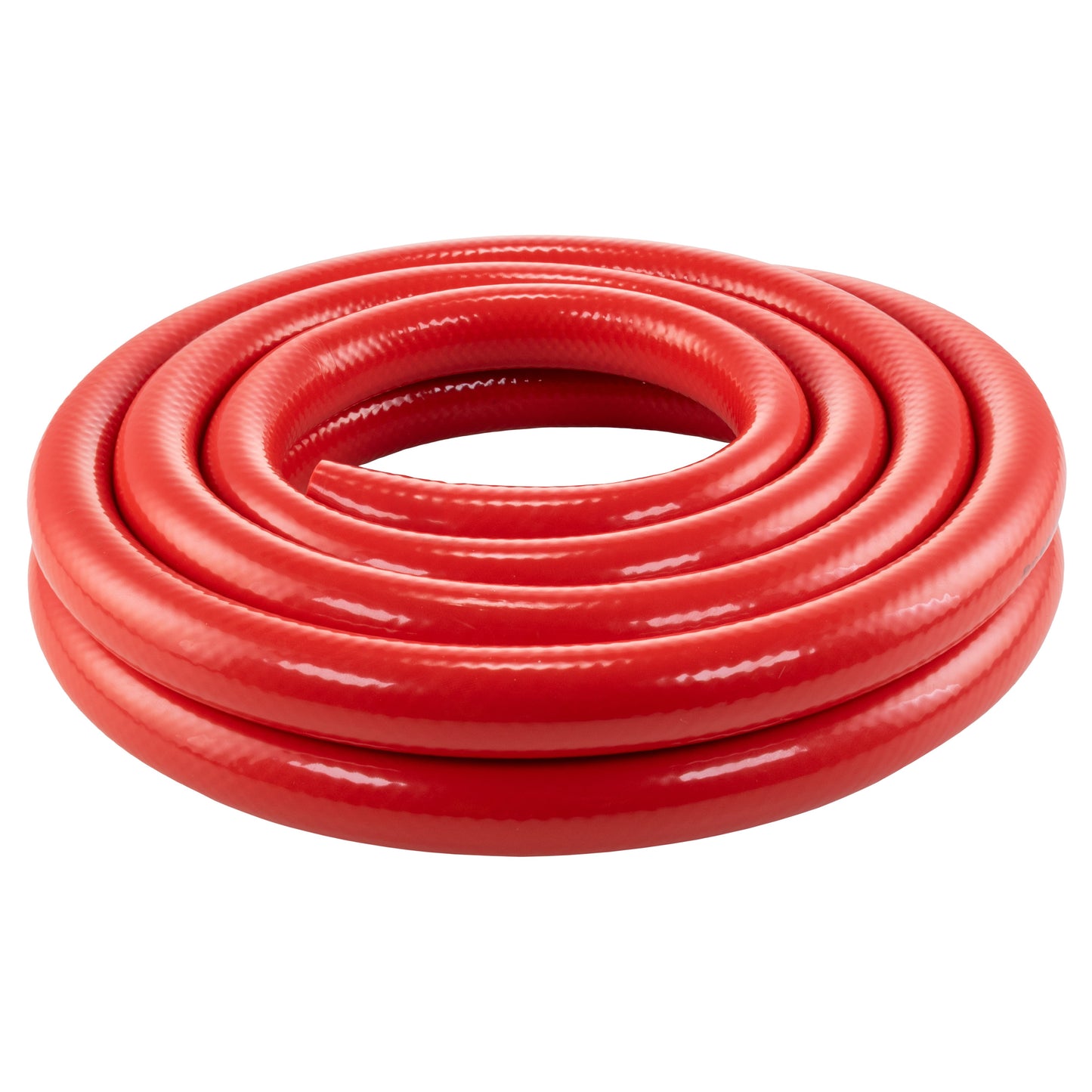

The four-layer reinforced PVC hose has a clear inner core and a red exterior. Support the run, avoid sharp edges and leave bends gradual. A tight fold can restrict the waterway even in reinforced hose.

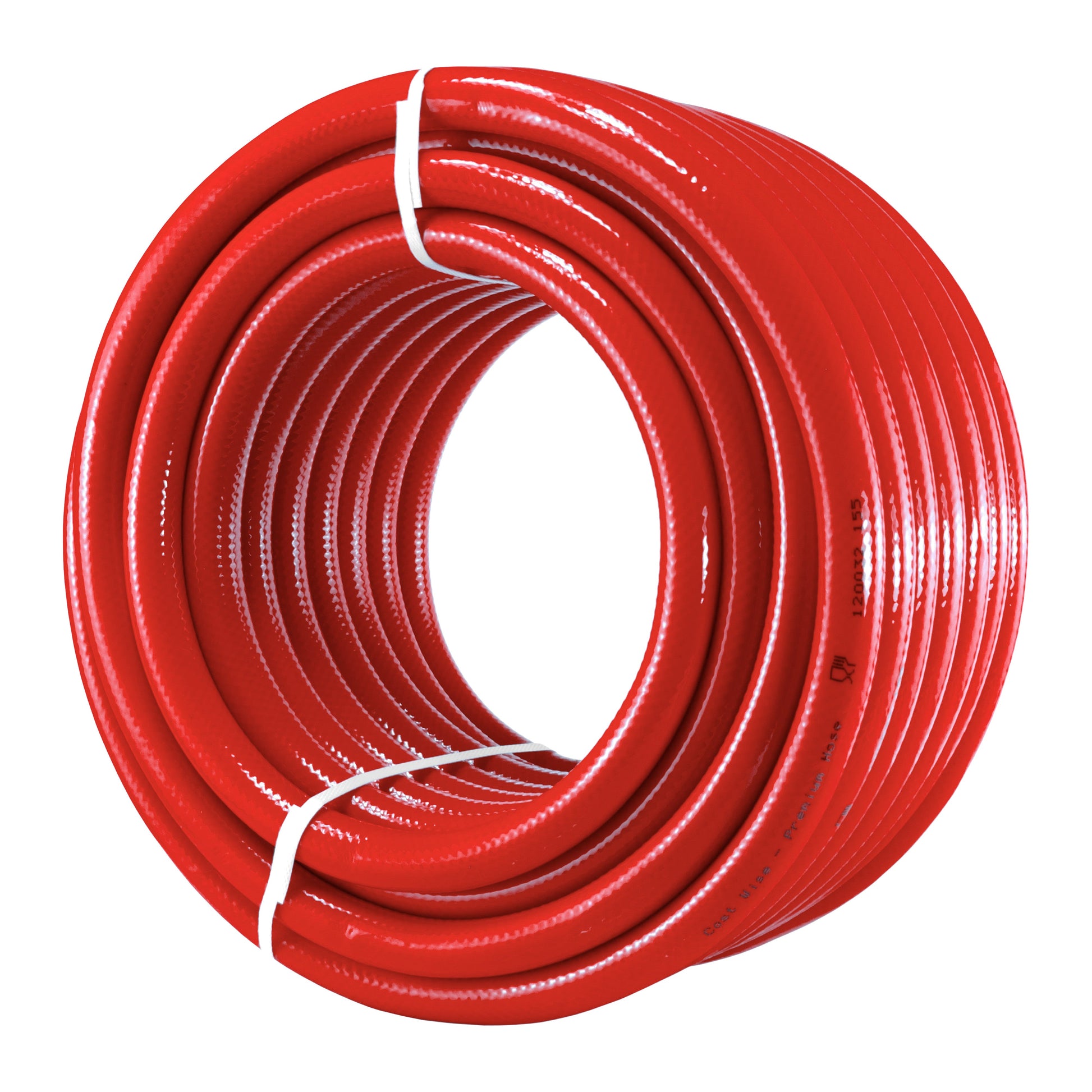

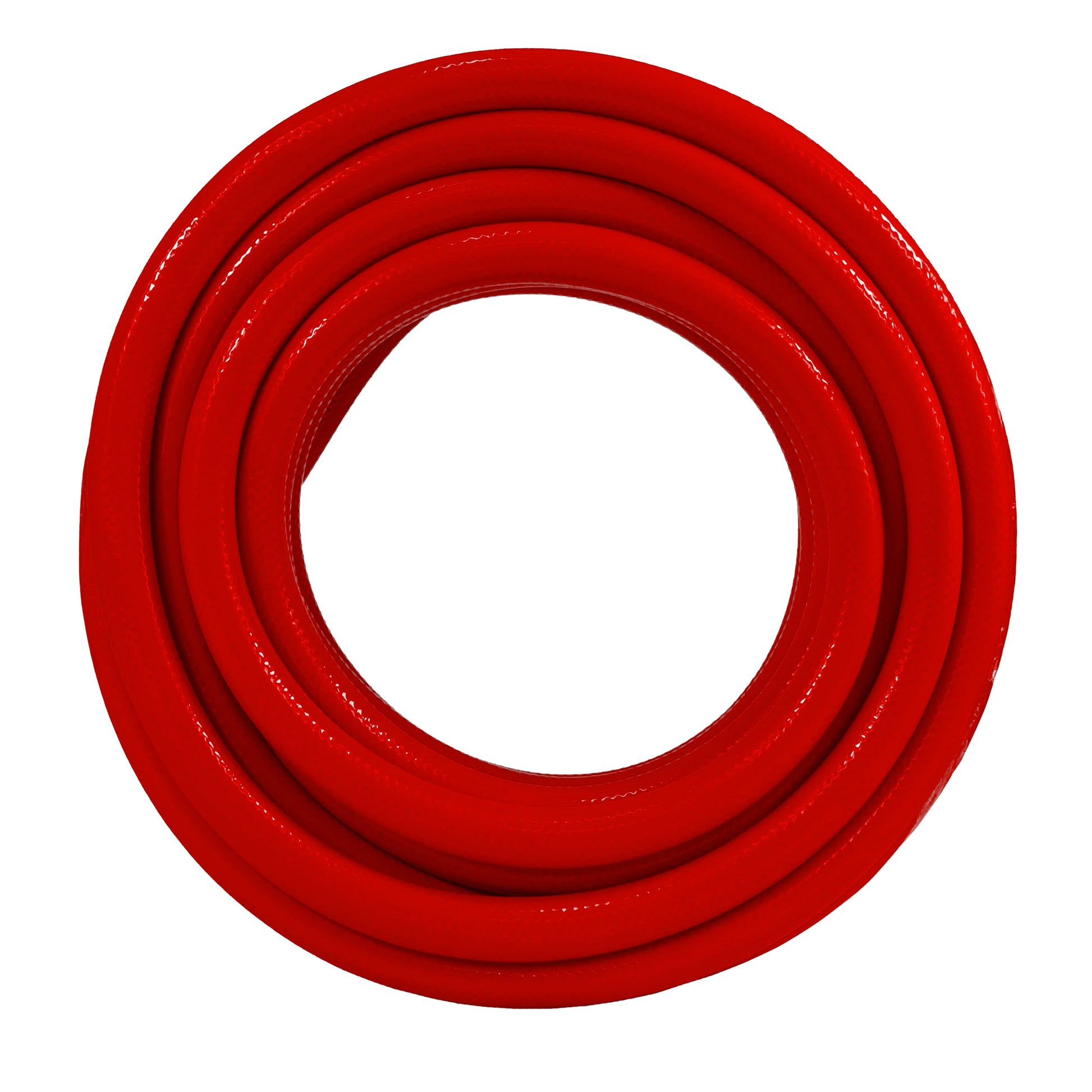

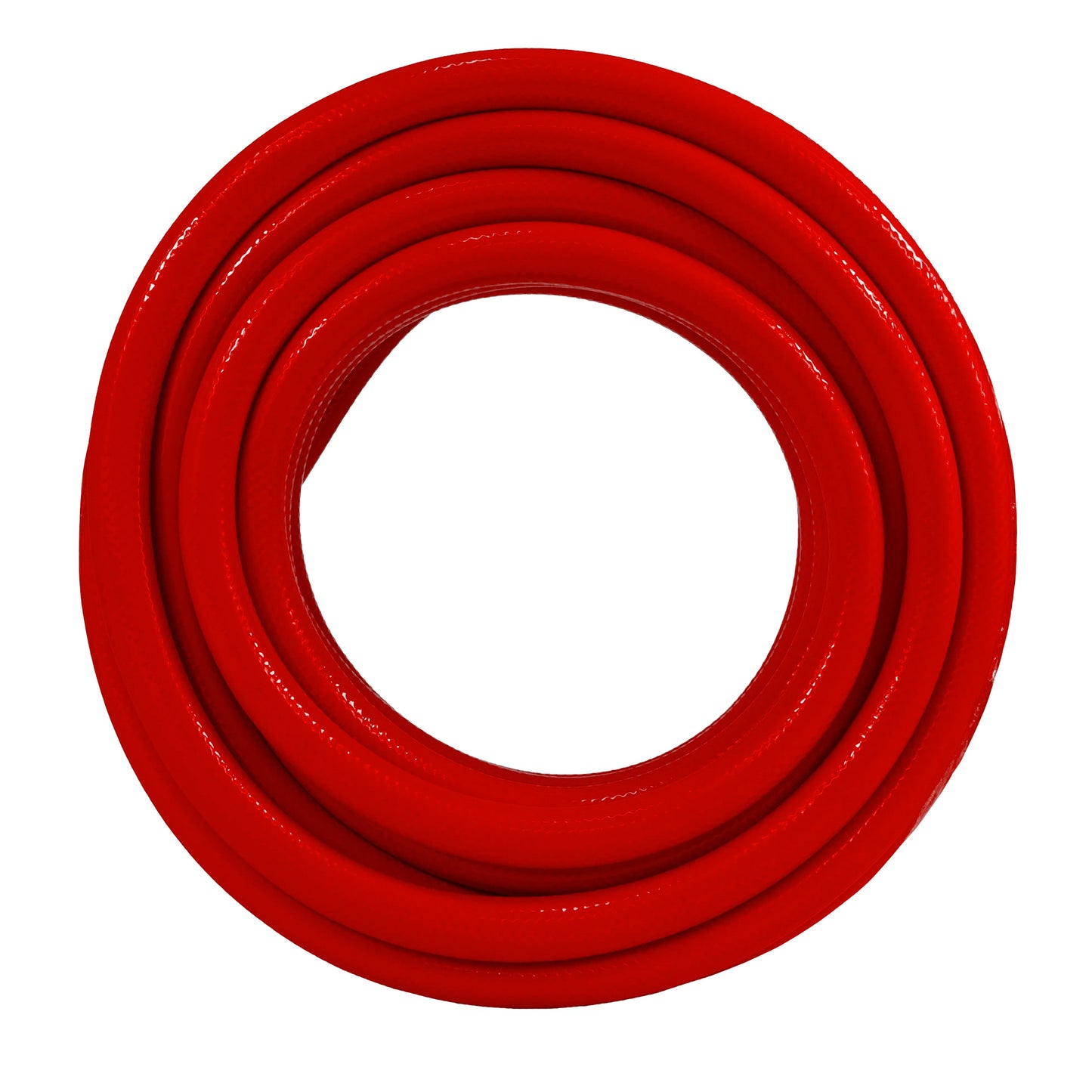

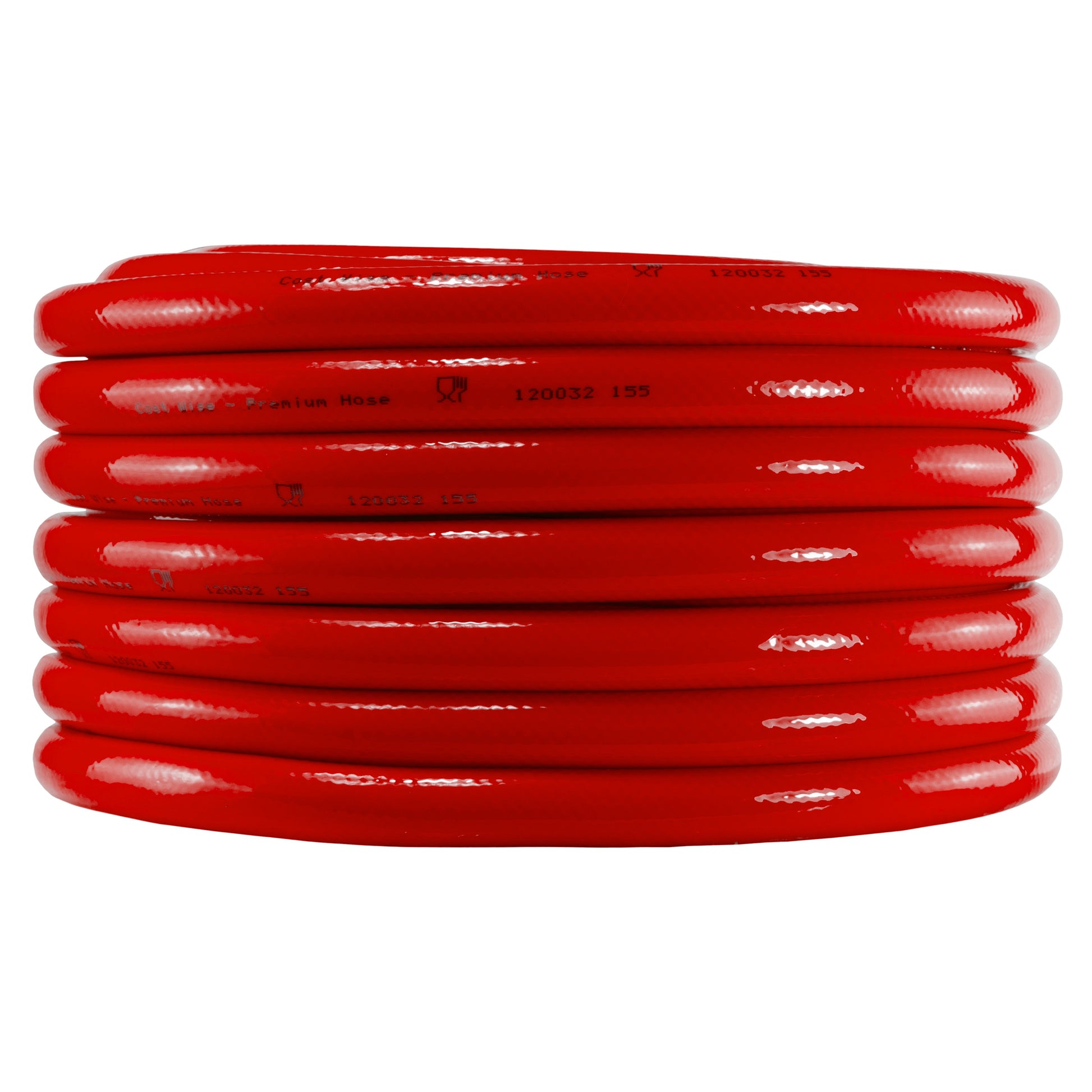

The photographs illustrate the hose rather than the length of every option. Select the required length above before adding it to your basket.
Keep the whole water path suitable
Hose, fittings and cleaning all contribute to a practical installation.
Fit suitable ends
This product supplies plain hose only. Connectors, clips, adapters and reels are separate. Choose components suitable for drinking-water service and follow their fitting instructions.
Use colour as a guide
Red follows the common colour convention for identifying a hot-water line. It does not establish an operating-temperature rating. Check the requirements of the pump or appliance as well as the hose and connections.
Clean and inspect
Keep dirt out of the open ends during fitting and storage. Follow your system’s flushing and cleaning instructions, then check the joints with water before putting the line into regular use.
Questions about the 10mm red hose
Is this 10mm or 15mm hose?
Both measurements describe the same hose: it has a 10mm internal diameter and a 15mm outside diameter. Use the bore when choosing a hose-tail, and check the outside measurement for a connector that grips the hose wall. These are hose dimensions, separate from the BSP thread size on a tap or appliance adapter. Check that each fitting suits reinforced flexible hose.
Does red mean it has a different temperature rating?
Red is used for the familiar hot/cold line-identification convention. The colour itself is not a specification for working temperature or pressure. Choose the hose and fittings to suit the operating requirements of your installation, including any pump or appliance. Do not infer an operating limit from the colour or from the hose’s reinforced construction.
Are connectors or clips supplied?
No. You receive the selected length of plain-ended hose. Connectors, clips, adapters and reels are separate. Use ends intended for 10mm-bore reinforced flexible hose and the fitting method recommended for those components. Where a connector clamps onto the outside, check the 15mm outside diameter too. Choose suitable drinking-water components throughout the run.
Which lengths are available?
There are seven options: 1m, 2m, 3m, 4m, 5m, 10m and 50m. Select the required length in the dropdown above; each has its own price. Measure the actual routed distance and leave room for bends and the end connections, so the hose is not stretched tight. A photograph of coiled hose shows the product and does not indicate the supplied quantity for every option.
Product information & technical details
| SKU | WHR10MM-001 |
|---|---|
| Product type | |
| Internal diameter | 10mm |
| Colour | Red |
| Material | Polyvinyl chloride (PVC) |
| Outside diameter | 15mm |
|---|---|
| Construction | Four-layer reinforced PVC with clear inner core and red outer layer |
| Intended use | Drinking-water connections for caravans, camping and motorhomes |
| Available lengths | 1m, 2m, 3m, 4m, 5m, 10m or 50m |
| Supplied format | Plain-ended hose only; connectors, clips, adapters and reel not included |
