Description
A red water line, in the length you need
Replace a short section or plan a longer run with 1/2-inch red reinforced PVC drinking-water hose.
A nominal 12.7mm bore, four-layer construction and a red outer layer give you a flexible water line that is easy to identify within your setup.
Choose from nine lengths between 1m and 50m. Plain hose supplied; fittings are separate.
Match the fitting to the hose, not just the colour
The 1/2-inch / 12.7mm size describes the hose’s internal diameter. A hose-tail must suit this bore, while a clamping connector must also grip the hose wall correctly.
A tap’s BSP thread is a different measurement. Check both sides of an adapter when connecting the hose to a threaded outlet, rather than assuming two parts marked 1/2-inch will join directly.
The red outer layer helps distinguish the line visually, following the familiar colour convention for hot-water lines. The colour itself is not a working-temperature rating. For an installation connected to a pump or appliance, check the component requirements before choosing your fittings and operating conditions.
Plan the run before cutting or connecting
Allow for the route, the bends and the finished connections.
Trace the full route
Measure where the hose will actually sit, including changes of direction and space beside the connections. Avoid stretching it between two points or leaving the weight of a long run hanging from an end fitting.
Choose your length

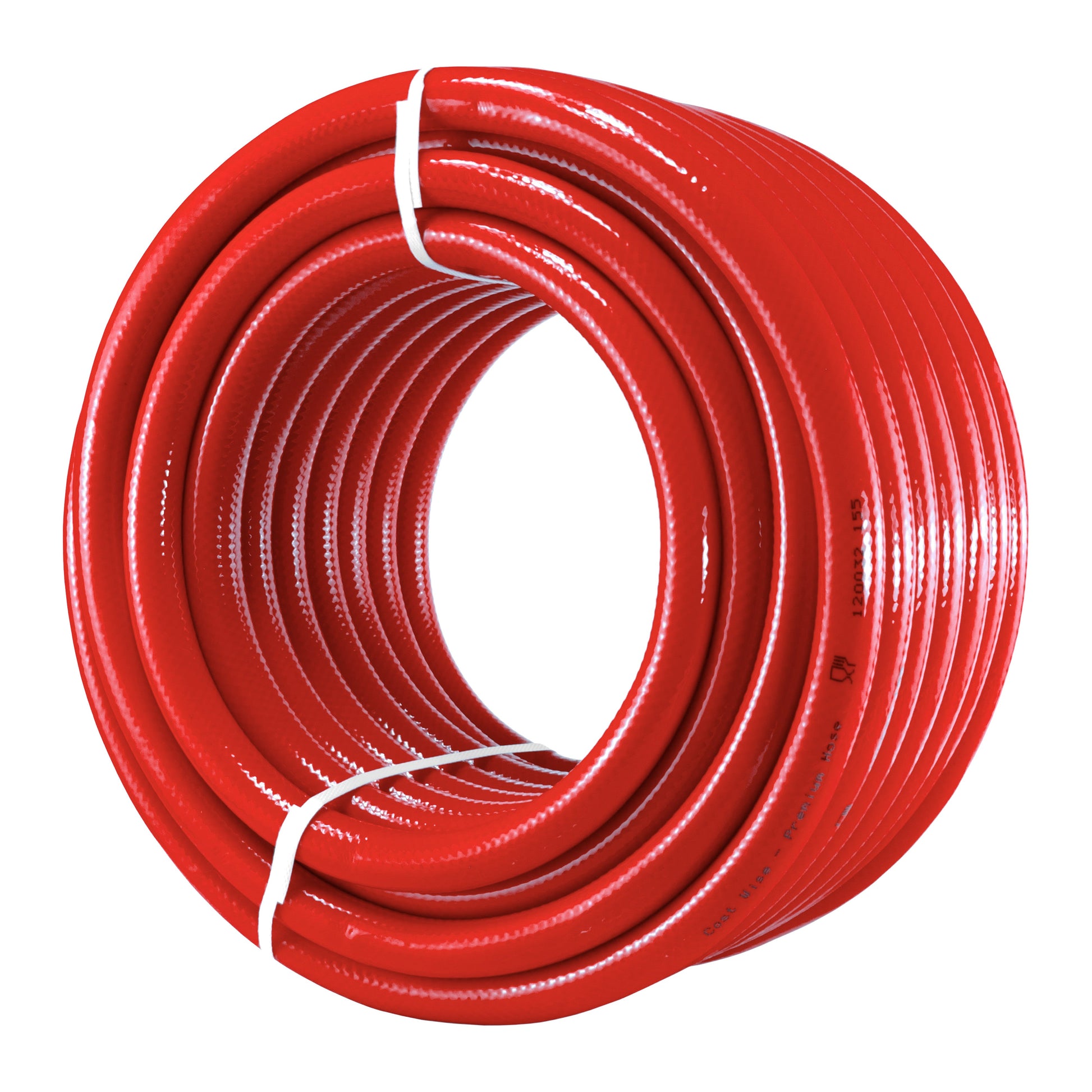

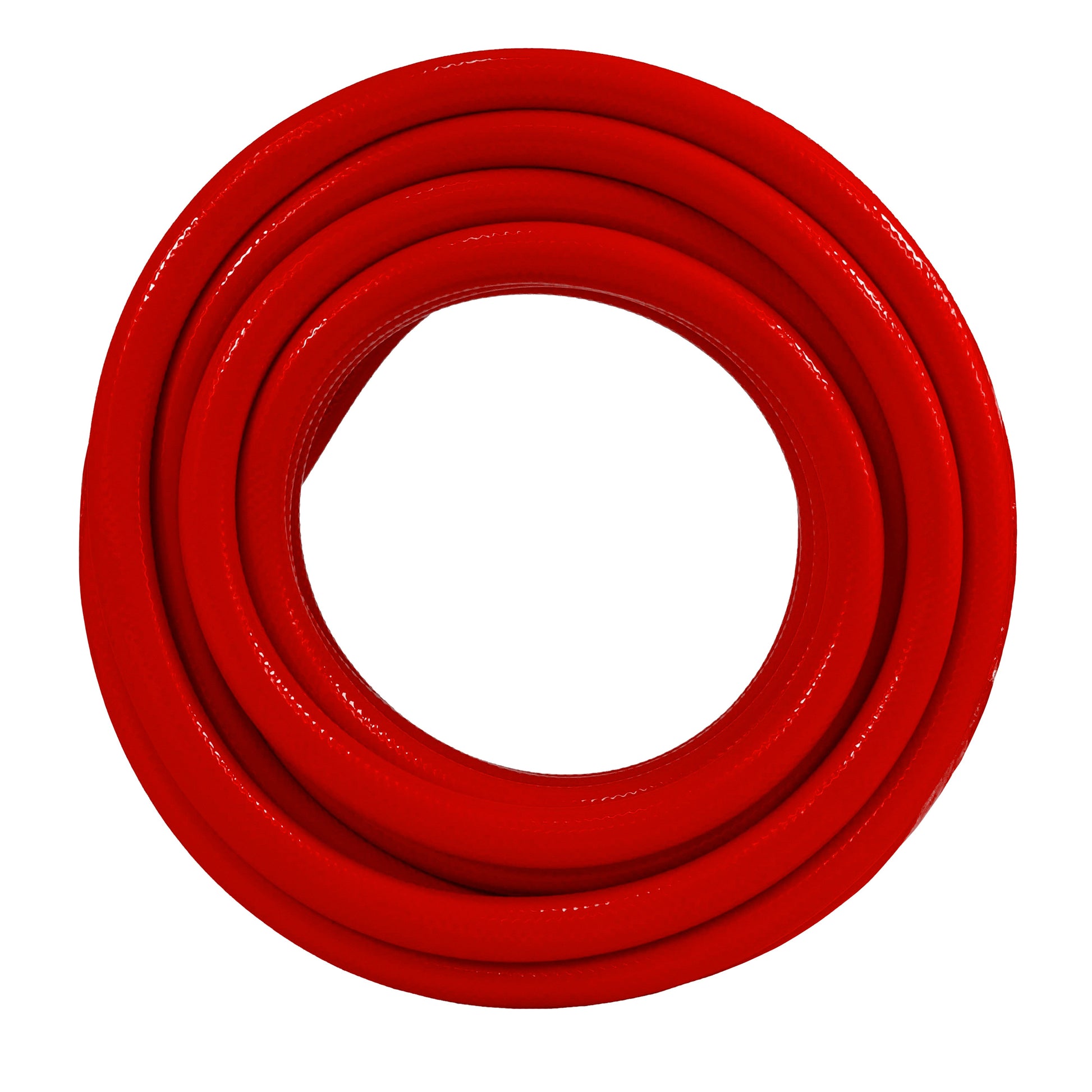

The available options are 1m, 2m, 3m, 4m, 5m, 10m, 15m, 20m and 50m. Select the required length above. A coil in a photograph shows the hose itself rather than the quantity supplied with every option.
Finish the water path
Connectors, clips, tap adapters and reels are separate. Choose suitable drinking-water components, follow their fitting instructions and inspect the assembled joints with water before regular use.
Keep the bends gentle and the ends clean

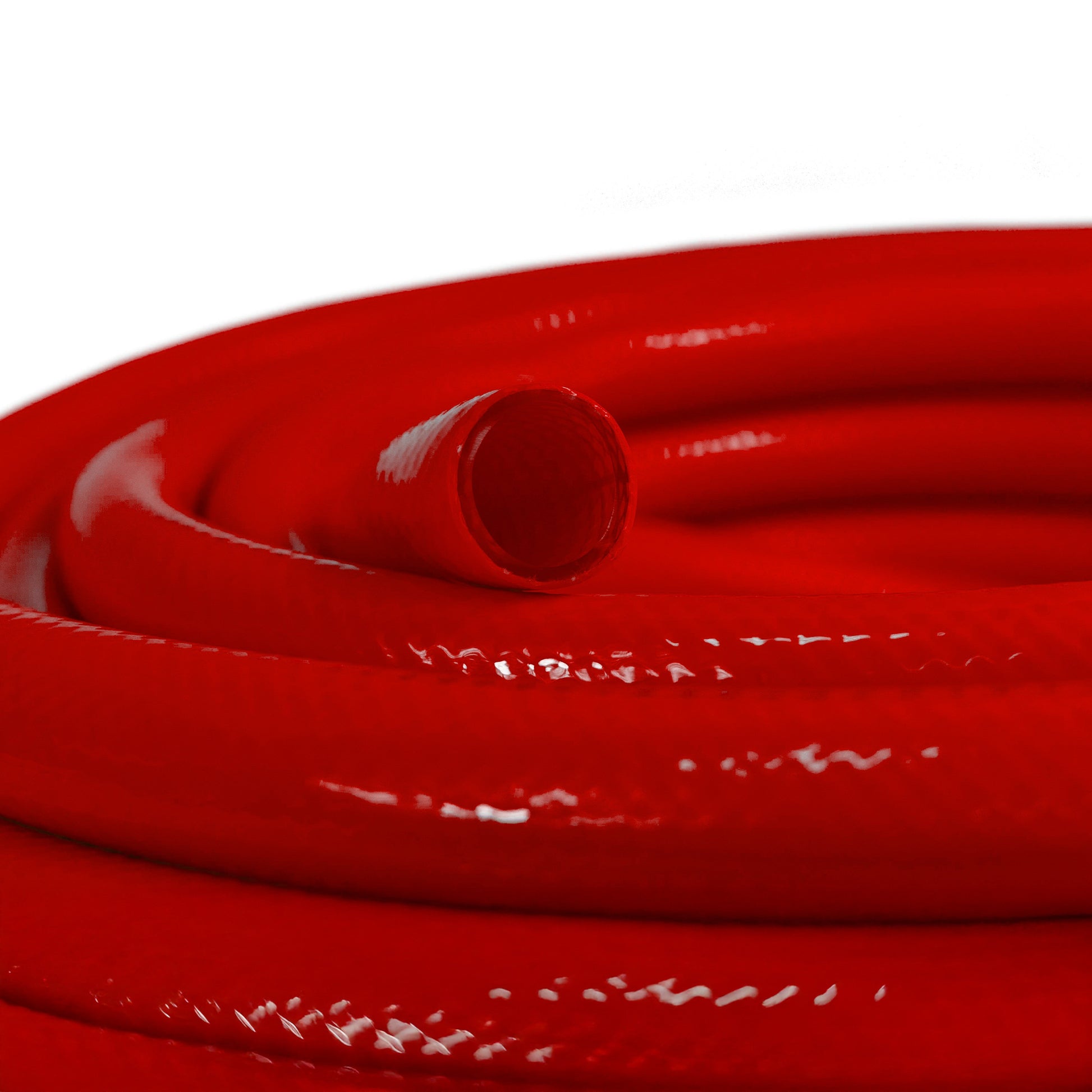

The four-layer reinforced PVC hose combines a clear inner core with a red exterior. Give it room to bend smoothly, particularly where it leaves a fitting or passes around a corner.
Support the hose and keep it clear of sharp edges. Reinforcement does not make a tight fold harmless: a pinched or sharply bent section can still restrict the waterway.
During installation and storage, keep dirt out of the open ends. Follow your water-system instructions for flushing and cleaning, and check the hose and joints when putting the system back into service.
Questions about the red water hose
What does the 1/2-inch size measure?

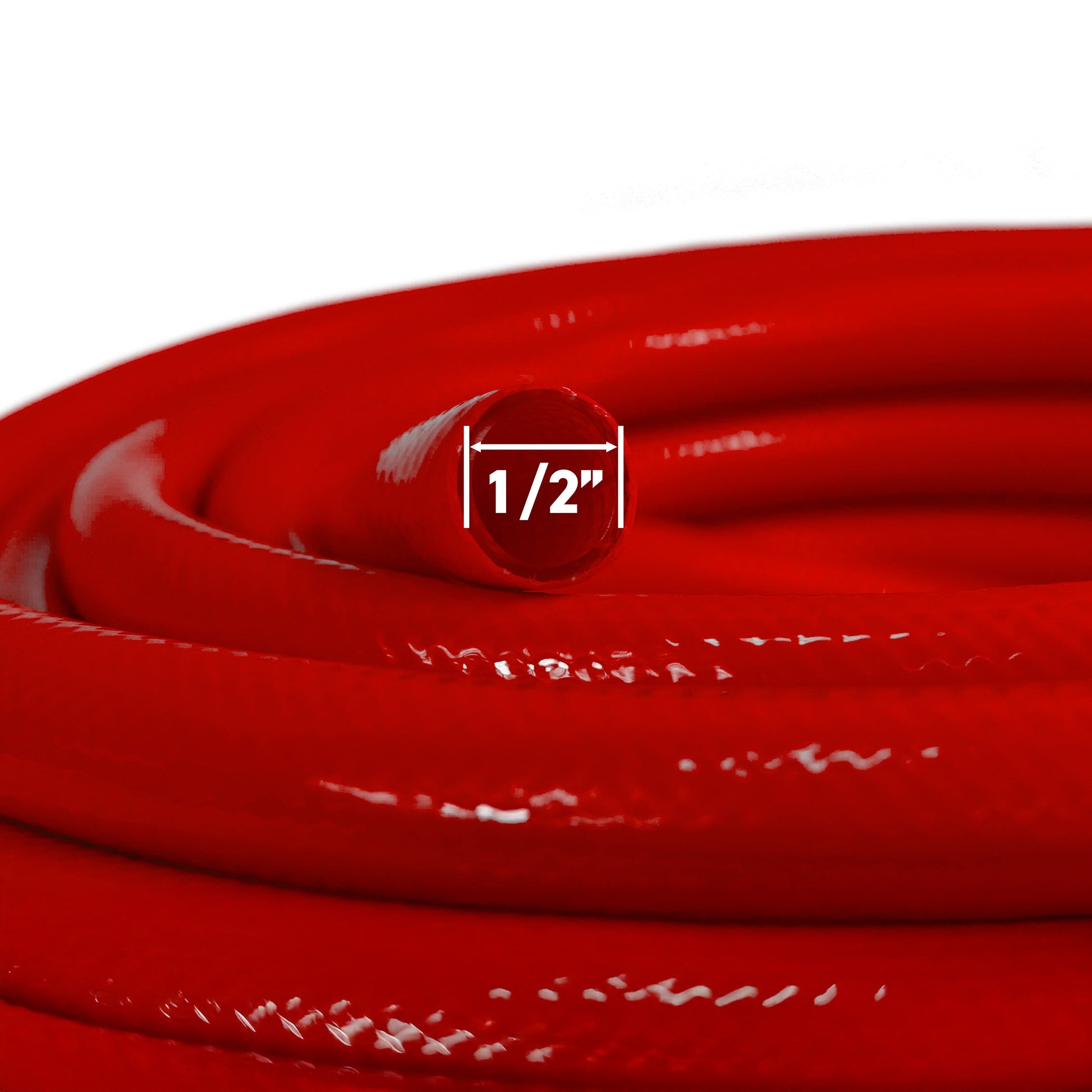

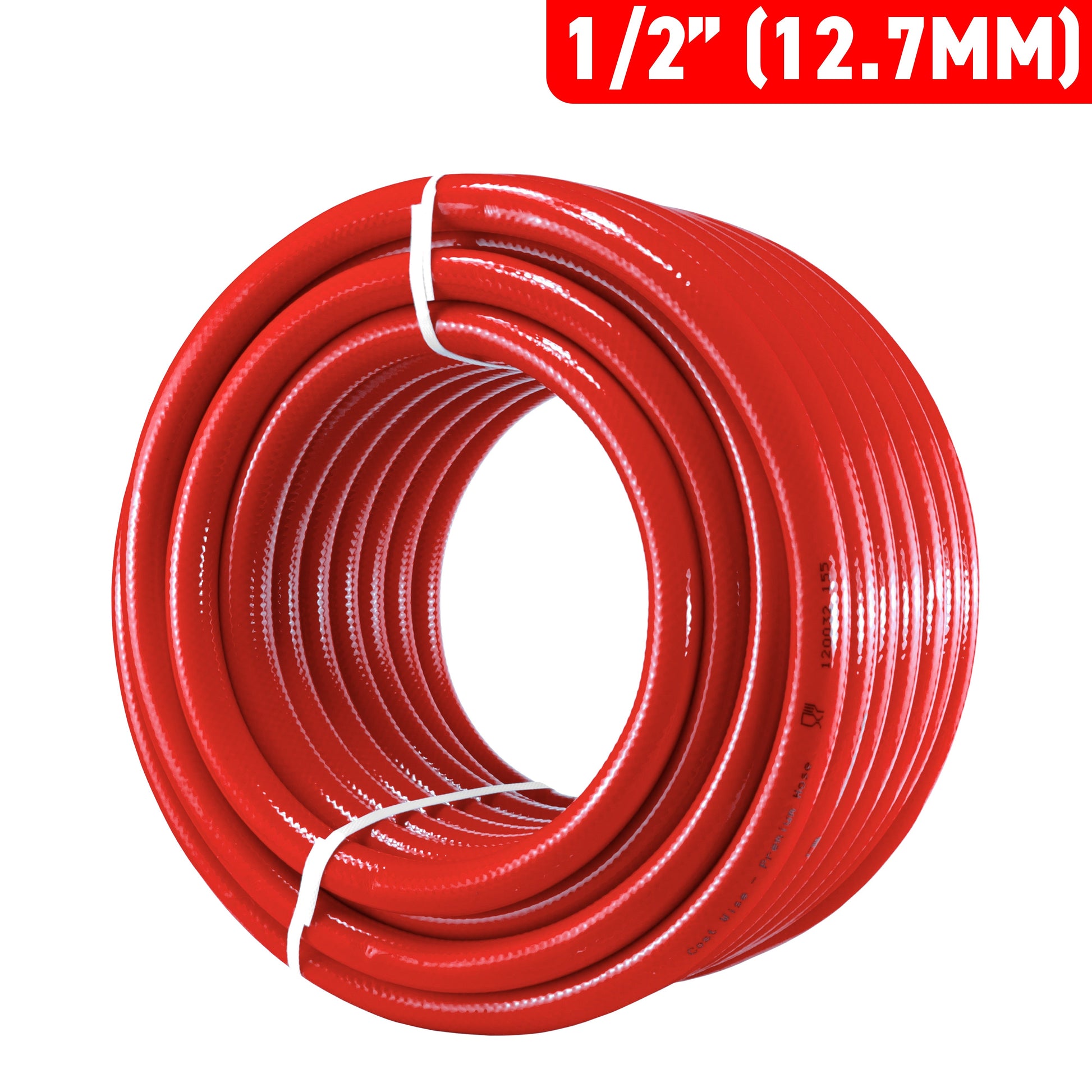

It is the nominal internal diameter, or bore, of the hose: 12.7mm. The outside is larger because of the hose wall. Select a hose-tail for the bore and check any clamping connector’s requirements for reinforced flexible hose. A BSP thread on an adapter is a separate connection measurement, so the same nominal number does not establish compatibility.
Are end connectors included?
No. You receive the selected length of plain-ended red hose. Connectors, clips, adapters and reels are separate. Choose ends that suit nominal 1/2-inch reinforced hose and drinking-water service, together with the fitting or securing method required by your installation. Check the completed joints with water before putting the line into regular use.
Which length should I order?
Measure the full routed distance and allow space for bends and both end connections. Choose from 1m, 2m, 3m, 4m, 5m, 10m, 15m, 20m or 50m in the Length selector. Each option has its own price. The hose should reach without being stretched or making a tight fold at a connector; the coil pictured does not represent the supplied length for every option.
Can I use it in a caravan drinking-water setup?
The hose is intended for drinking-water connections, including caravans, camping and motorhomes. Suitability also depends on the fittings, pump or appliance and operating conditions of your system. Choose appropriate drinking-water components throughout the water path, keep the hose ends clean and follow the system’s flushing, cleaning and installation instructions.
Product information & technical details
| SKU | WHR-001 |
|---|---|
| Product type | |
| Internal diameter | 12.7mm (1/2") |
| Colour | Red |
| Material | Polyvinyl chloride (PVC) |
| Construction | Four-layer reinforced PVC hose |
|---|---|
| Inner and outer layers | Clear inner core with red outer layer |
| Intended use | Drinking-water connections for caravans, camping and motorhomes |
| Available lengths | 1m, 2m, 3m, 4m, 5m, 10m, 15m, 20m or 50m |
| Supplied format | Plain-ended hose only; connectors, clips, adapters and reel not included |
