Description
See your water use

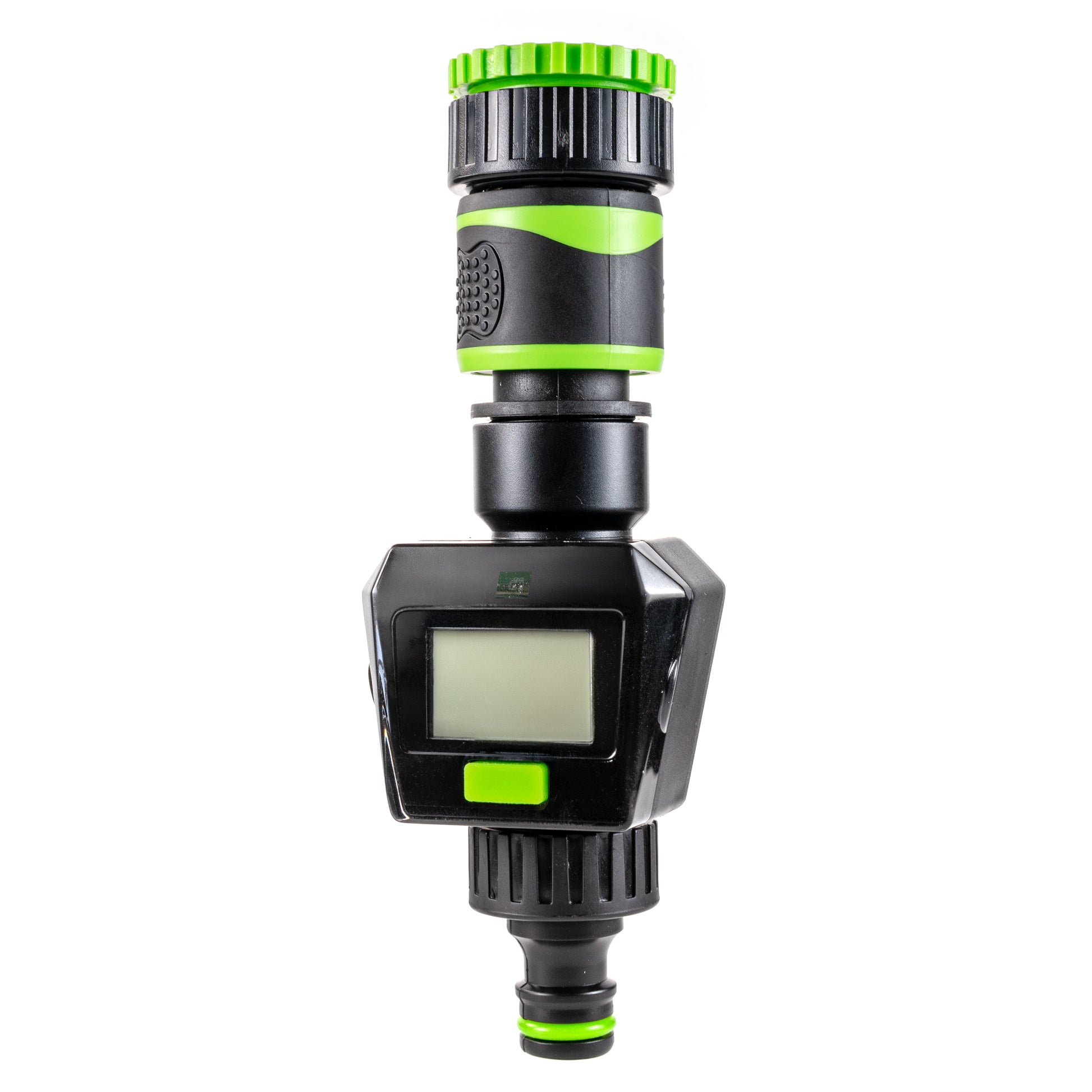

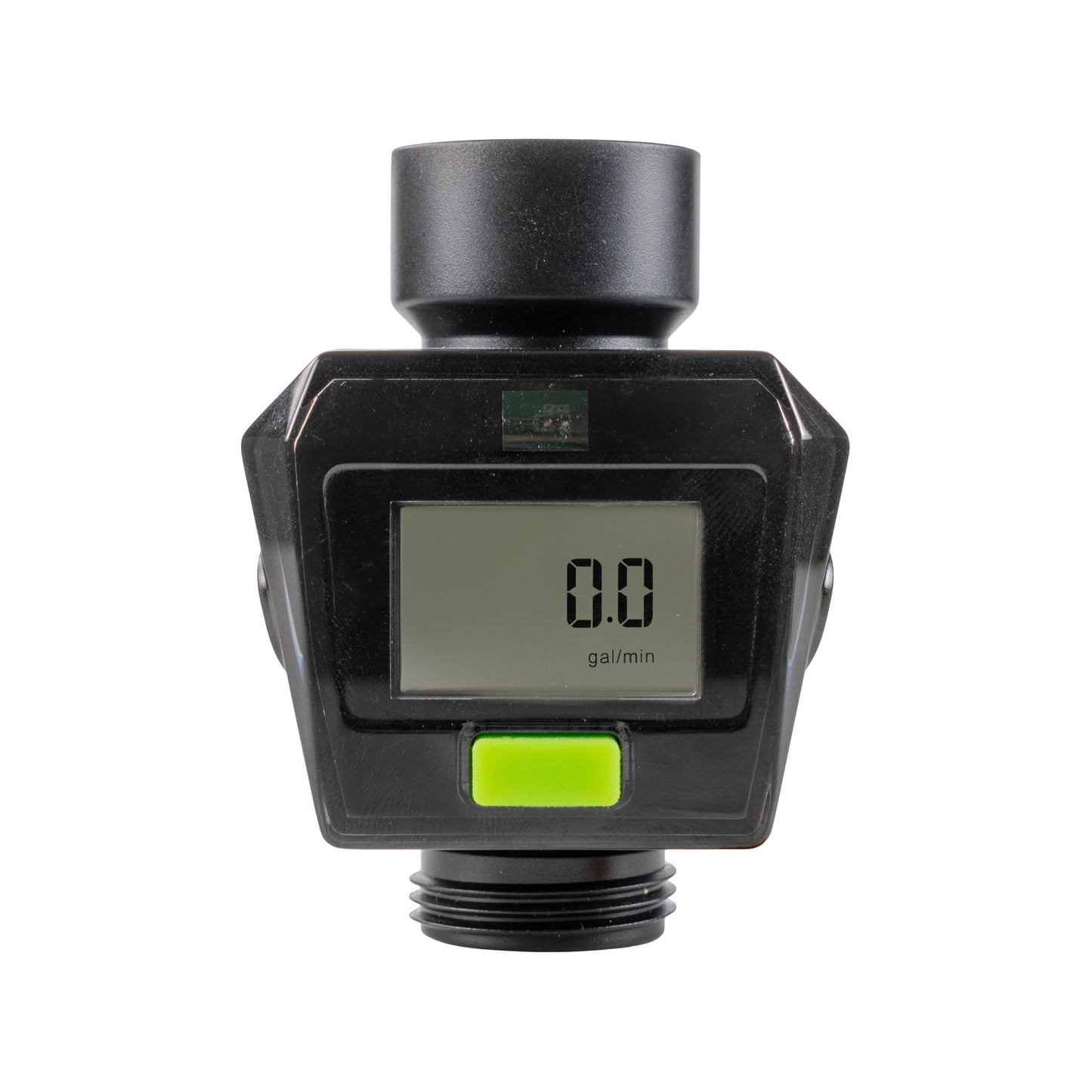

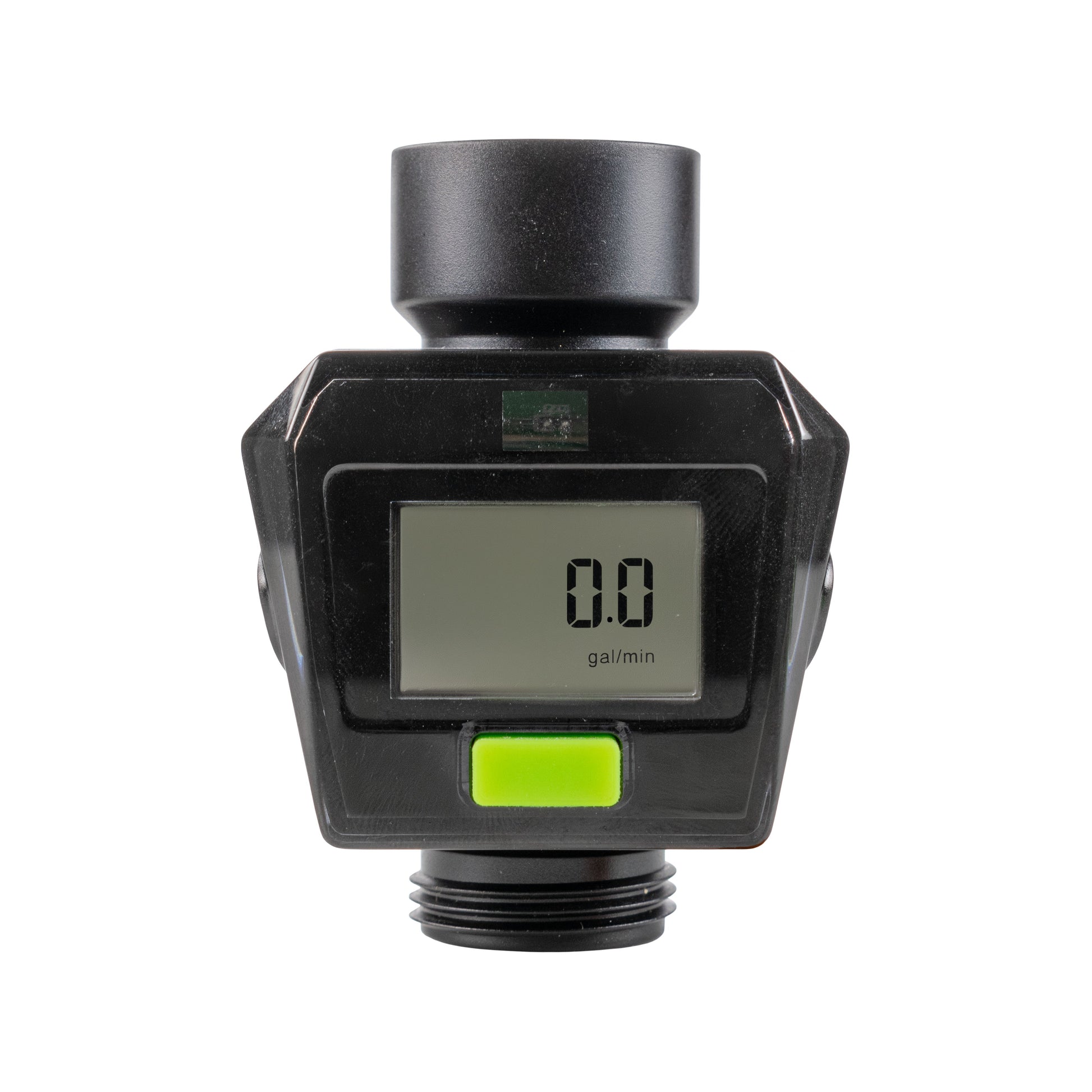

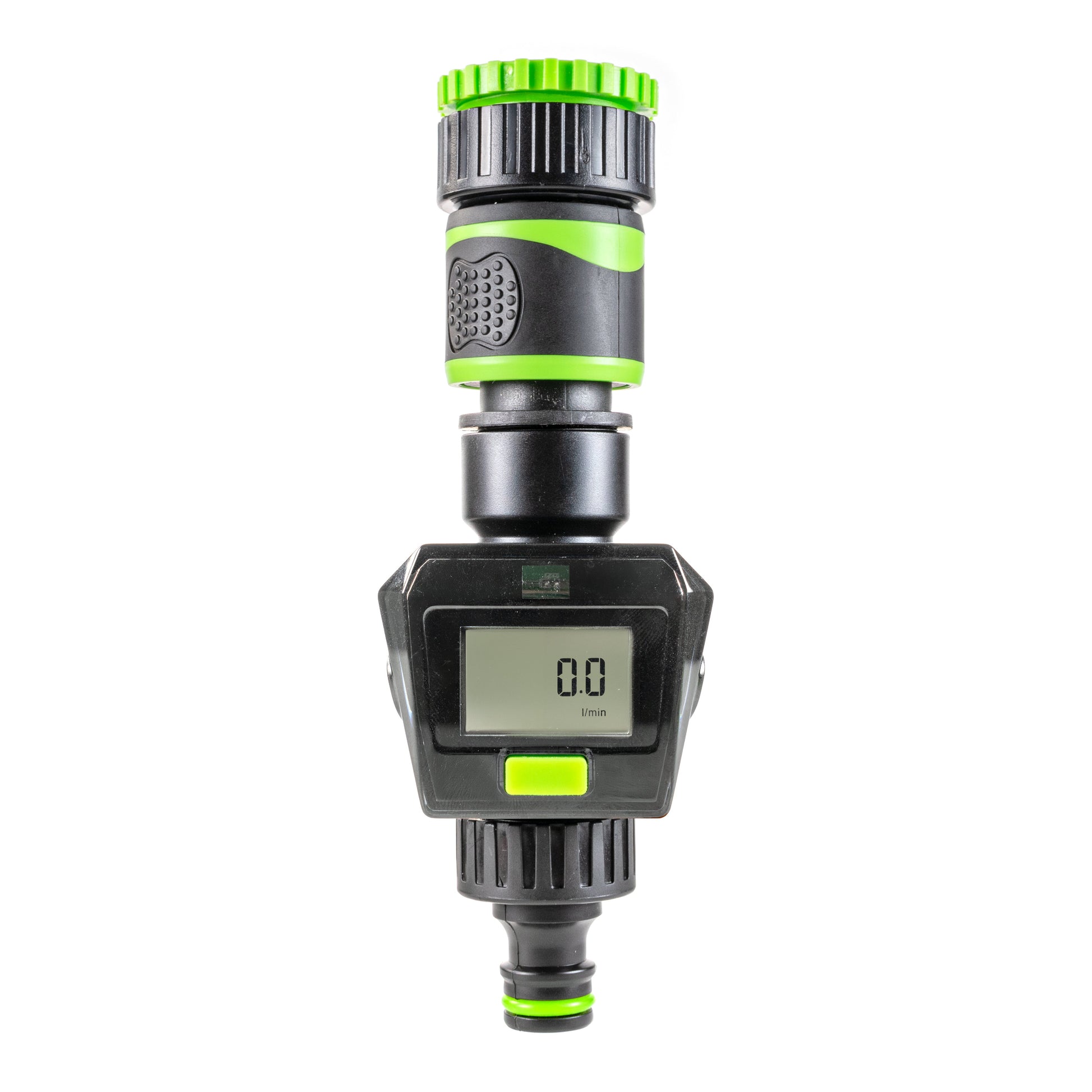

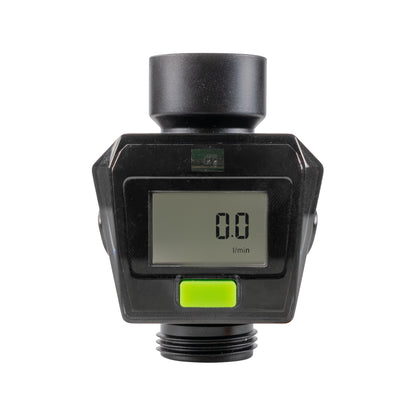

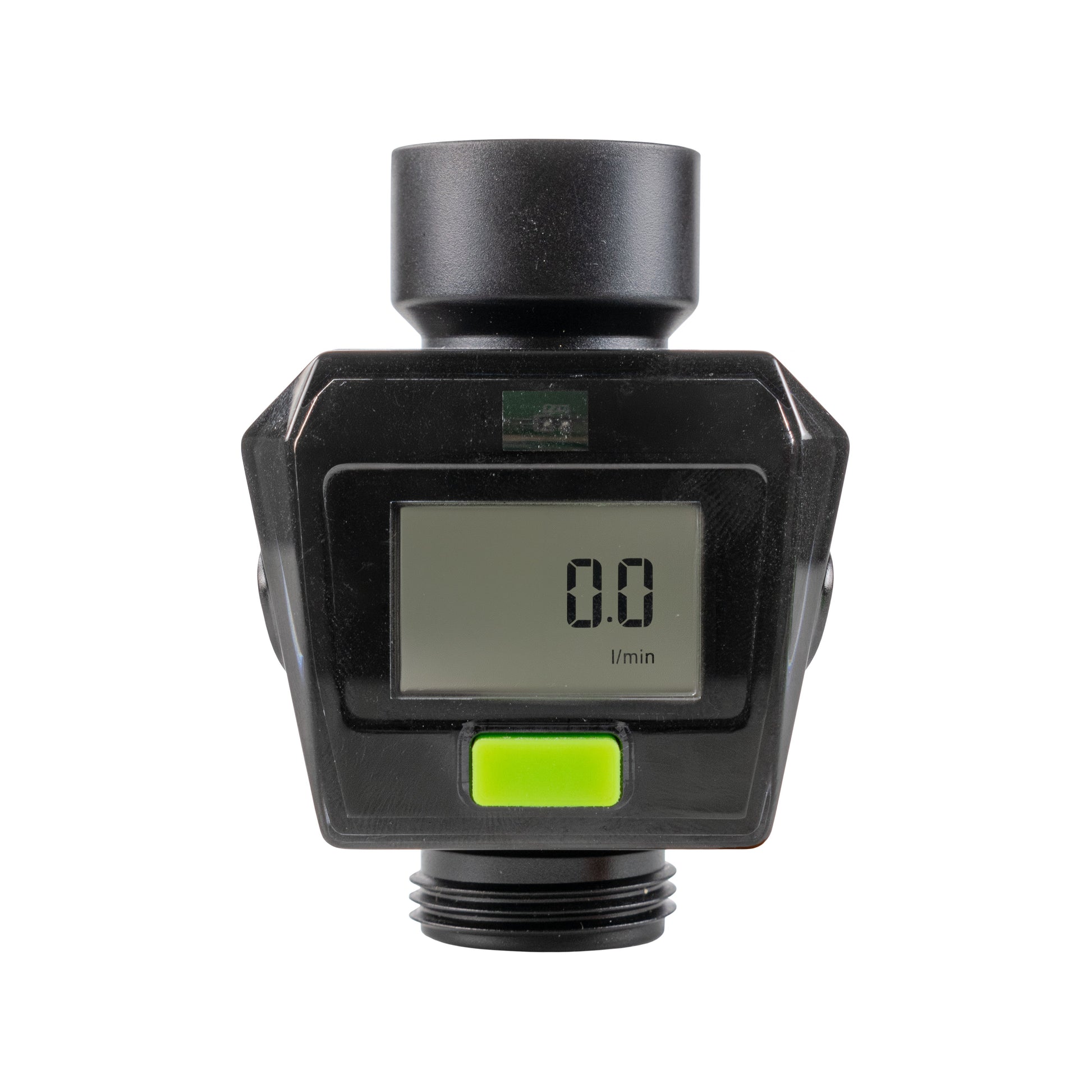

A few minutes at the tap can be hard to judge. This green and black digital water flow meter puts a reading between your tap and hose, so you can see the flow rate and track the water passing through.
Use AUTO for the active watering session, or keep two separate running totals with SUM 1 and SUM 2. The single front button moves between the readings.

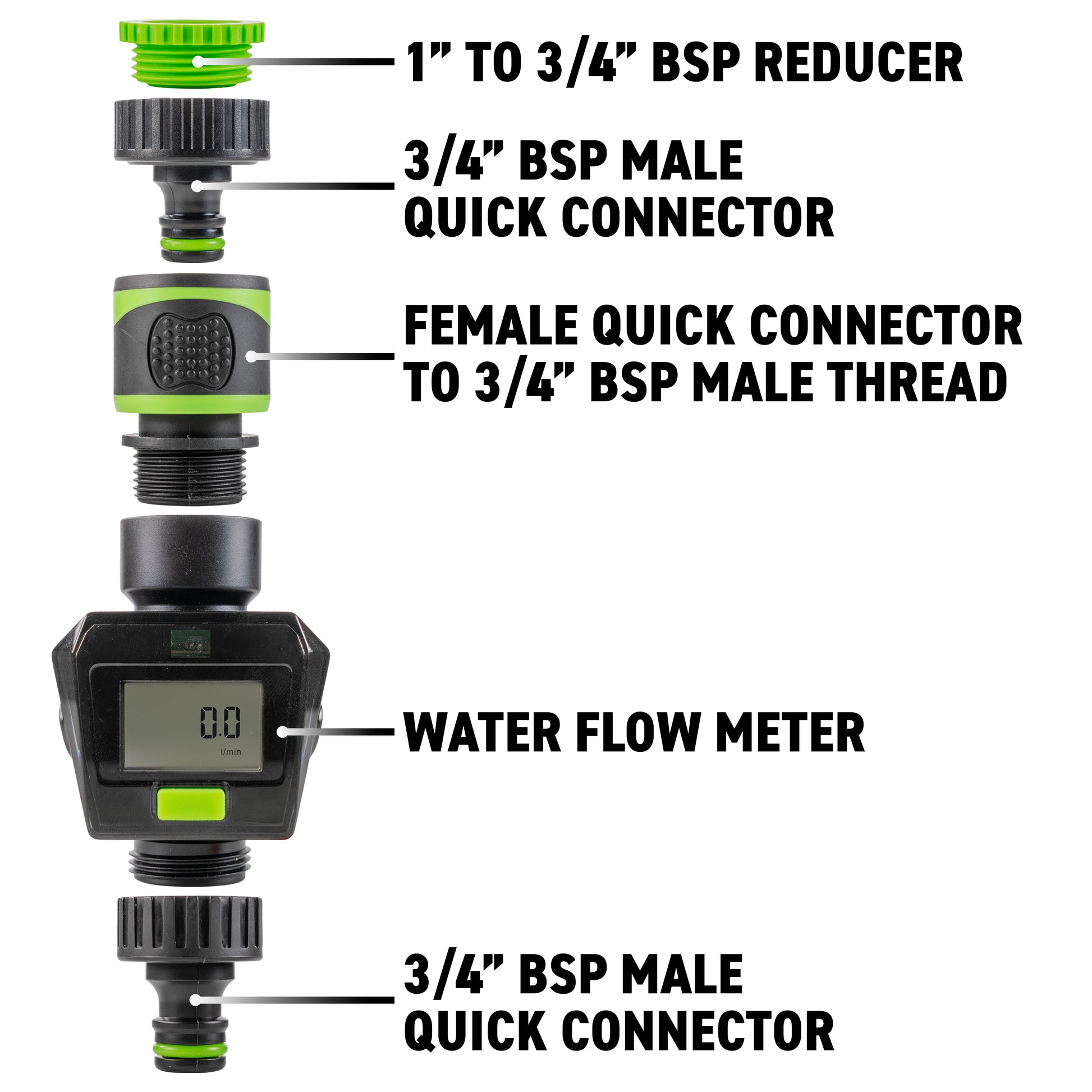

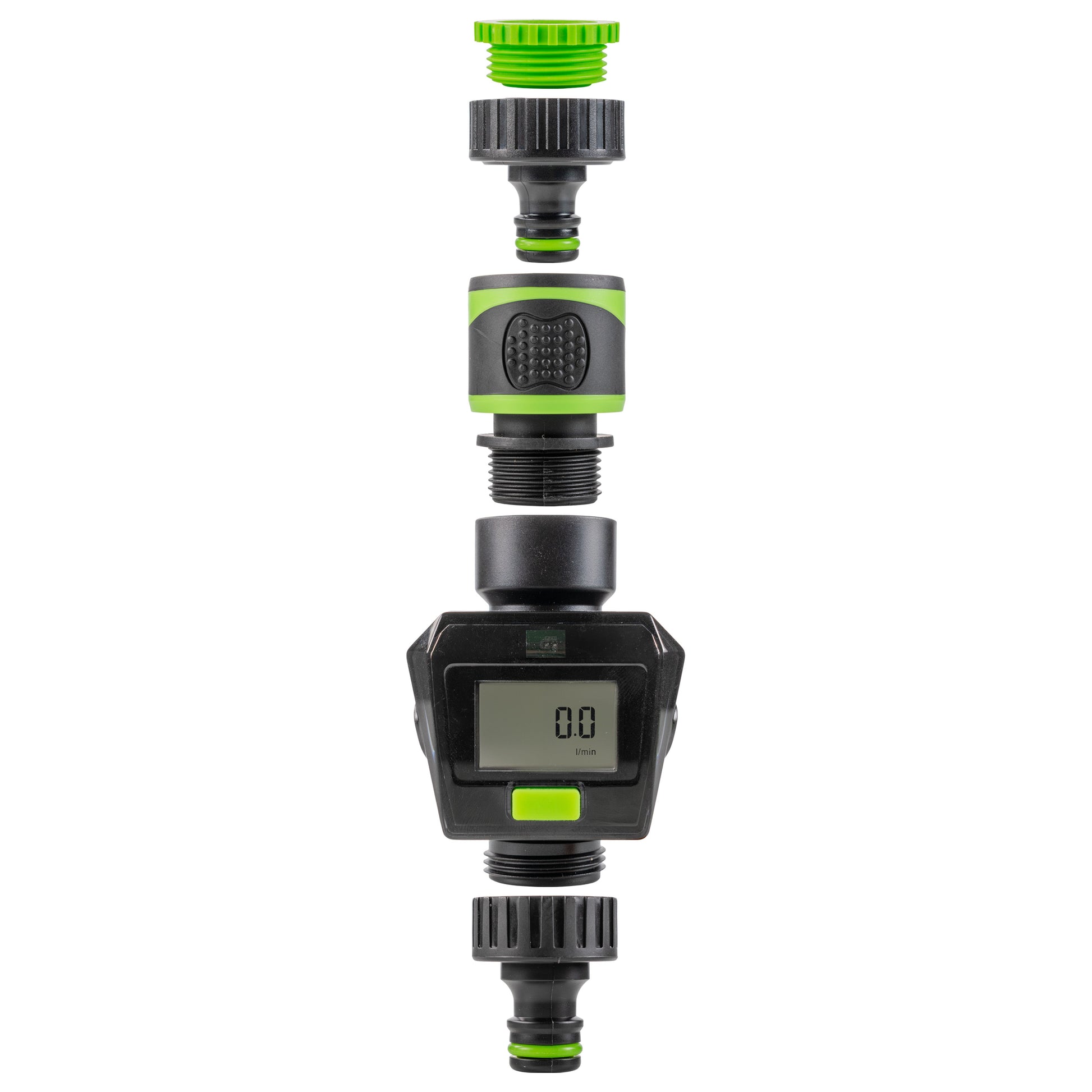

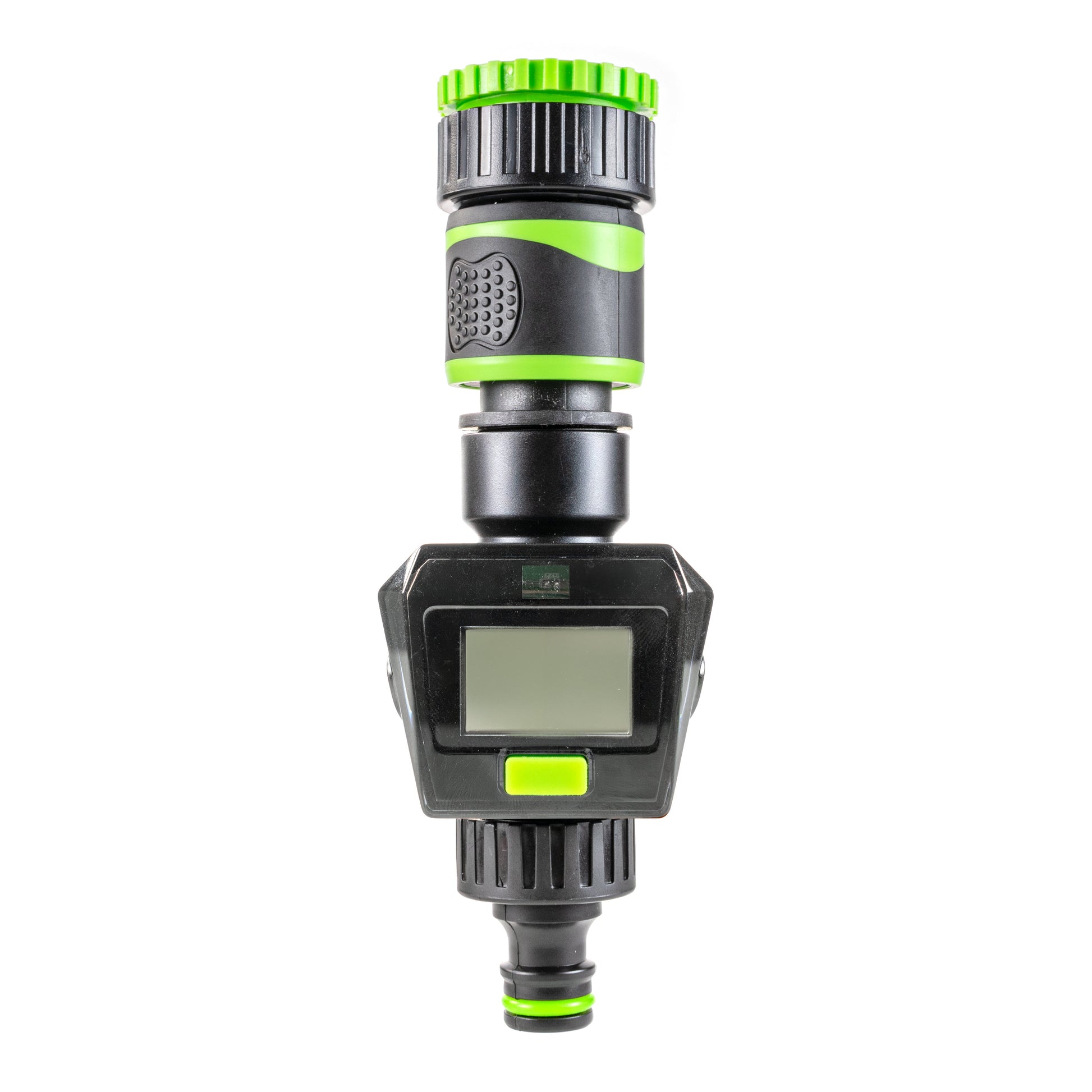

One meter with the shown tap adapters, reducer and battery supplied. Tap, hose and female hose socket are separate.
Tap. Meter. Hose.

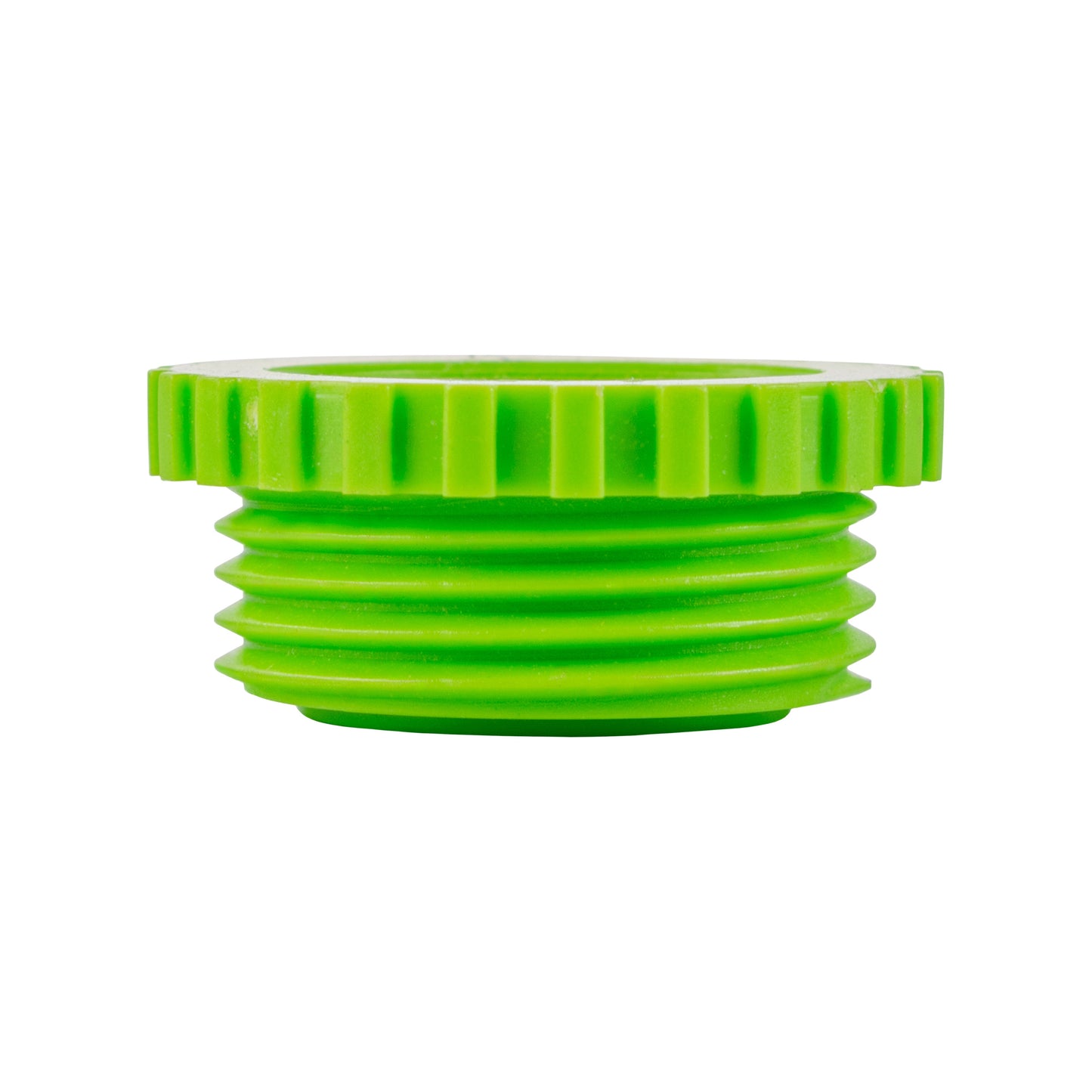

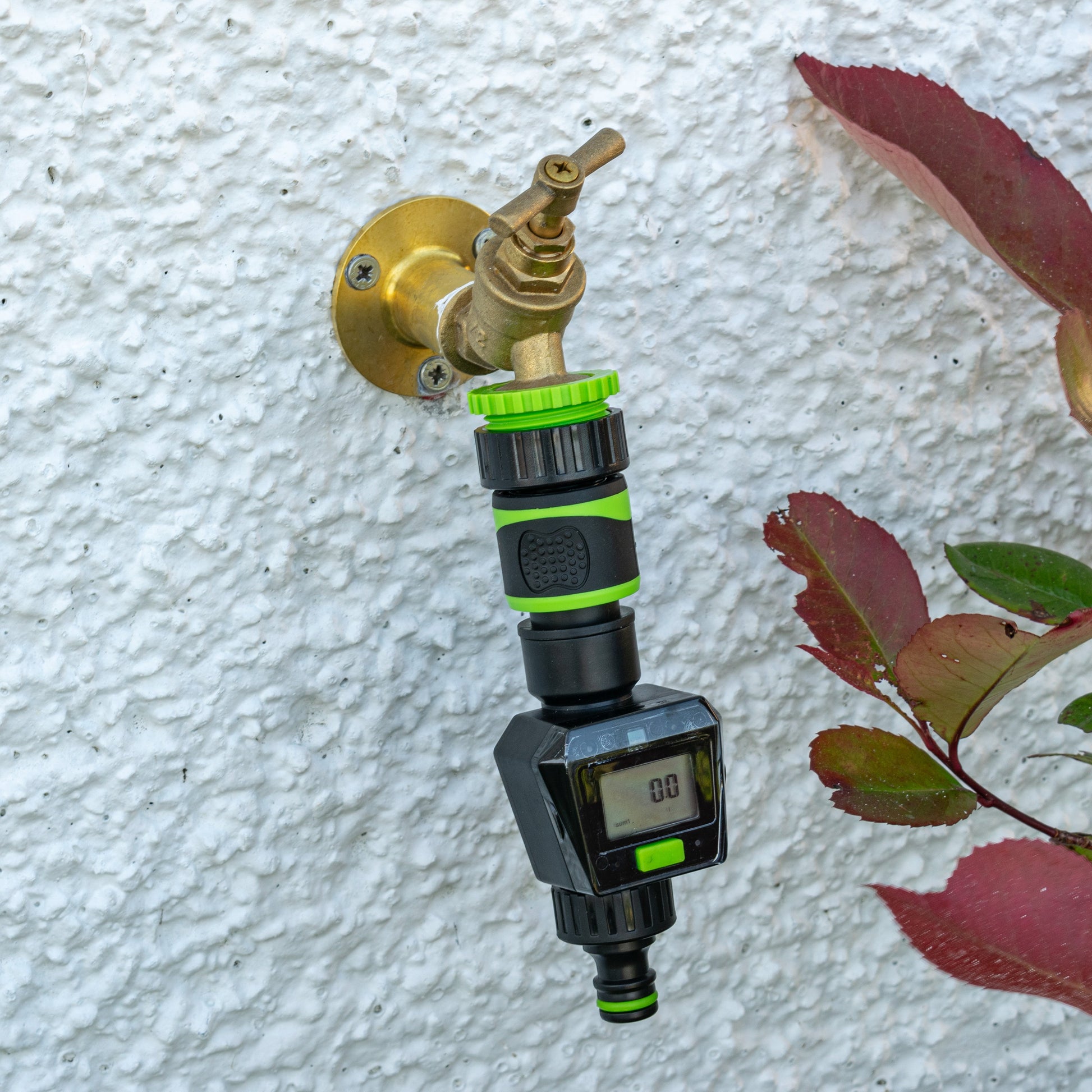

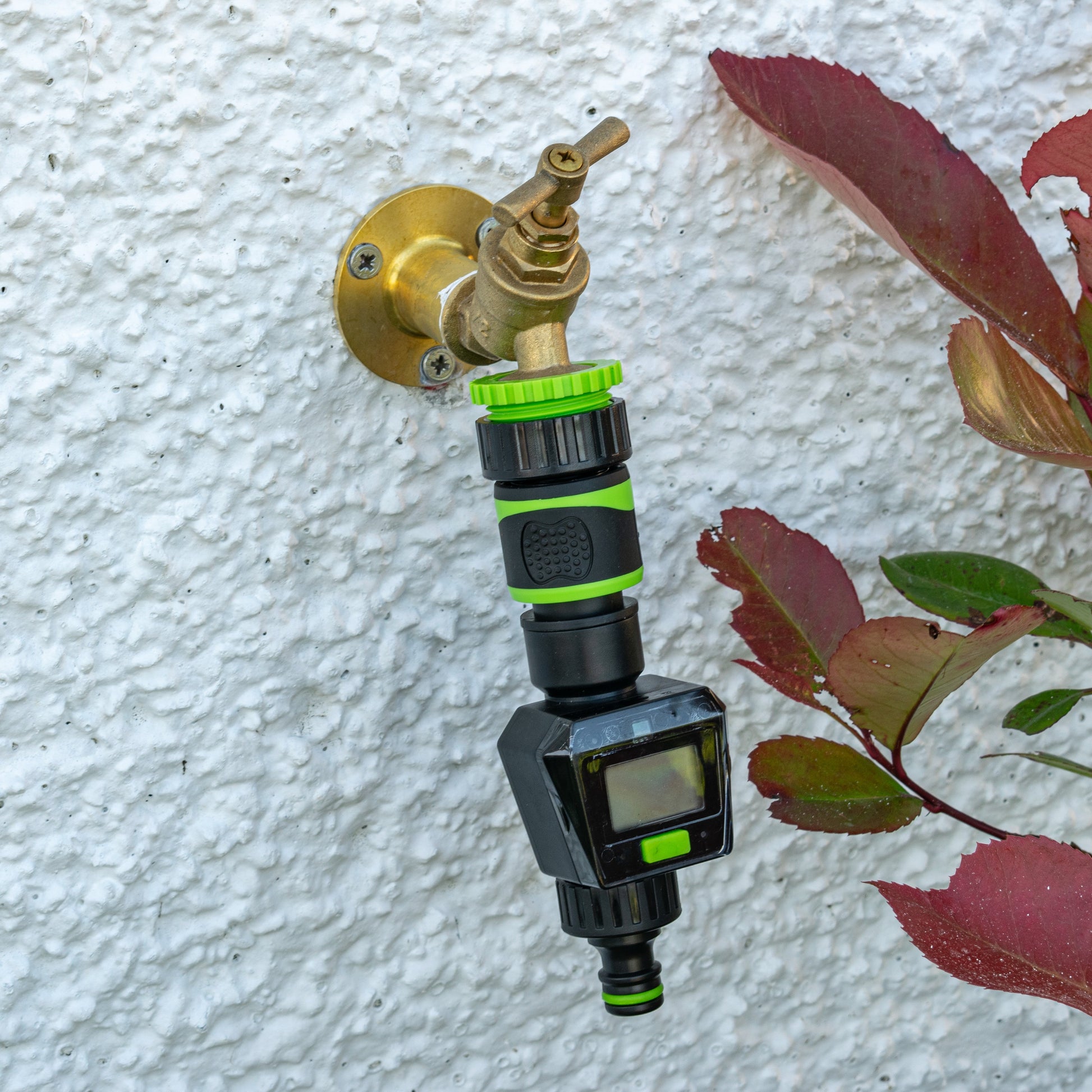

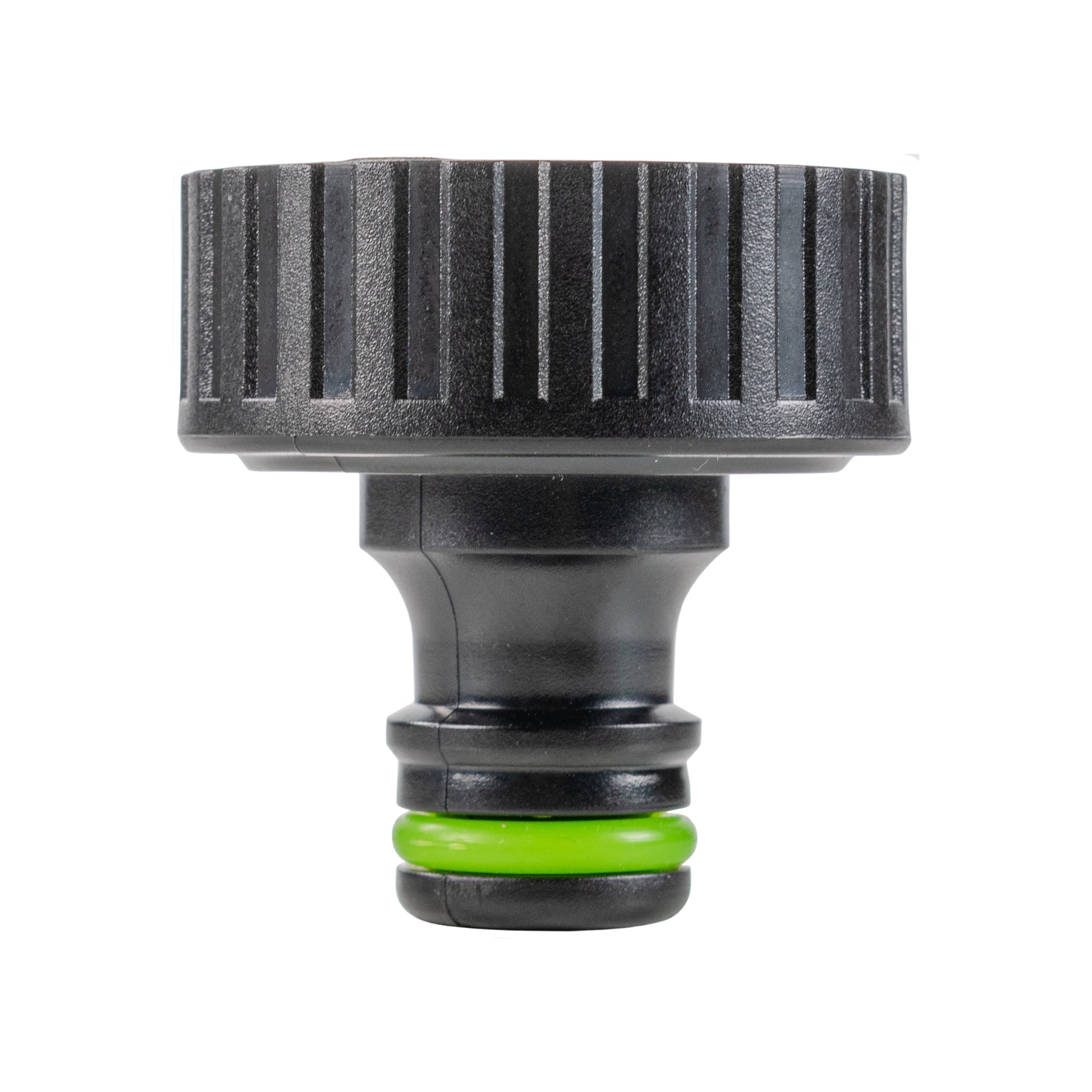

The upper connection fits a matching male-threaded garden tap. Use the removable reducer for a ¾-inch BSP outlet, or the larger connection for 1-inch BSP. Check the thread before fitting and start it squarely by hand.

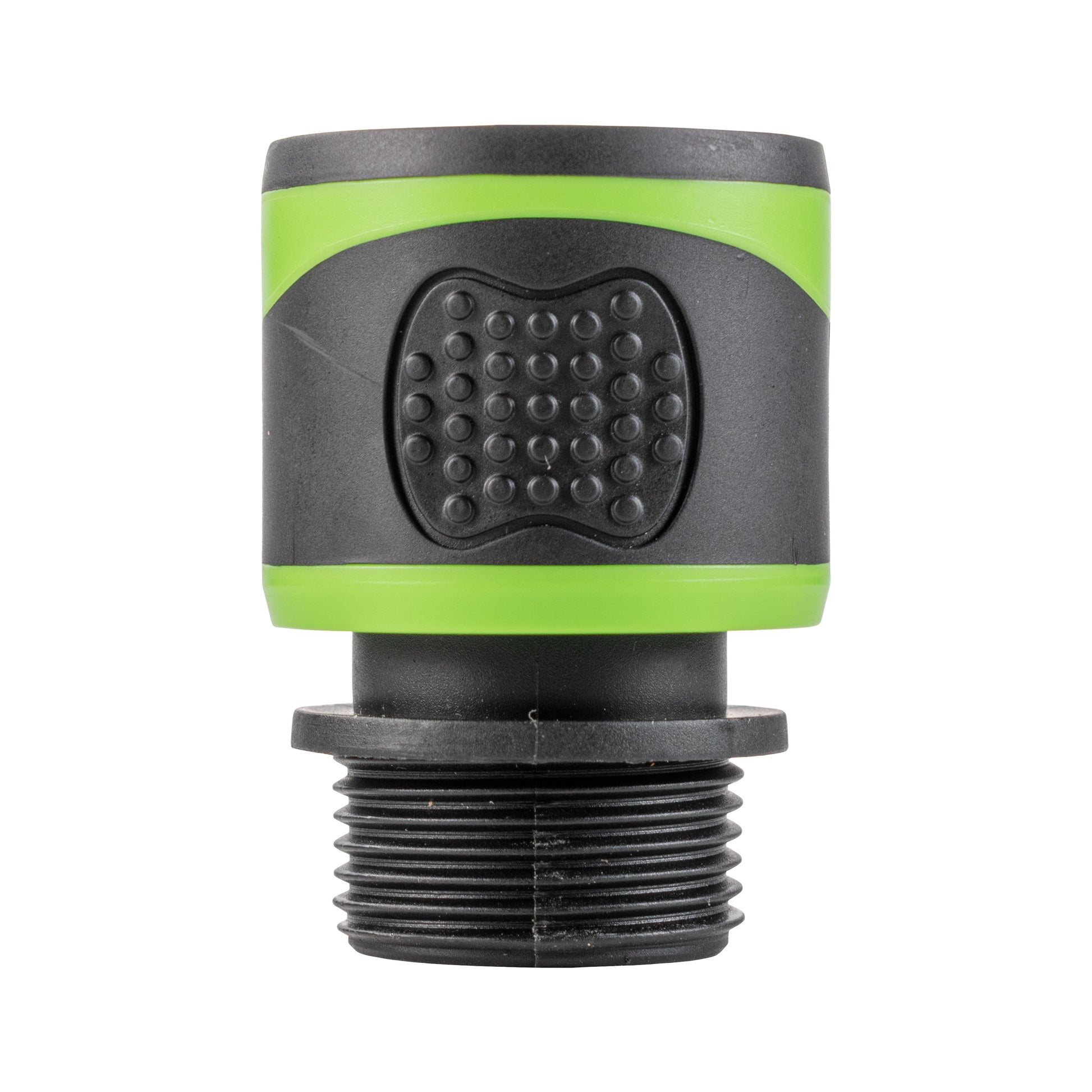

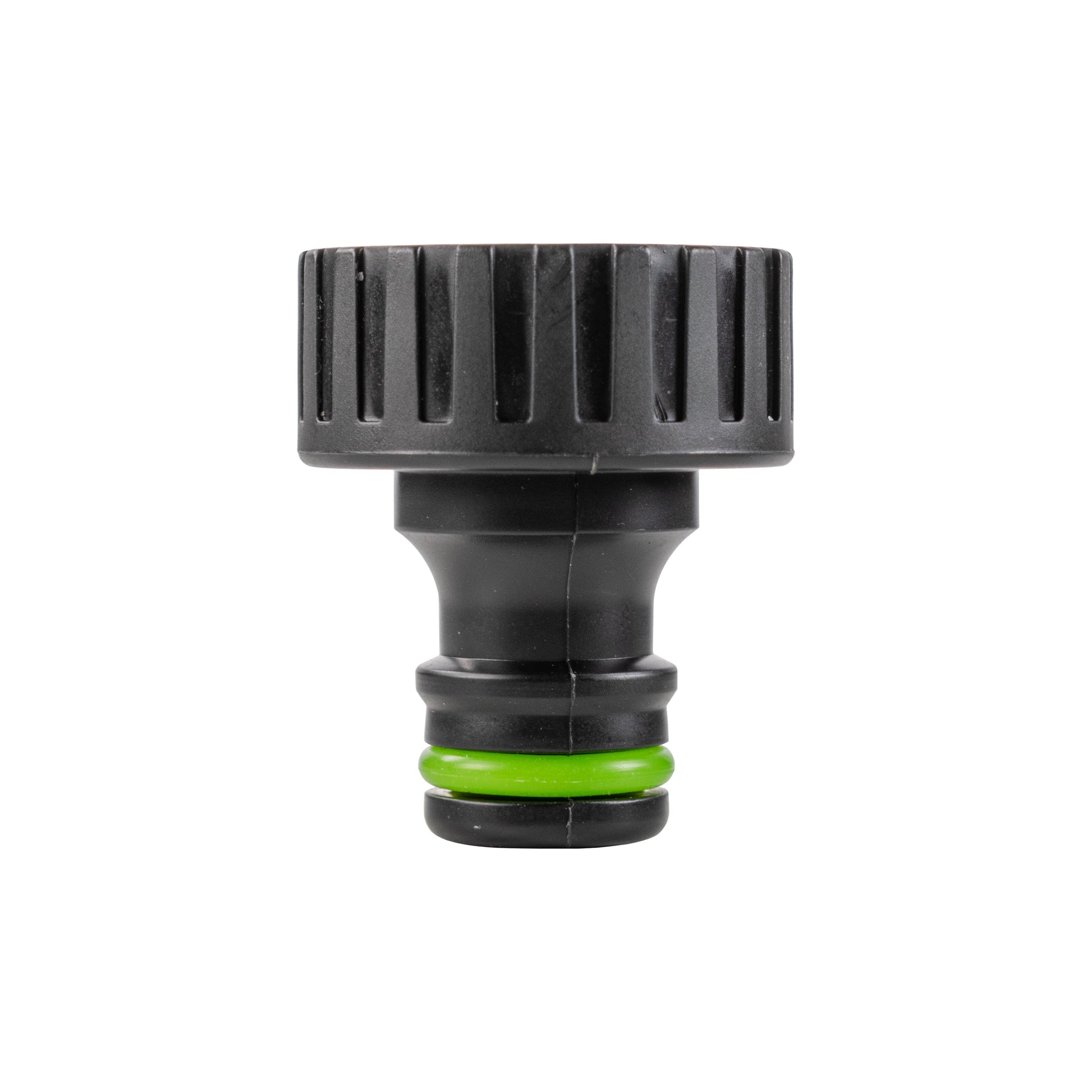

At the bottom, push a compatible female garden hose socket fully over the meter’s male plug. Bare hose does not attach directly to that plug. The optional green connector above grips ½-inch hose and is sold separately; hose bore and BSP thread size are different measurements.
Support the hose so it does not pull on the assembly. Open the tap gradually and check the connections. Turn off the supply and release pressure before disconnecting.
Choose the reading you need
Watch the rate

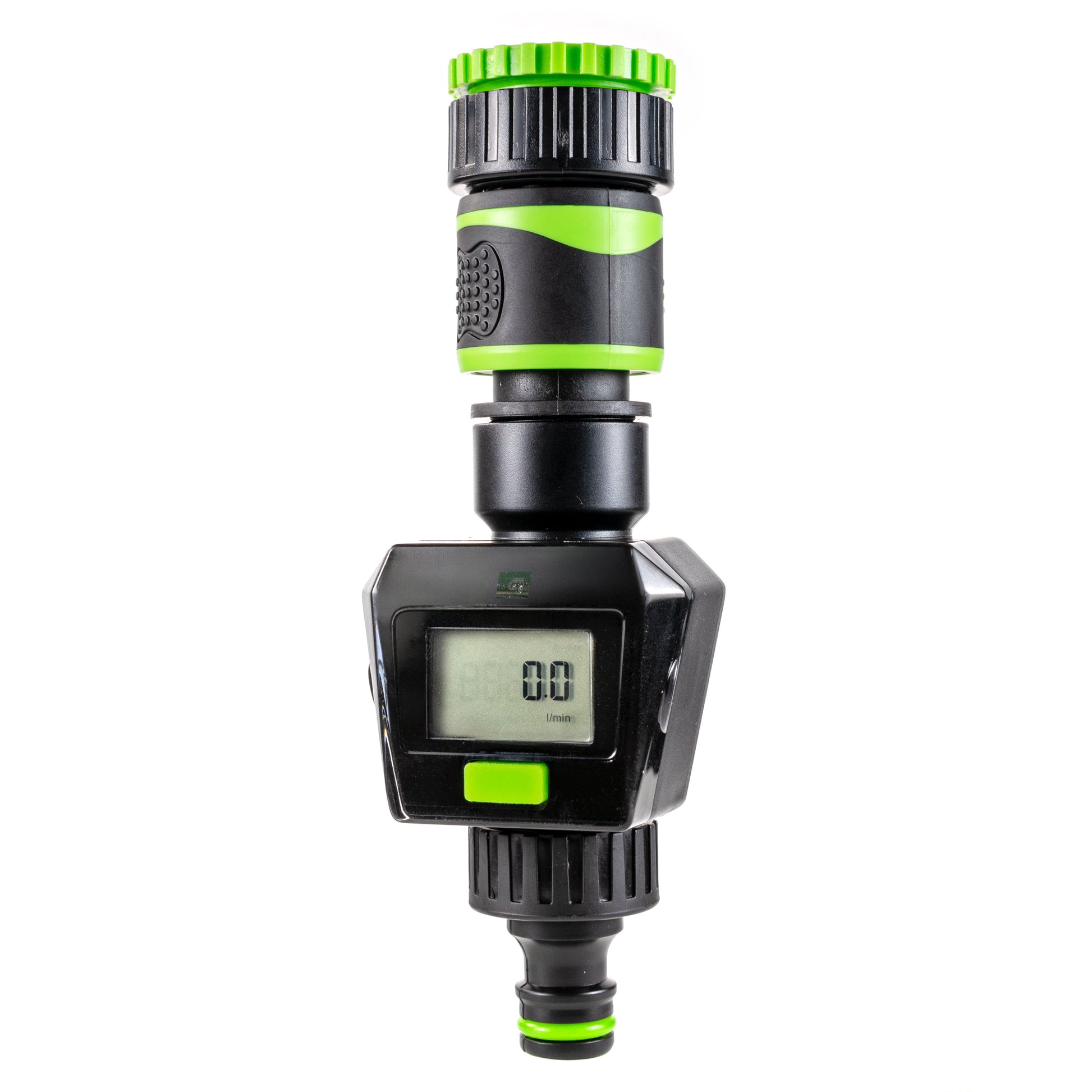

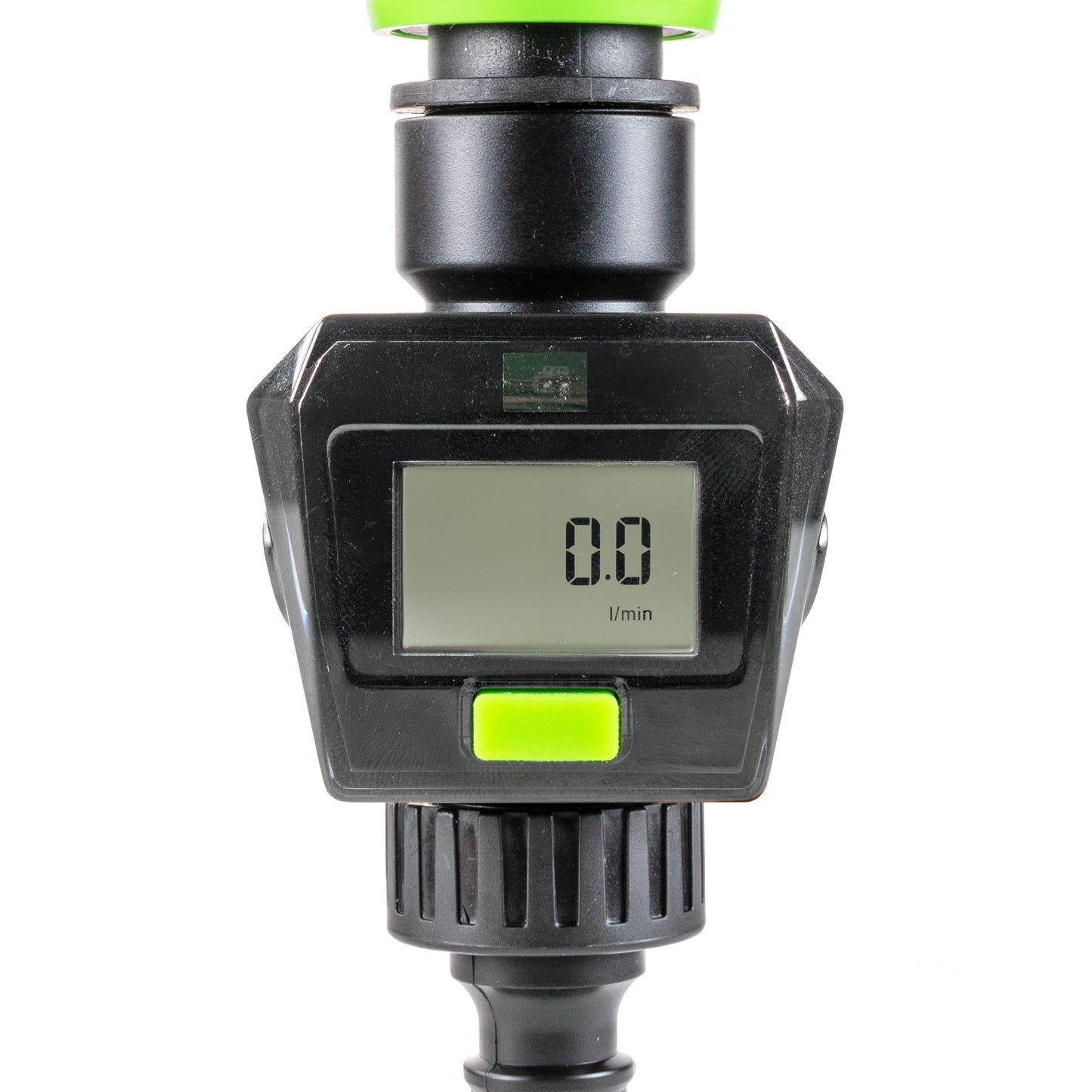

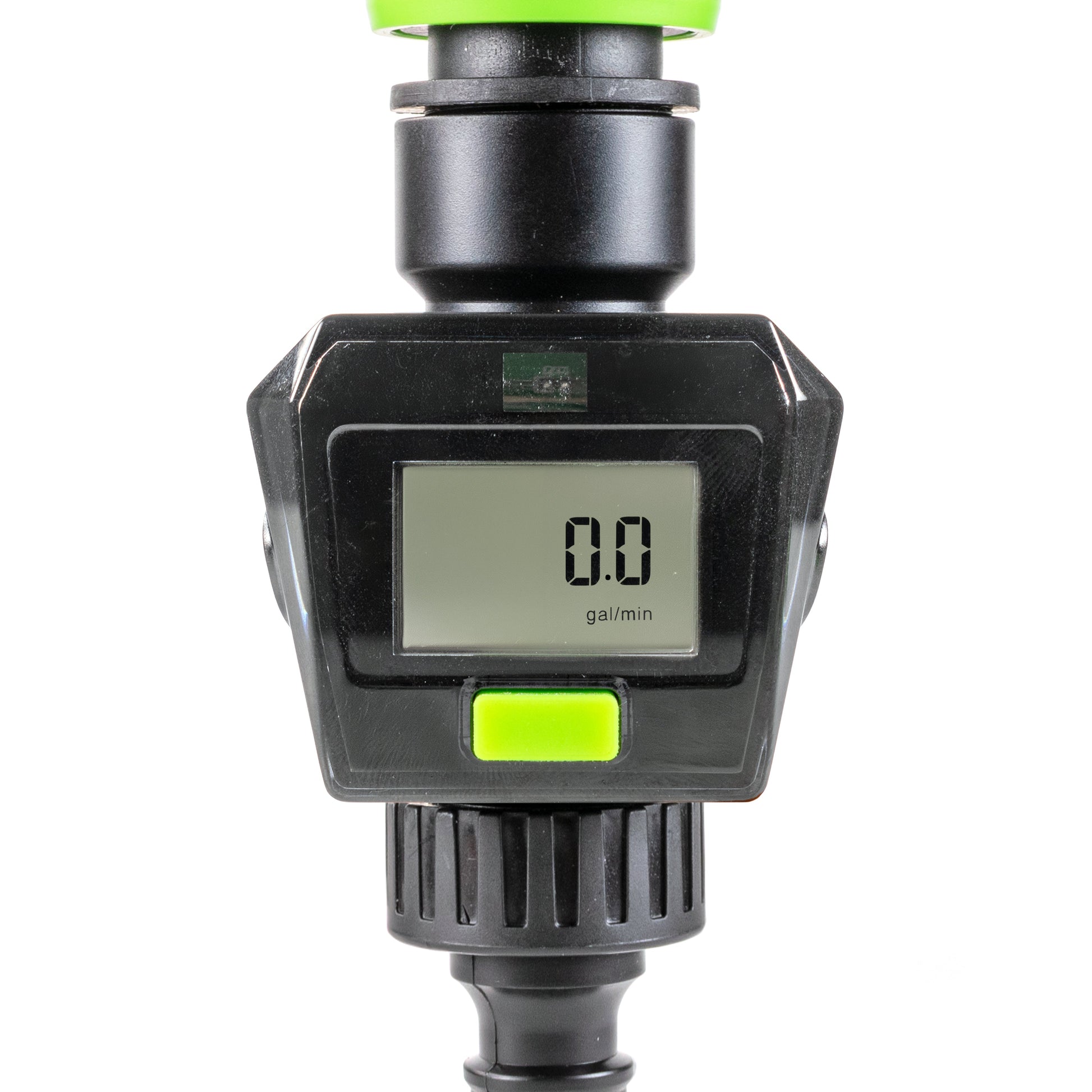

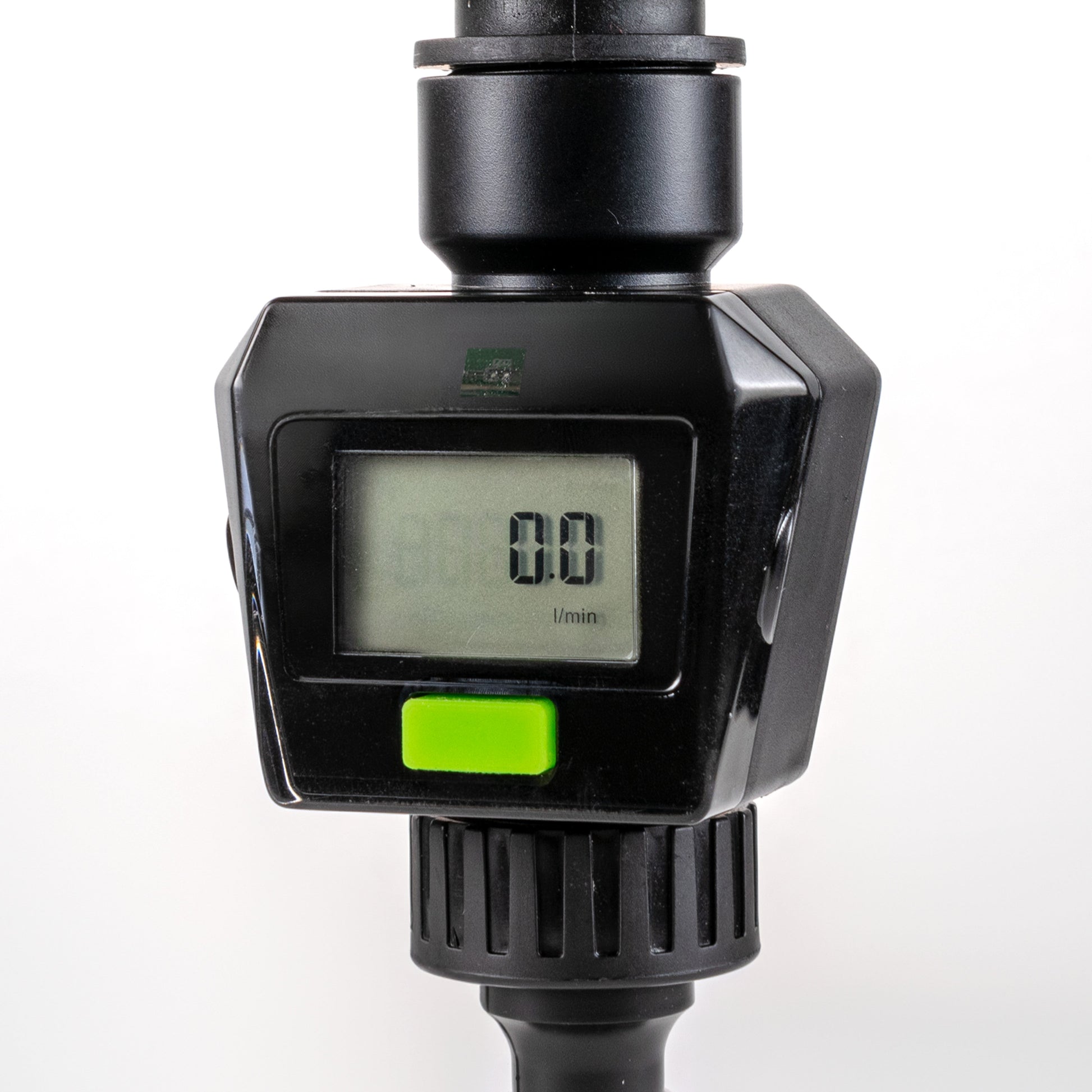

Select L/min or G/min to see the current flow per minute. While a rate mode is displayed, hold the button for three seconds to switch between litres and gallons.
Check one session

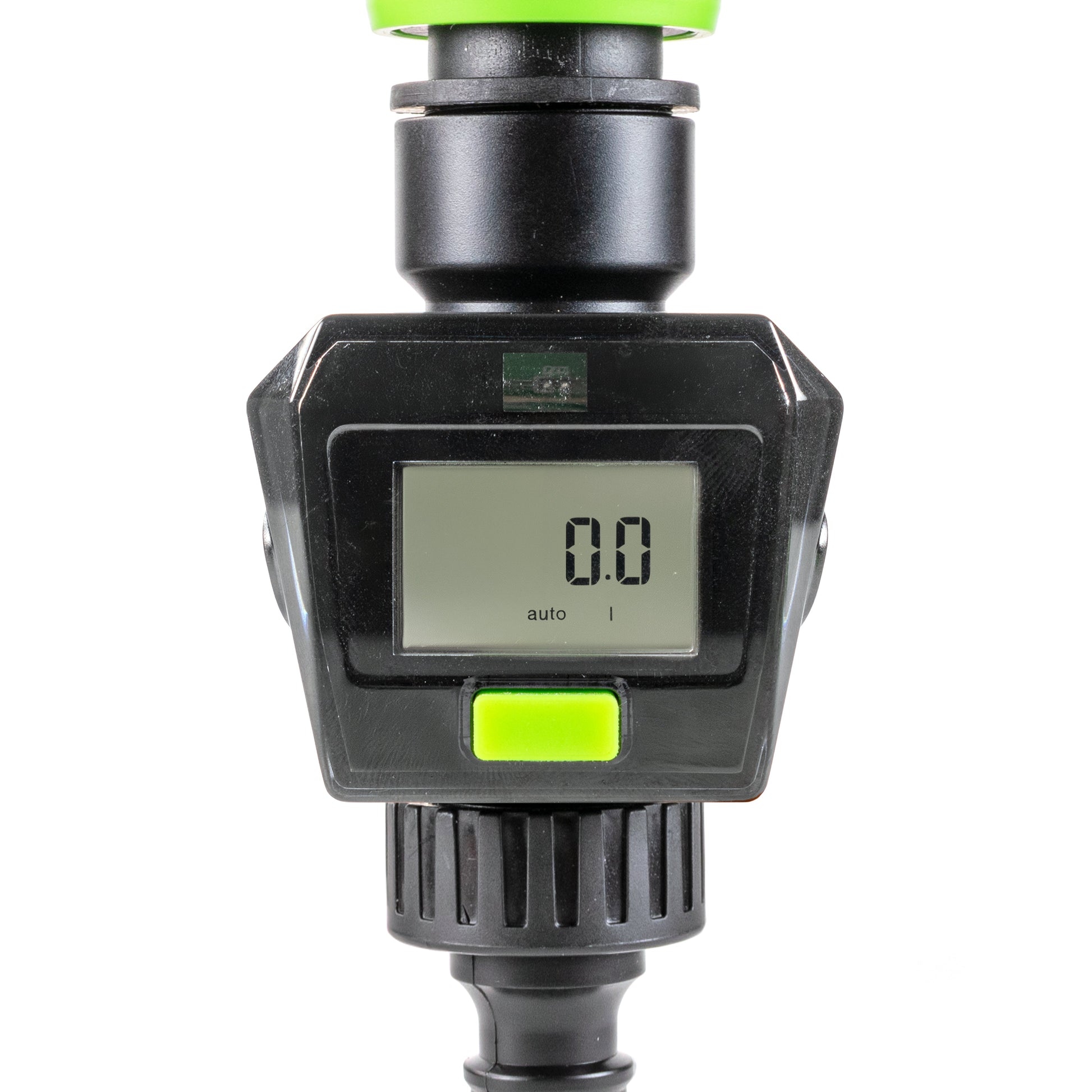

AUTO shows the water used in the active session. It gives you a volume to compare with another watering or filling session, rather than judging by time alone.
Keep a running total

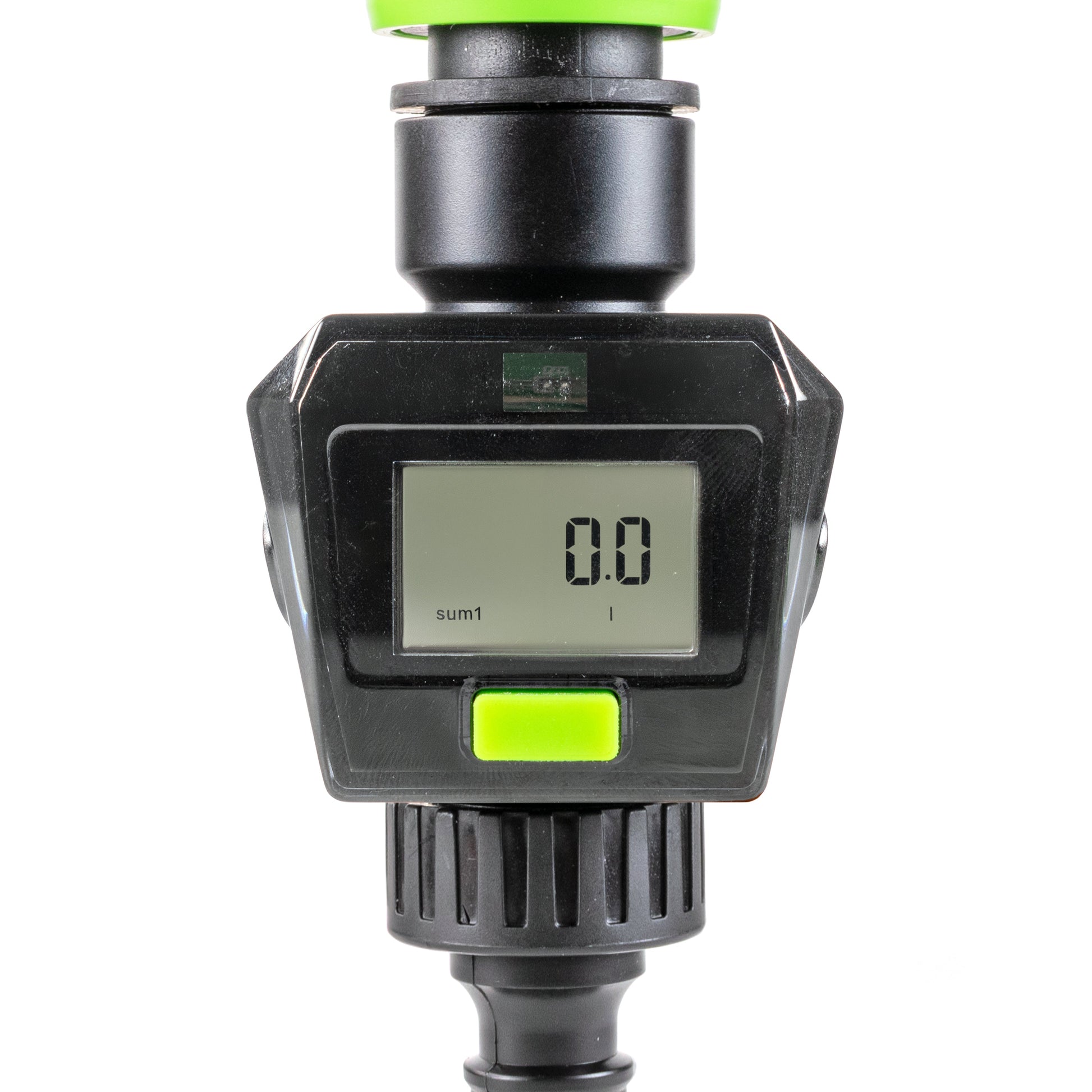

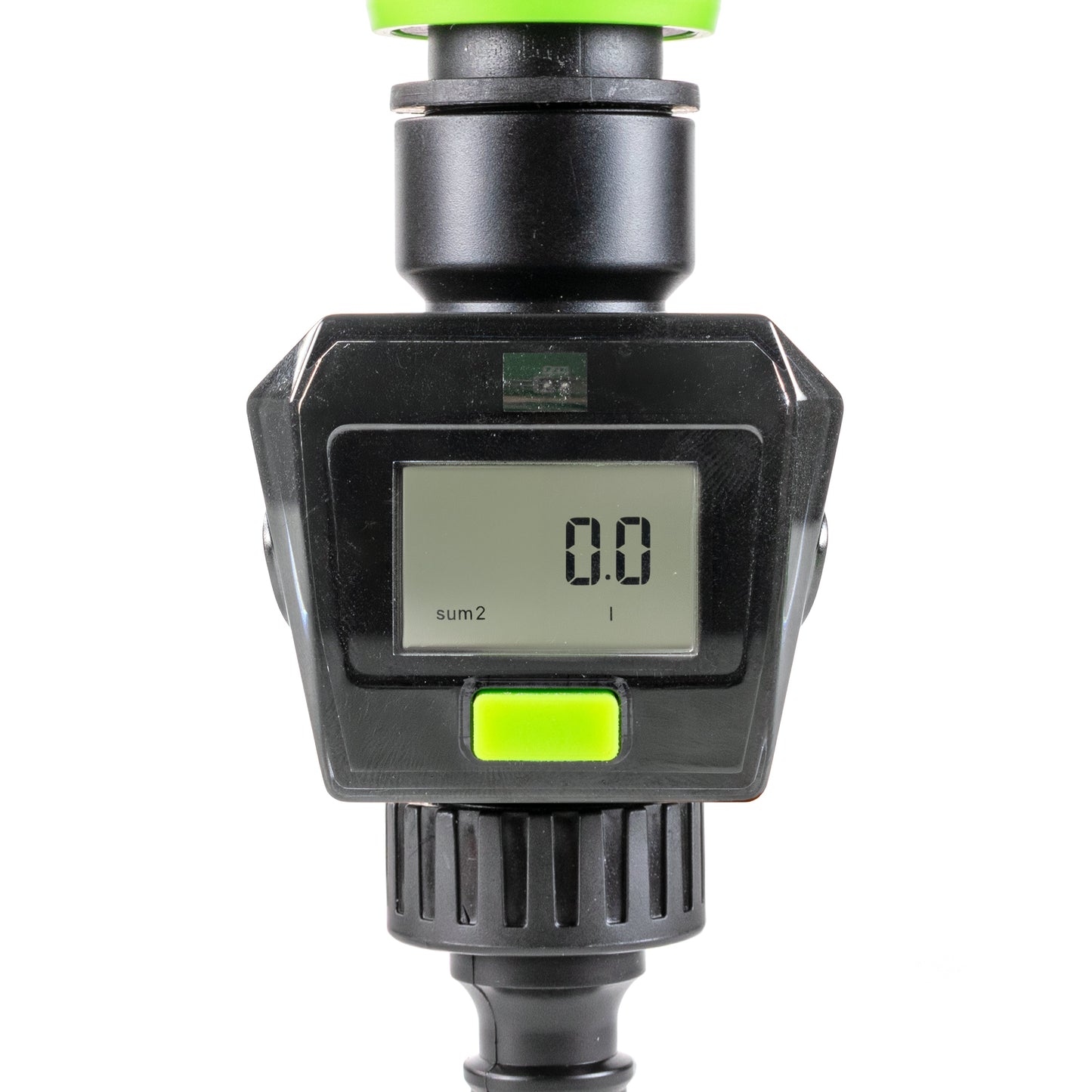

SUM 1 and SUM 2 continue counting until manually reset. Select the total you want to clear, then hold the button. You could reset one each day and retain the other over a longer period.
Before you connect
Will it stop the water after a set amount?
No. This is a measuring device, not a watering timer or automatic shut-off valve. You control the water at the tap or a separate suitable controller.
What connections do I need?
A matching ¾-inch or 1-inch BSP male tap outlet at the top, and a compatible female garden hose socket at the bottom. The meter’s tap adapters and reducer are supplied; the tap, hose and female hose socket are separate.
Is the battery included, and can it be replaced?
Yes. A CR2032 lithium 3V coin cell is included. With the water off, grip the meter and carefully pull at an edge of the clear front cap. The white inner cover provides access to the battery. Refit both covers securely before use.
Is it suitable for billing or precise commercial measurements?
No. This model is intended for household use, not commercial use or precision testing. Its stated measuring range is 2-50 litres per minute. Drain exposed fittings and protect the assembly from freezing when it is not in use.
Product information & technical details
| SKU | WFM-CW-GREEN-001 |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | Black, Green |
| Material | Plastic |
| Housing material | ABS plastic |
| Stated measuring range | 2-50 litres per minute |
|---|---|
| Display modes | SUM 1, SUM 2, AUTO, litres/minute and gallons/minute |
| Power supply | CR2032 lithium 3V coin-cell battery, included |
| Stated ambient temperature | 5-60°C (ambient) |
| Hose outlet | Male garden quick-connect plug |
| Intended use | Household monitoring; not commercial or precision testing |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
