Description
From irrigation tube to a threaded connection
Make a direct link between flexible LDPE pipe and a valve or other female-threaded fitting.

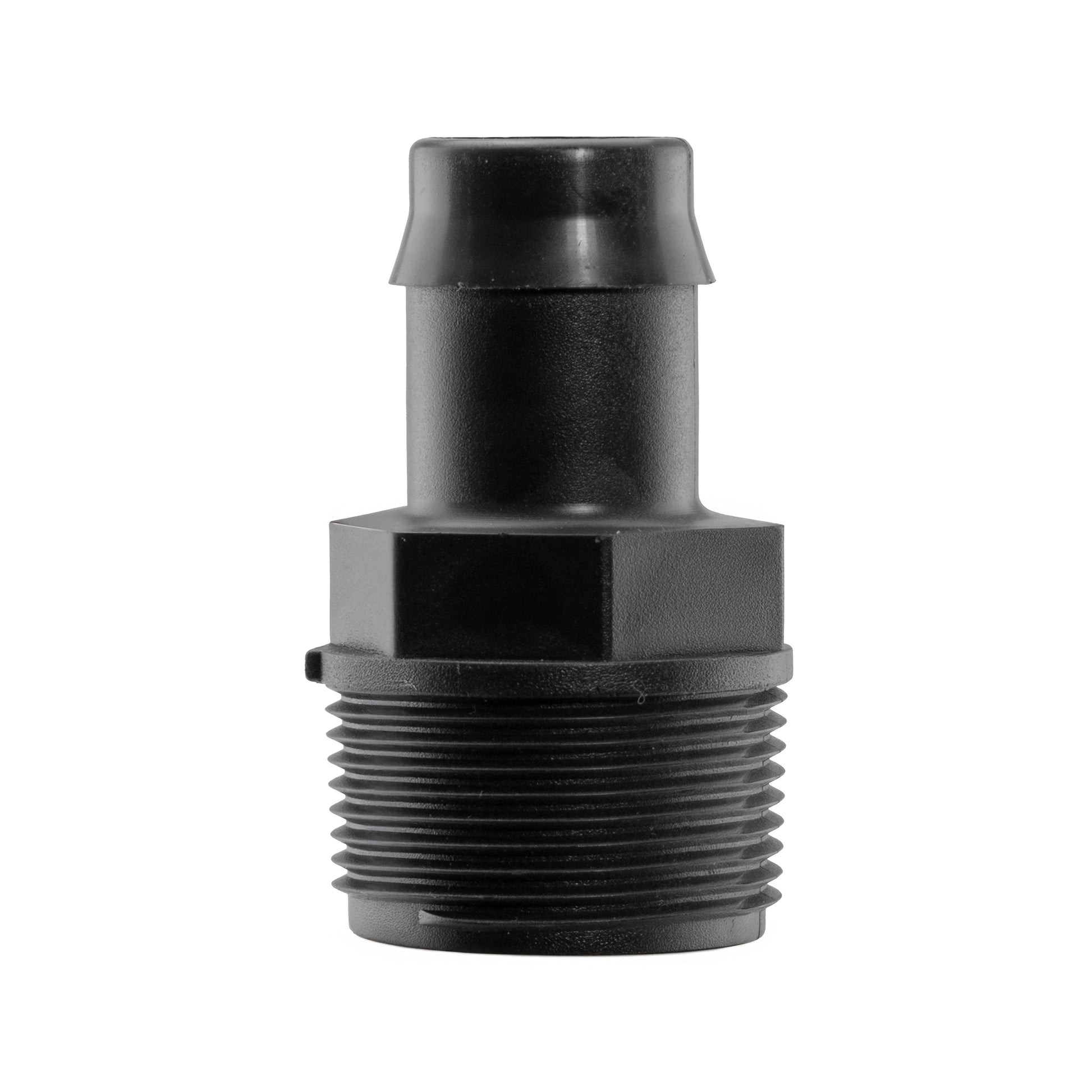

The Antelco 45315 director pairs a 25mm barbed tail with a 1″ BSP male thread in one compact, straight adapter. It keeps the connection inline, with hexagonal flats to help you tighten the threaded end while supporting the adjoining fitting.
One adapter supplied. The valve, tubing and clamp shown in the installation example are sold separately.
Choose the tube and thread separately
The two ends use different sizing conventions. The 25mm hose tail fits inside matching LDPE tubing; the 1″ BSP male thread screws into a compatible female port. Checking both avoids buying a fitting that matches only half of your connection.
- At the tube end: match the 25mm internal bore and use a suitable clamp for the tube's outside diameter and wall thickness.
- At the threaded end: check the female BSP size and the mating component's sealing requirements. BSP does not describe the outside diameter of the pipe.
- For outdoor irrigation: the UV-stabilised plastic is intended for low-pressure LDPE systems in gardens and landscaping, with an operating pressure up to 300kPa (3bar).
A 25mm outside-diameter pressure pipe needs its own compatible connection system. This fitting uses a barbed tail rather than a compression nut or garden-hose click connection.
Build the connection in three steps
Match the components
Isolate and depressurise the supply. Confirm the tube's bore and material, the female thread size and the pressure rating of the complete assembly before fitting.
Fit the threaded end
Use the sealing method specified for the mating component. Start the thread squarely by hand, support the valve or fitting and tighten using the flats without forcing the plastic.
Seat and secure the tube
Push the prepared tube fully over the barbed tail and secure it with a suitable clamp. Restore water gradually and inspect both connections before leaving the system running.
Before you choose this adapter
Will it fit 25mm outside-diameter pressure pipe?
Not on that measurement alone. This is a barbed fitting for matching LDPE tubing with a 25mm internal bore. A rigid or pressure pipe sold by outside diameter needs a fitting designed for that pipe system.
Is a clamp needed on the tubing?
Use a suitable retaining clamp for the tube and installation. Select it from the actual outside diameter and wall thickness of the tube, not just the nominal 25mm bore. A clamp is not included.
Is the threaded end a garden-hose quick connector?
No. It is a 1″ BSP male screw thread for a compatible female threaded fitting. It does not click directly into a standard hose-end connector.
Does it include the valve or pipe shown?
No. You receive one Antelco 45315 straight adapter. The installation image shows how it can be used; the valve, tubing, clamp and other system parts are separate.
Product information & technical details
| SKU | A45315-STR25B-1BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Male |
| Barb size | 25mm (1") |
| Colour | Black |
| Material | Plastic |
| Brand | Antelco |
|---|---|
| Model | 45315 |
| Tube compatibility | 25mm internal-diameter LDPE tubing |
| Operating pressure | Up to 300kPa (3bar), low-pressure irrigation |
| Material treatment | UV stabilised |
| Pack contents | One straight barbed-to-male-thread adapter |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
