Description
A right-angle connection with two female ends
Route a threaded irrigation run around a corner while keeping both joints accessible.

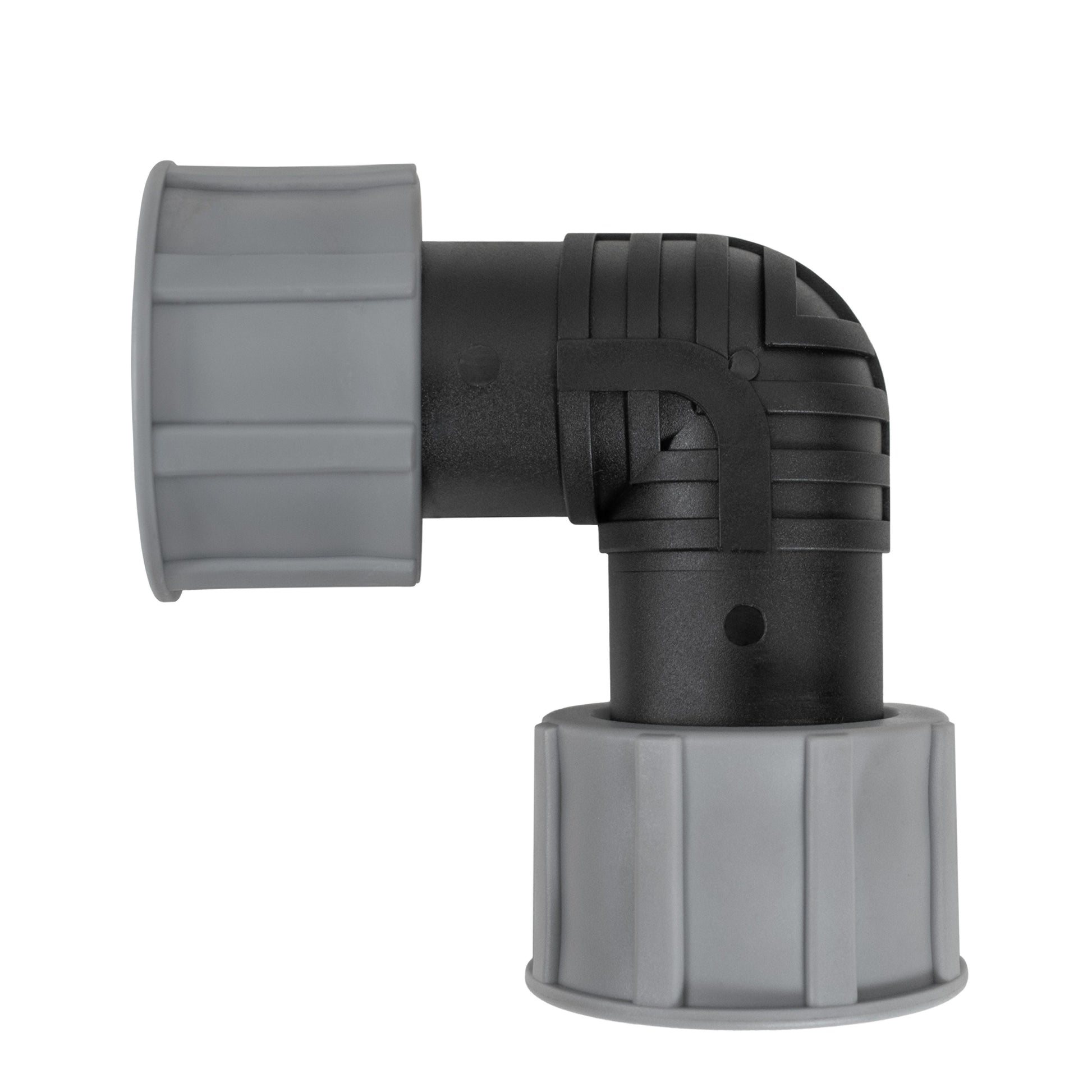

This 1″ BSP female-to-female swivel elbow has a grey nut at each end of a fixed black 90° bend. The nuts turn separately, so you can position the elbow and tighten the connections without rotating the whole adjoining pipework.
One elbow supplied. The threaded adapters and pipes shown in use are sold separately.
Check the male fitting on each side
Both grey nuts are 1″ BSP female. Each needs a matching male thread and an end face suitable for its washer seal. There is no external male thread on this version.
- Match the thread and sealing face: nominal size alone does not confirm that two fittings will form the right washer-sealed joint.
- Choose pipe adapters separately: the elbow joins threaded fittings; it does not clamp directly onto bare hose or irrigation pipe.
- Keep the bend fixed: the nuts help assembly, but the elbow remains a 90° turn once installed.

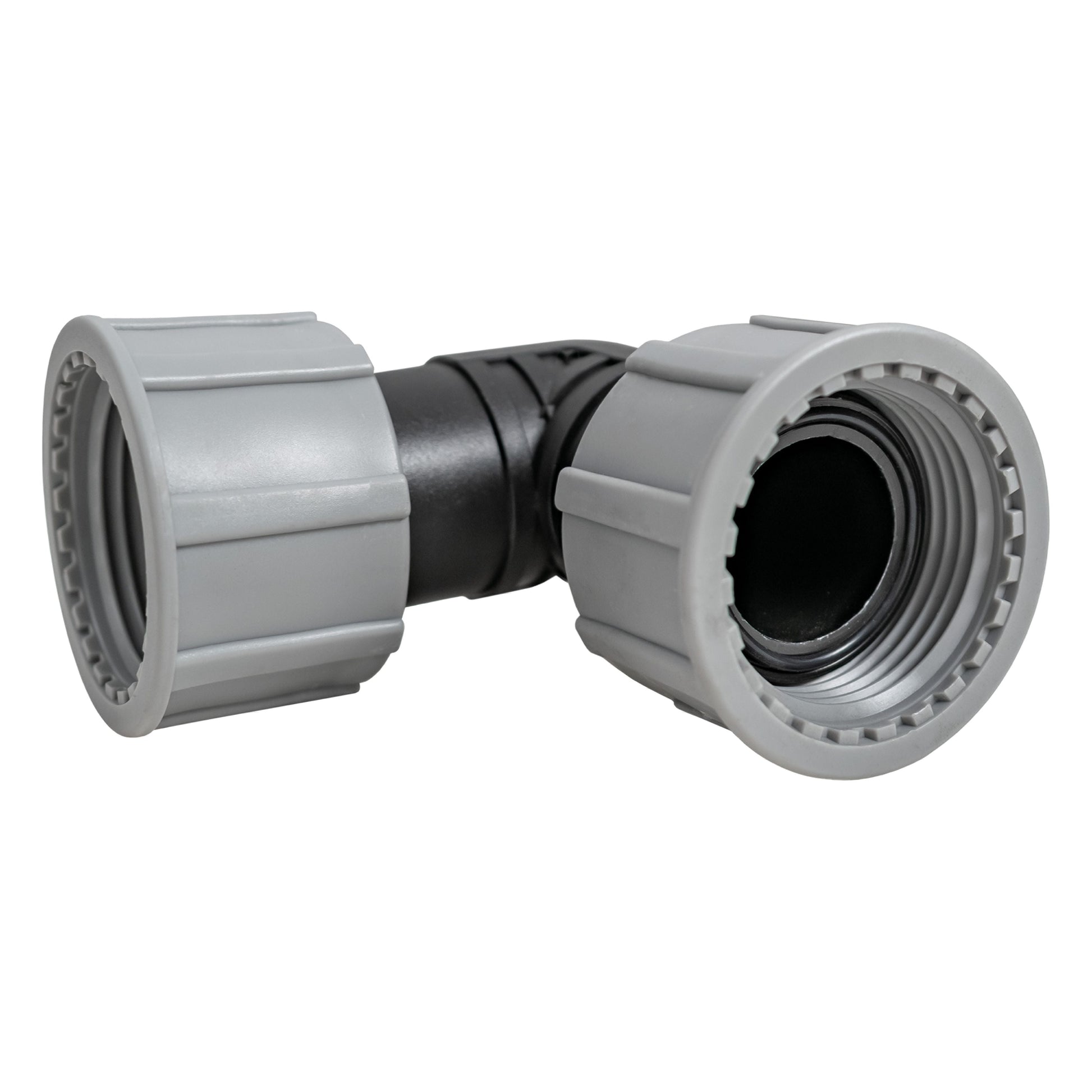

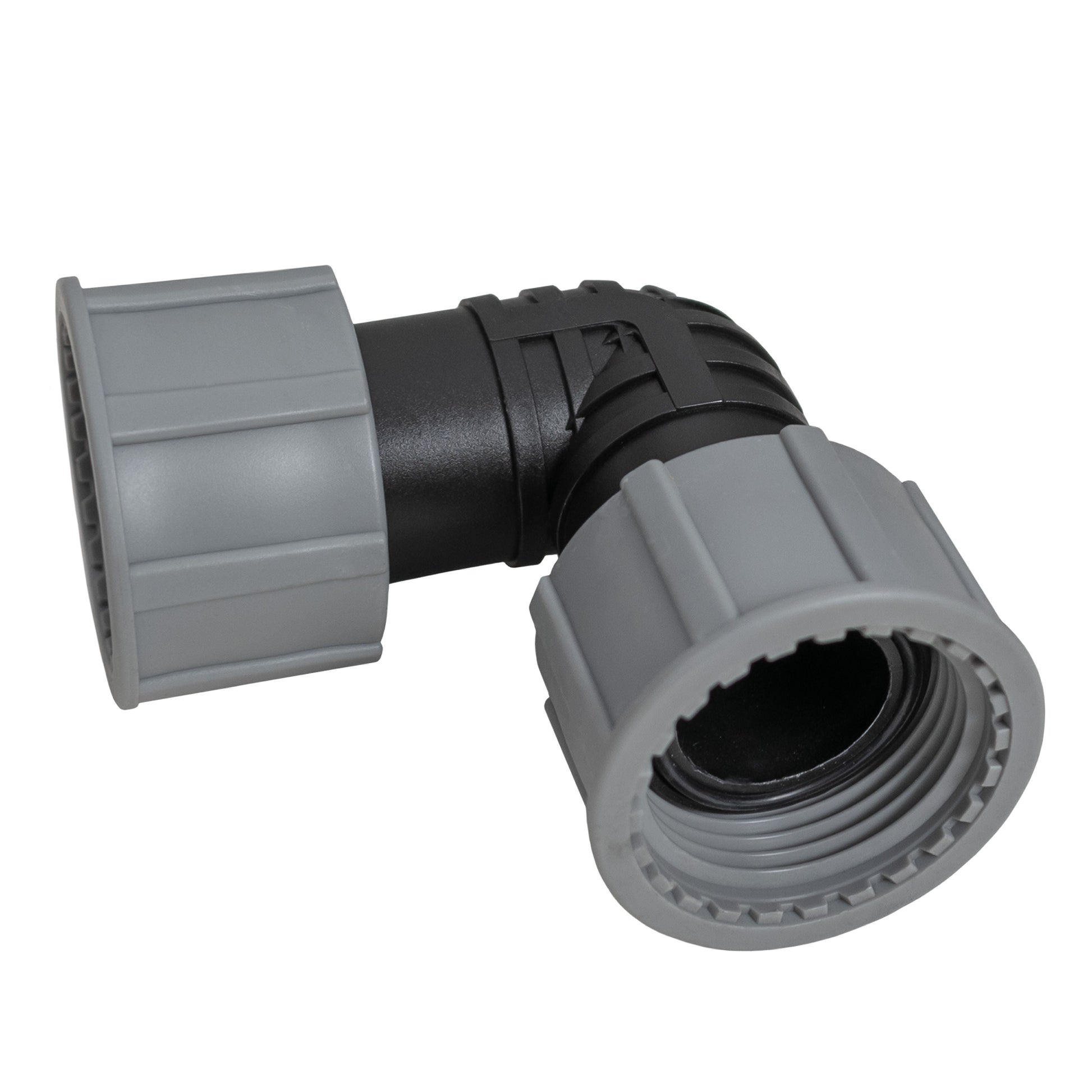

The original close-up shows the supplied part and its internal threads. The connection illustration shows the separate male adapters that the female nuts fit over.
Position the bend, then tighten the nuts
Match two male connections
Isolate the water and release pressure. Check both mating fittings are the right size and gender, and arrange the pipework to meet at a right angle without pulling sideways on the elbow.
Check each washer
Keep the threads and sealing faces clean. Check both washers are present and seated, then start each nut squarely by hand. Hold the black body in position while tightening without forcing the plastic.
Inspect before covering
Restore the supply gradually and check both joints. Keep the connections accessible for maintenance, and isolate and depressurise the system before loosening a nut or changing the layout.
Choosing the female-to-female elbow
Is one end male threaded?
No. Both grey swivel nuts are female threaded. Choose the male-to-female version instead if your layout needs one external male thread.
Can I change the bend angle?
No. The black elbow body forms a fixed 90° turn. Swivel describes the female nuts' turning action during assembly, not an adjustable or continuously rotating bend.
Does 1″ BSP mean it fits 1-inch hose directly?
No. BSP is a nominal thread designation. Bare pipe or hose needs a suitable threaded adapter chosen for its own diameter and connection type.
How do the female connections seal?
The supplied washers seal against suitable mating male end faces. Check washer condition and seating at both ends; thread tape is not a substitute for a missing washer, damaged sealing face or mismatched fitting.
Product information & technical details
| SKU | SW-ELB-1BSPF-F-001 |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Female |
| Colour | Black |
| Material | Plastic |
|---|---|
| Bend angle | 90° |
| Swivel location | Both female threaded nuts |
| Connection seals | Supplied sealing washers |
| Pack contents | One black and grey female-female elbow |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm

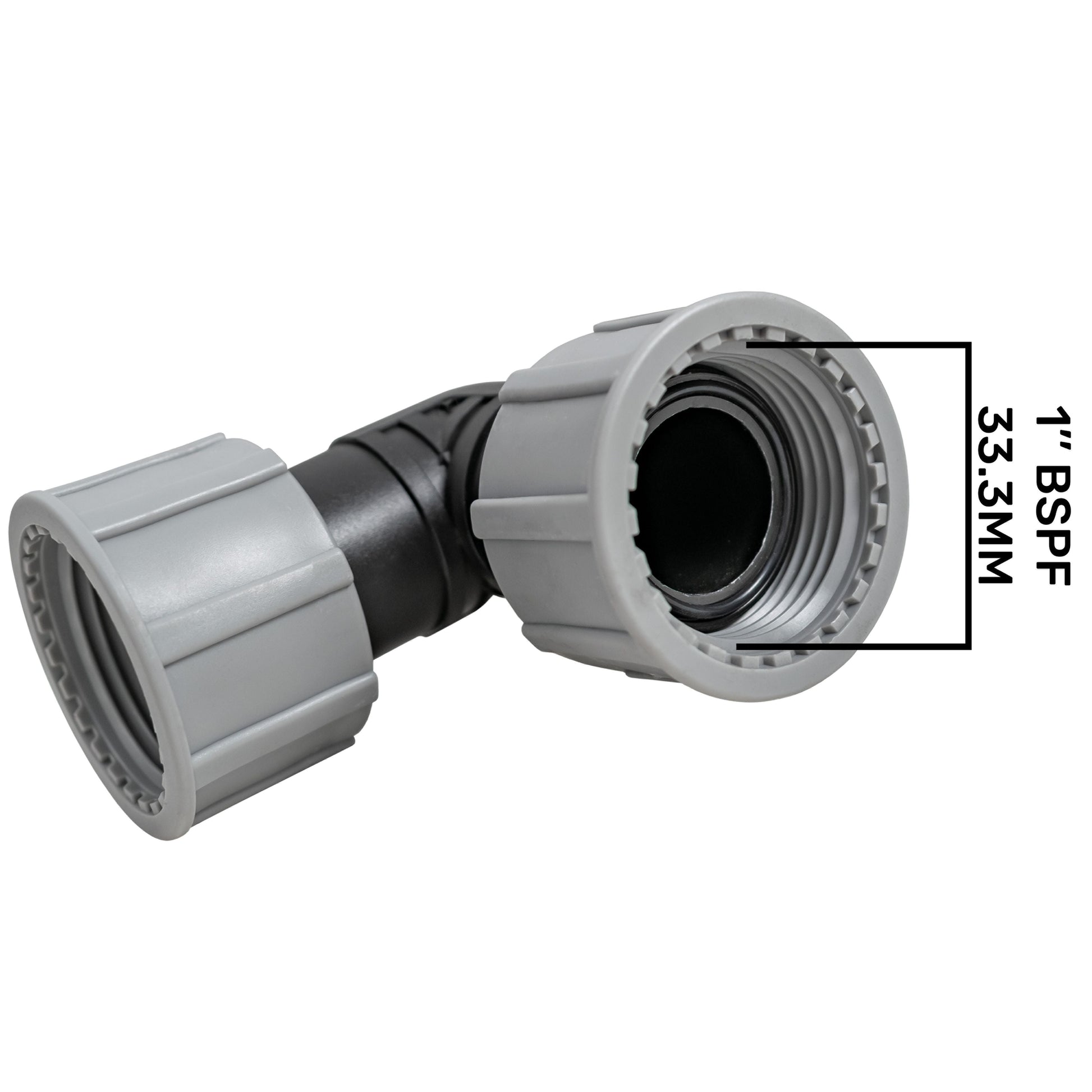

- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
