Description
A threaded junction for the next branch
Bring three parts of your irrigation layout together with the right connections on each side.
This 1″ BSP swivel tee combines one grey female nut with two black male threads. One male thread is on the straight run and the other forms the right-angle branch, making this the version to choose when the fittings on those two sides have female threads.
One tee supplied. Pipes, threaded adapters and installation equipment in the example are sold separately.
One swivel joint. Two male connections.

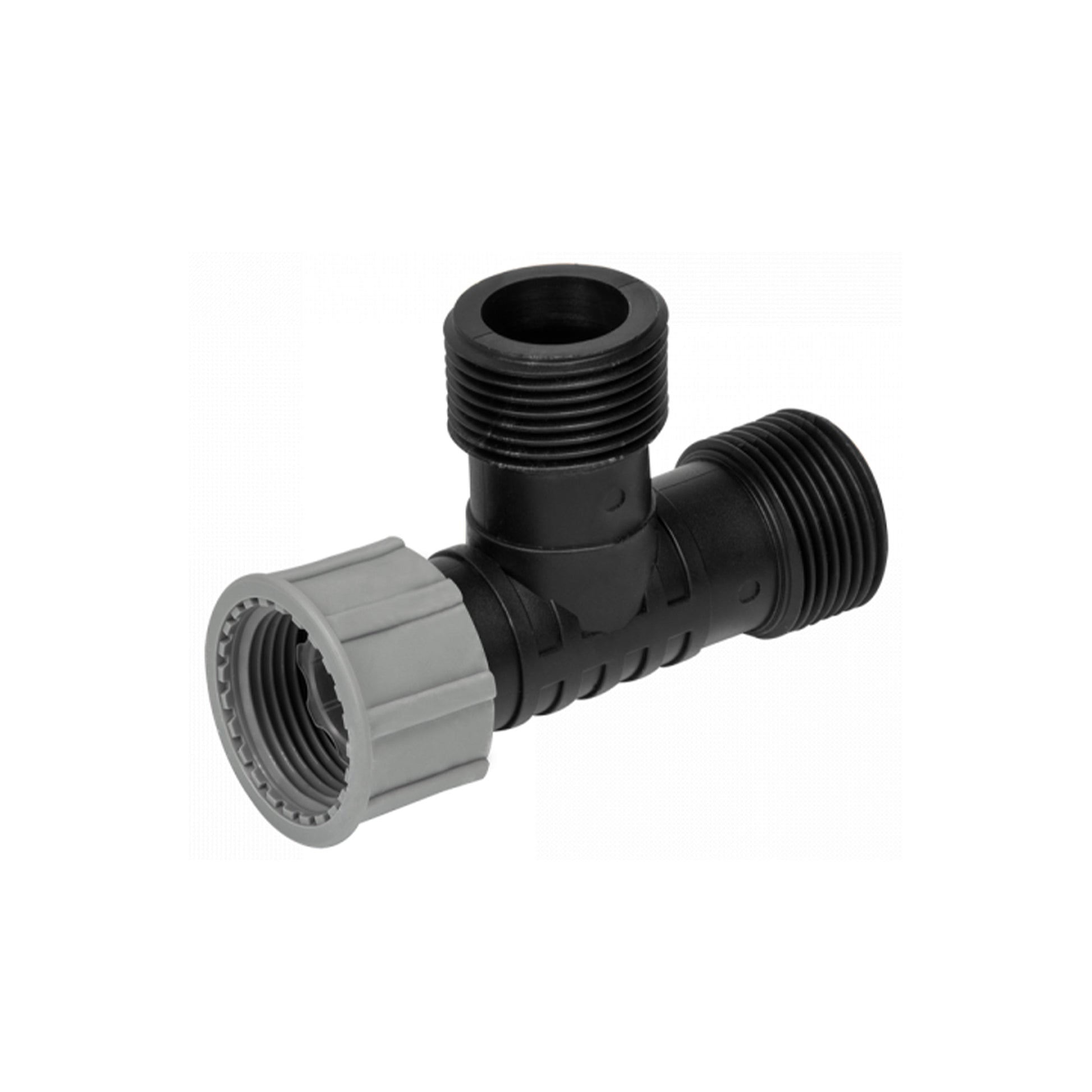

The close-up makes the layout easy to check before you order. The grey female nut is on one end of the straight-through run. The opposite end and the perpendicular branch are male threaded.
- At the female nut: use a matching 1″ BSP male fitting with a suitable end face for the supplied sealing washer. The nut turns separately while the tee body stays in position.
- At the two black male ends: use matching 1″ BSP female fittings and the sealing method appropriate to those joints.
- At the pipe: choose separate threaded adapters that suit your pipe or hose. A 1″ BSP thread does not clamp directly onto bare 1-inch hose.
This is the one-female/two-male version. If your layout needs two female swivel nuts instead, choose the corresponding two-female/one-male tee.
Three checks for a tidy junction
Match the layout first
Isolate the supply and release pressure. Lay out the tee and its adjoining fittings, check all three thread genders, and support the pipes so the junction is not pulled sideways.
Make each seal correctly
Start threads squarely by hand. Check the female washer is clean and seated against a suitable male face. Assess the two male threaded joints separately rather than assuming the washer seals every port.
Keep it accessible
Tighten without forcing the plastic body, restore the supply gradually and check all three joints. Leave access to the fittings for inspection and maintenance; use separate valves if your layout needs individual branch control.
Before you connect the tee
Is the branch male or female?
The branch is 1″ BSP male. The straight run has one male end and one grey female swivel nut. This differs from the two-female version, whose branch also has a grey nut.
Will it connect directly to 1-inch hose?
No. 1″ BSP describes nominal thread size, not a bare hose connection. Each pipe or hose needs a suitable adapter matched to its own size and to the tee's thread gender.
Can I turn off one branch with this fitting?
No. The tee has no shut-off or regulating mechanism. Add suitable valves if your system needs that control. Male and female describe the mating threads, not fixed inlet or outlet directions.
Does the washer mean no joint needs sealant?
The supplied washer belongs to the grey female swivel joint and needs a suitable mating face. The two male threads form separate joints with your chosen female fittings; use the sealing method appropriate to those parts. Isolate and depressurise before loosening any connection.
Product information & technical details
| SKU | SW-TEE-1BSPM-M-F-001 |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Male, Female |
| Colour | Black |
| Material | Plastic |
| Connection layout | One female / two male |
|---|---|
| Perpendicular branch | 1″ BSP male, 90° to straight run |
| Swivel location | Single female threaded nut |
| Female connection seal | Supplied sealing washer |
| Pack contents | One black and grey swivel tee |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
