Description
A right-angle turn in a compact irrigation layout
Change the direction of your pipework without leaving space to swing a whole fitting around.

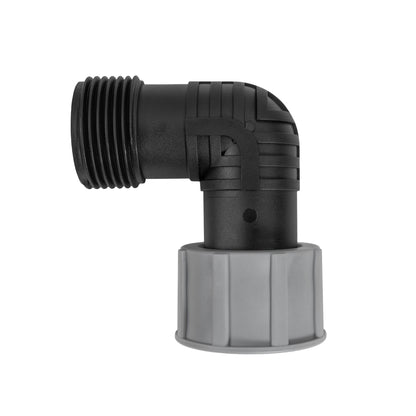

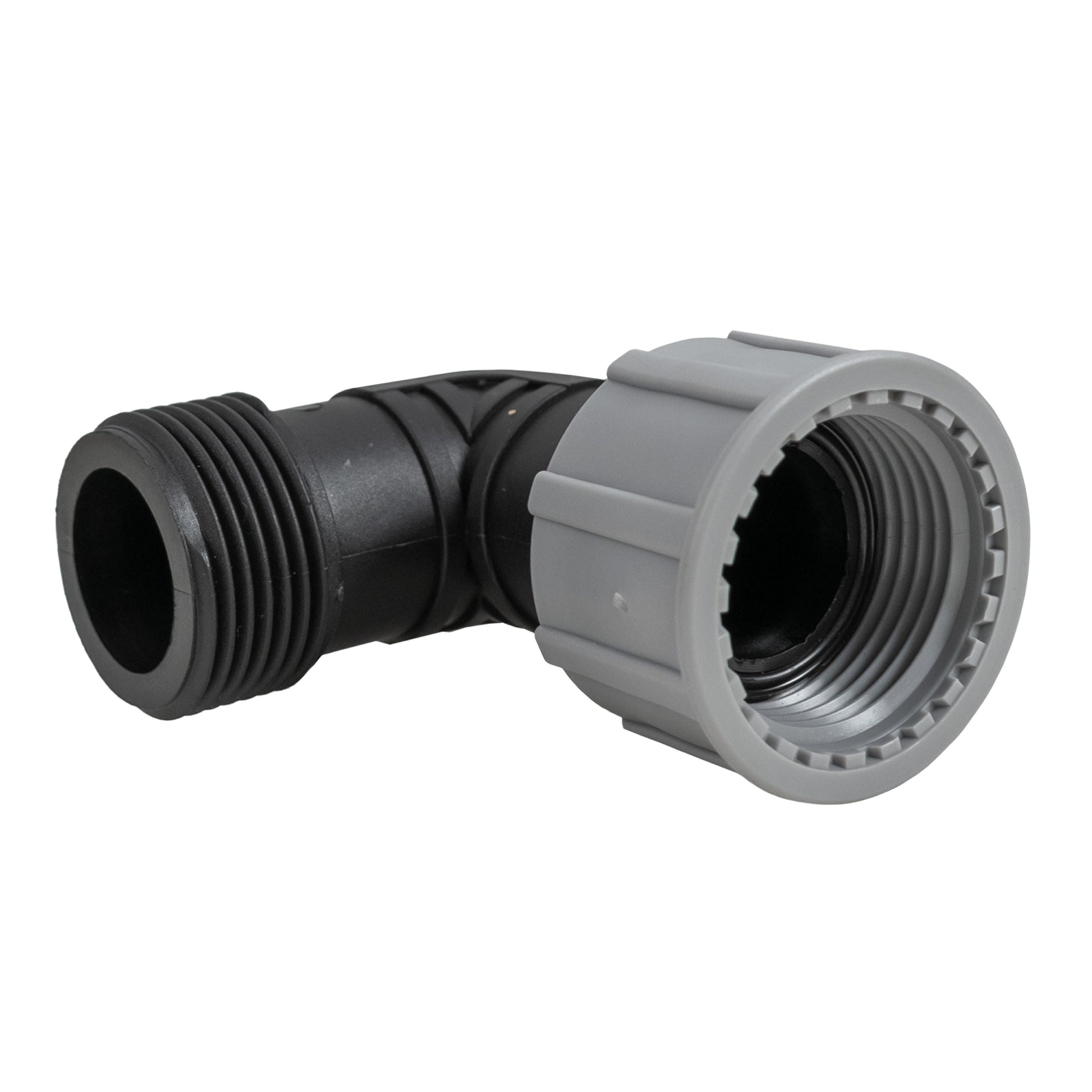

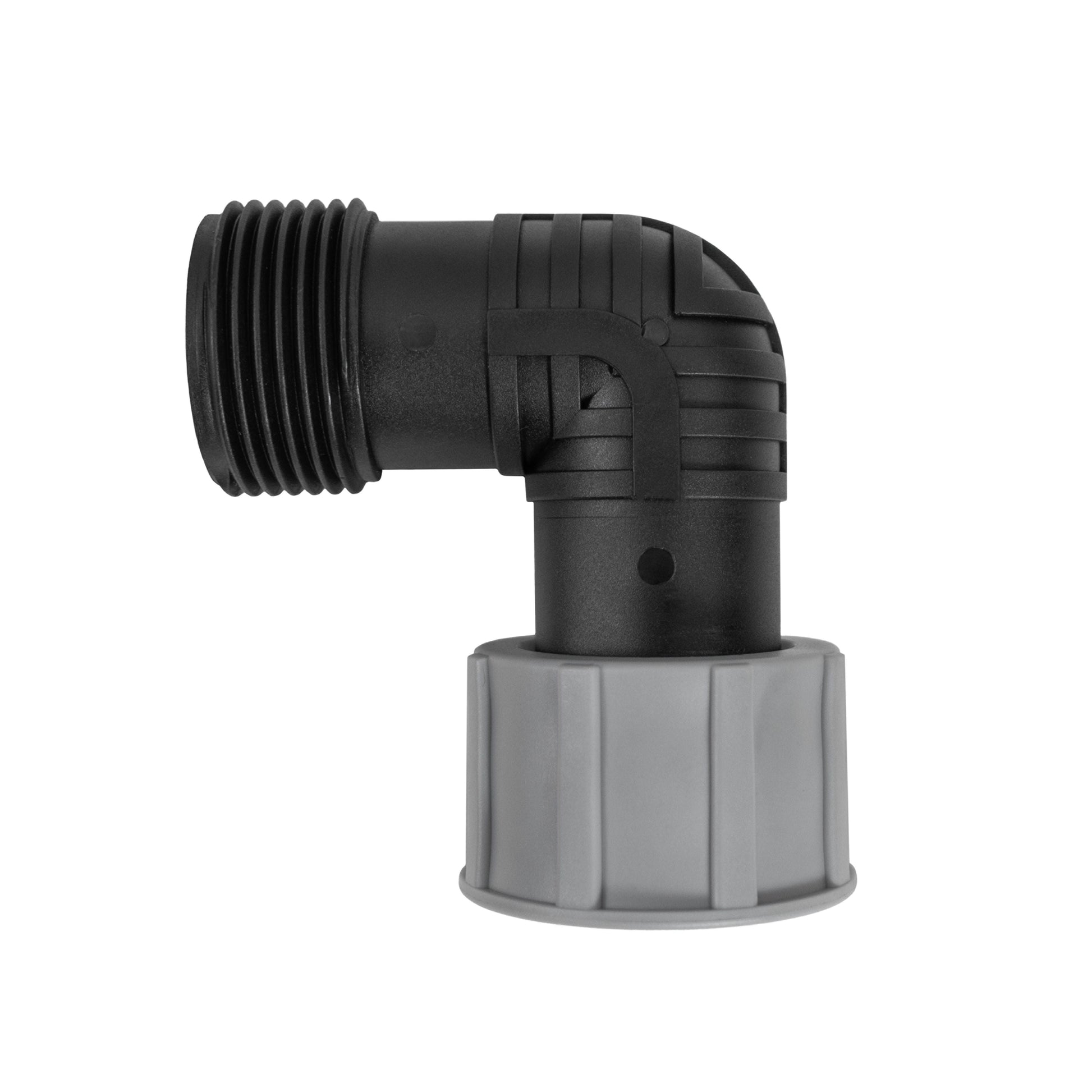

This 1″ BSP male-to-female swivel elbow combines a fixed 90° black body with a separate grey female nut. The nut turns to tighten the connection while you hold the elbow in the position your irrigation run needs.
One elbow supplied. Pipes, adapters, valves and installation boxes are sold separately.
Two threaded ends. One easier connection.

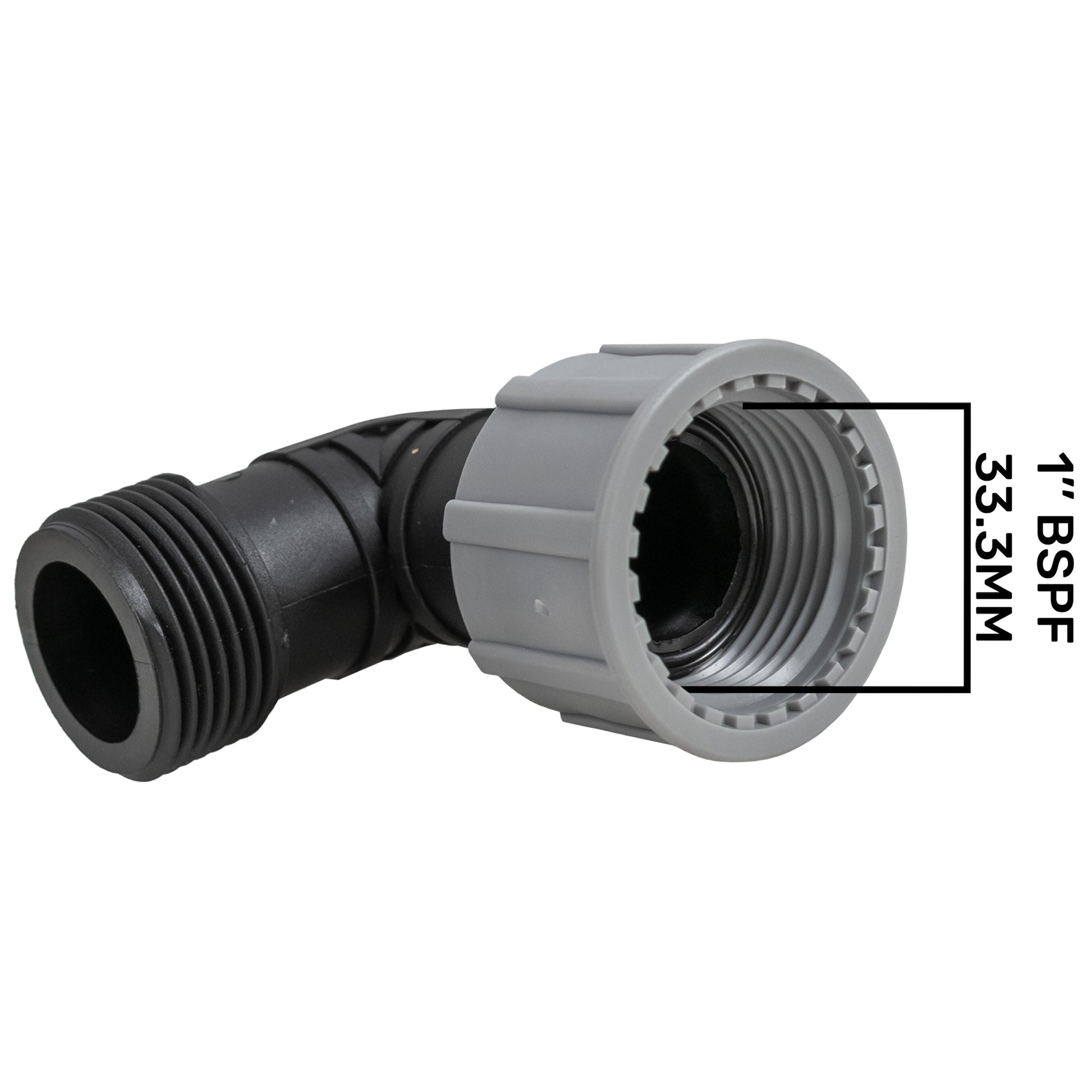

The black male thread screws into a matching 1″ BSP female fitting. At the other end, the grey female nut connects to a matching 1″ BSP male fitting and turns independently of the elbow body.

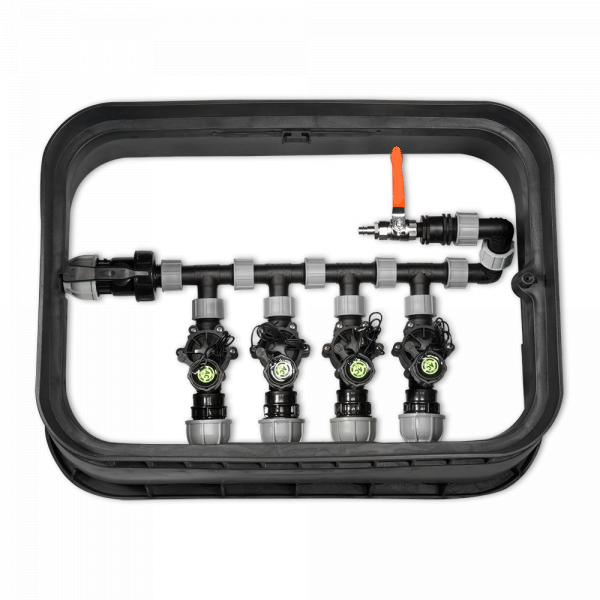

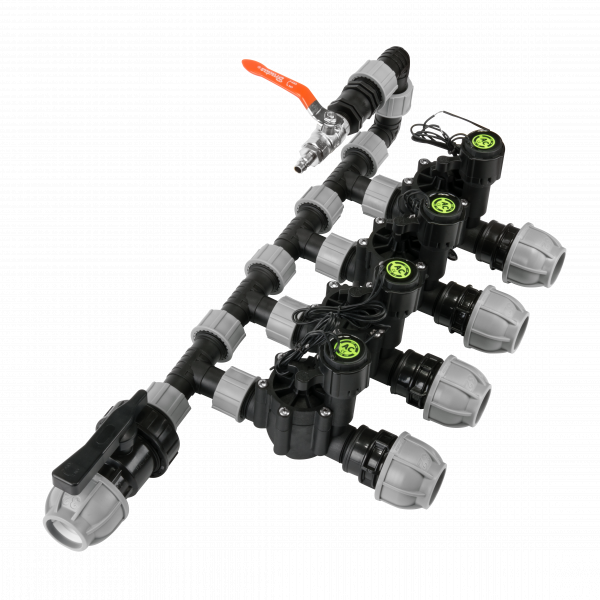

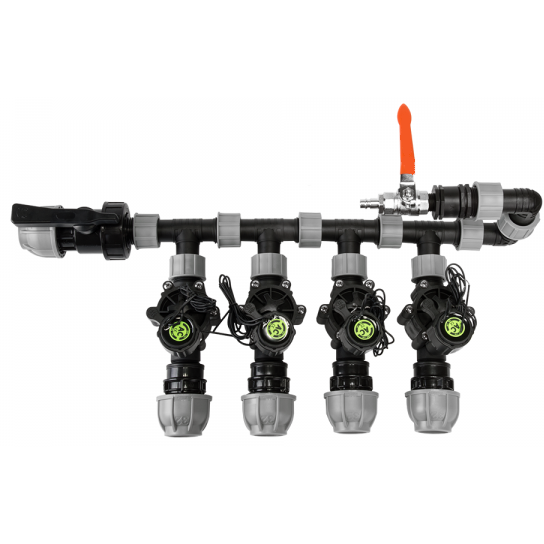

This is useful when assembling irrigation manifolds or sprinkler pipework in an accessible valve box: you can position the bend, then tighten the swivel nut without rotating the whole surrounding assembly.

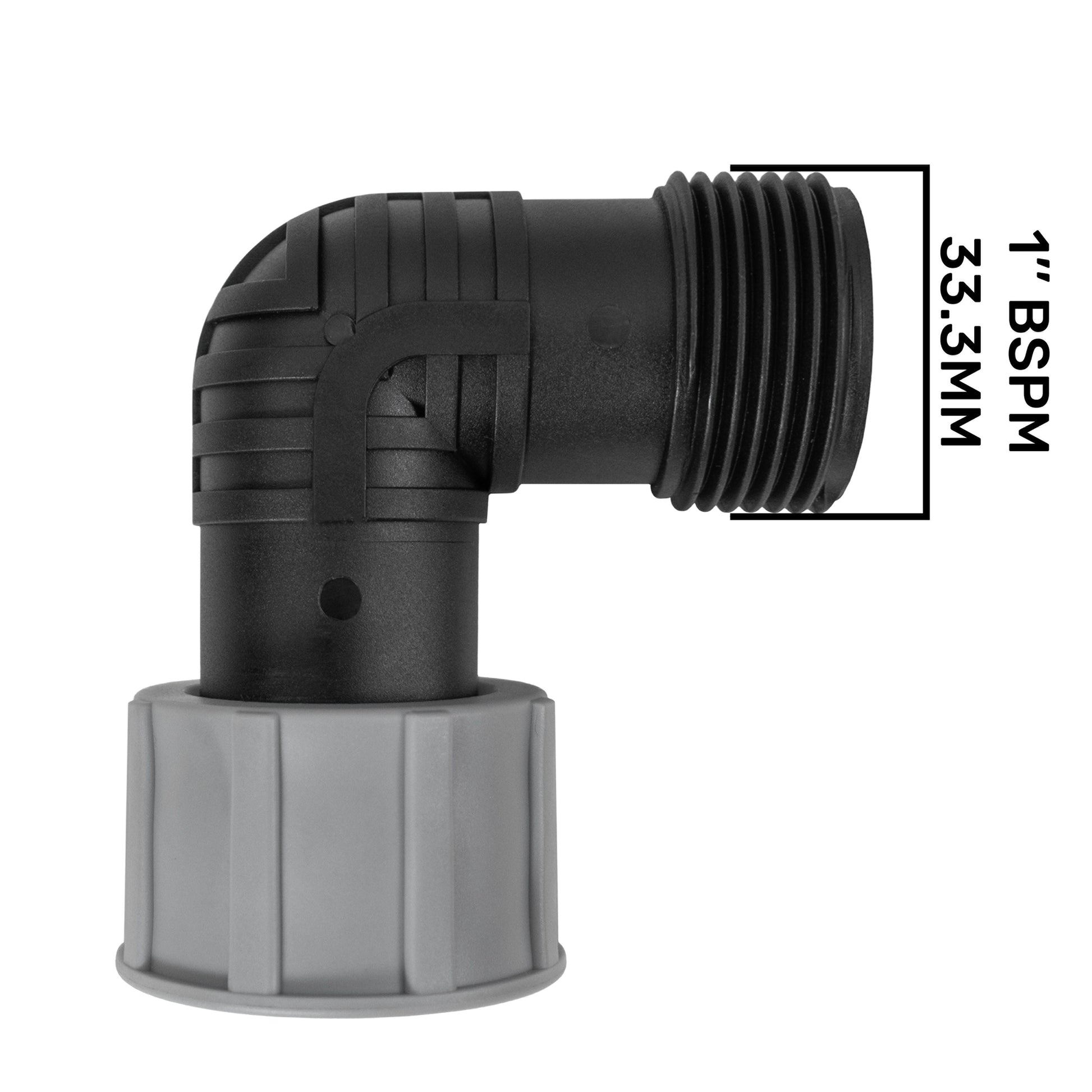

- Check the thread: 1″ BSP is a nominal thread size. The male thread measures approximately 33.3mm across the outside, not 25.4mm.
- Check the sealing face: the female swivel joint uses the supplied washer against the mating male fitting's end face.
- Use a pipe adapter where needed: these are BSP threaded ends, not hose barbs or compression fittings for bare pipe.
Plan the turn before tightening
Match both connections
With the supply isolated and pressure released, check the thread sizes and genders. Start each connection by hand so the threads engage squarely without cross-threading.
Seat the washer
Check that the female swivel washer is present, clean and seated correctly, and that the mating male end has a suitable sealing face. Position the elbow and tighten the grey nut without forcing the plastic body.
Check the complete run
Use the sealing method appropriate to the separate male threaded joint. Support the pipework, restore the supply gradually and inspect both connections before closing the service box or covering the installation.
Choosing and fitting the elbow
Does 1″ BSP mean it fits 1-inch hose directly?
No. BSP describes the threaded connections. The male thread's outside diameter is approximately 33.3mm. Bare hose or pipe needs a suitable adapter chosen for its own size and connection type.
Is this the same as a female-to-female elbow?
No. This version has one black male threaded end and one grey female swivel nut. Check the genders of the two fittings you want to connect before choosing the elbow.
Do both connections seal with the washer?
No. The supplied washer belongs to the female swivel connection and needs a suitable mating male sealing face. The elbow's separate male threaded end connects to another female fitting; use the sealing method appropriate to that joint.
Does the elbow swivel during use?
The swivel nut helps position and tighten the fitting during assembly. The bend itself stays at 90°. Isolate the water and release pressure before loosening or adjusting any connection.
Product information & technical details
| SKU | SW-ELB-1BSPM-F-001 |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Male, Female |
| Colour | Black |
| Material | Plastic |
| Bend angle | 90° |
|---|---|
| Swivel location | Female threaded nut |
| Female connection seal | Supplied sealing washer |
| Male thread outside diameter | Approximately 33.3mm (1″ BSP nominal) |
| Pack contents | One black and grey swivel elbow |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
