Description
Add a branch where your irrigation layout needs it
Keep a threaded run going straight and take another connection off at a right angle.

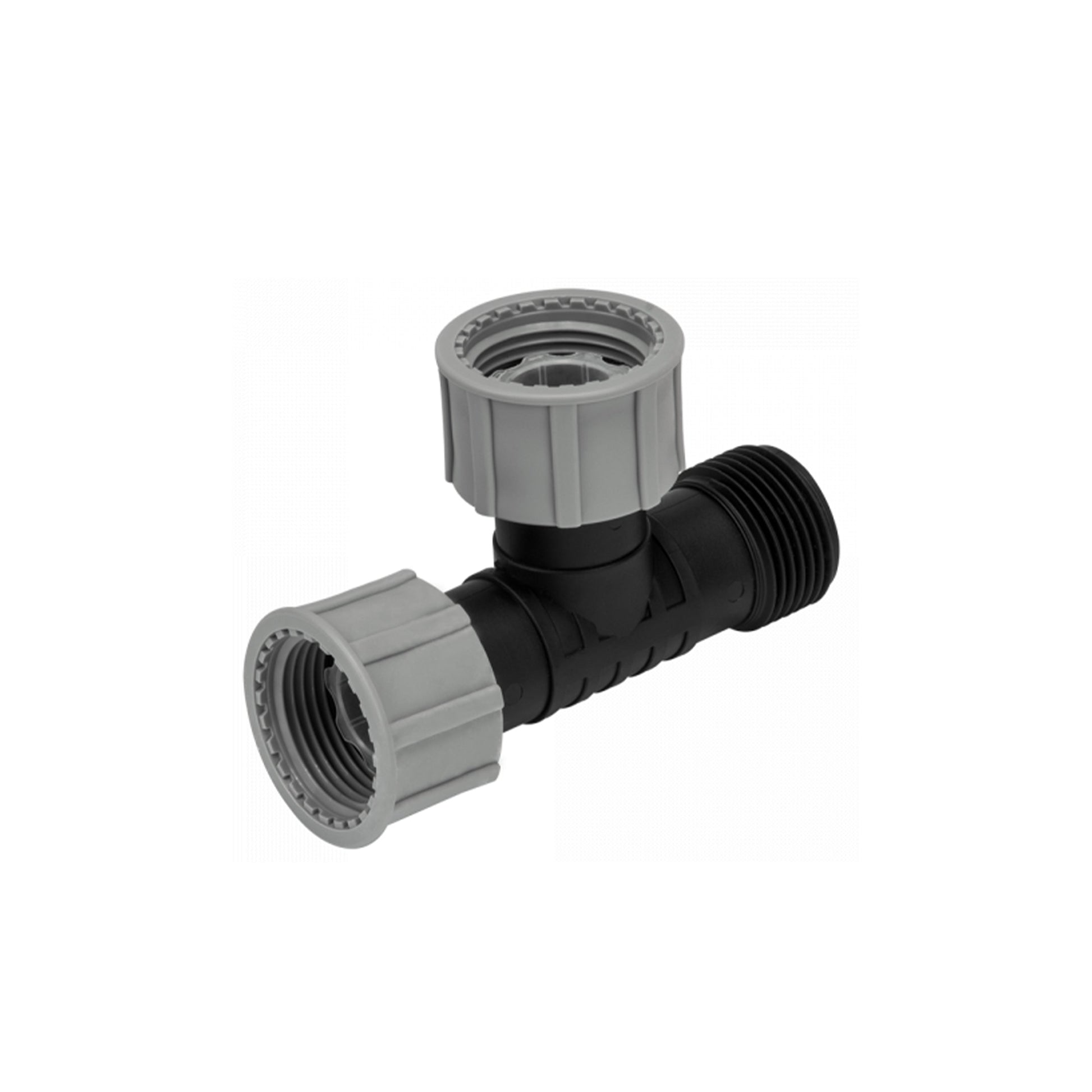

This 1″ BSP swivel irrigation tee has two grey female nuts and one black male thread. It brings three matching components together, with female nuts that turn independently so you can tighten those joints without rotating the whole surrounding assembly.

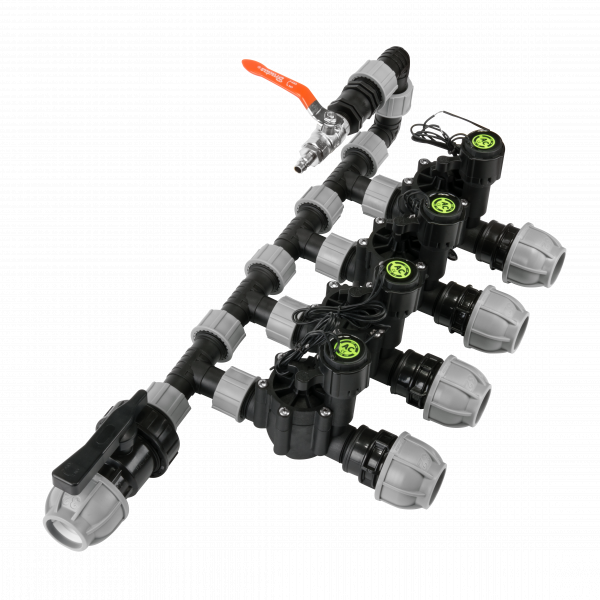

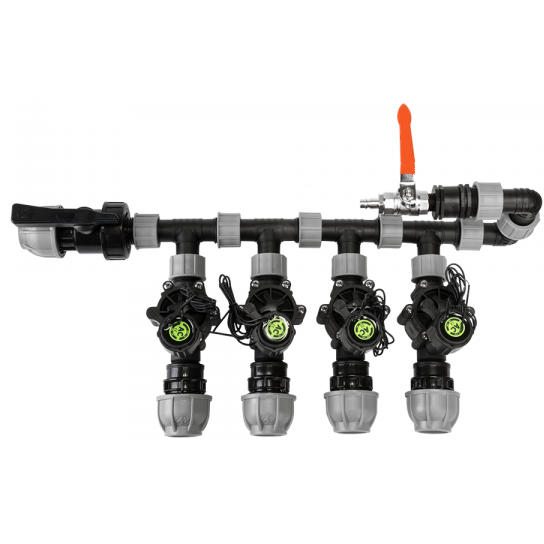

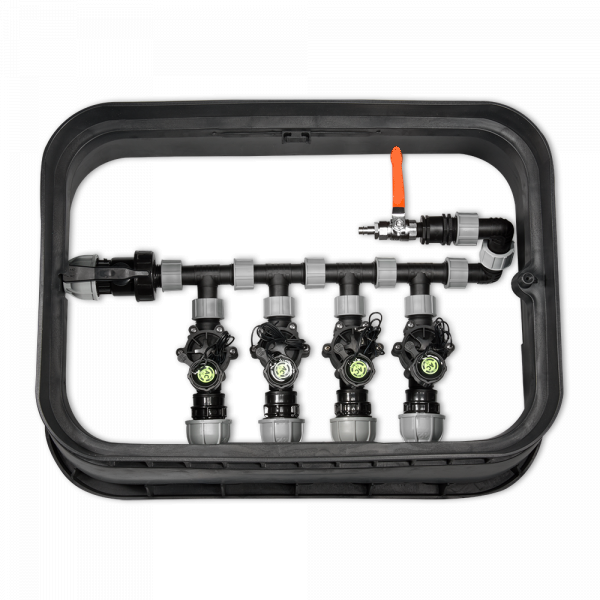

One tee supplied. The connected pipes, adapters and service chamber are shown as an installation example and are sold separately.
Check all three connections before ordering
The straight part of the tee has a female swivel nut at one end and a male thread at the other. The perpendicular branch has the second female swivel nut. All three threads are 1″ BSP.
- Grey female nuts: connect to suitable 1″ BSP male fittings, with the supplied washers seated against the mating end faces.
- Black male thread: screws into a matching 1″ BSP female fitting. Select the sealing method appropriate to that separate joint.
- Bare pipe or hose: needs its own suitable threaded adapter. BSP is a nominal thread size, not the hose diameter.
Choose this version by its two-female/one-male layout. The similar-looking one-female/two-male tee has different mating connections.
Plan the branch, then make the joints
Lay out the three runs
Isolate the water and release pressure. Check the sizes and genders of the adjoining fittings, allow room for the branch, and support the pipework so it does not pull sideways on the tee.
Seat the female seals
Check both washers are clean and seated correctly against suitable mating male end faces. Start the threads squarely by hand, position the tee, and tighten the grey nuts without forcing the plastic body.
Test before closing the box
Complete the separate male threaded joint using the appropriate sealing method. Restore the supply gradually and inspect all three connections. Keep the joints accessible for checking and later maintenance.
Choosing the right swivel tee
Which connections are female?
The grey nuts are female: one is on the straight-through run and one is on the perpendicular branch. The other end of the straight run has the black male thread.
Does the tee control water to each branch?
No. It is an open connecting fitting with no valve or flow control. Use suitable separate valves where your irrigation design needs individual shut-off or regulation.
Do the thread genders set the flow direction?
No. Male and female describe how the threads mate. Do not choose a connection as an inlet or outlet solely because of its gender; plan the flow and any controls as part of the complete system.
Can the tee swivel while the system is running?
The grey nuts turn to help assemble the female connections. The T-shaped body stays fixed once installed; this is not a continuously rotating joint. Isolate the supply and release pressure before loosening or adjusting the connections.
Product information & technical details
| SKU | SW-TEE-1BSPM-F-F-001 |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Male, Female |
| Colour | Black |
| Material | Plastic |
| Connection layout | Two female / one male |
|---|---|
| Branch angle | 90° to straight run |
| Swivel location | Both female threaded nuts |
| Female connection seals | Supplied sealing washers |
| Pack contents | One black and grey swivel tee |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
