Description
A straight join without turning the pipework
Bring two matching male-threaded components together where access is limited.

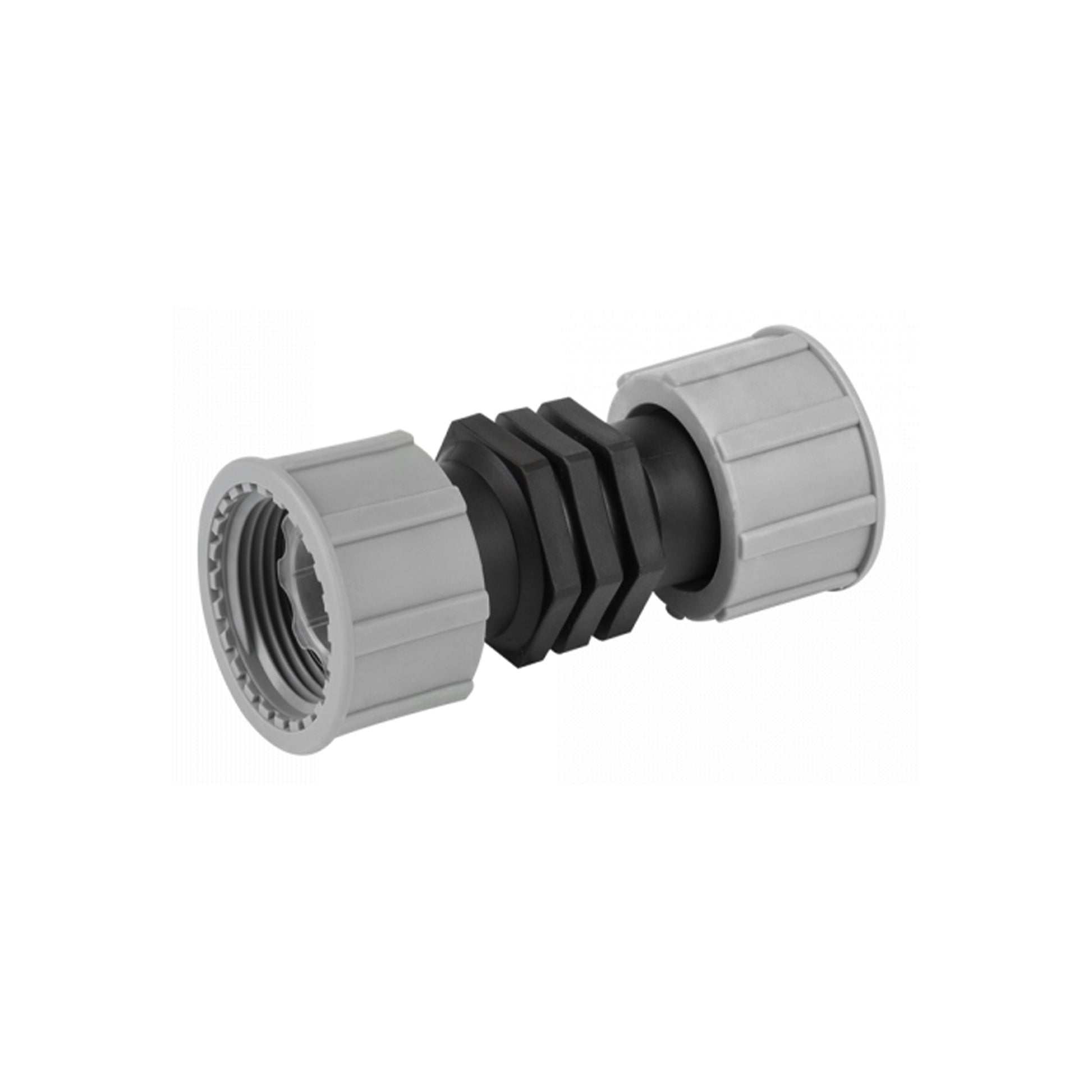

This 1″ BSP female-to-female swivel joiner has a grey nut at each end of a black inline body. The nuts turn independently, so you can hold the adjoining fittings in position while tightening the two female connections.

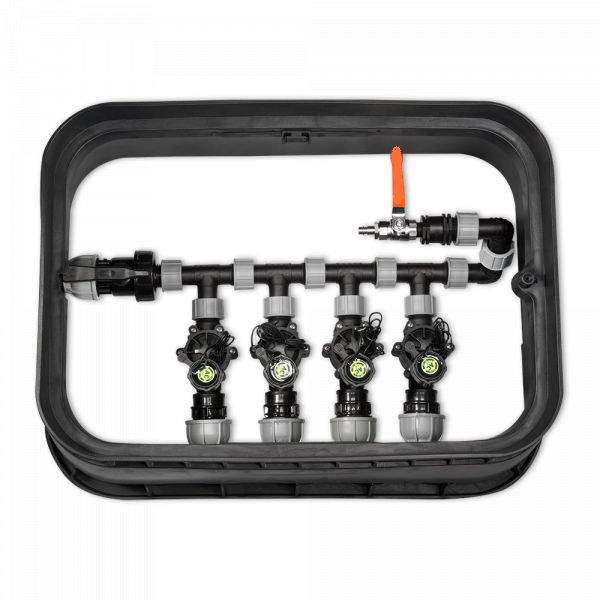

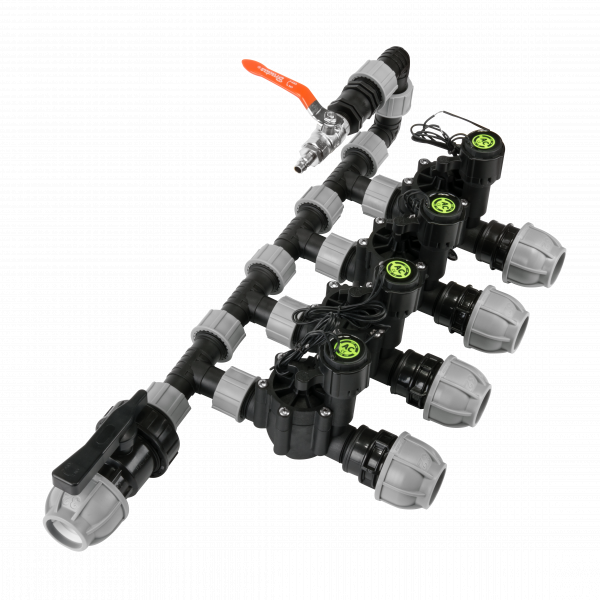

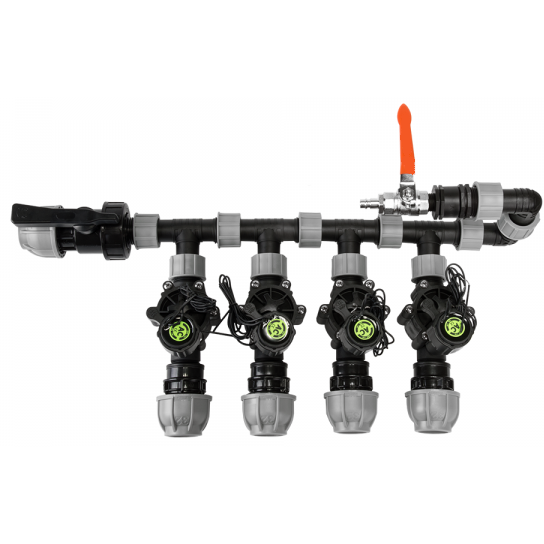

One joiner supplied. Threaded pipe adapters, pipes and installation equipment in the example are sold separately.
Two female ends, not a hose compression joint
Both grey nuts have 1″ BSP female threads. They fit over suitable male-threaded fittings, with the supplied washers sealing against the mating end faces. The ridged black centre provides a place to hold the joiner during assembly.
- Check both mating parts: match the 1″ BSP threads and confirm that each male end has a suitable washer-sealing face.
- Use pipe adapters where needed: bare hose or irrigation pipe does not push directly into the grey nuts. Choose adapters for the pipe size and connection type.
- Keep the run aligned: the joiner makes a straight connection. It does not change direction, reduce the thread size or control flow.
BSP is a nominal thread designation. It does not mean the fitting clamps onto 1-inch hose or that a thread measures exactly one inch across.
Make both joints accessible
Align the fittings
Isolate the water and release pressure. Check sizes and genders, then bring the two male fittings into line without pulling the pipework tight or loading the joiner sideways.
Seat both washers
Check the threads, washer seats and mating faces are clean and undamaged. Start each nut squarely by hand, hold the centre body in position and tighten without forcing the plastic.
Check before closing up
Restore the supply gradually and inspect both joints. Leave access for future checks, and isolate and depressurise the system before loosening the nuts or changing the connection.
Choosing the straight swivel joiner
Will this join two female fittings?
No. The joiner itself has two female nuts and needs suitable male-threaded mating fittings. A male-to-female joiner is a different version with one external male end.
Are the grey nuts compression fittings for bare pipe?
No. They are threaded swivel nuts. Bare pipe or hose needs a suitable adapter; the separate adapter must also provide the correct male thread and sealing face for this joiner.
Can it rotate freely while the water is on?
The nuts turn to help assemble the connection. This is not a continuously rotating operating joint. Isolate the supply and release pressure before loosening or adjusting either end.
What should I check if a joint does not seal?
Turn off and depressurise the supply before inspecting it. Check the mating thread and sealing face, washer condition and seating, and alignment. Do not compensate for a missing washer or mismatched fitting by overtightening the plastic nut.
Product information & technical details
| SKU | SW-STR-1BSPF-F-001 |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Female |
| Colour | Black |
| Material | Plastic |
|---|---|
| Arrangement | Straight, inline |
| Swivel location | Both female threaded nuts |
| Connection seals | Supplied sealing washers |
| Pack contents | One black and grey female-female joiner |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
