Description
A watering routine for one hose
Give one watering route its own schedule with the Cost Wise single-outlet digital timer. Programme up to four cycles, each with a start time and a watering duration from 1 to 240 minutes.
The timer sits between a compatible outdoor tap and your hose. Once the routine is set and AUTO is active, it opens and closes the supply at the programmed times. Choose the watering days and test your attached equipment before relying on the schedule.
One timer supplied, with outlet adapter and instructions. Tap, hose, female hose socket, batteries and any sensor are separate.
Build the routine on the display
- Set the clock and current day. Choose the weekdays you want to water, or the every-second-day or every-third-day option.
- Set the cycles you need. Give each one a start time and duration, then check all four cycle slots before enabling AUTO.
- Test a short run. Watch the equipment and check the soil before deciding how long to water.
Use MANUAL for an additional session. DELAY suspends the programme for up to six days. Optional ECO intervals alternate watering and pauses of up to 19 minutes each, giving water time to soak in.
Open the full programming instructions for the button sequence and seasonal care.
Match the connections before fitting
The female tap inlet fits a 1-inch BSP male outlet, or ¾-inch BSP with its reducer. Keep the inlet filter in place and start the thread by hand.
The lower male garden plug needs a compatible female hose socket. The photograph shows that socket seated over the plug, with its nut gripping the hose. The optional grey connector above is for ½-inch hose; choose a suitable size for your own hose.
The timer controls time, not pressure. If your drip line, porous hose or other equipment needs a lower pressure than the supply, arrange appropriate separate pressure control.
Single-timer questions
Does four cycles mean four hose outlets?
No. There is one physical outlet. The four cycle slots provide separate programmed start times and durations for that same watering route.
Does rain delay detect rainfall?
DELAY is a pause you choose when watering is not needed; it does not detect rain by itself. The timer has a sensor connection, but a sensor is not included.
What batteries should I use?

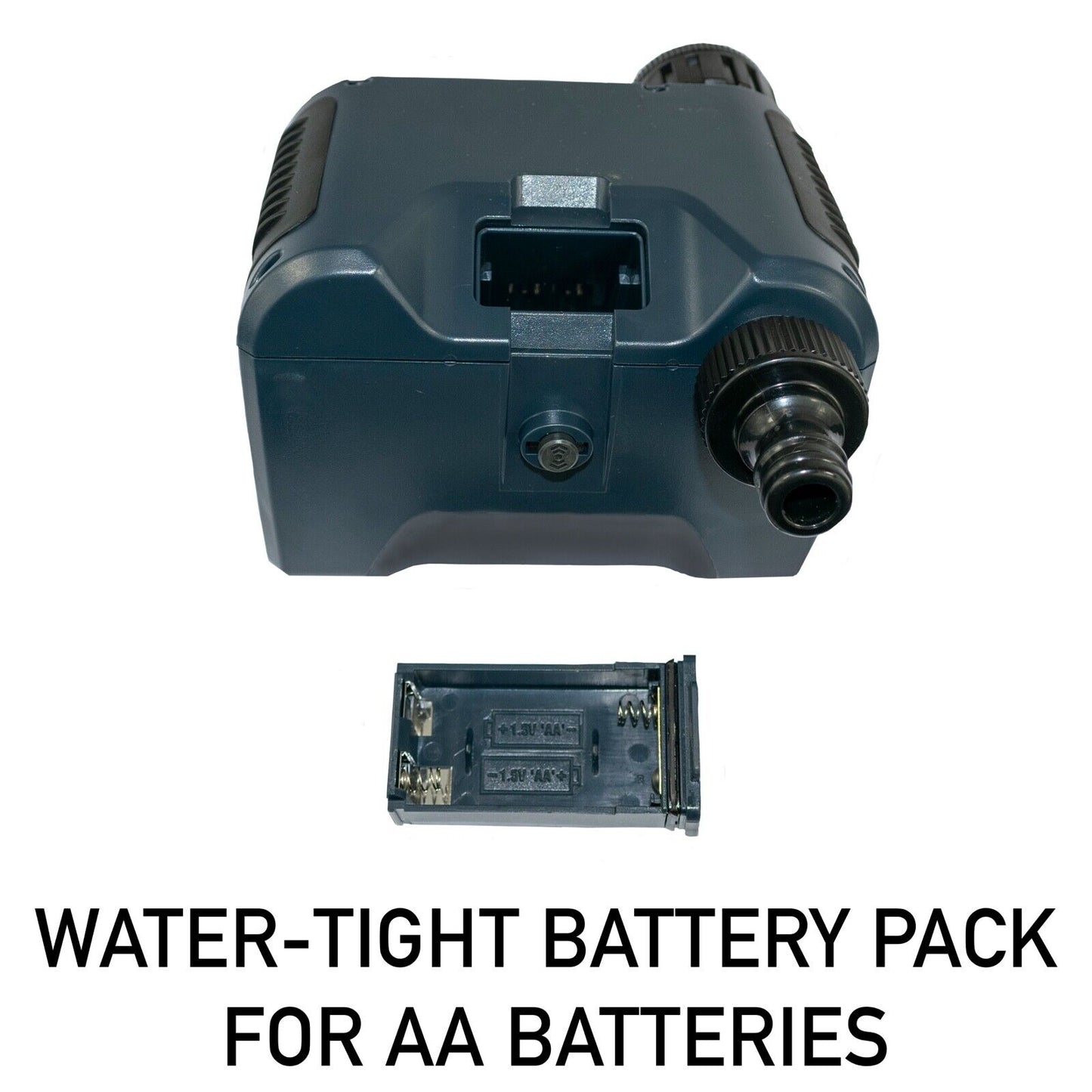

Use two AA alkaline batteries in the rear holder, following the polarity markings. The instructions advise against rechargeable batteries. Replace them when the low-battery indicator appears.
Can I leave it fitted through winter?
Remove it for winter storage. Turn off the tap, remove the timer, open the valve in manual mode to drain it, remove the batteries and let it dry. Store in a dry place. The operating water-temperature range is 0-38°C.
Product information & technical details
| SKU | TIMER1VALVE001 |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | Grey, Black |
| Material | Plastic |
| Manufacturer / model | Cost Wise TIMER1VALVE001 |
| Watering zones | 1 outlet |
| Stored cycles | Up to 4 |
| Watering duration | 1-240 minutes per cycle |
|---|---|
| Watering-day choices | Selected weekdays, every second day or every third day |
| Rain delay | Selectable programme pause of up to 6 days |
| ECO intervals | Water and pause intervals up to 19 minutes each |
| Power | 2 × AA alkaline batteries; not included |
| Outlet connection | Male garden quick-connect plug |
| Operating water pressure | Under 100 PSI |
| Operating water temperature | 0-38°C |
| Supplied quantity | 1 timer with outlet adapter and instructions |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
