Description
Know your water use

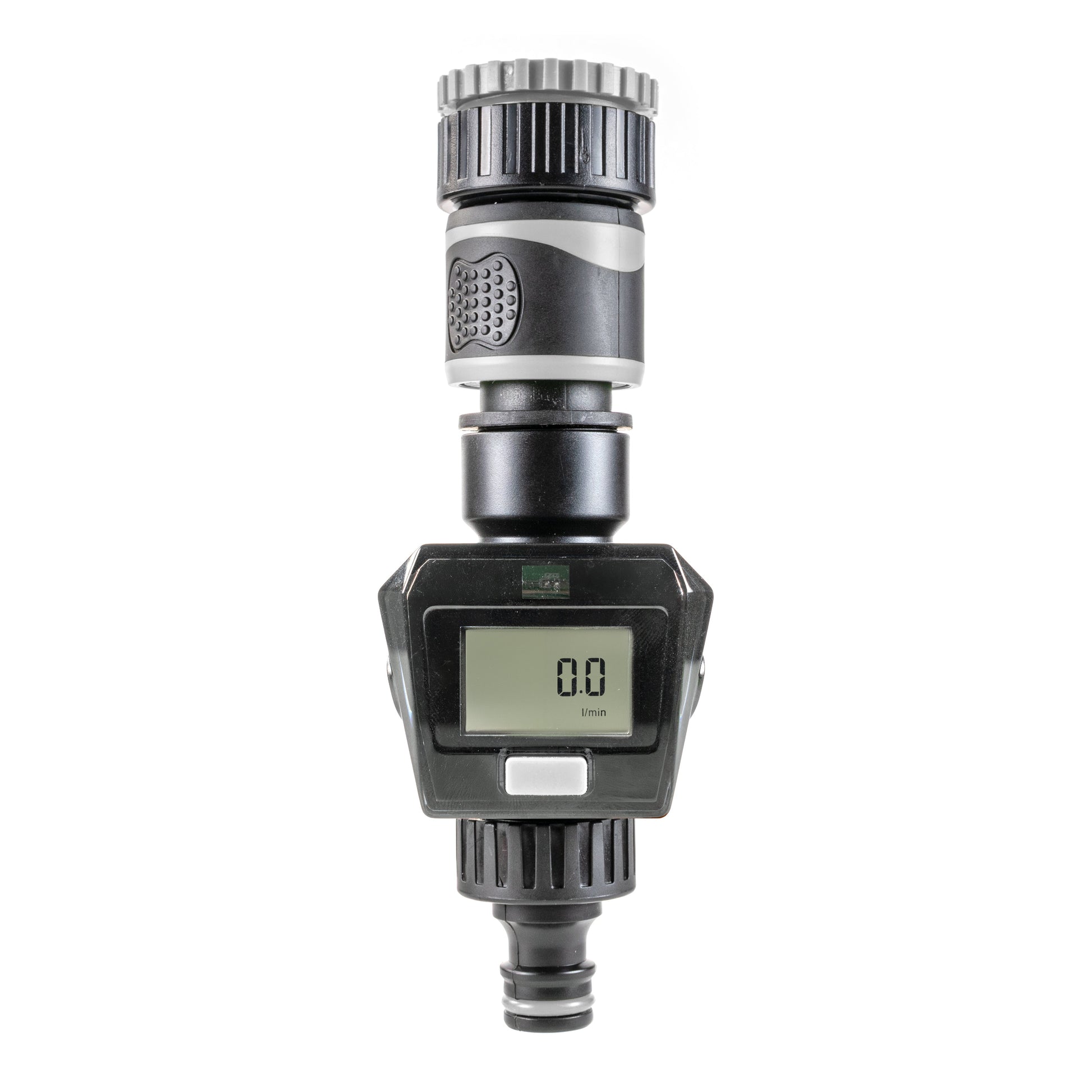

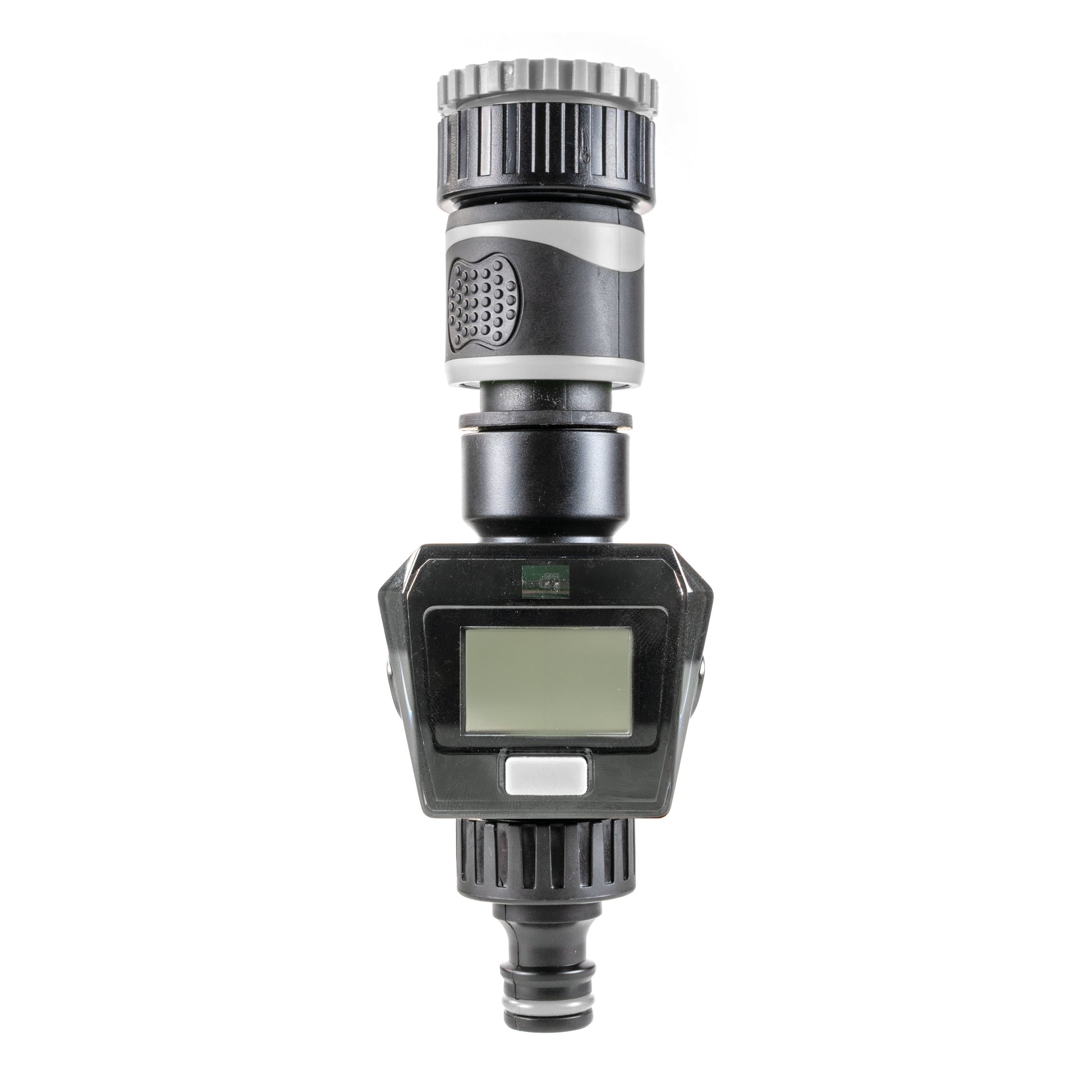

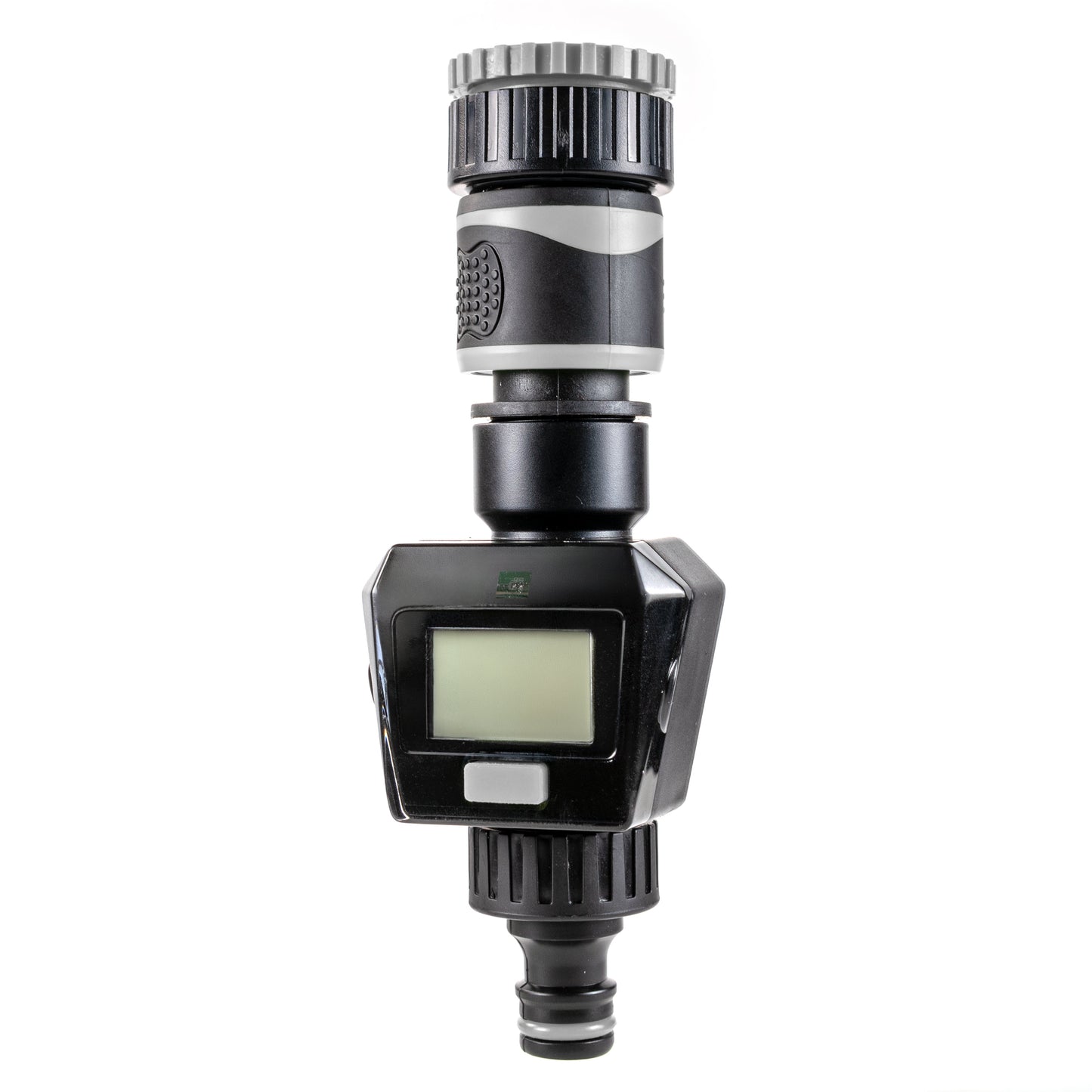

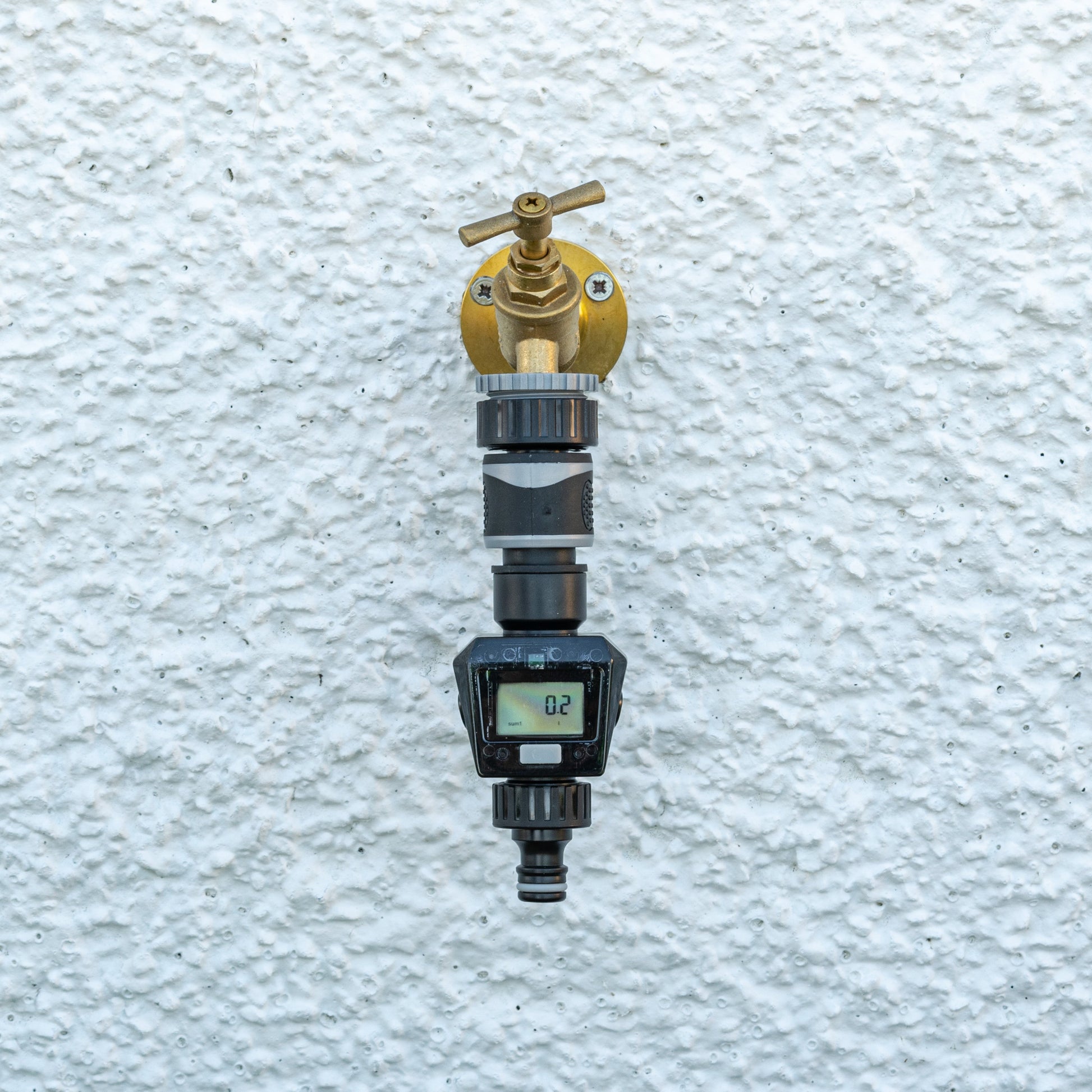

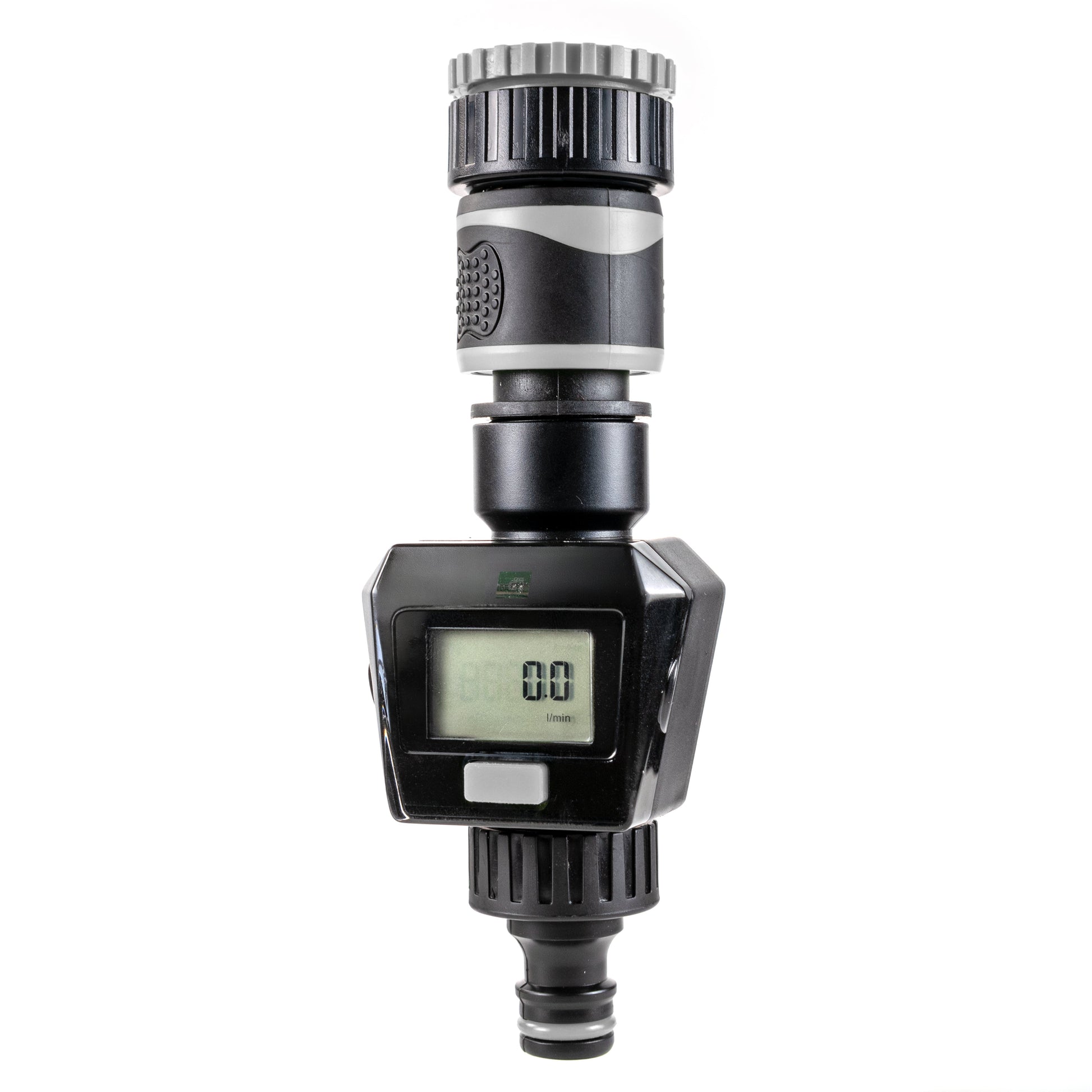

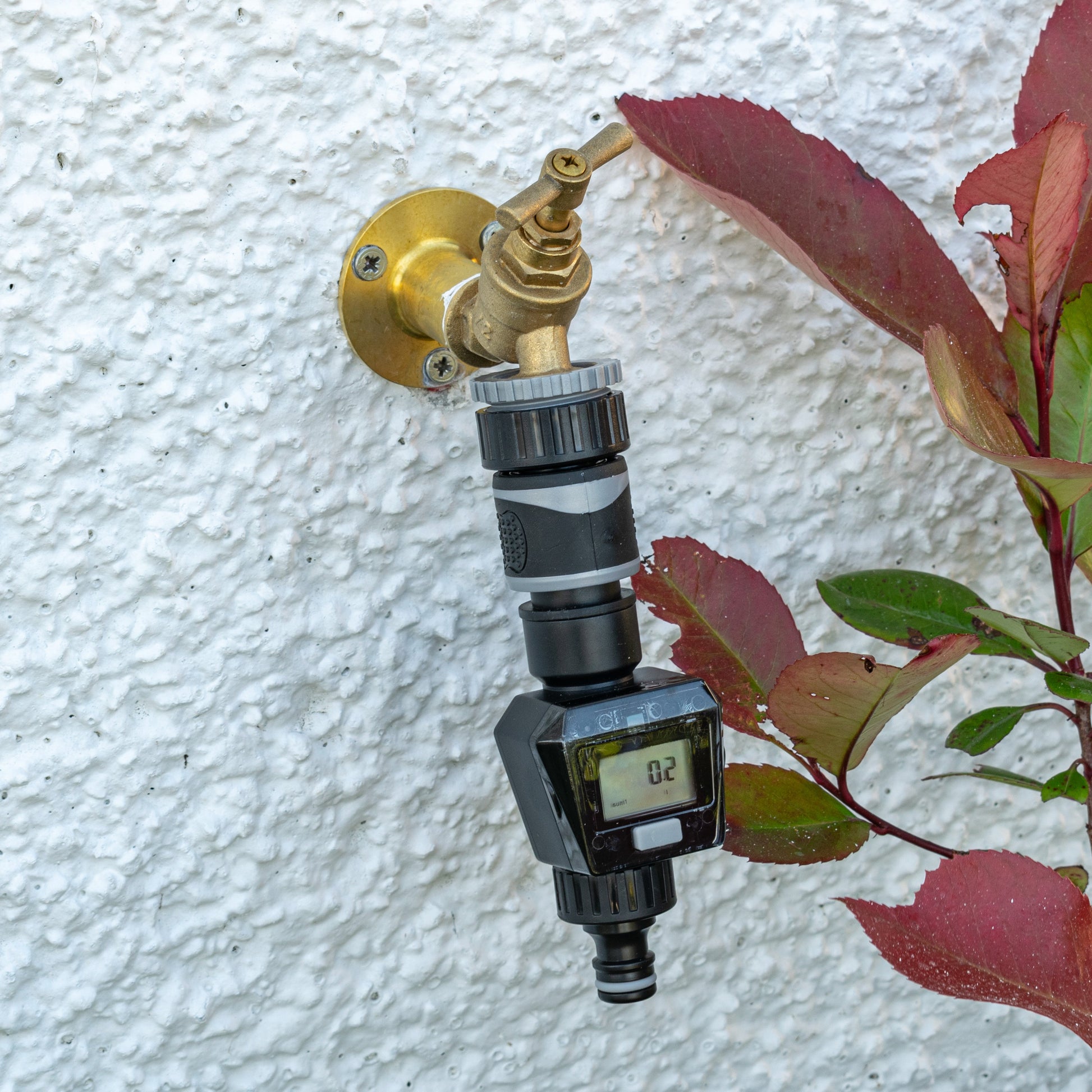

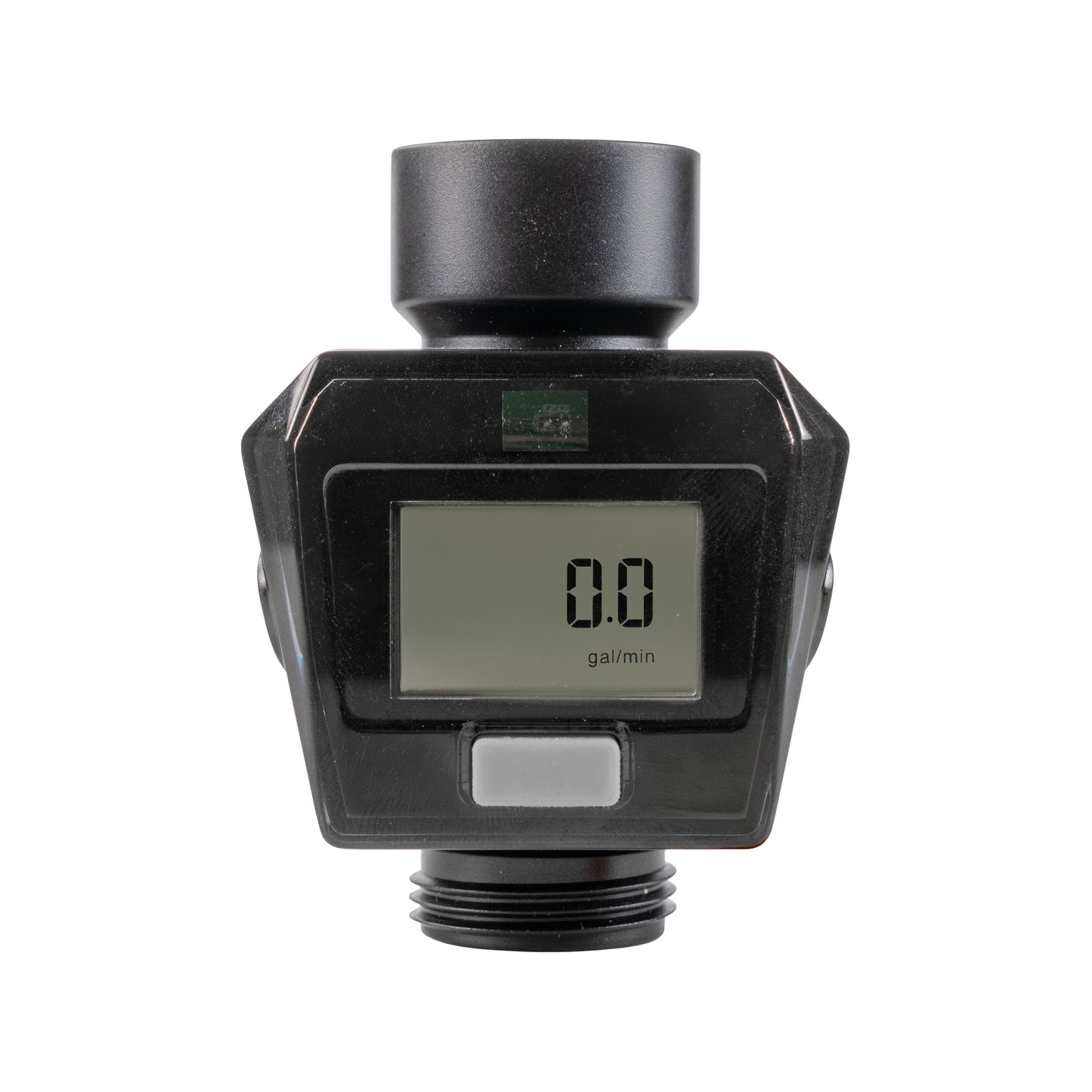

Give watering and filling jobs a reading you can see. This grey and black digital water flow meter sits between a matching garden tap and your hose, showing the water passing through.
Check the current flow rate, view one active session, or keep two running totals. It is a useful way to compare household watering jobs without relying on how long the tap has been open.
Meter, tap adapters, reducer and CR2032 battery included. Tap, hose and female hose socket are separate. This is a monitor, not an automatic shut-off device.
Check both connections

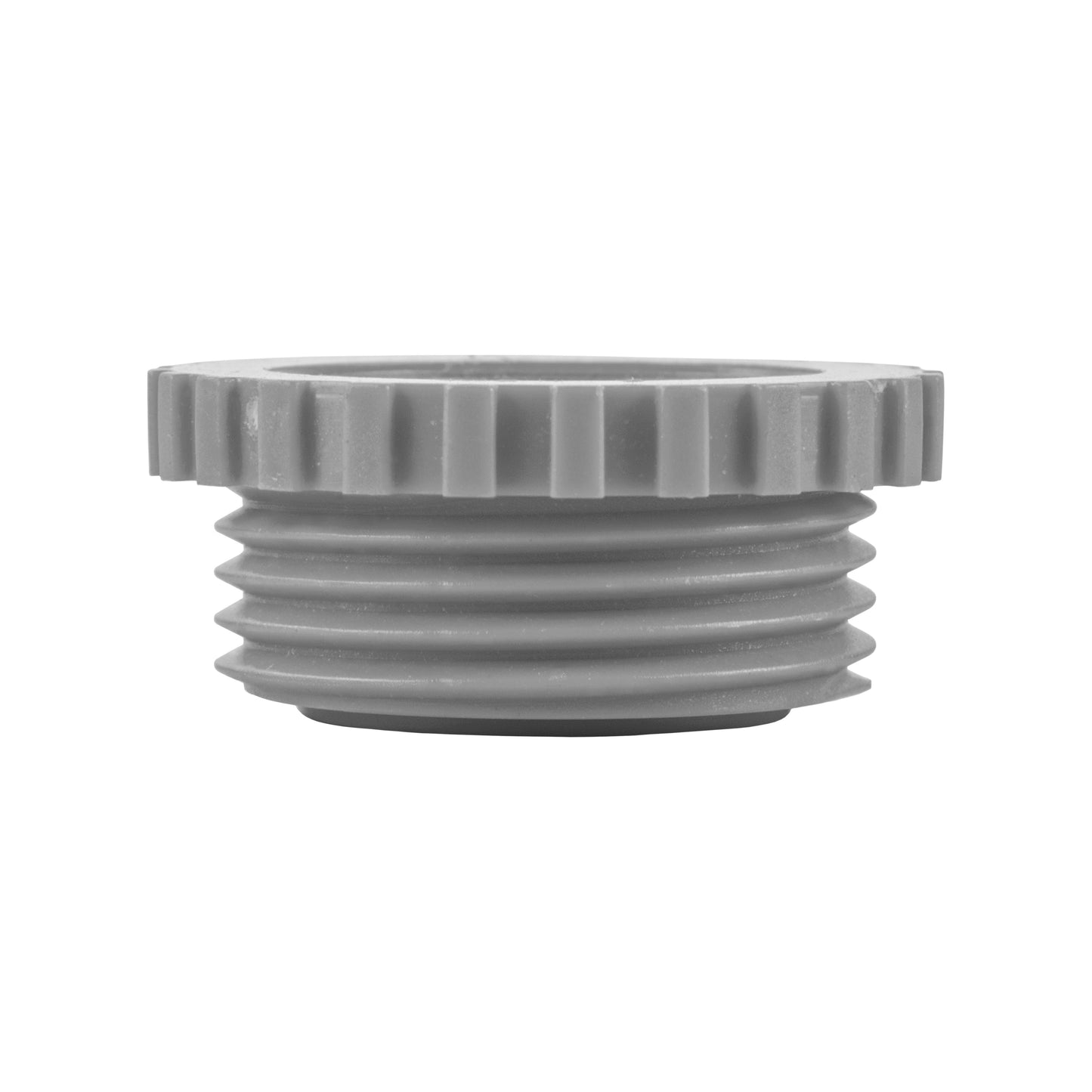

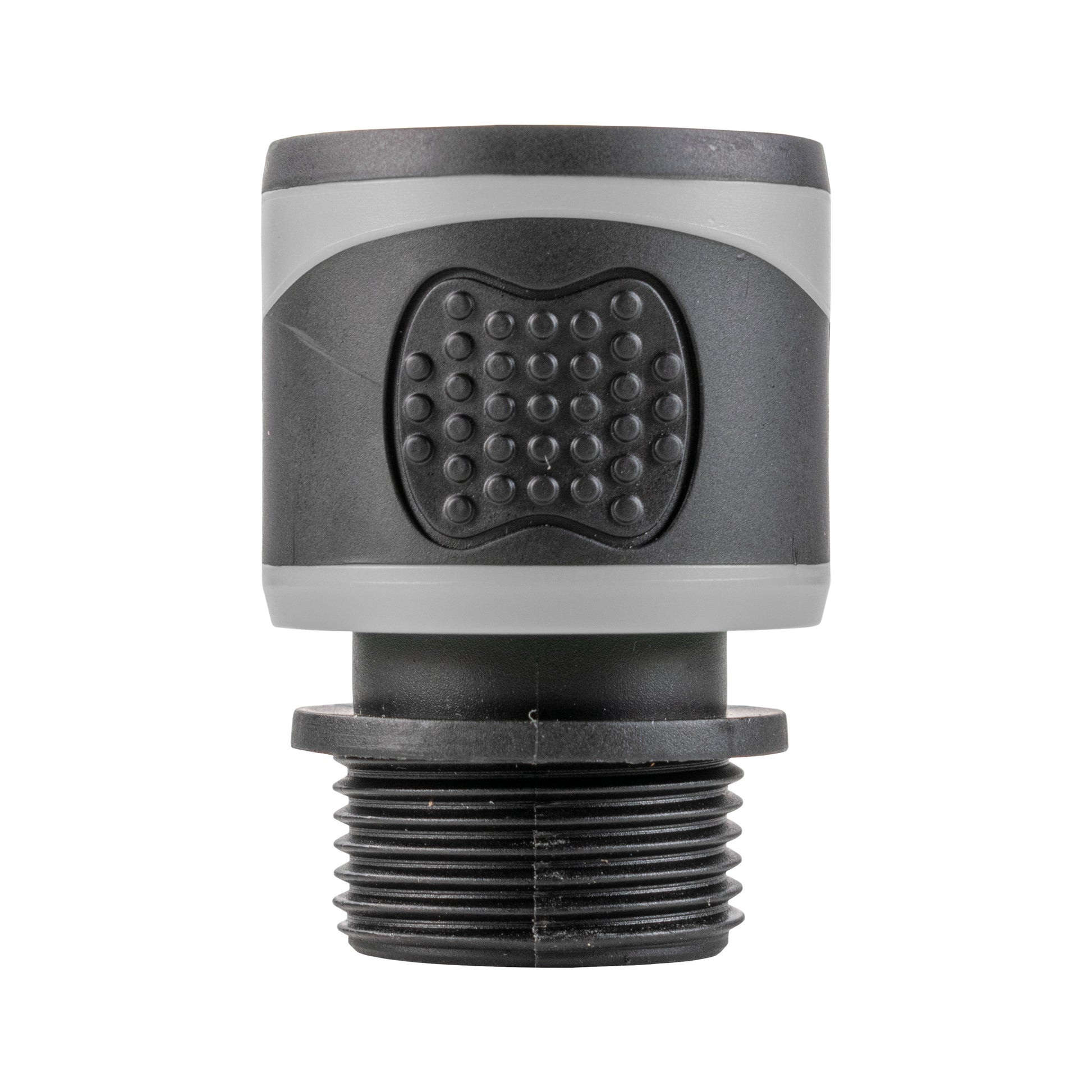

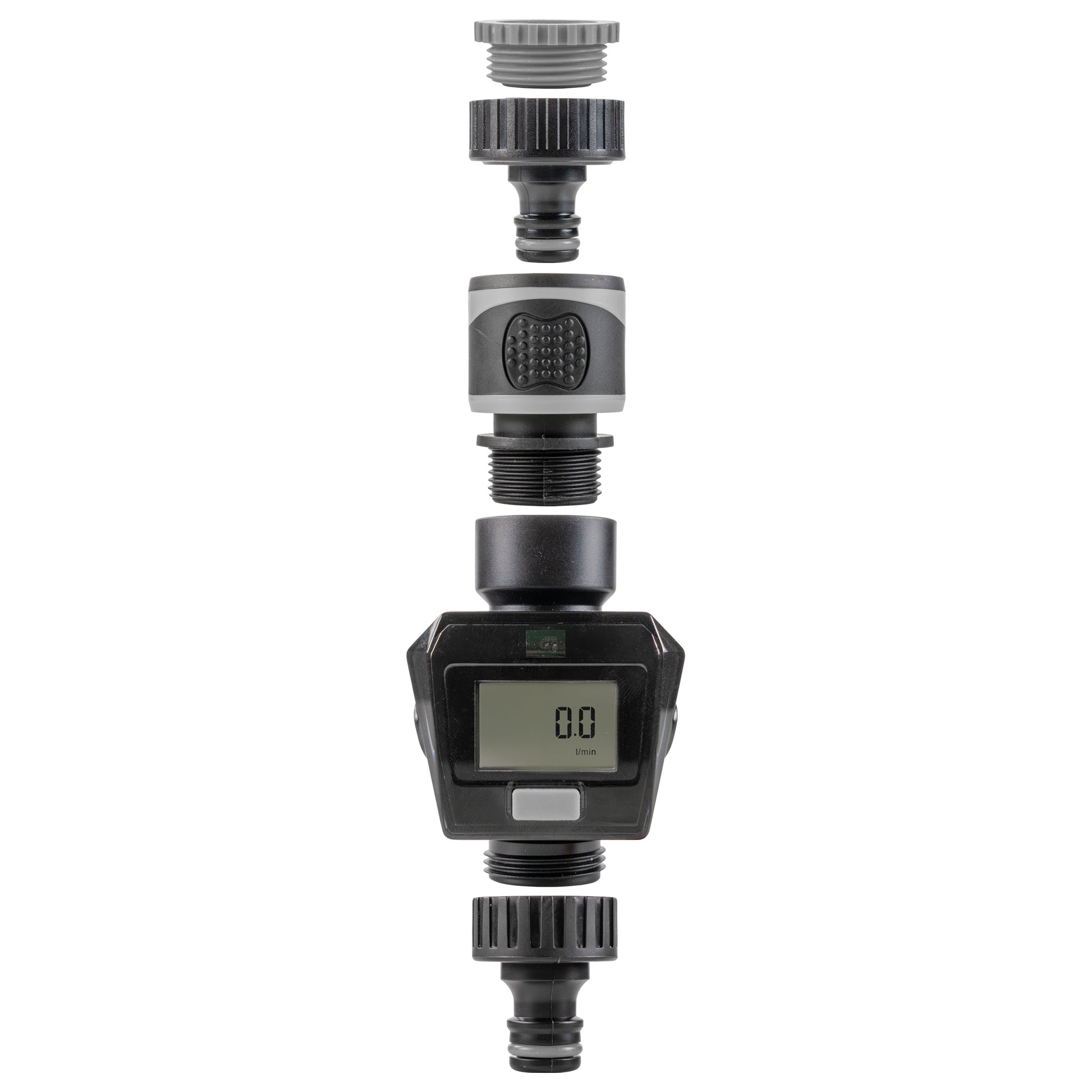

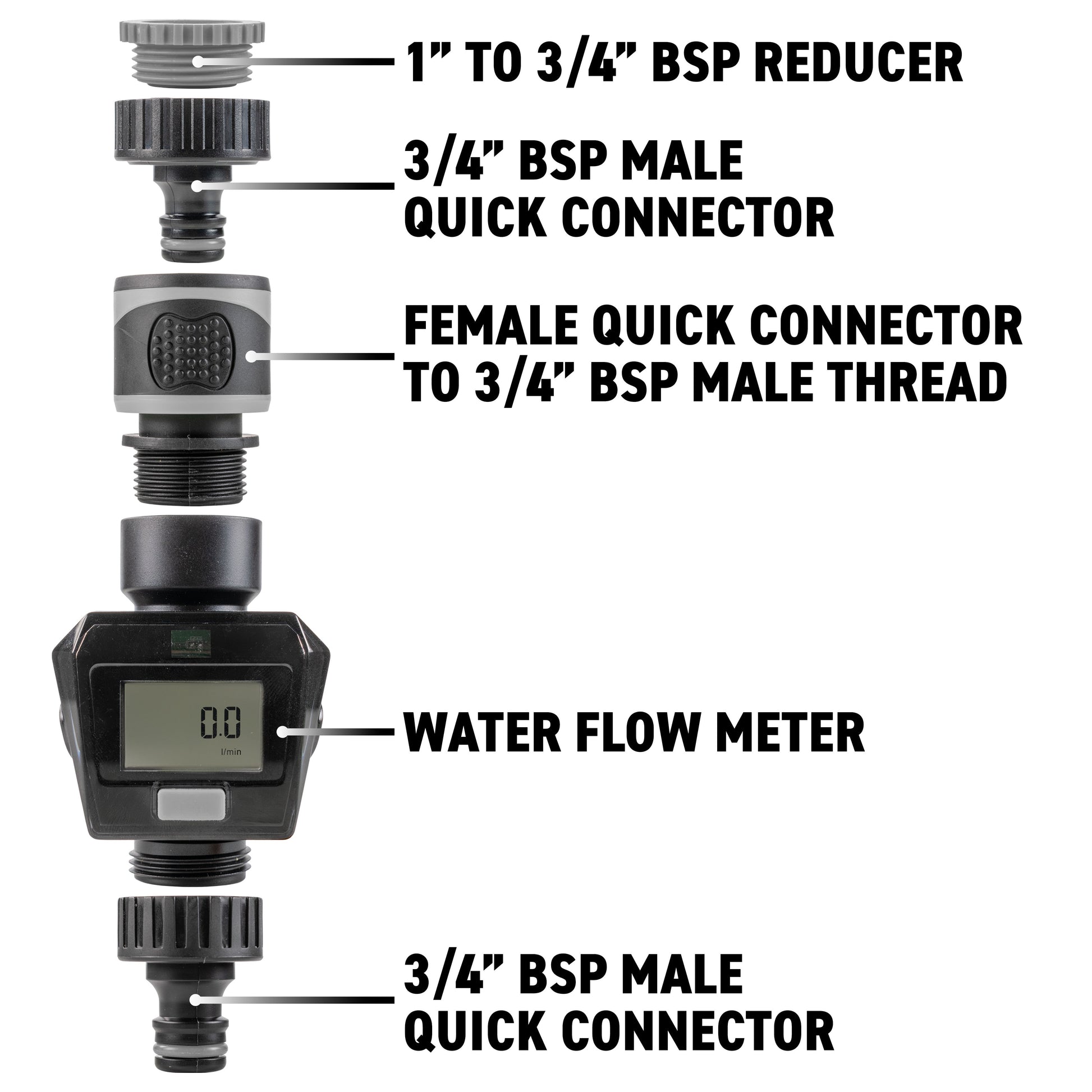

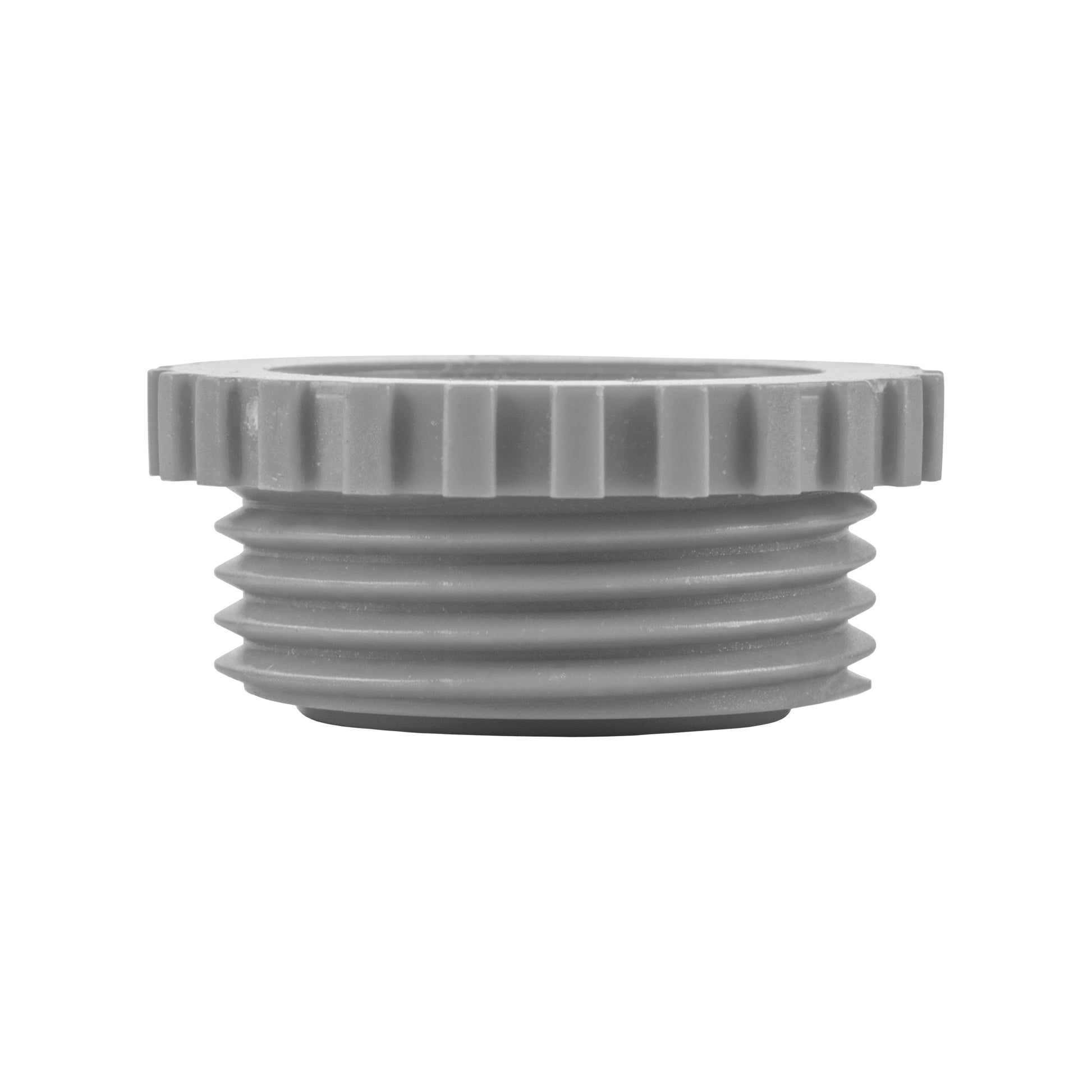

The separated parts show how the assembly fits together. At the tap end, the grey reducing insert provides the ¾-inch BSP connection. Remove that insert for a matching 1-inch BSP male tap outlet. Start the plastic thread squarely by hand.

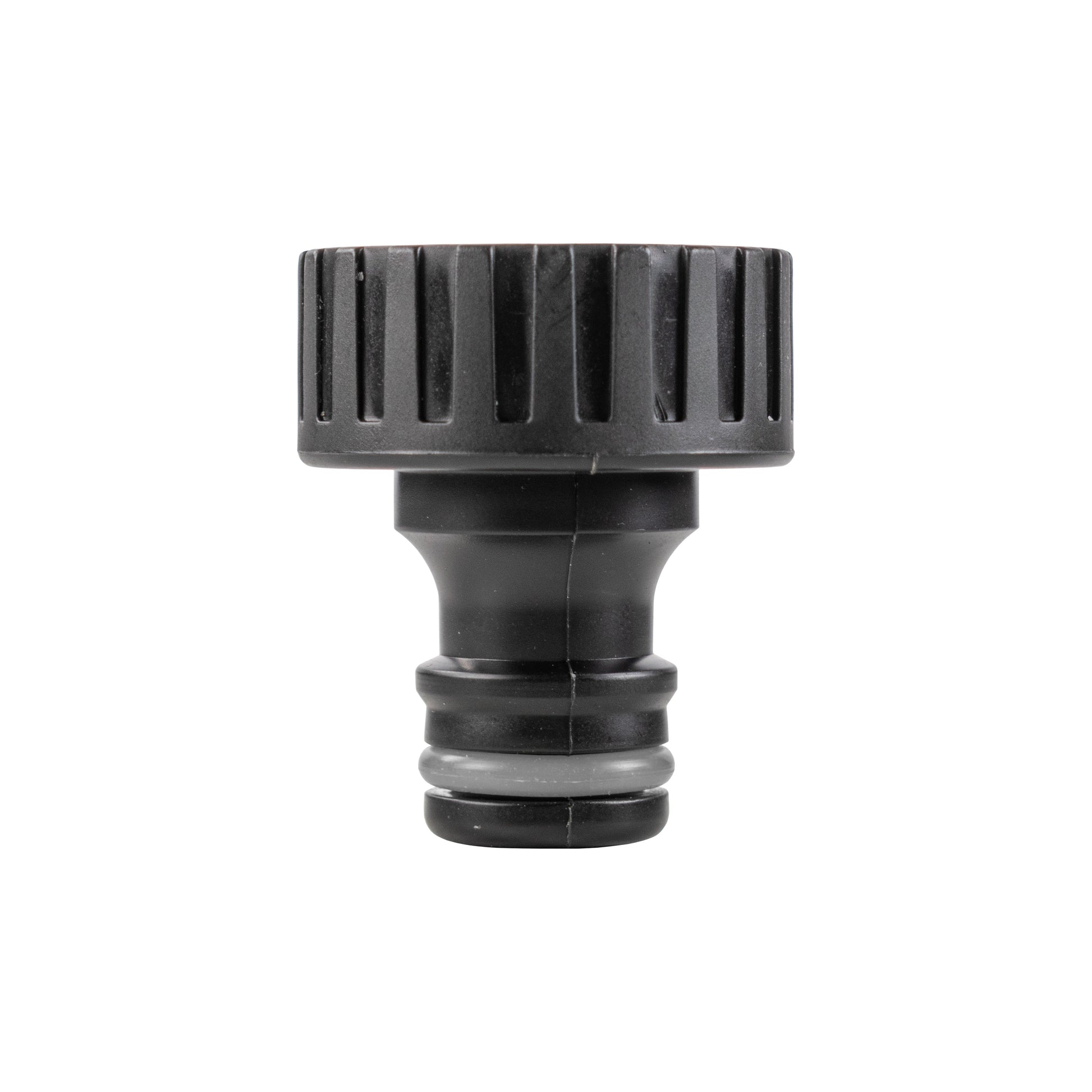

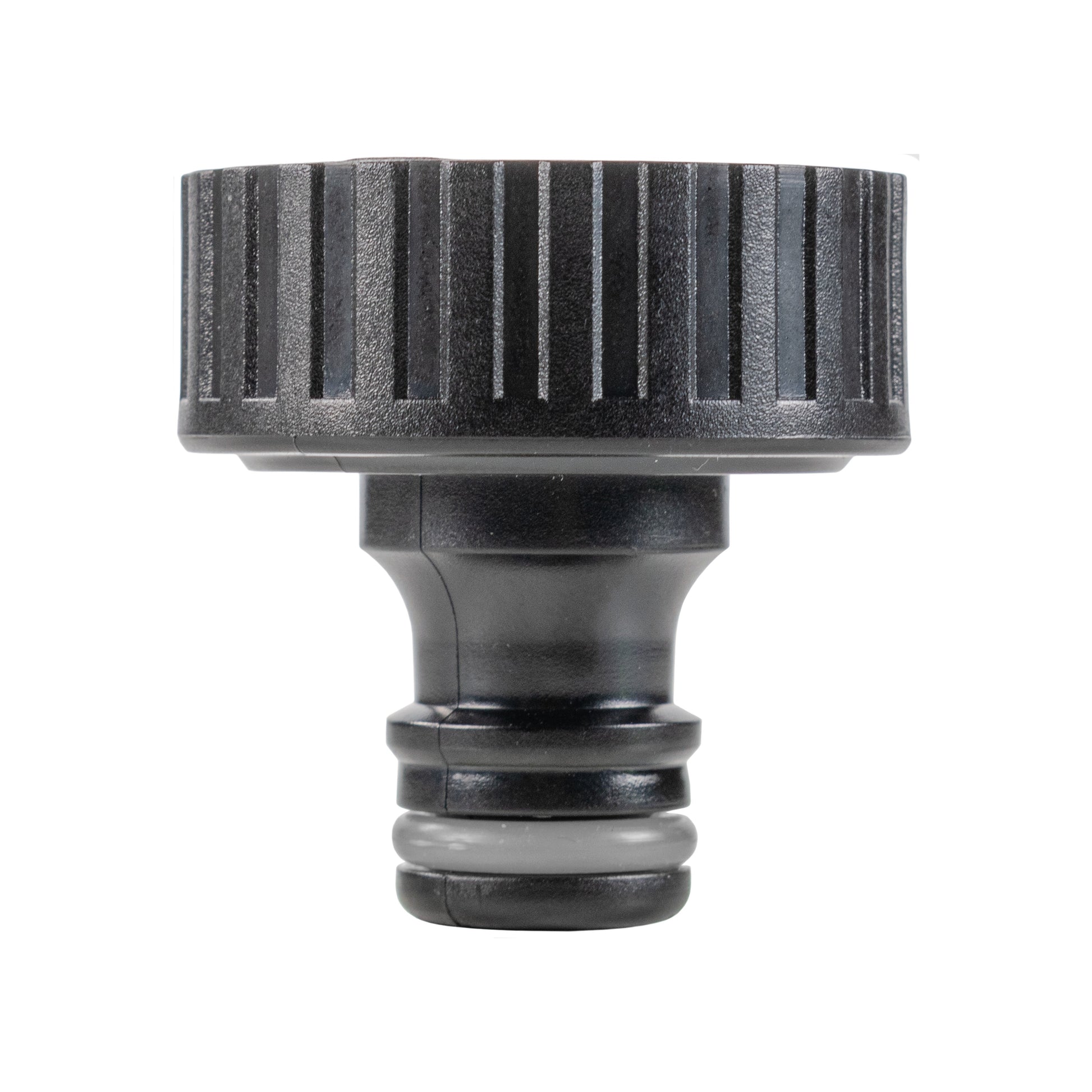

The lower male garden plug joins to a separate female hose socket. Choose that socket to suit your hose bore: the optional grey connector above is for ½-inch hose. The hose bore is independent of the BSP thread size at the tap.
Support the hose and check the joints as you open the supply gradually. Turn off the tap and release pressure before disconnecting. The photograph shows the supplied components separated for clarity.
One screen, three ways to track
Flow right now

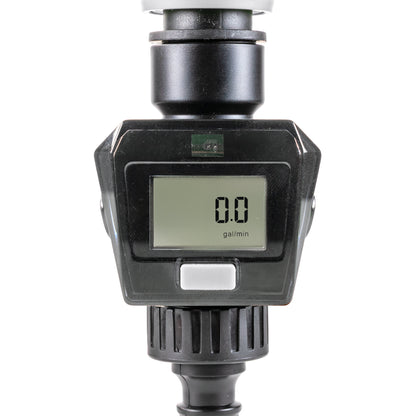

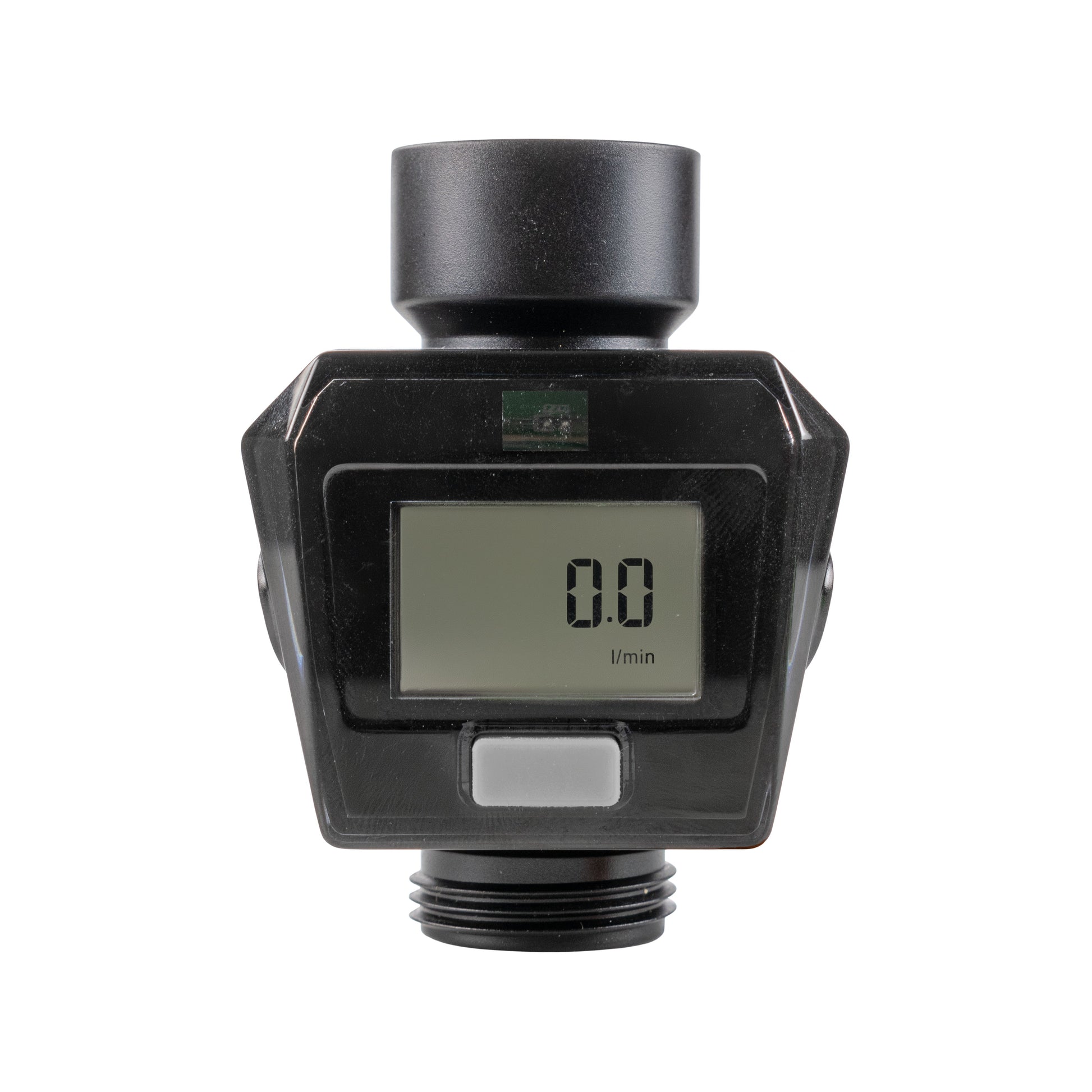

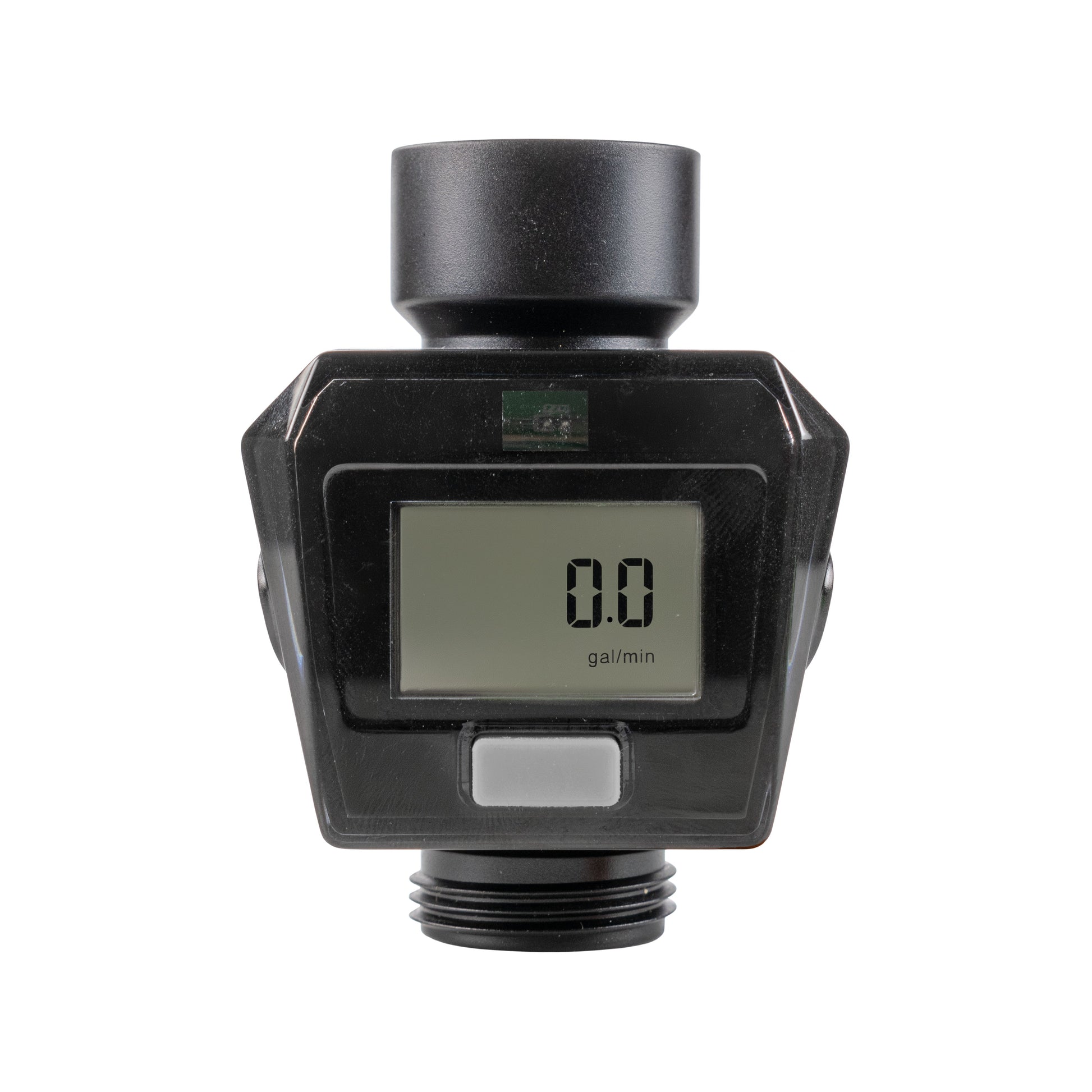

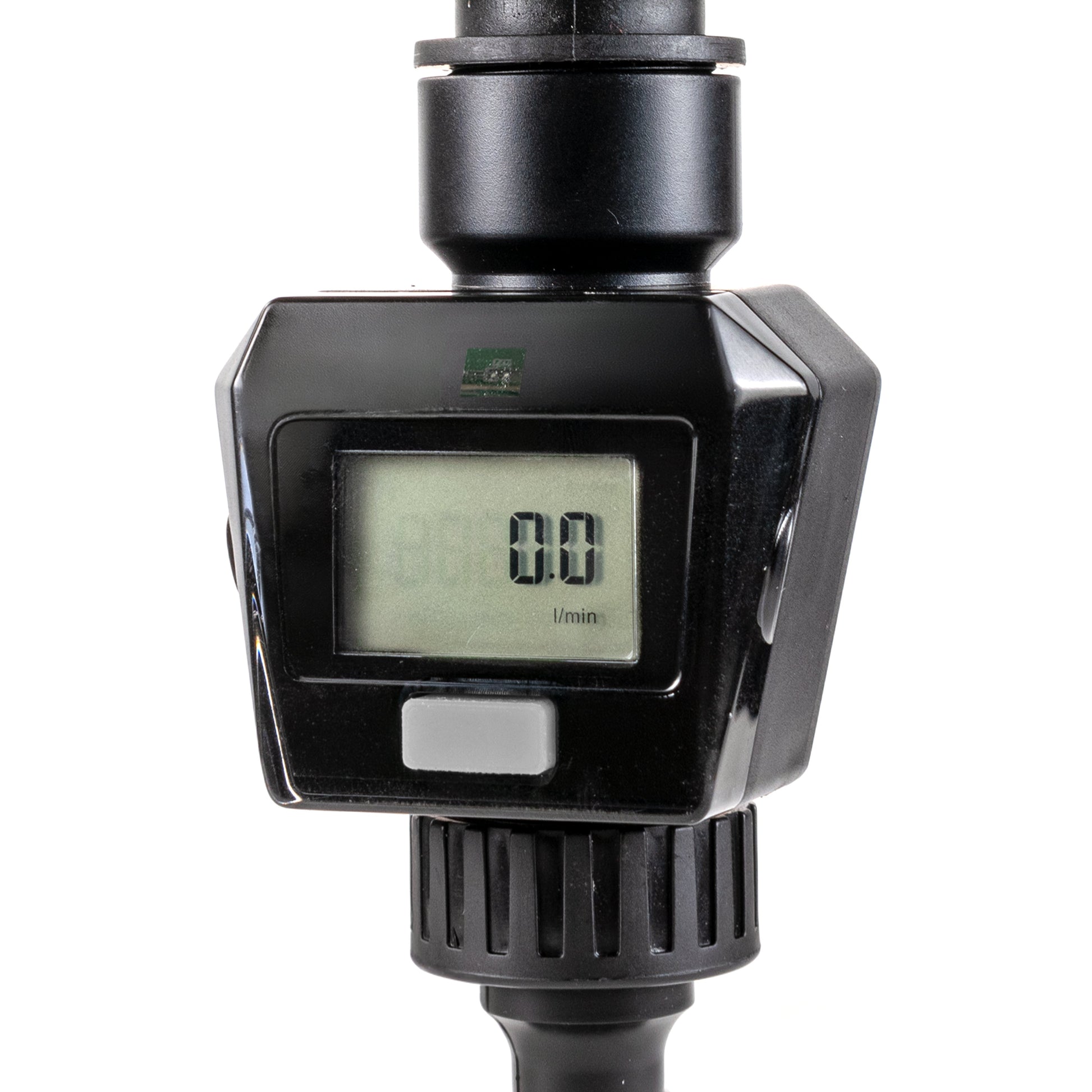

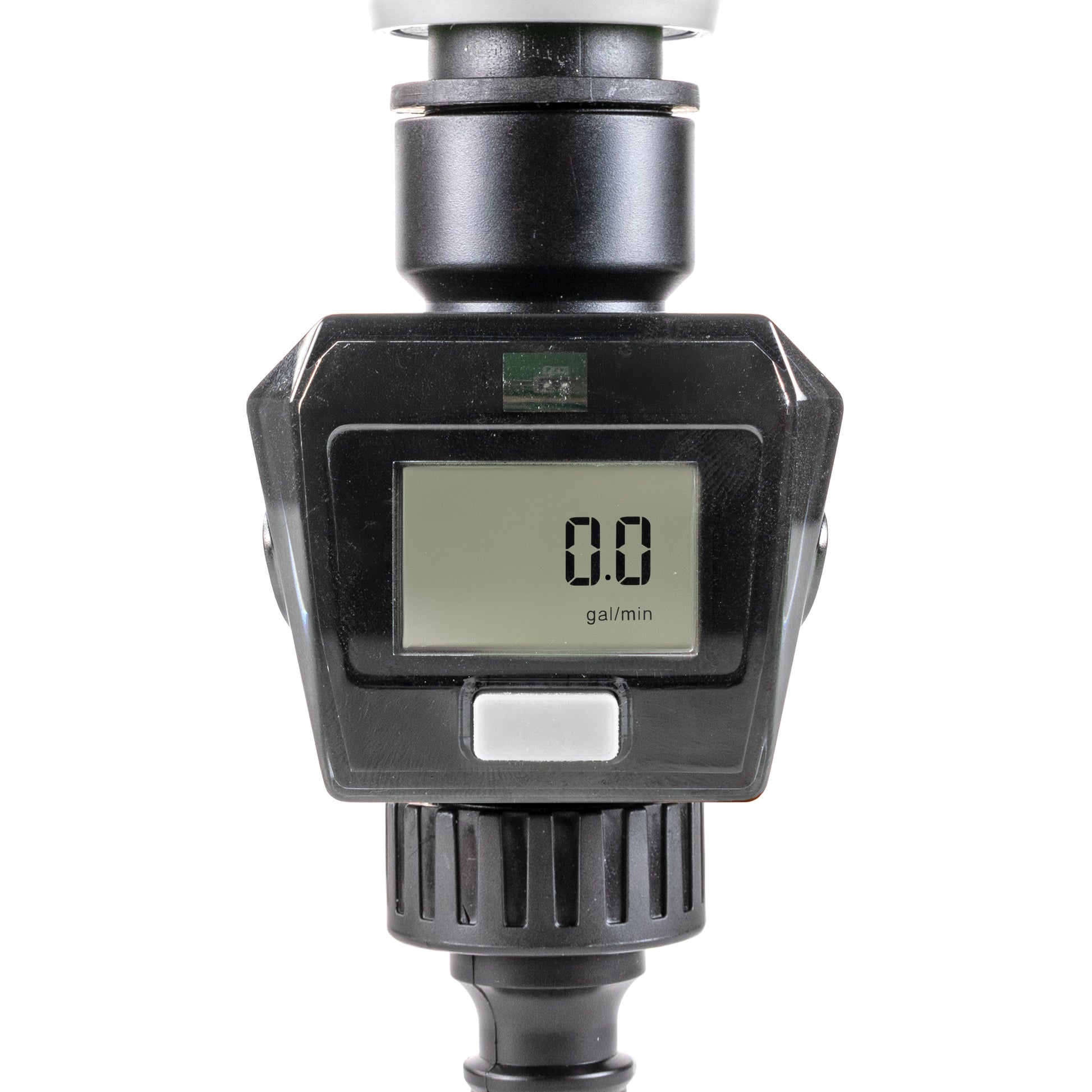

L/min or G/min displays the current rate per minute. While that rate mode is on screen, hold the button for three seconds to change between litres and gallons.
This session

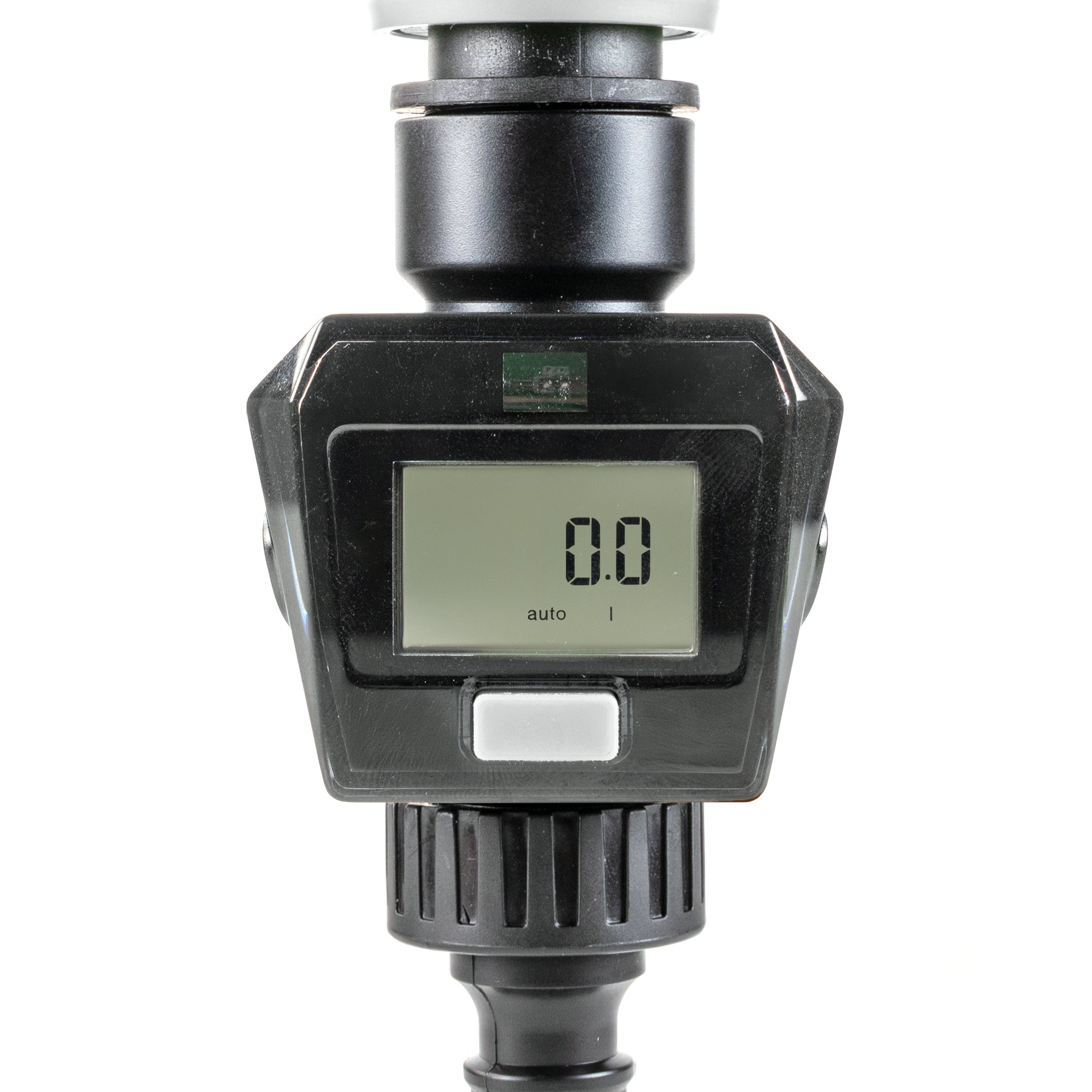

AUTO displays the volume used in the active session. Compare that reading between watering jobs or fills, alongside what the plants or container actually need.
Your running totals

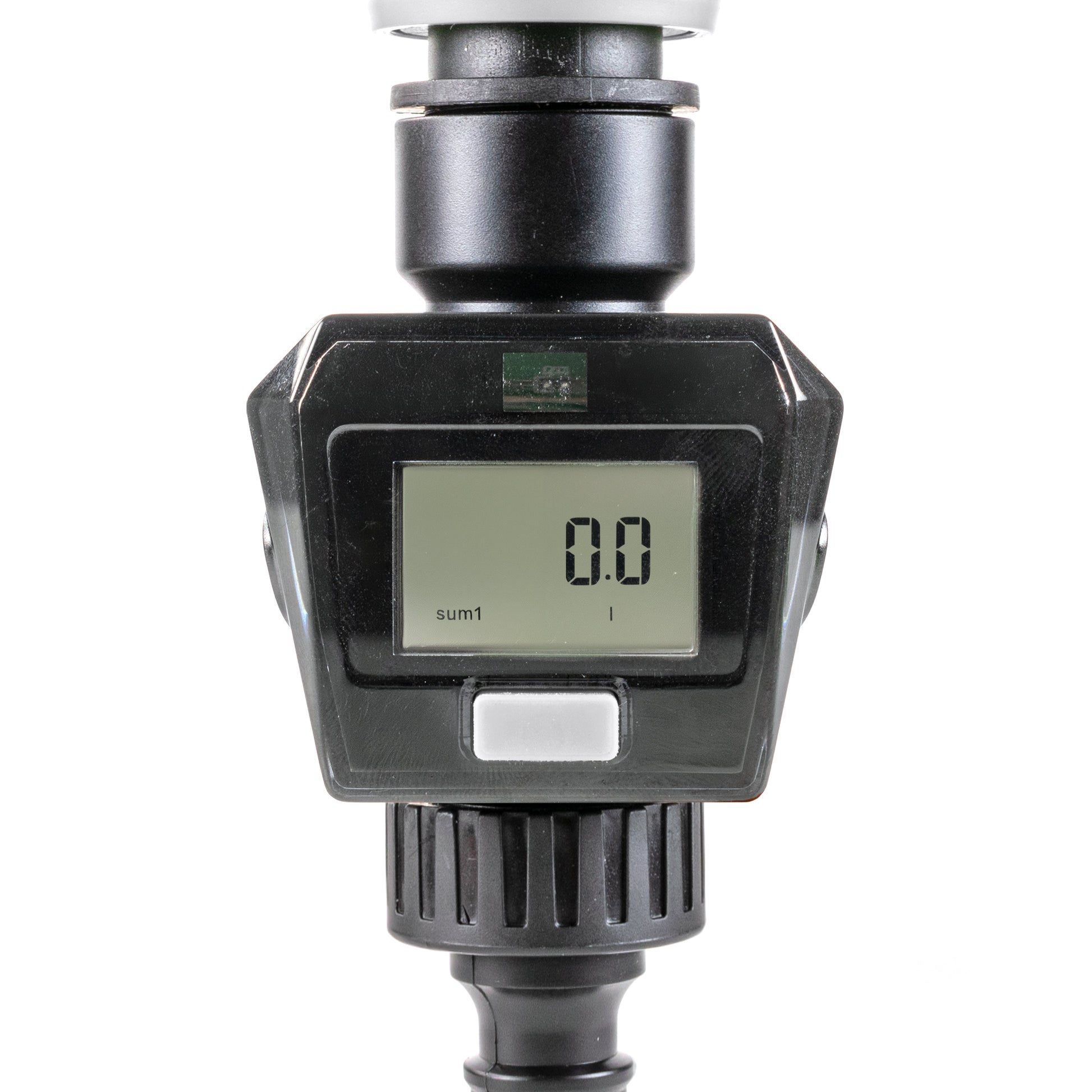

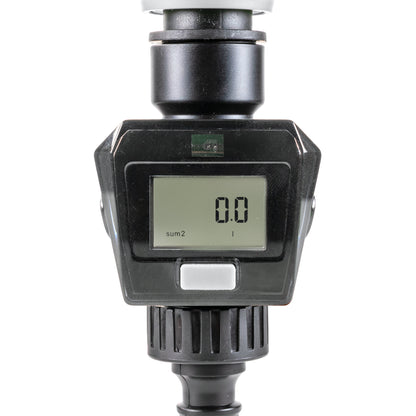

SUM 1 and SUM 2 keep counting until you clear them. Select a total and hold the button to reset it. For example, keep one for a day and the other for a longer period, resetting each when required.
Useful to know
Will the meter control my watering?
No. It measures the water passing through. You still operate the tap or a separate suitable timer or valve; this meter does not stop the supply at a chosen volume.
Can I attach bare hose to the outlet?
No. The lower fitting is a male garden quick-connect plug. Fit a compatible female hose socket to your hose, then engage that socket fully over the plug. The female socket and hose are not included.
How do I replace the battery?
A CR2032 lithium 3V coin cell is supplied. With the water off, grip the meter firmly and carefully pull at an edge of the clear front cap. Remove the white inner battery cover to access the cell, then refit both covers securely before use.
Is it a precision or commercial meter?
No. It is intended for household monitoring, not commercial use or precise testing. The stated measuring range is 2-50 litres per minute. Drain exposed fittings and protect the assembly from freezing when not in use.
Product information & technical details
| SKU | WFM-CW-GRAY-001 |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | Black, Grey |
| Material | Plastic |
| Housing material | ABS plastic |
| Stated measuring range | 2-50 litres per minute |
|---|---|
| Display modes | SUM 1, SUM 2, AUTO, litres/minute and gallons/minute |
| Power supply | CR2032 lithium 3V coin-cell battery, included |
| Stated ambient temperature | 5-60°C (ambient) |
| Hose outlet | Male garden quick-connect plug |
| Intended use | Household monitoring; not commercial or precision testing |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
