Description
Keep four lines ready

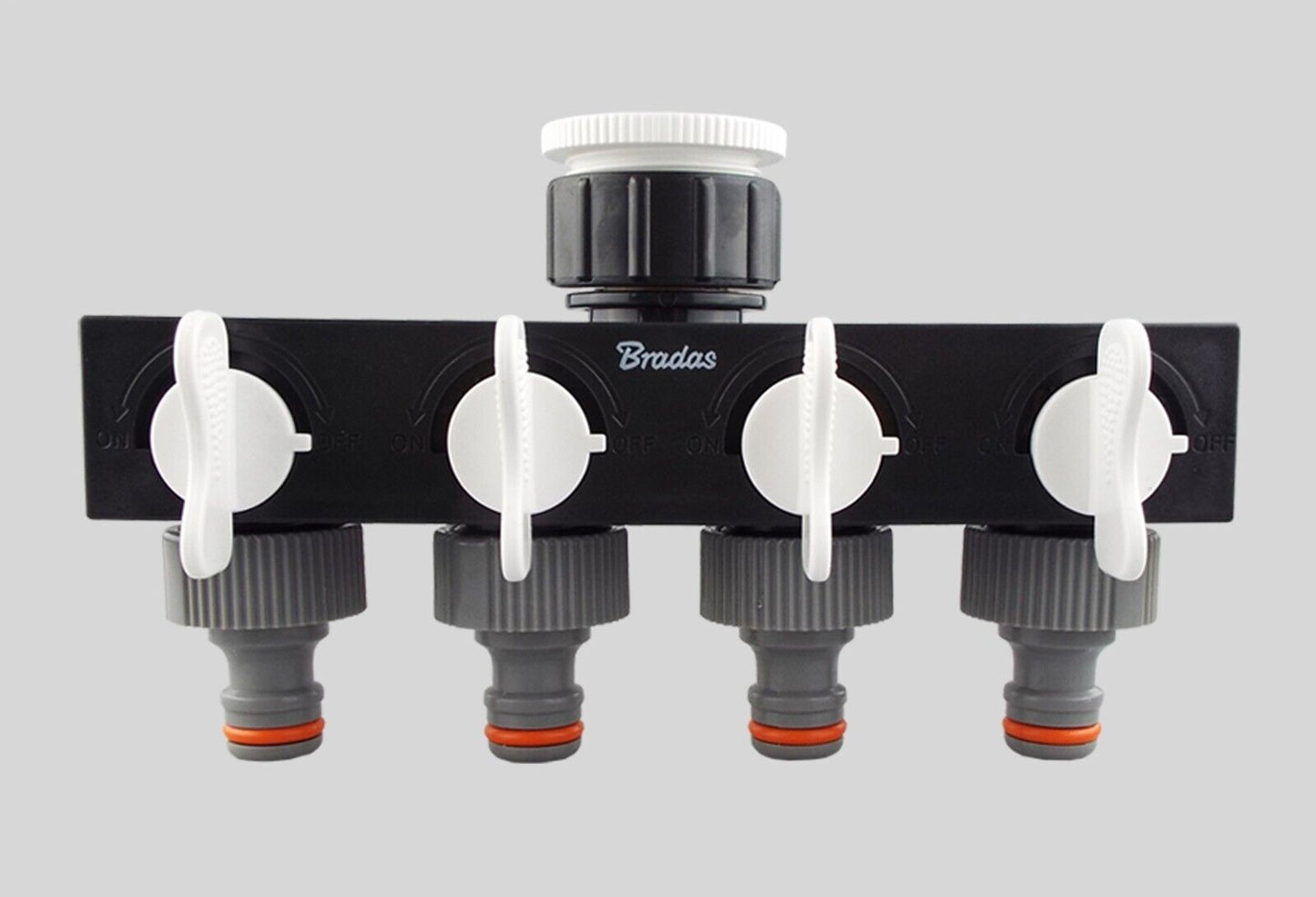

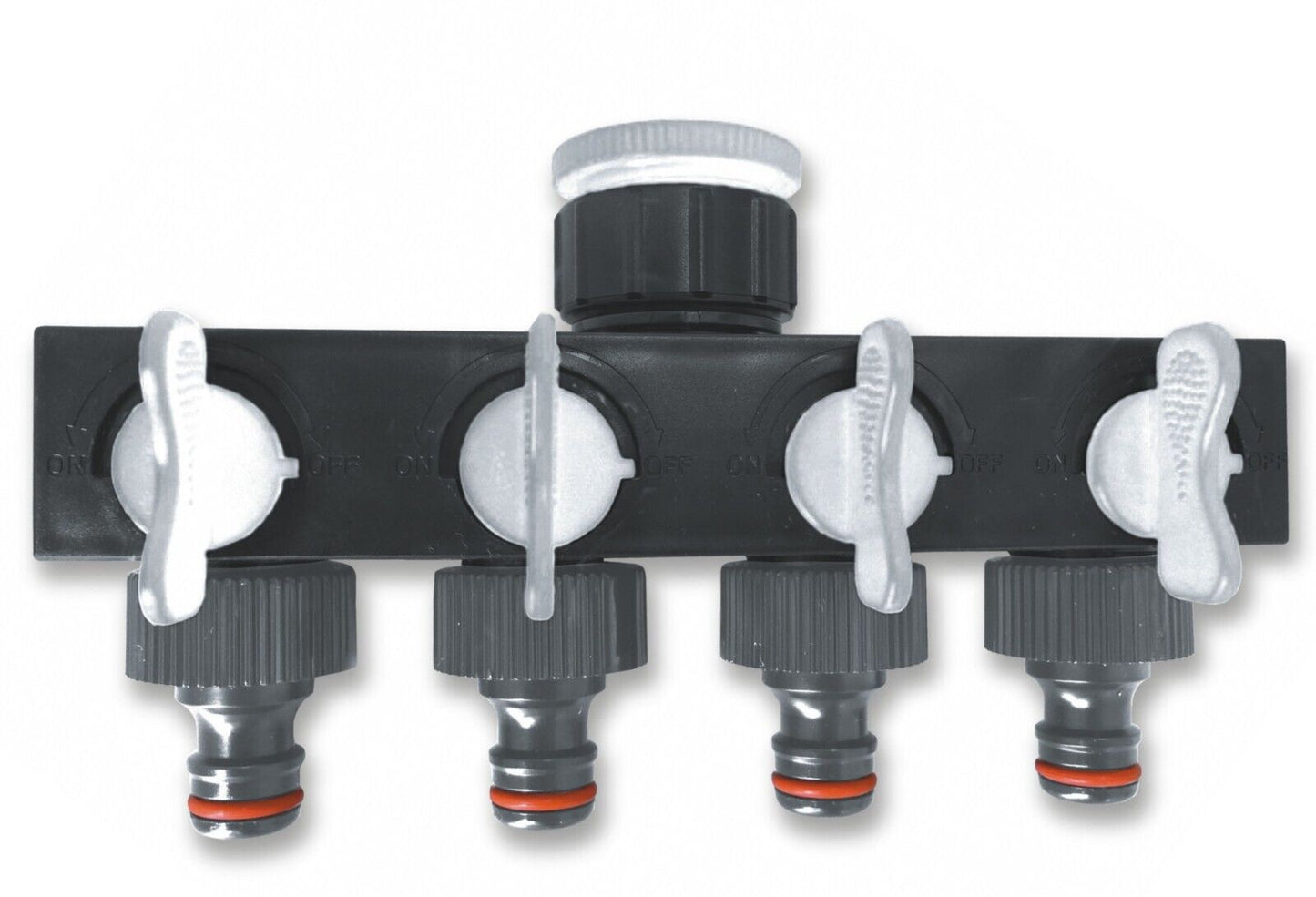

Bring the connections for your garden watering jobs together. This Bradas White Line four-way tap splitter provides four quick-connect outlets with a separate manual valve on every branch.
Keep hoses for different areas attached and select the line you need. The long dark body and four white levers make each outlet easy to identify and operate from the same watering point.
One splitter with four fitted male plugs supplied. Tap, hoses, female hose sockets and watering tools are separate.
Connect the lines you need
The two hoses on the left show how separate female sockets cover the male outlet plugs. Their outer nuts grip the hoses. The two bare plugs on the right remain available for other lines; close unused branches with their valves.
The optional matching ½-inch female hose connector above is sold singly. Use one for each ½-inch hose you attach. For another hose bore, choose an appropriate socket with a compatible garden quick-connect fitting. Bare hose does not attach directly to these plugs.
You can leave a border hose, sprinkler line or other watering hose connected while another branch is in use. When several are open, they share the same water source. If a tool needs more flow, close other branches and water in turns.
Set up your watering point
Match the inlet
Check for a compatible 1-inch or ¾-inch BSP male tap thread. Turn the water off, check the inlet seal and start the connection squarely by hand. Nominal BSP thread size and hose bore are different measurements.
Fit the hose sockets
Fit suitable female quick-connect sockets to your hoses, then engage them fully on the manifold’s plugs. Arrange the hoses with slack and support their weight so they do not drag on the plastic body.
Select and check
Close unused branches, open the main tap gradually and check every joint. Test each line before running several together. Turn off the main tap after use, release pressure before disconnecting and drain exposed fittings before freezing weather.
Plan the four outlets
Do I have to connect four hoses?
No. Use the outlets you need and close the unused branches with their individual valves.
Are the hose sockets included?
No. Four male garden plugs are fitted to the splitter. The female sockets that attach to your hoses are separate, as are the hoses and tap.
Can four sprinklers run at full flow?
That depends on the supply and the sprinklers. All open branches share the tap’s water. Try the intended tools together and use fewer lines at once if performance is poor.
Does it switch watering lines automatically?
No. Each white lever is operated by hand. This splitter has no timer, pump or pressure regulator.
Product information & technical details
| SKU | 4-WAYTAPCON001WL |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | Grey, White |
| Material | Plastic |
|---|---|
| Tap inlet | Female BSP connection for matching 1-inch or ¾-inch BSP male tap threads |
| Hose connections | Four fitted male garden quick-connect plugs; separate female hose sockets required |
| Outlet controls | Four white manual valve levers, one per branch; all open outlets share the tap supply |
| Package contents | One Bradas White Line plastic four-outlet splitter with fitted male plugs; hoses, tap, female sockets and watering tools separate |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
