Description
Connect at the tap

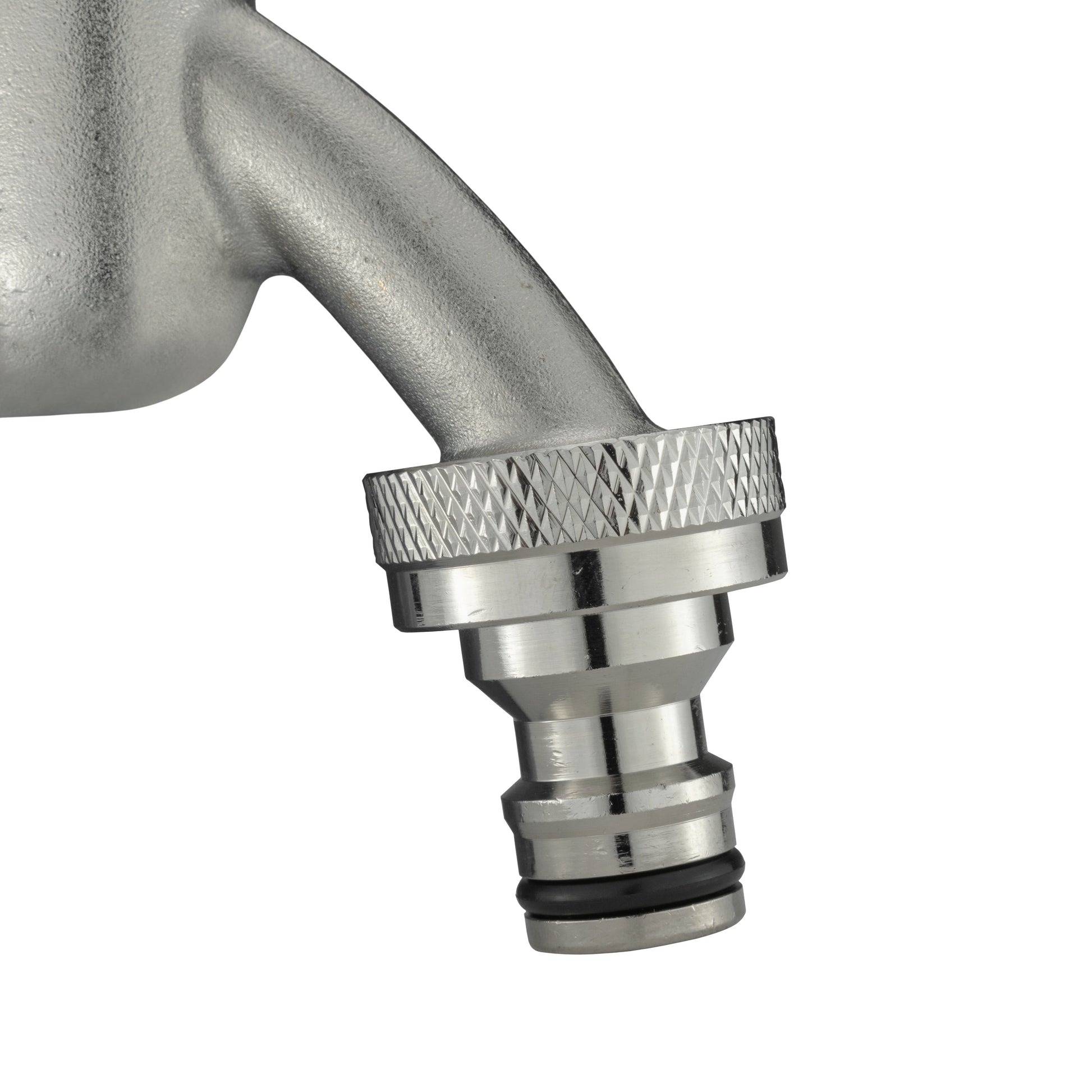

Give your threaded garden tap a ready connection for a detachable hose. This nickel-plated brass tap adapter combines a ¾-inch BSP female inlet with a male garden quick-connect plug.
The bright metal body has a diamond-knurled rim to hold as you fit it. Once installed, it can stay on the tap while you connect and remove the hose at its separate female socket.
One tap adapter supplied. The tap, hose and female hose connector are not included.
Two ends. Two different jobs.

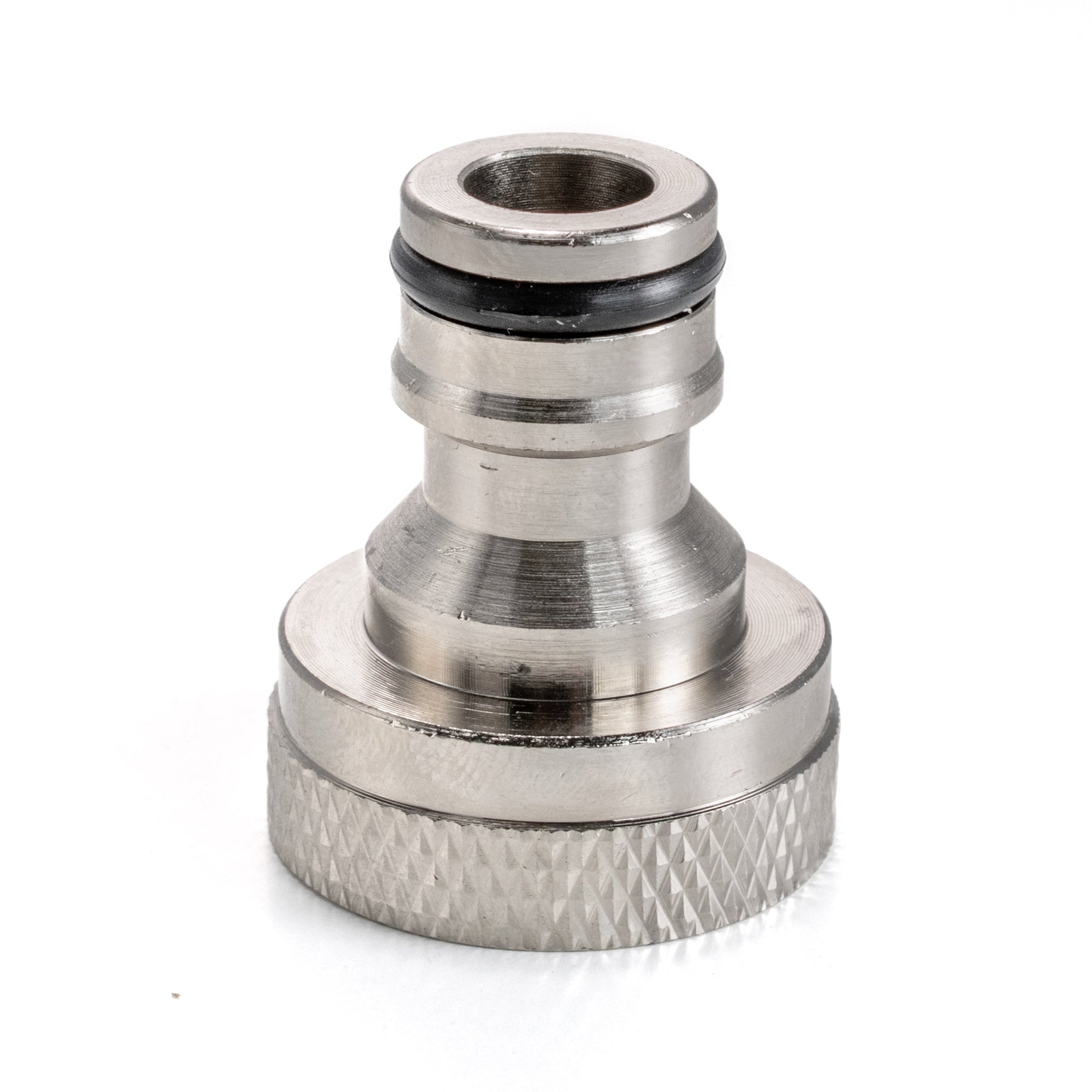

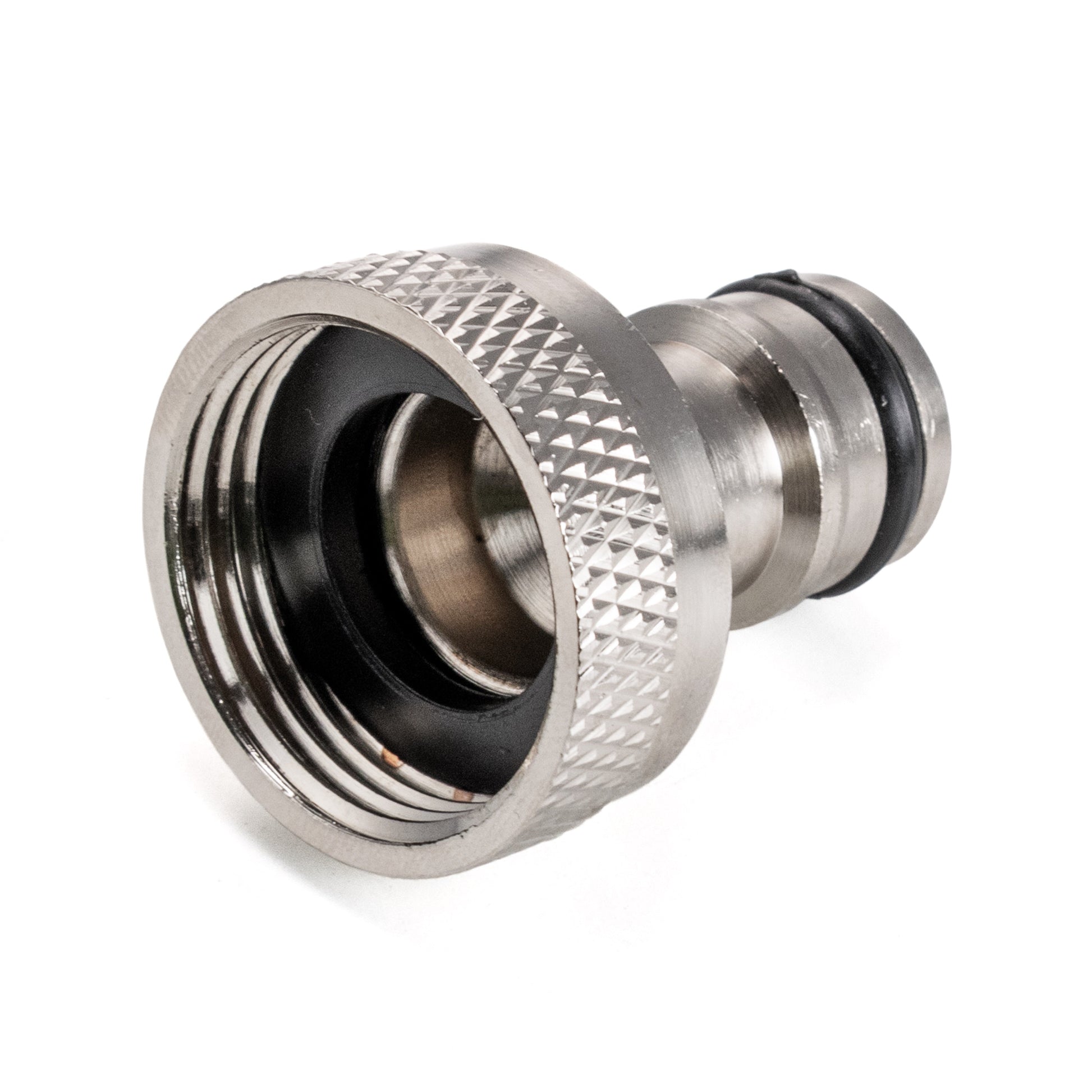

The wide cup contains the female tap thread and inlet washer, shown in the actual product photograph. It screws onto a matching ¾-inch BSP male tap outlet. This is a fixed-size adapter, rather than a multi-size fitting with a removable reducing insert.

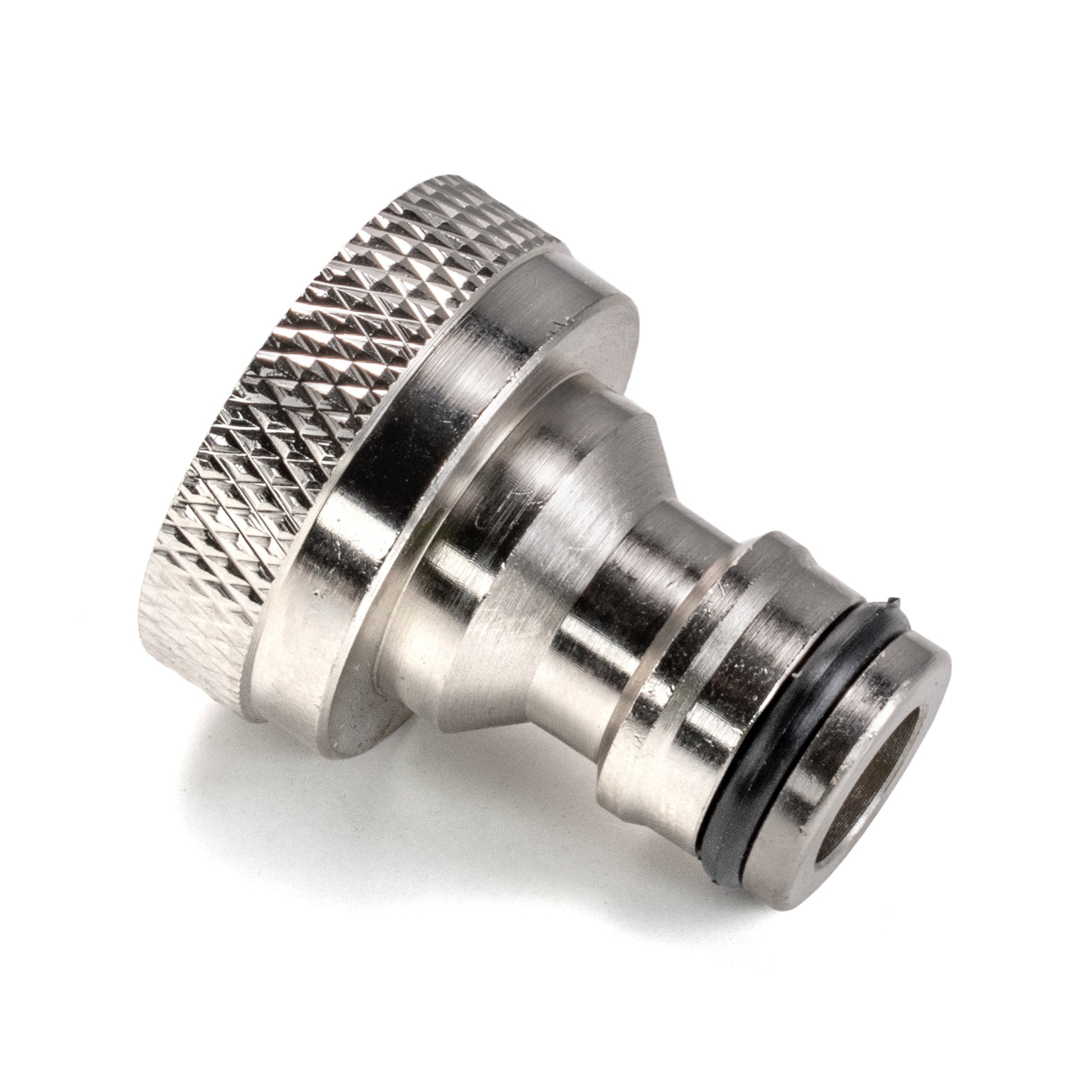

The stepped plug at the other end fits into a compatible female garden hose socket. Its black ring forms the plug-side seal. The separate socket locks onto the plug and provides the release mechanism.
Your tap thread and hose size are different choices. The optional brass connector above is made for ½-inch hose; that does not change the ¾-inch BSP thread needed at the tap. Bare hose does not fit directly onto this plug.
Connect your hose
Check the tap outlet
Turn off the water and check the thread and sealing surfaces. Start the adapter squarely by hand, holding the knurled rim. Do not force mismatched threads or overtighten the fitting.
Seat the female socket
Keep the plug ring and mating socket clean and undamaged. Connect the socket fully, support the hose, then introduce water gradually and check the assembled joint.
Disconnect safely
Close the tap and release pressure before operating your hose socket’s release mechanism. The adapter can remain on the tap. Drain exposed fittings and hose before freezing weather.
Choosing your tap adapter
Is this solid stainless steel?
No. The body is brass with nickel plating, giving it a silver-coloured finish. It is not a stainless-steel fitting.
Does it fit every garden tap?
No. It needs a matching ¾-inch BSP male threaded outlet. It will not clamp onto a smooth tap and does not include a reducing insert for a smaller thread.
Which hose connector do I need?
Choose a compatible female garden quick connector with a hose-gripping end sized for your hose bore. The optional brass connector above is for ½-inch hose and is sold separately.
Does it stop the water when the hose is removed?
No. This adapter has no shut-off valve. Turn off the tap and release pressure before disconnecting the hose socket.
Product information & technical details
| SKU | TAPCON34BSPF001N |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Female |
| Colour | Silver |
| Material | Brass |
|---|---|
| Body and finish | Brass with nickel plating |
| Outlet connection | Male garden quick-connect plug with black sealing ring |
| Supplied quantity | One tap adapter; tap, hose and female hose connector not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
