Description
A brass connection at the tap
Connect your hose when you need it and leave the threaded fitting on the tap. This 1-inch BSP female brass tap connector adds a male garden quick-connect plug to a matching threaded outlet.
The broad female inlet screws onto a 1-inch BSP male tap outlet. A separate compatible female hose socket clips onto the narrow plug below it, so you can remove the hose at the socket rather than undoing the tap connection.
One brass adapter supplied. Tap, hose and female connector are separate.
Two ends with different jobs

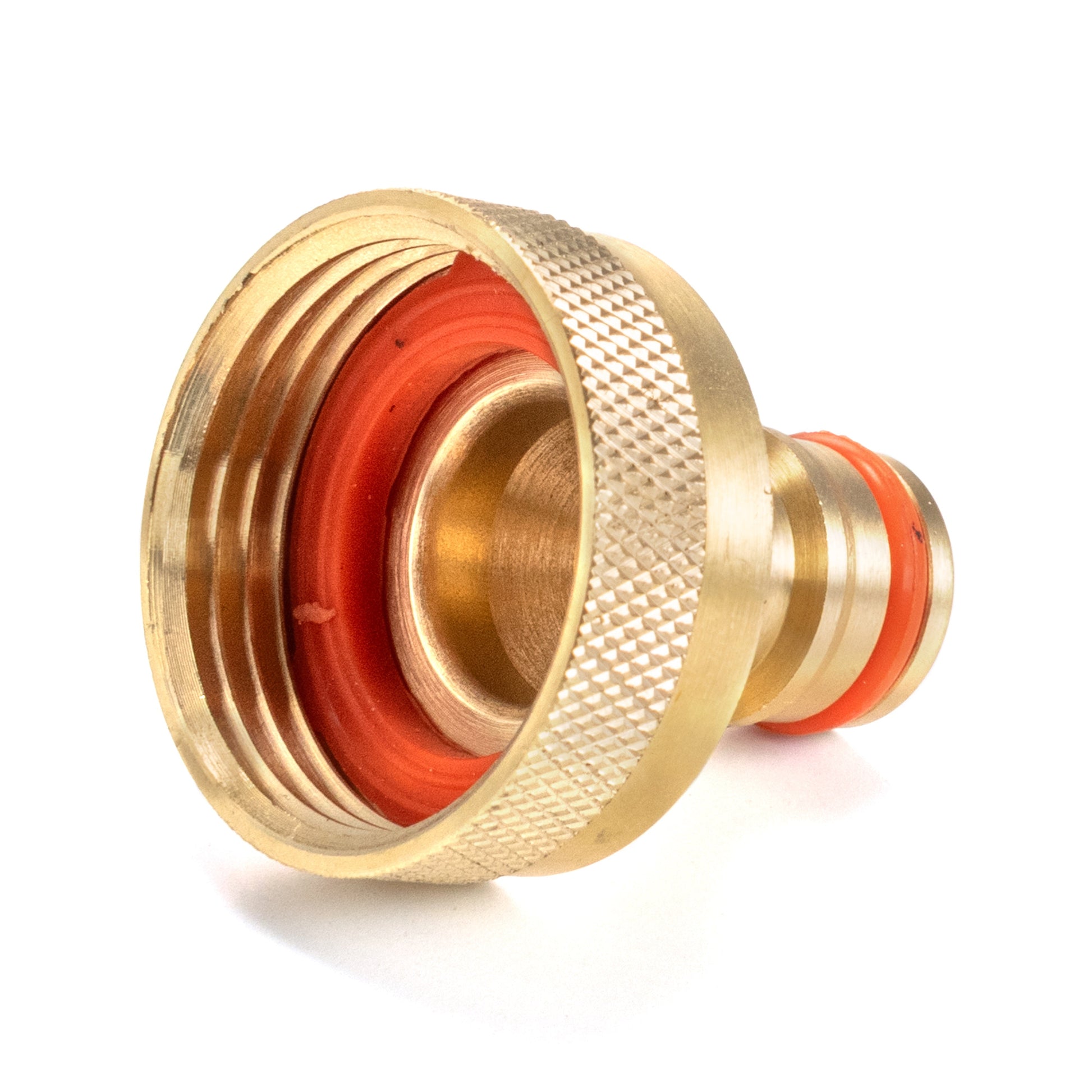

The close-up shows the female tap thread and inlet washer. This is a fixed 1-inch BSP connection: there is no reducer to remove or smaller inlet setting.

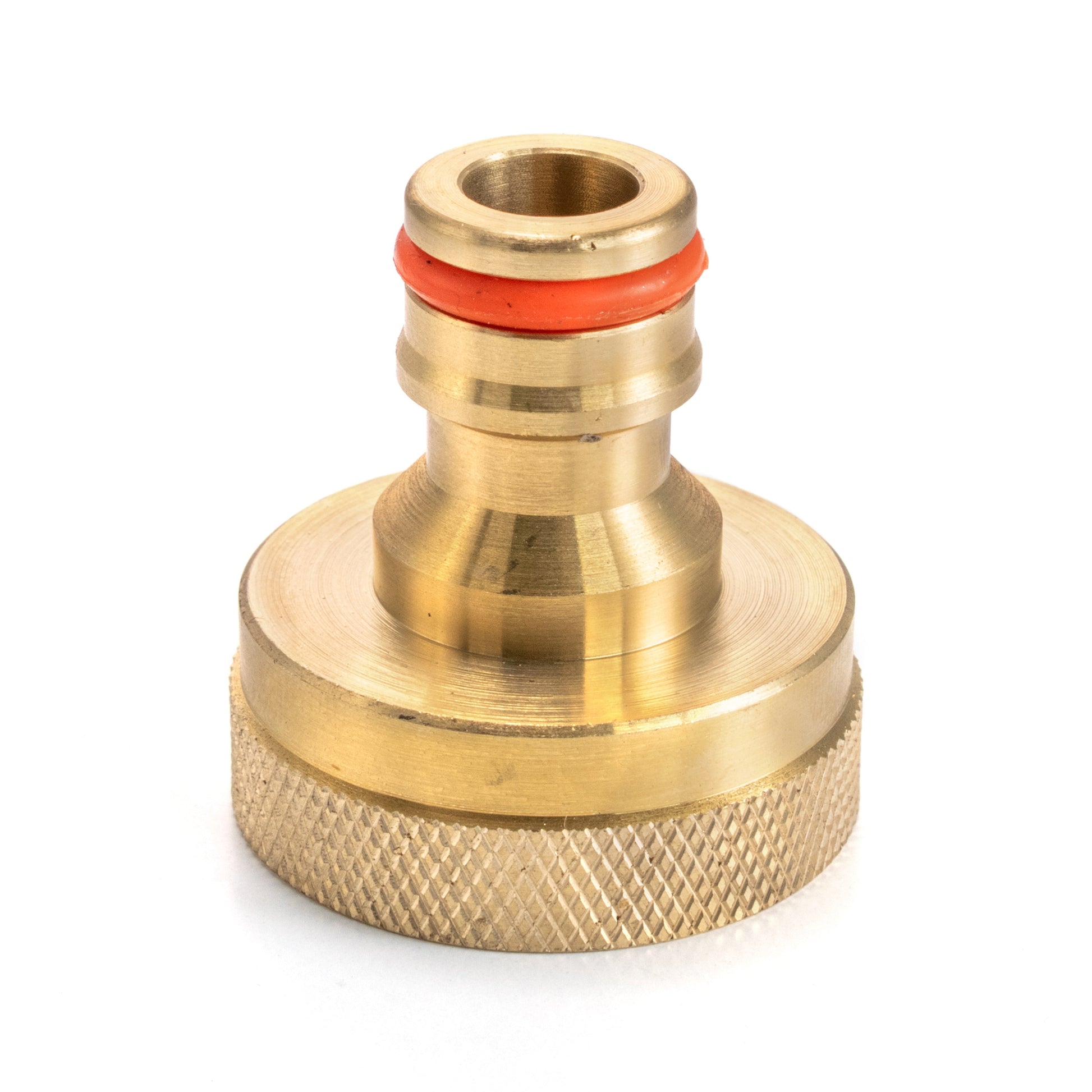

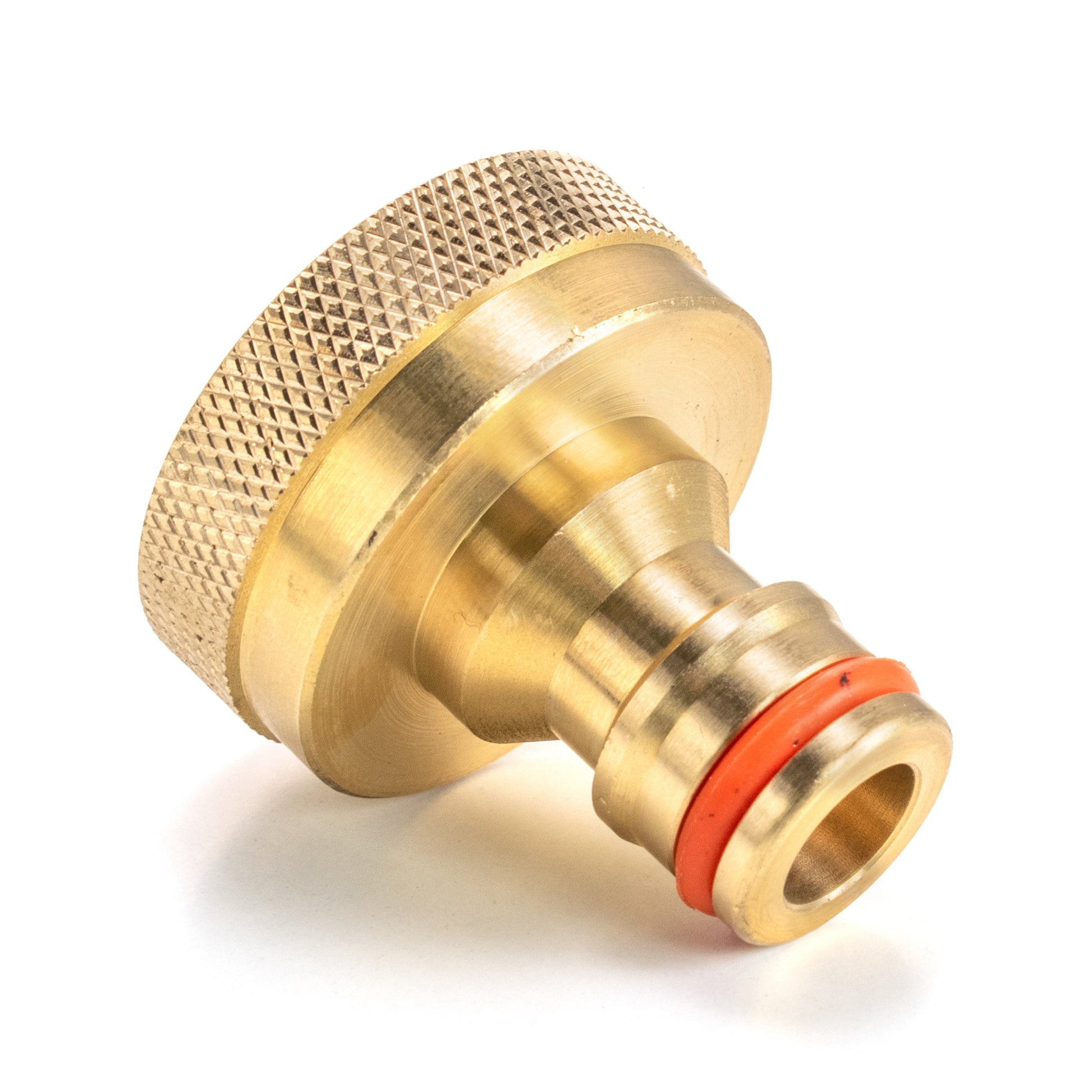

The opposite end is a male garden quick-connect plug, not a hose barb. Your hose needs its own compatible female socket. The optional brass connector above is for ½-inch hose; its hose bore is independent of this adapter’s BSP inlet size.
The knurled band is a grip for fitting the threaded cup. It does not slide to release the hose. Use the collar on the separate female socket after closing the tap.
Fit once, connect when needed
Check the tap
Turn off the water. Match the male tap outlet to the 1-inch BSP female inlet and check that the washer is clean and undamaged.
Start the thread squarely
Hold the knurled cup and fit it straight. Stop if the thread does not engage cleanly; avoid cross-threading and overtightening.
Attach the hose socket
Push a compatible female connector fully onto the plug. Open the tap gradually and check the assembled joints before watering.
Choosing the right tap adapter
Does it include a reducer for a smaller tap?
No. This adapter has one fixed 1-inch BSP female inlet. Choose an adapter with the correct inlet for a different tap thread.
Do I need a one-inch garden hose?
No. The BSP size identifies the threaded tap connection. Choose a separate female garden connector that fits your hose and accepts this male plug.
Can bare hose attach directly?
No. The outlet is a garden quick-connect plug, not a hosetail. A compatible female hose socket is required and is sold separately.
Does it stop water when I disconnect?
No. The adapter has no shut-off valve. Close the tap and release pressure before removing the hose at its female connector.
Product information & technical details
| SKU | TAPCON1BSPF001BRASS |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Female |
| Colour | Brass |
| Material | Brass |
|---|---|
| Inlet configuration | Fixed 1-inch BSP female; no reducer |
| Outlet connection | Male garden quick-connect plug |
| Supplied quantity | One brass tap adapter |
| Hose attachment | Separate compatible female garden socket required |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
