Description
Set a routine for your garden hose
Put a regular watering route on a schedule with the Bradas White Line WL-3133. This single-outlet timer opens and closes the supply to your hose at the start time, duration and repeat interval you choose.
From a short daily run to a routine repeated every few hours, the dial and LCD keep the settings on the timer itself. Adjust them as your planting and the weather change, then test the attached equipment before leaving it to run automatically.
One timer with tap reducer and outlet adapter. Tap, hose, female hose socket, batteries and sensors are separate.
Choose when, how long and how often

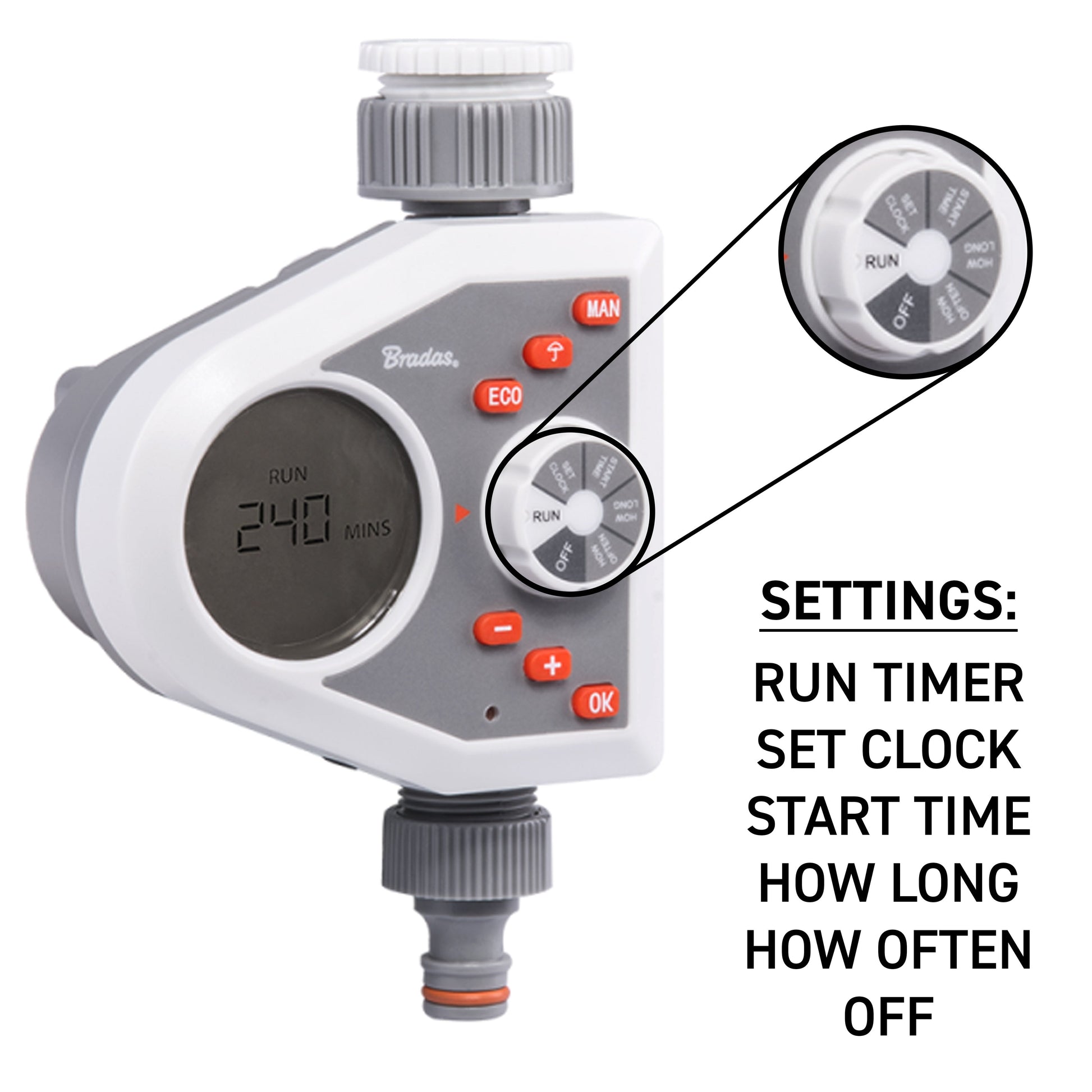

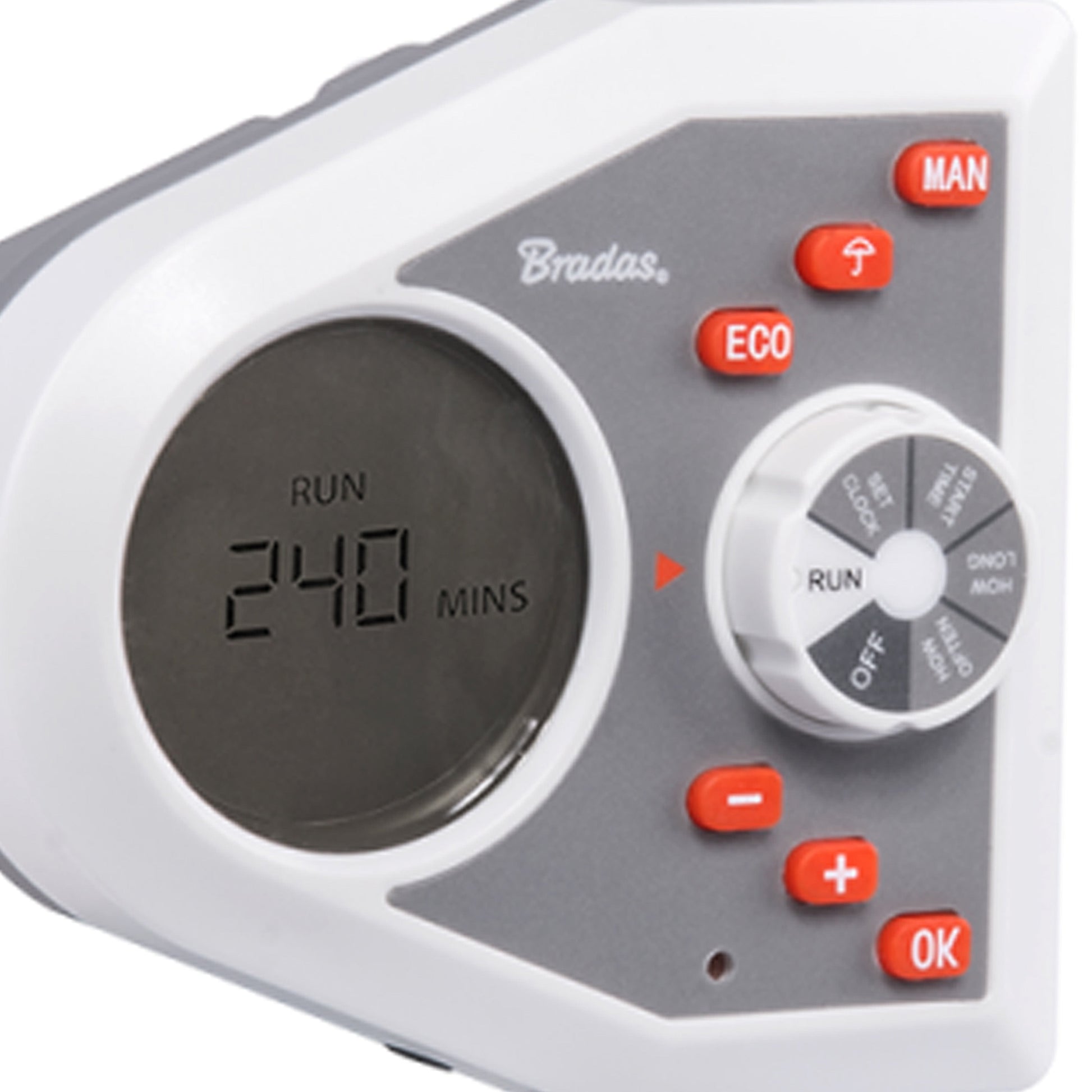

Work around the dial: SET CLOCK sets the current time, START TIME selects the first watering time, HOW LONG sets a 1-240 minute run, and HOW OFTEN selects the repeat interval.
Choose every 4, 6 or 12 hours, or every 1-15 days. Return the dial to RUN after confirming the settings. Start with a short test and check the soil near the beginning and end of the watering route before deciding on a longer run.
The MAN button adds a one-off session. The umbrella button delays watering when a pause is needed. ECO divides the watering time into shorter runs separated by pauses, giving water time to soak in. These settings are chosen by you; the timer does not assess the weather by itself.
Connect it for the season
Match the tap thread first, then choose the hose socket for your hose.
Fit the tap inlet

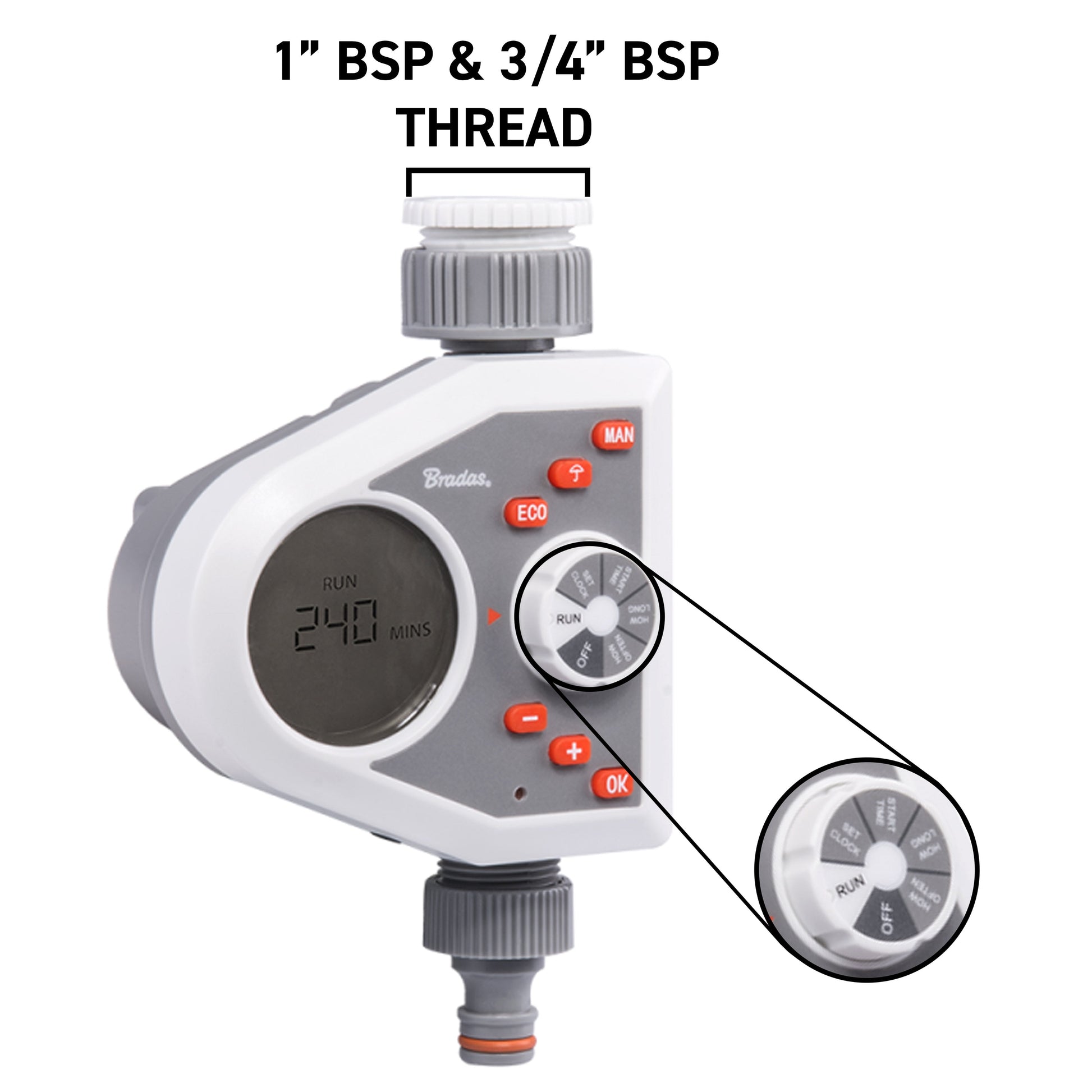

Turn off the tap and set the dial to OFF. Keep the filter in the inlet. Use the reducer on a ¾-inch BSP male tap, or remove it for a 1-inch BSP male tap. Start the connection squarely and tighten by hand.
Clip on the hose
Attach a compatible female hose socket to the lower male garden plug. The optional grey socket above is for ½-inch hose and is sold separately. Support the hose so it does not pull on the timer, and install the timer vertically above ground.
Test the whole route
Use a supply within 0.5-8 bar, open the tap and check the joints and watering pattern. If your hose or irrigation equipment needs lower pressure, provide suitable separate pressure control: the timer controls timing rather than reducing pressure.
WL-3133 questions
Will it work from a gravity-fed water butt?
It requires at least 0.5 bar operating water pressure. Do not assume an unpressurised water butt provides enough pressure; check the supply or choose a timer expressly suitable for your setup.
Does the delay button detect rain?
No. It pauses the programme when you choose. The timer has a sensor connection for a compatible optional sensor, but no sensor is included.
Are the batteries and hose connector included?
The timer includes its tap reducer and male outlet adapter. It needs two AA alkaline batteries and a separate compatible female hose socket. Choose the socket for your hose size; neither the batteries nor the female socket is included.
Can I leave it outdoors through winter?
Remove it before freezing conditions. Turn off the tap, detach and drain the timer, remove its batteries, let it dry and store it in a dry place. The housing is water-resistant, not suitable for submersion.
Product information & technical details
| SKU | WL-3133-001 |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | Grey, White |
| Material | Plastic |
| Manufacturer / model | Bradas White Line WL-3133 |
| Watering outlets | 1 |
| Watering duration | 1-240 minutes |
|---|---|
| Repeat intervals | Every 4, 6 or 12 hours, or every 1-15 days |
| Operating modes | Automatic programme, manual watering, delay and ECO pauses |
| Power | 2 × AA alkaline batteries; not included |
| Operating water pressure | 0.5-8 bar |
| Operating water temperature | 0-60°C; protect from frost |
| Outlet connection | Male garden quick-connect plug |
| Included parts | 1 timer, tap reducer and outlet adapter |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
