Description

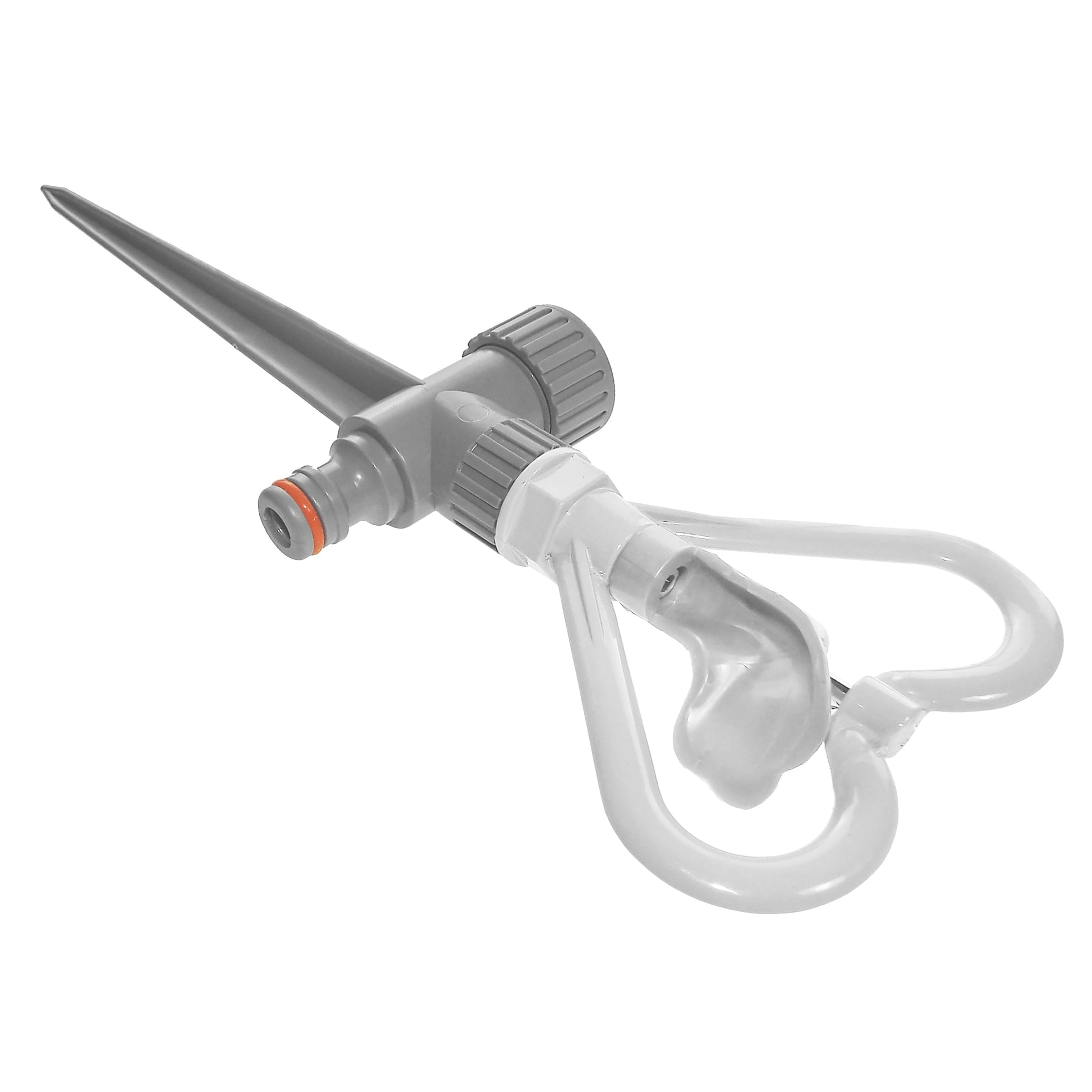

Rotary watering with a metal head

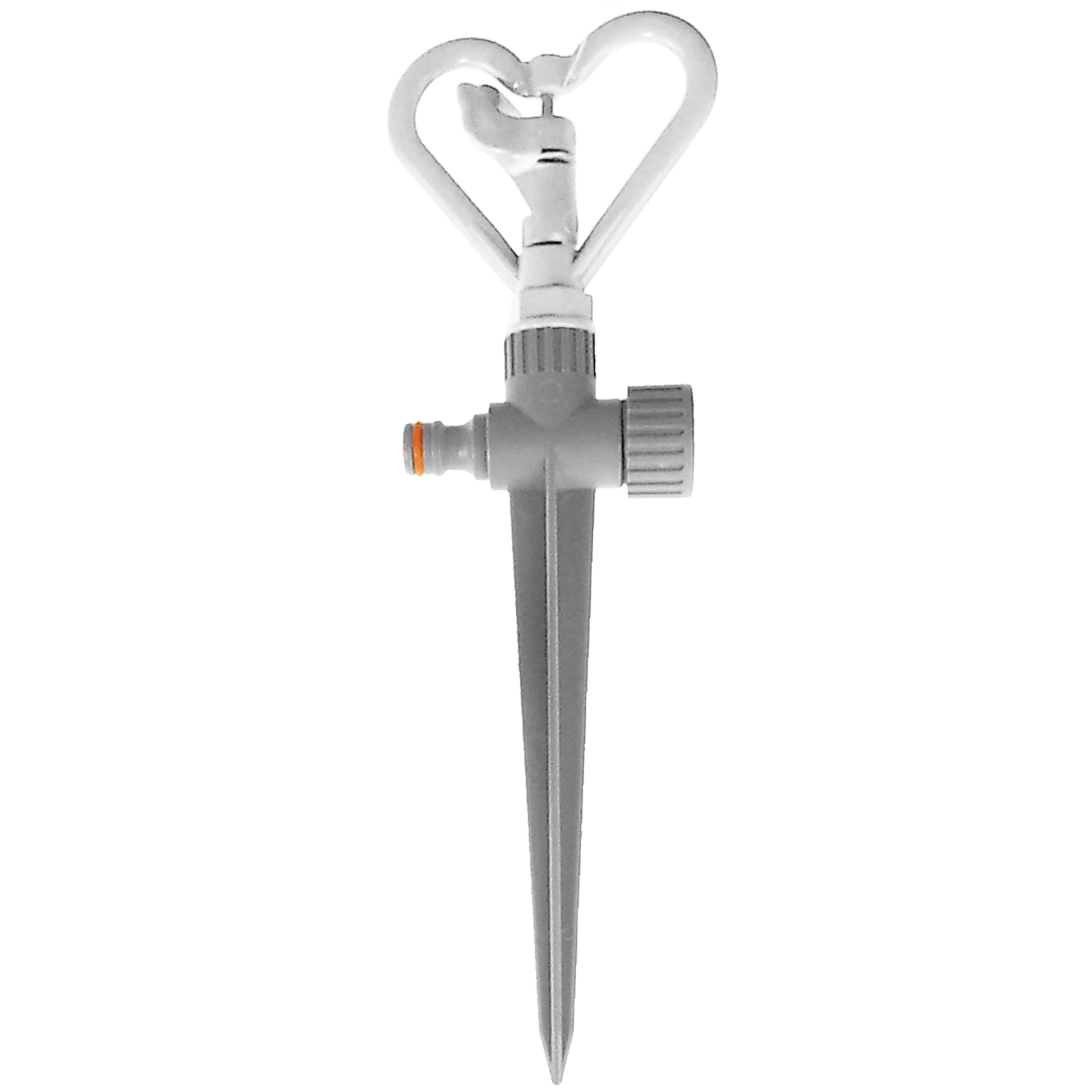

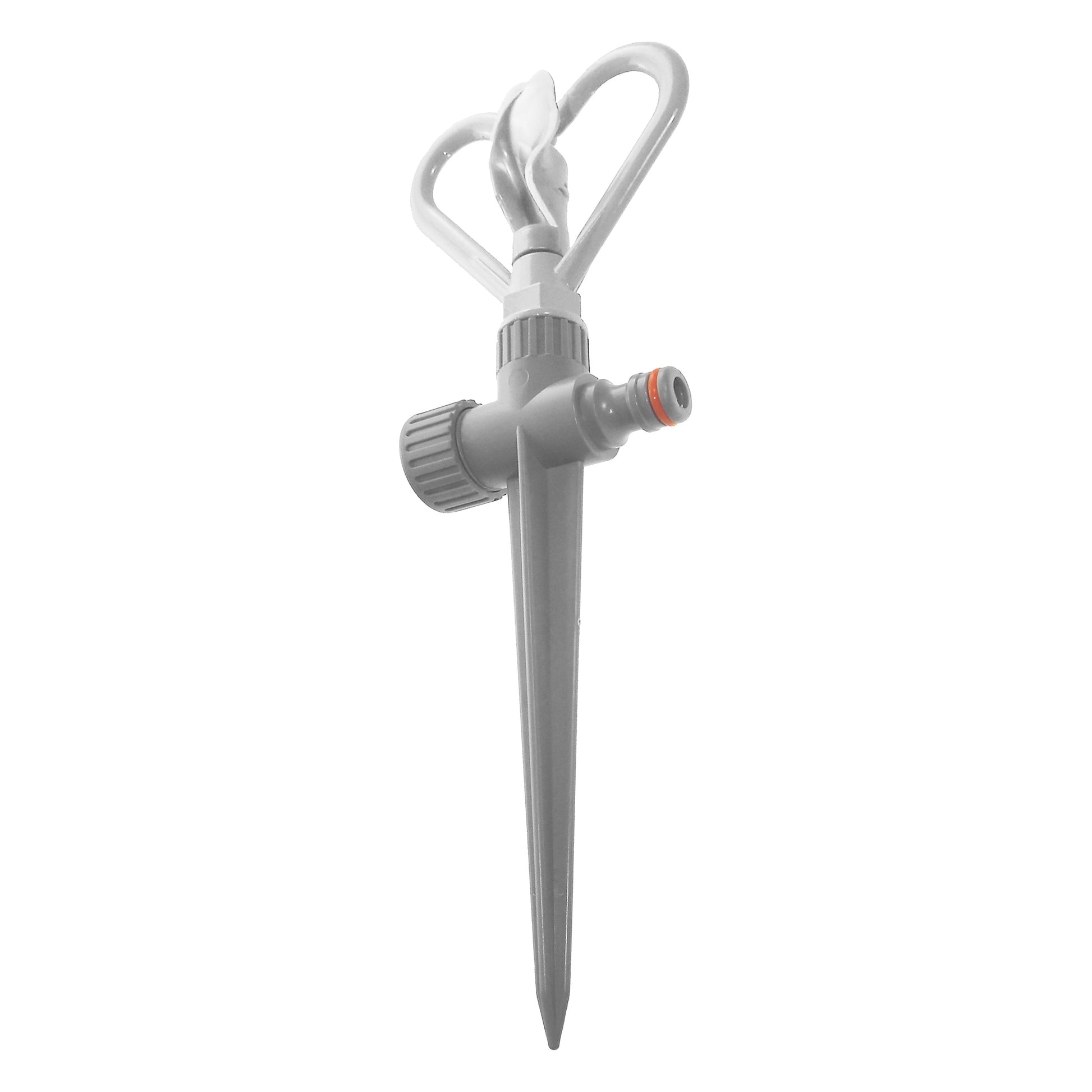

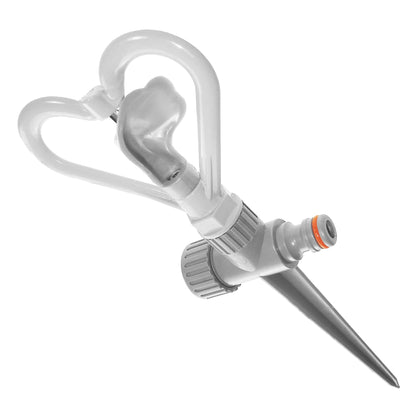

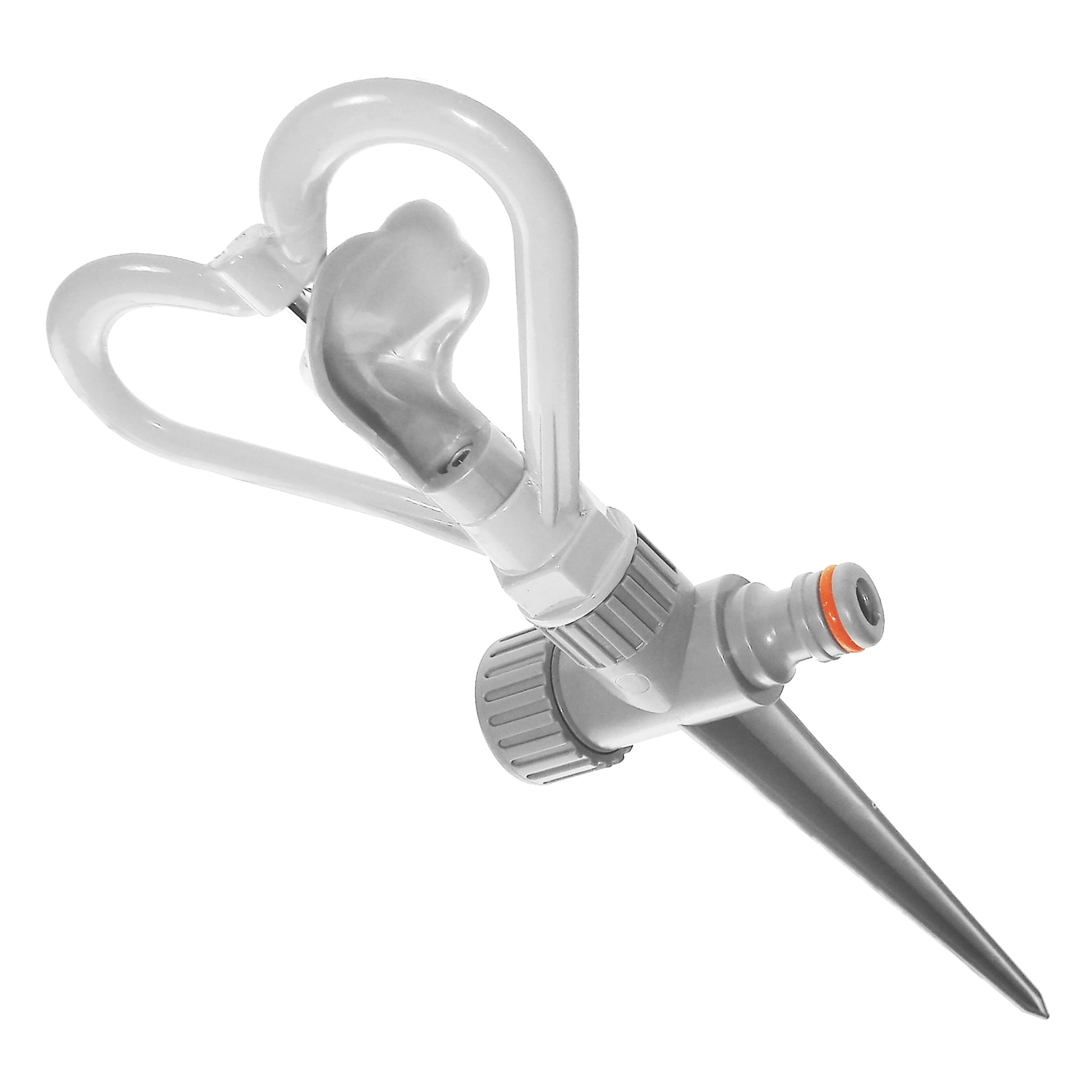

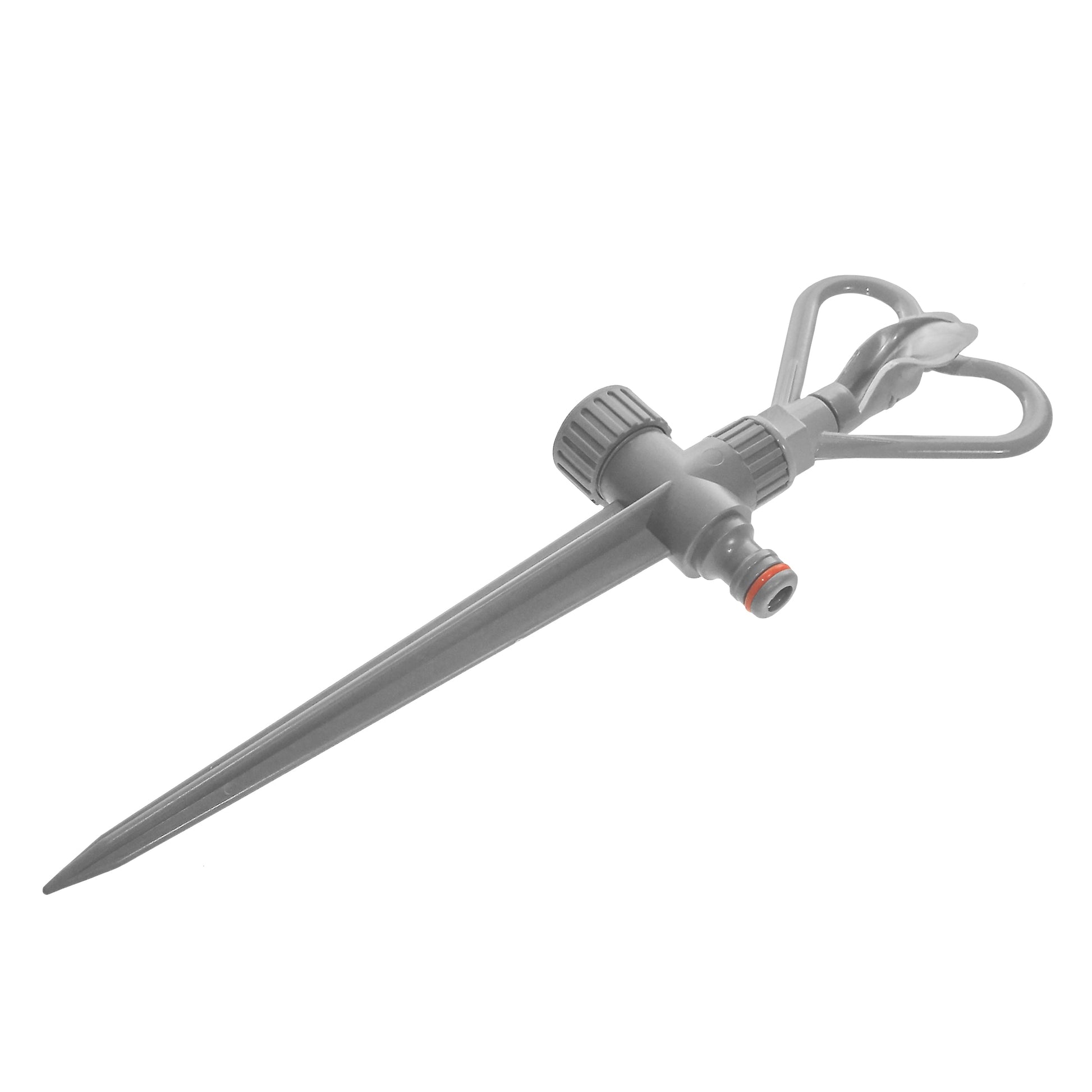

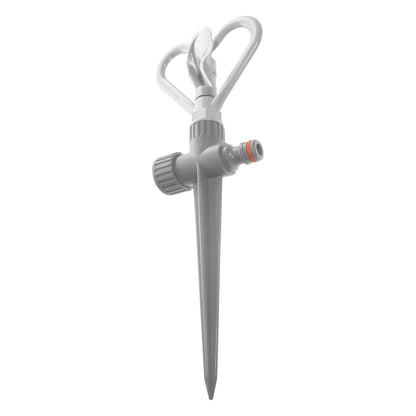

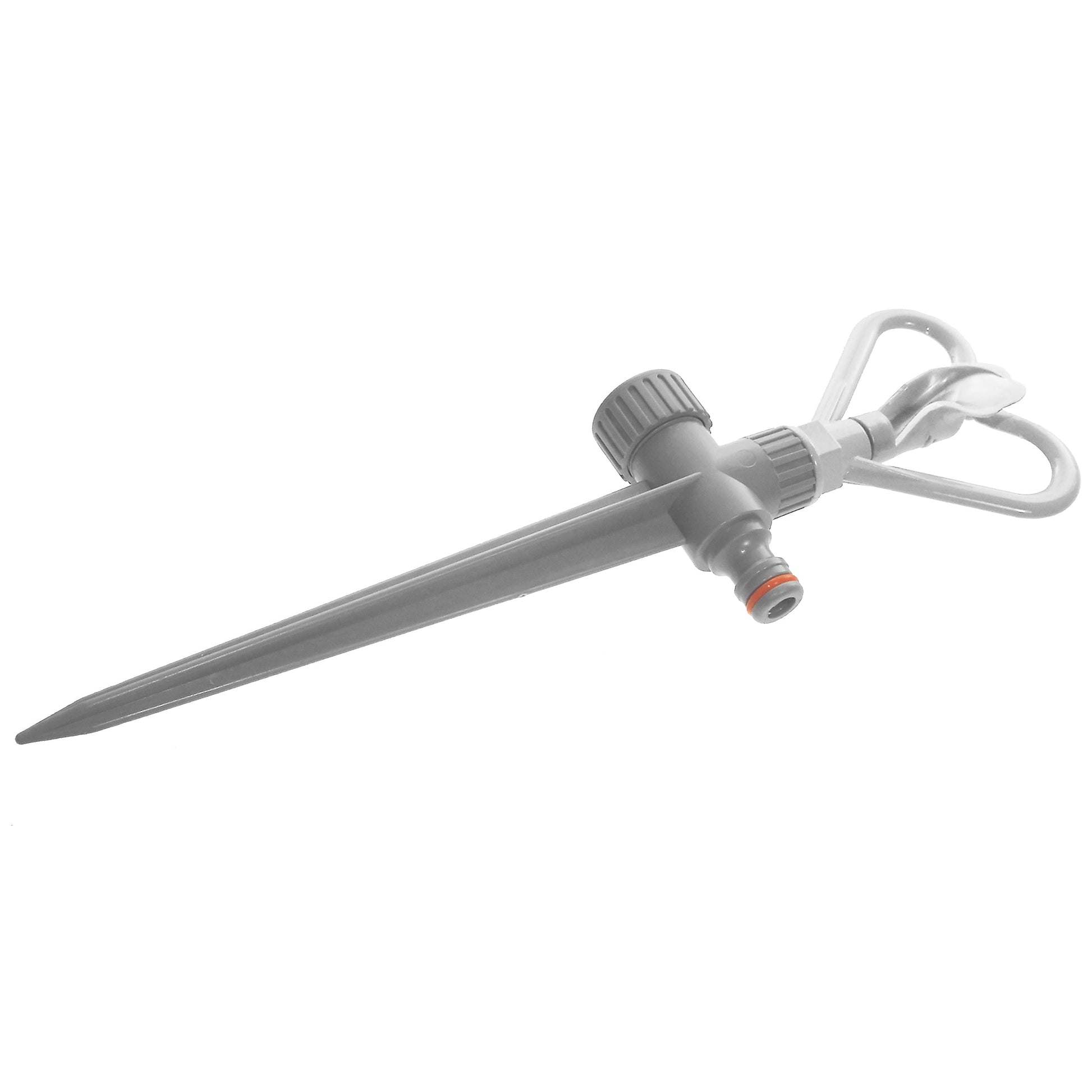

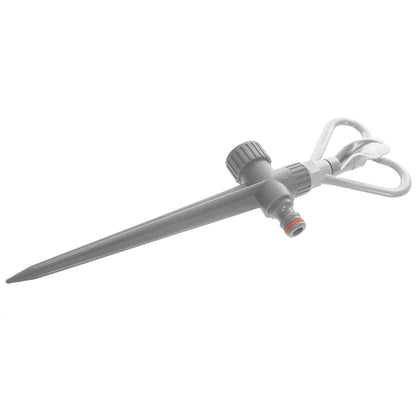

This White Line butterfly sprinkler pairs a metal frame and rotor with a plastic ground spike. It is a practical choice when you want a metal butterfly head with a familiar click-on garden hose connection.
Water turns the curved butterfly inside its fixed outer frame. Insert the spike into suitable soil, keep the moving head clear and position the sprinkler where the spray can reach the lawn you want to water.
One sprinkler supplied. Hose, female connector and any fittings for linking another sprinkler are separate.
Click your hose onto the side inlet
The projecting male garden plug accepts a compatible female quick-connect hose socket. The orange ring is the plug’s seal; it sits inside the socket once connected. This is not a barbed hosetail for pushing a bare hose onto.
With the water turned off, fit the correct socket to your hose and click it fully onto the plug. The optional White Line connector above is for ½-inch hose, or you can use a suitable socket you already have.
The opposite outlet is capped for single-sprinkler use. It provides a continuation point when you want to link another unit with suitable extra fittings and hose.
Set up for the lawn you have
Position and observe
Stand the sprinkler upright in suitable soil and leave slack in the hose so it does not pull the spike sideways. Keep plants and other obstructions away from the moving butterfly.
The stated maximum diameter is 14m, measured across the watering area rather than from the spike. The specified operating range is 1-7 bar (0.1-0.7MPa). Supply flow, hose losses and wind affect the reach you get, so watch the wetted area before choosing a watering time.
Linking another unit
Turn off the water before uncapping the continuation outlet or changing connections. Extra hose and suitable fittings are needed to connect a further sprinkler.
Linked heads share the available flow. Test every unit in the finished layout: adding more sprinklers does not guarantee that each will keep the same reach or water every part of the lawn equally.
White Line butterfly sprinkler questions
Is the whole sprinkler made of metal?
No. The outer head frame and butterfly are metal, while the body and ground spike are plastic. This listing is for the mixed-construction White Line model shown.
Does the outer frame rotate?
The butterfly rotor turns inside the frame. The outer frame, body and ground spike stay in position.
Are the hose and female connector included?
No. One sprinkler with a male garden quick-connect inlet is supplied. Your supply hose, female socket and any additional series fittings are separate.
Can I stand it on a patio?
The spike needs suitable soil to support it upright. For paving or decking without a place to insert the spike, choose a sprinkler with a freestanding base.
Product information & technical details
| SKU | WL-KT263B-001 |
|---|---|
| Product type | |
| Colour | Grey, White |
| Material | Plastic |
| Range | White Line |
| Head construction | Metal outer frame and butterfly rotor |
| Mechanism | Water-driven rotary butterfly inside a fixed frame |
|---|---|
| Maximum watering diameter | 14m; actual reach depends on supply and conditions |
| Operating pressure | 1-7 bar (0.1-0.7MPa) |
| Mounting | Plastic ground spike |
| Supply connection | Male garden quick-connect inlet |
| Series connection | Capped continuation outlet; extra hose and fittings separate |
