Description
Lever control at your garden hose connection

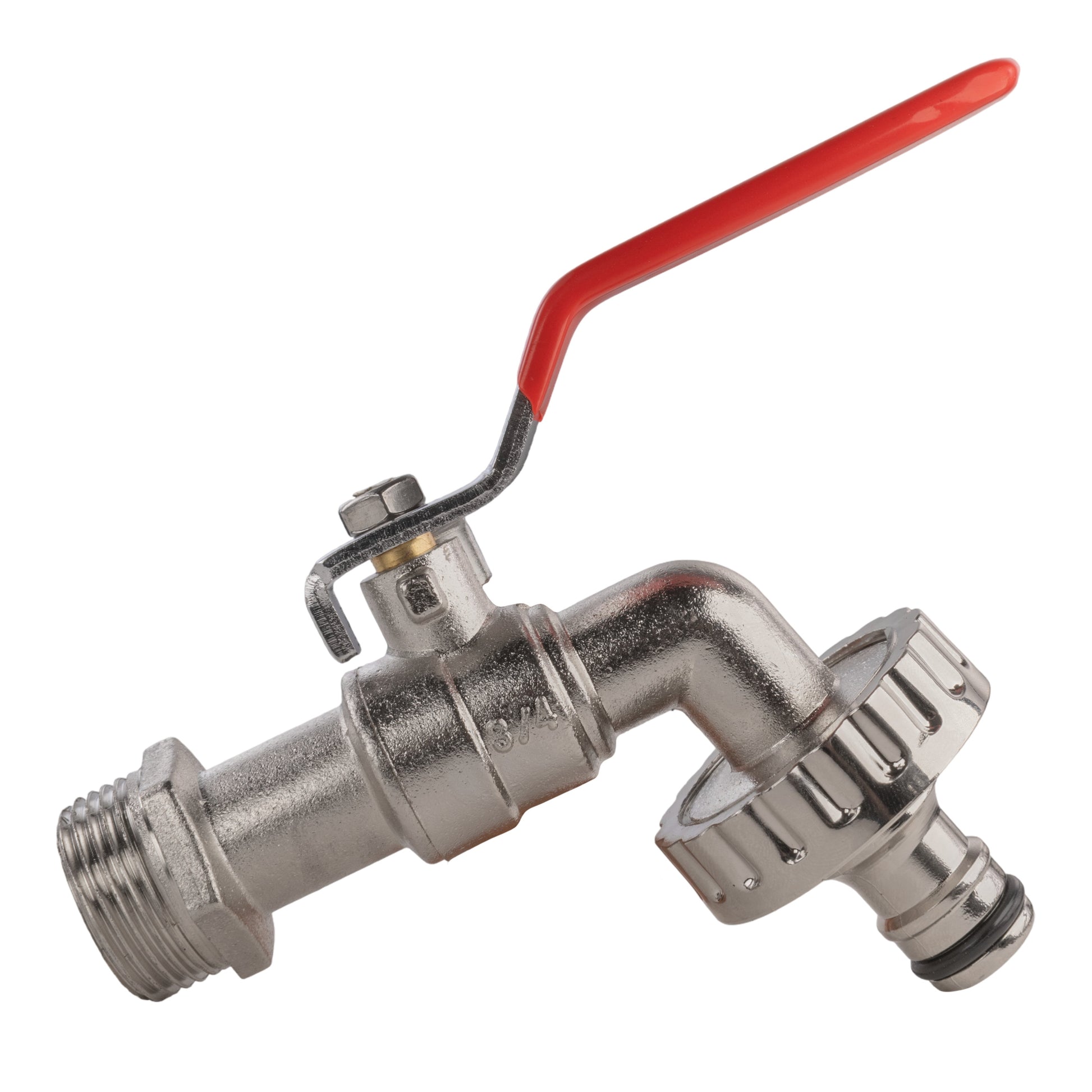

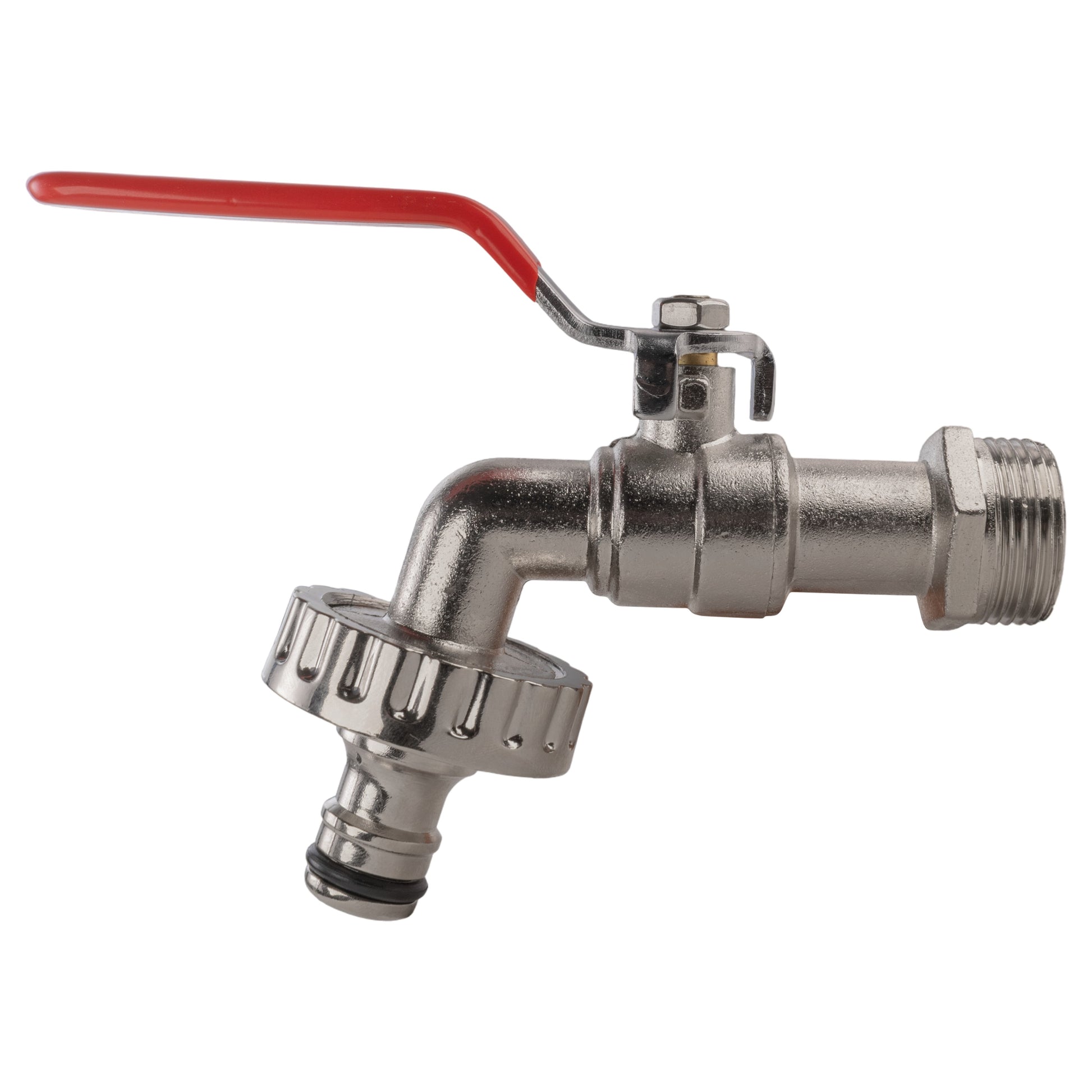

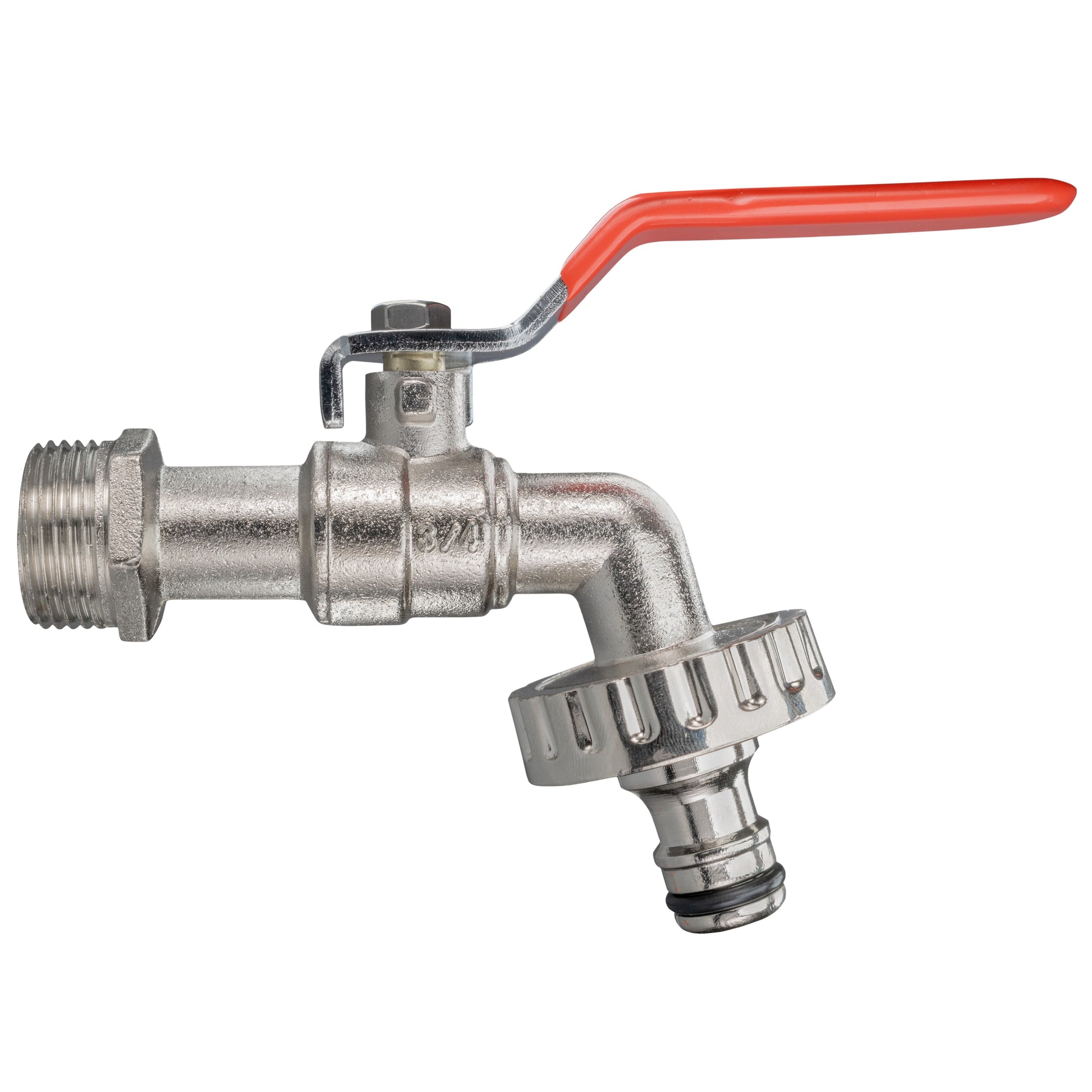

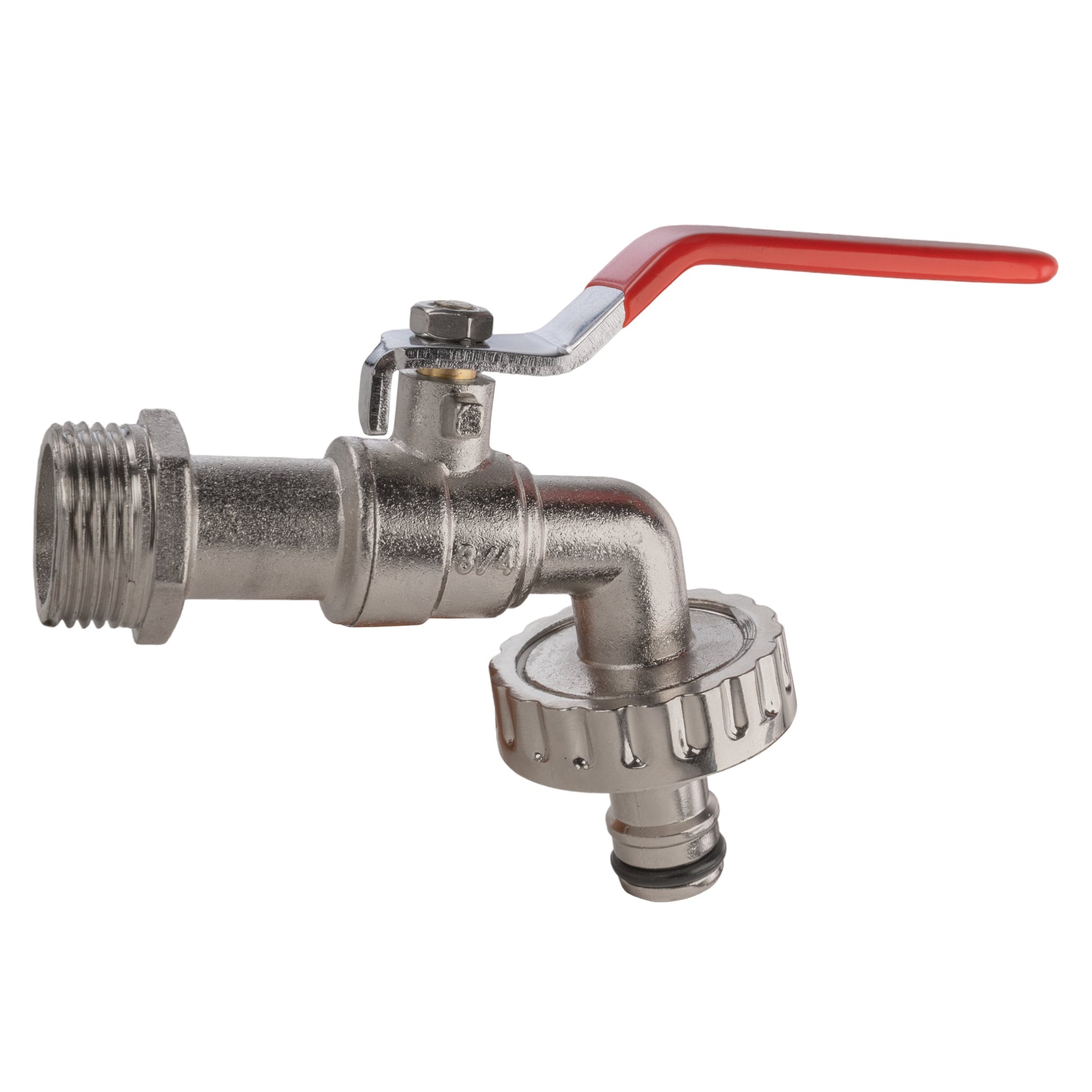

A red lever, a nickel-plated zinc body and a male quick-connect outlet make this tap a practical fitting for a suitably matched garden water point.

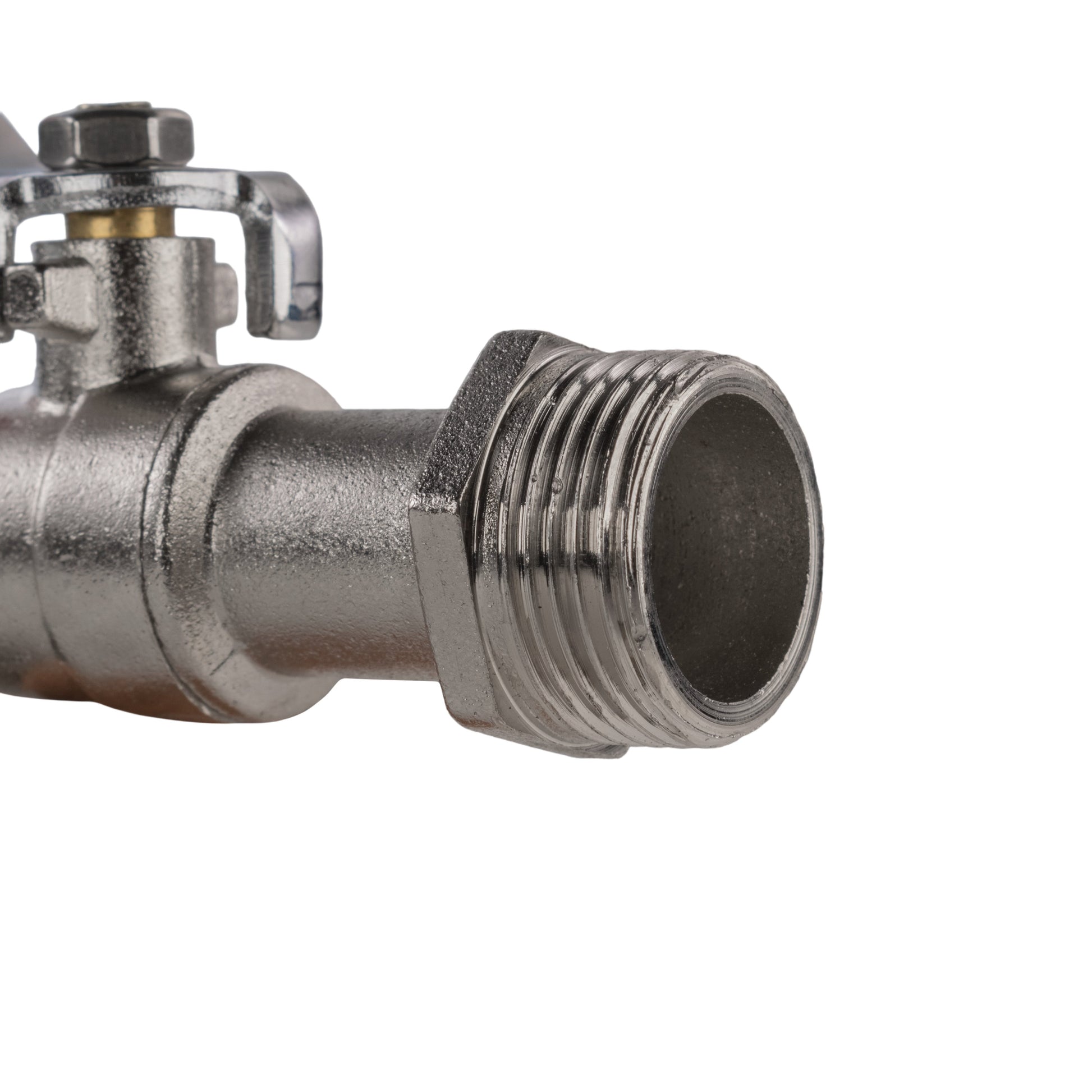

The inlet is ¾-inch BSP male. At the spout, a male garden quick-connect plug accepts a suitable female connector on your hose, so the hose can be removed without unscrewing the tap from its supply.
One tap with male quick connector supplied. Hose, female connector and installation fittings are sold separately.
Choose the connector for your hose

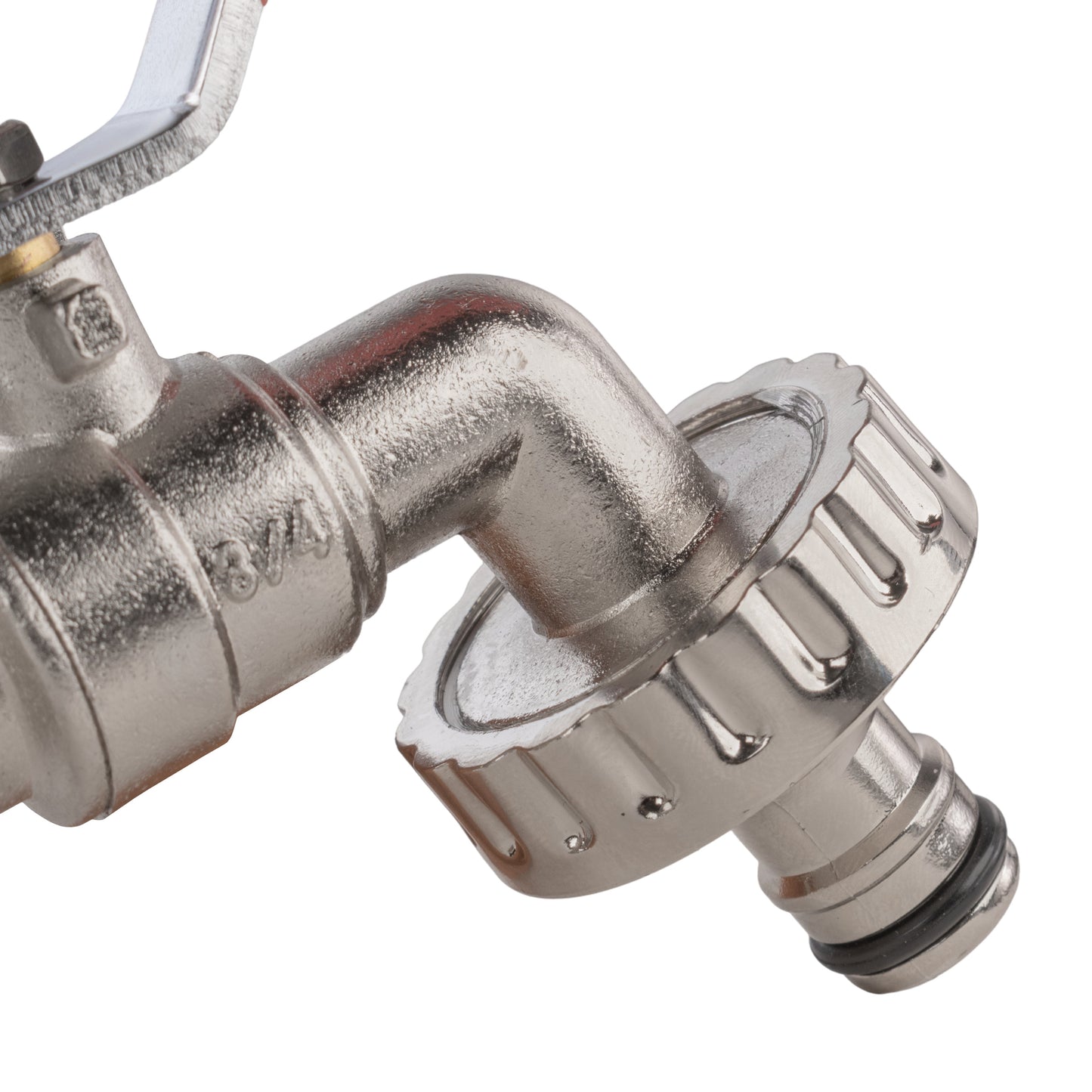

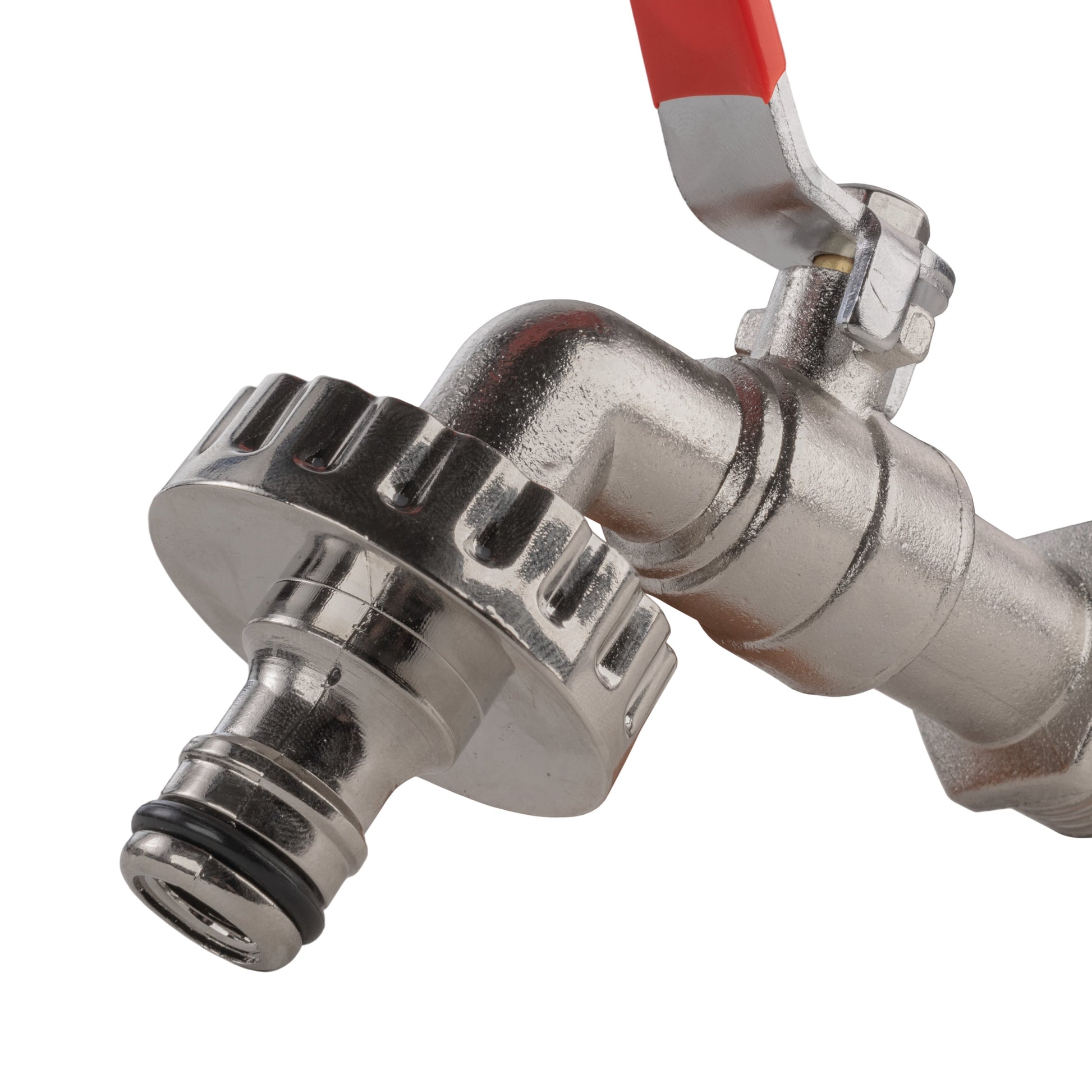

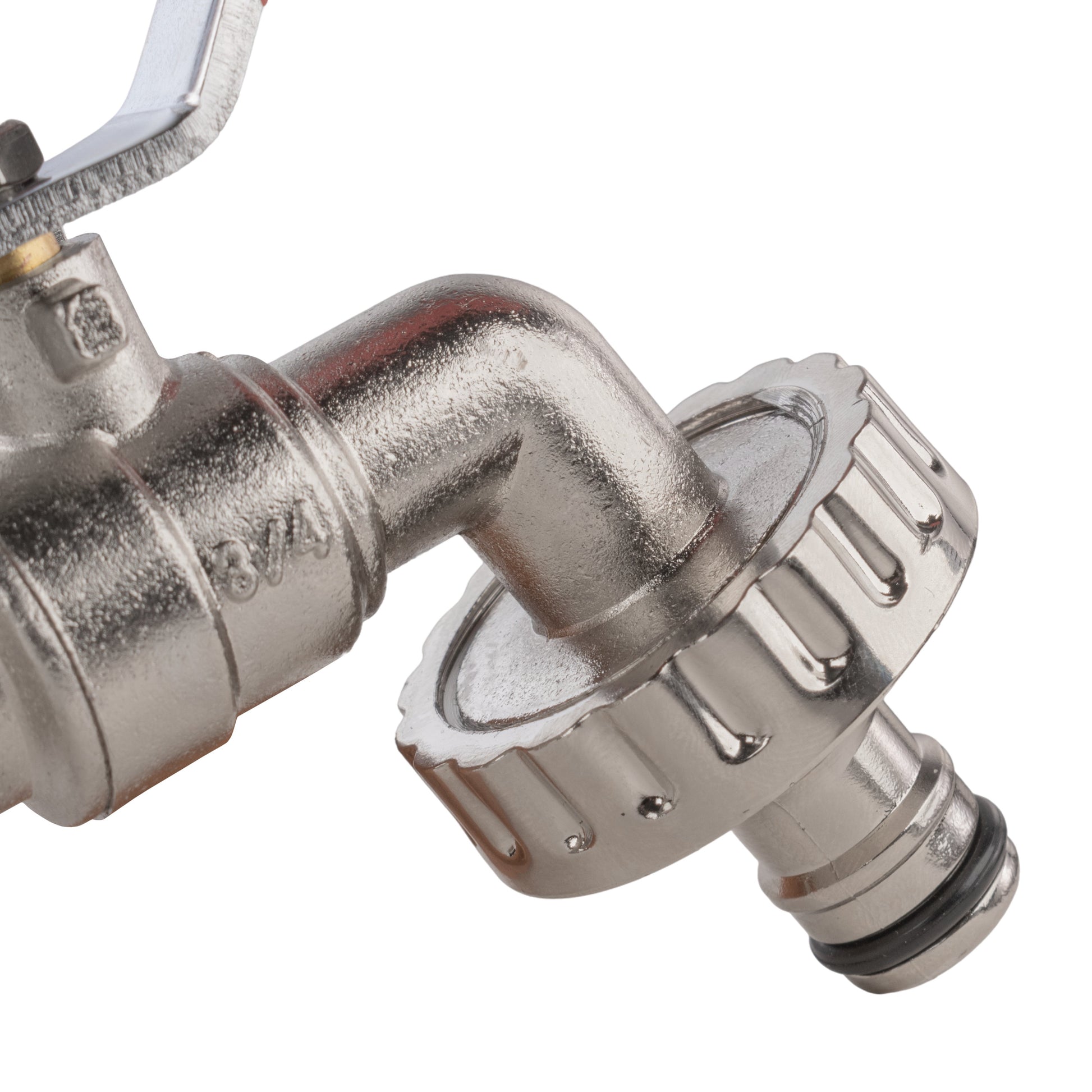

The plug beneath the spout is a male garden quick-connect fitting. A suitable female connector attaches to it; bare hose is not pushed directly over the plug.
The optional brass connector in Frequently bought together is for ½-inch hose. If your hose has a different bore, select an appropriate female connector for that hose and the tap plug.
The ¾-inch BSP inlet does not mean the hose must be ¾-inch. These describe separate connections on opposite sides of the tap. Turn off the water and release pressure before disconnecting the hose.
Check the inlet fit and the thread reach
The ¾-inch BSP male inlet needs a suitable matching female fitting and the correct sealing arrangement. BSP is a nominal size, so the named ¾-inch dimension is not its measured outside diameter.
If fitting the tap to a water butt or tank, check the wall thickness, adapter and available thread engagement. A correct thread size alone does not show whether the tap will reach through a tank wall or leave enough thread for the intended mounting.
A separate tank adapter, wall plate or other fitting may be needed. Choose those parts for your installation rather than assuming this tap is a direct replacement for every plastic water-butt tap.
Leave room for the lever and the hose
Check access, support and the separate fittings before installation.
Prepare the connection
Isolate the supply before fitting. Confirm the receiving thread, sealing method and mounting support. Keep the connection accessible so it can be inspected after installation.
Allow movement
Position the tap with clearance for the red lever and the female hose connector. Leave enough hose slack for a comfortable bend without pulling sideways on the spout.
Check during use
Restore water gradually and check the inlet and outlet joints. Inspect the hose connector and mounting periodically, and drain exposed fittings before freezing weather.
Questions about the ¾-inch lever tap
Is the tap made from brass?
No. This version has a zinc body with nickel plating, giving it the silver finish shown in the product photos.
Does the ¾-inch inlet determine the hose size?
No. It describes the male BSP supply thread. Choose a separate female garden connector for your hose bore and the male plug on the tap outlet.
Will it fit directly through a water-butt wall?
Check the wall thickness, adapter, sealing and available thread engagement. The nominal thread size does not confirm the required reach; a separate tank fitting may be needed.
What is included?
One lever tap with its male quick connector. Hose, female hose connector, wall plate, tank adapters and other mounting or sealing materials are not included.
Product information & technical details
| SKU | GTLEVER-ZINC34Q001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Colour | Silver |
| Material | Metal |
| Body material | Zinc |
| Finish | Nickel-plated |
|---|---|
| Control | Red lever handle |
| Outlet connection | Male garden quick-connect plug |
| Outlet count | One |
| Quantity supplied | One lever tap with male quick connector |
| Hose connector and mounting fittings | Not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
