Description
Two outlets. Separate controls.

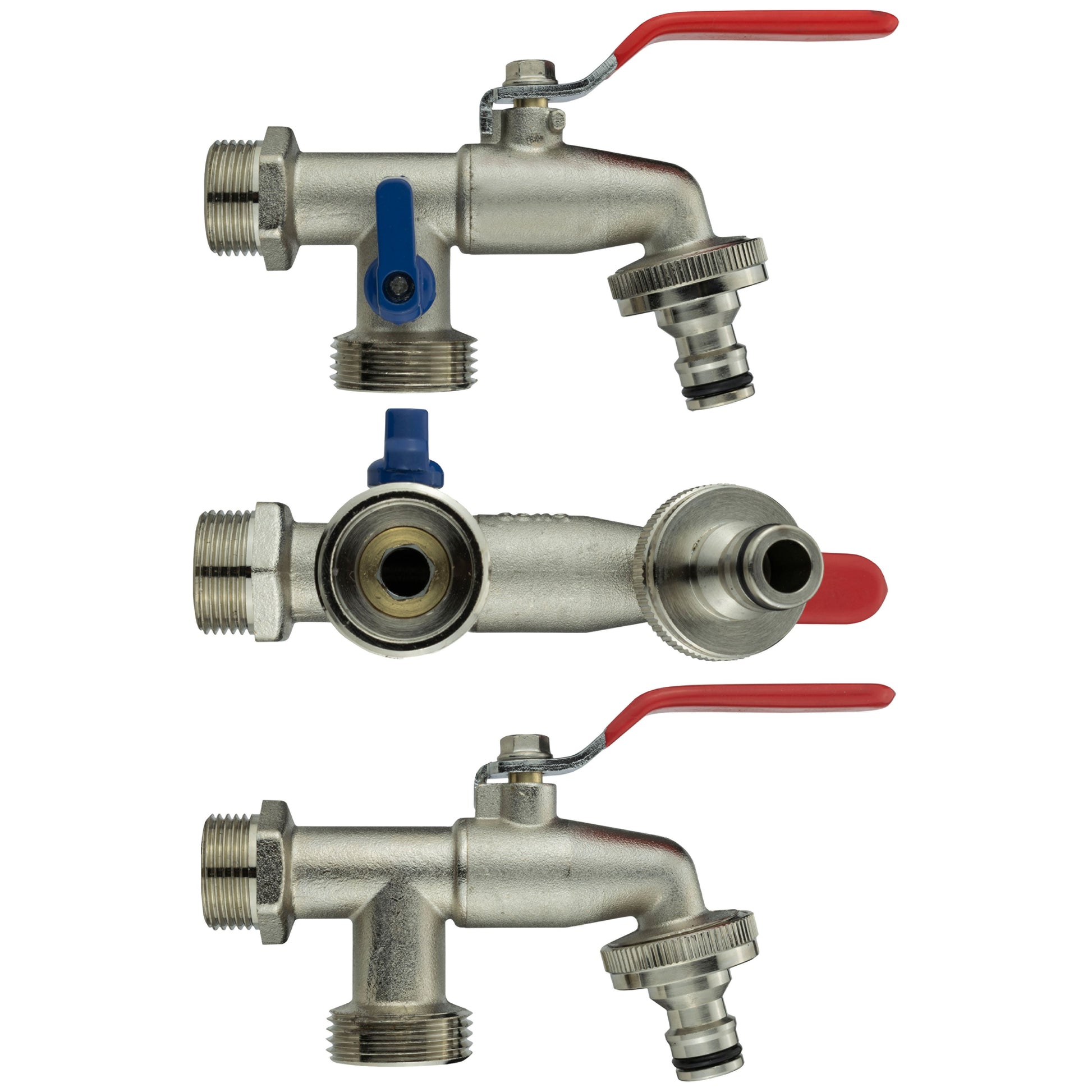

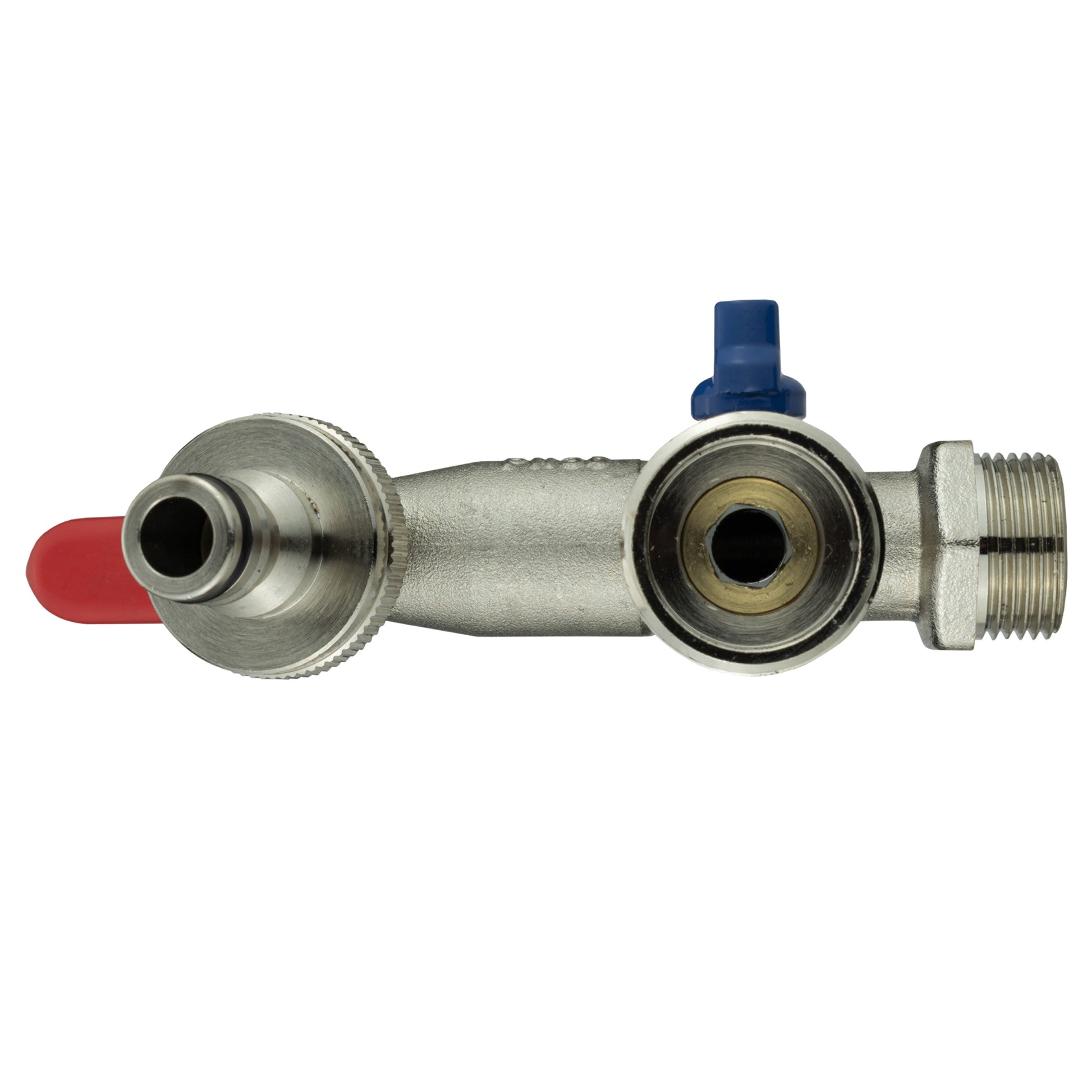

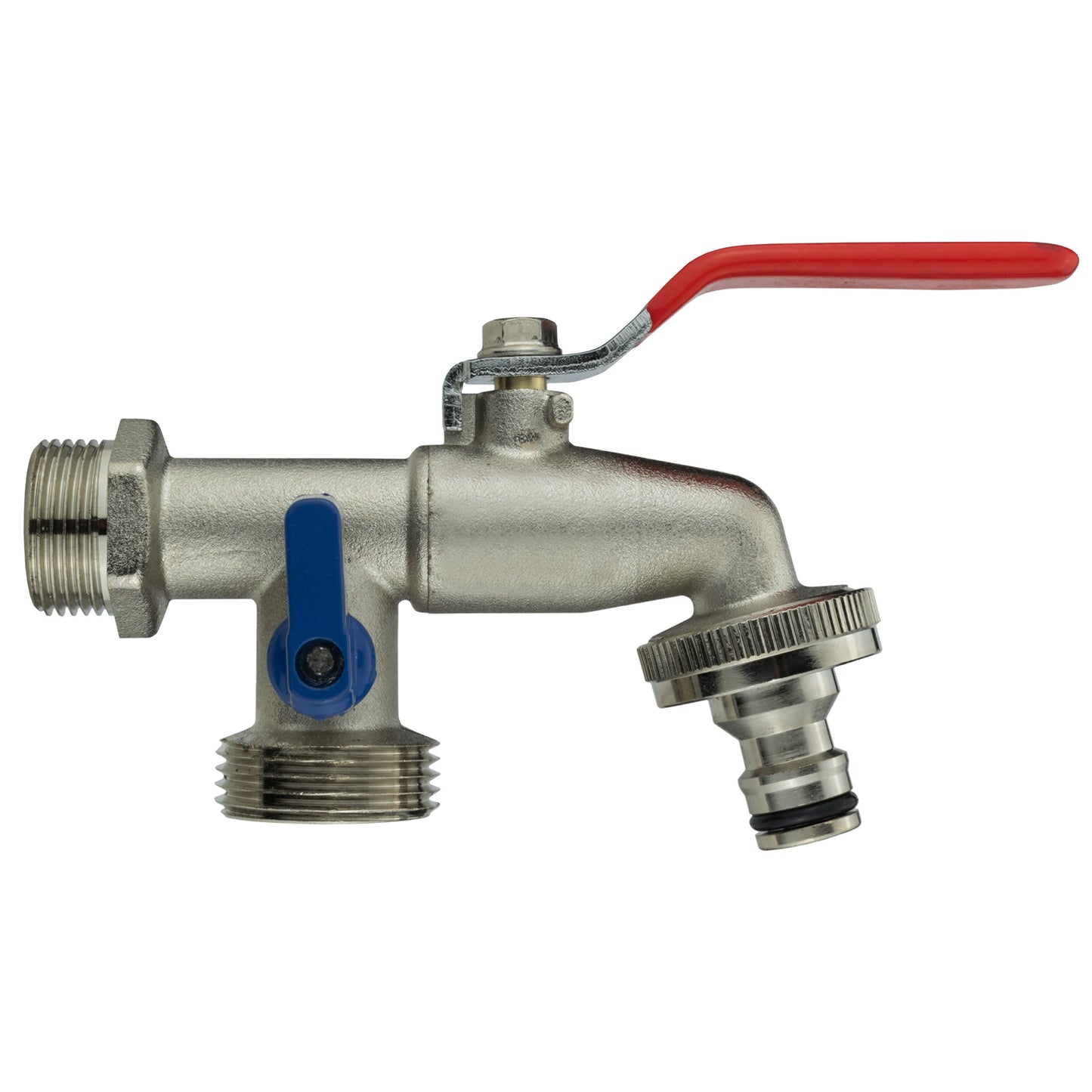

A dual-outlet garden tap with a ¾-inch BSP male inlet, a quick-connect spout and a separately controlled threaded branch. Keep two watering connections ready at one supply.
Use the long red lever for the curved spout and the smaller blue lever for the lower outlet. Both draw from the same water source.
Nickel-plated brass tap supplied with its quick-connect outlet fitting. Hoses and other accessories are sold separately.
A separate handle for each outlet
The curved spout ends in a male garden quick-connect fitting. Attach a matching female connector on the end of your hose, then use the red lever to control that outlet.
The lower 1-inch BSP male branch has its own blue lever. Select a matching female threaded fitting or suitable adapter for the connection you want to make.
Two outlets offer flexibility, rather than extra supply capacity. Opening both shares the water available at the inlet; the resulting flow depends on your supply, hose runs and connected equipment.
Match each connection separately
The inlet, threaded branch and garden quick connector perform different jobs.
Start with the inlet
The tap’s ¾-inch BSP male inlet needs a matching female fitting. An unthreaded tank wall or a different thread needs the appropriate mounting fitting or adapter, sold separately.
Choose the hose connector
A matching female garden quick connector clips onto the spigot. Select that connector for your hose size; the hose bore is not determined by the tap’s BSP inlet thread.
Check the branch fitting
The lower outlet is a male BSP thread, so a matching female connection or suitable adapter is needed. Check any timer, filter or irrigation fitting’s connection, clearance and operating requirements before choosing it.
Fit the tap with room to work
Allow space below both outlets and around each lever. Support connected equipment and route hoses without pulling sideways on the tap or its inlet joint.
Isolate the water before fitting. Start the matching inlet thread by hand, using the sealing arrangement appropriate to the receiving joint. Introduce water gradually, operate each handle and check the connections before regular use.
Drain exposed taps and connected hoses when freezing conditions are expected. The nickel finish does not prevent water trapped inside a fitting from freezing.
Questions about this double-outlet tap
Can I turn one outlet off while using the other?
Yes. The two outlets have separate controls. The long red lever operates the curved quick-connect spout, and the smaller blue lever operates the lower threaded branch.
Are the inlet and branch outlet the same size?
No. The inlet is ¾-inch BSP male, while the lower branch outlet is 1-inch BSP male. Select a matching female fitting for each. The quick-connect spout is a different connection style again.
Does opening both outlets double the water flow?
No. Both draw from the same inlet supply. You can use both outlets, but the available water is shared and flow depends on your supply and connected hoses or equipment.
Are hoses, timers or mounting adapters included?
This listing supplies one dual-outlet tap with its quick-connect outlet fitting. Hoses, female hose connectors, timers, filters and wall or tank mounting adapters are separate items. Check their connections and operating requirements before buying.
Product information & technical details
| SKU | GT-D-LEVER34Q001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male |
| Colour | Silver |
| Material | Brass |
| Outlet count | Two |
|---|---|
| Quick-connect outlet | Male garden spigot on curved spout |
| Threaded branch outlet | 1-inch BSP male |
| Outlet controls | Separate red and blue levers |
| Surface finish | Nickel plating |
| Supplied item | One dual-outlet tap with quick-connect fitting |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
