Description
Two garden connections, each with its own control

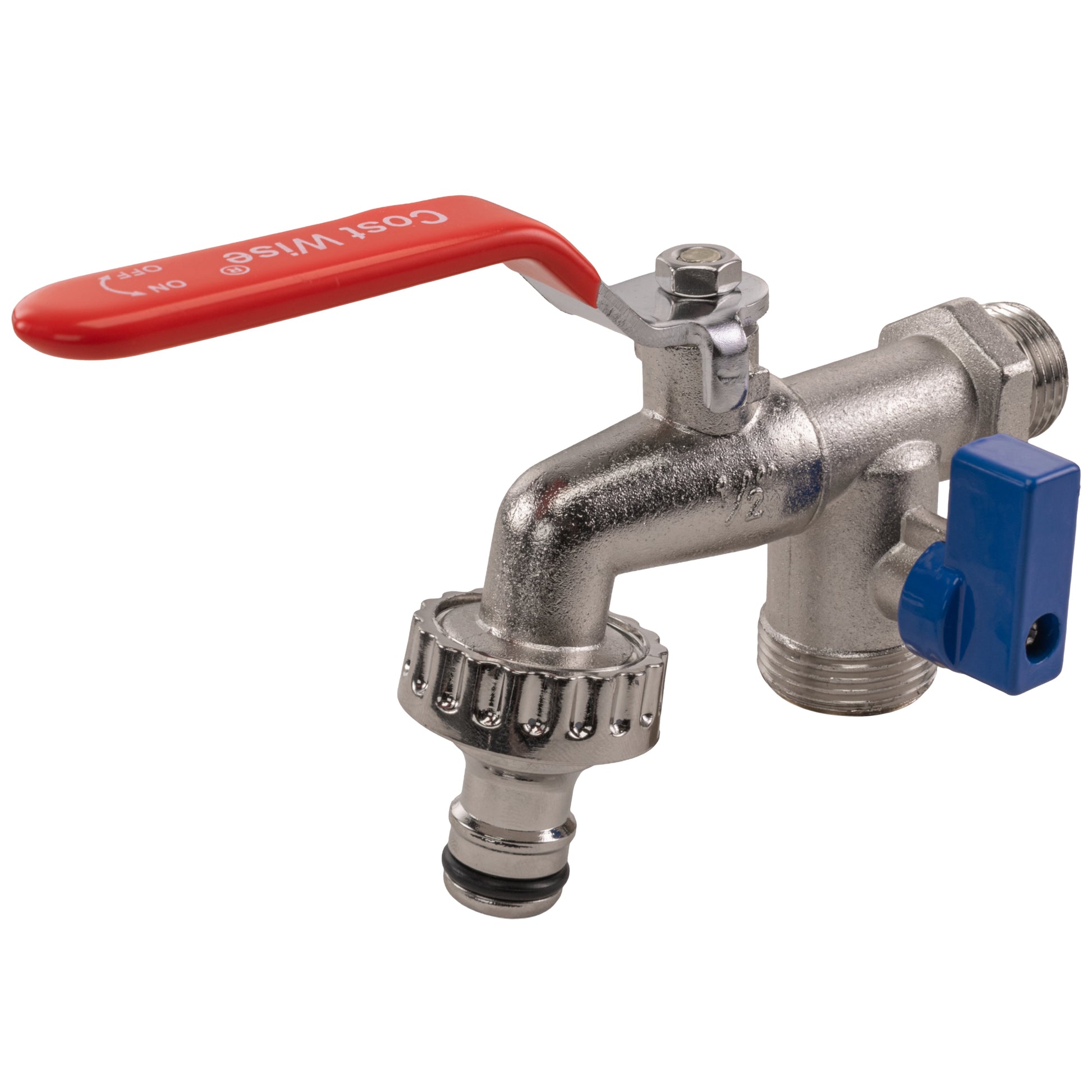

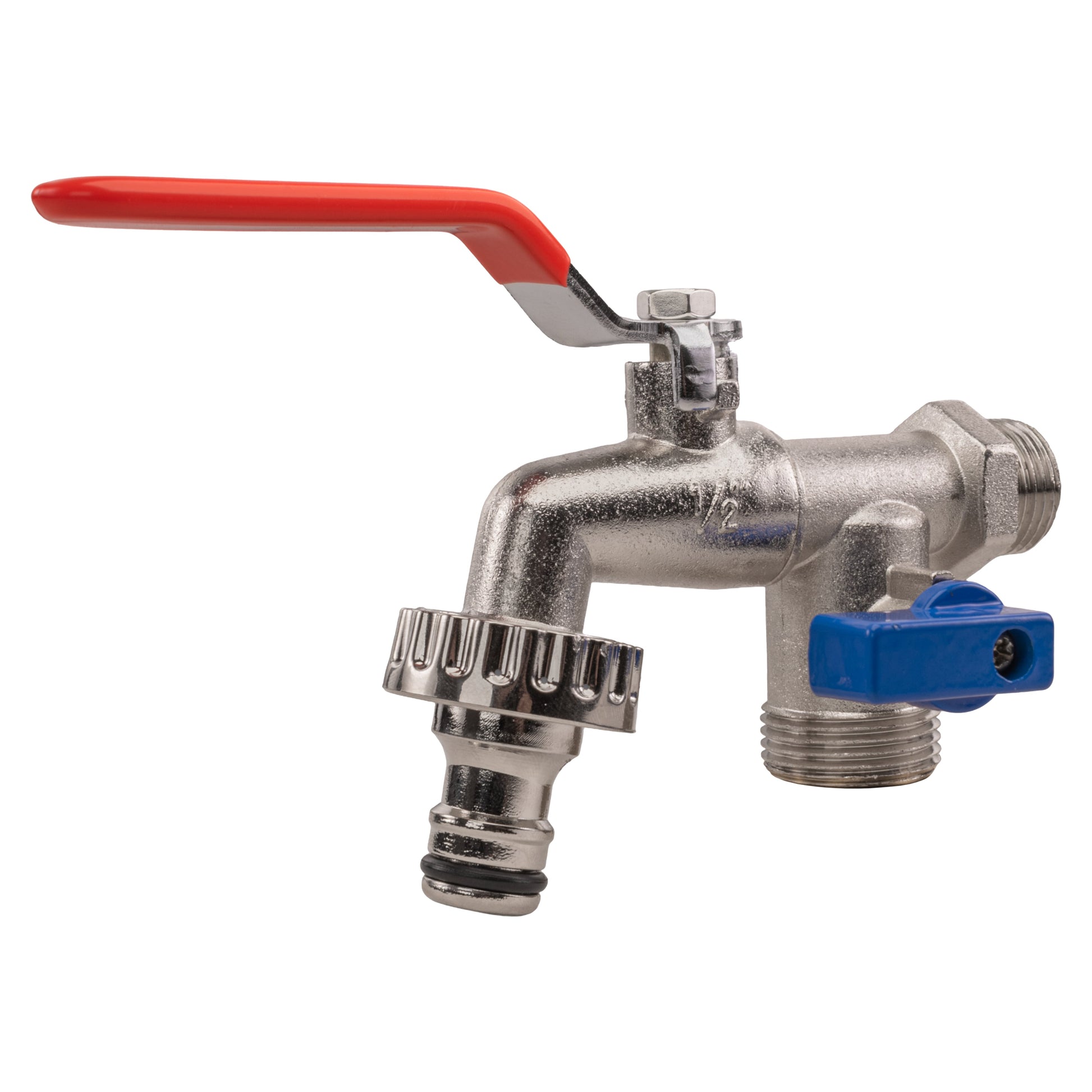

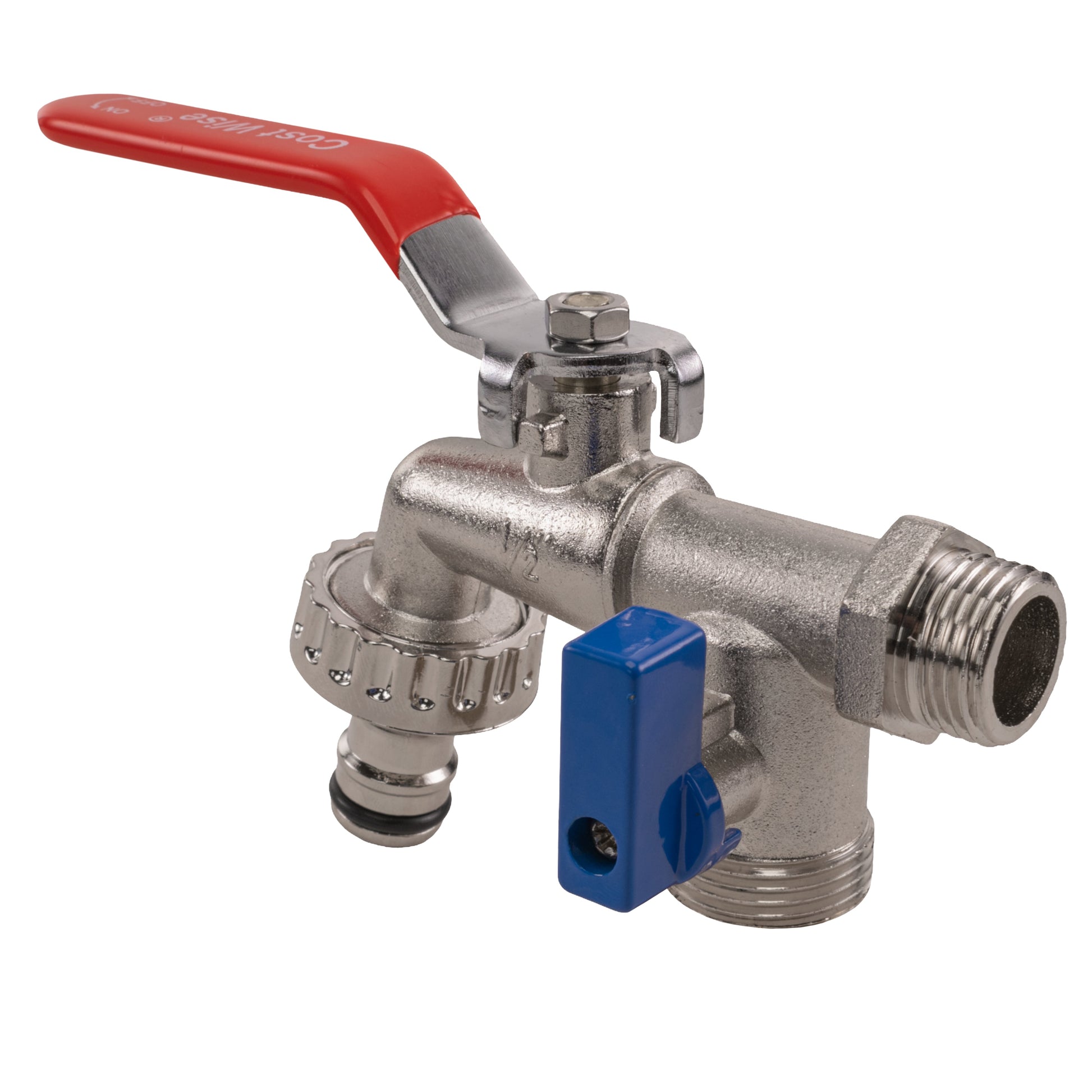

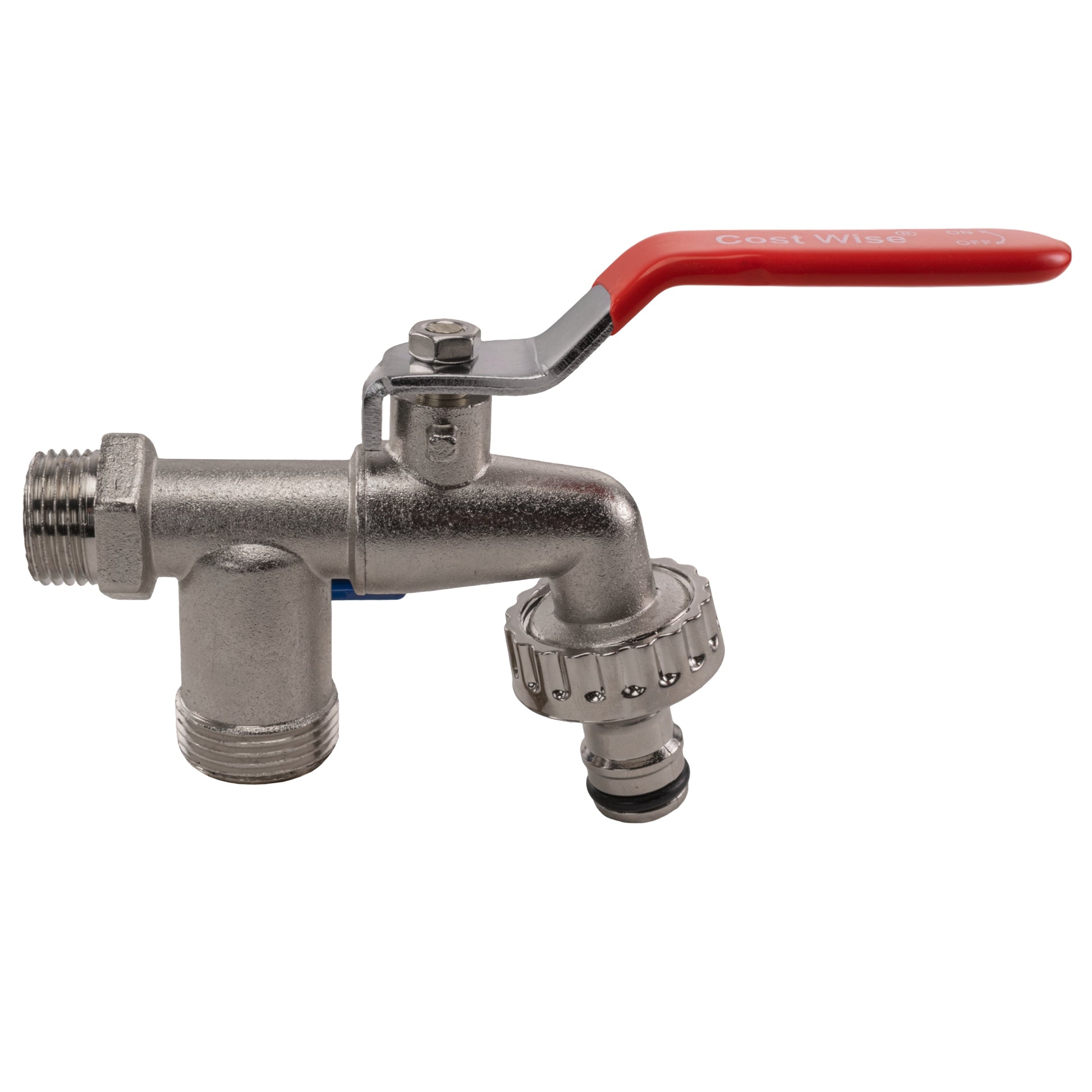

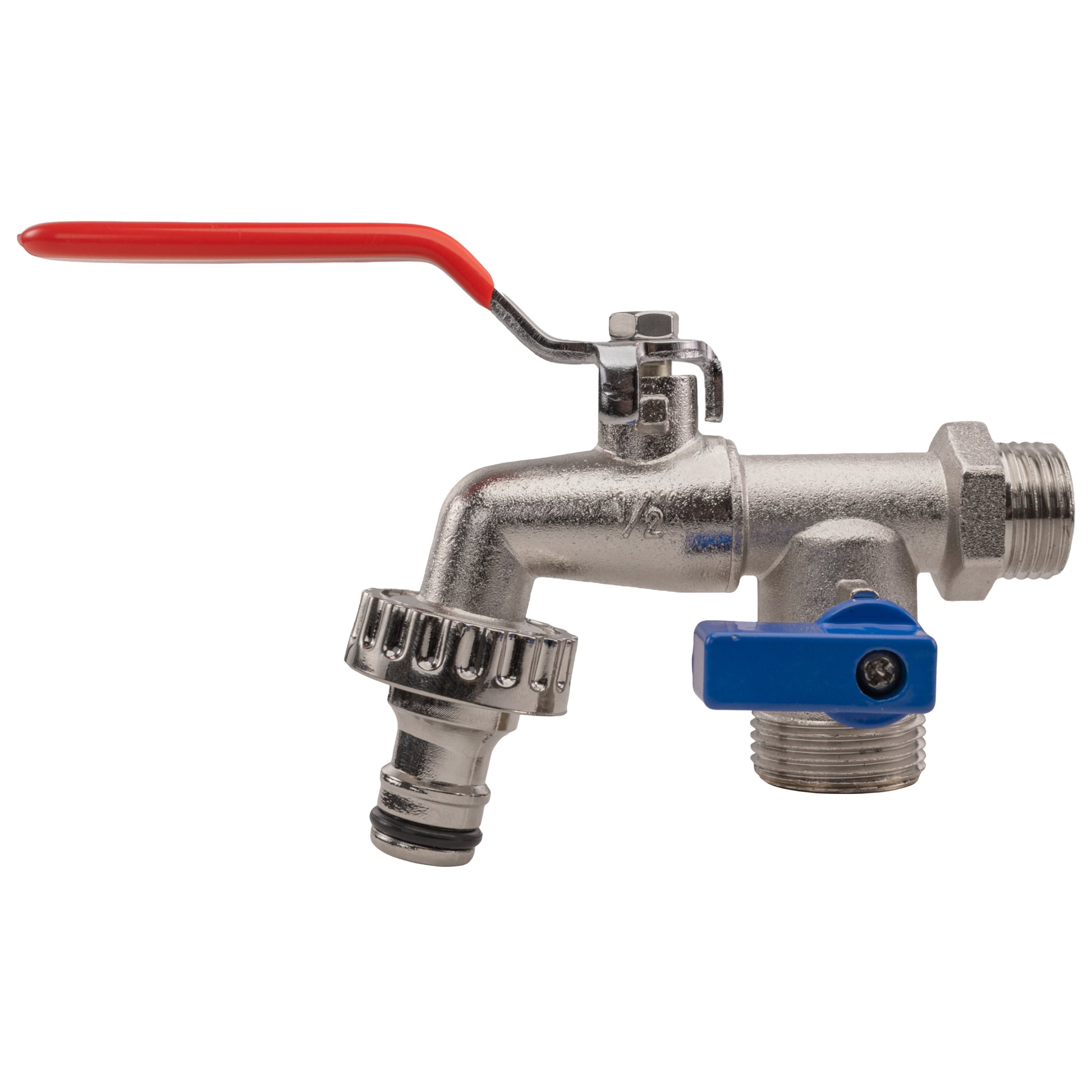

Keep a quick-connect hose outlet and a threaded branch at the same water point. This dual-outlet lever tap has a long red control for the main spout and a separate blue control for the second outlet.
The main spout carries a male garden quick-connect plug. The branch provides a ¾-inch BSP male thread, while a ½-inch BSP male inlet connects the tap to its supply.
One nickel-plated metal tap with main quick connector supplied. Hose, female hose connector, mounting fittings and branch accessories are separate.
Connect a hose at the main spout

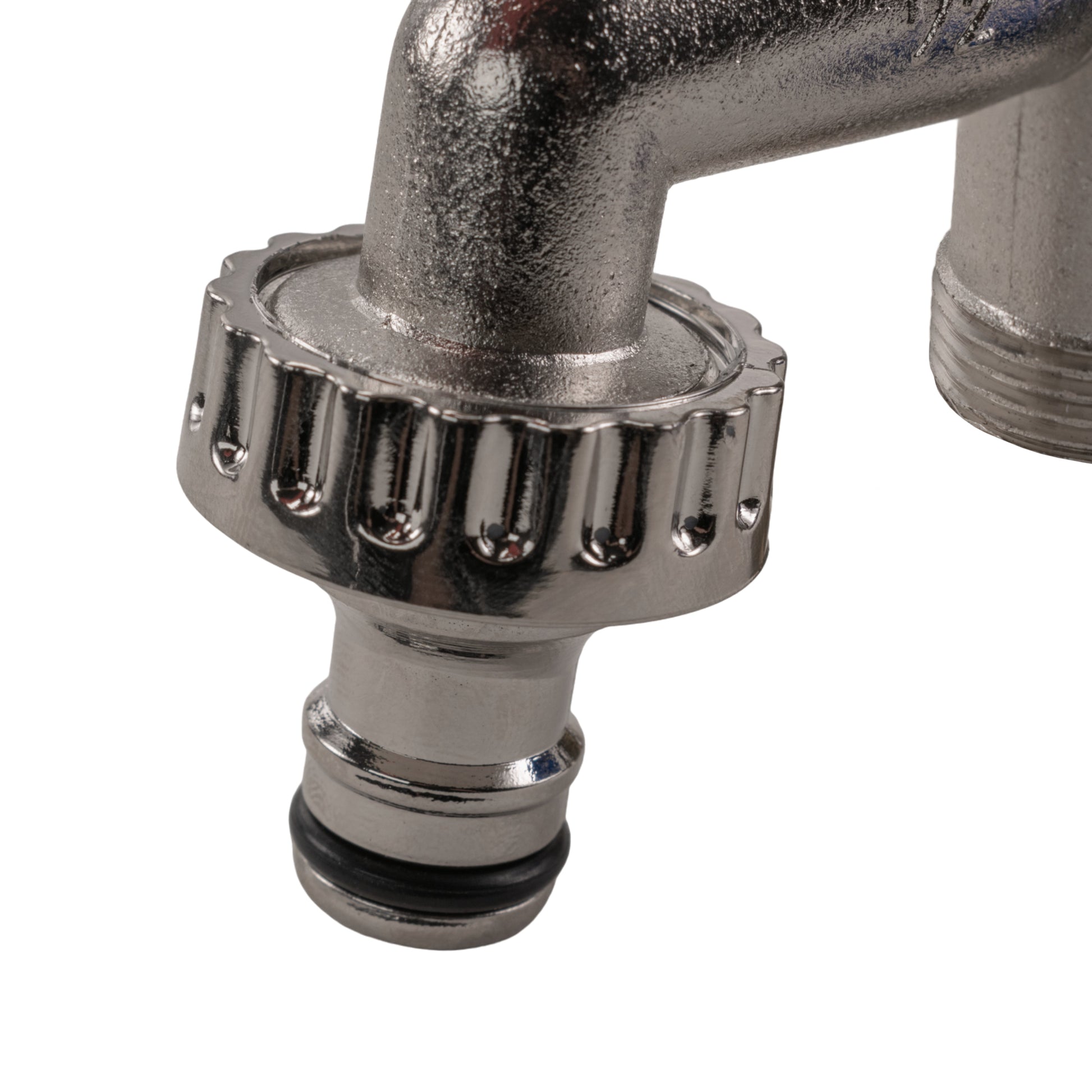

The angled spout ends in a male quick-connect plug. Attach a suitable female garden connector fitted to your hose; bare hose does not push directly onto this outlet.
Choose the female connector for your hose bore. The optional brass connector in Frequently bought together is for ½-inch hose and is sold separately.
Turn off the water and release pressure before disconnecting. Check the connector is properly engaged before restoring water, and allow enough hose slack to avoid pulling on the spout.
Use the threaded branch for a second connection
The second outlet has a ¾-inch BSP male thread and its own blue control. Choose a suitable matching female fitting or adapter for the equipment you want to connect.
Check the sealing arrangement and the space needed around the branch. A bulky fitting may need more clearance than a simple hose adapter; a matching thread alone does not confirm that every accessory is suitable.
Both outlets share the same supply. Independent controls let you open or close them separately, but they do not increase the pressure or guarantee the same flow when both are used together.
Plan the supply, connections and support
Check all three connection points before fitting the tap.
Match the inlet
The rear inlet is ½-inch BSP male and needs a suitable female supply connection. BSP sizes are nominal, not the measured outside diameter of the thread. Choose the sealing and mounting parts for your installation.
Leave room to operate
Allow clearance for the red lever, blue branch control and connected fittings. Support the tap and hose runs so the weight of accessories does not strain the supply joint.
Fit and check
Isolate the supply before fitting. Restore water gradually and check the inlet and each outlet connection. Inspect joints during use and drain exposed fittings before freezing weather.
Questions about the dual-outlet tap
Can I control the two outlets separately?

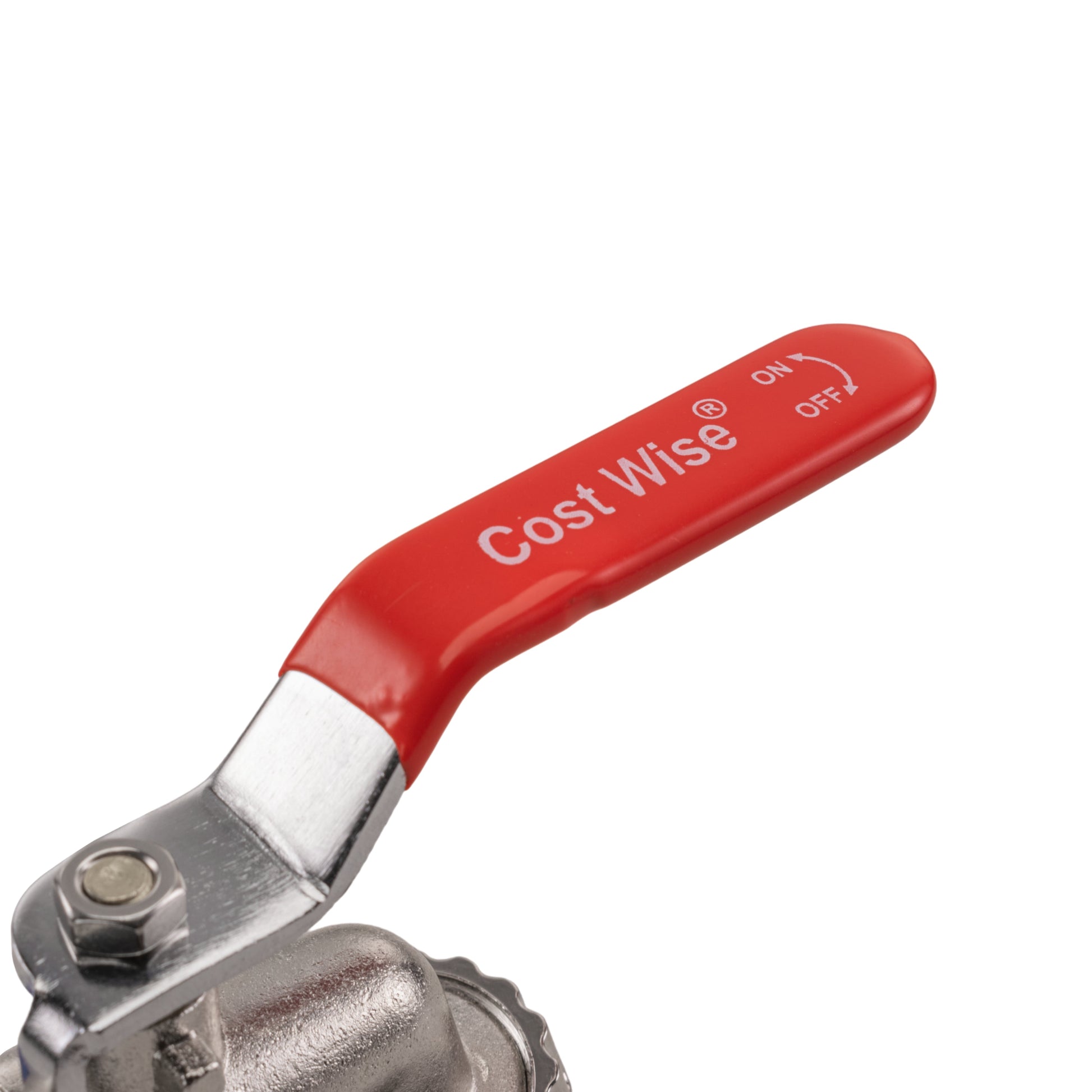

Yes. The red main lever and blue branch control operate the two outlets independently. They share the same incoming water supply.
What are the three connections?

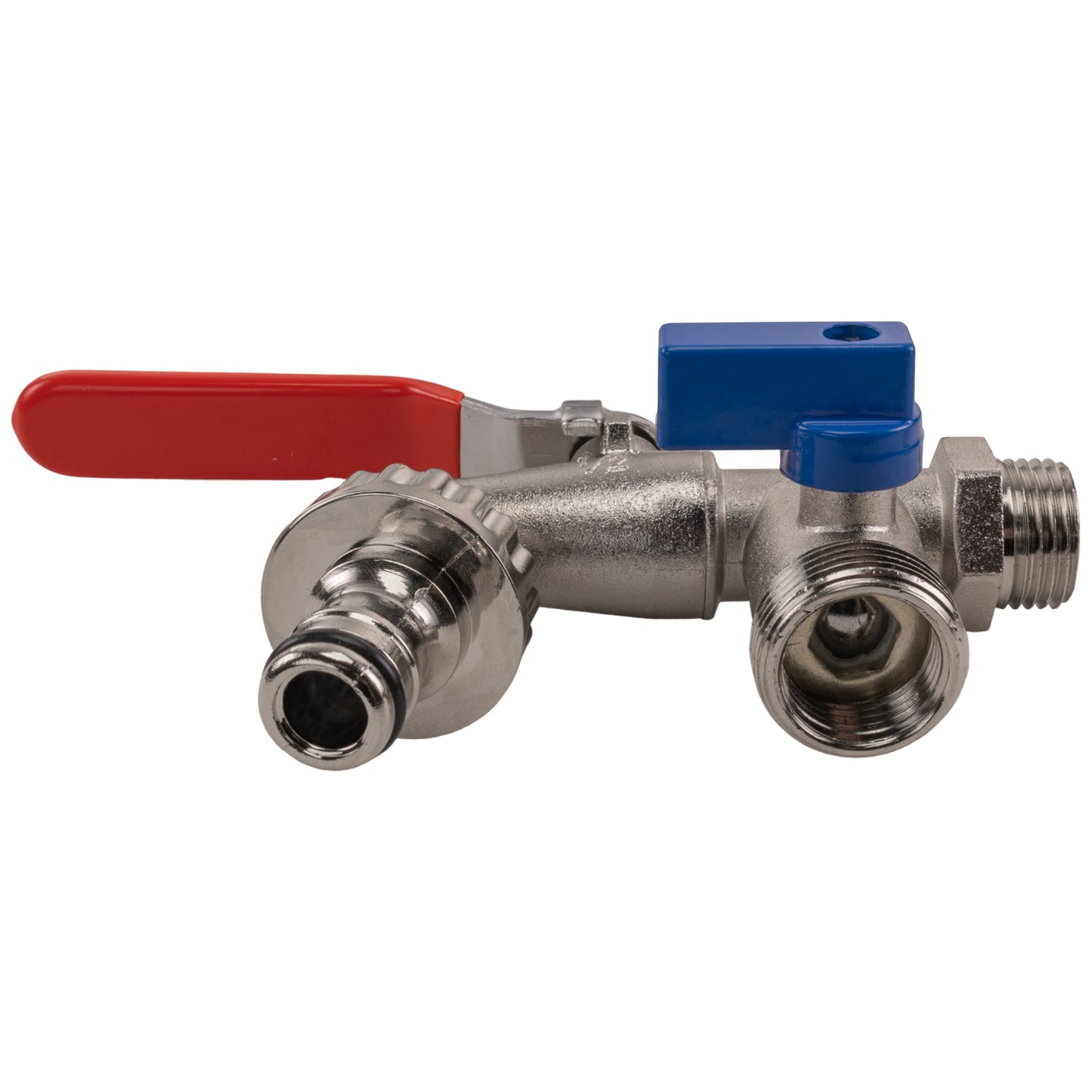

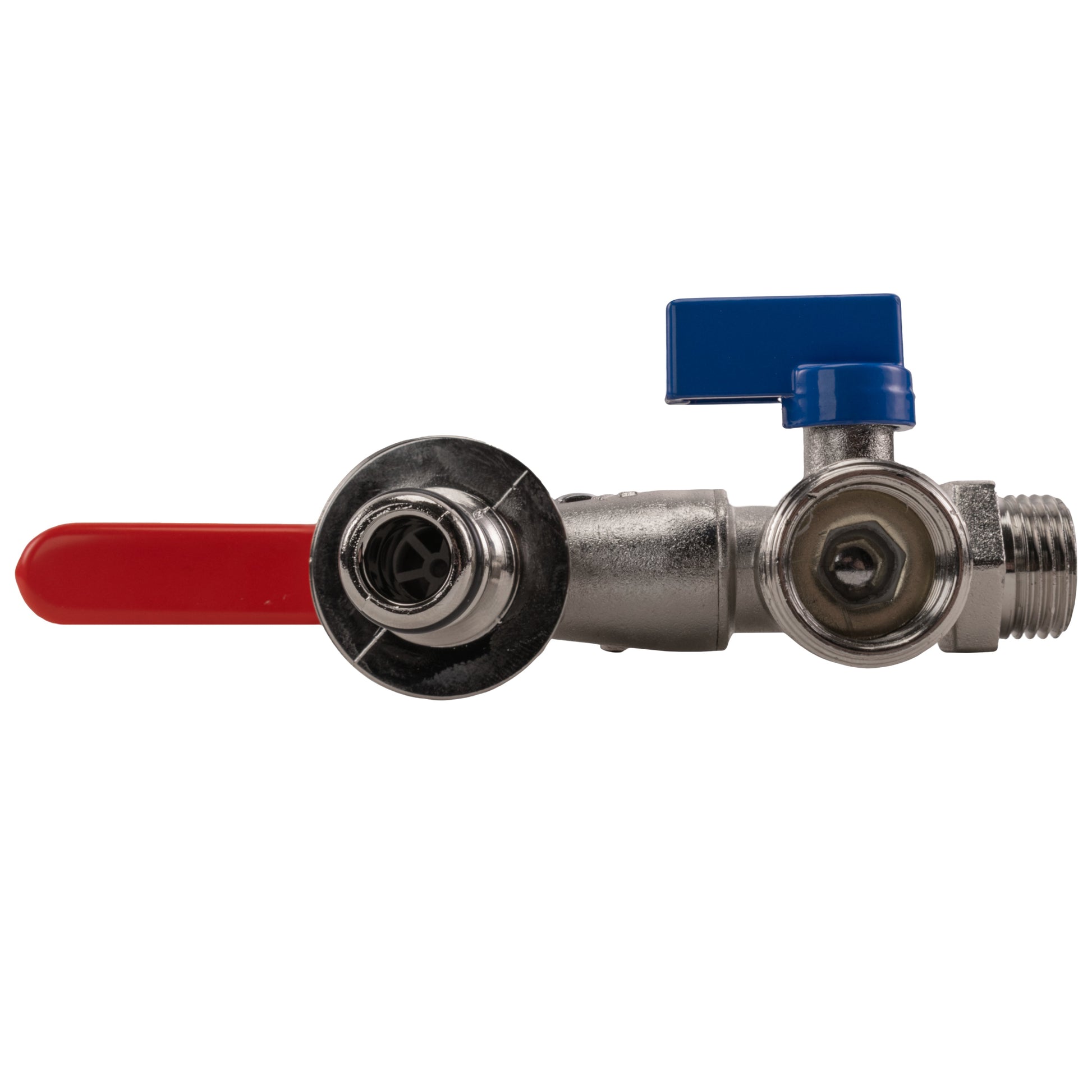

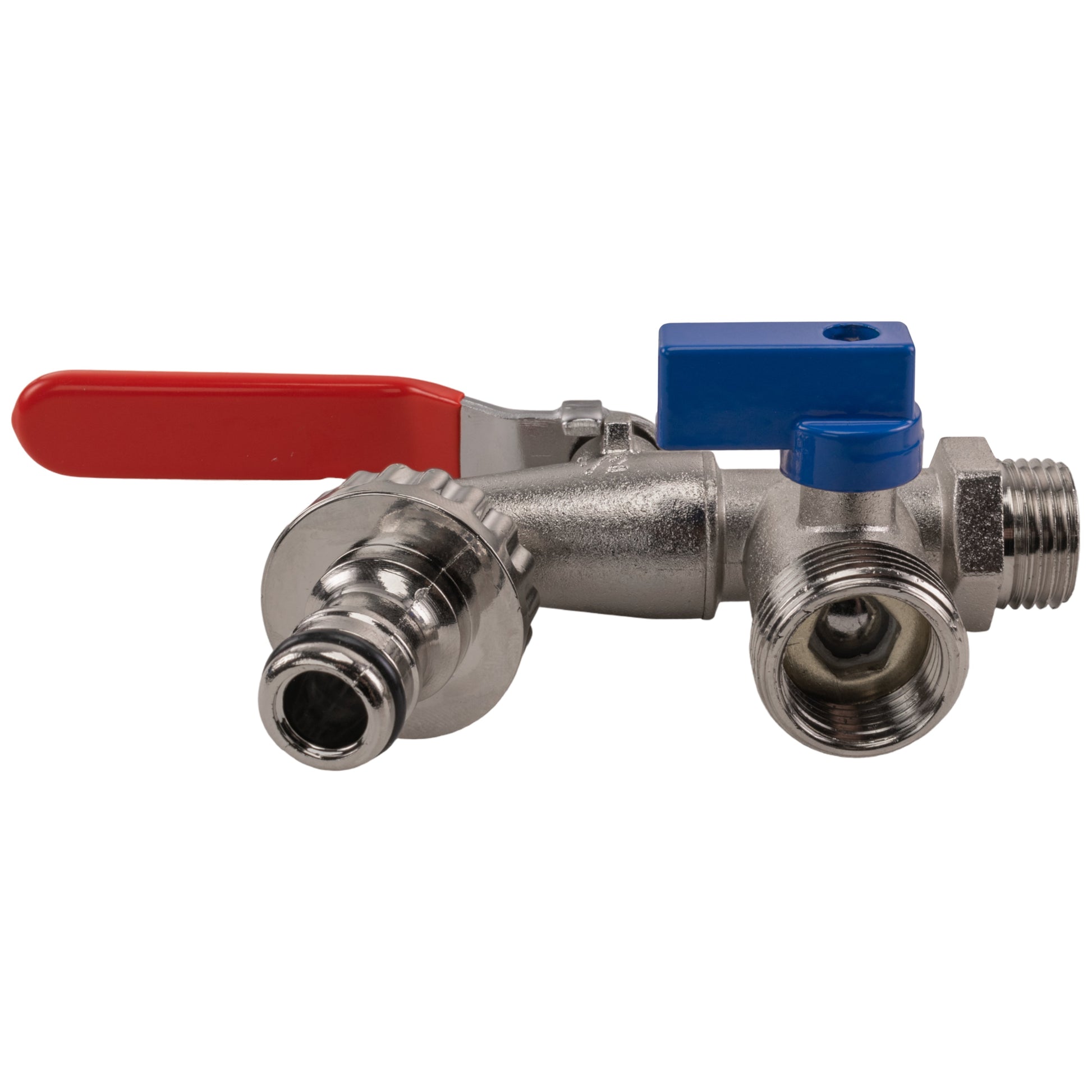

A ½-inch BSP male supply inlet, a male garden quick-connect plug on the main spout, and a ¾-inch BSP male threaded branch.
Are the female hose connector and branch adapter included?
No. The tap includes its main male quick connector. The female hose connector, hose, additional branch adapters and mounting or sealing materials are separate.
Can it run two hoses at once?
Both outlets can be used with suitable connections, but the available water is shared. Check that your supply and connected equipment provide the flow needed; no combined flow or pressure rating is confirmed.
Product information & technical details
| SKU | GT-D-LEVER12Q001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male |
| Colour | Silver |
| Material | Metal |
| Finish | Nickel-plated |
| Main outlet | Male garden quick-connect plug |
|---|---|
| Branch outlet | ¾-inch BSP male thread |
| Controls | Red main lever and independent blue branch control |
| Outlet count | Two |
| Quantity supplied | One dual-outlet tap with main quick connector |
| Hose and mounting accessories | Not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
