Description
Traditional brass styling with a quick-connect outlet

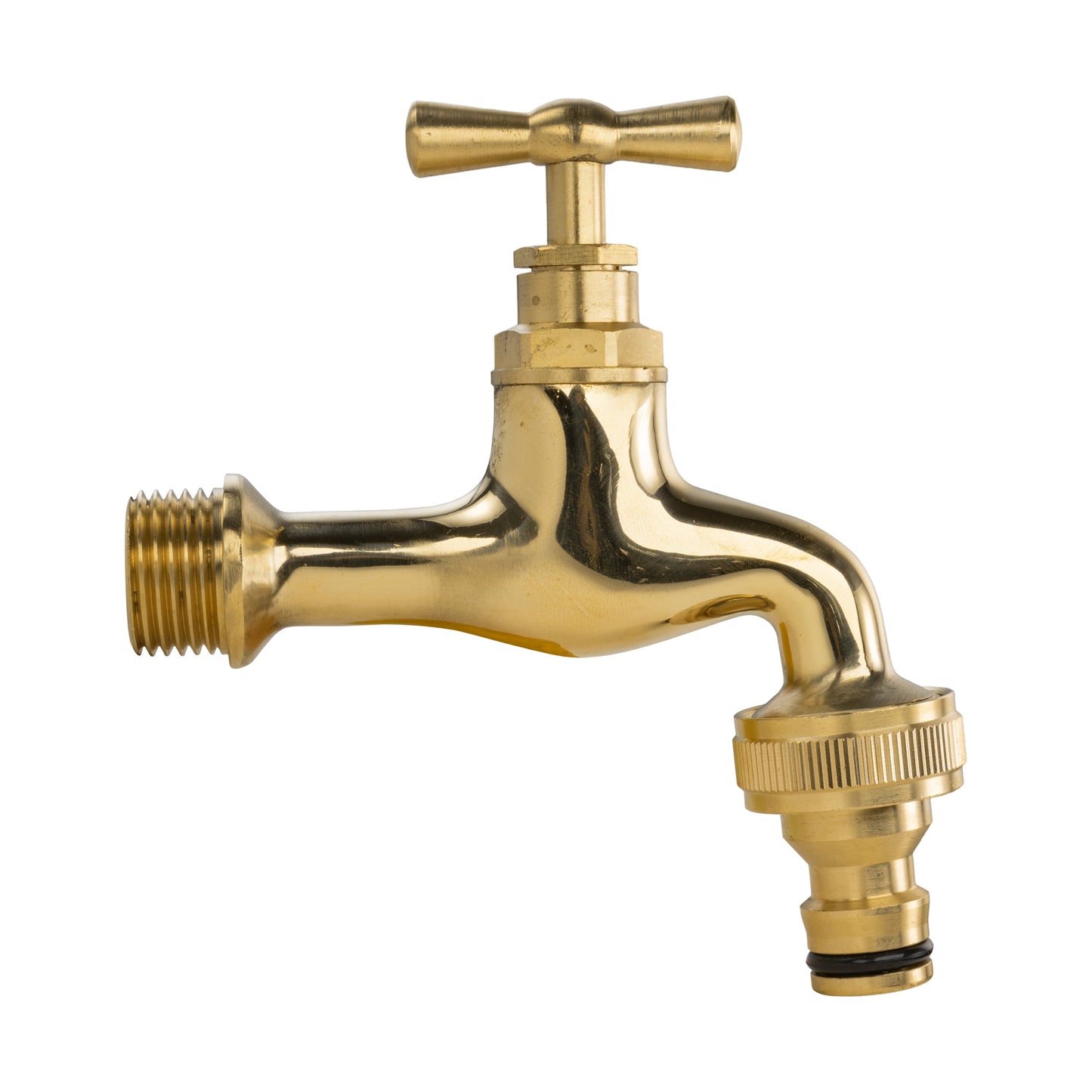

This polished brass bib tap brings a familiar curved spout and T-bar handle to a garden water point, with a male quick-connect plug ready for a suitable female hose connector.
Attach or remove the hose connection at the outlet while leaving the tap connected to its supply. The rear inlet is ½-inch BSP male, so check the matching plumbing fitting as well as the hose connector before ordering.
One tap with male quick-connect outlet supplied. Hose, female connector and installation fittings are sold separately.
A plug for your hose connector

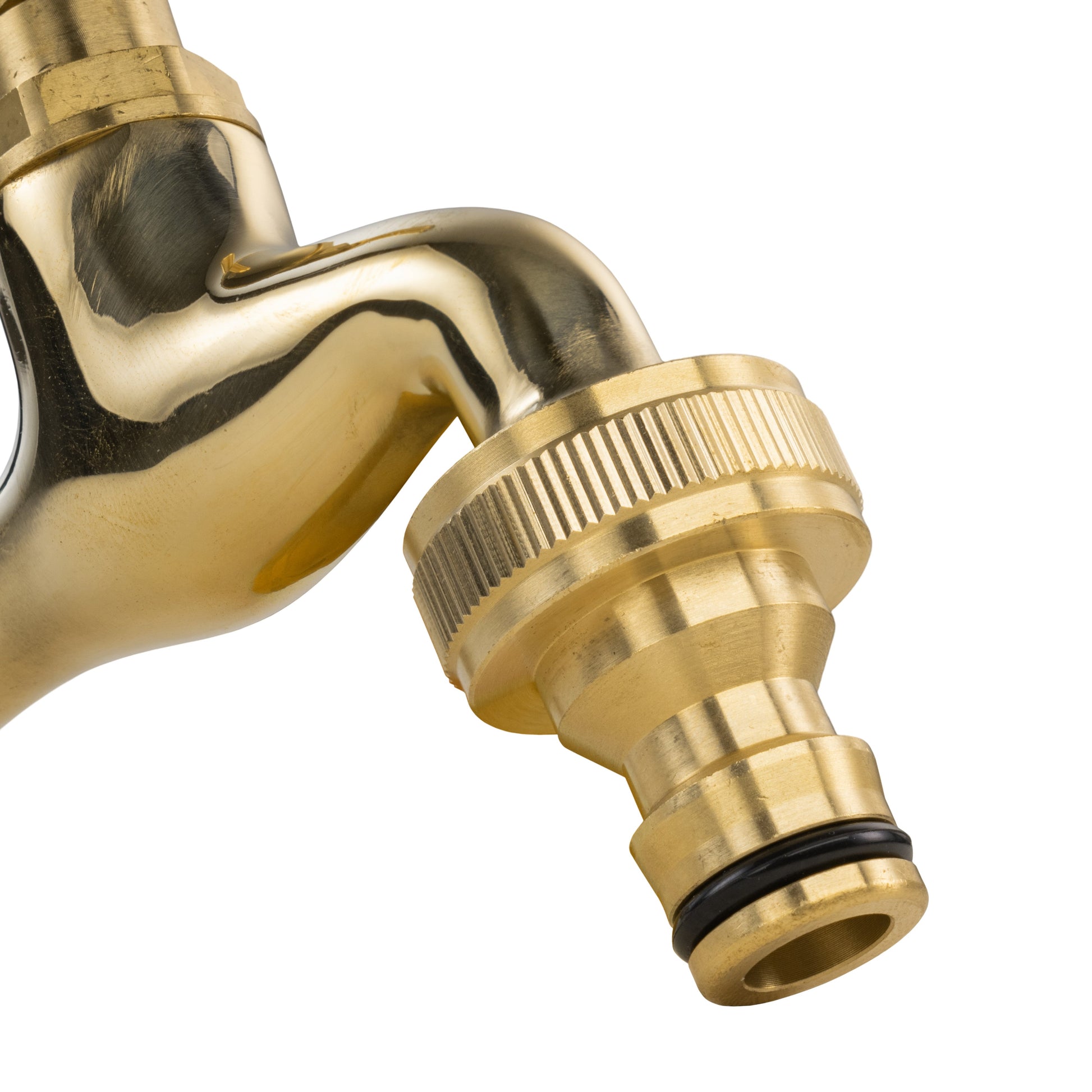

The outlet is the shaped male garden quick-connect plug shown in the close-up. A suitable female connector on the hose mates with that plug; bare hose does not push directly onto it like a hose barb.
Choose the female connector to suit both the plug and your hose bore. The optional brass connector shown in Frequently bought together is for ½-inch hose. A different hose size needs its own suitable connector.
Shut off the water and release pressure before disconnecting. Check that the connector is properly engaged before turning the water back on, and keep the plug and connector clean.
The supply fitting is a separate choice

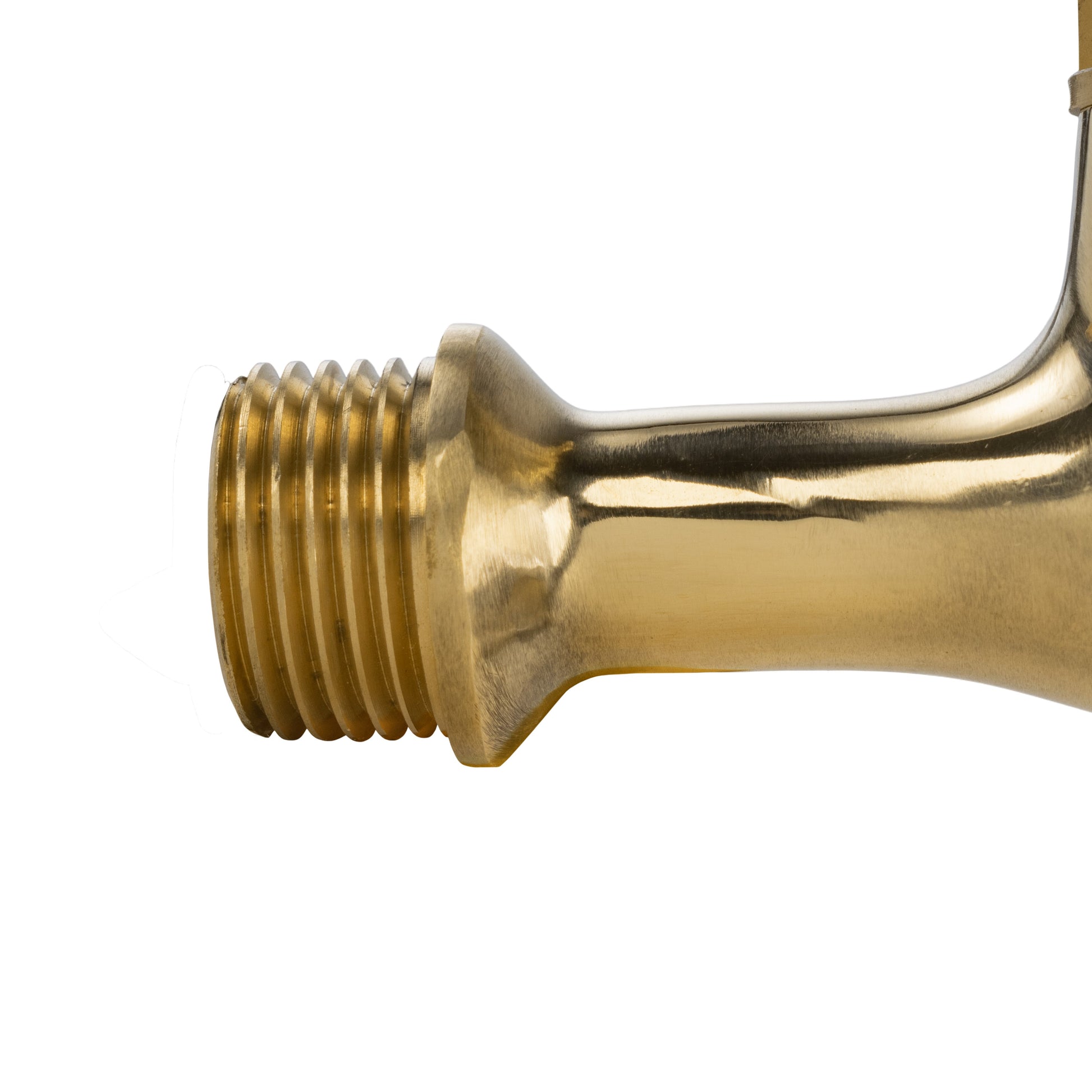

The rear ½-inch BSP male thread needs a suitable matching female connection, the correct sealing arrangement and adequate support. It is not the connection that clips onto the hose.
BSP sizes are nominal, so the named ½-inch thread size is not its measured outside diameter. Check your existing fitting or adapter specification rather than choosing from the hose size alone.
Depending on the installation, a separate wall plate, tank adapter or other mounting fitting may be needed. Leave clearance to turn the T-bar and attach the hose connector beneath the spout.
Set up the tap and hose together
Plan the parts that connect on each side of the tap.
Prepare the supply
Isolate the water before fitting. Check the female inlet thread, sealing method and mounting. Use suitable support rather than relying on the connected hose or pipework to hold the tap.
Connect the hose
Fit a suitable female quick-connect connector to the hose, following its instructions. Attach it to the tap plug, restore water gradually and check both the inlet and outlet joints.
Keep it supported
Leave enough hose slack for normal movement and avoid sideways strain on the outlet. Inspect joints during use and drain exposed fittings before freezing weather.
Questions about the quick-connect brass tap
Is this a barbed hose outlet?
No. This version has a male quick-connect plug. It needs a suitable female garden hose connector; bare hose is not fitted directly over the plug.
Is the female hose connector included?
No. One tap with its male quick-connect outlet is supplied. Choose a separate female connector for your hose bore. The optional brass connector shown above is for ½-inch hose.
Does the ½-inch size describe the hose?
Here it describes the BSP male supply thread at the rear of the tap. The hose bore is determined by the separate female hose connector you choose.
Will this fit directly onto a water butt?
Check the tank outlet, matching female thread, sealing and support requirements. A separate adapter or mounting fitting may be needed; this is not a complete water-butt fitting kit.
Product information & technical details
| SKU | GTBIB-PB-12BSPM-Q001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male |
| Colour | Brass |
| Material | Brass |
| Finish | Polished brass |
|---|---|
| Handle | T-bar turn handle |
| Outlet connection | Male garden quick-connect plug |
| Outlet count | One |
| Quantity supplied | One bib tap with male quick-connect outlet |
| Hose connector and mounting fittings | Not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
