Description

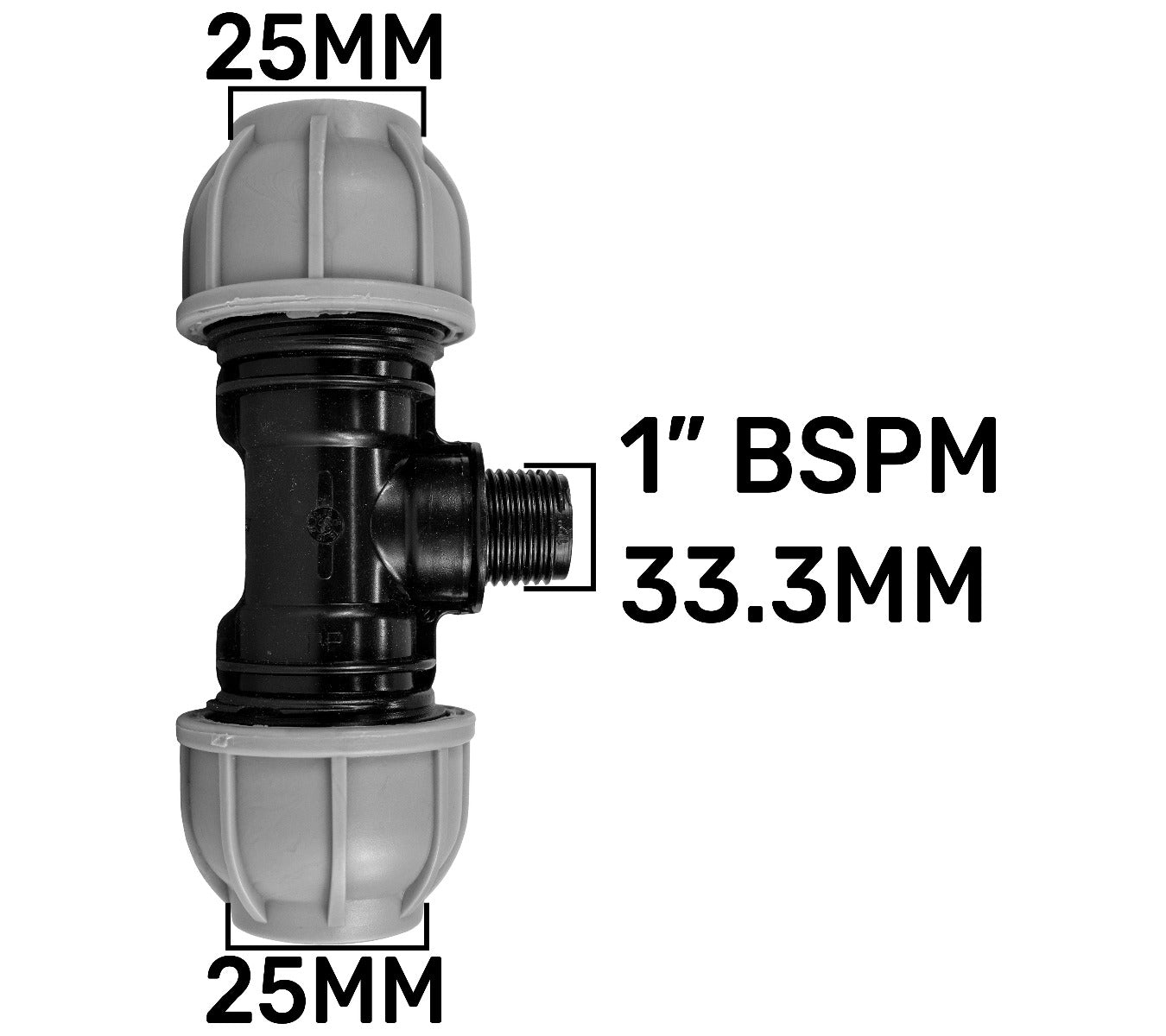

A male branch for 25mm pipe
Join your MDPE run to a compatible female-threaded component with this 25mm tee and 1-inch BSP male branch. The two opposite grey compression nuts connect the pipe; the external black screw thread provides the branch at 90°.
In the installation example, a separate female hose-tail adapter connects the branch to flexible hose. The blue pipe continues through the straight run, with the adjoining pipework and hose supported independently.
25mm is pipe OD; BSP is a nominal thread size. Not to scale.
Match the pipe and the mating thread
The straight run takes 25mm OD MDPE pipe. Measure across the outside of each plain pipe end. The pipe's internal bore and the width of the compression nut do not identify the socket size.
The branch has an external 1-inch BSP thread. It needs a compatible female-threaded component with the appropriate sealing arrangement. Nominal BSP size is a thread designation, rather than a direct measurement of the pipe or hose bore.
If your component already has a male thread, compare the 25mm tee with a 1-inch female branch before choosing.
Leave room to make the joint
Plan the branch position and support before tightening the connections.
Prepare the MDPE ends
Isolate and depressurise the line. Use suitable 25mm outside-diameter pipe with clean, square ends. Check the pipe specification for any separate support liners.
Connect the female part
Fit a compatible 1-inch BSP female component to the male branch. Follow its sealing instructions and avoid overtightening or using the attached part to twist the plastic tee.
Support and inspect
Follow the pipe and fitting instructions for insertion depth and tightening. Support the adjoining pipes and branch component independently. Check the PN10 designation against the complete assembly and service conditions, then restore the supply gradually and inspect each joint.
Check the connection before ordering
Can the grey sockets take ordinary hose?
The grey compression sockets take plain MDPE pipe with a 25mm outside diameter. Flexible hose is a different connection and is often sold by its internal diameter; do not choose the tee from a hose size alone.
Can I attach hose directly to the black thread?
No. The branch is a BSP screw thread, not a hose tail. Use a separate female BSP adapter with the correct hose end. One tee is supplied; the adapter, hose, pipes, clips and any separate pipe liners are not included.
Product information & technical details
| SKU | MDPETEE25-1BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Male |
| MDPE size | 25mm |
| Colour | Black, Grey |
|---|---|
| Material | Plastic |
| Port layout | Straight run: two 25mm OD MDPE compression sockets. Branch at 90°: 1-inch BSP male thread. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One tee. Pipe, adapters, hose, support clips and any separate pipe liners are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
