Description
A screw-in branch for your 20mm run

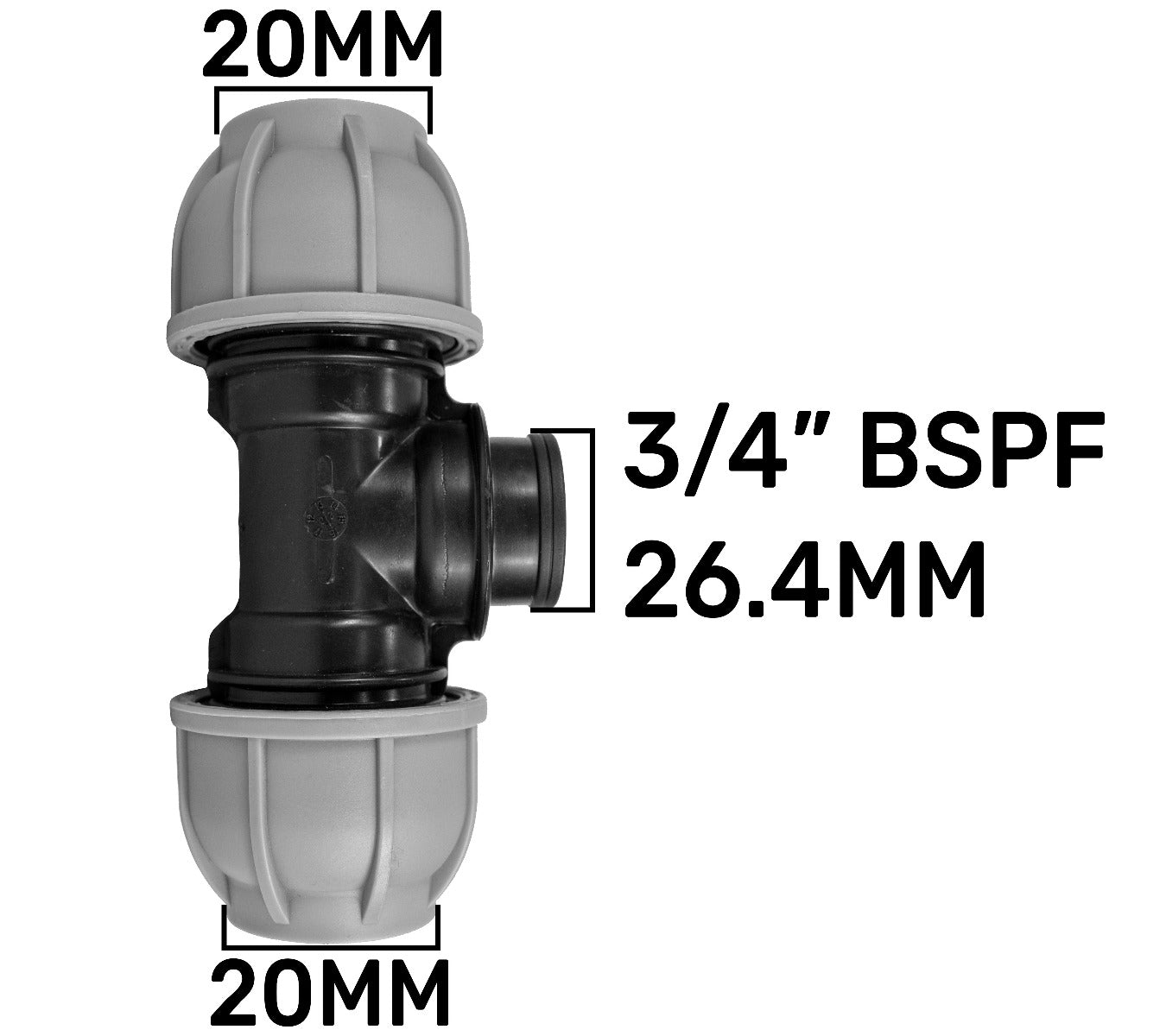

Bring a ¾-inch BSP male component into your MDPE pipework through this tee's female threaded branch. The two opposite compression sockets take 20mm outside-diameter pipe, with the branch leaving the run at 90°.
It is a practical junction where your pipe and threaded component need to meet. The installation example shows how a separate male hose-tail adapter can connect flexible hose to the branch.
20mm is pipe OD; BSP is a nominal thread size. Not to scale.
Check both sides of the connection
20mm describes the pipe outside diameter. Match both plain MDPE pipe ends to the compression sockets on the straight run.
¾-inch BSP describes the branch thread. The thread is inside the black socket and needs a matching male component. Check its thread specification and sealing arrangement; a nominal BSP size is not a direct inch-to-millimetre conversion.
For a branch that takes another MDPE pipe rather than a screw-in fitting, see our 20mm equal compression tee.
Set out the branch before assembly
Leave room for the threaded component and access to both compression nuts.
Prepare the run
Isolate and depressurise the supply. Prepare clean, square ends on suitable 20mm OD MDPE pipe and check your pipe specification for any separate support liners.
Match the threaded part
Use a compatible ¾-inch BSP male component. Follow its instructions for the seal or sealing material required. Avoid overtightening into the plastic female socket or putting sideways strain on it.
Support and check
Follow the pipe and fitting instructions for insertion depth and tightening. Support the adjoining pipework and branch component. Check the PN10 designation against the complete assembly and service conditions, then restore the supply gradually and inspect each joint.
Useful checks before ordering
Does ¾-inch BSP mean it takes 19mm pipe?
No. BSP is a nominal screw-thread size. This tee takes 20mm OD MDPE pipe at its two compression sockets, while the branch takes a compatible ¾-inch BSP male threaded component.
Is the hose connection shown included?
No. One tee is supplied. The brass male hose-tail adapter, hose, blue pipe and clips show a possible installation and are not included. Choose any separate adapter to match both the branch thread and your hose.
Product information & technical details
| SKU | MDPETEE20-34BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Female |
| MDPE size | 20mm |
| Colour | Black, Grey |
|---|---|
| Material | Plastic |
| Port layout | Straight run: two 20mm OD MDPE compression sockets. Branch at 90°: ¾-inch BSP female thread. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One tee. Pipe, adapters, hose, clips and any separate pipe liners are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
