Description
A branch for your 20mm pipework
Extend a garden supply line in another direction with this 20mm equal MDPE tee. Two compression sockets form the straight run, while the third brings a branch out at 90°.
All three ports take the same 20mm outside-diameter pipe, so there is no change in connection size at the junction. The fitting joins the pipes; it does not switch the supply on or off.

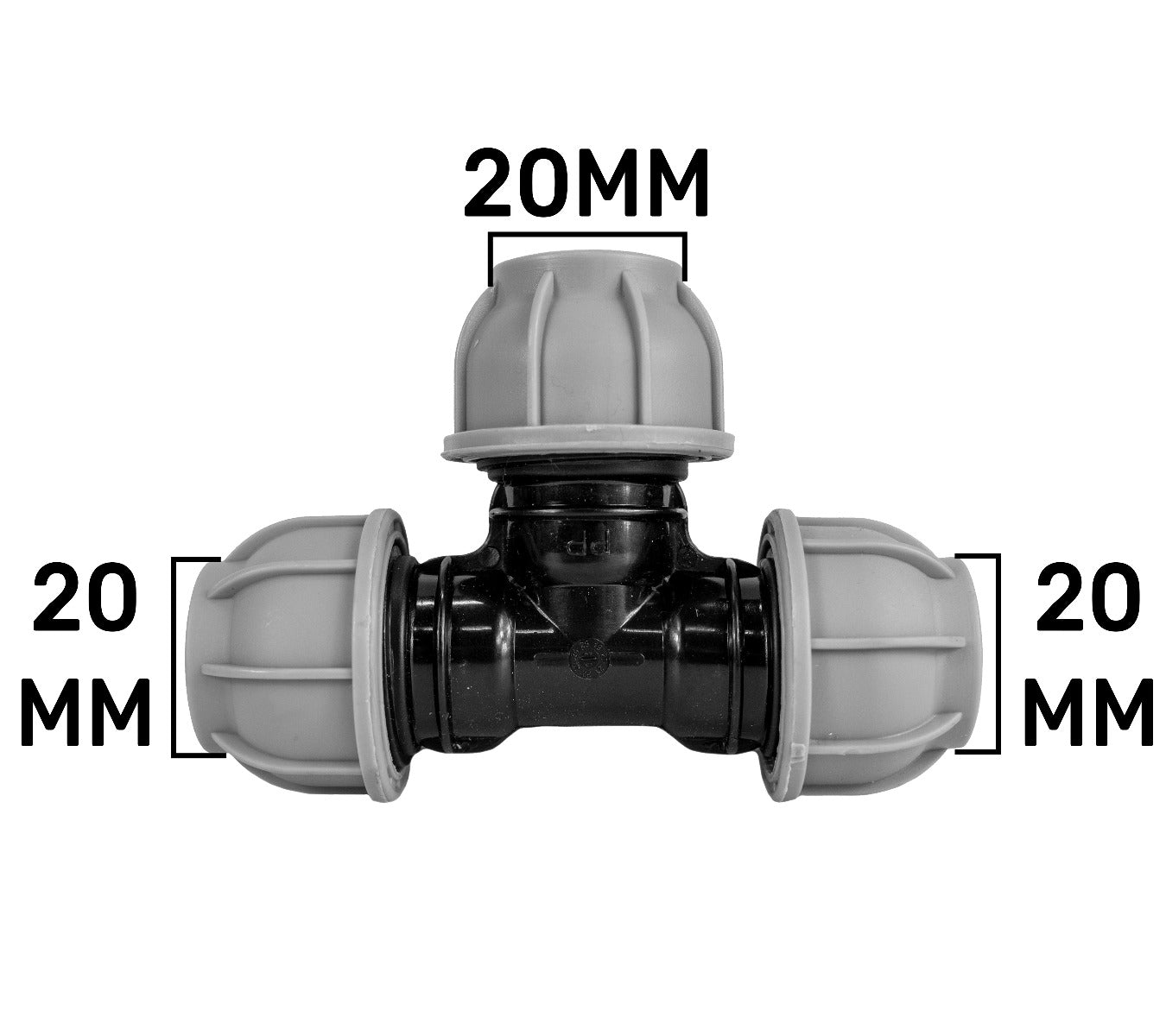

Pipe outside diameters. Schematic, not to scale.
Three sockets. One pipe size.
Equal means 20mm at every connection. Measure across the outside of your plain MDPE pipe before ordering. The 20mm size refers to the pipe, rather than its internal bore or the width of the grey nut.
Use this tee where a matching branch needs to leave a 20mm run. It has compression connections throughout, rather than a BSP screw thread or garden-hose quick connector.
For a different pipe size or a threaded branch, compare our MDPE tee fittings before choosing.
Make room for a sound connection
Plan the branch and support the pipework before assembly.
Check and prepare
Isolate and depressurise the line. Check that all three pipe ends are suitable 20mm OD MDPE, then prepare clean, square ends. Follow your pipe specification for any separate support liners.
Align the junction
Position the tee without forcing the pipes sideways. Leave access around each compression nut and follow the pipe and fitting instructions for insertion depth and tightening.
Support and test
Support the adjoining pipes independently. Check the PN10 designation against the complete assembly and service conditions, restore the supply gradually and inspect all three joints.
Before you order
Will it take 20mm garden hose?
The sockets are for plain MDPE pipe with a 20mm outside diameter. A hose sold by its internal diameter is a different connection; do not choose this tee from the hose size alone.
Is pipe included with the tee?
No. You receive one equal tee fitting. The pipes and clips shown in the installation illustration, and any separate pipe liners required for your pipe, are not included.
Product information & technical details
| SKU | MDPETEE20001 |
|---|---|
| Product type | |
| MDPE size | 20mm |
| Colour | Black, Grey |
| Material | Plastic |
|---|---|
| Port layout | Three 20mm OD MDPE compression sockets. Straight run with a branch at 90°. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One equal tee. Pipe, support clips and any separate pipe liners are not included. |
