Description
Continue the run. Connect a branch.

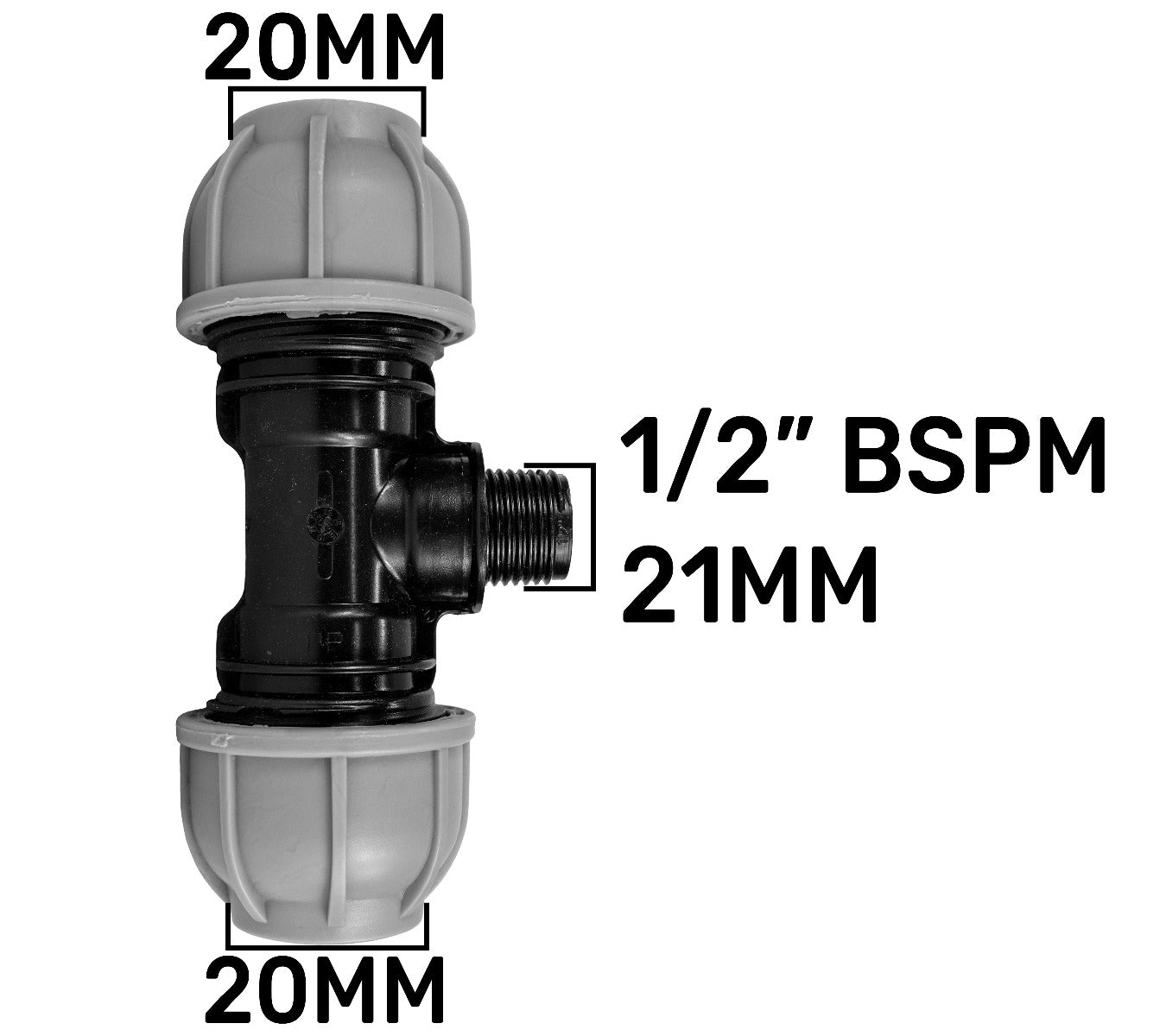

Create a threaded take-off along your 20mm MDPE pipework. Two compression sockets join the straight run, with a ½-inch BSP male thread projecting from the branch at 90°.
Connect a suitable female-threaded component to that branch. In the illustration, a separate female hose-tail adapter provides the transition from the tee to flexible hose.
20mm is pipe OD; BSP is a nominal thread size. Not to scale.
Choose the fitting for each side
The straight run takes 20mm OD MDPE pipe. Measure the outside of the plain pipe, rather than the bore or the compression nut, to check its size.
The branch needs a ½-inch BSP female fitting. The tee’s external screw thread is a different connection from the two pipe sockets. BSP is a nominal thread size; check the mating thread and sealing arrangement before assembly.
Need the opposite thread gender? Our 20mm tee with a ½-inch BSP female branch accepts a male component instead.
Build the junction without straining it
Align the pipes and branch component before making the connections.
Prepare the pipe ends
Isolate and depressurise the supply. Check for suitable 20mm OD MDPE pipe and prepare clean, square ends. Follow your pipe specification for any separate support liners.
Connect the female fitting
Use a compatible ½-inch BSP female component on the branch. Follow its instructions for the seal or sealing material required, and avoid overtightening or using the attached part to lever the plastic tee.
Support the assembly
Follow the pipe and fitting instructions for insertion depth and tightening. Support adjoining pipework and the branch component. Check the PN10 designation against the complete assembly and service conditions, then restore the supply gradually and inspect the joints.
Choose with confidence
Does the branch accept a male or female connector?
A matching ½-inch BSP female connector. The tee has an external male thread on the branch. Two male-threaded parts will not screw directly together.
Can this tee turn the branch supply off?
No. It is a three-way junction with no shut-off mechanism. If you need to isolate the branch, use a suitable separate valve and confirm all of its connections and operating requirements.
Product information & technical details
| SKU | MDPETEE20-12BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male |
| MDPE size | 20mm |
| Colour | Black, Grey |
|---|---|
| Material | Plastic |
| Port layout | Straight run: two 20mm OD MDPE compression sockets. Branch at 90°: ½-inch BSP male thread. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One tee. Pipe, adapters, hose, clips and any separate pipe liners are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
