Description
Add a threaded branch to a 20mm run
Keep your 20mm MDPE pipework running through the two compression sockets and take a connection off at 90° through the ½-inch BSP female branch.
The threaded branch lets you connect a suitable male BSP component without changing the pipe size along the straight run. The illustration shows one possible hose connection using a separate adapter.
20mm is pipe OD; BSP is a nominal thread size. Not to scale.
Pipe size and thread size are different

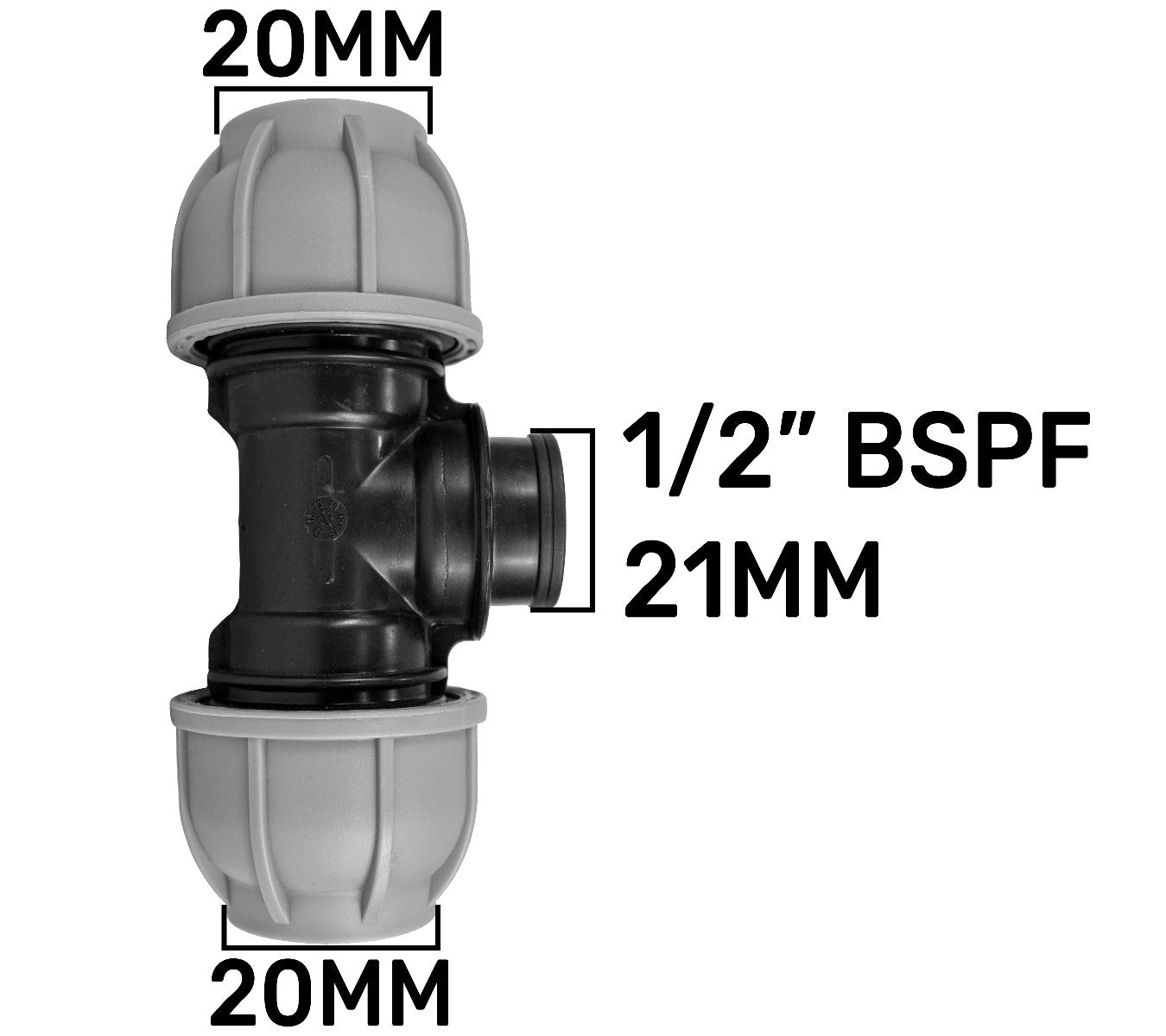

The two grey compression nuts accept plain MDPE pipe with a 20mm outside diameter. The black branch has an internal ½-inch BSP thread for a matching male fitting.
BSP is a nominal thread designation, not a direct conversion to millimetres. Check the mating component's thread type and sealing arrangement as well as its size.
This branch is not a third 20mm compression socket. If you need pipe connections on all three sides, choose an equal 20mm MDPE tee instead.
Plan the branch connection
Leave access for assembly and support each adjoining component.
Prepare the pipe run
Isolate and depressurise the supply. Prepare clean, square ends on suitable 20mm OD MDPE pipe. Follow your pipe specification for any separate support liners.
Match the male fitting
Choose a compatible ½-inch BSP male component for the branch. Follow its instructions for the appropriate seal or sealing material, and avoid overtightening into the plastic female socket.
Align and inspect
Follow the pipe and fitting instructions for insertion depth and tightening. Support the pipework and branch component. Check the PN10 designation against the complete assembly and service conditions before restoring the supply and inspecting the joints.
Check your connection
Can I push garden hose straight into the branch?
No. The branch is a female screw thread. A suitable separate ½-inch BSP male adapter is needed to connect hose or another type of fitting; choose its other end to match your hose or component.
Does the tee include the brass adapter in the illustration?
No. One MDPE tee is supplied. The pipe, brass hose-tail adapter, hose and clips illustrate an installation and are sold separately.
Product information & technical details
| SKU | MDPETEE20-12BSPF001 |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Female |
| MDPE size | 20mm |
| Colour | Black, Grey |
|---|---|
| Material | Plastic |
| Port layout | Straight run: two 20mm OD MDPE compression sockets. Branch at 90°: ½-inch BSP female thread. |
| Pressure designation | PN10. Confirm suitability for the complete assembly and service conditions. |
| Pack contents | One tee. Pipe, adapters, hose, clips and any separate pipe liners are not included. |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
