Description
Fit your chosen tap

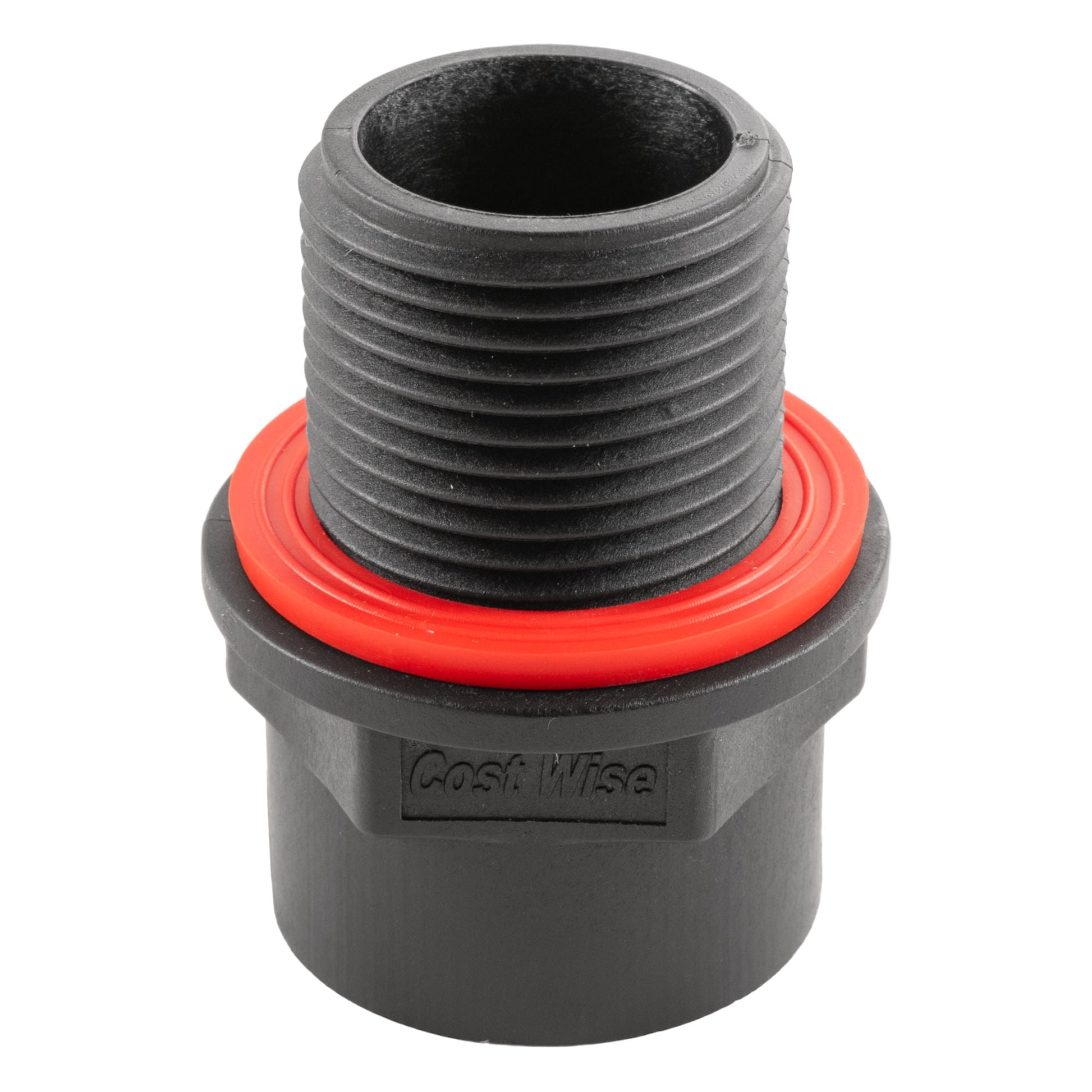

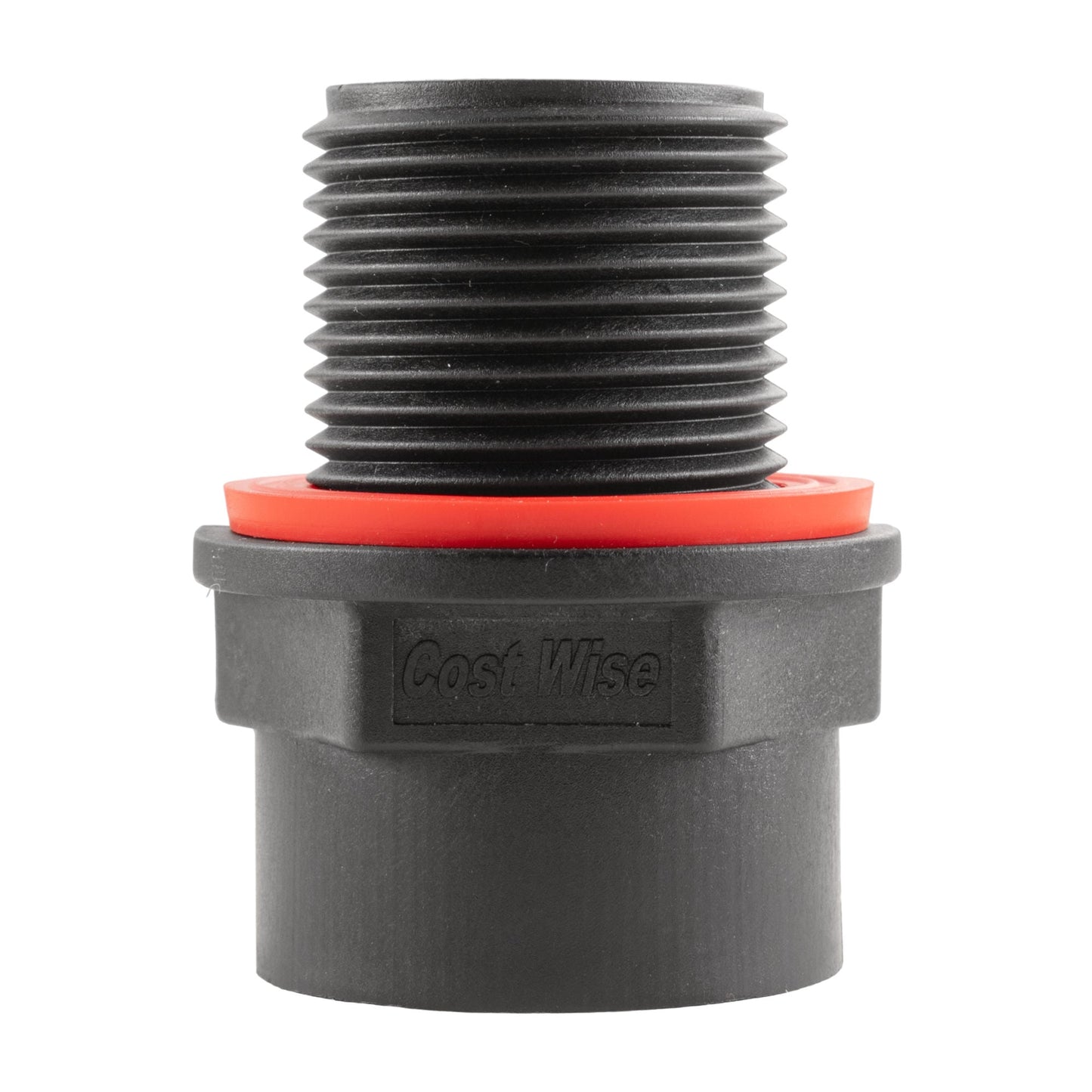

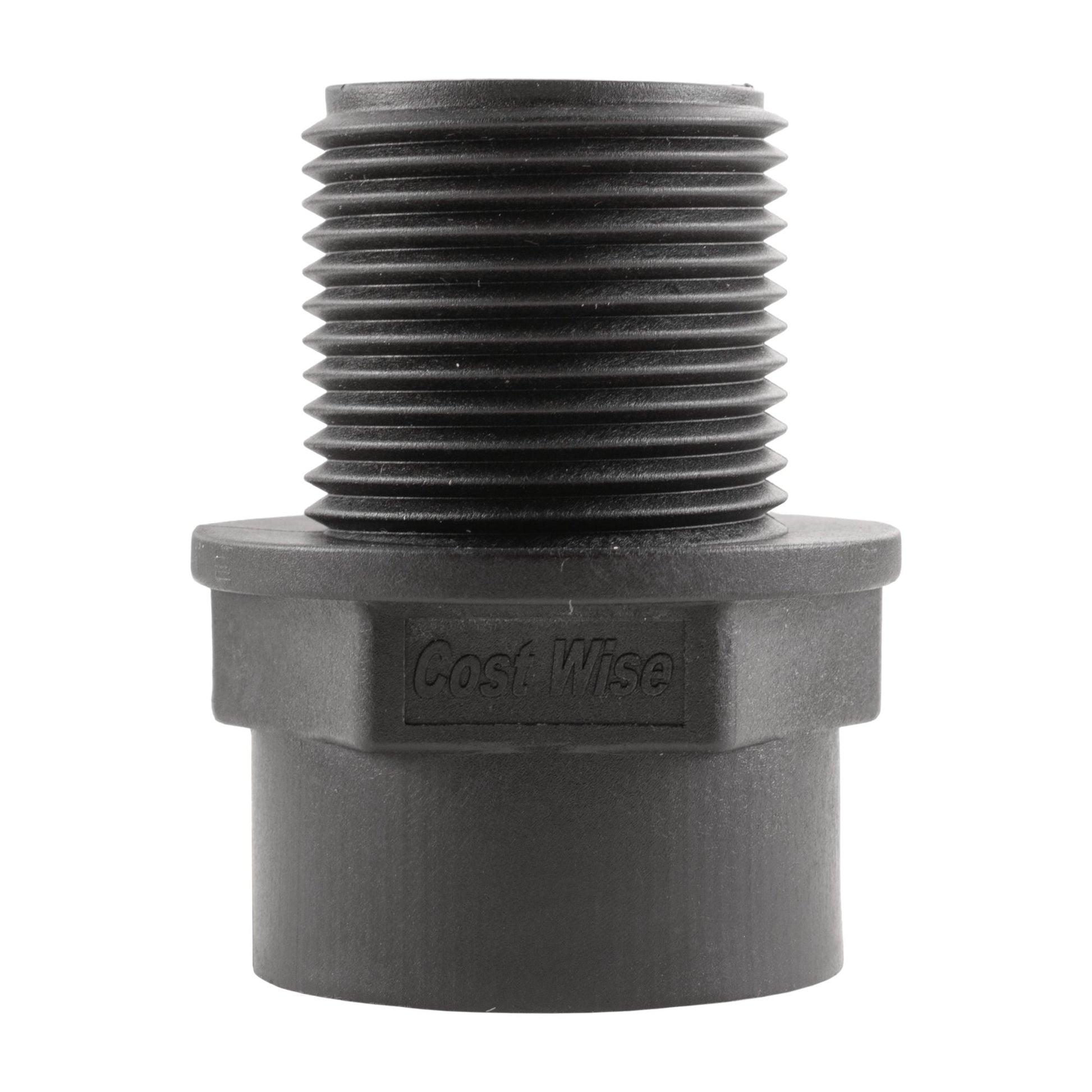

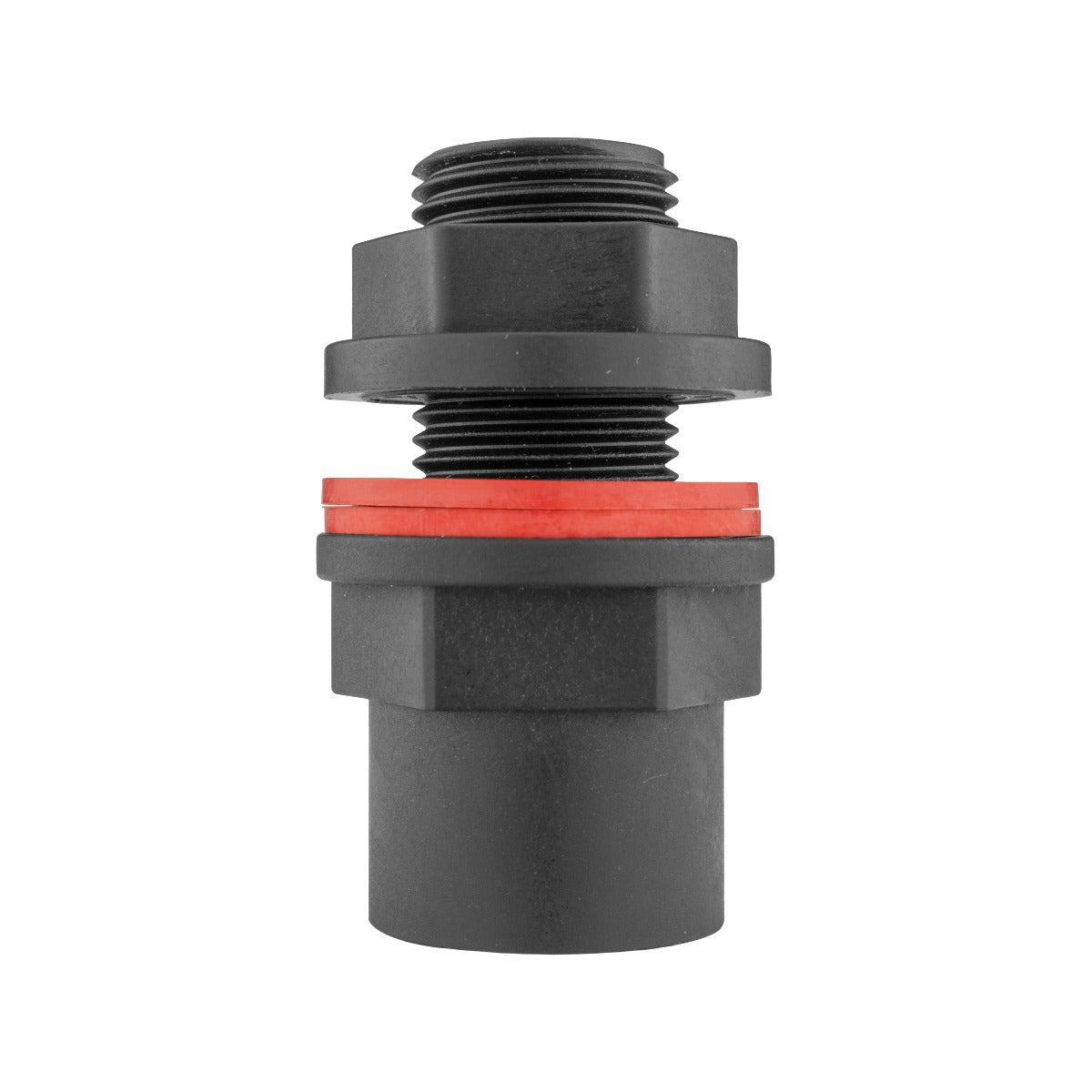

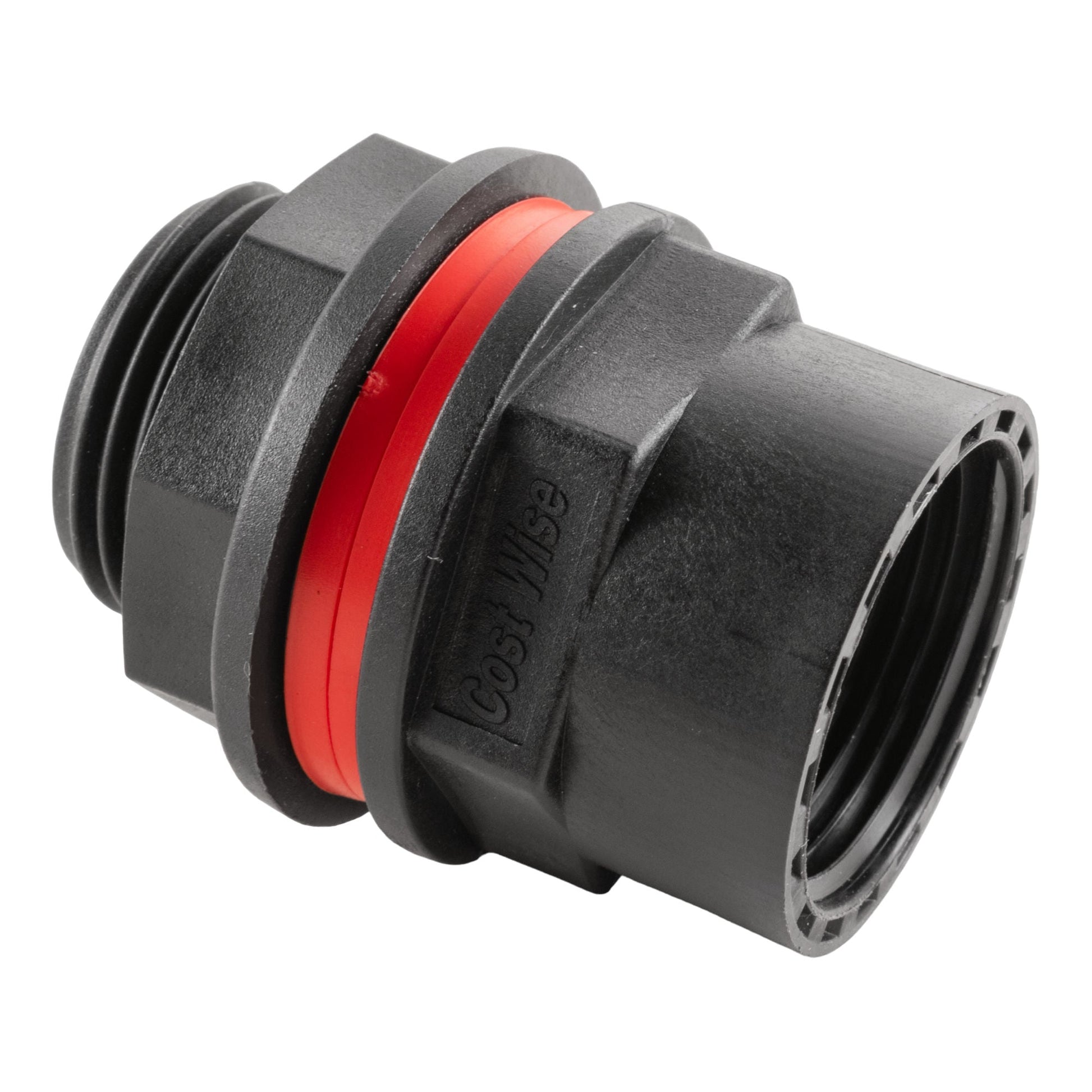

A 1-inch BSP tank adapter that combines a male mounting thread with a female socket for a separate tap or connector.

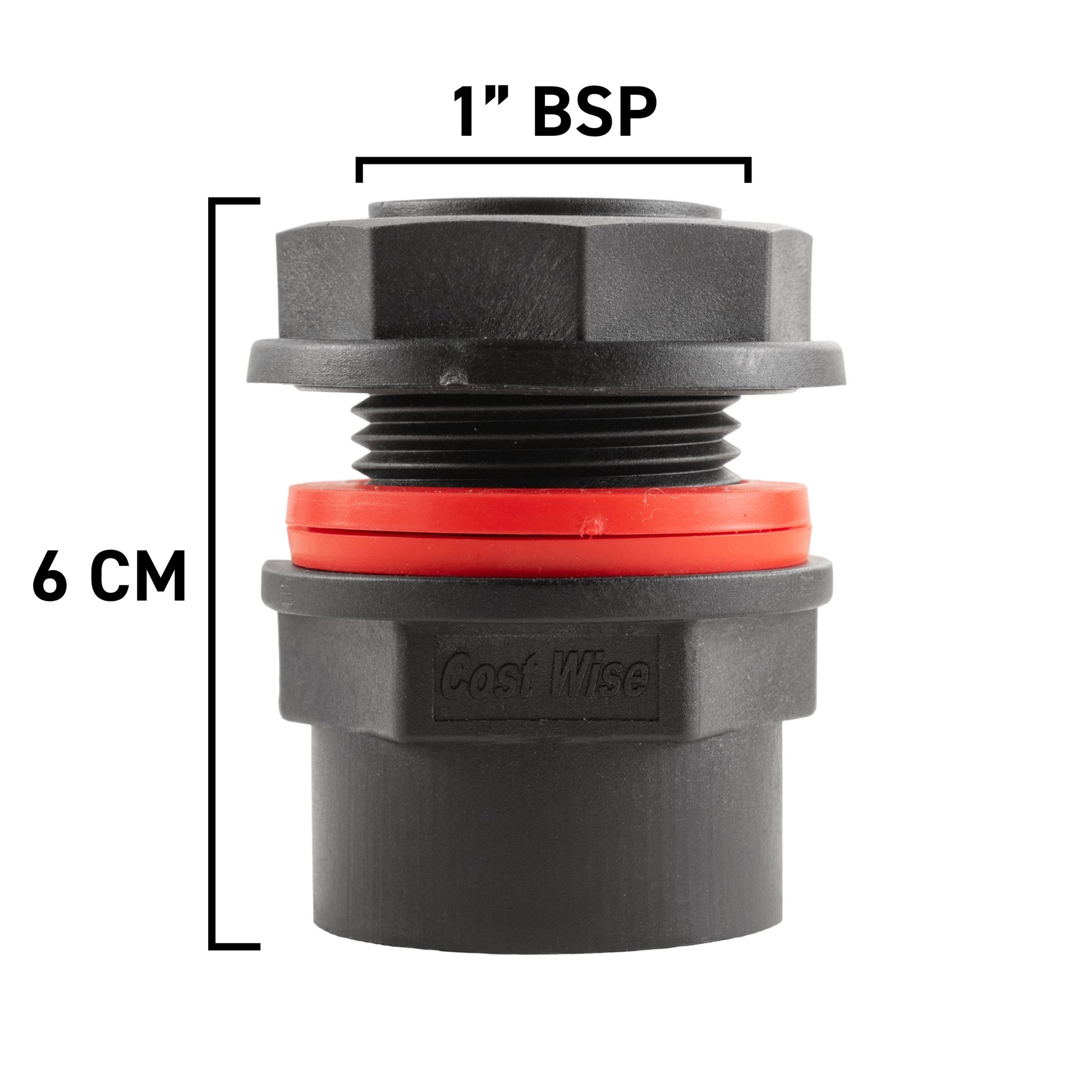

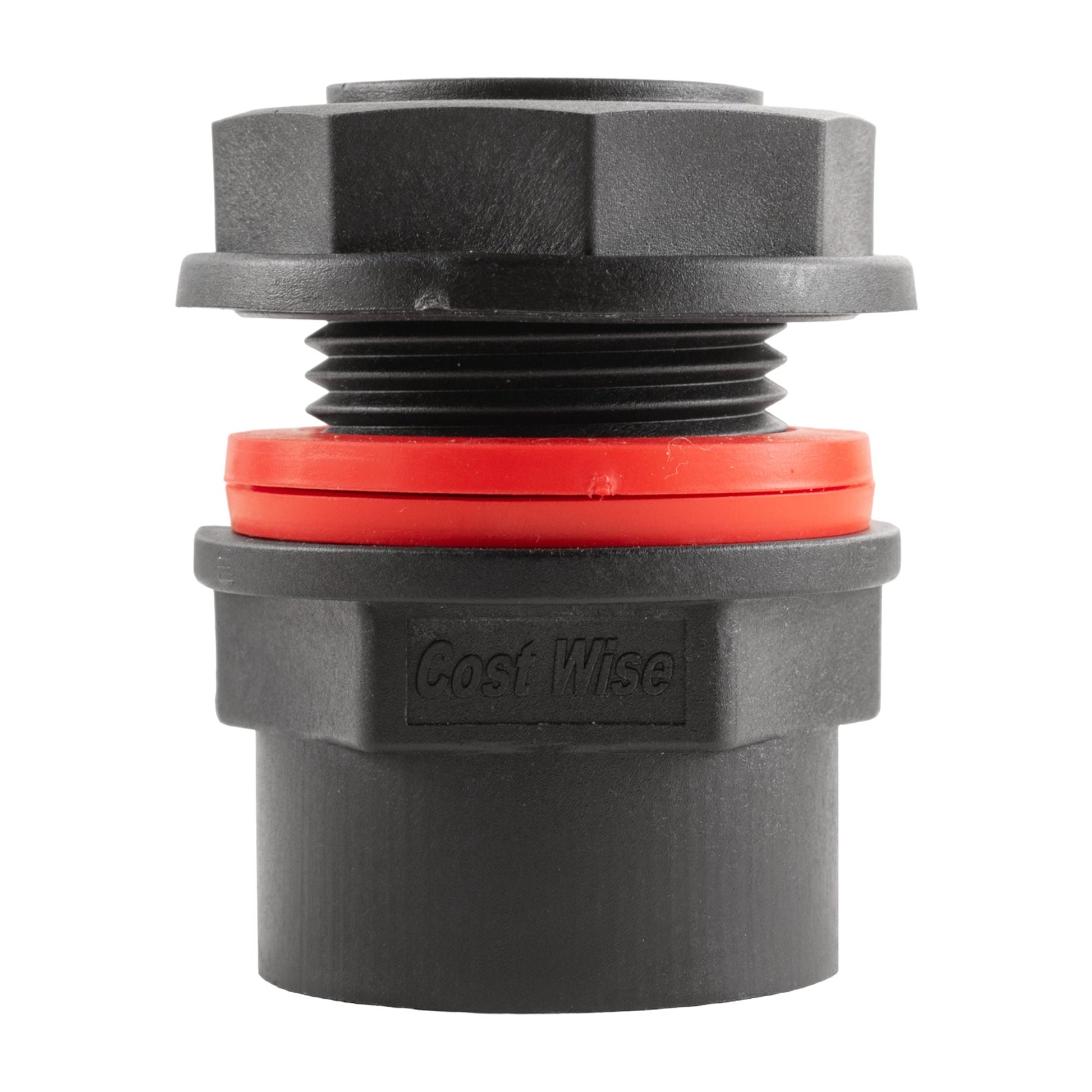

The compact black plastic body comes with one back nut and two red mounting washers.
Match the tank mounting and outlet fitting before assembly. Tap, tank and hose are sold separately.
A socket for a matching male fitting

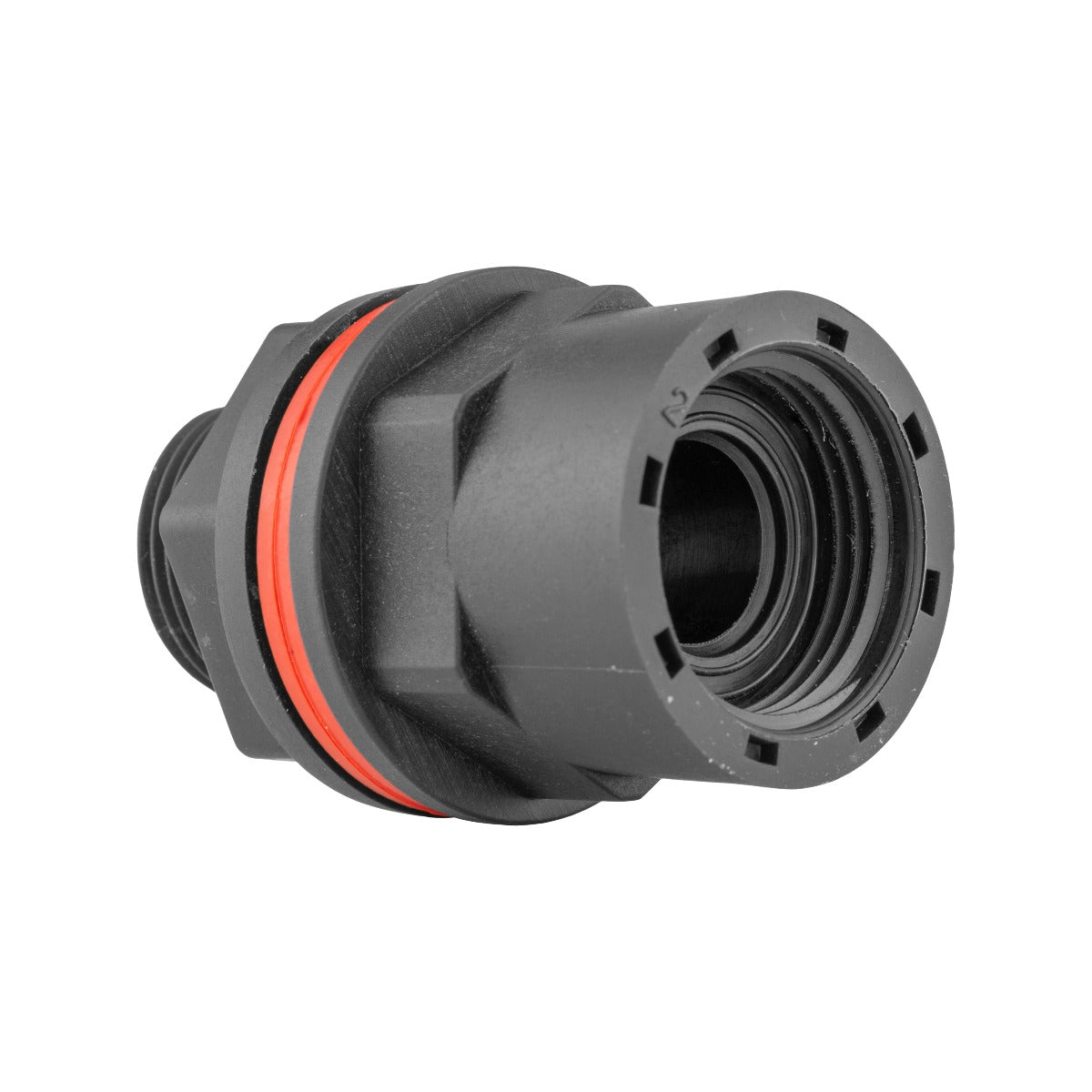

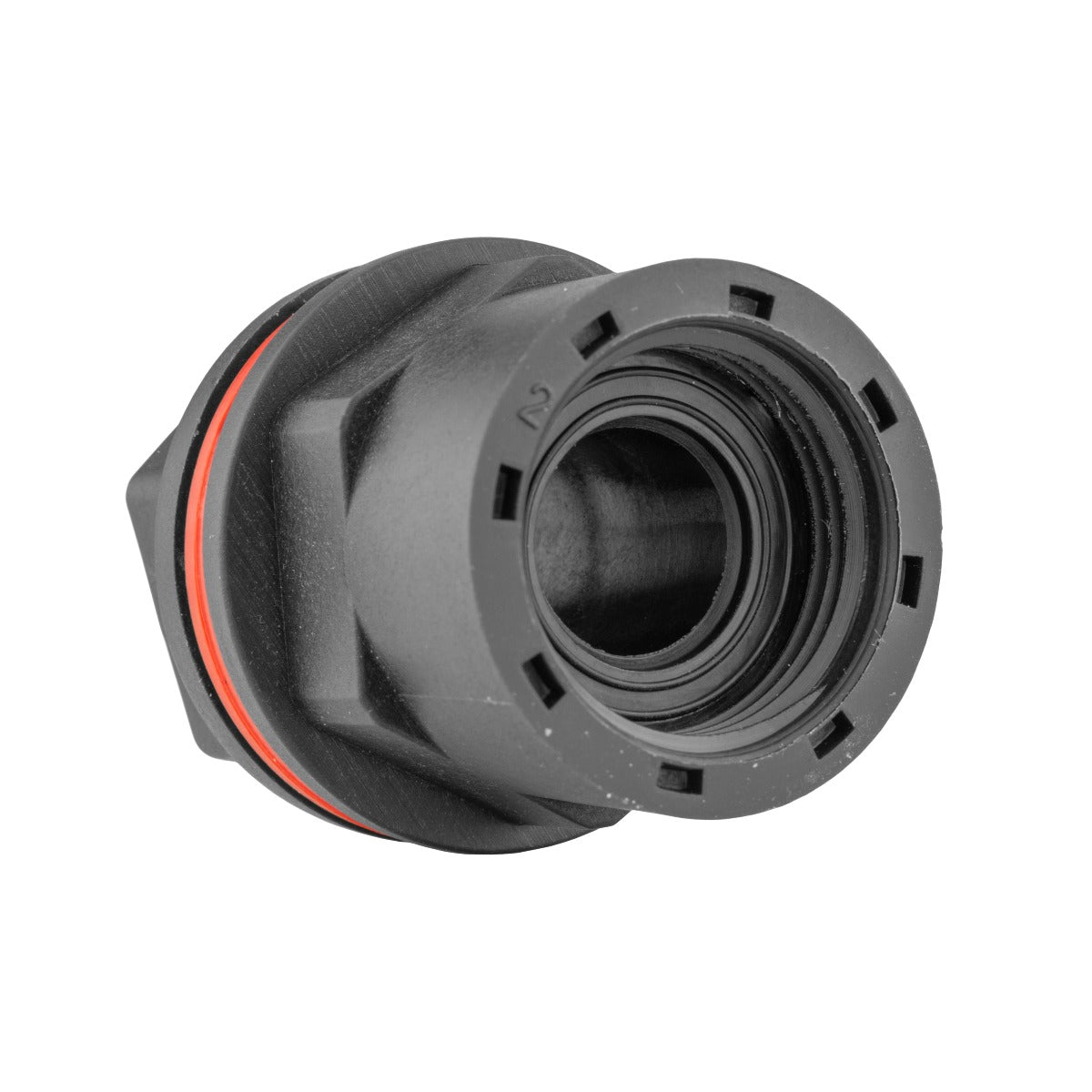

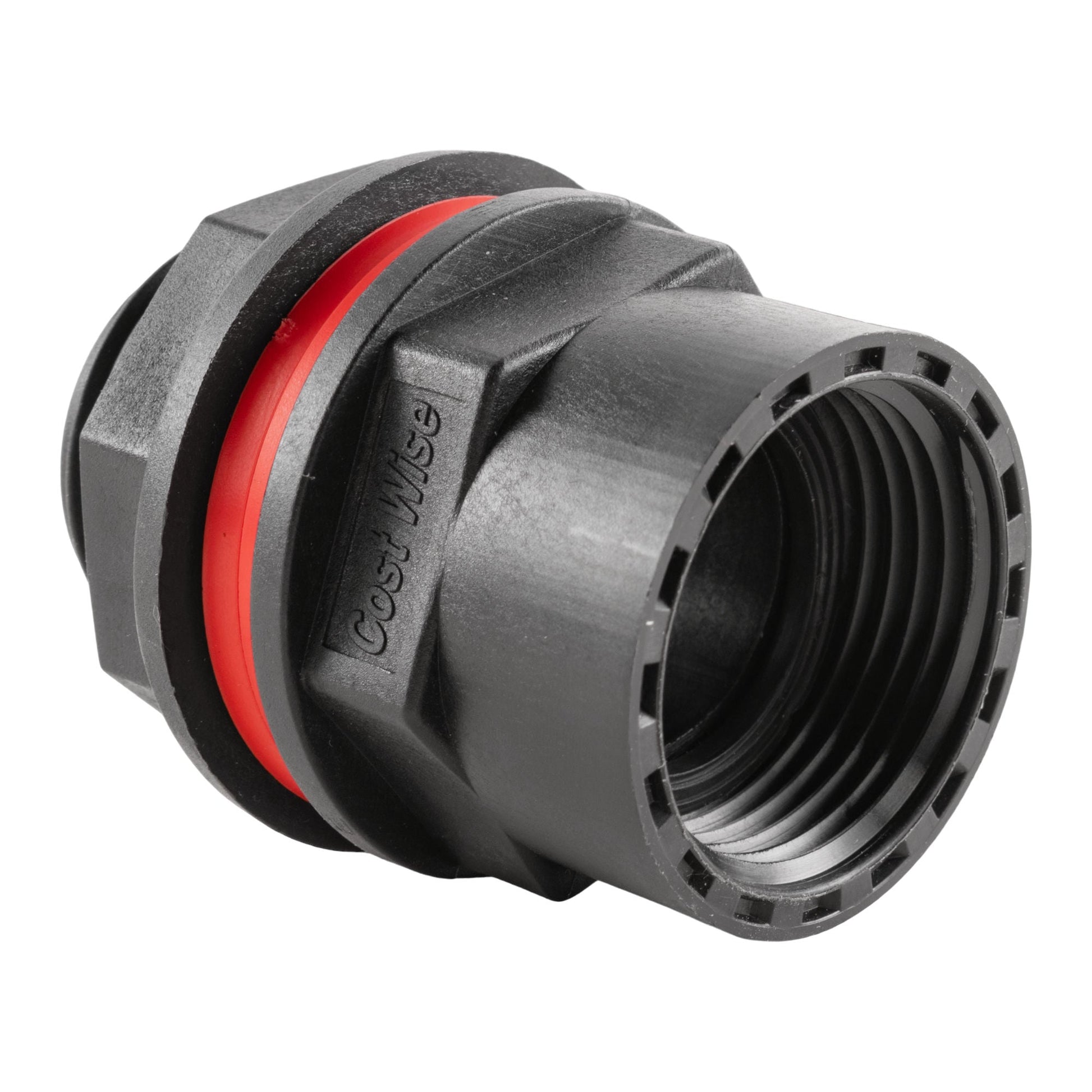

The close-up shows the female thread inside the socket. It accepts a separate 1-inch BSP male fitting, such as a suitable tap or valve. The male thread on the other end is also 1-inch BSP.

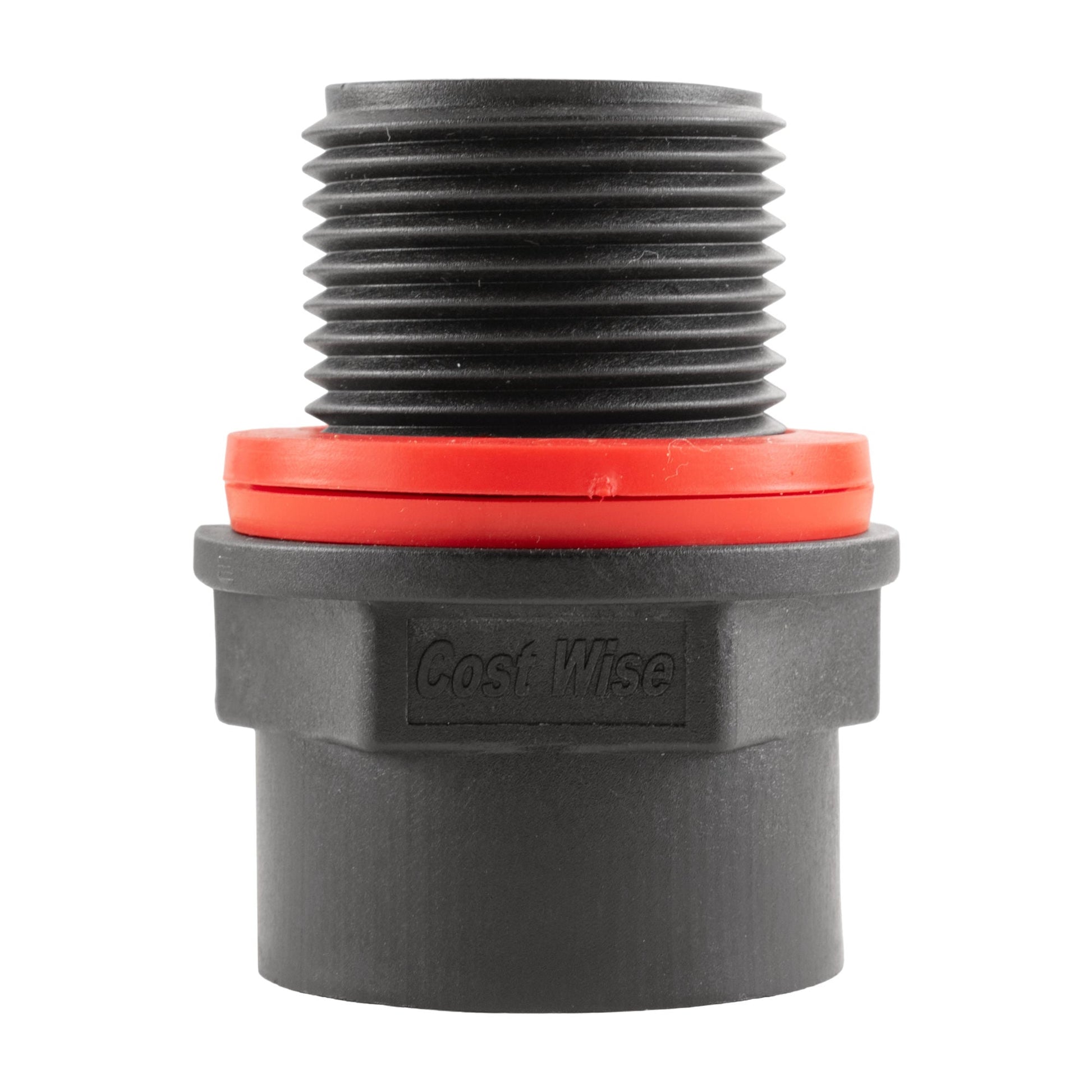

The red washers are mounting seals for the tank wall. For a through-wall installation, separate them so one seats against each side of the wall before tightening the retaining nut.
Check the outlet fitting’s own sealing arrangement as well. The wall washers do not replace whatever seal is needed at the threaded tap connection.
Two ways to plan the mounting
Start with the outlet on your tank, then choose the arrangement that suits it.

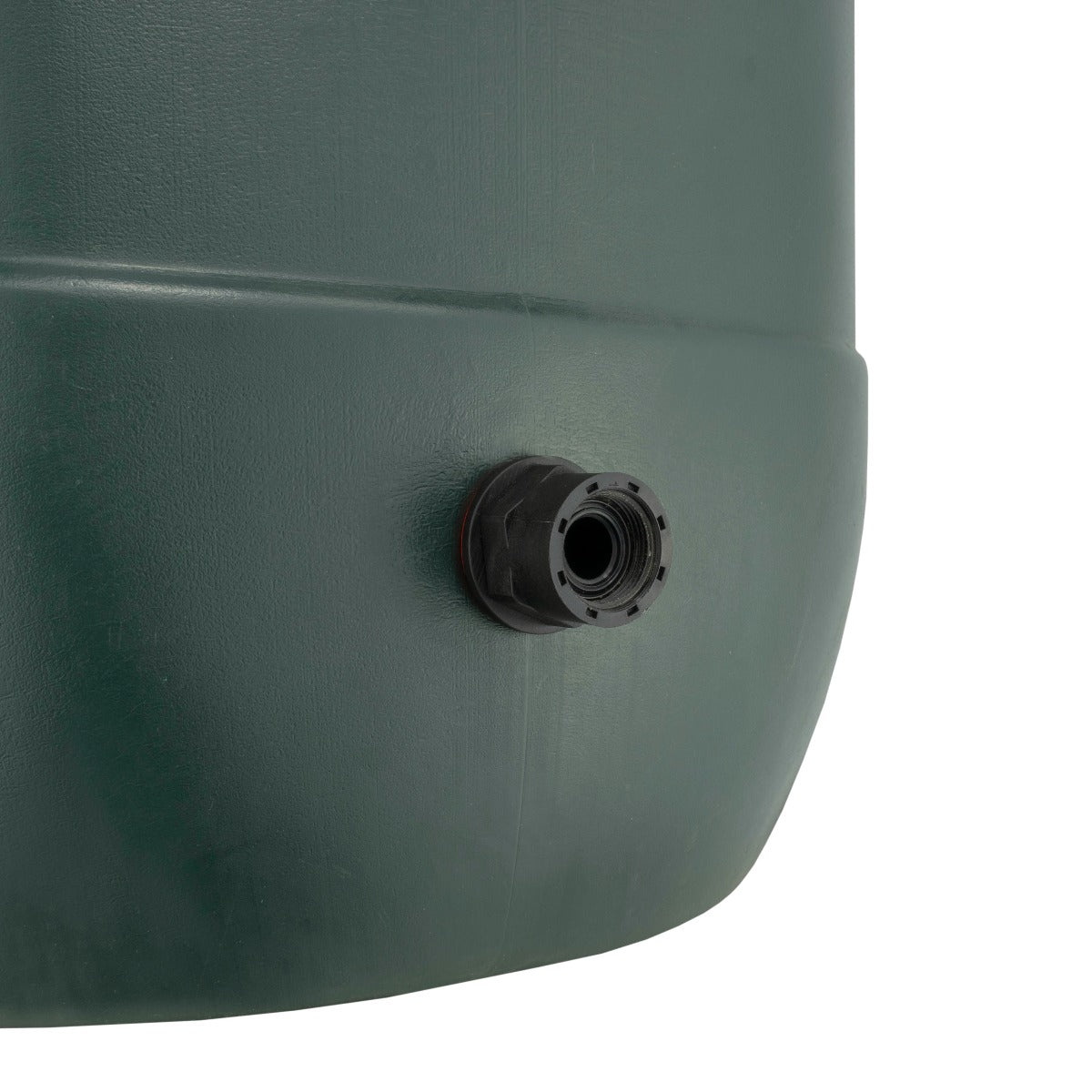

Existing female thread
The male end can engage a matching 1-inch BSP female outlet. Check thread compatibility and a suitable sealing face; the through-wall nut-and-washer arrangement is not automatically needed or appropriate for every threaded outlet.
New wall opening

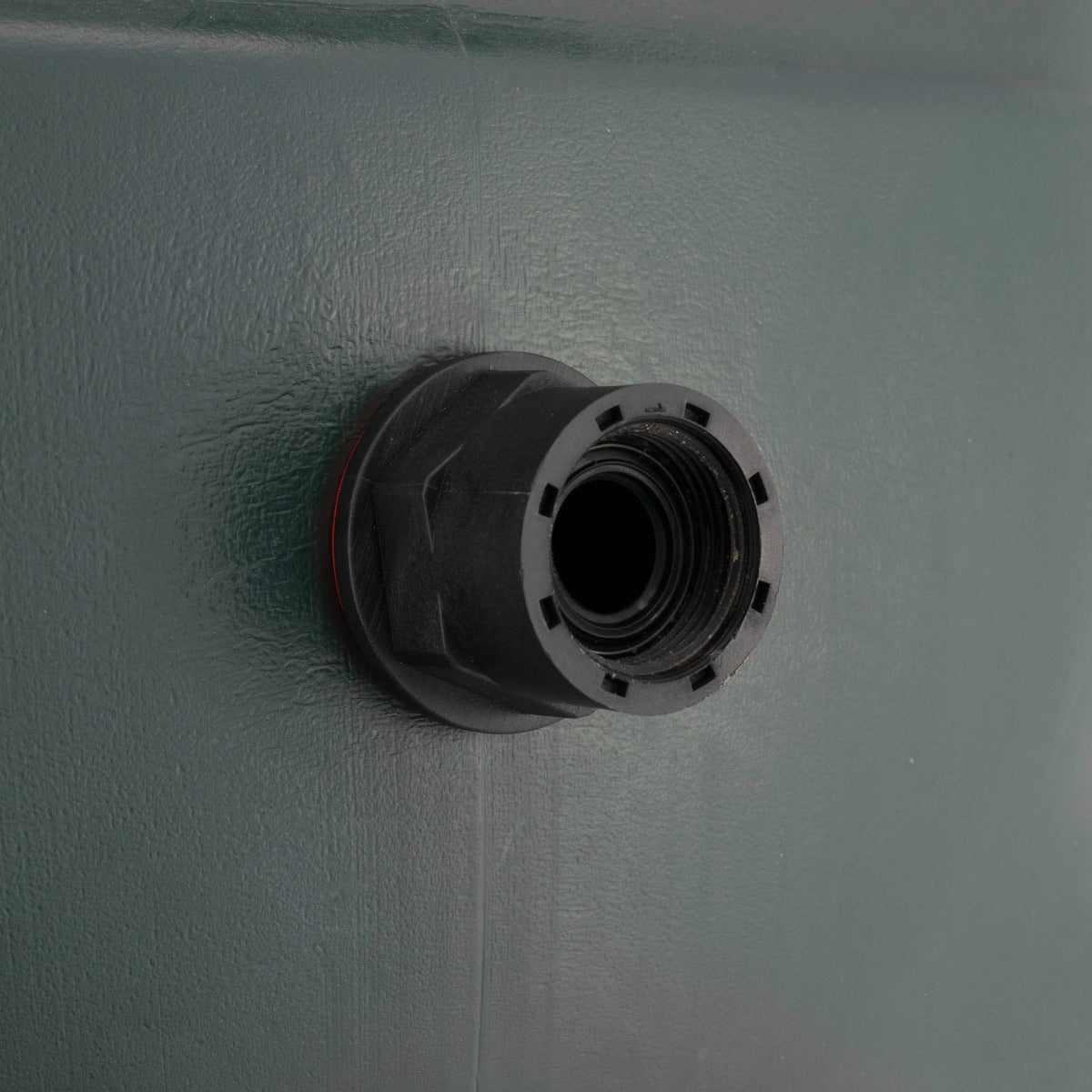

Check the wall thickness and surface against the actual fitting before preparing a hole. Remove the back nut and one washer, pass the body through the opening, then refit the washer and nut inside. Keep a mounting washer on each side of the wall.
Complete the outlet
Support the body while tightening and avoid distorting the plastic or tank wall. Fit the matching tap or connector with an appropriate seal, then check both the mounting and threaded joint for leaks before leaving water stored.
Questions about the one-inch adapter
Is this a reducing adapter?
No. The external male thread and the internal female socket are both 1-inch BSP. It provides a male-to-female connection without changing the nominal thread size. Check any separate tap or fitting is also the correct BSP size.
Where do the two red washers fit?
For a suitable through-wall installation, one washer sits outside against the connector flange and the other goes inside before the back nut. They seal the tank wall; they are not a pair of washers intended to sit inside the female socket.
Can I connect a one-inch BSP male tap?
Yes, the female socket accepts a matching 1-inch BSP male fitting. Check the tap’s sealing arrangement and that its handle and outlet have room to operate. The tap is separate from the adapter set.
What hole size does the tank need?
Check the actual adapter body, wall thickness and mounting surfaces before making an opening. The nominal 1-inch BSP designation identifies the thread and should not be used as a drill measurement. You also need access inside for the washer and back nut.
Product information & technical details
| SKU | BUTT1BSPM-F001 |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Male, Female |
| Colour | Black |
| Material | Plastic |
| External connection | 1-inch BSP male |
|---|---|
| Socket connection | 1-inch BSP female |
| Back nut | 1 included |
| Mounting washers | 2 red washers included |
| Supplied contents | 1 adapter, 1 back nut and 2 washers |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
