Description
From thread to plug

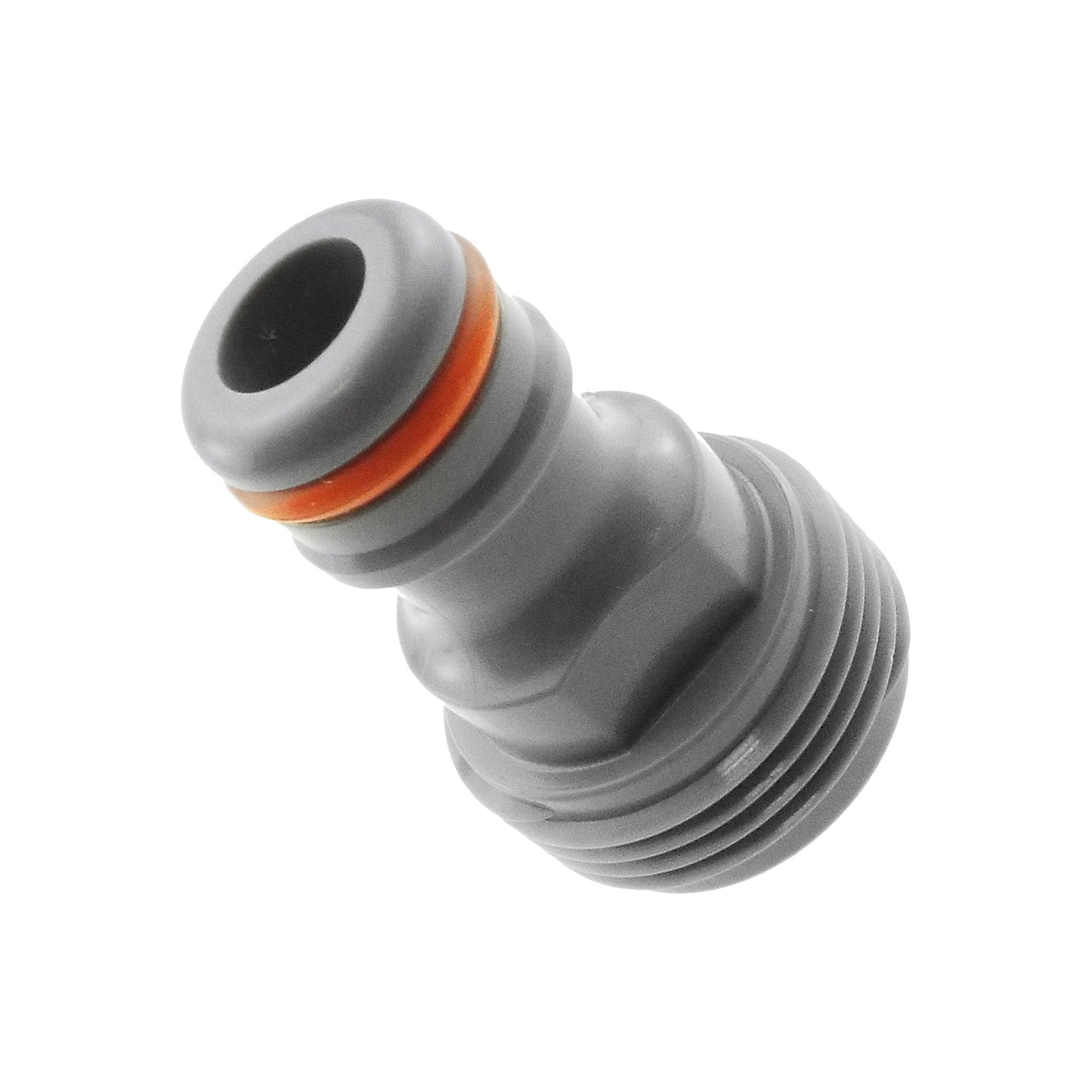

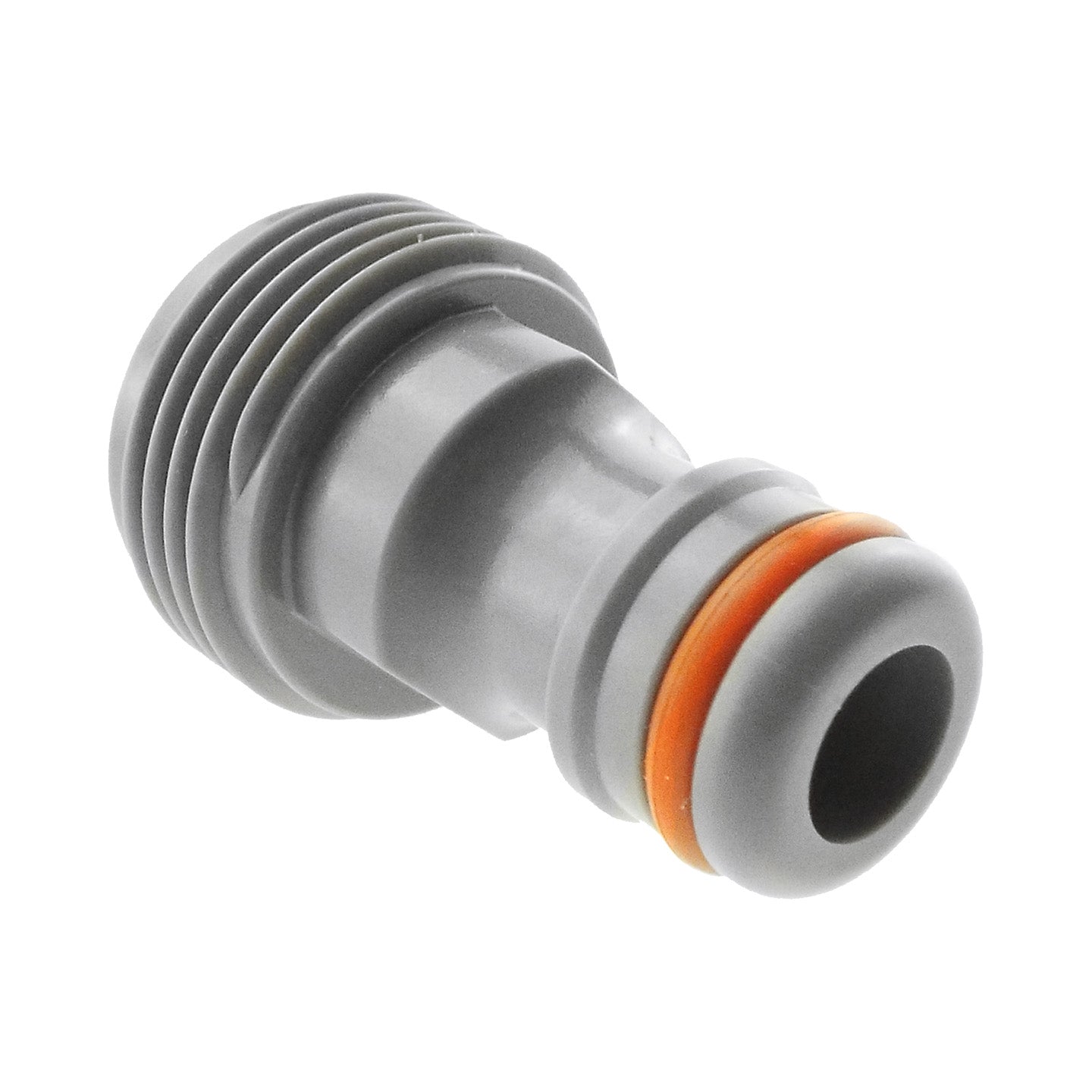

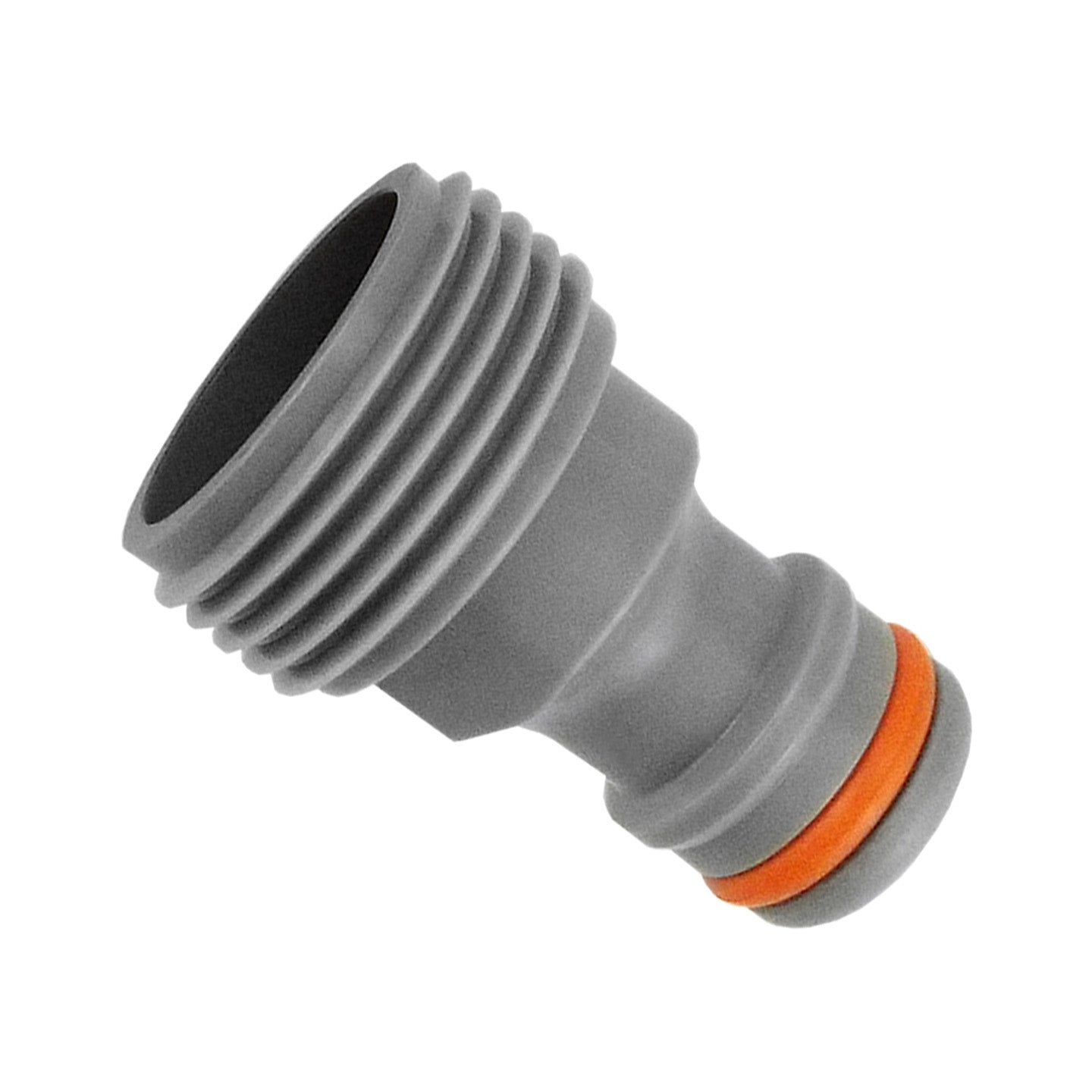

Give a matching female threaded fitting a garden quick-connect connection. This grey ½-inch BSP male adapter screws into the female thread, leaving its male garden plug ready for a compatible hose socket.
The illustrated hose end shows one useful arrangement: the adapter sits inside a separate female threaded union, with the orange-ringed plug exposed. Check your own union’s thread before choosing it.
One adapter supplied. Hose, threaded union and female quick-connect socket are not included.
Match each end separately

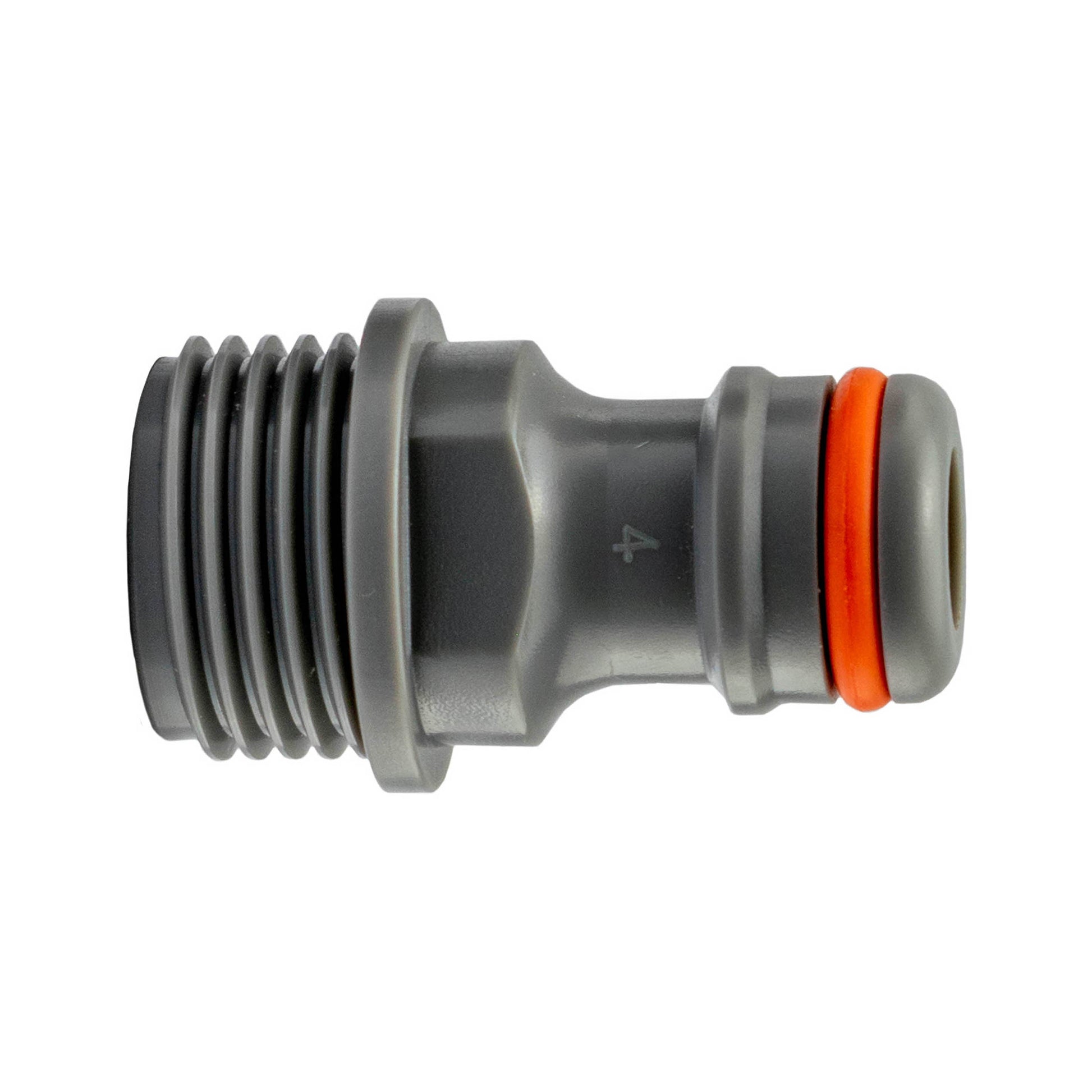

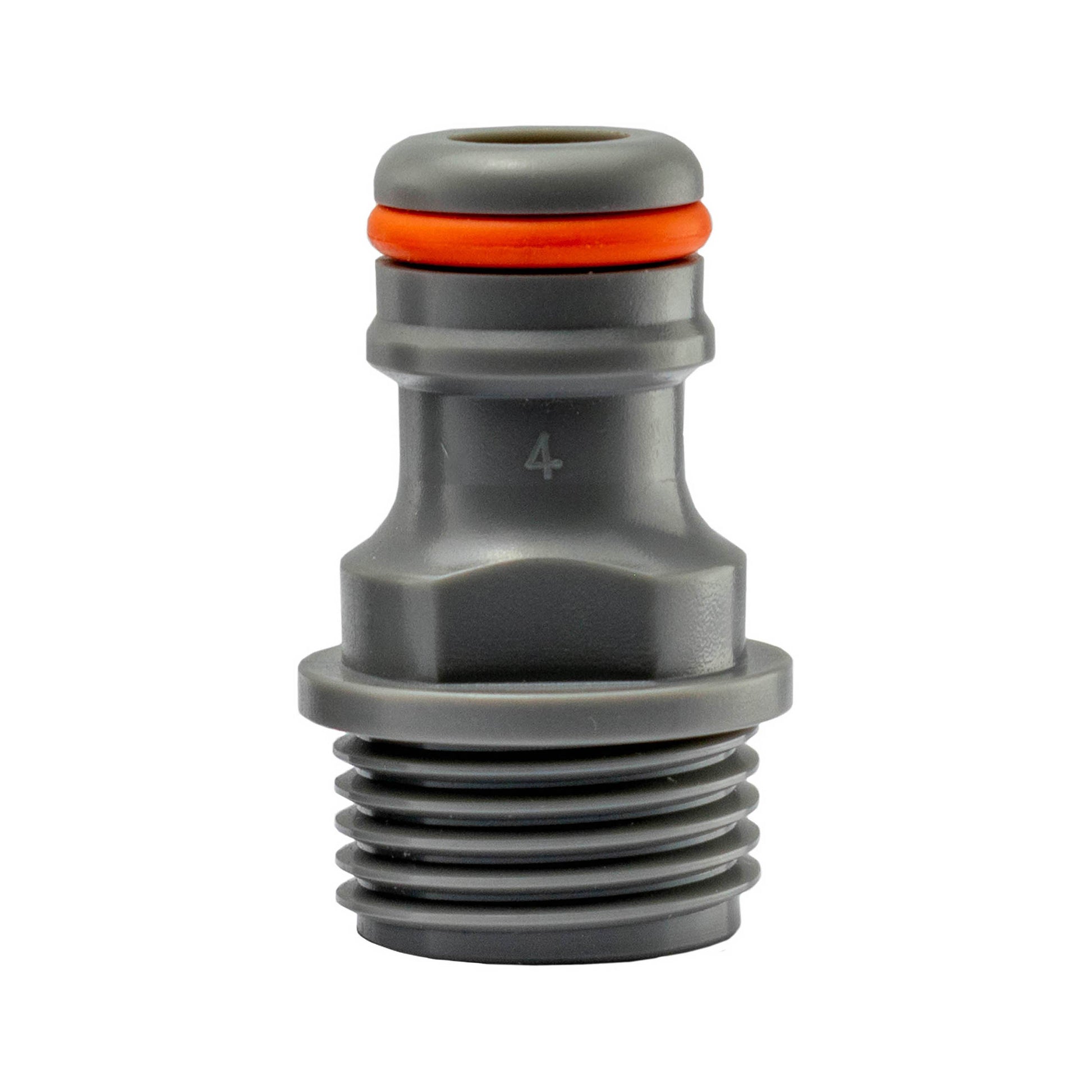

The external screw thread below the hexagonal grip is the ½-inch BSP male end. It needs a matching female threaded fitting. A conventional male-threaded tap outlet cannot accept it directly.
The narrow end above the grip is a male garden quick-connect plug. Push a compatible female hose socket over it. That separate socket provides the locking and release action; this fixed adapter has no sliding release collar.
Choose any hose-end socket for the hose it will grip. Its hose-bore size is independent of this adapter’s nominal BSP thread size. The orange O-ring belongs to the plug connection, not the threaded joint.
Fit, connect and check
Check the threaded fitting
Turn off the water and release pressure. Check that the receiving fitting has a sound, matching ½-inch BSP female thread and the appropriate sealing arrangement. Use the sealing method required by that joint.
Fit the adapter
Start the thread squarely by hand, using the central hexagonal grip to hold the adapter. Do not force a mismatched thread or overtighten the plastic fitting. Keep the plug and its O-ring clean.
Connect and check
Attach a compatible female garden socket to the plug. Introduce water gradually and inspect both joints. Shut off the supply and release pressure before disconnecting; this adapter has no automatic shut-off valve.
Before you choose this adapter
Will it screw onto a male-threaded garden tap?
No. This adapter has a male BSP thread and needs a matching female thread. For a male tap outlet, choose an adapter with the appropriate female threaded inlet instead.
Does ½-inch BSP mean it grips ½-inch hose?
No. BSP identifies the threaded connection. This adapter does not clamp onto bare hose. Use a separate hose connector sized for your hose and compatible with the male garden plug.
Can I leave it screwed in when removing the hose socket?
Yes. Leave the threaded joint assembled and use the release mechanism on the separate female quick-connect socket. Turn off the supply and release pressure first.
Are the hose and black threaded collar included?
No. The garden illustration shows how a matching female threaded hose union can accept the adapter. You receive one grey adapter only; the hose, union and quick-connect socket are separate.
Product information & technical details
| SKU | TAPCON12BSPM001WL |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male |
| Colour | Grey |
| Material | Plastic |
|---|---|
| Quick connection | Male garden quick-connect plug with orange O-ring |
| Grip | Central hexagonal grip |
| Supplied quantity | One adapter; hose, threaded union and female hose socket not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
