Description
A quick connection from a female thread

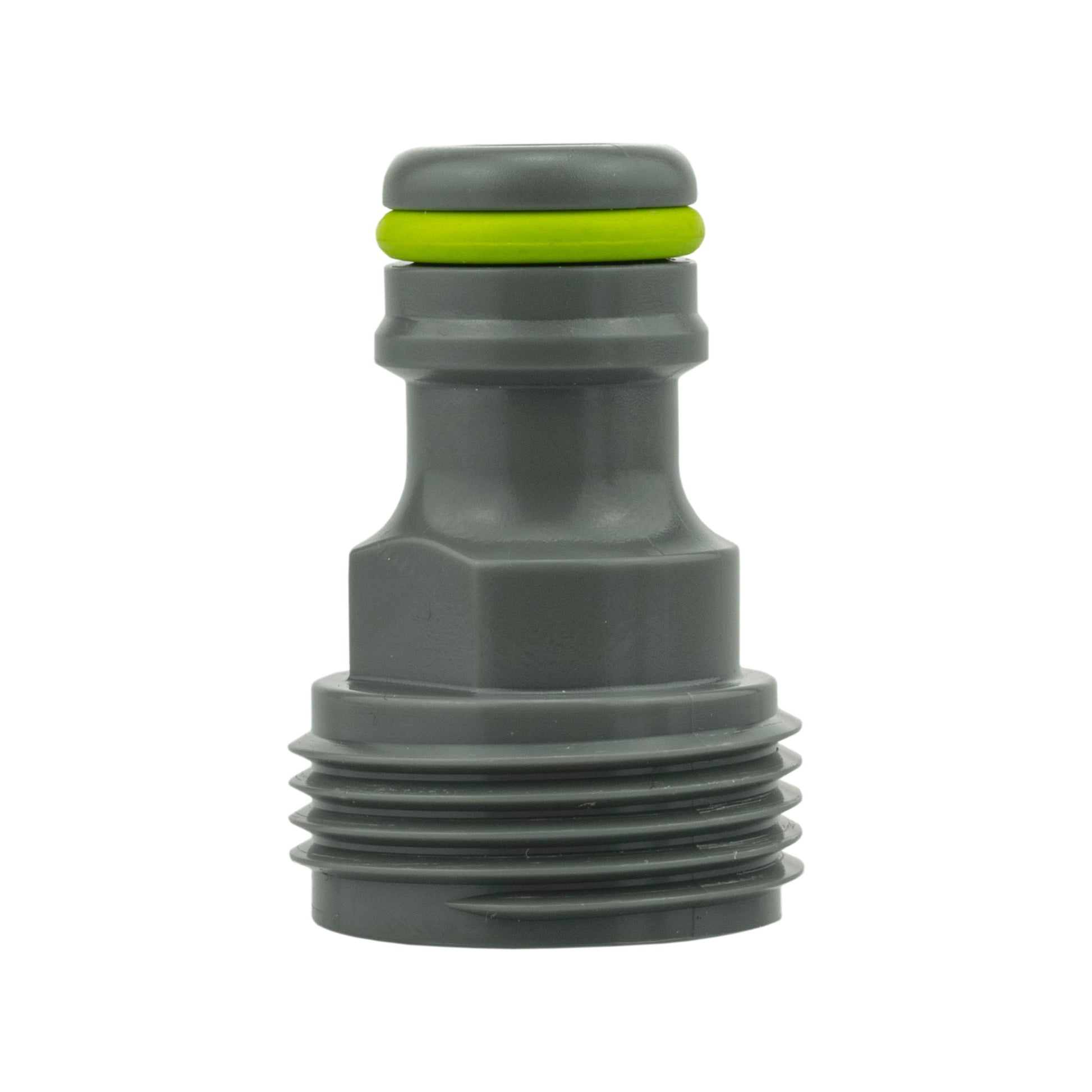

This lime-ringed garden adapter combines a ½-inch BSP male screw thread with a male garden quick-connect plug. Fit the screw end into a matching female threaded fitting, then connect a separate hose socket to the plug.
The central hexagonal shoulder gives you a place to hold the fitting. Once assembled, normal connection changes take place at the quick-connect socket, leaving the threaded joint in place.
One grey plastic adapter supplied. Hose, threaded union and female quick-connect socket are separate.
A hose-end conversion
The illustration shows the threaded base seated inside a separate female threaded hose union. The male garden plug remains exposed, ready for a matching female quick-connect socket.
This arrangement works only where the receiving union has the correct ½-inch BSP female thread. The adapter cannot screw over a male tap spout, and it does not clamp directly onto bare hose.
The lime ring seals the garden plug connection. The threaded joint needs its own appropriate sealing arrangement. Choose the separate socket for the hose it grips; hose bore and BSP thread size describe different connections.
Three checks before watering
Match the thread
With the supply off and pressure released, check the receiving thread is female, ½-inch BSP and undamaged. Confirm the sealing method required by that joint before assembly.
Seat it carefully
Start the adapter squarely by hand and hold its central hex grip. Stop if the thread binds; do not force it or overtighten the plastic. Keep the exposed plug and lime seal free from dirt.
Connect and inspect
Push a compatible female garden socket onto the plug and introduce water gradually. Inspect the threaded and quick-connect joints. Close the supply and release pressure before uncoupling; this adapter has no shut-off valve.
Choosing the correct connection
Why are both ends described as male?
They are different connection systems. One end has an external BSP screw thread for a female threaded fitting. The other is a smooth garden quick-connect plug for a female garden socket.
Will it fit every garden tap?
No. The threaded end requires a matching ½-inch BSP female connection. Many garden taps have a male outlet and need a female-threaded tap adapter instead.
Does the adapter release the hose or stop the water?
No. The separate female socket supplies the release mechanism. This fixed adapter has no automatic shut-off valve, so turn off the water and release pressure before disconnecting.
Does the half-inch thread specify my hose size?
No. Select the hose connector for your hose bore and check its compatibility with the male garden plug separately. The ½-inch BSP designation belongs to the adapter’s screw thread.
Product information & technical details
| SKU | TAPCON12BSPM001LIME |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| Thread gender | Male |
| Colour | Green, Grey |
| Material | Plastic |
|---|---|
| Quick-connect end | Male garden plug with lime sealing ring |
| Central grip | Hexagonal moulded shoulder |
| Supplied quantity | One adapter; hose, threaded union and female quick-connect socket not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
