Description
Bring the tap within easier reach
Fit this ½-inch BSP dial tap and extended S60x6 adapter to a matching IBC outlet for an accessible watering point. The black adapter moves the tap forward, while the orange dial gives you local control of the water.
Its swivel body helps you position the tap during assembly. A male garden-hose quick connector beneath the spout is ready for a compatible female hose-end fitting.
One extended adapter and one tap assembly supplied. The outlet fitting is included with the tap. Tank, hose, female hose connector and PTFE tape are separate.
Threaded inlet. Click-on outlet.
The labelled ½-inch BSP male thread is the tap's inlet. It screws into the matching ½-inch BSP female port on the extended adapter. Start it straight, avoid overtightening the plastic and use suitable thread sealing where needed.
The small outlet under the spout is a male garden-hose quick connector. A compatible female hose fitting clicks onto it; bare hose does not push directly onto this plug. If you use compatible ½-inch hose, the optional ½-inch female hose connector provides the hose-end fitting. Hose size and BSP thread size describe different connections.
Check the thread and the space
The large cap needs an exposed male S60x6 outlet, nominally 60mm with a 6mm coarse pitch. Check your tank or existing valve's thread before ordering. S60x6 is a different connection from the smaller BSP port at the tap end.

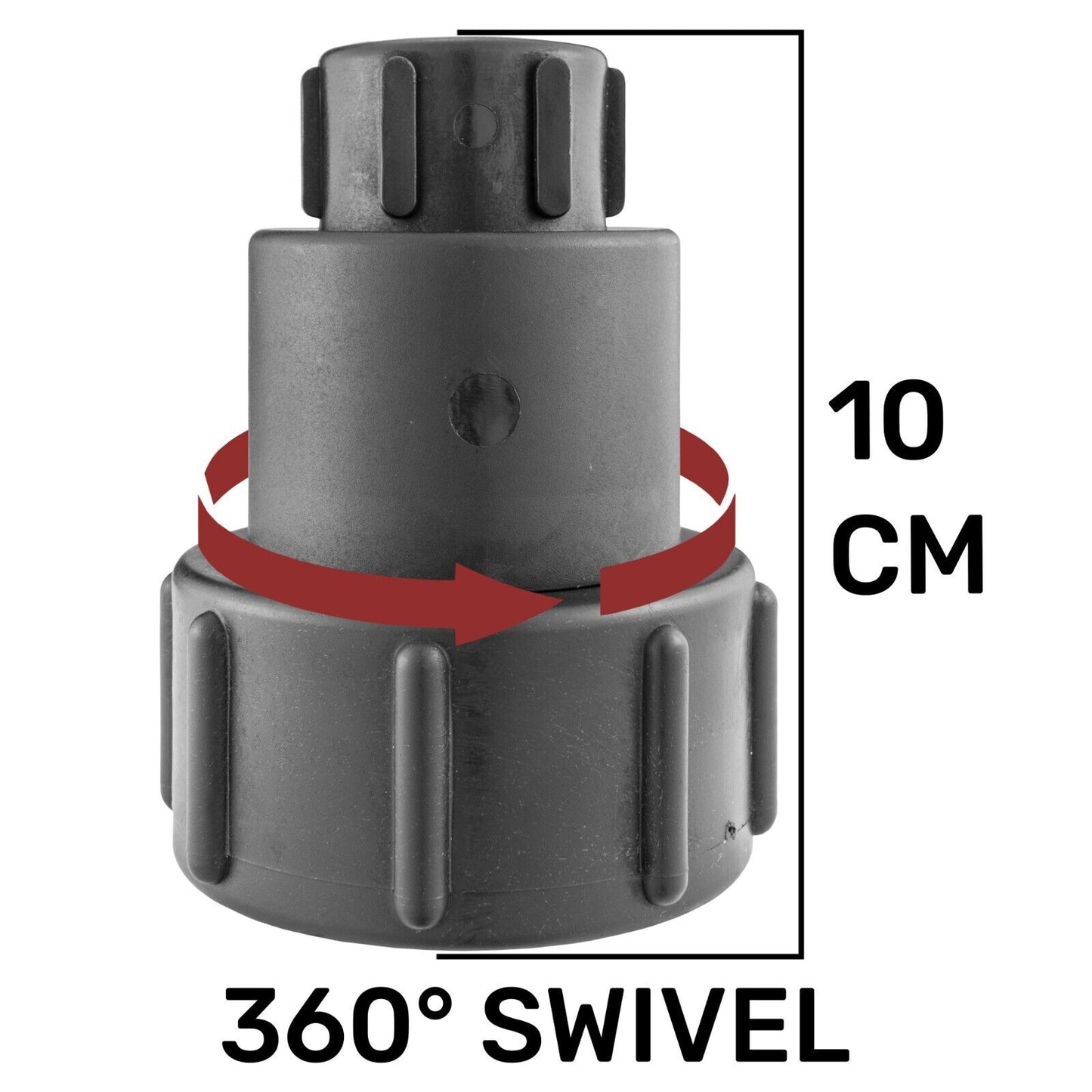

The 10cm measurement is the whole adapter, including its connection ends. Final projection depends on thread engagement and the original outlet position. Allow room for the dial and for releasing a hose connector. Set the tap's orientation with the 360° swivel body during fitting, then check the assembled joints before turning the water on. Support any attached hose so its weight does not pull on the tap.
Getting the right connection
Does the kit include the female hose connector?
No. The tap includes a male quick-connect outlet. The matching female hose-end fitting and hose are separate purchases. Choose the female fitting for your hose's bore and the mating garden-hose plug; the tap's ½-inch BSP inlet does not determine the hose size.
Is a tank marked “2-inch” enough to confirm fit?
No. Check for the actual male S60x6 thread, including its diameter and pitch. A different coarse thread or a BSP outlet will need a different tank adapter. Also compare the space around your valve and cage with the complete adapter and tap, rather than treating 10cm overall length as 10cm of extra clearance.
Product information & technical details
| SKU | IBC021H |
|---|---|
| Product type | |
| BSP thread size | 1/2" |
| IBC thread size | S60X6 (2") |
| Kit parts | S60x6 extended adapter, Black/orange plastic tap with quick-connect outlet |
| Colour | Black, Orange |
| Material | Plastic |
|---|---|
| Tap inlet | ½-inch BSP male |
| Adapter length | 10cm overall, including connection ends |
| Adapter adjustment | 360° swivel body |
| Hose connection | Male garden-hose quick connector |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
