Description
Catch debris before it reaches your watering equipment

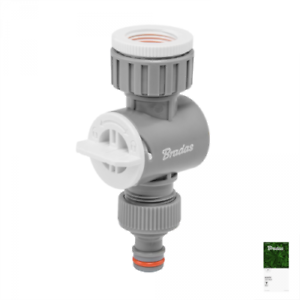

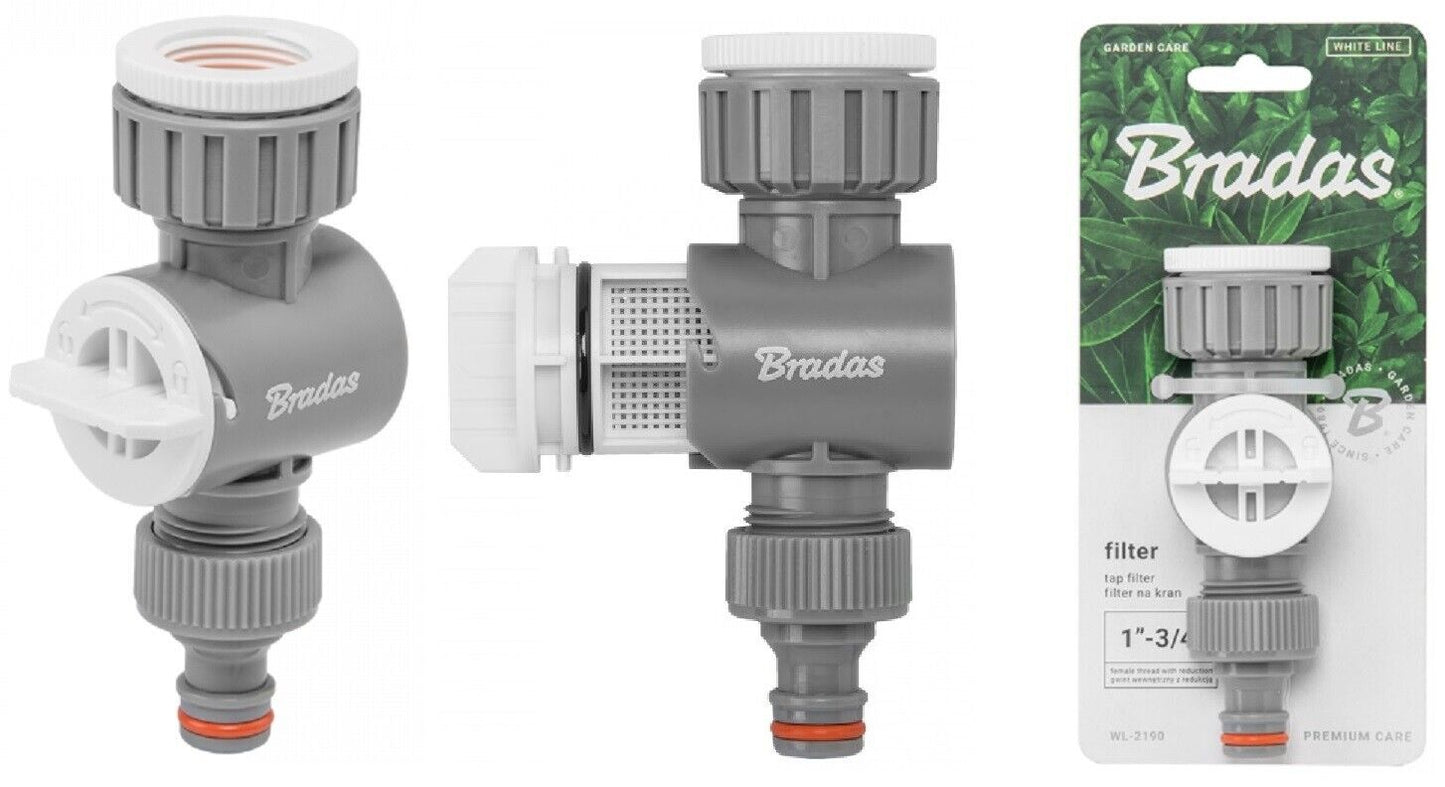

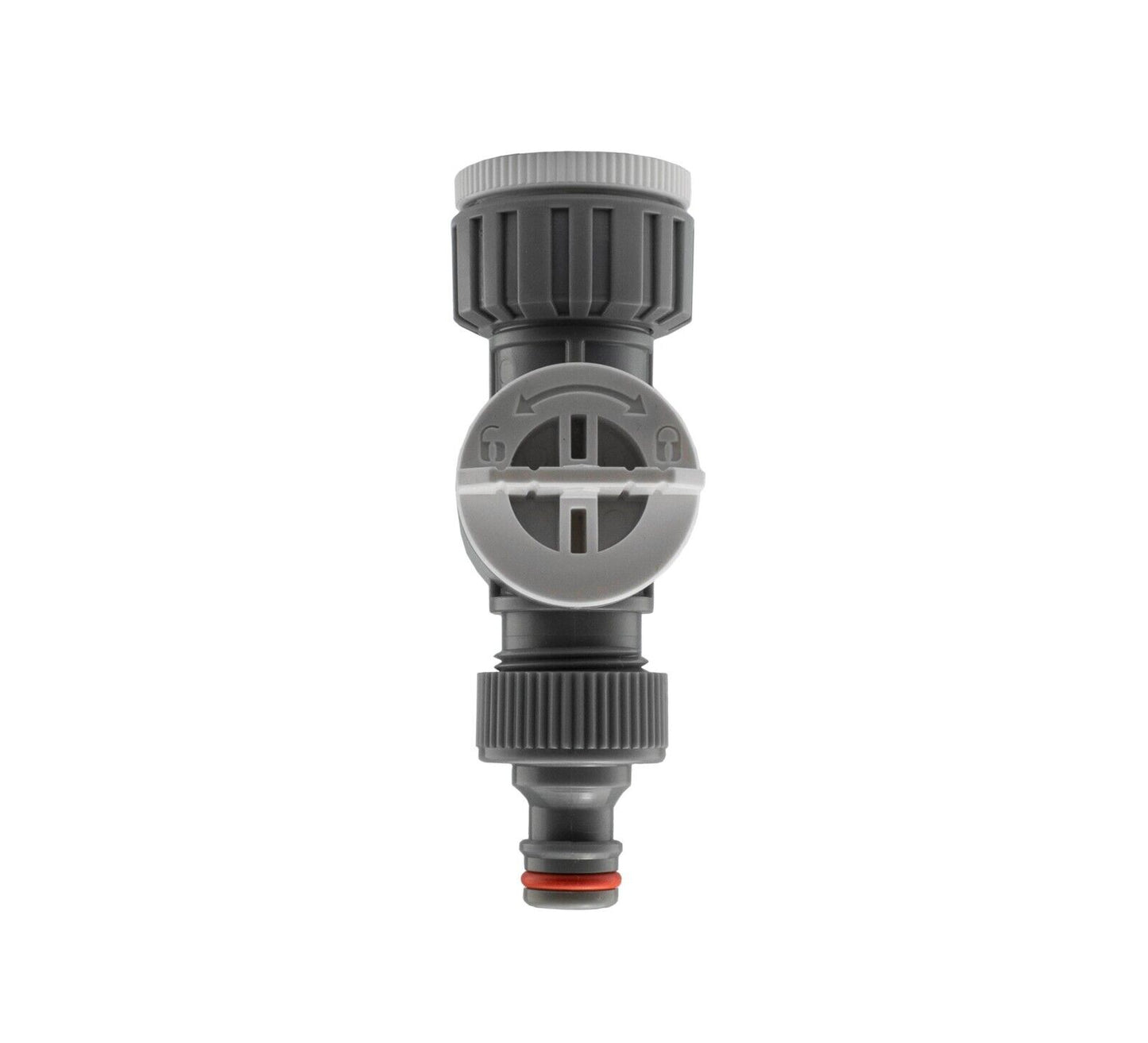

The Bradas WL-2190 tap filter places a removable mesh element between a suitable garden tap and your hose.
It helps collect particles from the water supply, with a 1-inch / ¾-inch female inlet and a male garden quick-connect outlet.
Three checks for the connection
Match the tap thread and hose fitting separately.

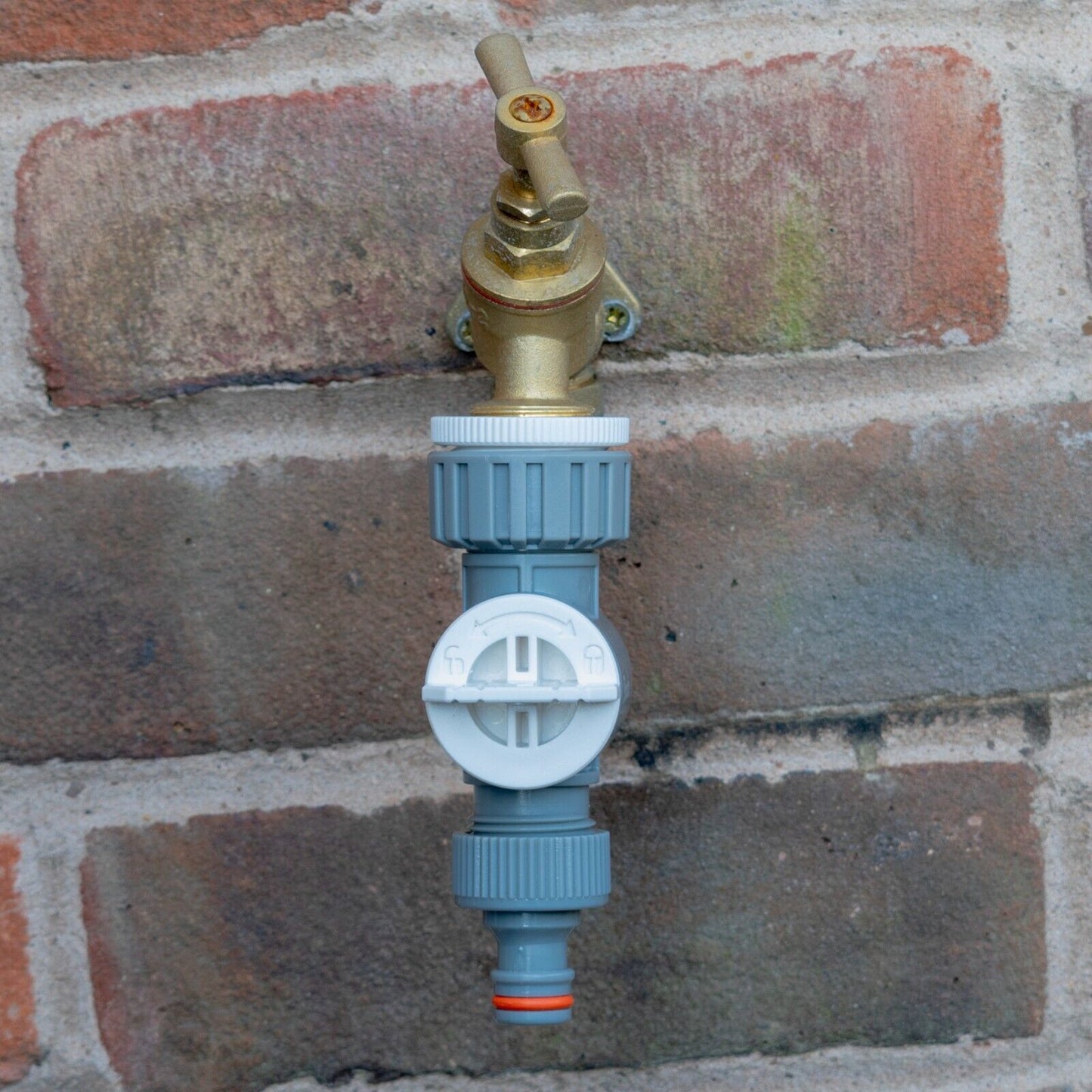

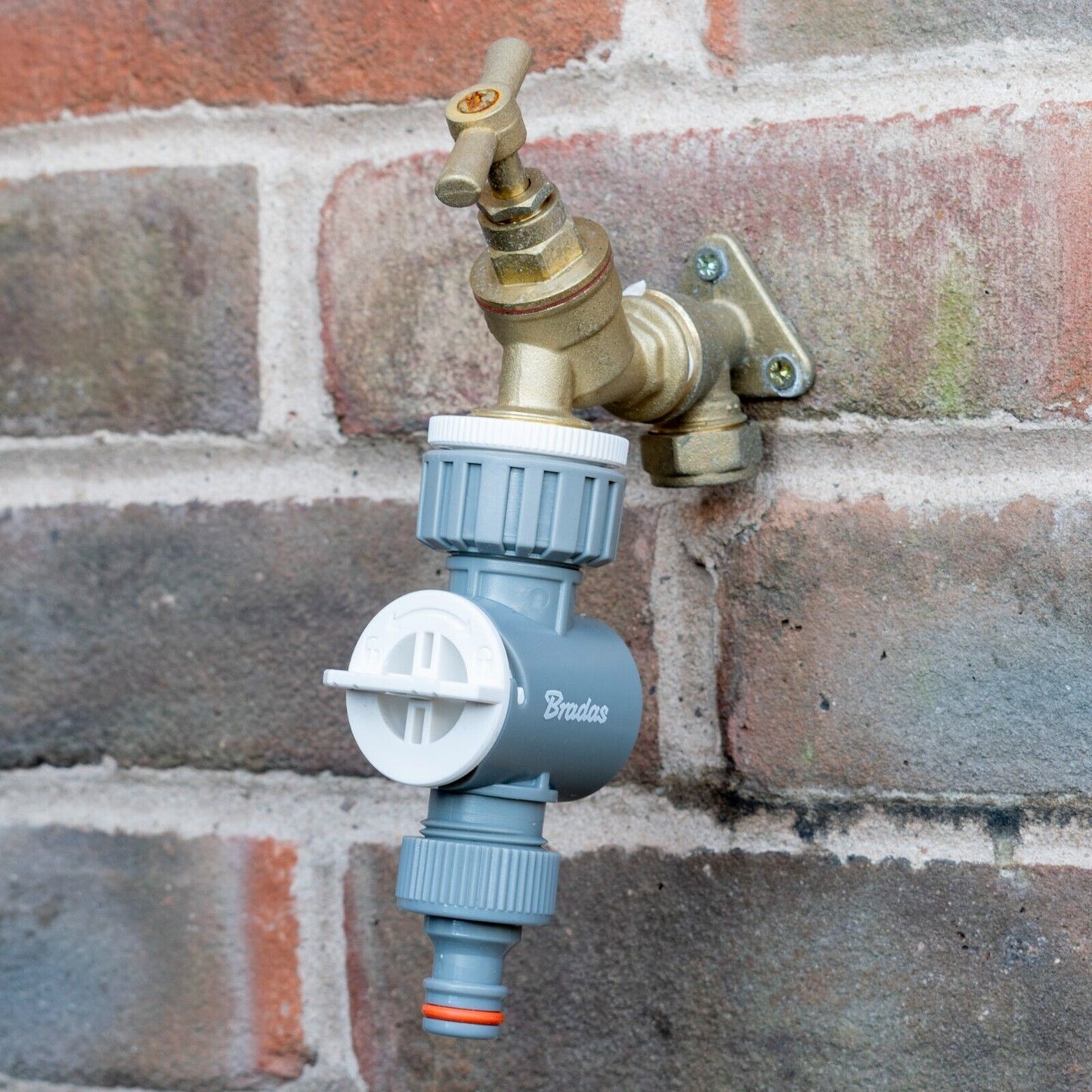

At the tap
The inlet has a 1-inch BSP female thread and a reducing insert for a ¾-inch BSP male tap. Use the configuration that matches your tap. BSP is a nominal thread size, not the measurement across the hose.
At the hose
The lower outlet is a male garden quick connector. It needs a matching female hose-end fitting. If your hose already has a compatible fitting, an additional connector is not needed.
Around the filter
Leave room to remove the cartridge for cleaning. Route the hose without pulling sideways on the plastic body, and keep the tap and filter accessible for inspection.
A filter you can open and rinse

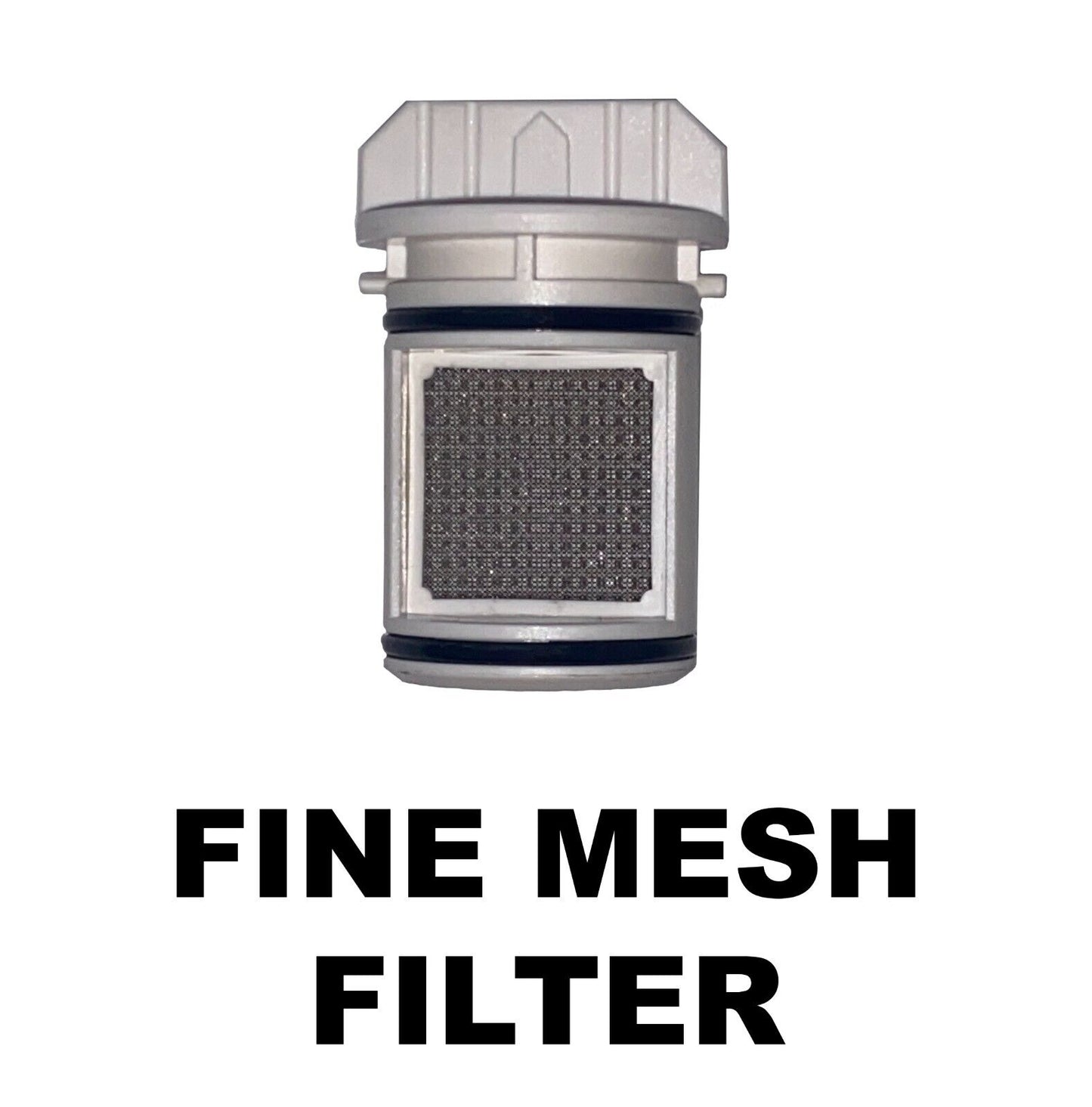

The mesh cartridge collects debris as water passes through the filter. Keeping it clean is part of normal use: a loaded element can restrict the water reaching your hose.
- Isolate the supply. Turn off the tap and release pressure in the connected hose before opening the housing.
- Remove collected debris. Take out the cartridge and rinse the mesh. Check the element and sealing rings before refitting.
- Reassemble and check. Seat the cartridge and seals correctly, close the housing without forcing the plastic parts, then turn the water on gradually and inspect the joints.
Cleaning frequency depends on the water supply and use. Inspect the element when the flow changes, rather than assuming a fixed cleaning interval.
Connecting a bare hose?
The filter provides the male quick-connect end.
A compatible female hose-end connector fits between that outlet and the hose. The optional connector shown in Frequently bought together is for a ½-inch hose; choose a different suitable hose-side size if your hose requires it.
The filter's BSP inlet sizes do not determine the hose diameter. You can keep using an existing compatible female connector rather than buying another.
Questions about this tap filter
Do I choose a 1-inch or ¾-inch version?
No separate size selection is needed on this listing. One filter has a 1-inch BSP female inlet and a reducer for a ¾-inch BSP male tap. Check your tap's thread and use the appropriate inlet configuration. The hose connection at the bottom remains the same male garden click-lock profile.
Does the filter include a hose connector?
It includes the male quick-connect outlet fitted to the filter. The female connector that attaches to your hose is separate, as are the hose and tap. If your hose already has a matching female garden quick connector, you can use that fitting.
Why might the water flow become slower?
Collected debris can restrict the mesh. Turn off the tap and release pressure before inspecting and rinsing the element. Also check the supply and hose for other restrictions. Do not open the cartridge housing while it is pressurised or try to compensate by forcing plastic joints tighter.
What size particles does the mesh filter remove?
This is a fine-mesh filter for garden watering systems. A numerical micron rating is not specified. Do not assume a particular filtration grade for equipment that requires one. Check that equipment's filtration requirement before selecting a filter for it.
Product information & technical details
| SKU | FILTER-WL-2190-001 |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | Grey, White |
| Material | Plastic |
| Model | Bradas WHITE LINE WL-2190 |
|---|---|
| Inlet configuration | 1-inch BSP female thread with reducer for a ¾-inch BSP male tap outlet |
| Hose outlet | Male standard garden click-lock quick connector |
| Filter element | Removable mesh cartridge; rinse to remove collected debris |
| Supplied contents | One tap filter with inlet reducer and quick-connect outlet; hose and female hose connector not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
