Description
Four lines. One tap.

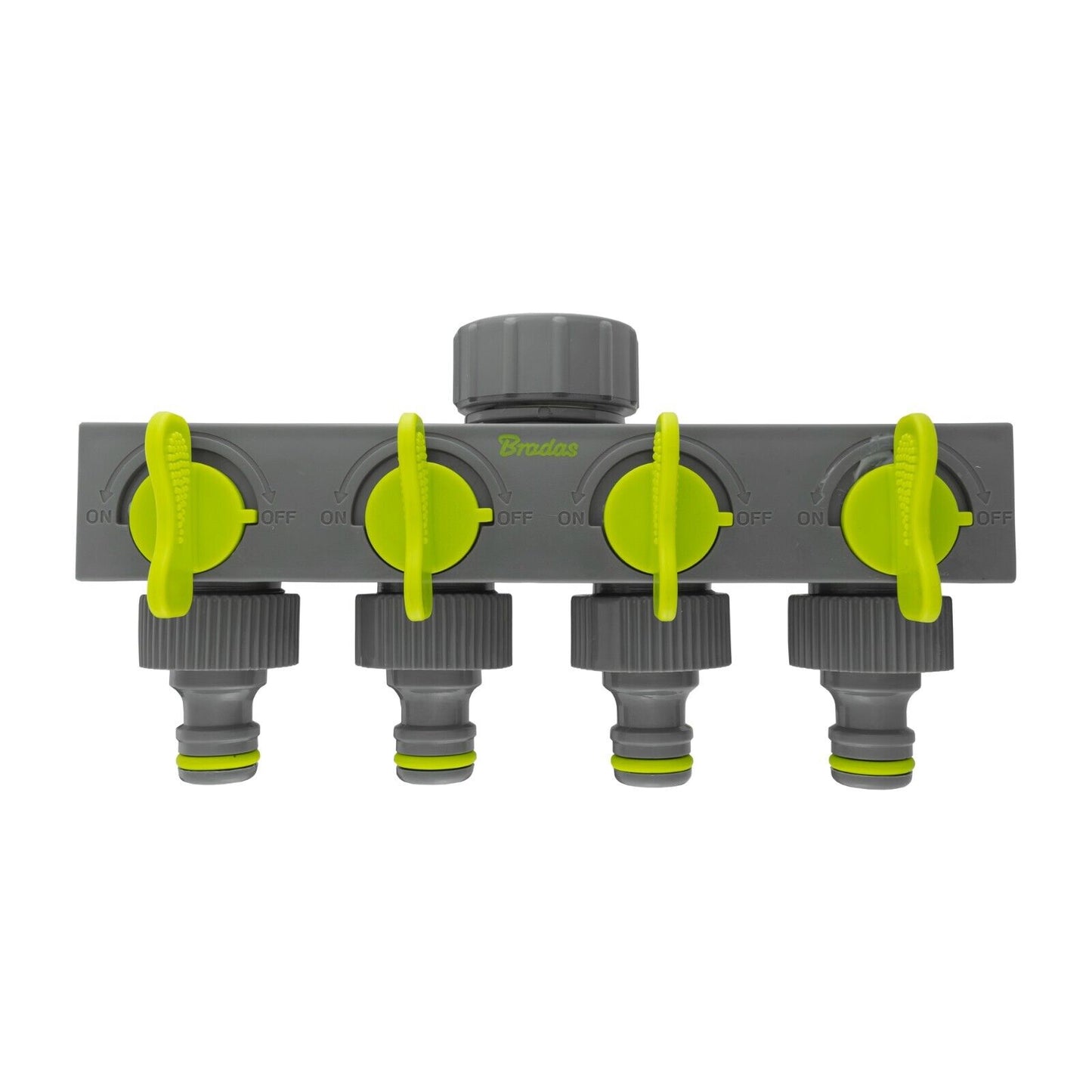

A hose for the borders, one for the lawn and another for washing down can stay ready at the same connection point. This grey and lime four-way tap splitter gives each branch its own manual control, reducing the need to swap hoses at the tap.
Four fitted male garden quick-connect plugs point downwards beneath the controls. Add suitable female hose sockets, leave the lines connected and select the ones you need.
One splitter supplied with inlet fittings, four valves and four male plugs. Tap, hoses, female sockets and other adapters are separate.
Connect at the garden plugs
The two centre outlets in the illustration have separate female hose sockets fitted over their male plugs. Each socket grips its hose with a compression nut. The outer plugs are left visible to show the supplied connection: bare hose does not fit directly onto them.
Choose sockets for the internal diameter of each hose. The optional lime connector above fits ½-inch garden hose and is sold singly. You need one suitable socket per hose, so four such lines need four sockets.
The fitted plugs can be unscrewed from the branch threads when using suitable alternative adapters. This listing supplies the garden-plug configuration; micro-irrigation and hosetail adapters shown in other kits are separate.
All open branches share one water supply. Test the intended tools together and use fewer lines if flow is insufficient. Four valves provide selection and manual flow adjustment, not four times the water or independent pressure regulation.
Set up your watering point
Start at the tap
Turn off the water and match the inlet configuration to your 1-inch or ¾-inch BSP male tap thread. Check the seal and start the connection squarely by hand without forcing it.
Attach the hose sockets
Fit suitable female sockets to your hoses and engage them fully on the plugs. Leave enough slack to avoid pulling on the splitter. Close branches that are not in use.
Test your chosen lines
Open the tap gradually, inspect the joints and operate each control. Check flow at the tools you plan to use together. Turn off the main tap after use, release pressure before disconnecting and drain exposed fittings before freezing weather.
Plan the connections
Are all four hose-end sockets included?
No. Four male garden plugs are fitted to the splitter. Female sockets, hoses, tap and other adapters are separate; choose a suitable socket for every hose you connect.
Can unused outlets stay closed?
Yes. Each branch has an individual lime control, so you can select one or several lines while the others remain attached and closed. Turn off the main tap after watering.
Will it run four sprinklers at full flow?
That depends on the tap supply and the sprinklers’ requirements. Open outlets share the available water, so try the intended combination and run fewer lines together if needed.
Does the tap thread determine the hose size?
No. The inlet matches the tap’s BSP thread. The female hose socket is selected separately to fit the hose bore and mate with a garden quick-connect plug.
Product information & technical details
| SKU | 4-WAYTAPCON001LIME |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | Green, Grey |
| Material | Plastic |
|---|---|
| Tap inlet | Female connection with 1-inch and ¾-inch BSP configurations |
| Outlet fittings | Four downward male garden quick-connect plugs, removable from the branch threads |
| Controls | Four individual lime manual paddle controls |
| Supplied contents | One plastic splitter with inlet fittings, four valves and four male garden plugs; tap, hoses and female sockets separate |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
