Description
A rotary sprinkler for your garden hose

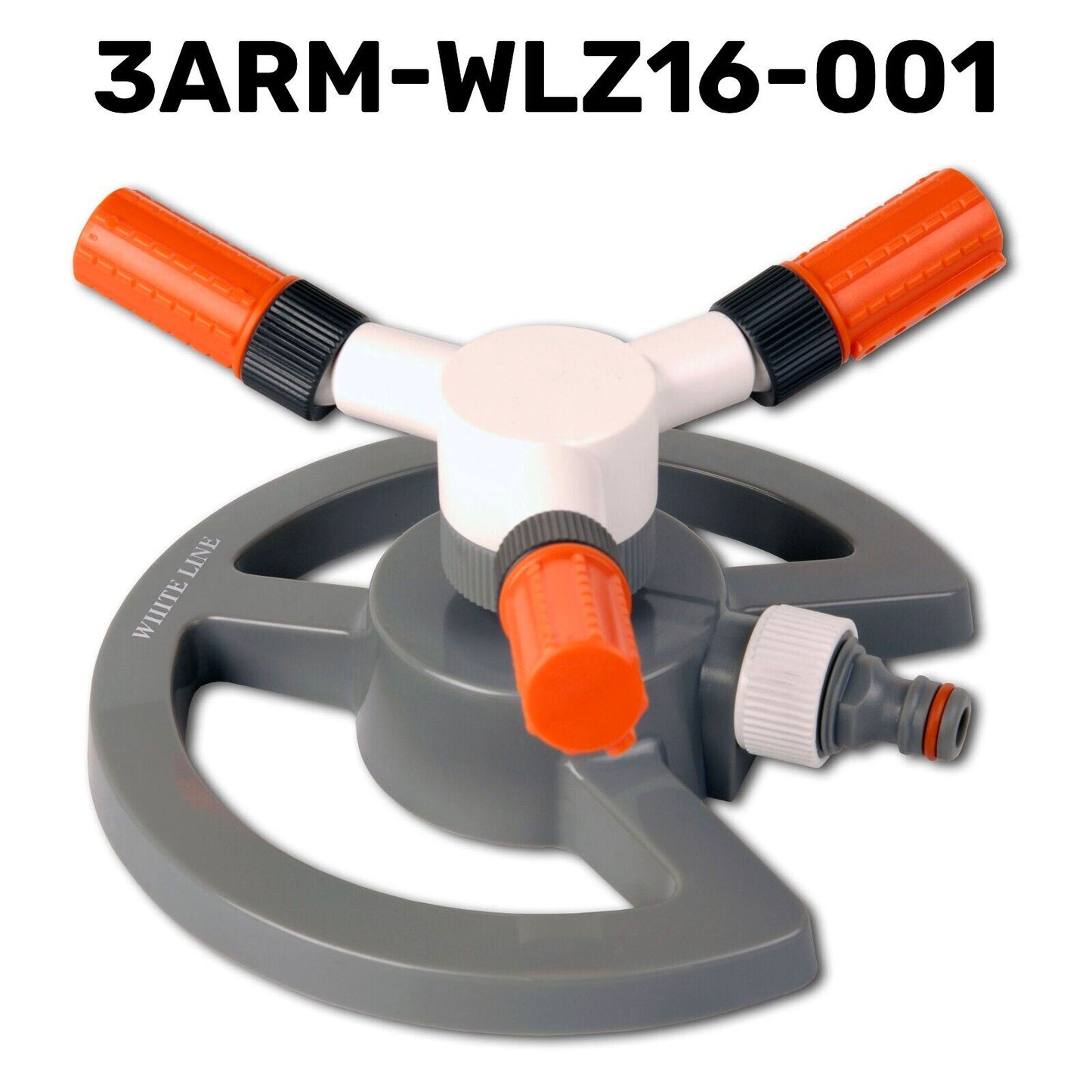

Set the Bradas WHITE LINE WL-Z16 beside your lawn or border and connect your garden hose. Its three-arm head rotates while water flows, with orange nozzle ends that let you adjust the spray angles.
The grey 8-inch plastic base sits on the ground, so you can move the sprinkler between watering positions. Give the arms room to turn and keep the hose from pulling against the inlet.
One sprinkler supplied. Hose, female hose connector, tap fittings and timer are sold separately.
Small adjustments change where the water falls
The orange outlets sit on three white arms above the base. Adjust the arm/nozzle angles with the water off, then open the tap gradually and watch the spray before leaving the sprinkler in position.
The supplied WL-Z16 is marked for up to 85m², with a nominal 10.4m watering diameter. These figures are a reference rather than a fixed footprint: your water supply, hose length and restrictions, settings and wind affect the result.
If a corner stays dry or water reaches a path, stop the supply and reposition the sprinkler or adjust the nozzles. A single position will not necessarily suit the whole garden.
Connect it to your garden hose
The inlet is a male quick fitting, not a hose tail for pushing a bare hose onto.
Check your hose-end fitting
You need a compatible female garden quick-connect socket fitted to the hose. The optional grey connector above is for a ½-inch garden hose; choose a connector matched to your own hose size.
Clip on and check
With the tap off, push the socket onto the male inlet until it engages. Open the supply gradually and check both the coupling and hose joint. The opposite hose end needs its own suitable connection to the tap.
Water, then shut off
The head turns while water flows; it does not measure a watering session or stop the tap for you. Watch the ground and plants, and turn off the supply when enough water has been applied.
Drain it before putting it away
Switch off the tap and release hose pressure before disconnecting.
Drain remaining water from the sprinkler and keep the nozzle openings free of visible debris. Store it somewhere protected from frost. Before the next use, check the hose-end coupling and inlet seal, then start the supply gradually.
Questions about the standalone WL-Z16
Does this include the hose connector?
No. This listing supplies one Bradas WL-Z16 sprinkler. It has a male garden quick-connect inlet, but the female connector that attaches to your hose is separate. If you already have a compatible hose-end socket, you can use it.
Will it water a 10.4m circle on every supply?
No. The 10.4m diameter and 85m² maximum area are the reference figures marked on the supplied model. Pressure and flow at the sprinkler, hose restrictions, nozzle settings and wind can reduce or change the footprint. Check the actual spray in position.
Can I change the spray direction?
The arm/nozzle angles are adjustable. Turn off the supply before changing them, then restart gradually and check where the water falls. This is a rotary sprinkler; it is not a programmable rectangular or oscillating sprinkler.
Does it switch itself off?
No timer or automatic shut-off is included. Water flow rotates the head, but you still control the watering at the tap or through a separately fitted compatible timer.
Product information & technical details
| SKU | 3ARM-WLZ16-001 |
|---|---|
| Product type | |
| Colour | Grey, White, Orange |
| Material | Plastic |
| Brand and range | Bradas WHITE LINE |
| Model | WL-Z16 |
| Sprinkler type | Three-arm rotary ground sprinkler |
| Base | 8-inch plastic ground base |
|---|---|
| Adjustment | Adjustable arm/nozzle angles |
| Maximum coverage | Up to 85m²; varies with supply and conditions |
| Nominal watering diameter | 10.4m; varies with supply and conditions |
| Inlet | Male garden quick-connect |
| Supplied quantity | One sprinkler |
| Hose and female connector included | No |
