Description
Connect your hose
A garden hose is easier to put away when you can disconnect it without undoing the tap fitting. This grey WHITE LINE tap adapter provides the tap-side plug for that connection.
Its fixed 1-inch BSP female inlet screws onto a matching male tap outlet. The narrow male garden plug then accepts a separate compatible female hose socket. Leave the adapter on the tap and release the hose using the socket’s collar.
One grey adapter supplied. Tap, hose and female hose connector are separate.
Choose the inlet for your tap

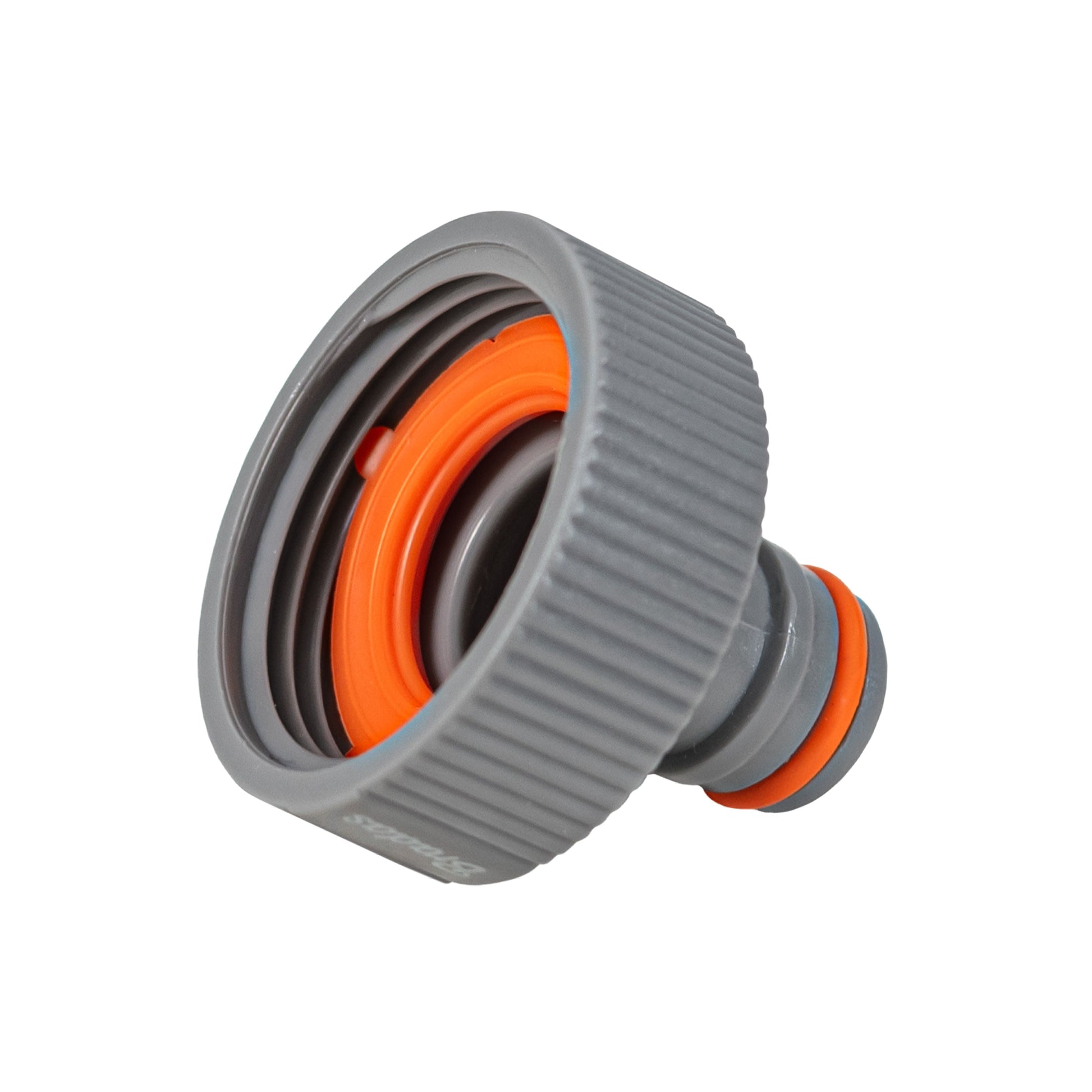

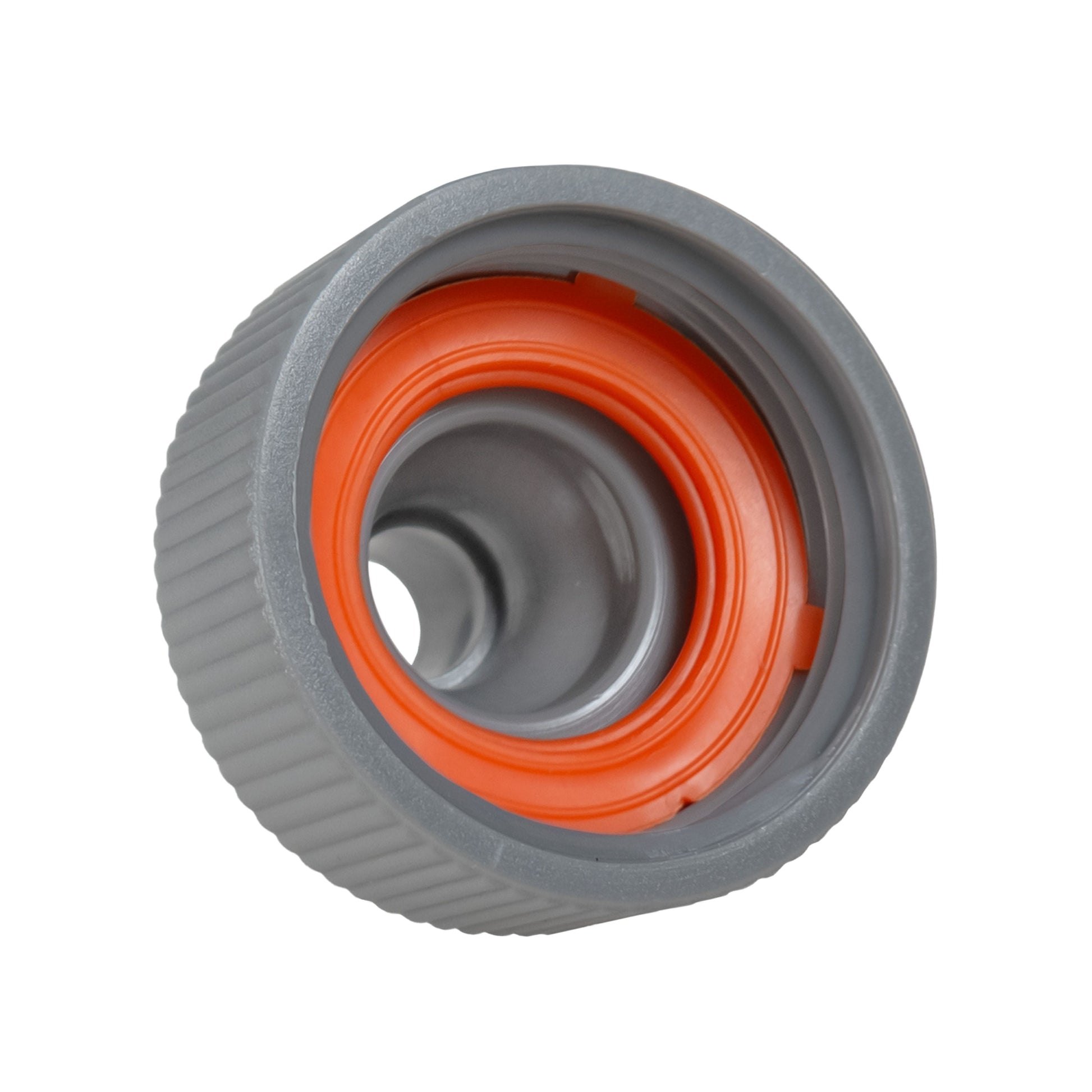

The real product close-up shows the female thread and orange washer inside the broad cup. This is one fixed 1-inch BSP inlet. There is no reducing insert or smaller thread setting.

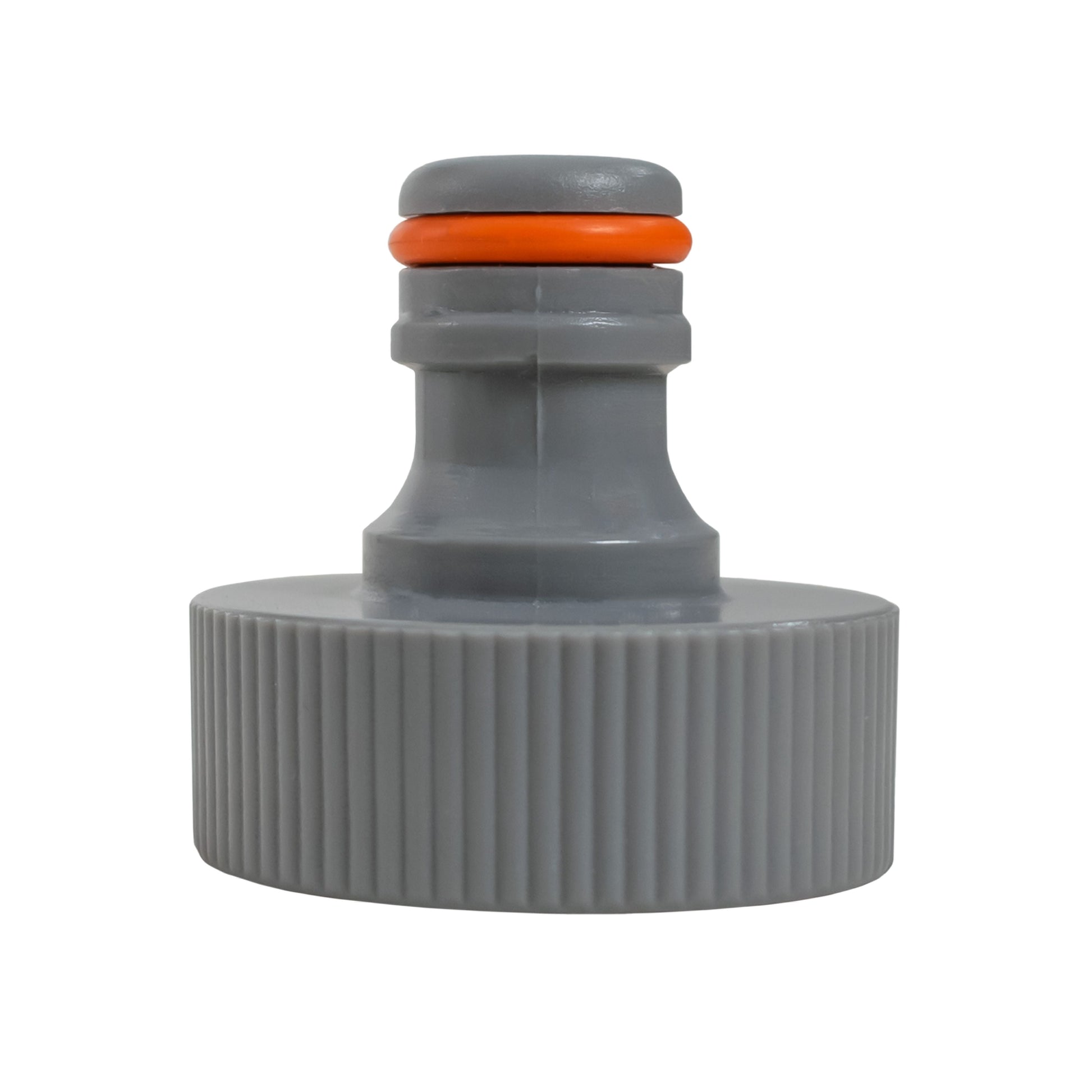

The other end is a garden quick-connect plug. It fits inside a compatible female hose socket; it does not clamp onto bare hose. Choose the socket for your hose diameter and check it accepts this plug profile.
The optional WHITE LINE connector above is for ½-inch hose. That hose size describes a different connection from the adapter’s BSP tap thread.
Connect at the tap, release at the hose
Check the threaded outlet
Close the tap and check for a matching 1-inch BSP male outlet. Inspect the inlet washer and threads for damage or dirt.
Use the ribbed grip
Start the adapter straight and tighten carefully. Stop if it does not engage cleanly; do not force the thread or overtighten the plastic.
Seat the hose connector
Push the separate female socket fully onto the plug. Open the tap gradually and check both joints. Close the tap before releasing the hose.
Before choosing your adapter
Does this fit a ¾-inch BSP tap?
No. It has a fixed 1-inch BSP female inlet with no reducer. Choose a suitable adapter for a ¾-inch BSP male tap outlet.
Is the female hose connector included?
No. One grey tap adapter is supplied. The hose needs a separate compatible female garden socket that fits its diameter.
Does the ribbed cup release the hose?
No. The cup is a grip for fitting the threaded inlet. The release collar is on the separate female hose connector.
Will water stop when the hose is removed?
No. This adapter has no shut-off valve. Turn off the tap and release pressure before disconnecting the hose socket.
Product information & technical details
| SKU | TAPCON1BSPF001WL |
|---|---|
| Product type | |

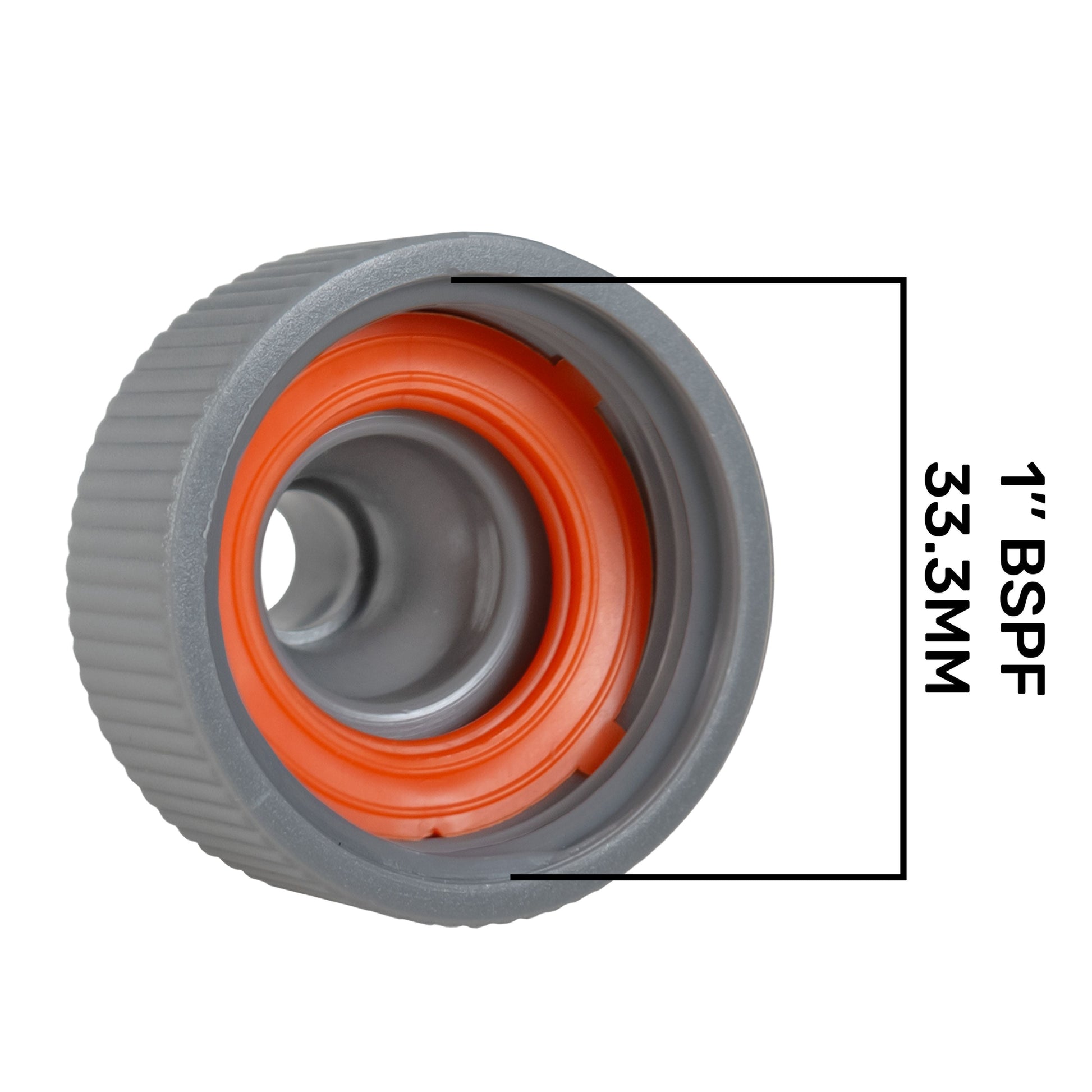

| BSP thread size | 1" |
| Thread gender | Female |
| Colour | Grey |
| Material | Plastic |
|---|---|
| Inlet configuration | Fixed 1-inch BSP female; no reducer |
| Outlet connection | Male garden quick-connect plug |
| Supplied quantity | One grey tap adapter |
| Hose attachment | Separate compatible female garden socket required |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
