Description
Leave it on the tap

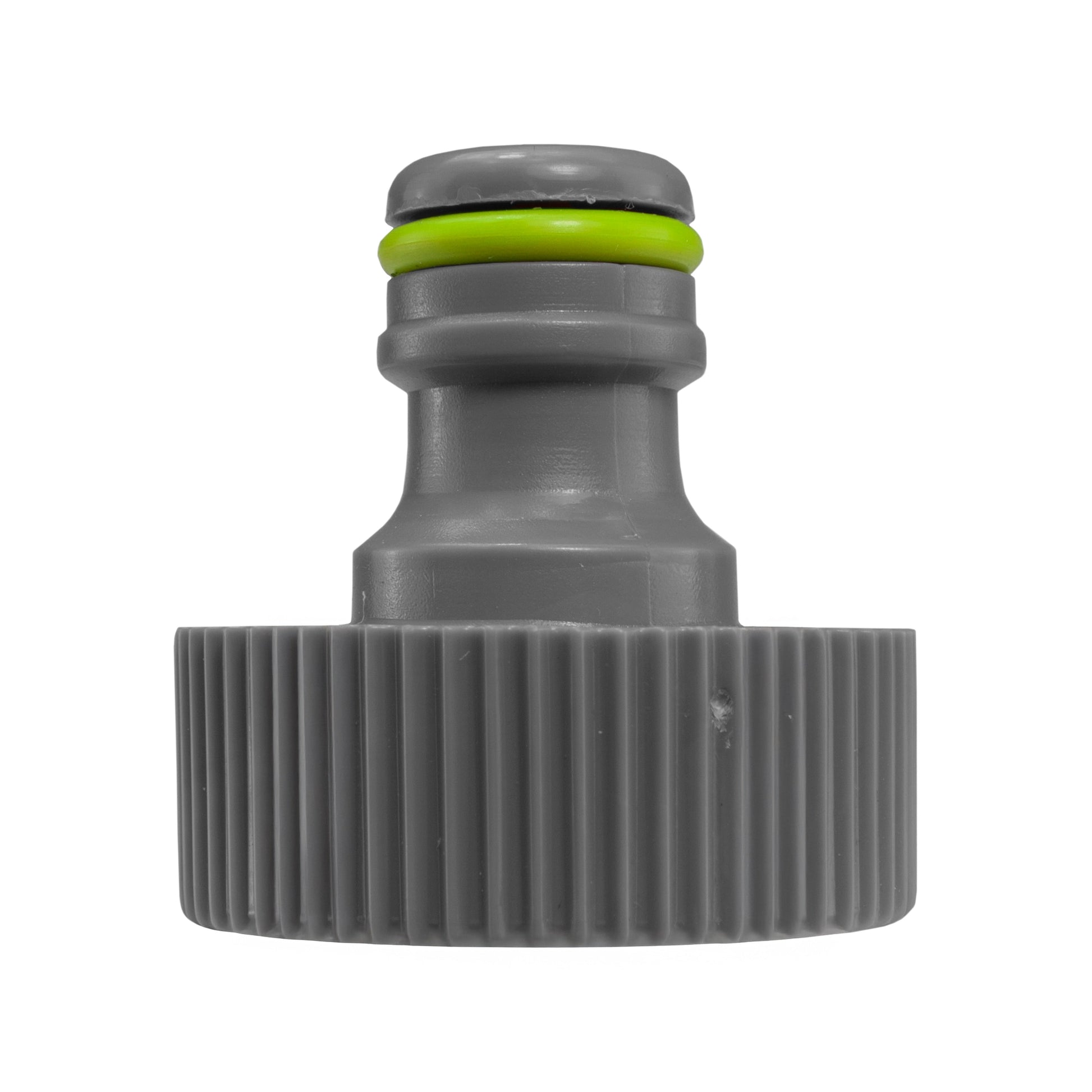

Put the hose away without unscrewing its tap adapter. This Bradas LIME LINE connector gives a matching threaded tap a male garden quick-connect plug, ready for a separate hose-side socket.
The fixed 1-inch BSP female inlet fits a matching male tap outlet. Its ribbed grey body and lime plug seal are easy to recognise alongside the rest of your LIME LINE fittings.
One adapter supplied. Tap, hose and female connector are not included.
Check both ends of the connection
The close-up shows the female thread and lime washer inside the inlet. There is no reducing insert: this version is for a 1-inch BSP male outlet, rather than a ¾-inch or ½-inch BSP tap.
At the other end, the male garden plug enters a compatible female quick-connect socket. The plug is not a hosetail, so bare hose cannot be clamped onto it.
Choose that separate socket to suit your hose. The optional LIME LINE connector above is for ½-inch hose; this is independent of the tap adapter’s BSP inlet size. Release the hose at the socket’s collar, leaving the threaded adapter fitted.
Fit the tap end first
Match the thread
Close the tap and check its male outlet matches the fixed 1-inch BSP female inlet. Inspect the inlet washer and threads before fitting.
Start straight
Use the ribbed grip to fit the adapter squarely. Avoid cross-threading or overtightening the plastic; stop if it does not engage cleanly.
Connect the socket
Seat the separate female hose connector fully on the plug. Open the tap gradually and check the joints before watering.
Choosing your LIME LINE adapter
Is a smaller thread reducer included?
No. This is a fixed 1-inch BSP female adapter. Select a suitable different fitting for a smaller BSP tap outlet.
Does it fit a female threaded tap outlet?
No. The adapter’s inlet is female and needs a matching 1-inch BSP male outlet on the tap.
Is the hose-side socket included?
No. One tap adapter is supplied. Add a compatible female garden connector that fits your hose and accepts this male plug.
Does the fitting shut off the water?
No. It has no shut-off valve. Close the tap and release pressure before removing the hose at its female socket.
Product information & technical details
| SKU | TAPCON1BSPF001LIME |
|---|---|
| Product type | |
| BSP thread size | 1" |
| Thread gender | Female |
| Colour | Green, Grey |
| Material | Plastic |
|---|---|
| Inlet configuration | Fixed 1-inch BSP female; no reducer |
| Outlet connection | Male garden quick-connect plug |
| Supplied quantity | One LIME LINE tap adapter |
| Hose attachment | Separate compatible female garden socket required |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
