Description
A quick connection at the tap

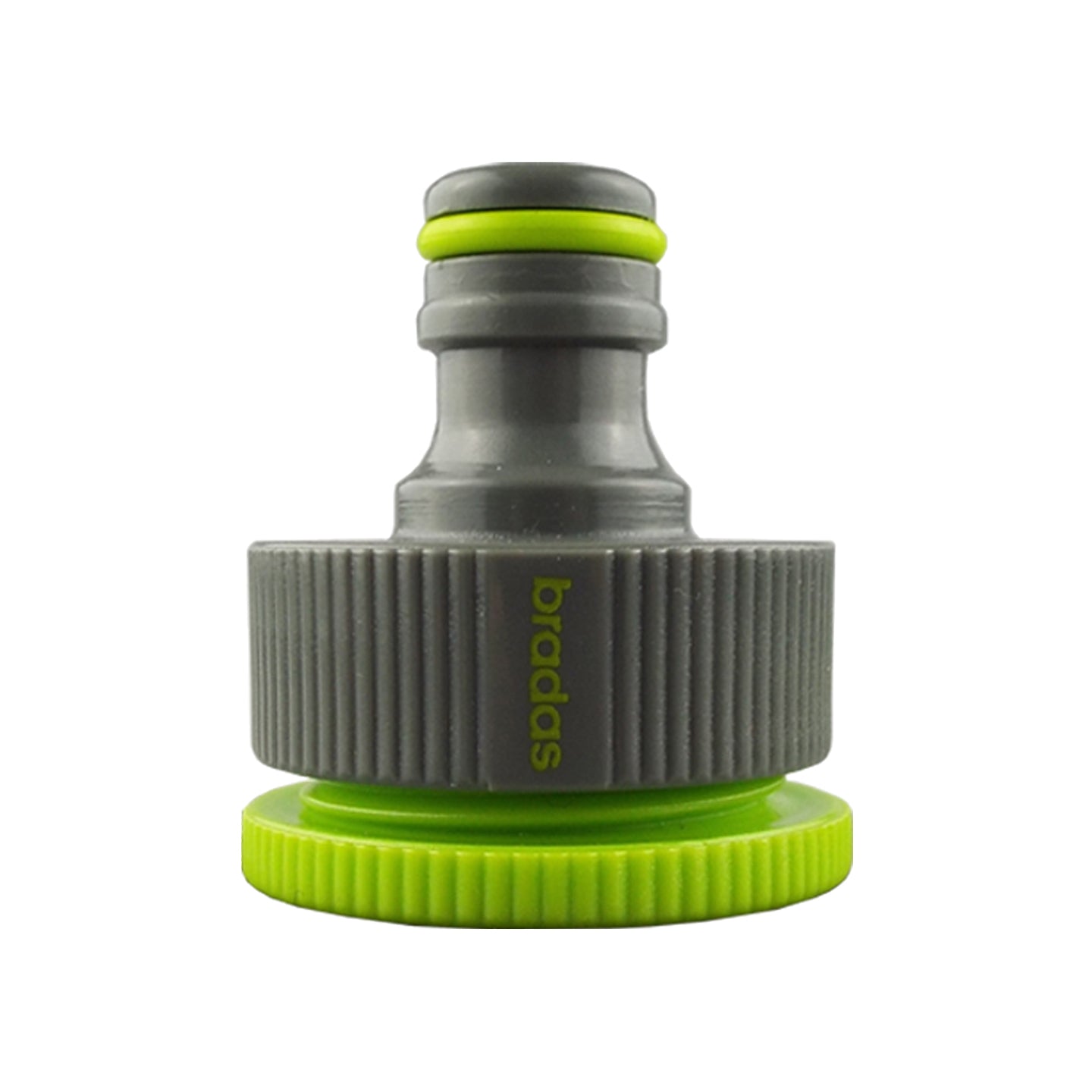

Leave the threaded fitting on the tap and connect your hose when it is needed. This Bradas LIME LINE tap adapter combines a grey plastic body, lime reducer and male garden quick-connect plug.

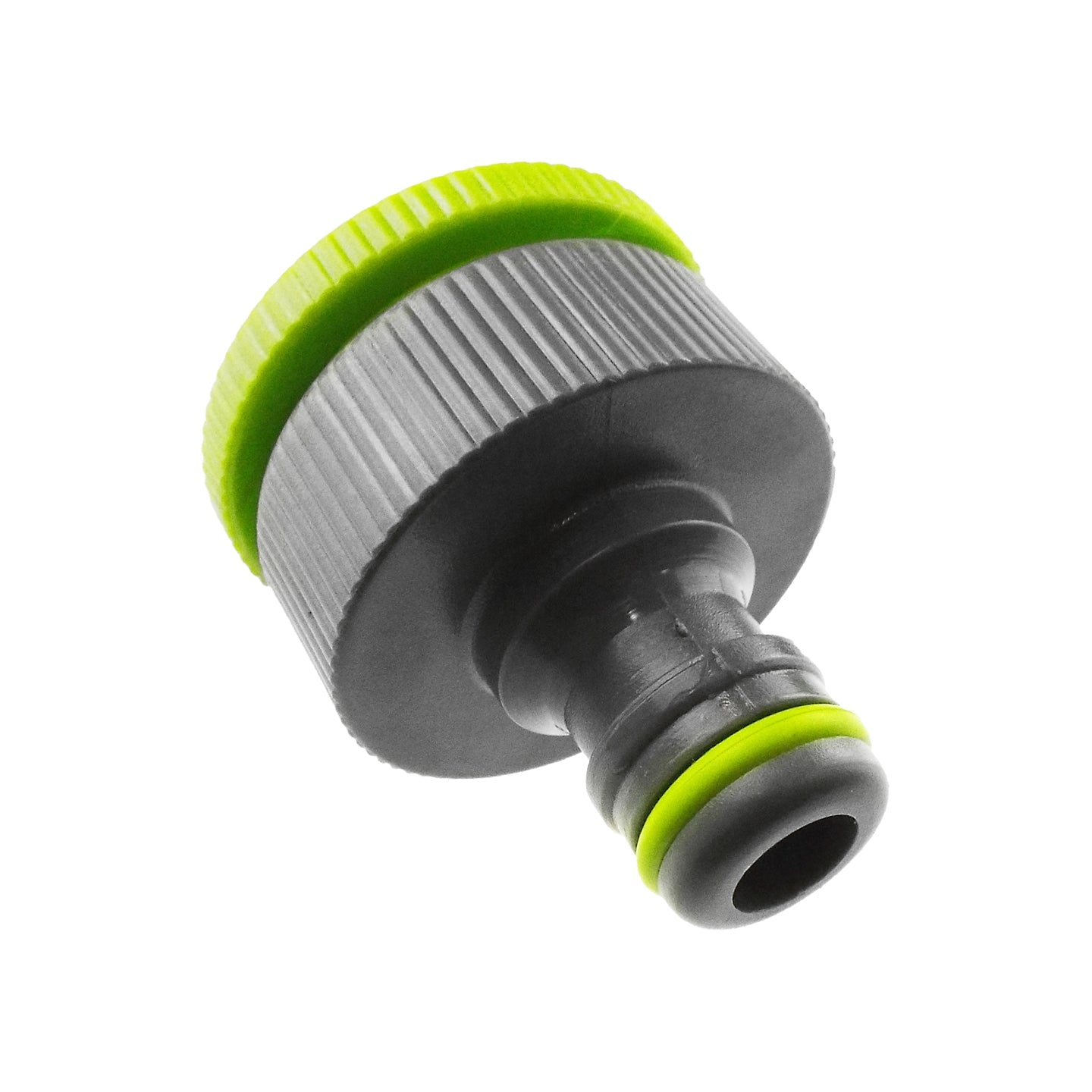

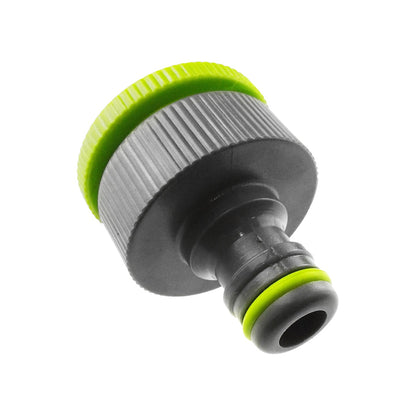

Fit it to a matching ¾-inch BSP male outlet with the reducer in place, or remove the insert for a 1-inch BSP male outlet. The exposed plug in the illustration is where a separate compatible female hose socket attaches.
One adapter and one reducer supplied. Tap, hose and female connector are separate.
Match the tap thread, then choose the hose socket

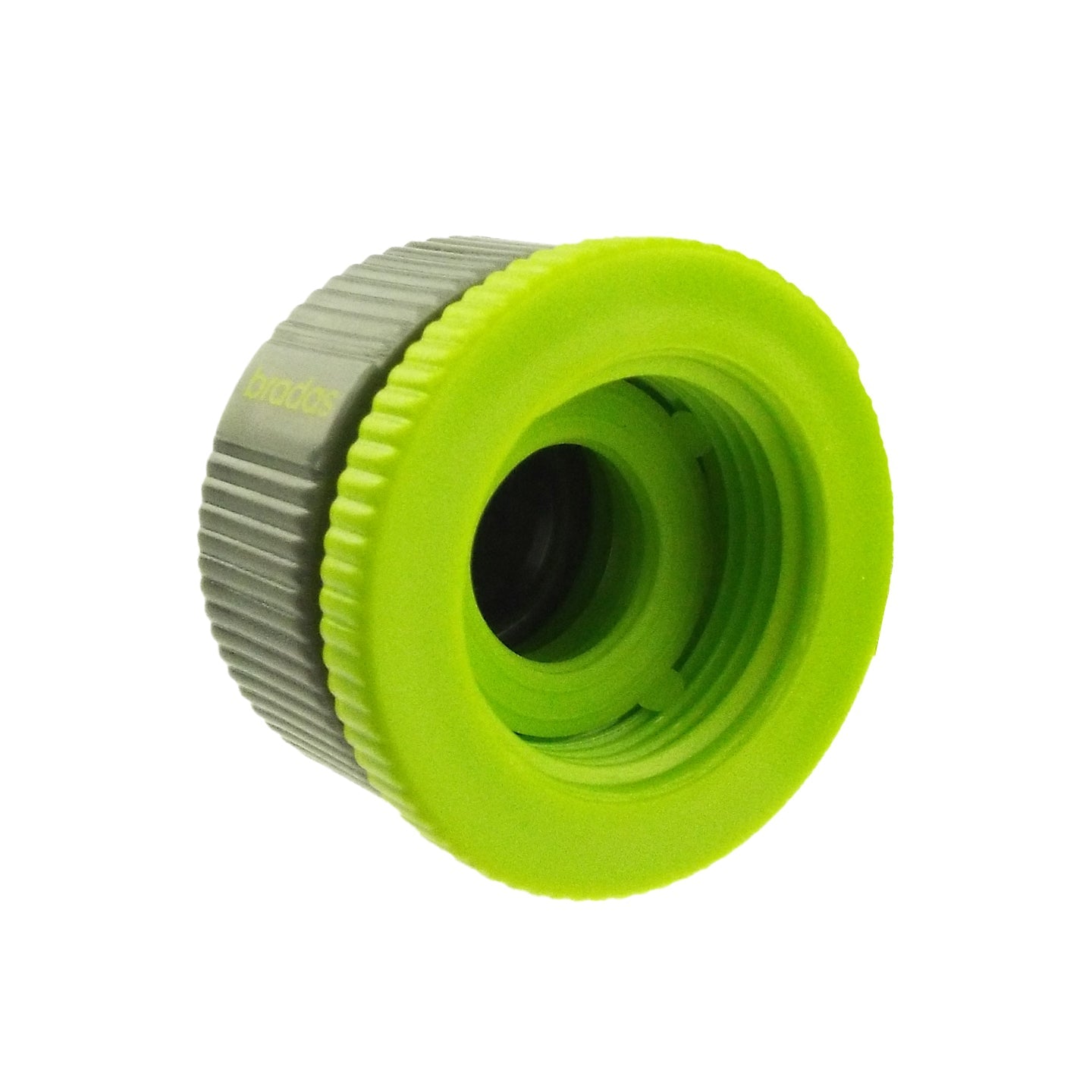

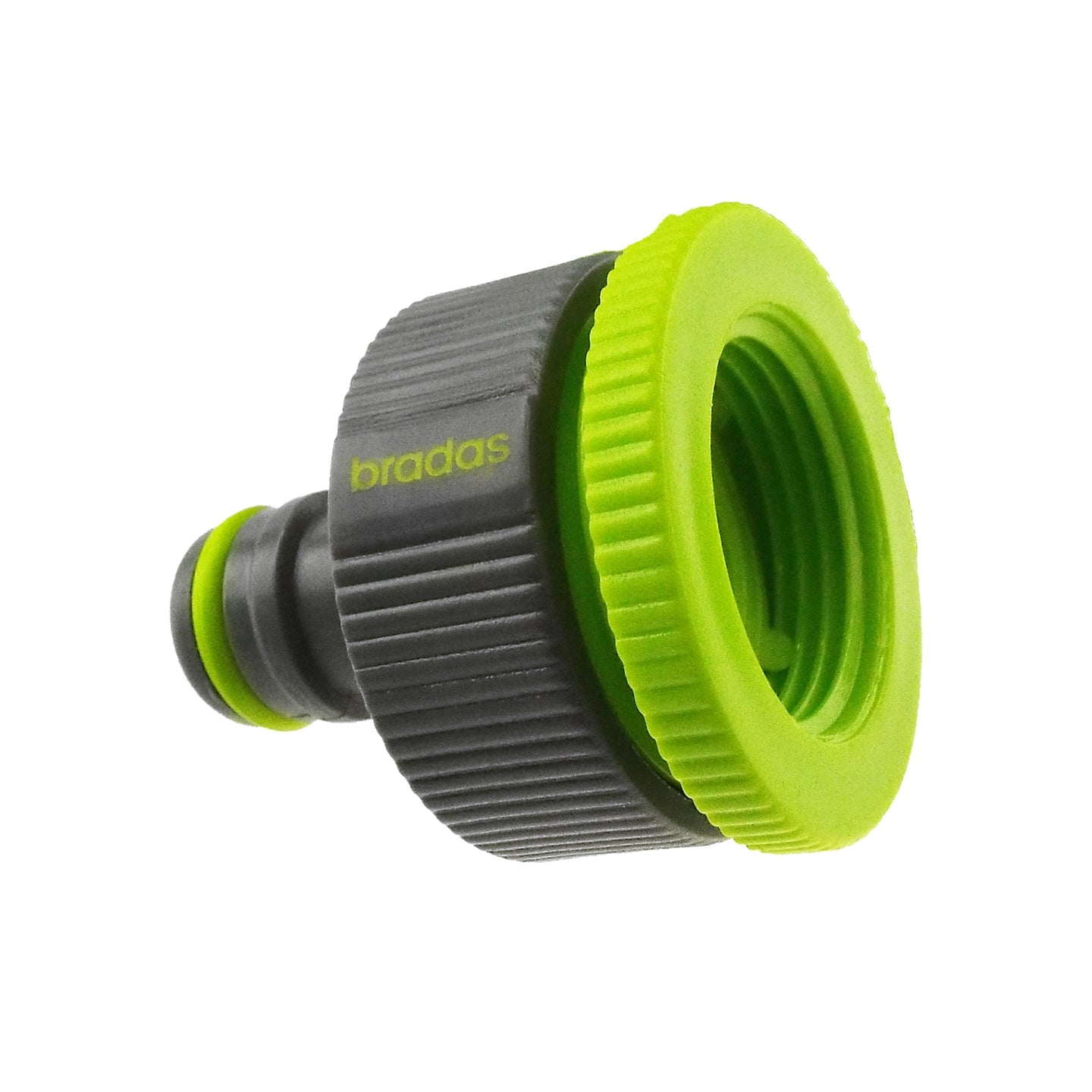

The close-up shows the female threaded inlet inside the lime insert. That insert reduces the grey body’s inlet from 1-inch to ¾-inch BSP female. Both configurations use the same male garden plug at the other end.
Your hose needs a separate female garden connector that suits its diameter and accepts this plug profile. The optional LIME LINE socket above is for ½-inch hose; that hose size is independent of the adapter’s BSP tap thread.
The lime ring at the plug is its seal. It sits inside the female socket when connected; the release collar belongs to that separate socket.
Fit the adapter before attaching the hose
Match the inlet
Turn off the tap. Check its male BSP outlet and select the matching inlet configuration. Inspect the inlet seal before fitting.
Start straight
Hold the ribbed grip and screw the adapter on squarely. Avoid cross-threading and overtightening the plastic; stop if it does not engage cleanly.
Connect and check
Seat the female hose socket fully on the male plug. Open the tap gradually and check the joints. Turn the supply off before releasing the hose.
Choosing your tap connection
Is the female hose connector included?
No. This item is the tap adapter and one reducer. Add a compatible female garden socket for your hose.
Will it fit a half-inch BSP tap?
No. The supplied female inlet choices are ¾-inch and 1-inch BSP. Use a different suitable adapter for a half-inch BSP male tap outlet.
Can I push bare hose onto the plug?
No. This is a garden quick-connect plug, not a hose barb. It connects inside a compatible female hose socket.
Does removing the hose stop the water?
No. This tap adapter has no shut-off valve. Close the tap before disconnecting the hose at its socket.
Product information & technical details
| SKU | TAPCON1-34BSPF001LIME |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | Green, Grey |
| Material | Plastic |
| Inlet with reducer | ¾-inch BSP female |
|---|---|
| Inlet without reducer | 1-inch BSP female |
| Outlet connection | Male garden quick-connect plug |
| Supplied parts | One LIME LINE adapter and one reducer |
| Hose attachment | Separate compatible female garden socket required |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
