Description
Two outlets, one tap

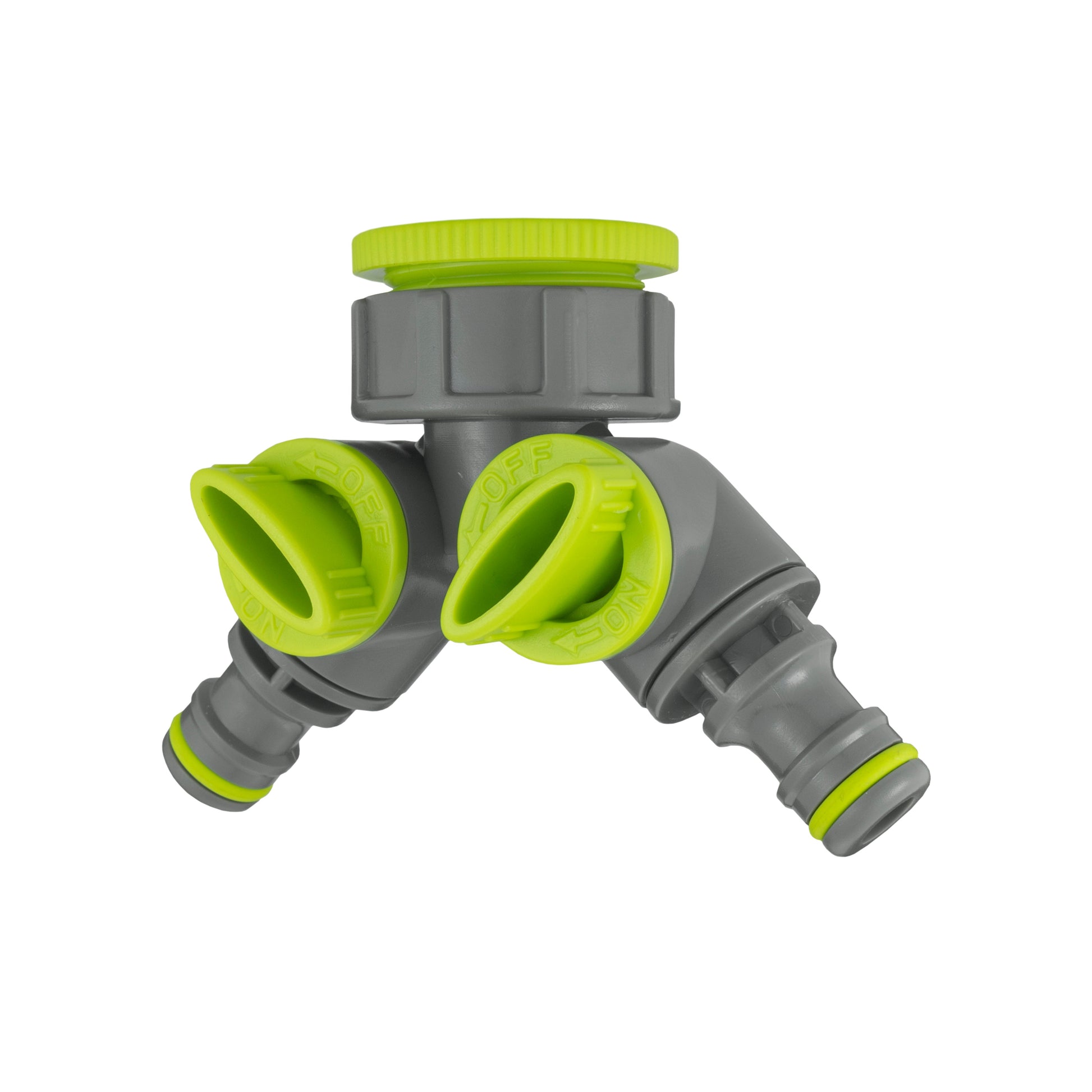

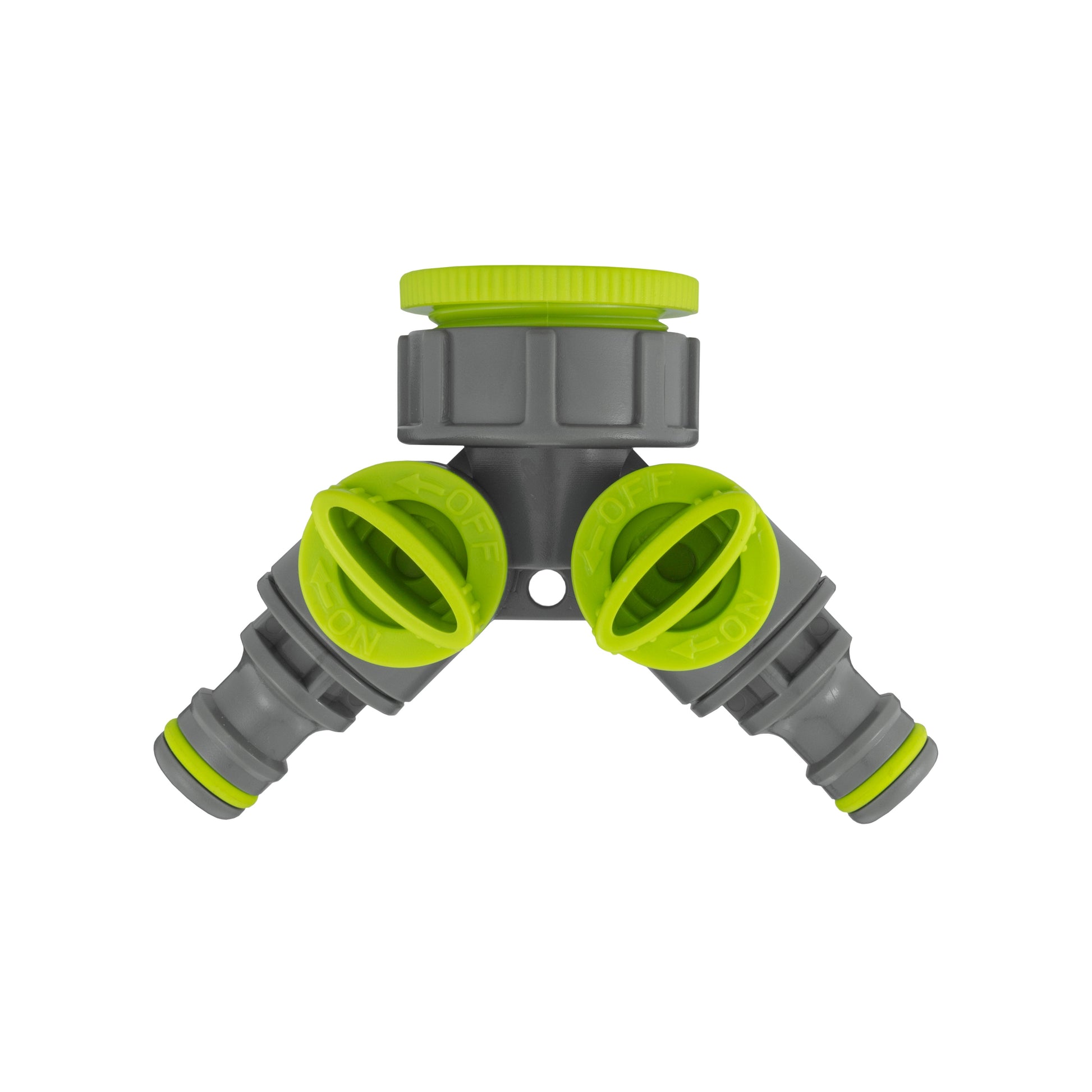

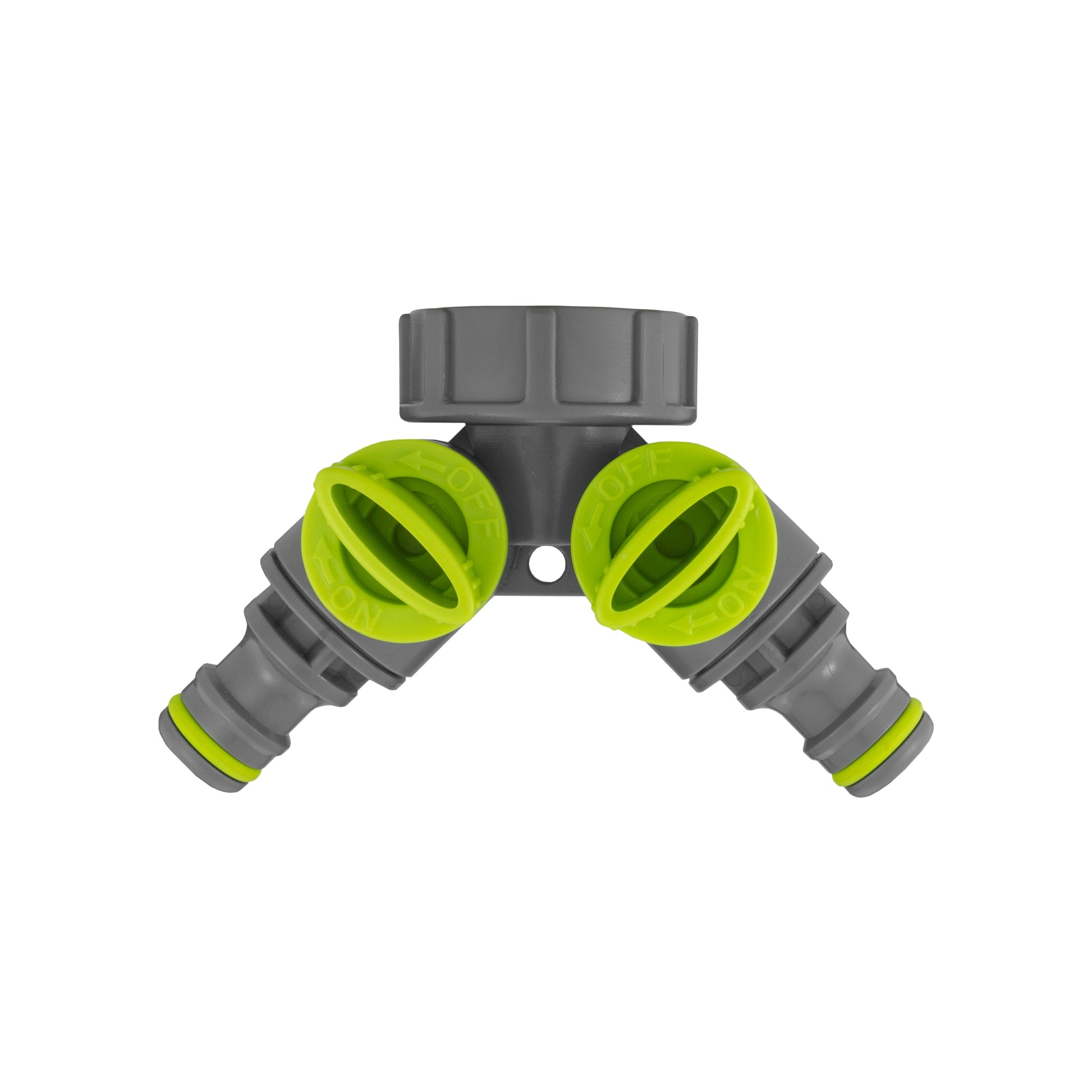

Leave a hose ready for the flowerbeds while keeping a second line available for another watering task. This Bradas lime and grey tap splitter divides one tap connection into two angled garden quick-connect outlets.
The compact Y body has a separate lime valve knob for each branch. Choose the line you need without repeatedly changing the connection at the tap.
One splitter supplied with its inlet connection fittings, two valves and male outlet plugs. Tap, hoses and female sockets are sold separately.
Connect at the hose end
The illustration shows a separate female quick-connect socket attached to one angled male plug. Its release collar engages around the plug, while its hose-gripping nut holds the hose. The other branch is shown without a socket, making the fitted plug easy to recognise.
Choose the female socket for your hose bore. The optional lime connector above is for ½-inch garden hose and is sold singly. Add a suitable socket for each hose you plan to connect; bare hose does not fit directly over these garden plugs.
The tap still provides one shared water supply. If a sprinkler loses reach when another line is opened, close that branch or use the hoses in turn. The valve knobs select and adjust flow; they do not boost or regulate pressure.
Set up both branches
Check the inlet
With the tap turned off, match the female connection to your 1-inch or ¾-inch BSP male tap thread. Check the sealing surfaces and start the connection squarely by hand without forcing a mismatch.
Fit the hose sockets
Attach suitable female sockets to the hose ends and engage them fully on the angled plugs. Allow slack so the hoses do not tug on the splitter, and close any unused branch.
Choose the flow
Open the tap gradually, inspect the connections and test each branch. Turn off the main tap when watering is finished. Release pressure before disconnecting and drain exposed fittings before freezing weather.
Choosing your connections
Are female hose sockets included?
No. This is the single splitter with its inlet fittings, valves and two male garden plugs. The female hose-end sockets, hoses and tap in the illustration are separate.
Does it need two water supplies?
No. It has one tap inlet and two controlled outlets. The 1-inch and ¾-inch BSP references describe alternative tap connection sizes, not two supply inlets.
Can I keep one outlet closed?
Yes. Each branch has its own manual valve, so you can use a single hose while leaving the other connected. Turn off the main tap after use.
Does the BSP size determine my hose size?
No. BSP describes the threaded tap connection. Match the female hose socket to the internal diameter of the hose it will grip, separately from choosing the tap thread.
Product information & technical details
| SKU | TC2-WAY001LIME |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | Green, Grey |
| Material | Plastic |
|---|---|
| Tap inlet | Female BSP connection options for matching 1-inch or ¾-inch male tap threads |
| Hose connections | Two angled male garden quick-connect plugs |
| Outlet controls | Two individually operated lime manual valve knobs |
| Supplied contents | One splitter with inlet connection fittings, two valves and two male plugs; hoses, sockets and tap separate |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
