Description
One tap.
Two watering routines.

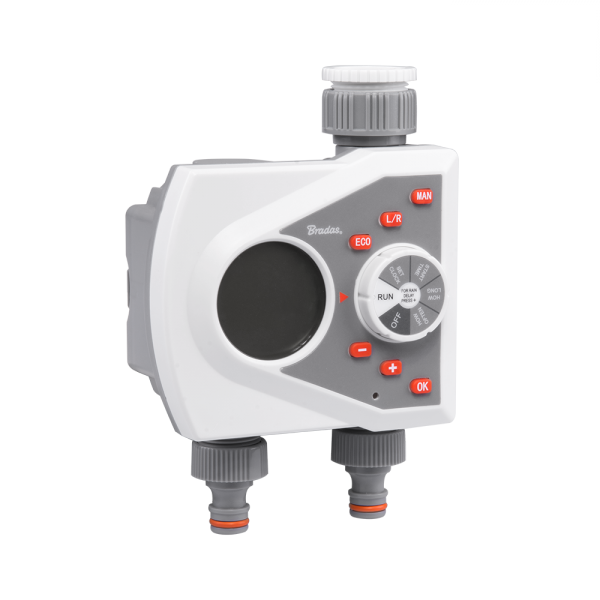

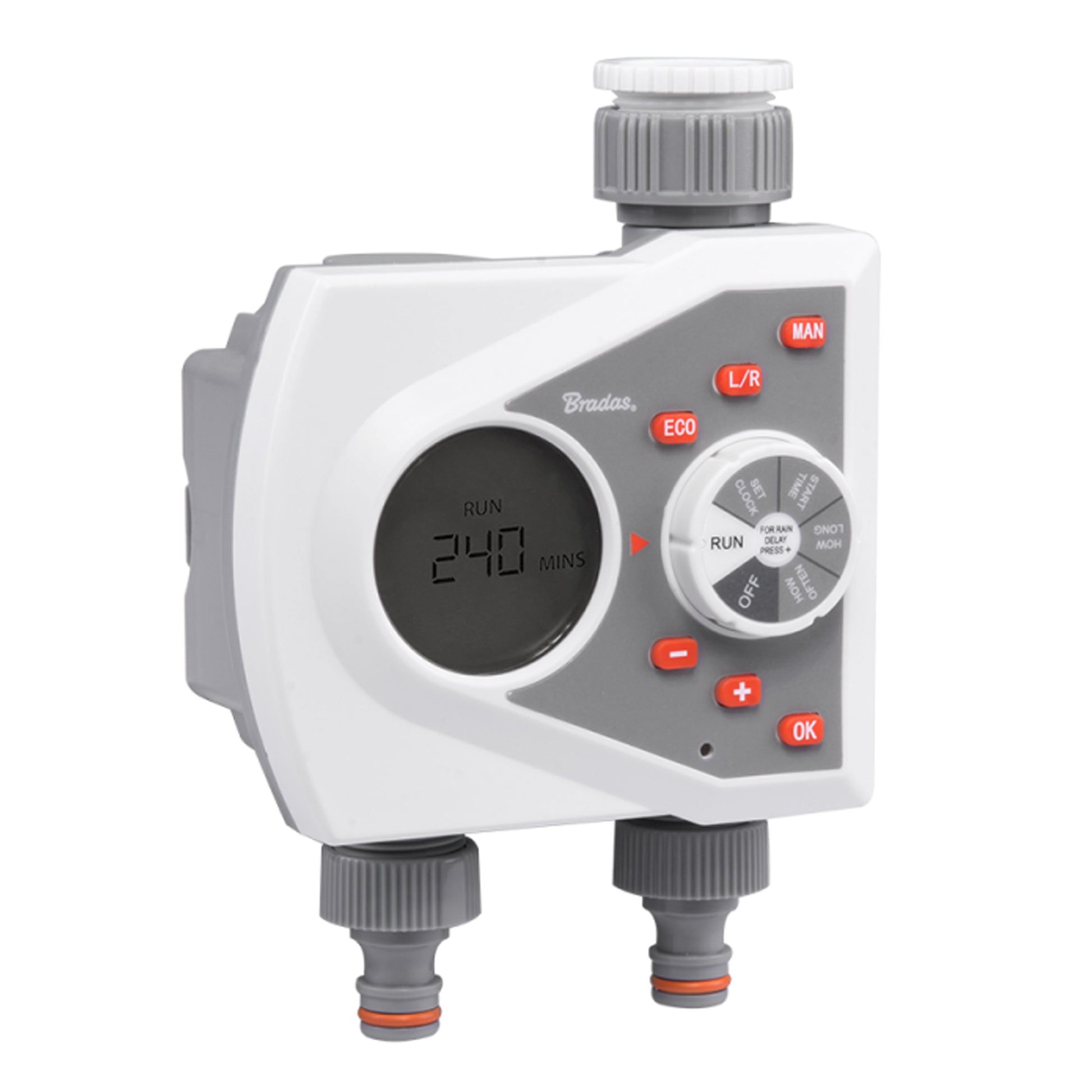

A lawn and a border do not always need the same watering schedule. The Bradas White Line two-outlet timer gives each valve its own start time, duration and frequency, with both hoses connected at one tap.
Use the rotary selector and LCD to build the routine around the areas you water. Set a run from 1 to 240 minutes, switch to manual watering for an extra session, or delay the programme when watering is not needed.

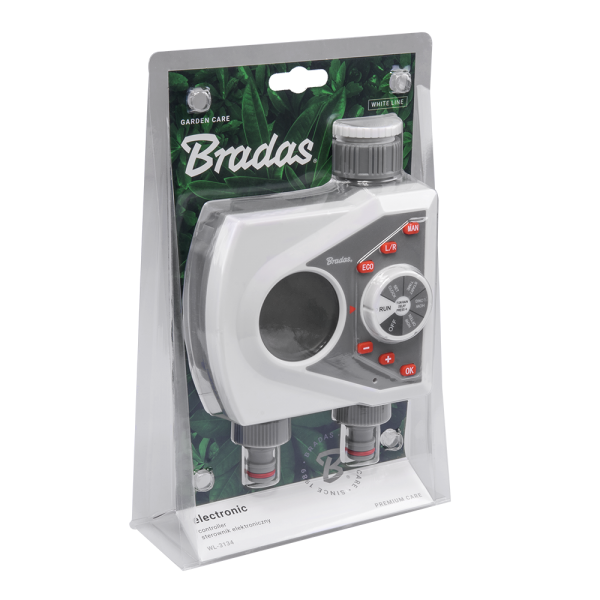

One timer supplied, with tap reducer and two outlet adapters. Batteries, hoses and female hose sockets are separate.
Set each side for its own job

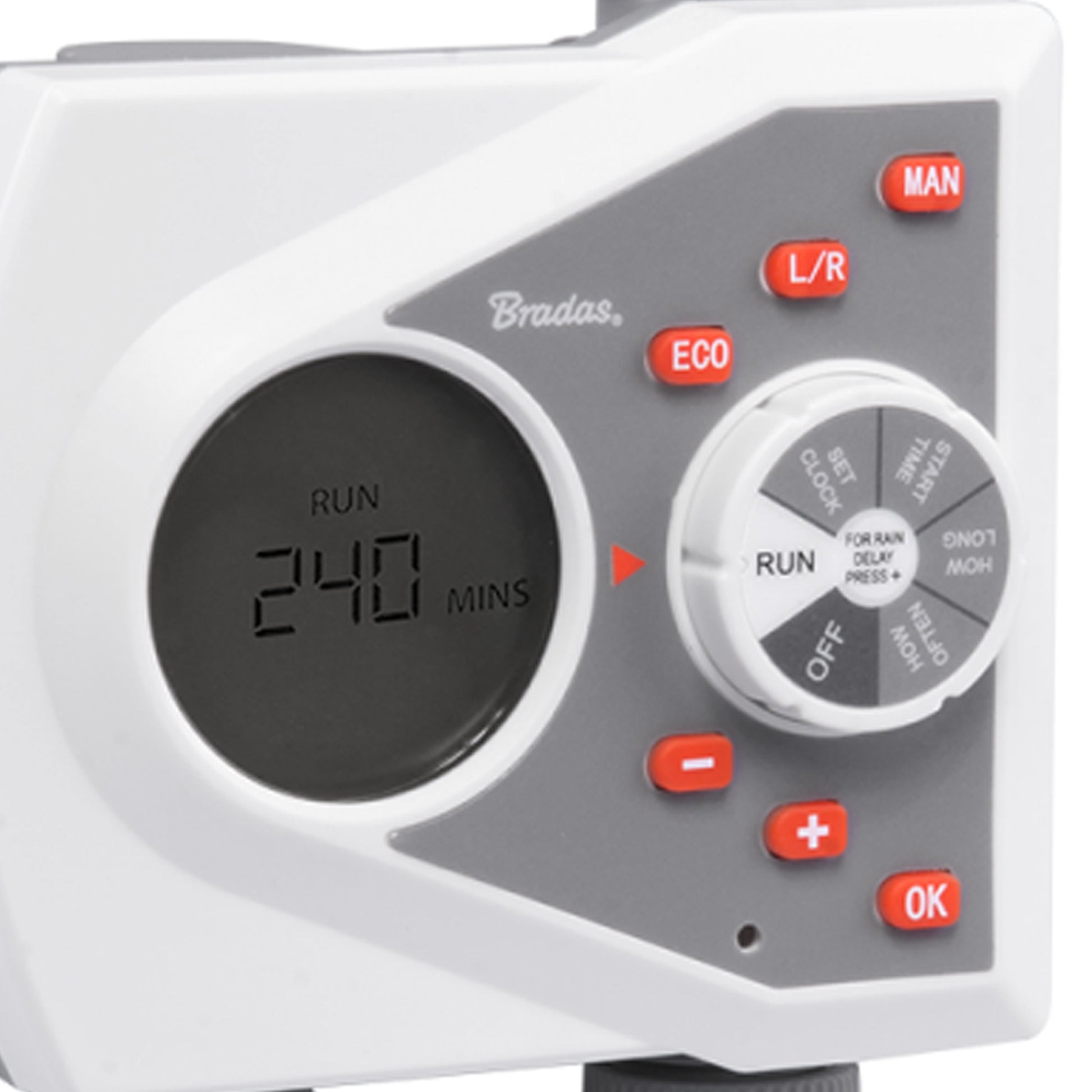

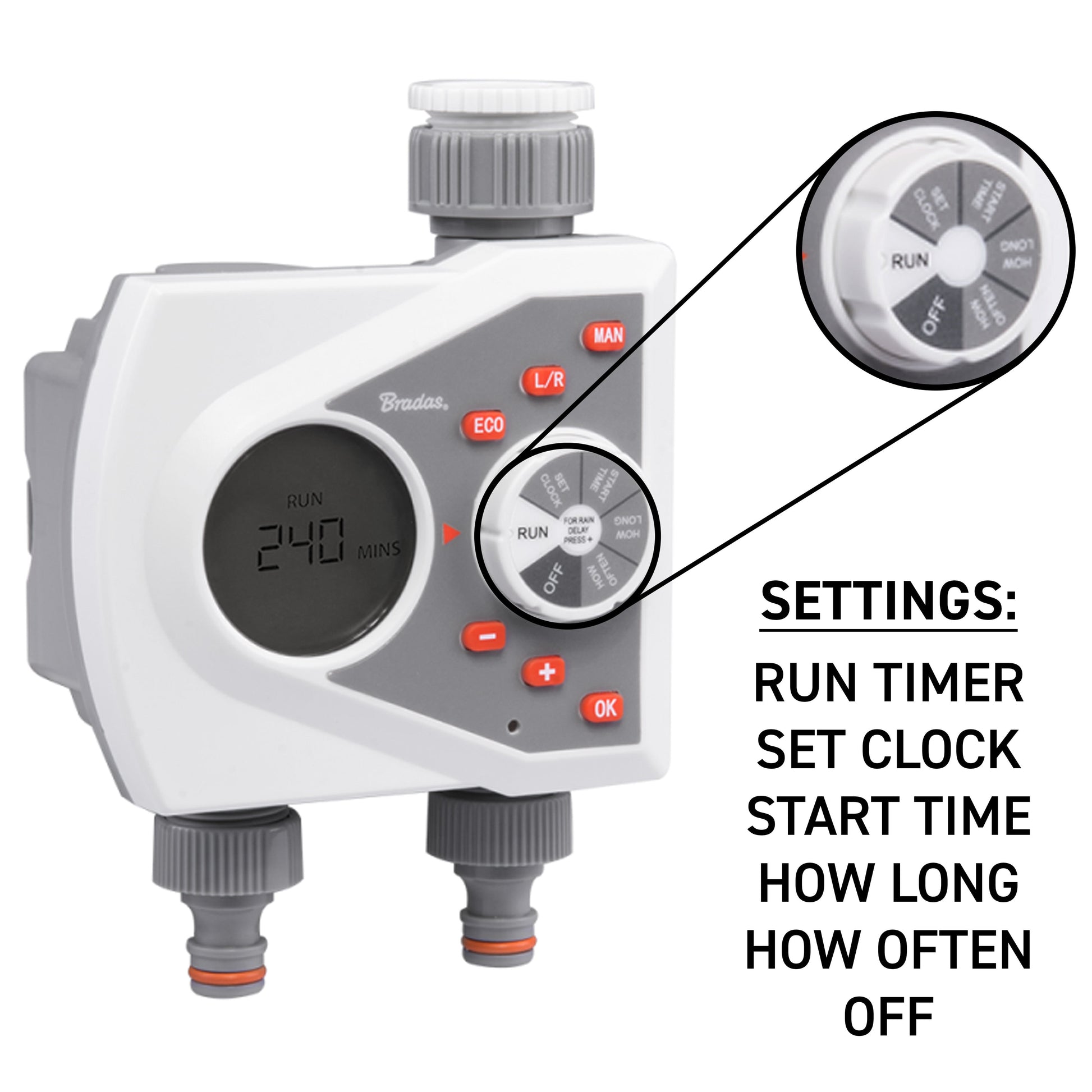

The L/R button selects the valve. The dial separates clock, start time, run duration and watering frequency settings, so you can work through one part of the programme at a time.
ECO mode adds breaks between shorter watering periods. It is useful when a continuous run does not suit how water soaks into your soil. Start with a short test and check the result before leaving a routine to run unattended.
The two outlets share the same tap supply. Check that the available flow suits your attached equipment, especially if both sides run together.
Connect the timer to your garden
Match the tap

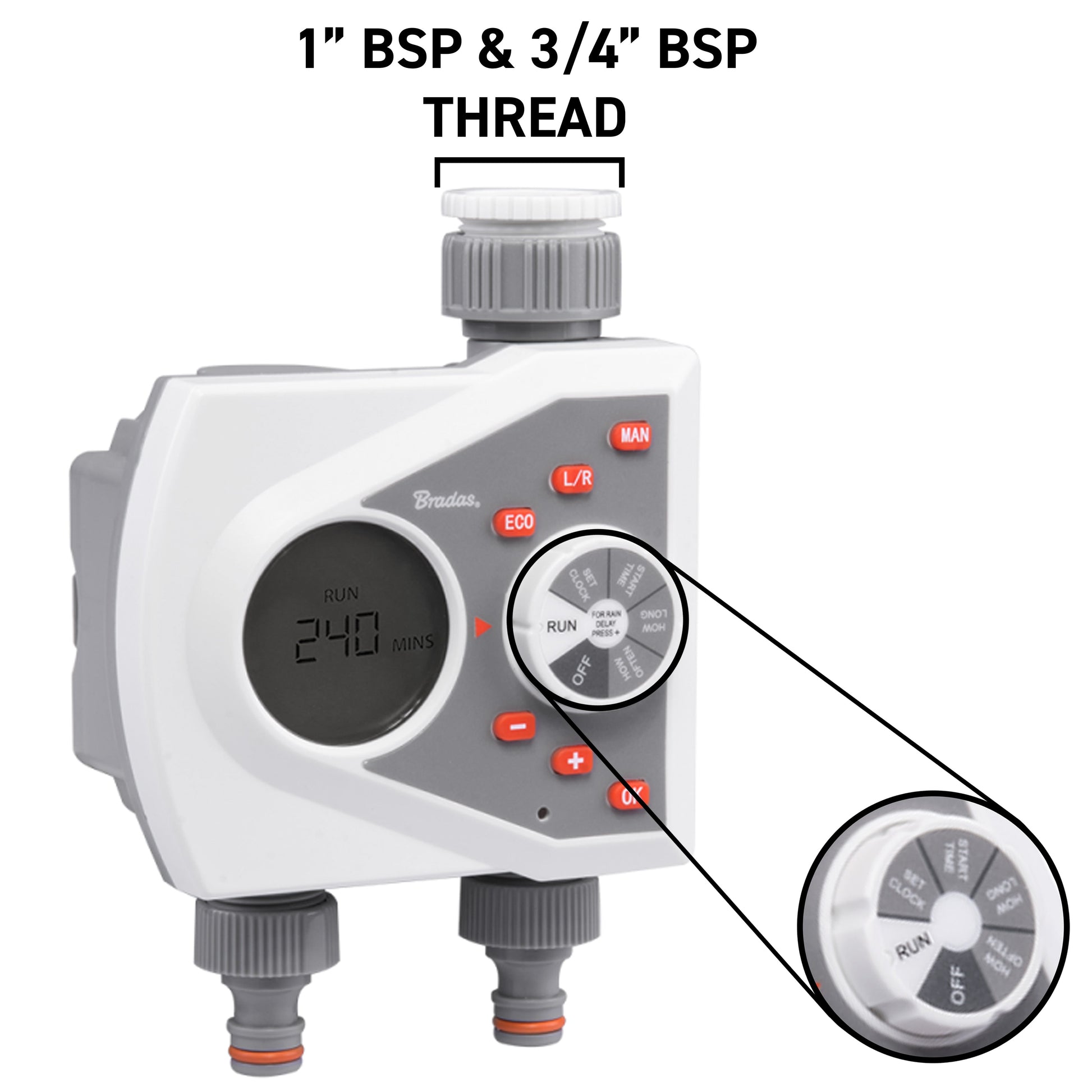

The female inlet fits a 1-inch BSP male tap outlet, or ¾-inch BSP with the supplied reducer. Keep the inlet filter in place.
Attach each hose
Use a compatible female garden hose socket over each male outlet plug. Choose sockets for your hose bore; the optional connector above is for ½-inch hose and is sold individually.
Programme and test
Fit two fresh AA alkaline batteries, set the clock and each valve’s routine, then select RUN. Test the outlets and inspect the connections before relying on the schedule.
Before you set up the timer
Can I use it from a gravity-fed water butt?
It needs 0.5-8 bar water pressure. A gravity-fed butt may not provide enough pressure; check the supply before choosing this timer.
Are batteries and hose connectors included?
The timer includes the tap reducer and two male outlet adapters. Two AA alkaline batteries and female hose sockets are separate, as are the hoses and tap.
Can it stay outdoors all year?
Mount upright above ground, avoid immersion and protect it from frost. Before winter storage, turn off the tap, remove and drain the timer, take out the batteries and store it dry. Operating water temperature is 0-60°C.
Product information & technical details
| SKU | WL-3134-001 |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | Grey, White |
| Material | Plastic |
| Manufacturer / model | Bradas White Line WL-3134 |
| Watering zones | 2 independently programmable valves |
| Watering duration | 1-240 minutes |
|---|---|
| Control modes | Automatic, manual, delay and ECO |
| Power | 2 × AA alkaline batteries; not included |
| Tap connection | 1-inch BSP female with ¾-inch reducer |
| Hose outlets | 2 male garden quick-connect plugs |
| Operating water pressure | 0.5-8 bar |
| Operating water temperature | 0-60°C |
| Supplied quantity | 1 timer with tap reducer and 2 outlet adapters |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
