Description
Set the sweep for your patch of lawn

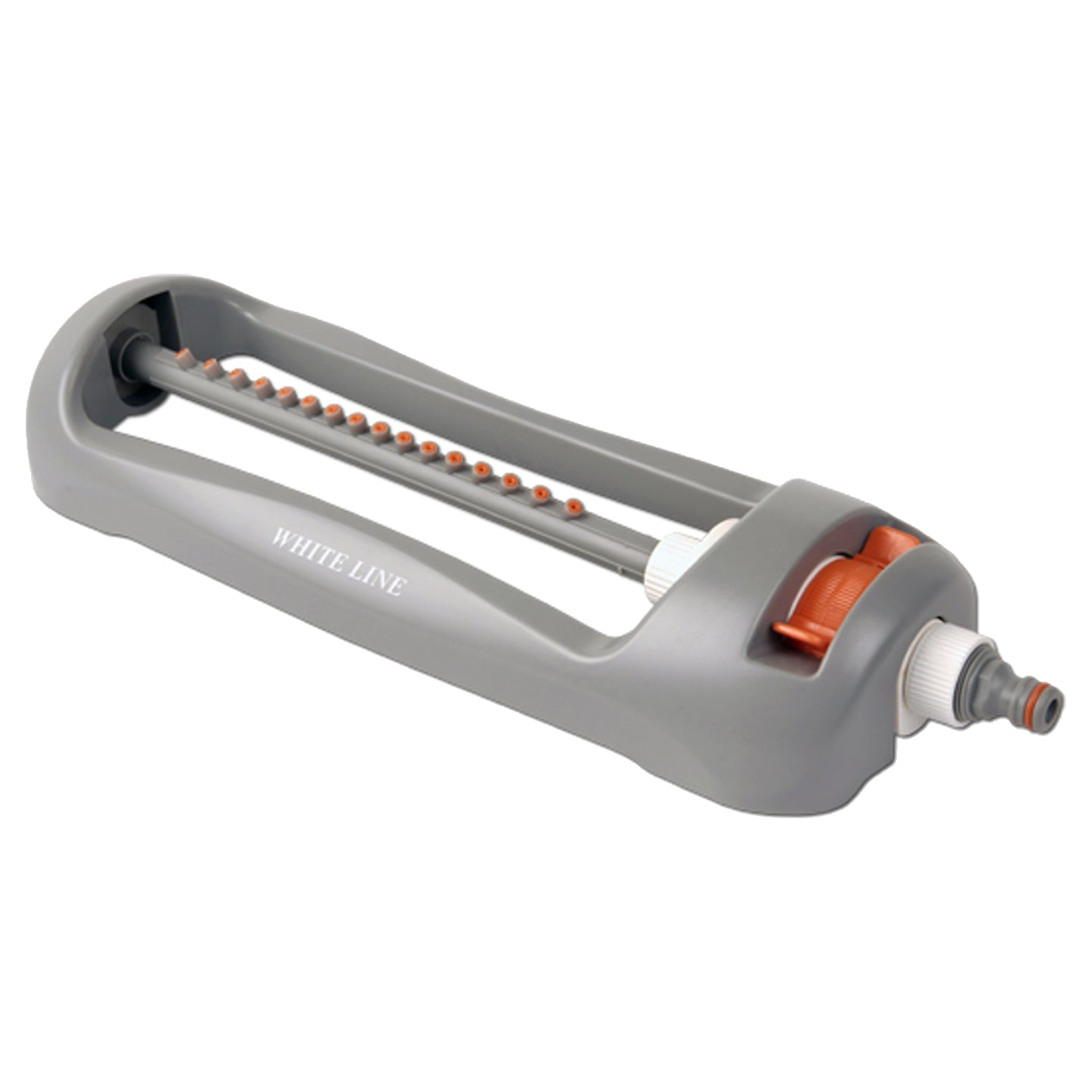

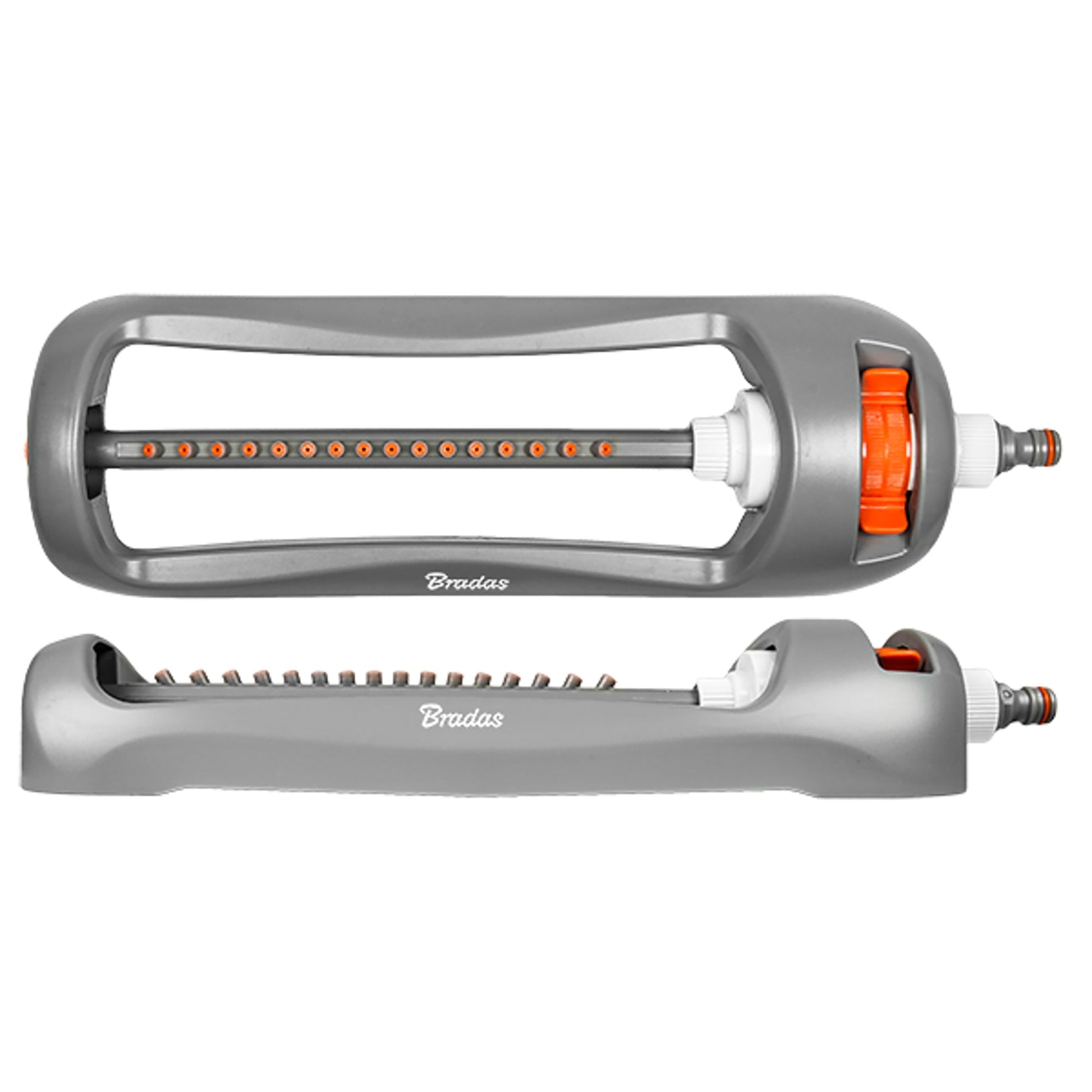

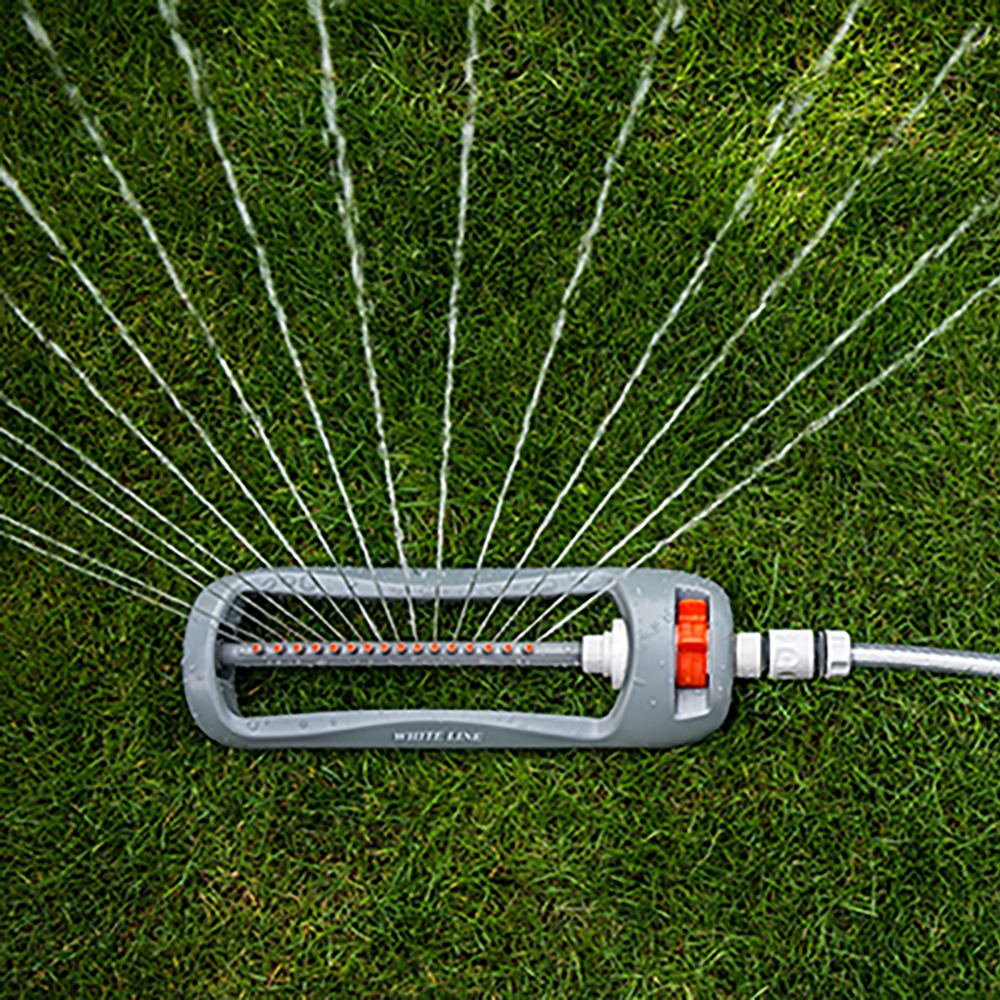

The Bradas WHITE LINE WL-Z23 is a compact oscillating sprinkler with a row of 16 nozzles. As the bar moves back and forth, the jets pass over the area beside it.
The orange tabs let you limit that movement, so you can set the sweep around the space you want to water. Position the base, open the tap gradually and watch a complete pass before making your final adjustments.
One sprinkler supplied. Hose and connection fittings are separate.
The orange tabs set the travel limits

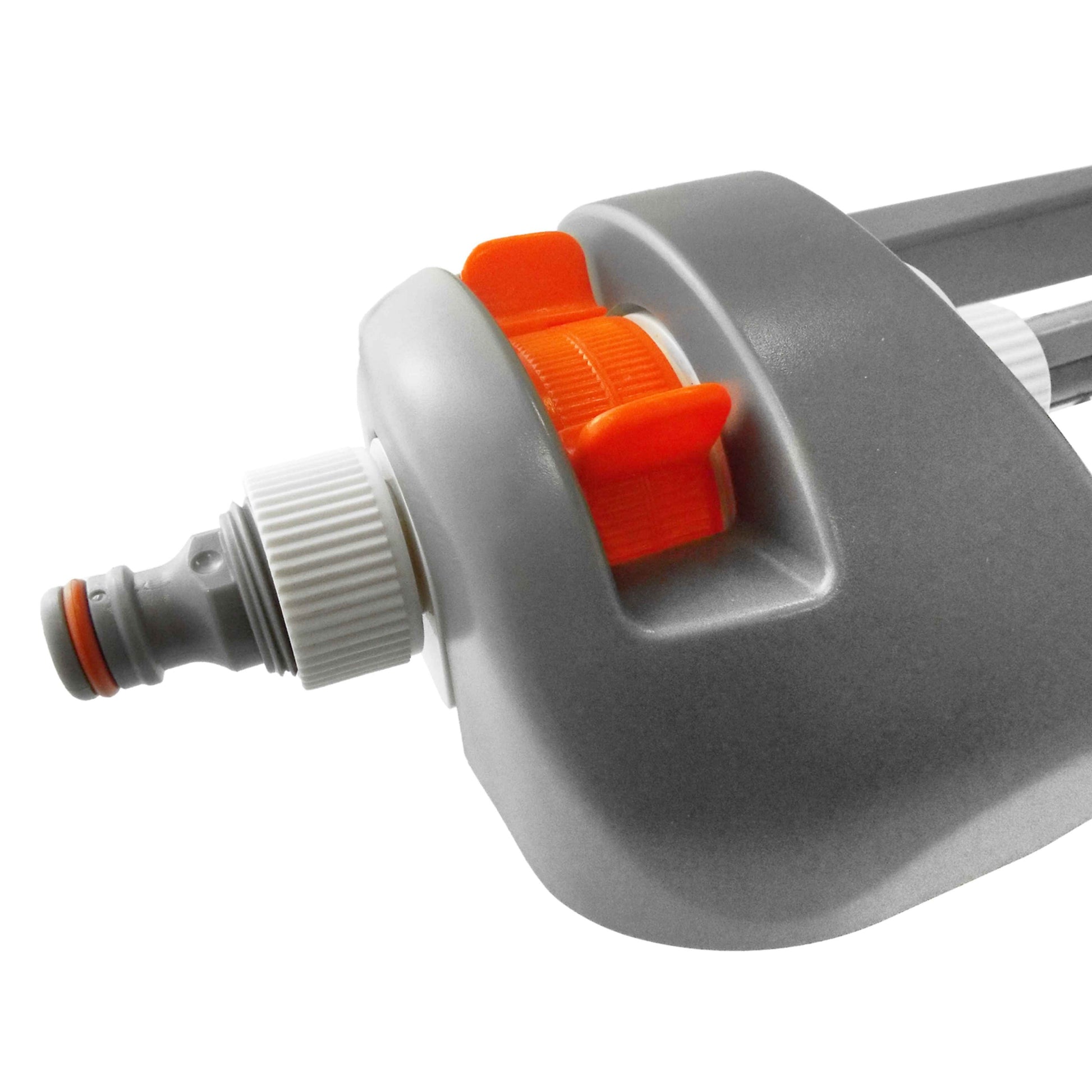

The photograph shows the two orange adjustment tabs recessed beside the inlet. Use them to set where the oscillating bar changes direction. Limiting the sweep helps keep the jets over the patch you have chosen.
Adjust with the supply off, then check the result at a gentle flow. Watch both ends of the sweep and look for water landing on paving or beyond the lawn. If necessary, turn off and reposition the base before trying again.
The tabs control the bar's travel; they do not guarantee a fixed distance or area. Water pressure and flow at the head, the hose arrangement and wind all influence the spray.
From hose connection to storage
Connect without pulling the base
Clip a compatible female garden hose connector onto the male inlet. Match the fitting to your hose; the optional grey connector above is for ½-inch garden hose. Rest the base on level ground and leave the hose slack.
Check the jets and the sweep

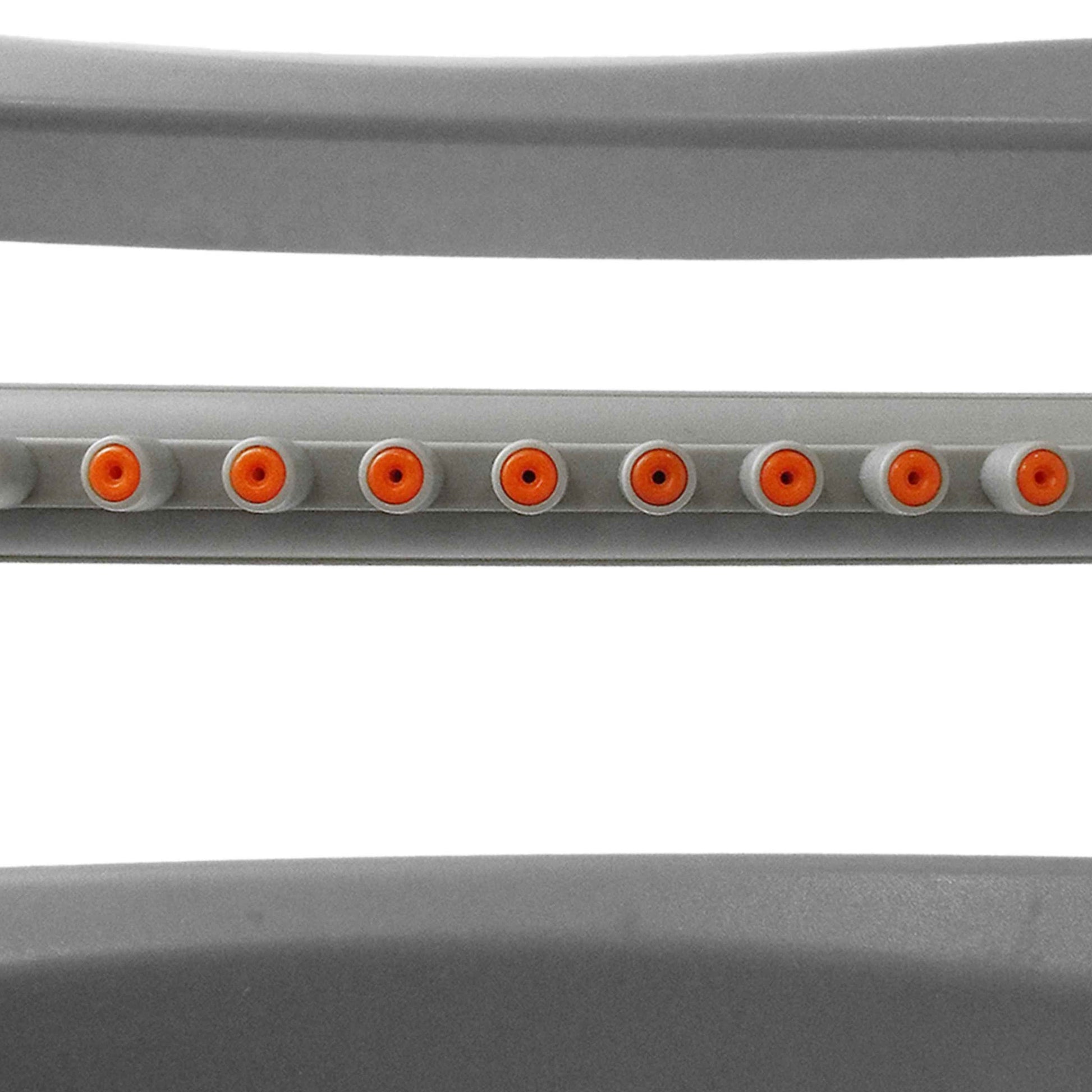

Keep the moving bar clear of plants and other obstacles. Open the tap gradually and watch a full pass. If a nozzle appears blocked, shut off and release pressure before using the built-in cleaning needle carefully.
Turn off and drain
The sprinkler has no timer or automatic tap shut-off. Turn off the supply when watering is finished, release pressure and disconnect. Drain the unit and hose before storing them away from frost.
Questions about the compact oscillating sprinkler
How do I change the area being watered?
Use the orange tabs to set the bar's travel limits, then test the sweep in place. Move the base with the water off if you need to water another patch. Actual reach depends on supply pressure and flow, the hose and conditions.
Does it water a circle?
No. This is an oscillating bar sprinkler: a row of 16 jets moves back and forth over the ground. A circular radius or diameter is not the appropriate way to describe its watering pattern.
Are a hose and connector included?
No. One Bradas WHITE LINE WL-Z23 sprinkler is supplied. Use your own hose, a compatible female garden hose-end connector and suitable tap fittings. The optional grey connector shown above fits ½-inch garden hose and is sold separately.
What if a nozzle stops spraying properly?
Turn off the water and release pressure first. Check for visible dirt at the nozzle and use the cleaning needle stored on the sprinkler carefully to clear it. Do not force the needle or work on the unit under pressure. Drain the sprinkler after use.
Product information & technical details
| SKU | WL-Z23-001 |
|---|---|
| Product type | |
| Colour | Grey |
| Material | Plastic |
| Model | Bradas WHITE LINE WL-Z23 |
| Sprinkler design | Compact oscillating bar |
| Nozzle count | 16 |
| Sweep adjustment | Orange range-limiting tabs |
|---|---|
| Base material | Plastic |
| Base style | Ground-standing frame |
| Water inlet | Male garden quick-connect |
| Nozzle cleaning | Built-in cleaning needle |
| Quantity supplied | One sprinkler |
| Hose, female fitting and timer included | No |
