Description
Reduce the tap connection

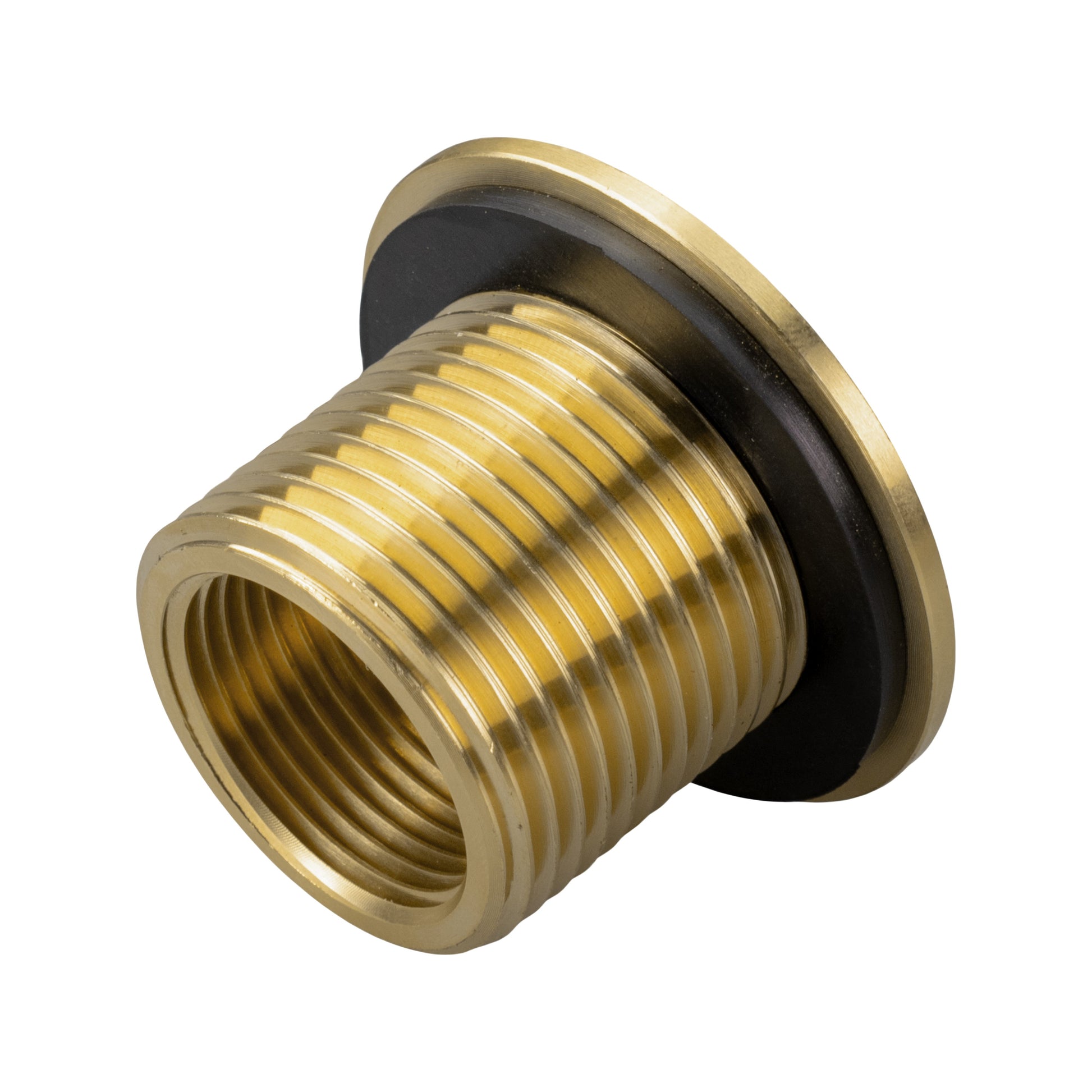

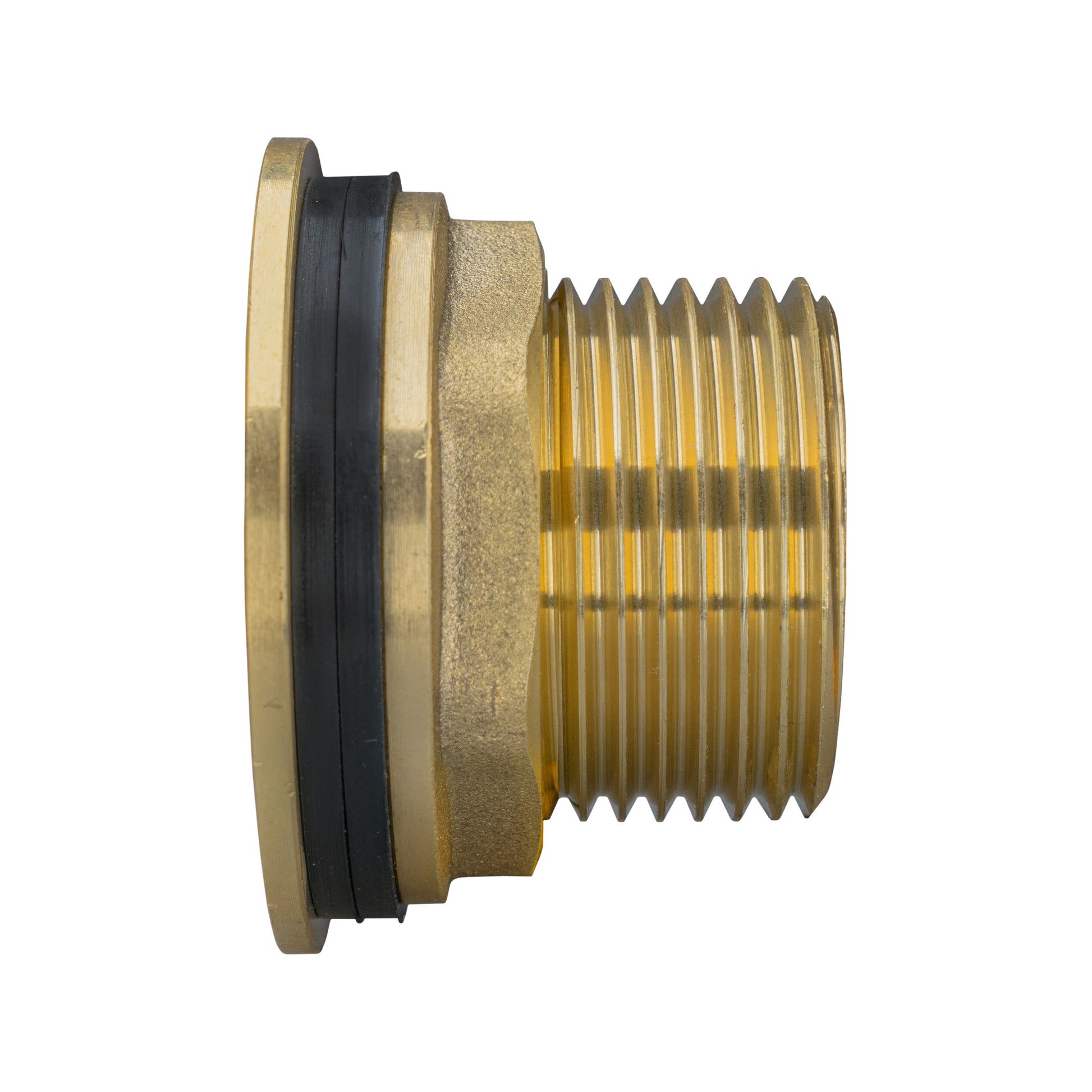

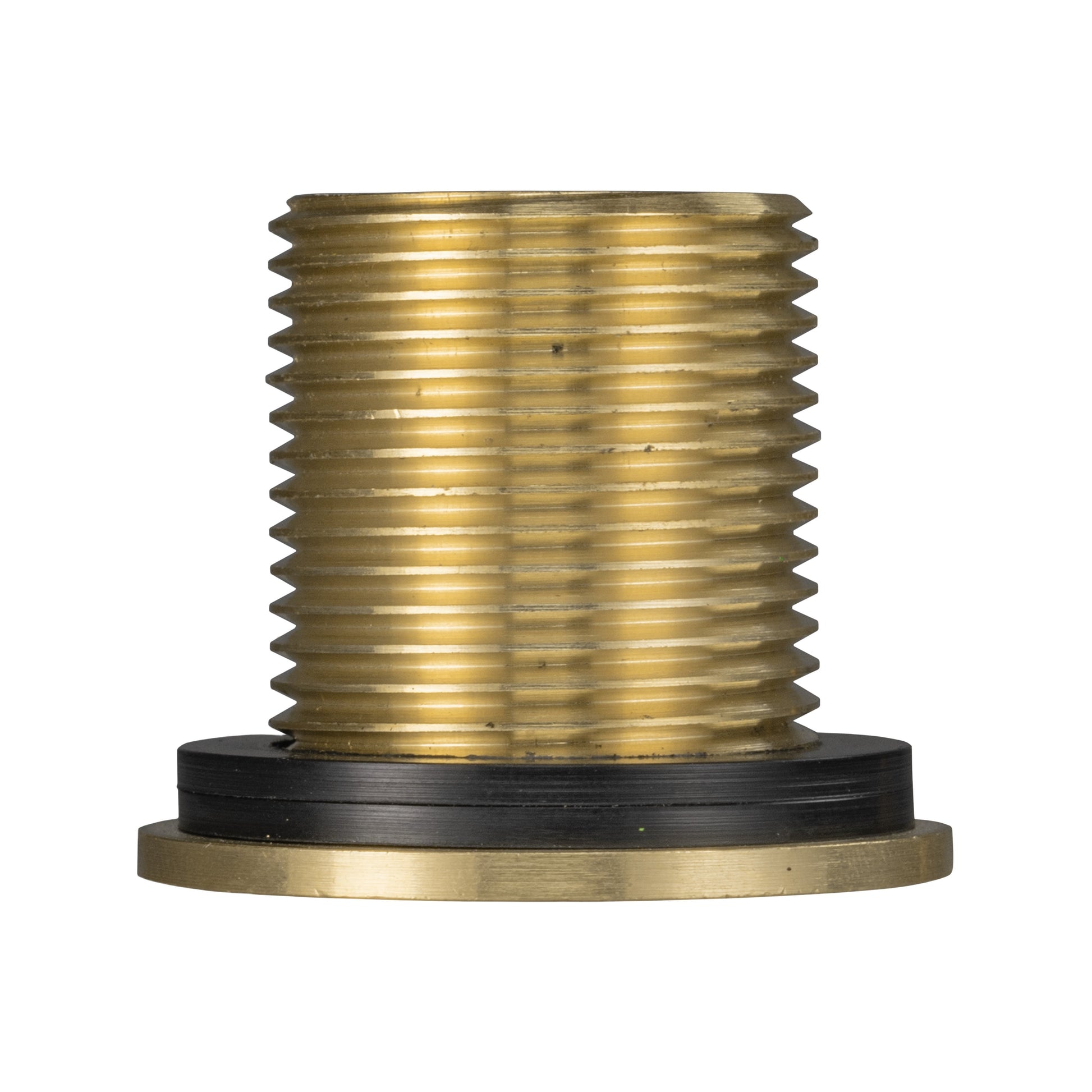

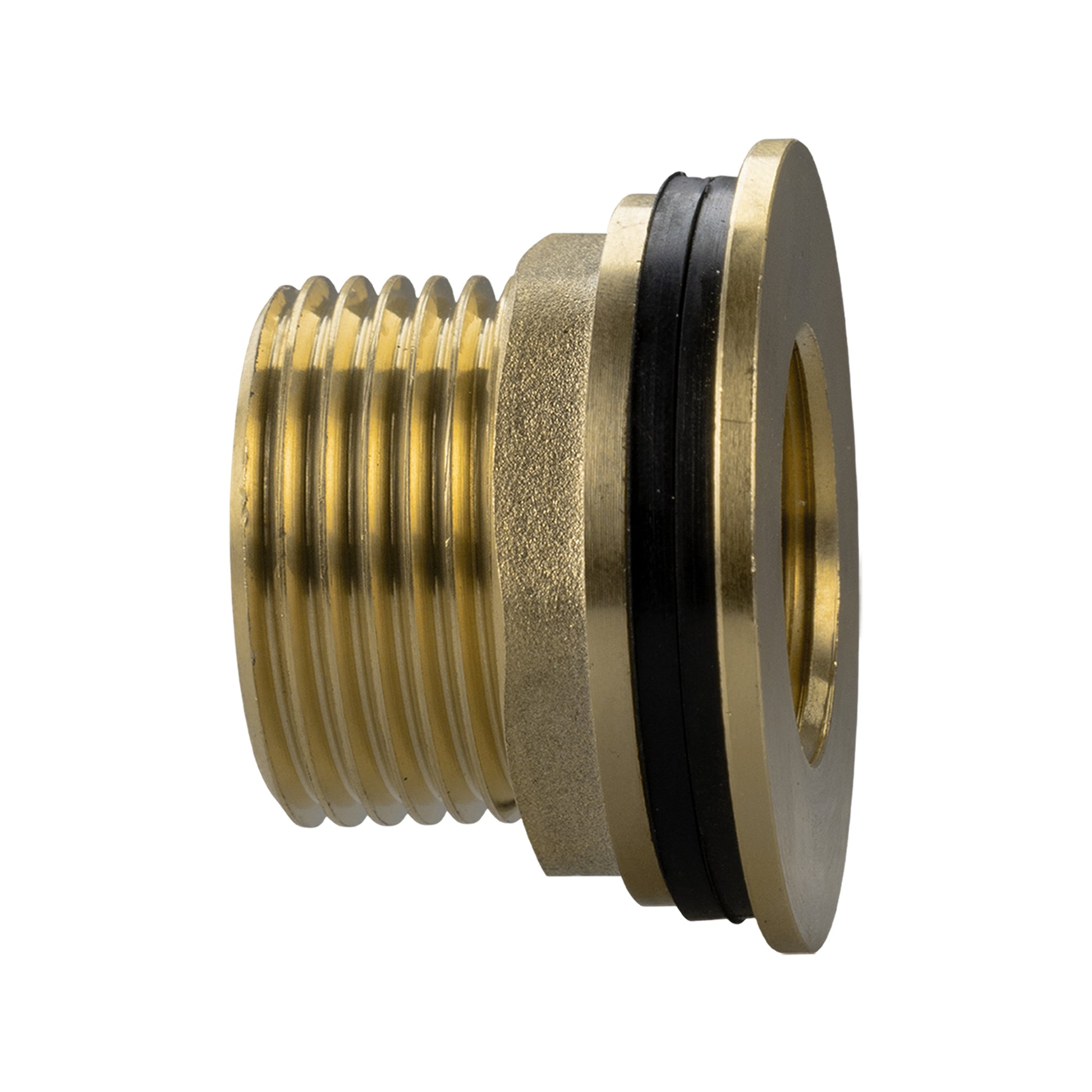

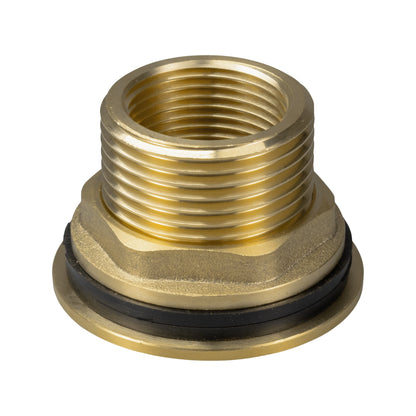

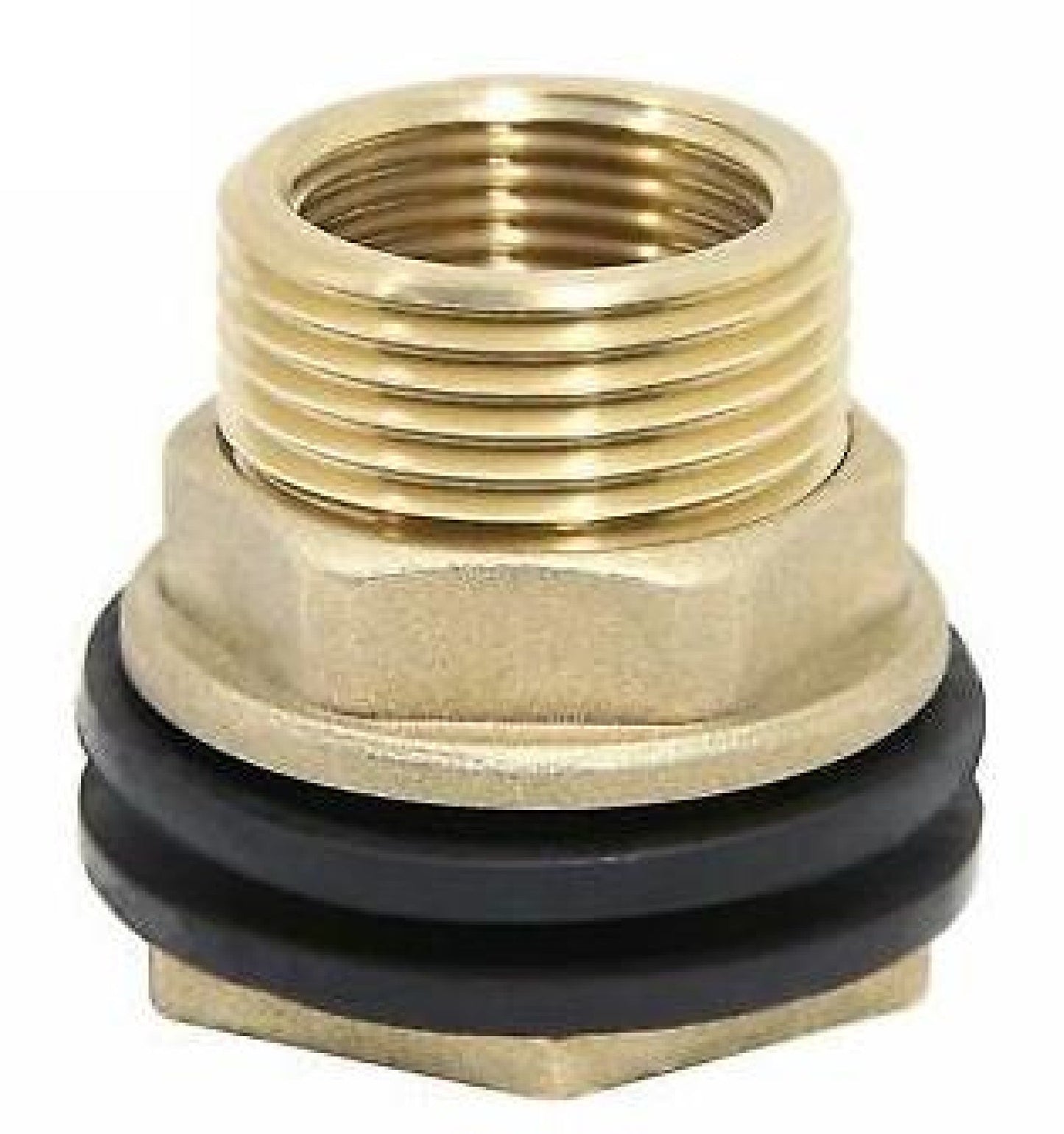

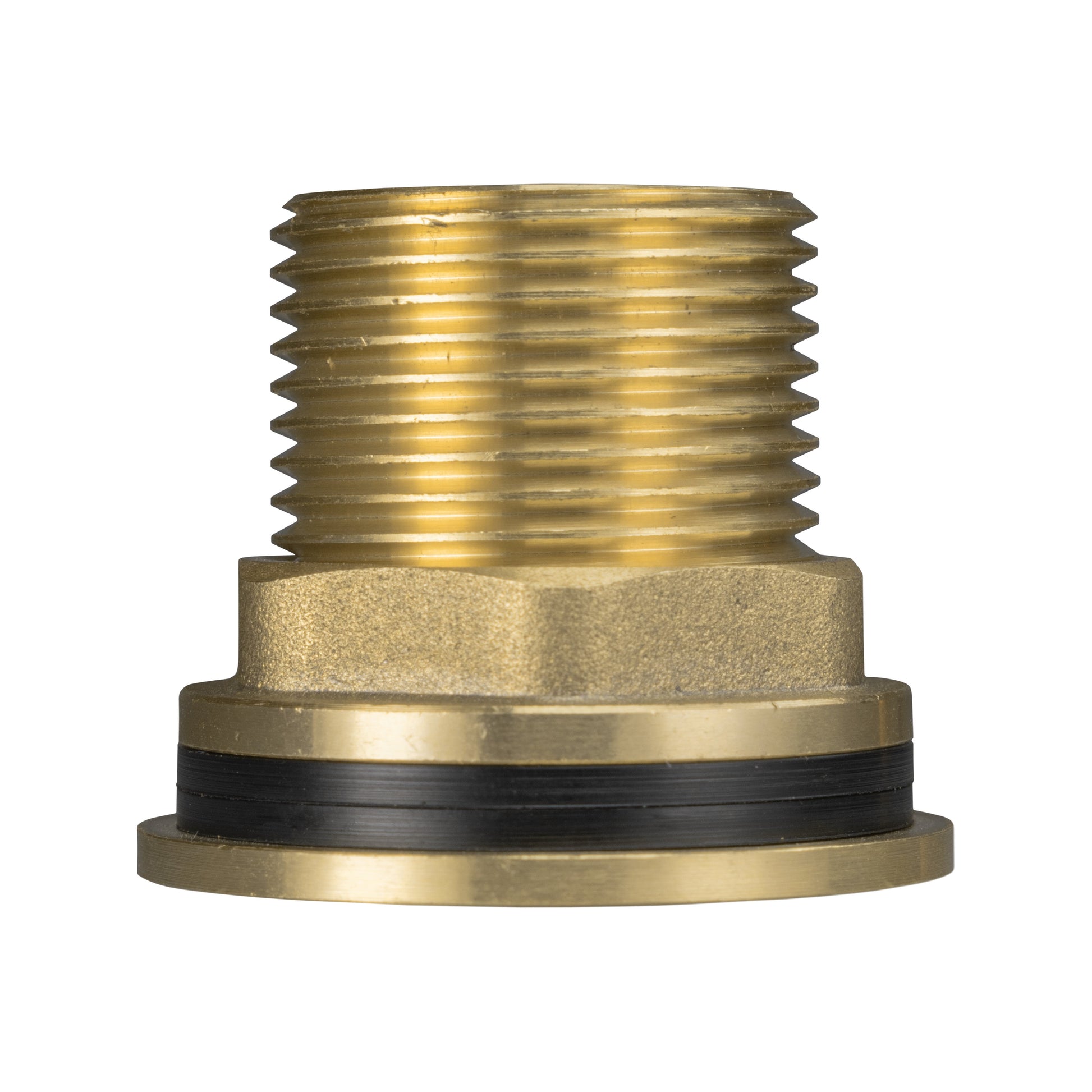

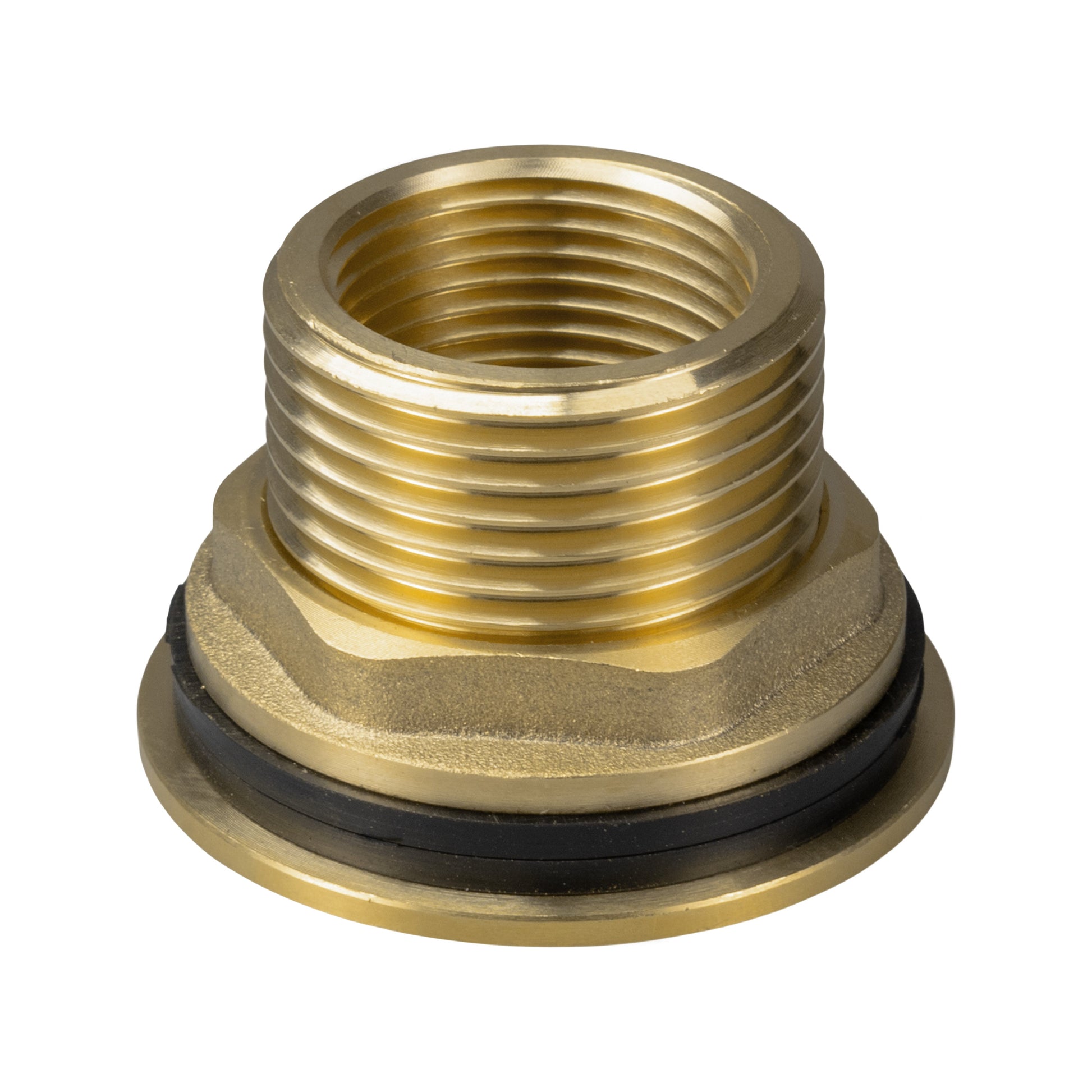

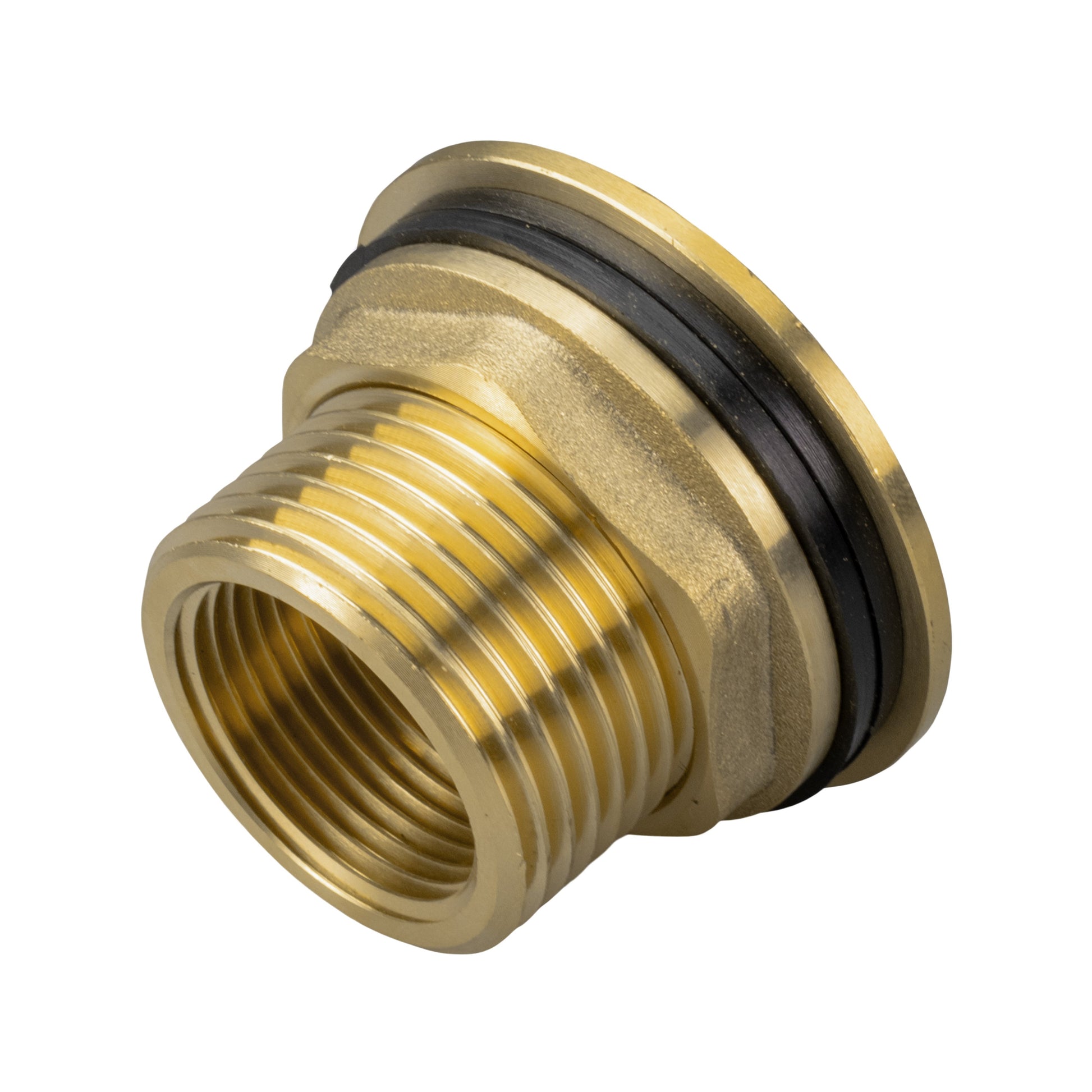

A brass tank reducer with a 3/4-inch BSP external male thread and a 1/2-inch BSP internal female thread.

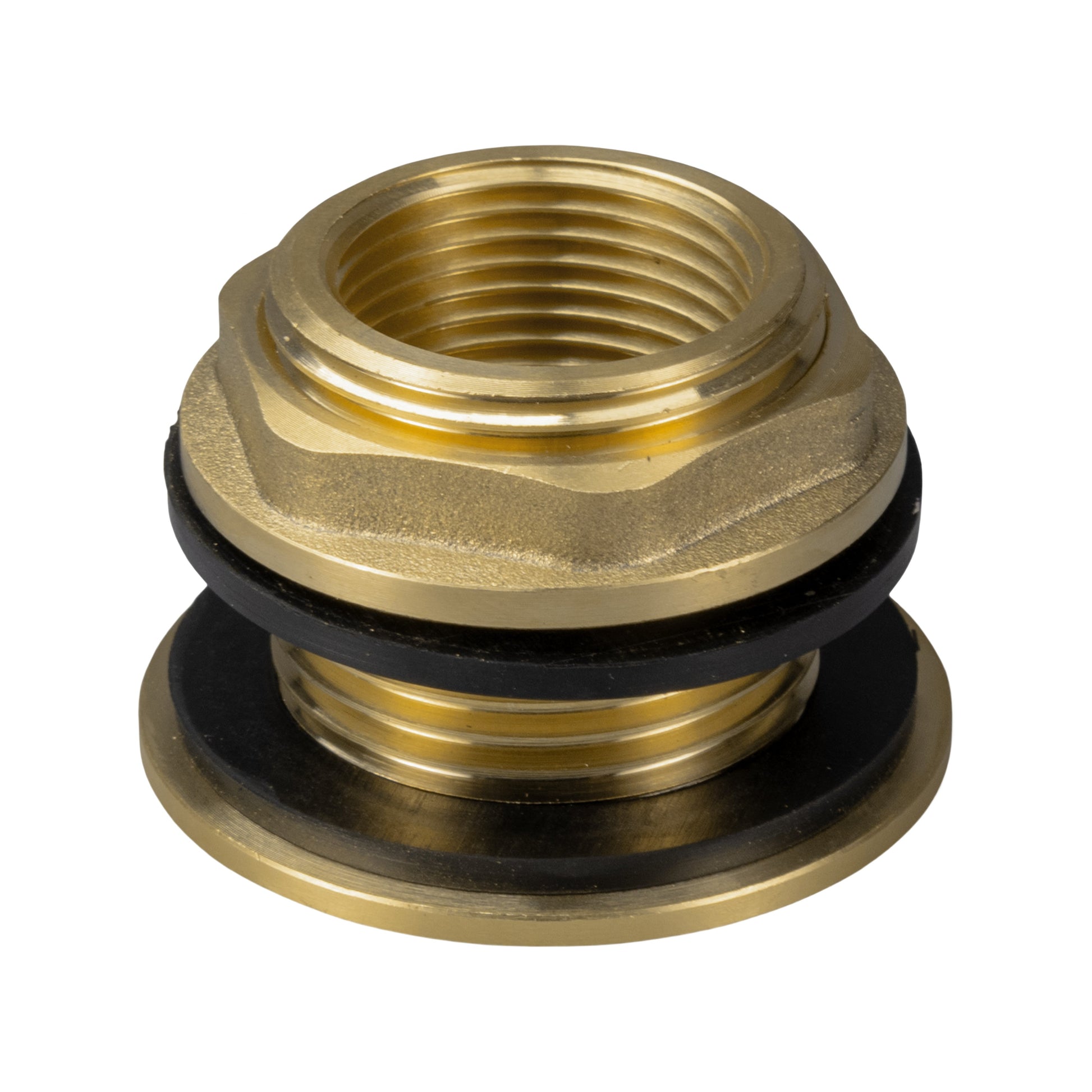

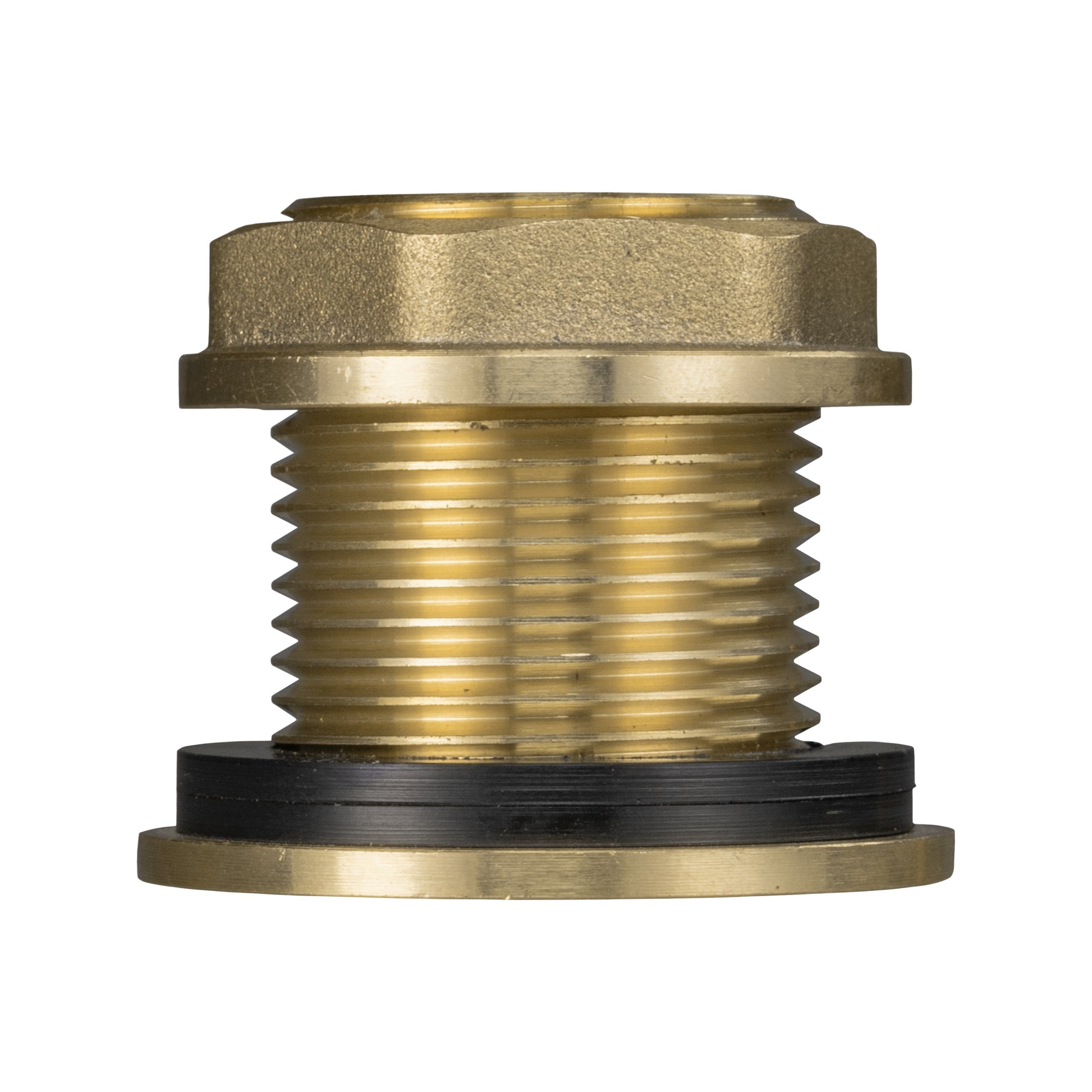

One back nut and two black mounting washers are supplied with the round-flange connector.
Match the tank mounting and tap inlet before fitting. Tap, tank and hose are sold separately.
Read the two thread sizes separately

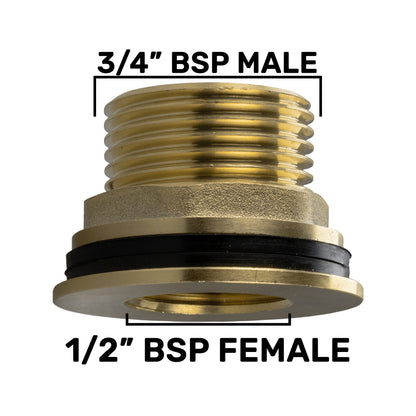

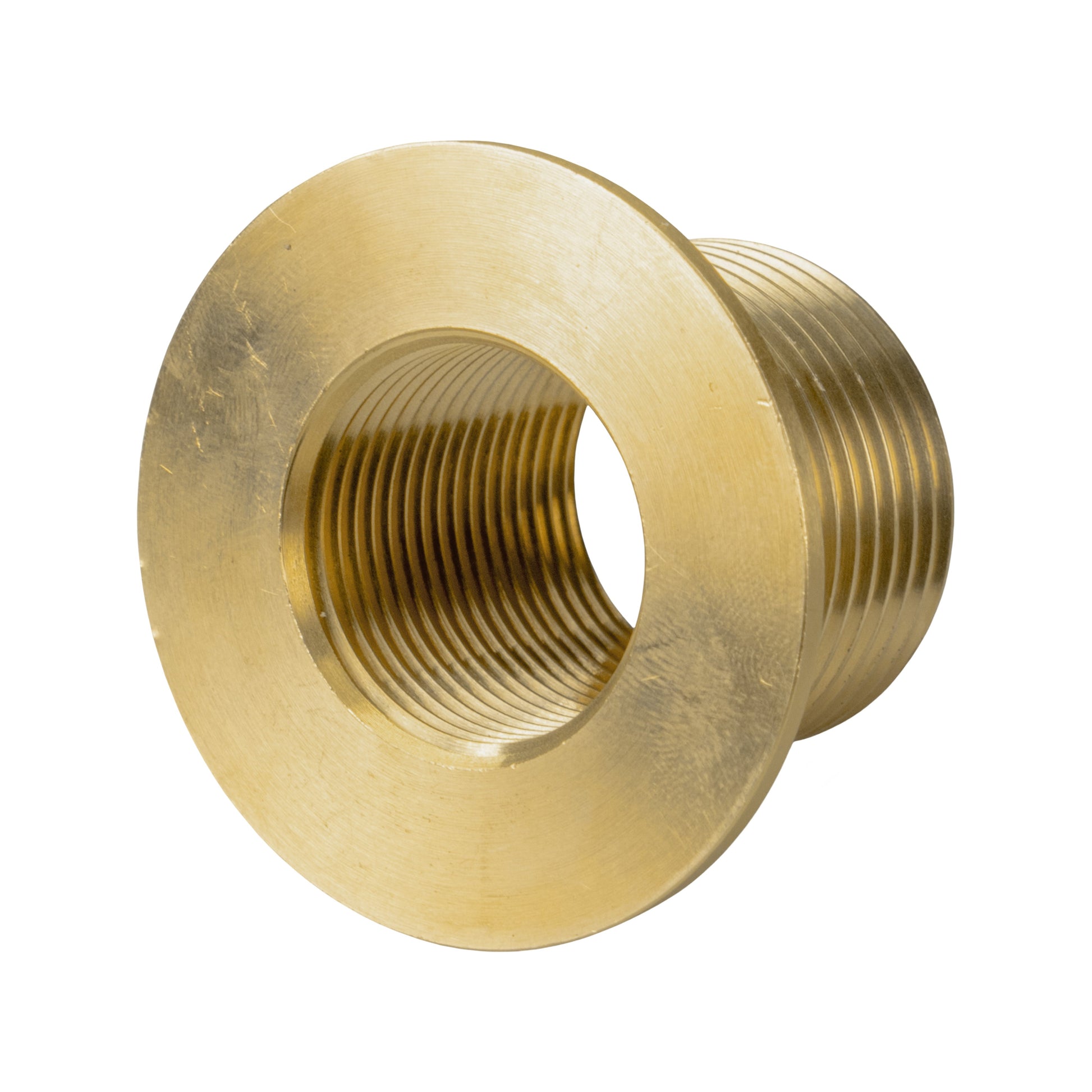

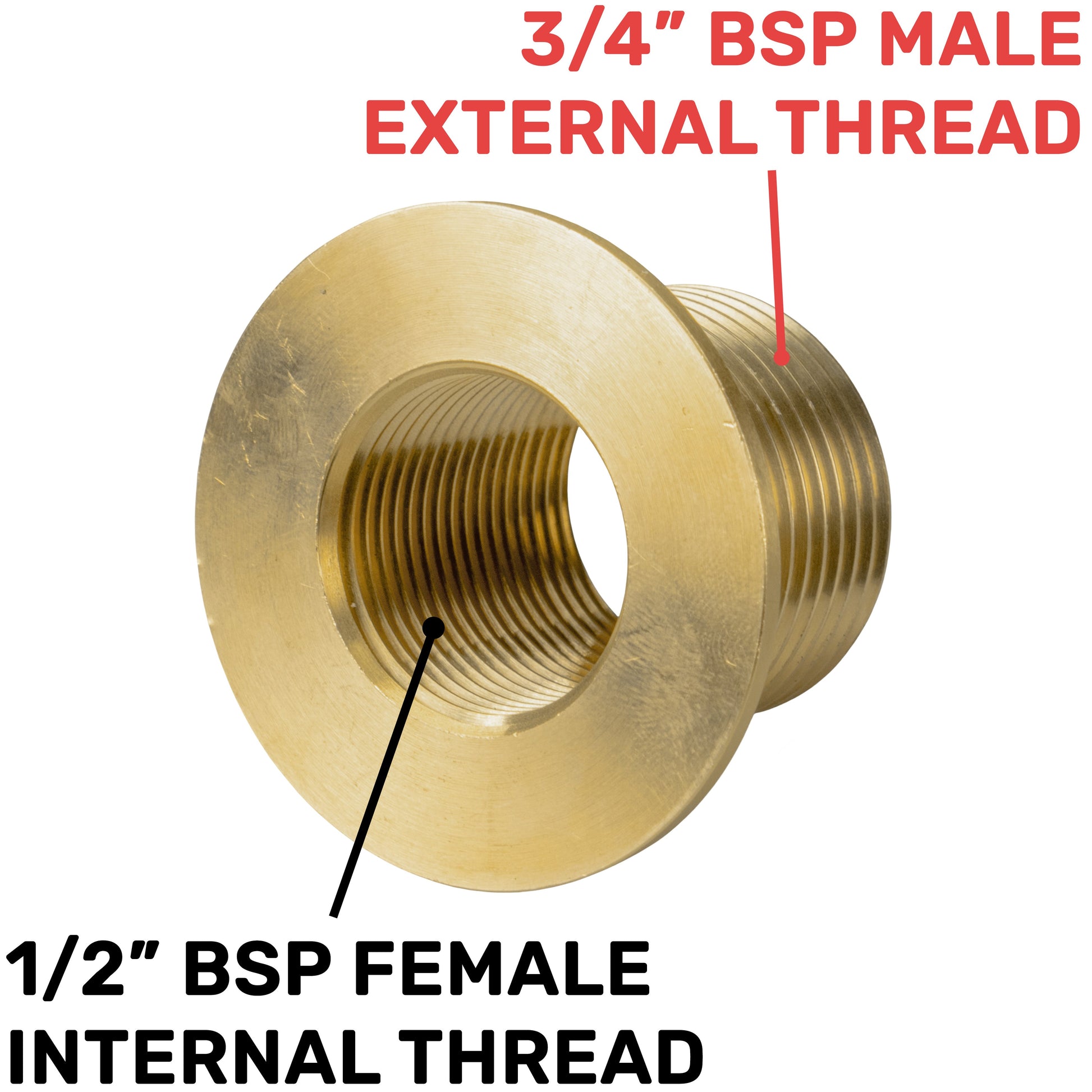

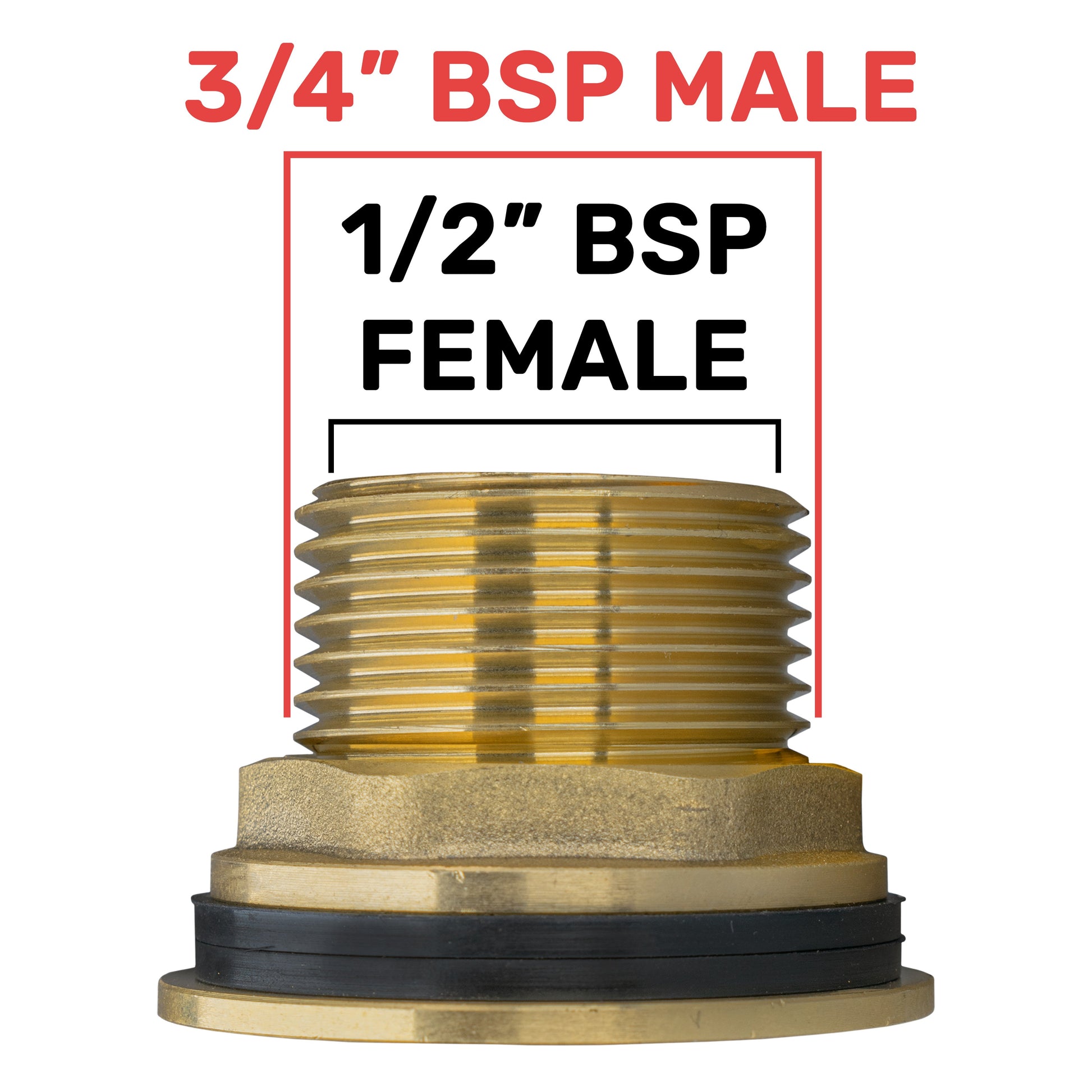

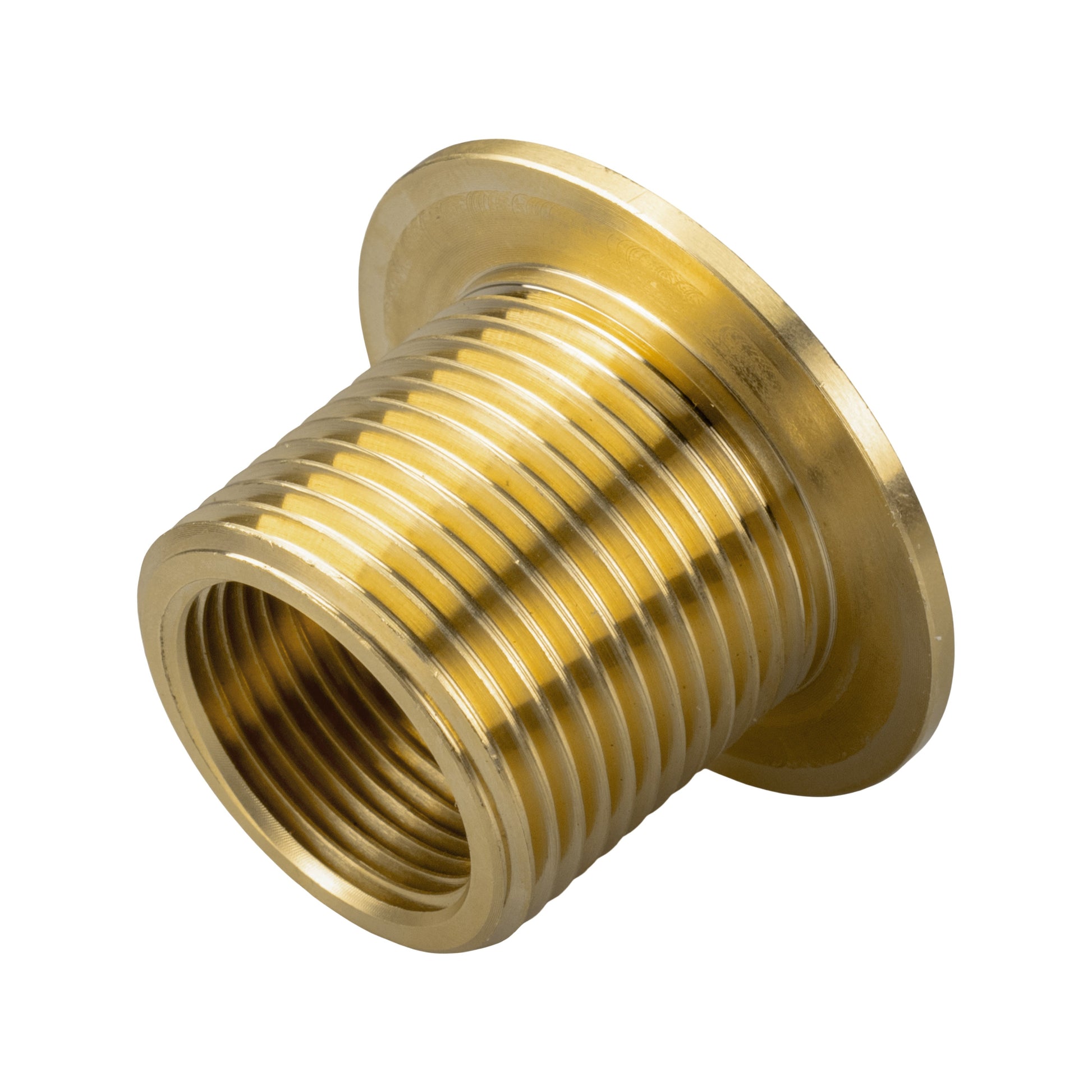

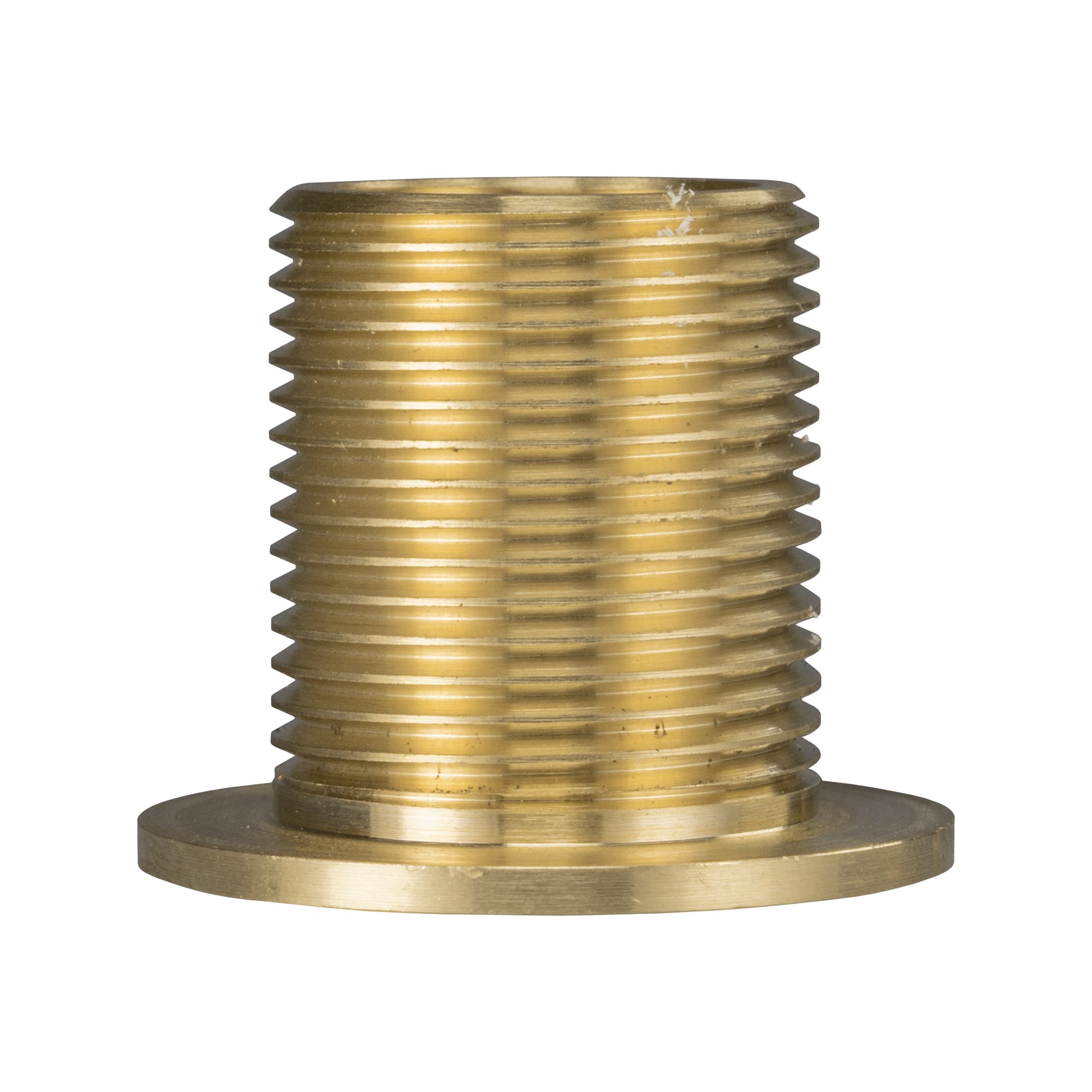

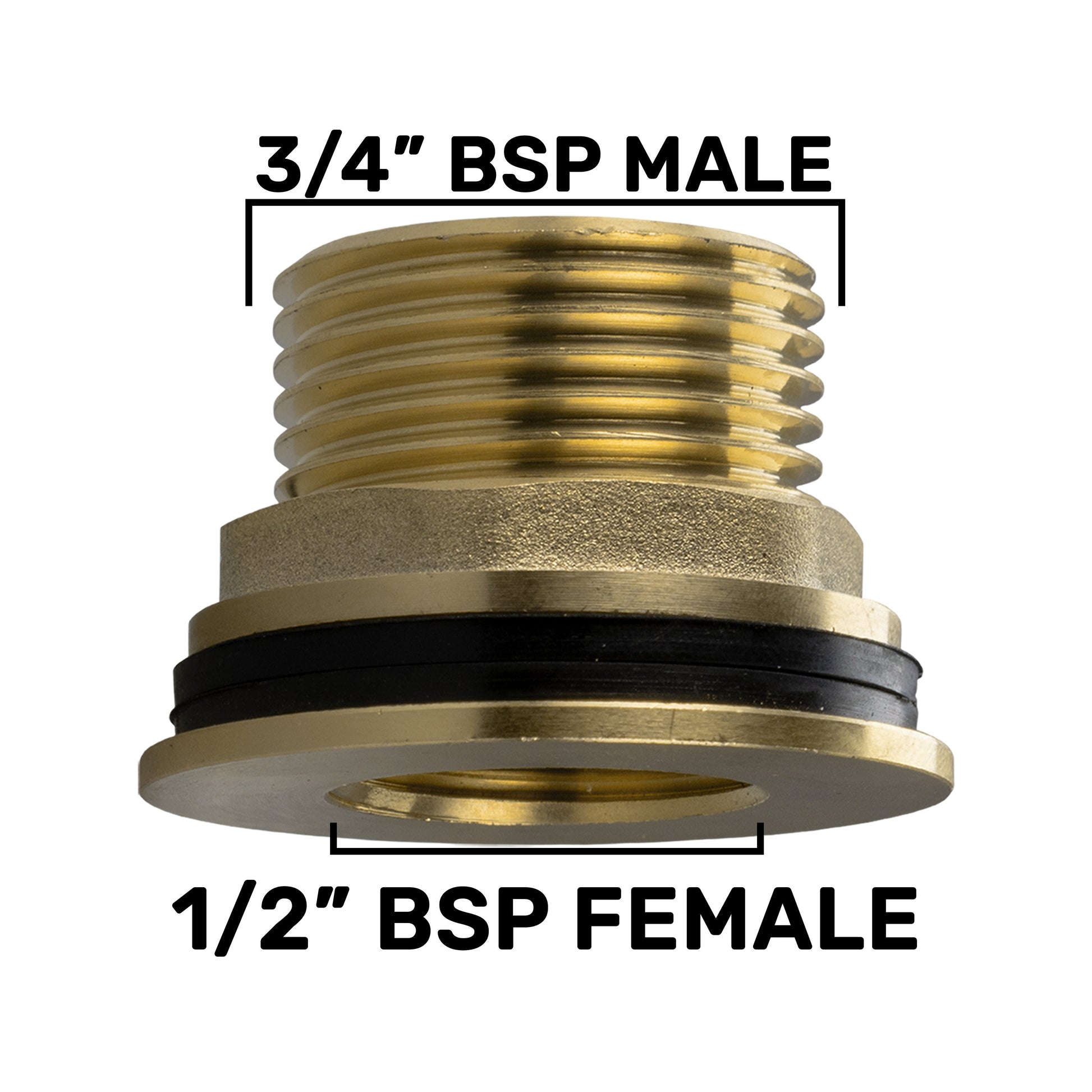

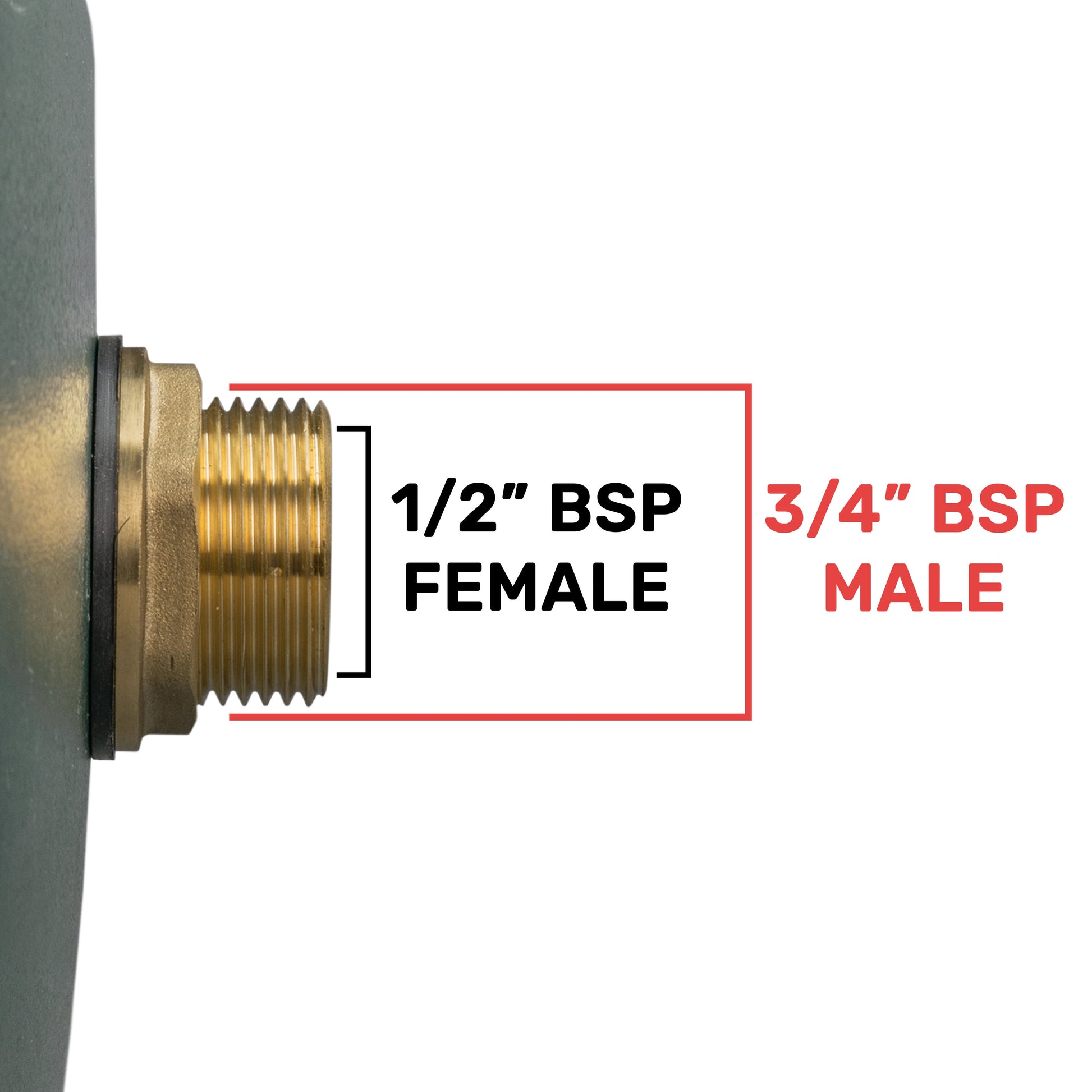

The labelled image shows the bare adapter body to make the connections clear. The outer thread is three-quarter-inch BSP male, while the thread through the centre is half-inch BSP female.
If using an existing threaded tank outlet, the male side needs a matching three-quarter-inch BSP female connection. A tap or connector attached to the internal thread needs a matching half-inch BSP male inlet.
The BSP sizes identify the threads. They do not state a hose bore or a drilling measurement. Check the actual fitting and tank mounting before making a new opening.
Place a washer on each side
Plan access inside the tank before starting a through-wall installation.
Check the tank wall
The flange and washers need a suitable, clean sealing surface. Check the wall thickness and opening against the actual connector, and make sure the retaining nut can be reached from the opposite side.
Position the mounting parts

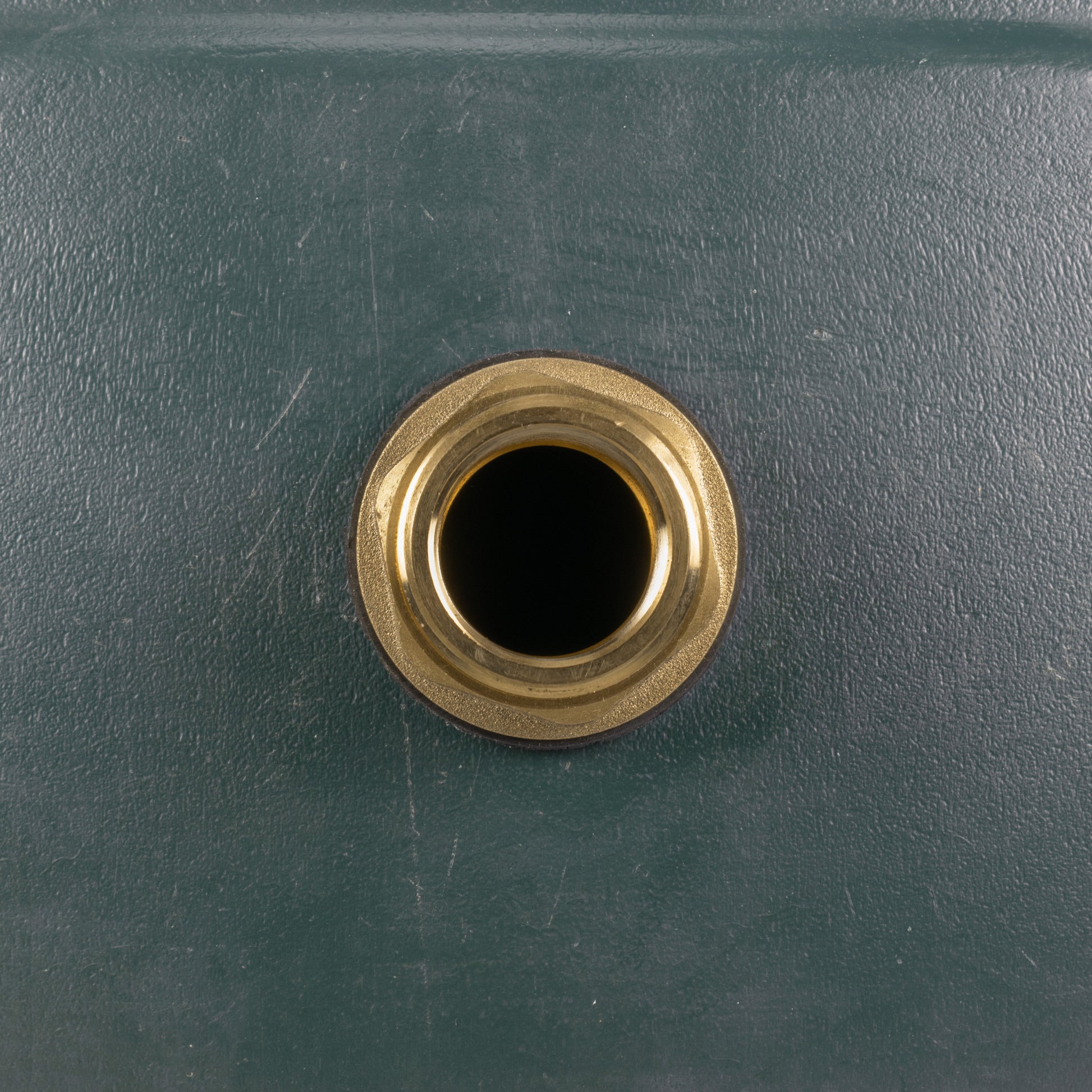

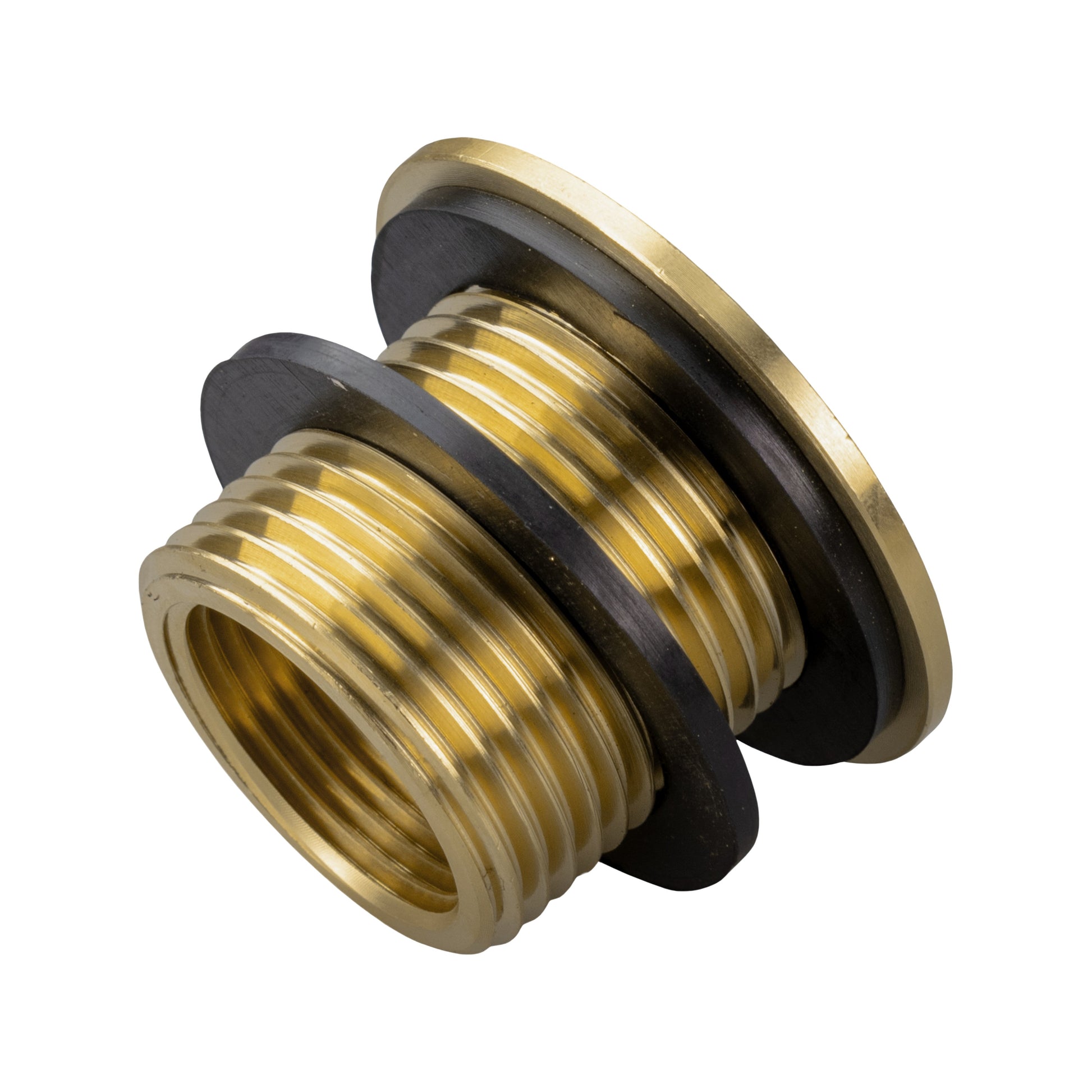

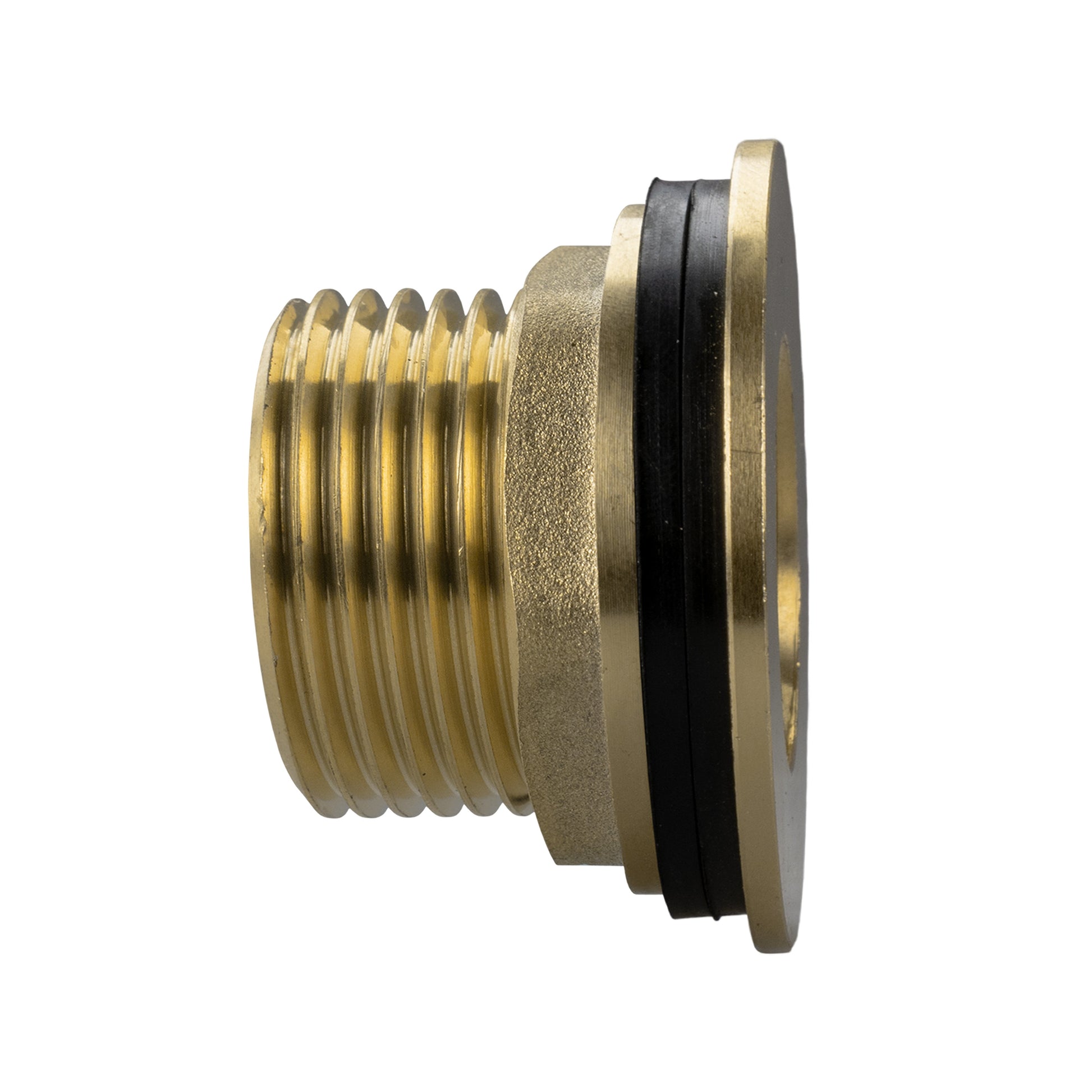

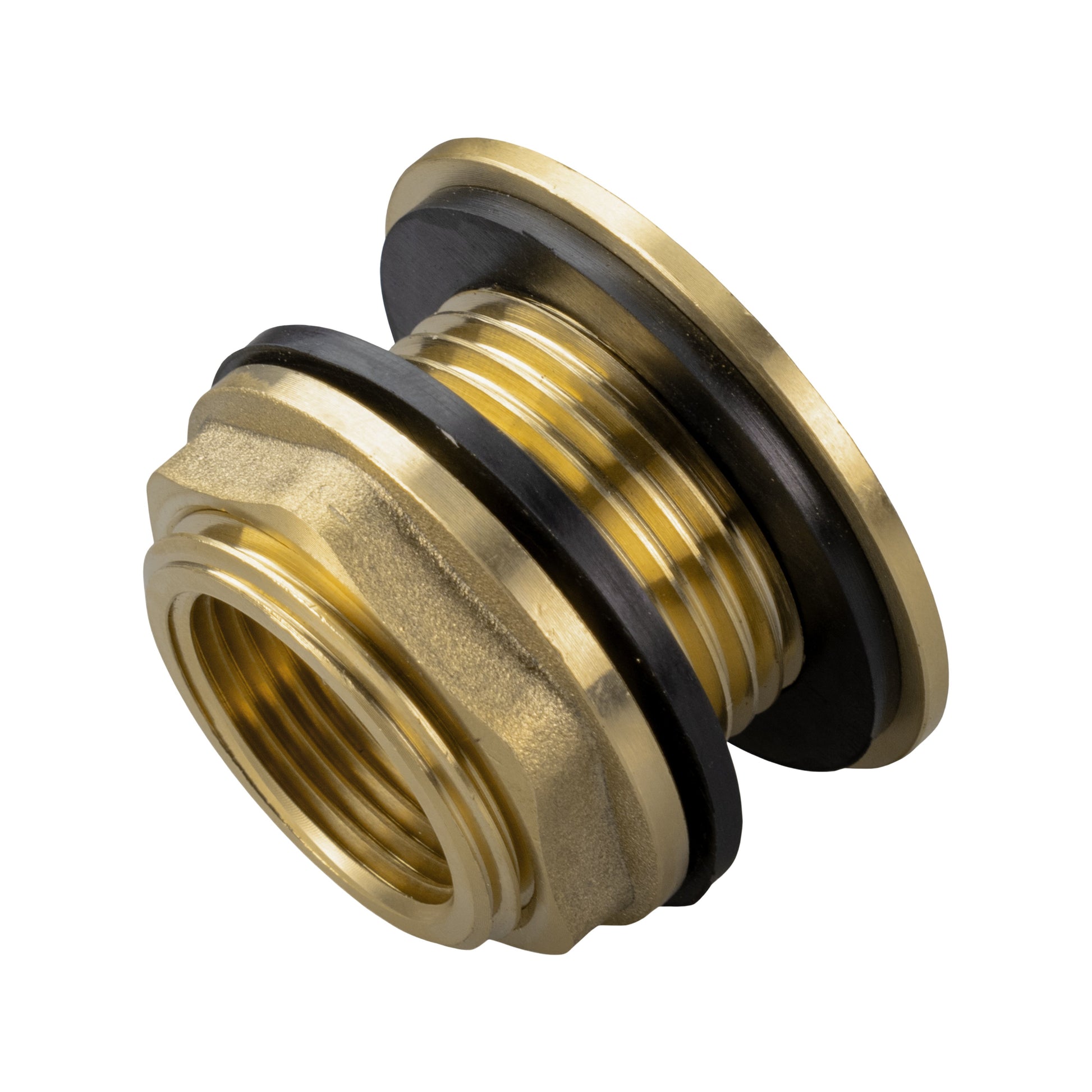

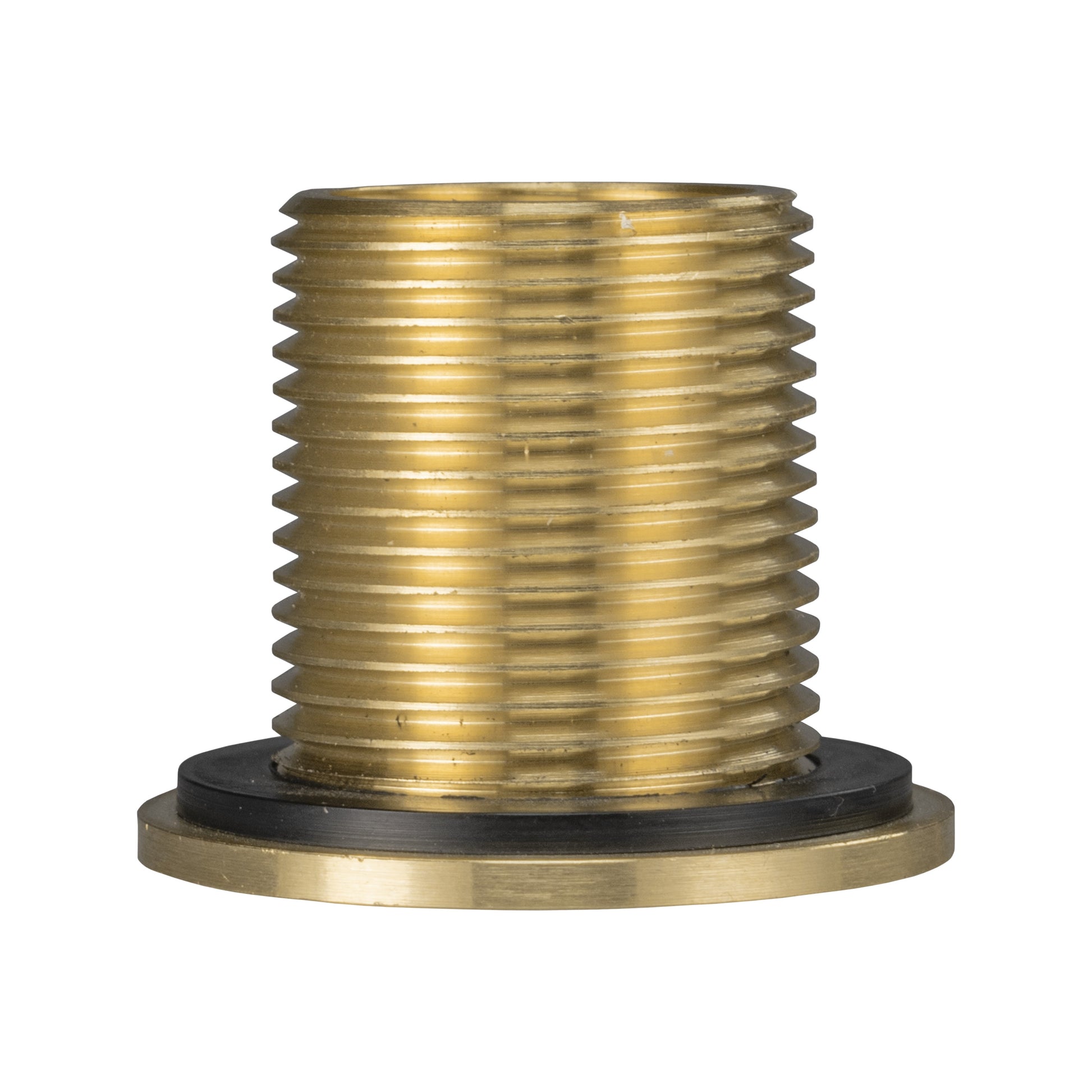

Remove the back nut and one washer, leaving the other against the round flange. Pass the threaded body through the prepared opening, then refit the second washer and nut so a washer seats on each side of the wall.
Fit the tap and check
Support the connector while tightening and avoid distorting the wall. Attach a matching male-threaded fitting with an appropriate seal for that joint. Check the wall mounting and attached fitting for leakage before leaving water stored in the tank.
Questions about this reducing connector
Will it accept a half-inch BSP male tap?
The internal female thread is half-inch BSP and accepts a matching male fitting. Check the tap inlet, thread engagement, sealing arrangement and room for its handle as part of the complete installation. A tap is not included.
How many washers are supplied?
Two black mounting washers are supplied with one brass connector and one back nut. For a suitable through-wall mounting, one washer sits against each side of the tank wall, retained between the flange and back nut.
Can I use it with an existing threaded outlet?
The external three-quarter-inch BSP male thread can engage a matching female connection. Check that the existing outlet has the correct thread and an appropriate sealing arrangement; the through-wall washer layout does not automatically apply to every threaded outlet.
Does the adapter connect directly to bare hose?
No. It provides an internal BSP thread rather than a hose barb or snap-on connection. Choose a separate matching threaded tap or connector and then select a hose connection appropriate to that fitting and your hose bore.
Product information & technical details
| SKU | WB-BR-12BSPF-34BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1/2", 3/4" |
| Thread gender | Male, Female |
| Colour | Brass |
| Material | Brass |
| External male thread | 3/4-inch BSP male |
|---|---|
| Internal female thread | 1/2-inch BSP female |
| Back nut | 1 brass nut included |
| Mounting washers | 2 black washers included |
| Supplied contents | 1 adapter, 1 back nut and 2 washers |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
