Description
Adapt the tank connection

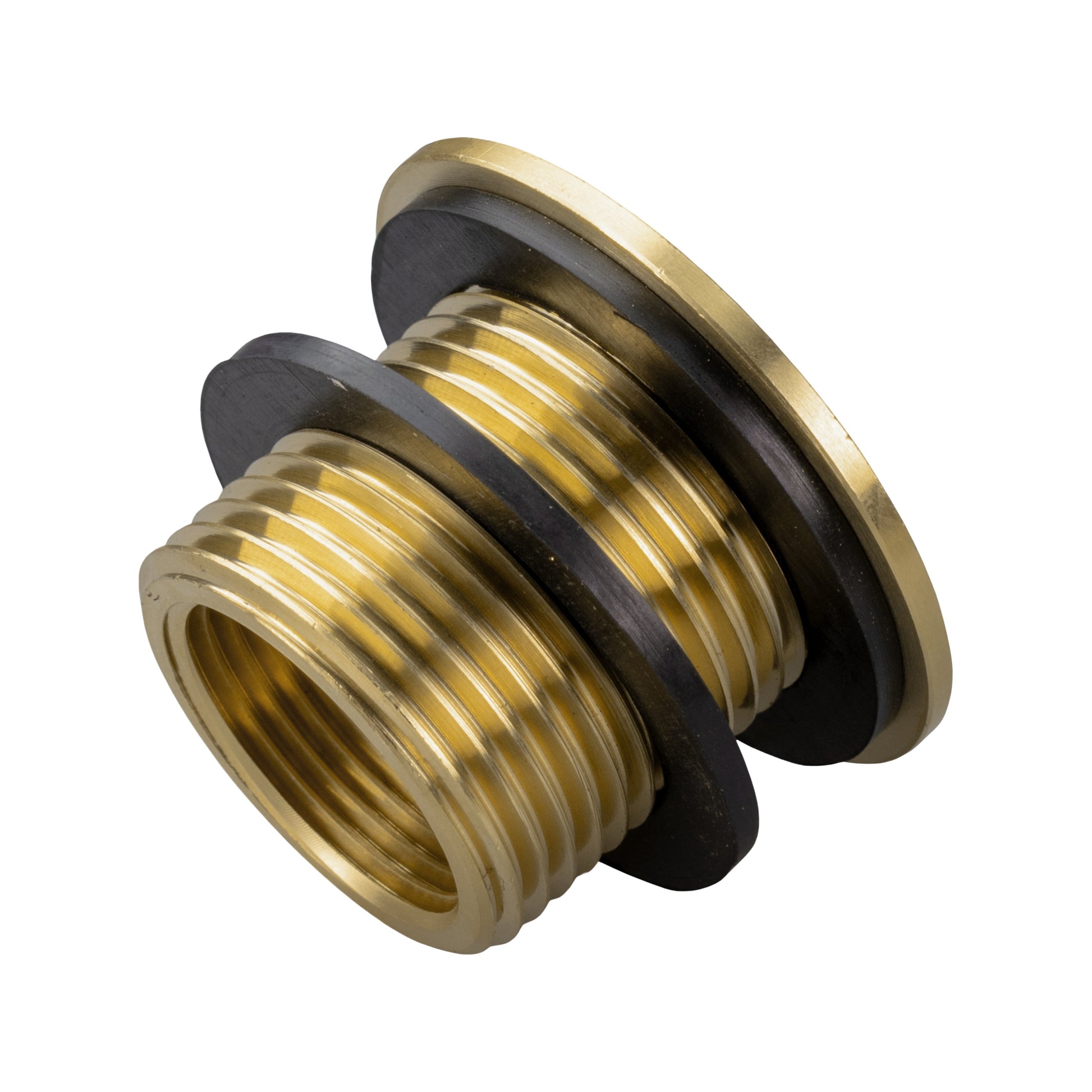

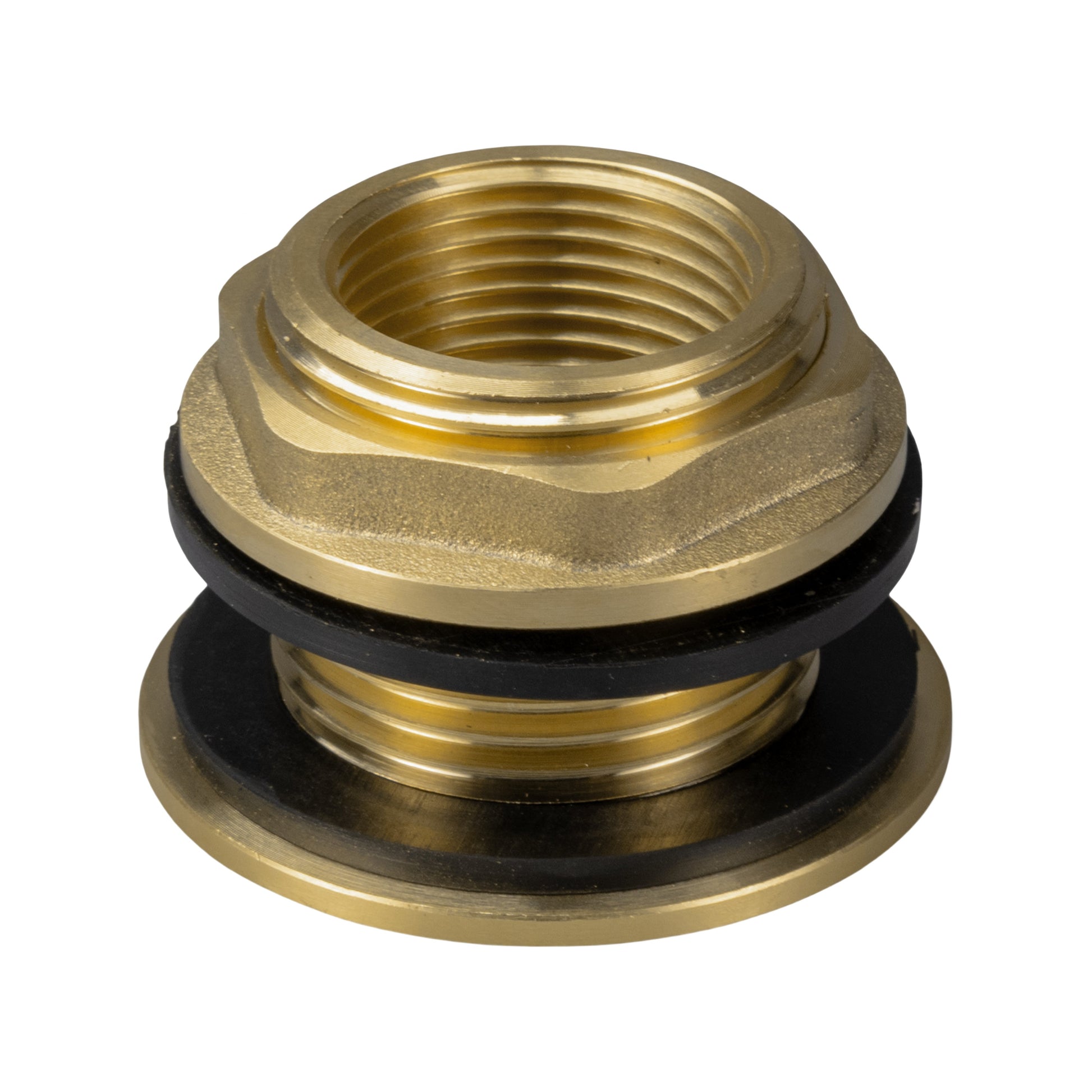

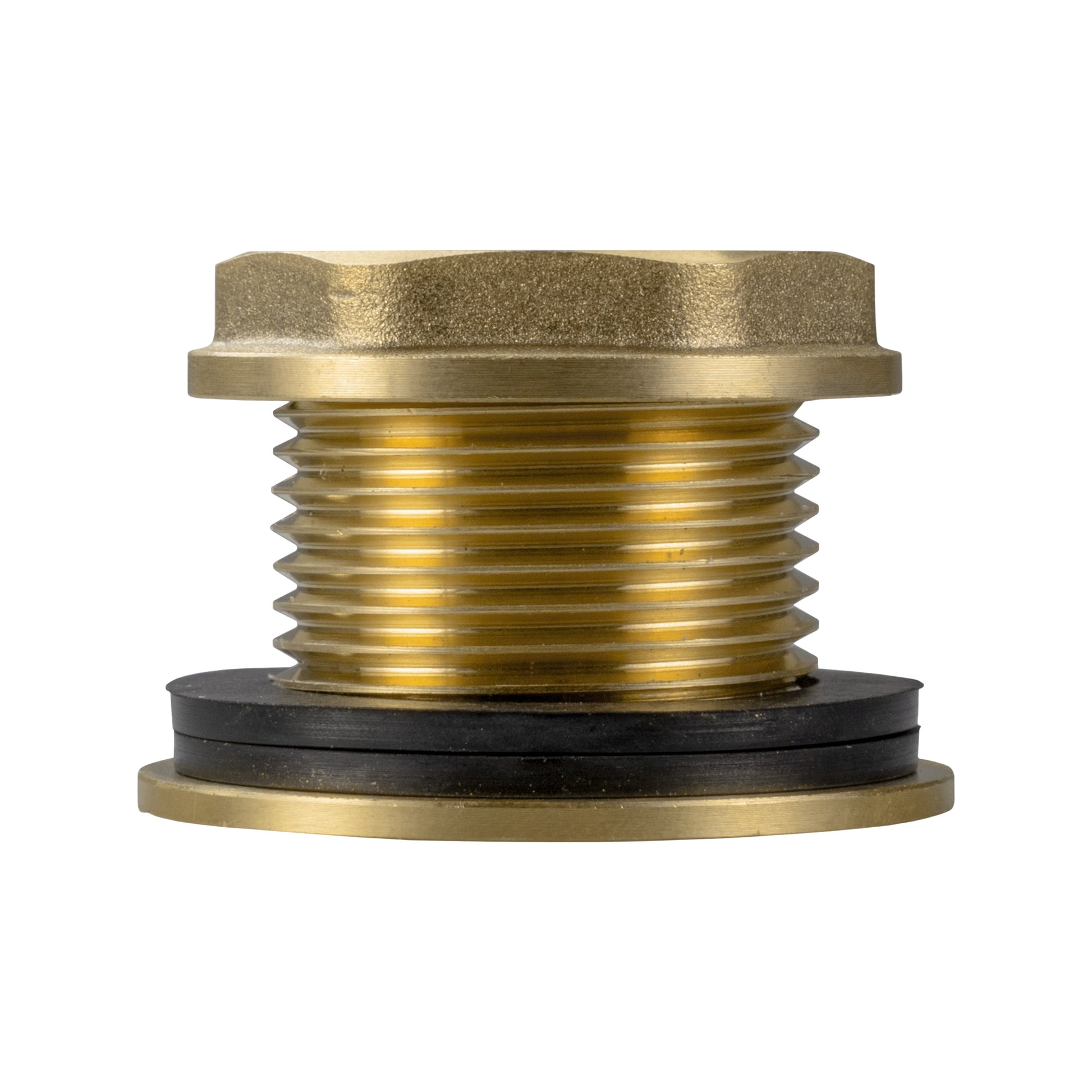

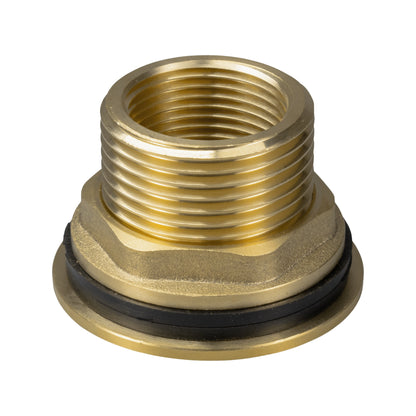

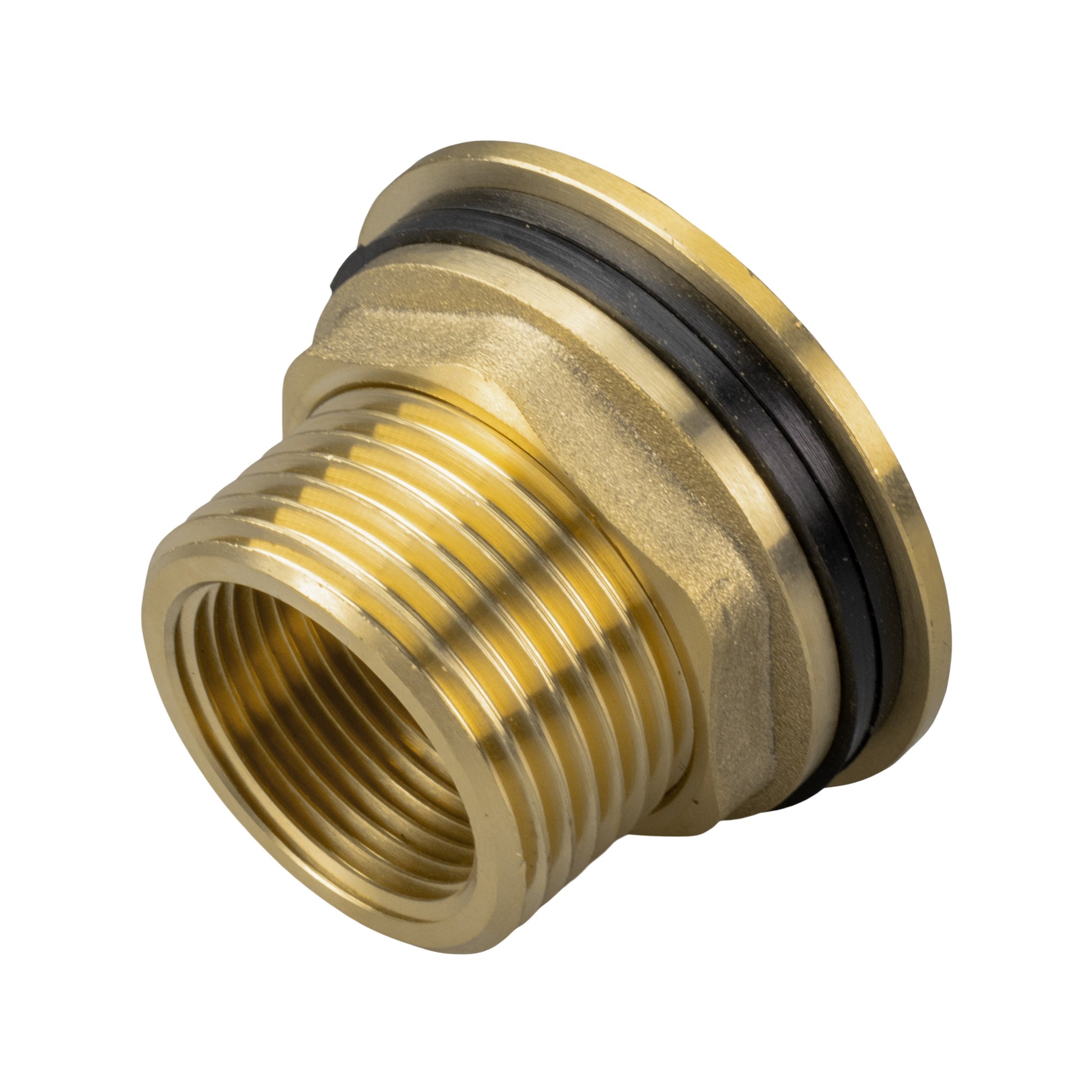

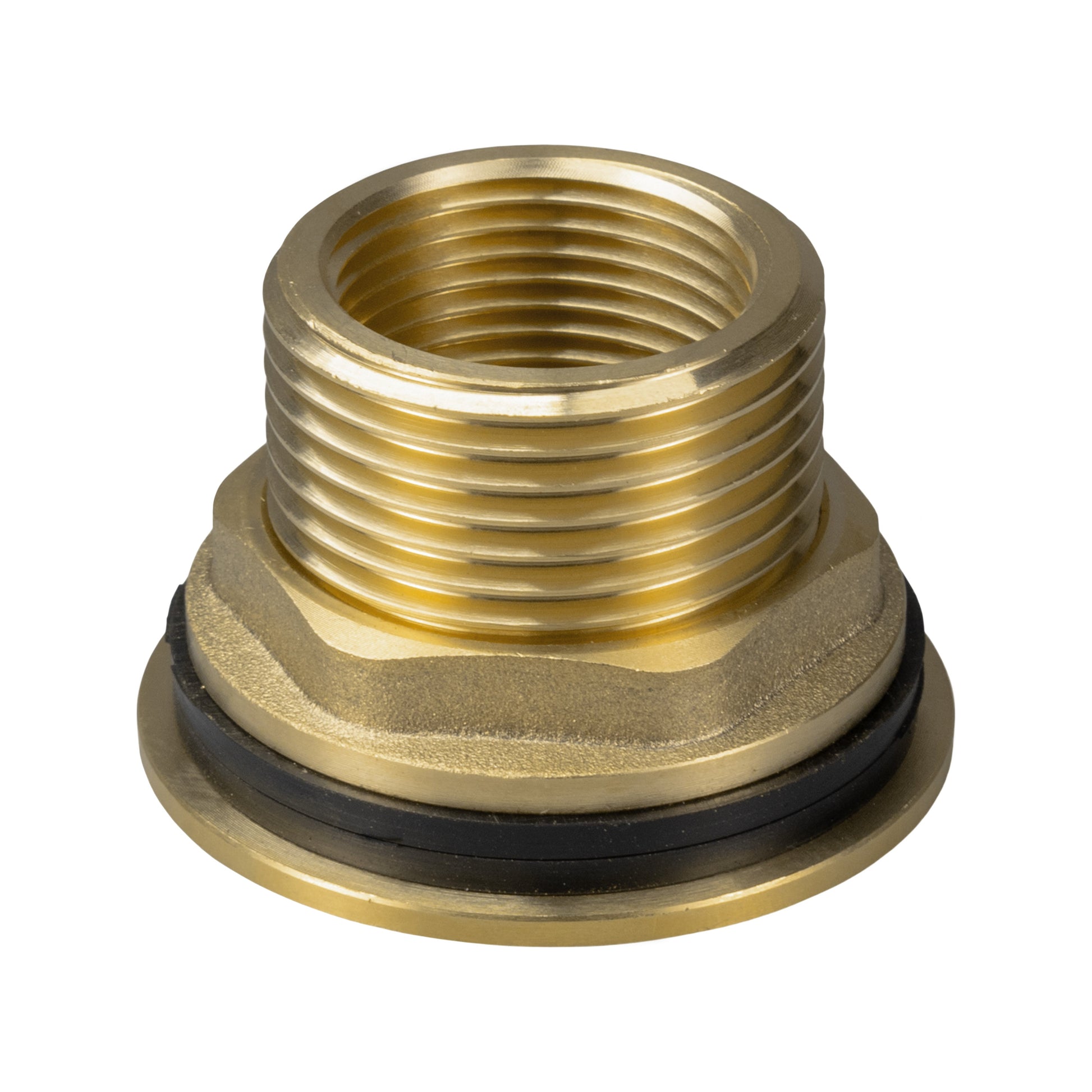

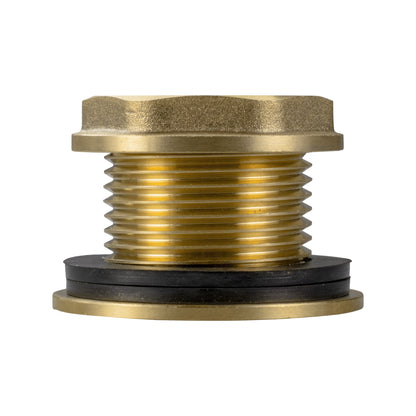

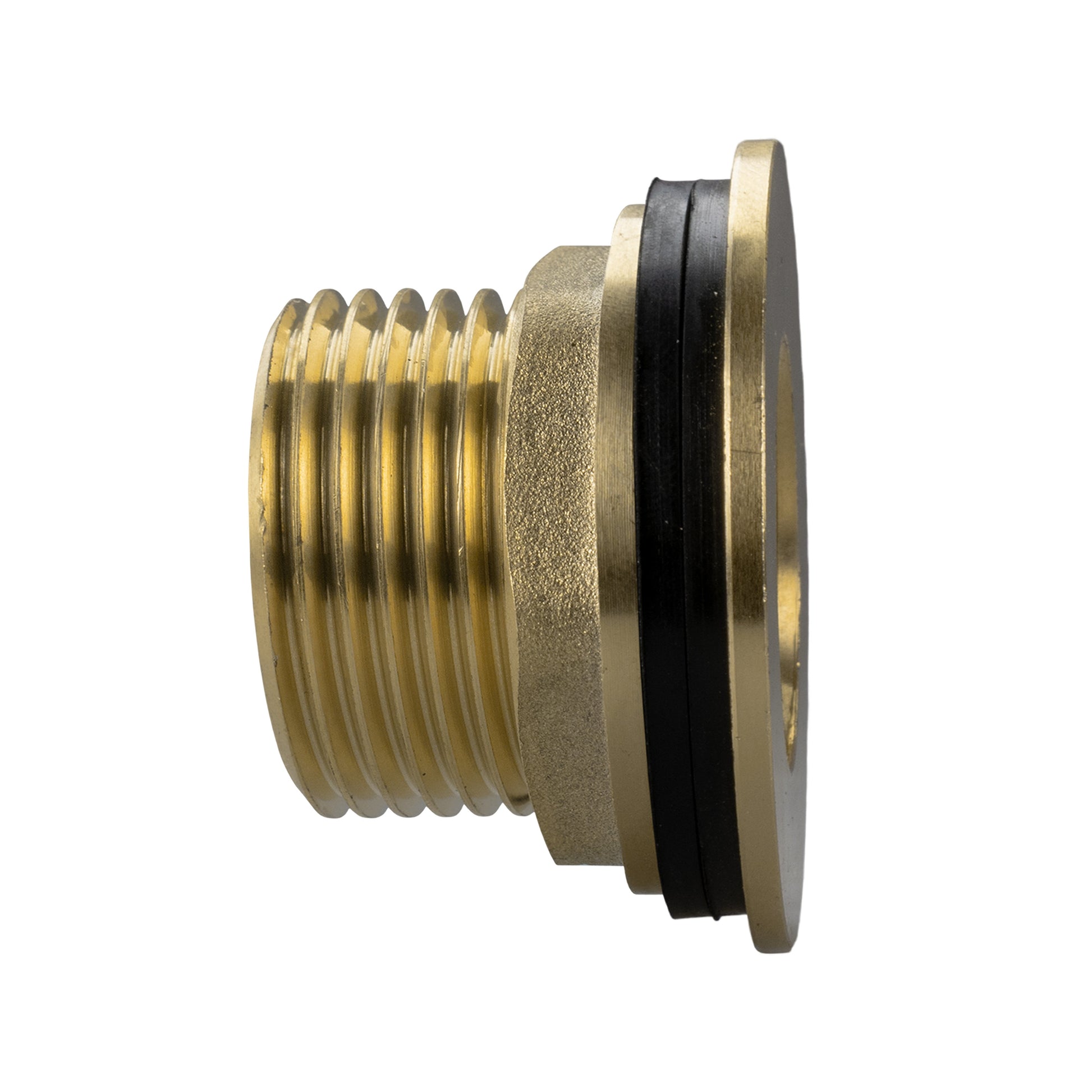

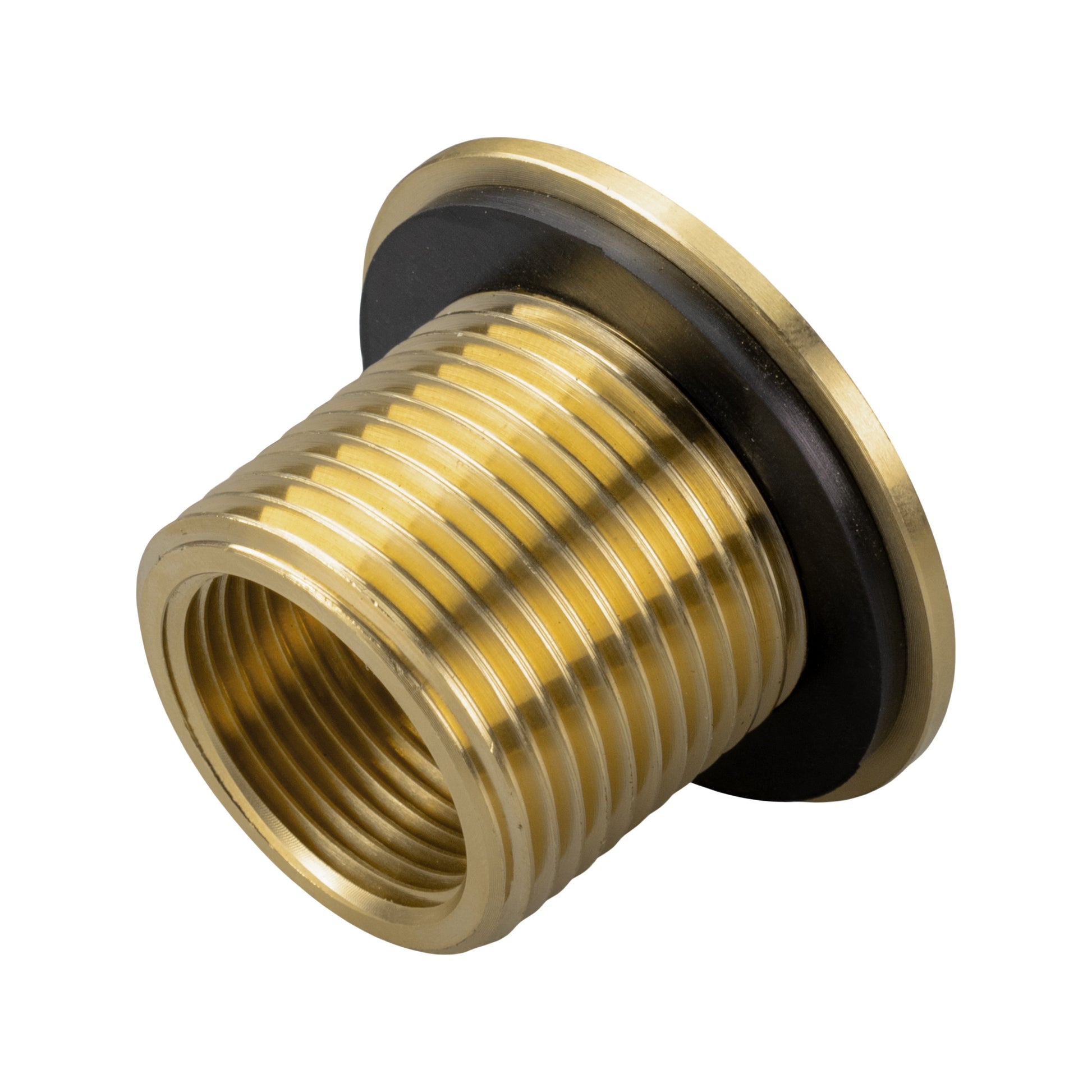

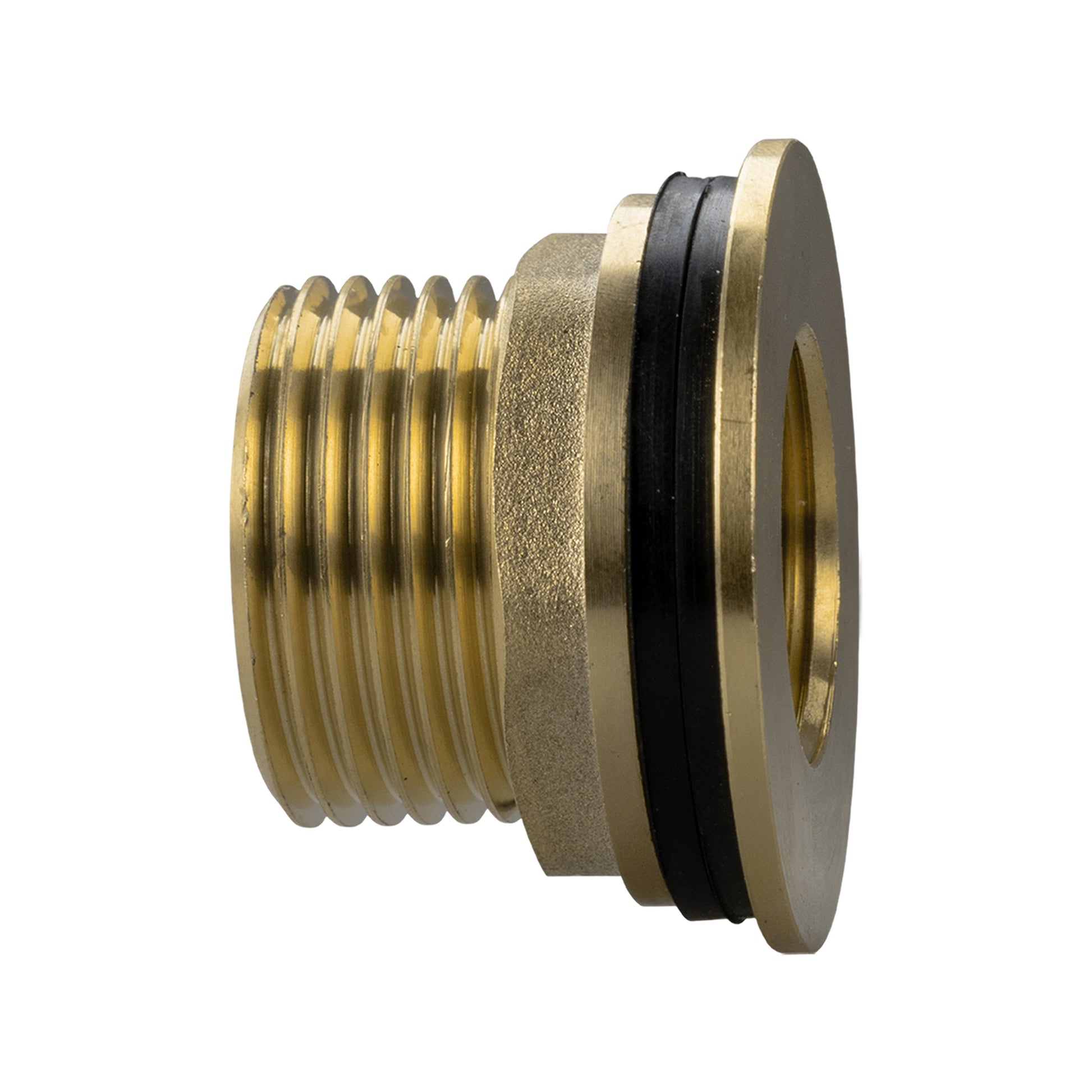

A compact brass reducing adapter with a 1-inch BSP external male thread and a 3/4-inch BSP internal female thread.

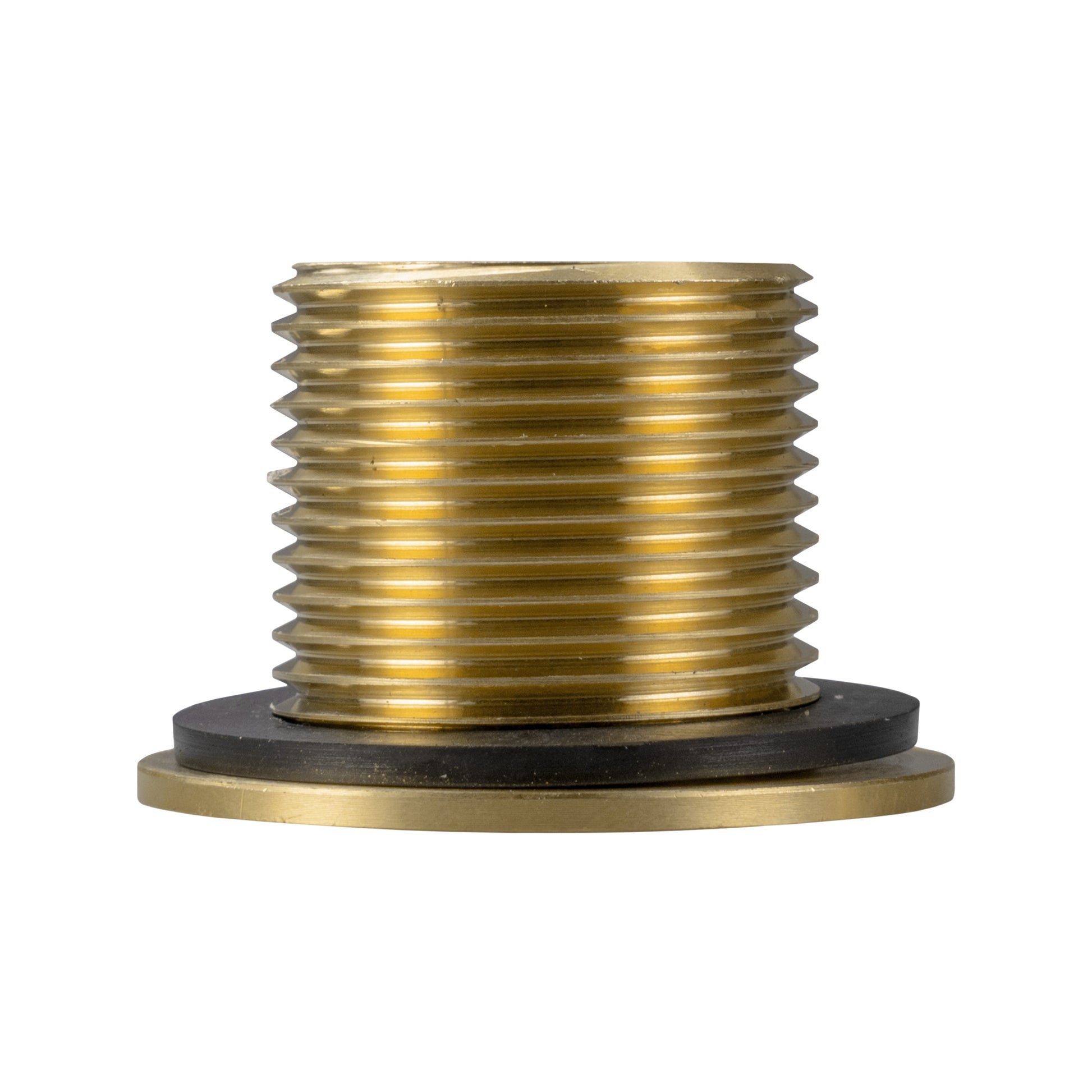

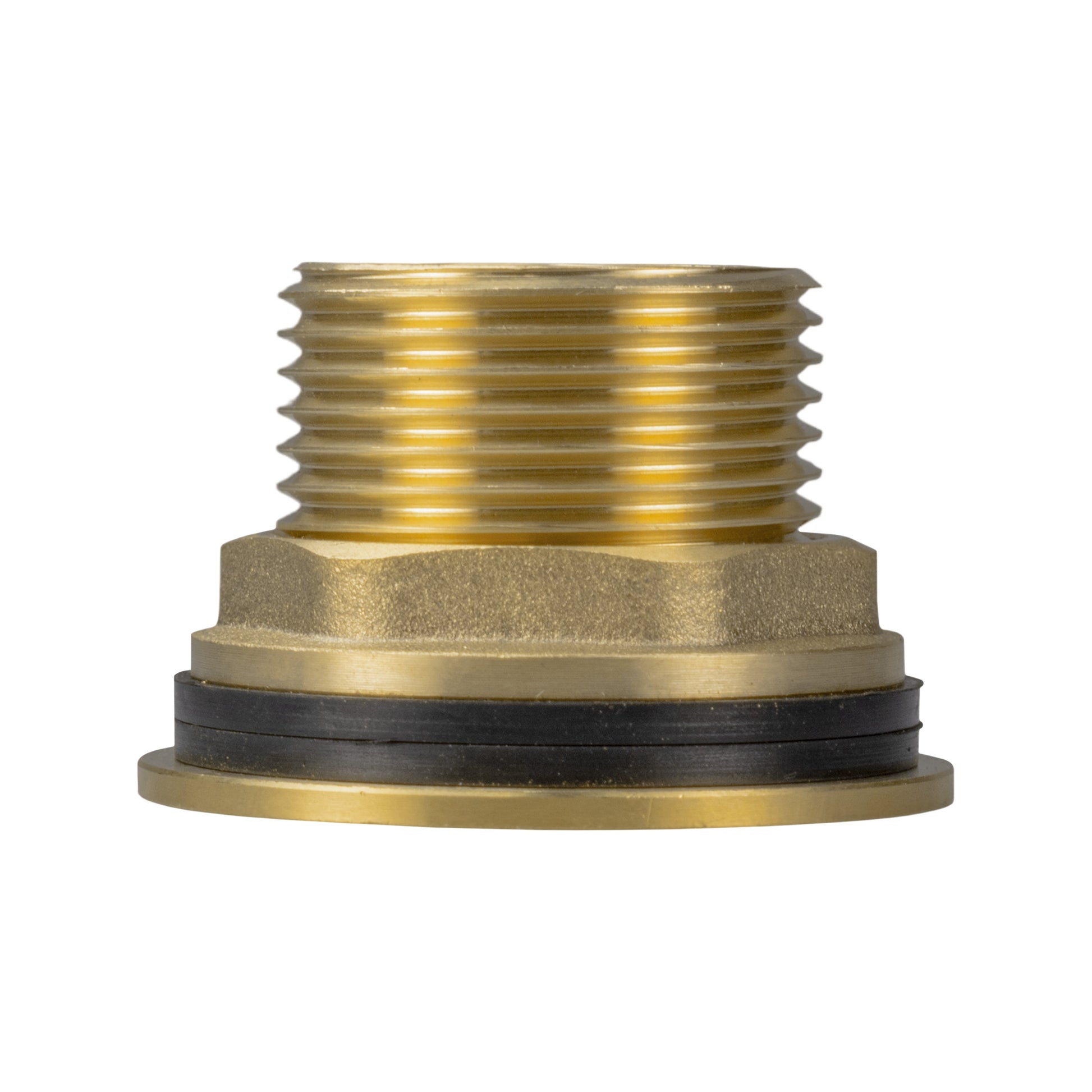

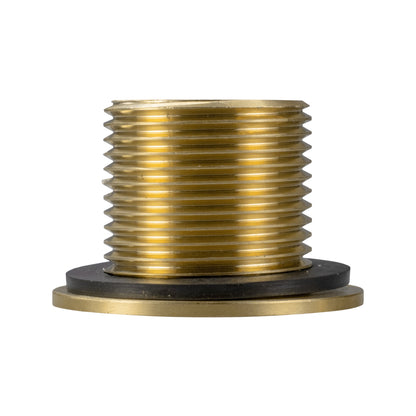

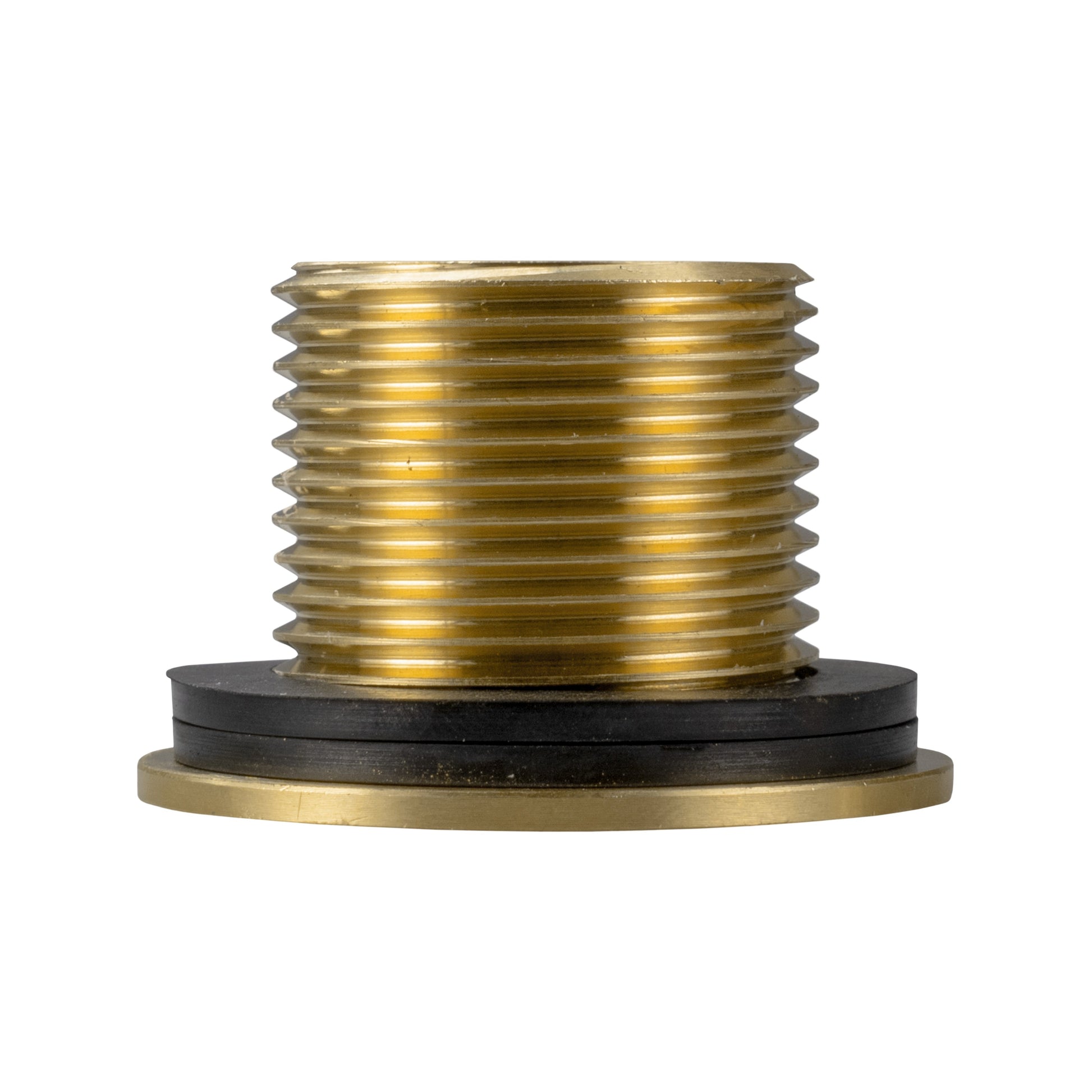

Supplied with one brass back nut and one black sealing washer for a suitable tank mounting.
Match the thread at both connections. Tap, hose and tank are sold separately.
Two sizes in one fitting

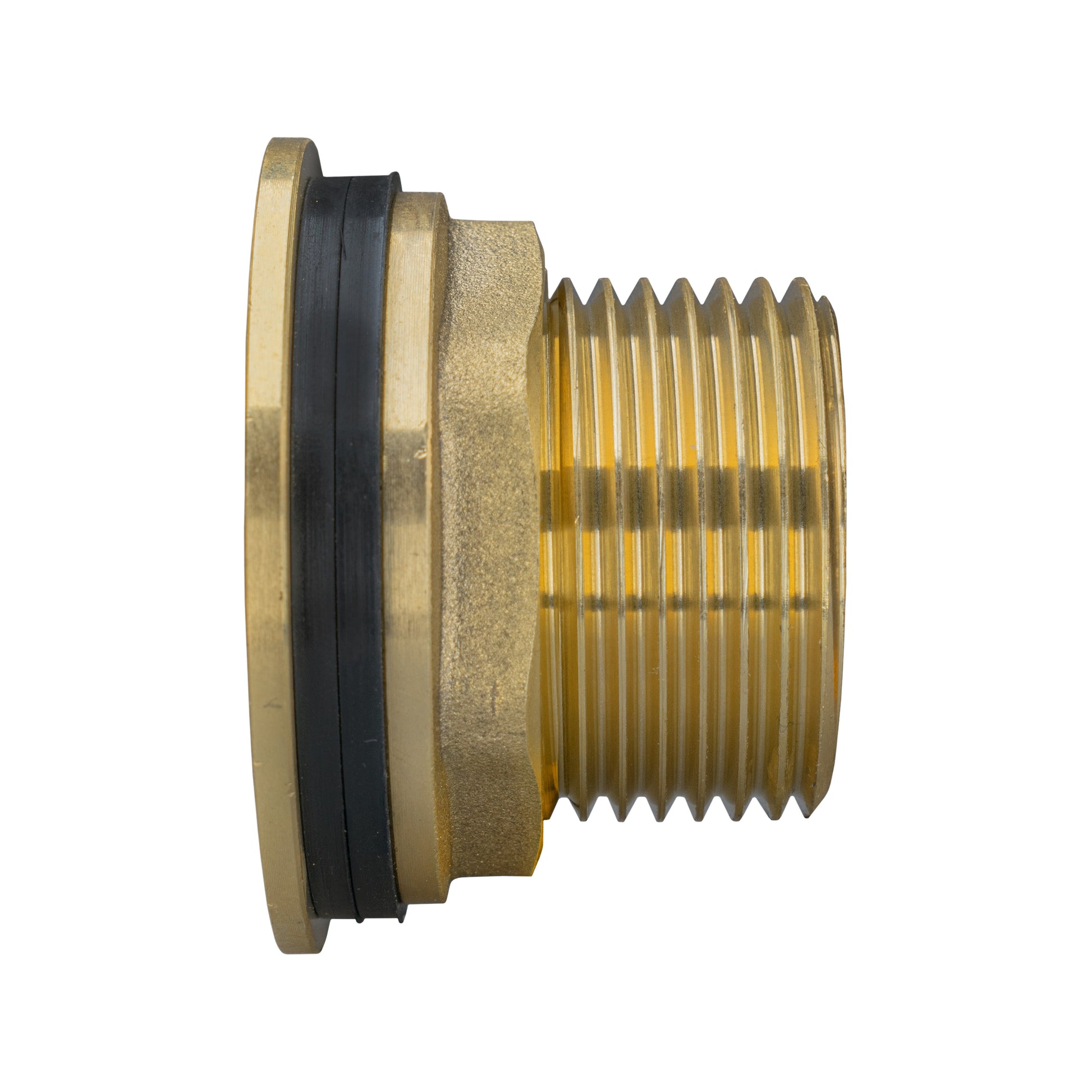

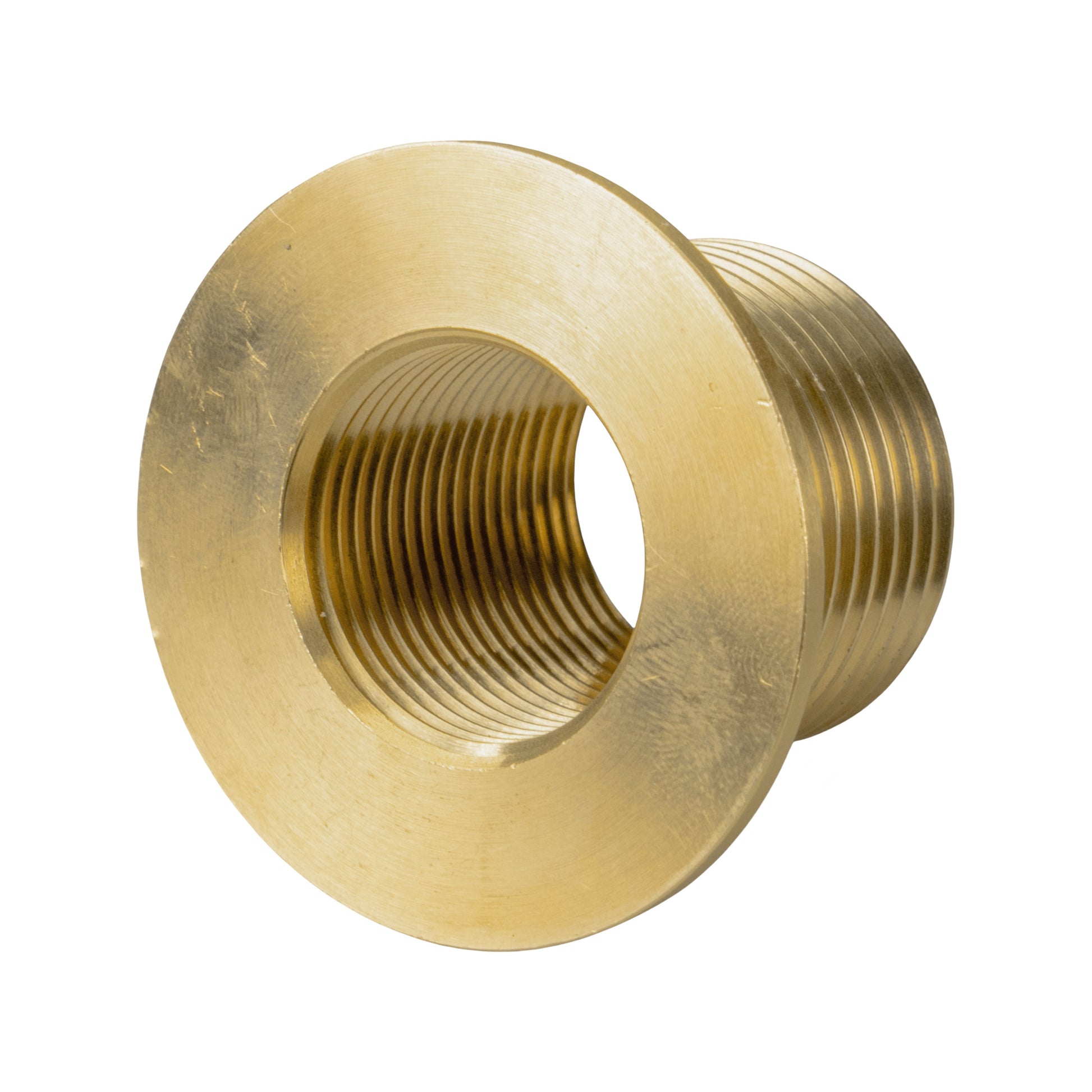

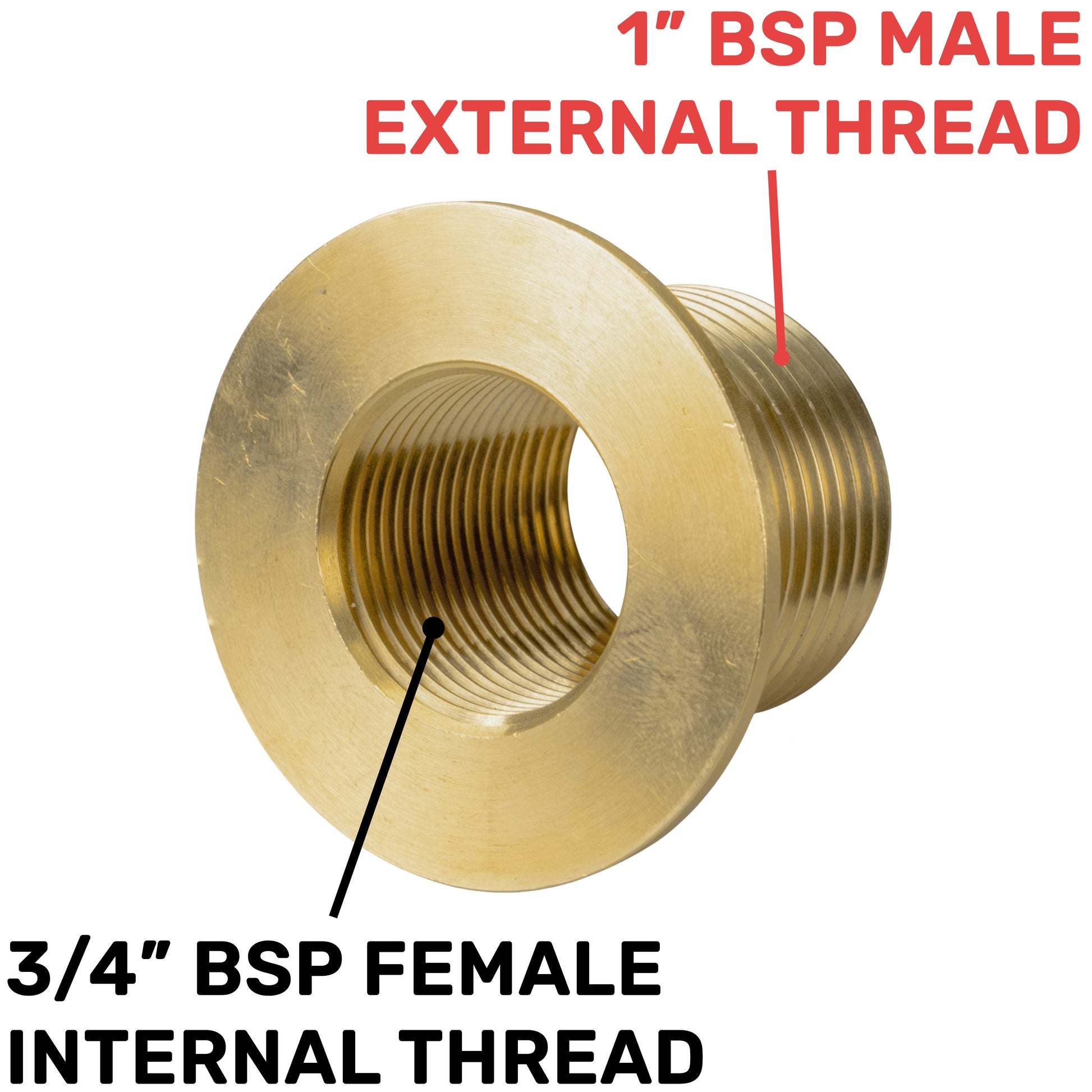

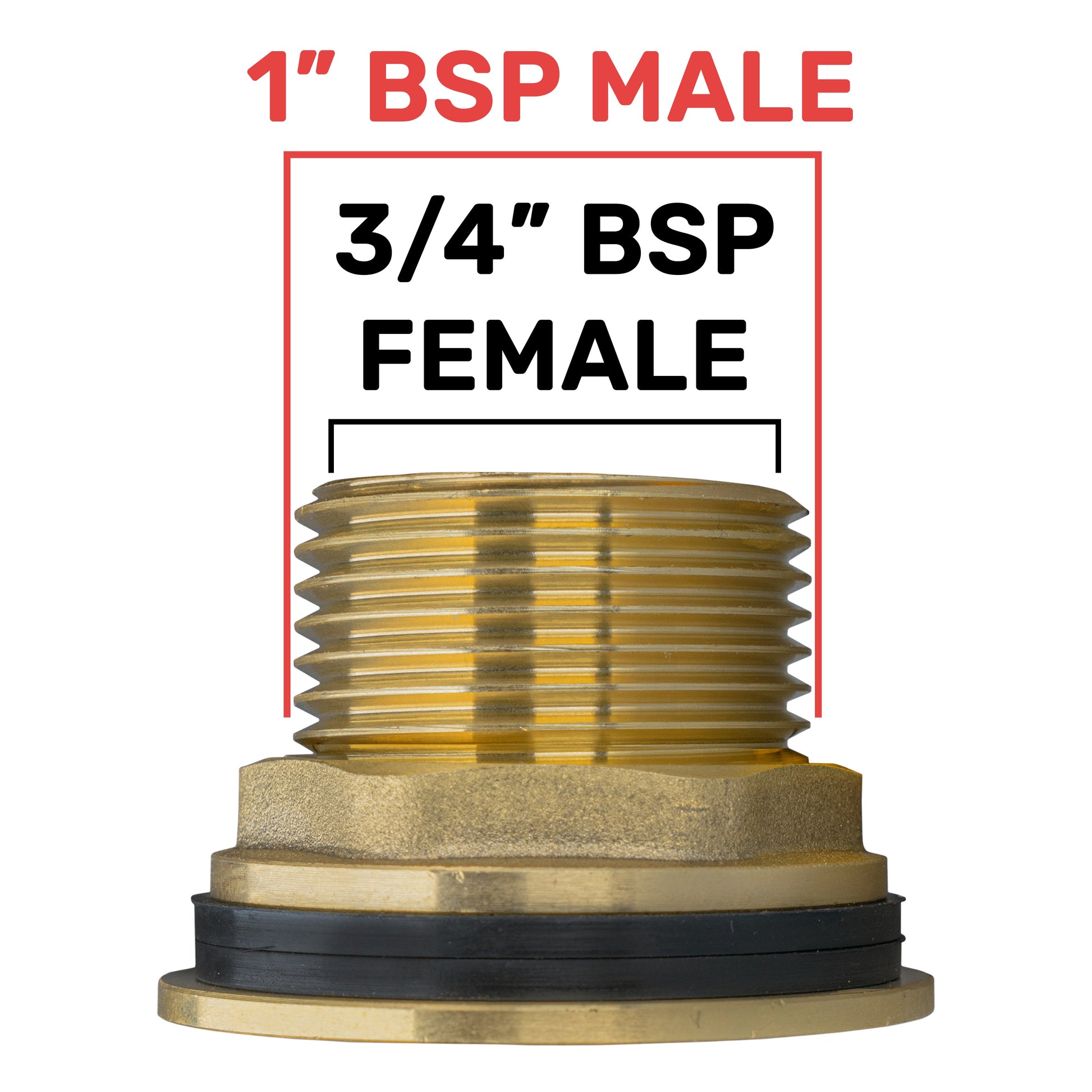

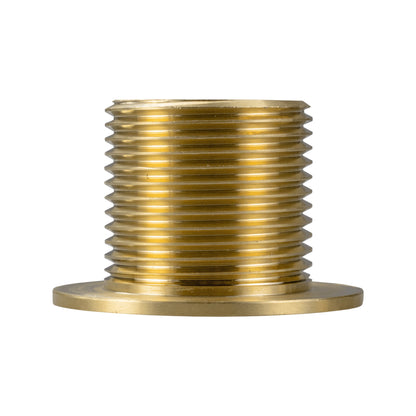

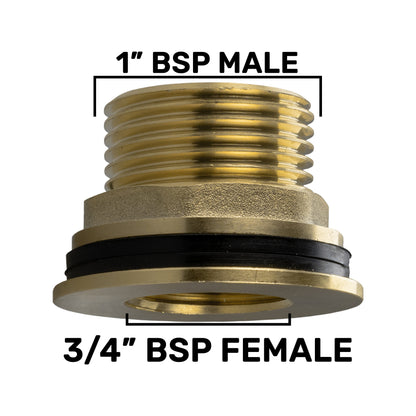

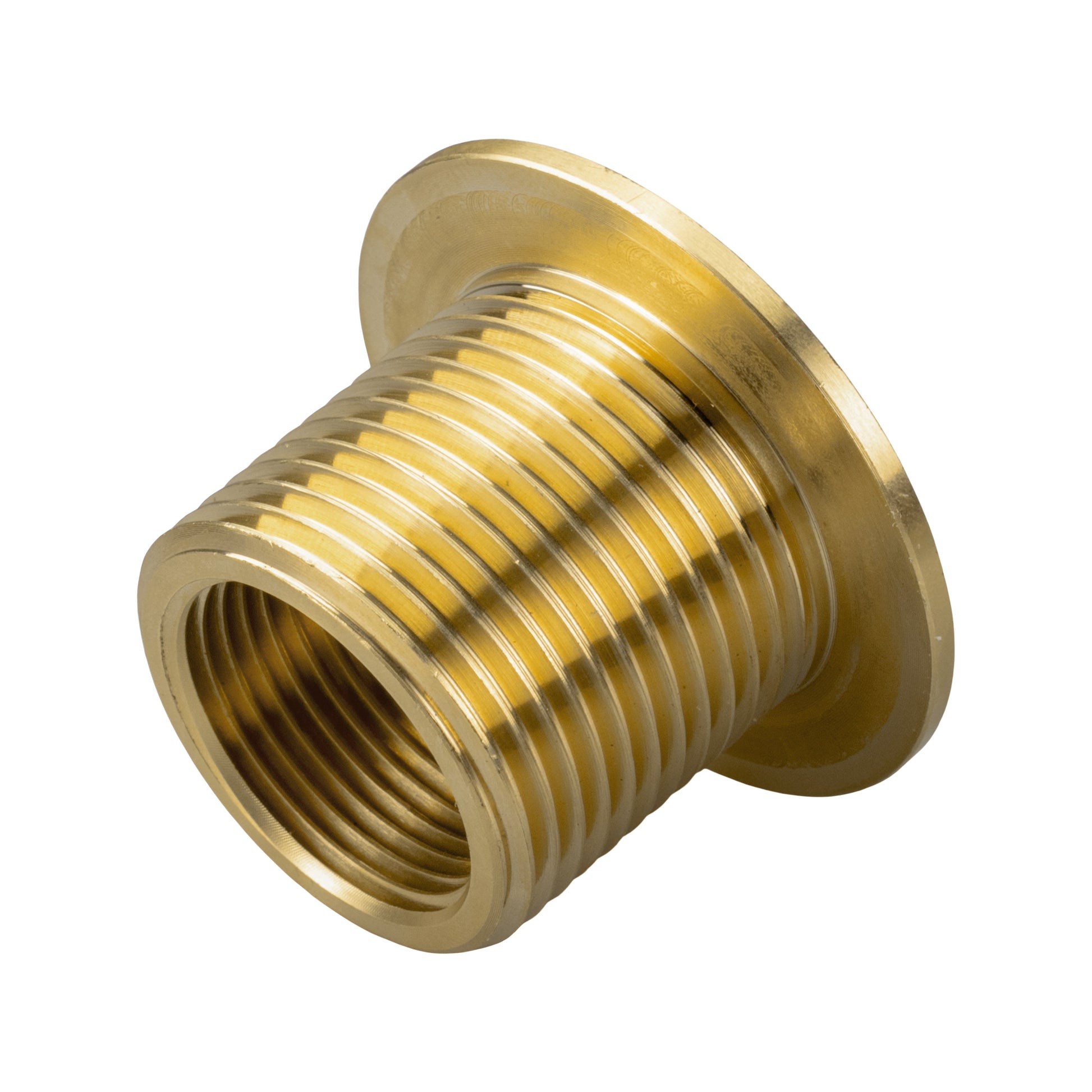

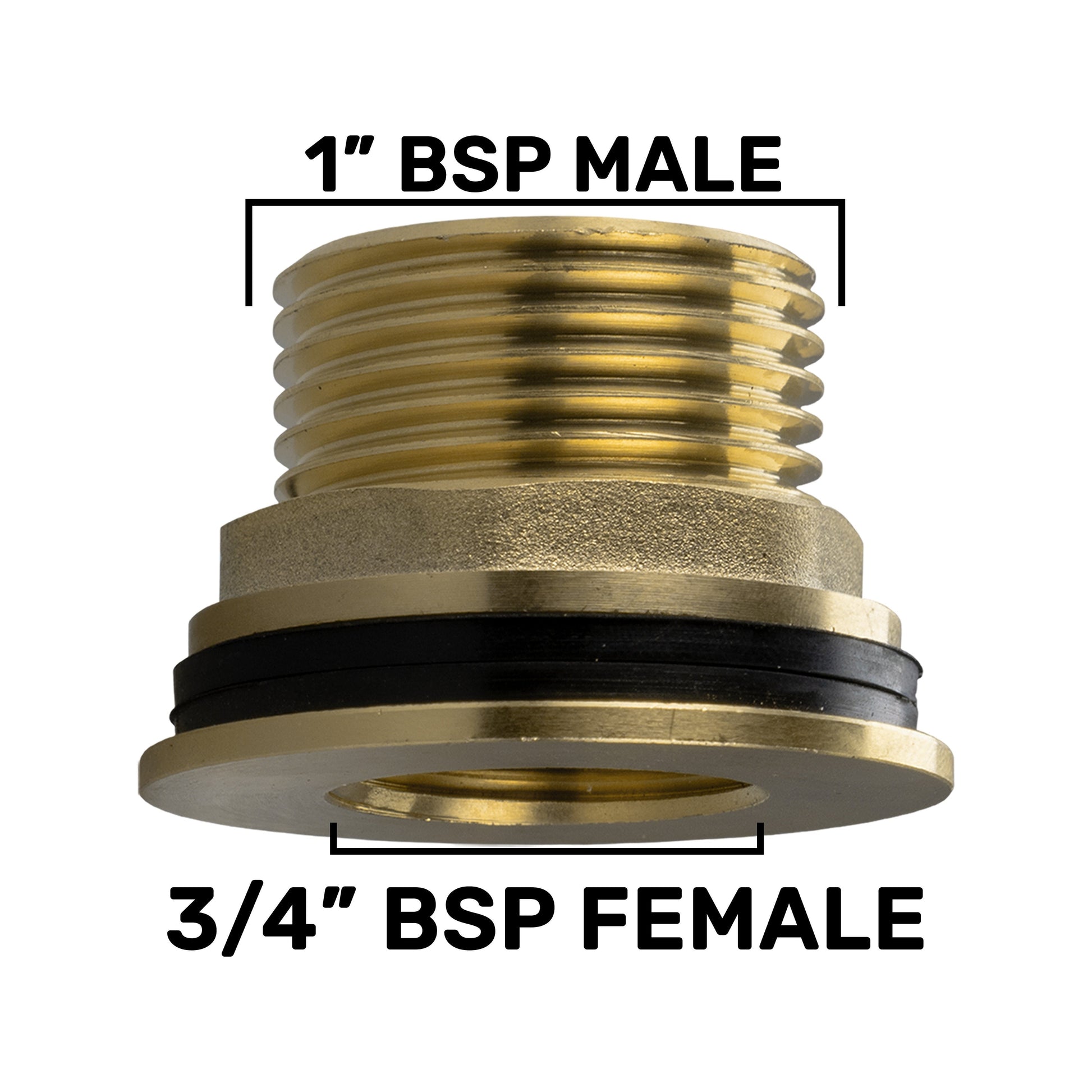

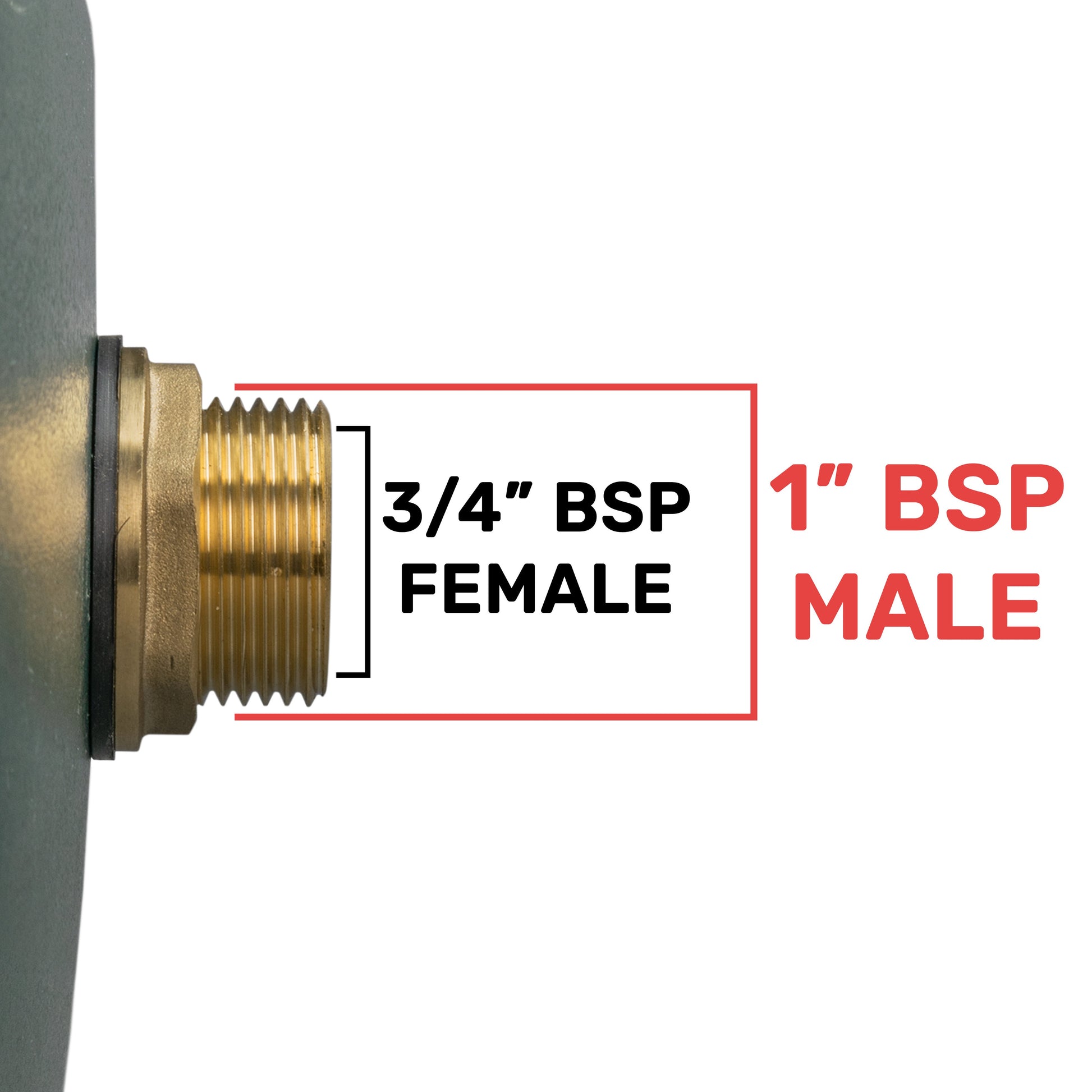

The labelled photograph shows the adapter body with the nut and washer removed for clarity. The larger external thread is 1-inch BSP male; the internal thread is 3/4-inch BSP female and runs through the body.
For an existing threaded tank connection, the male side needs a matching 1-inch BSP female outlet. A separately purchased tap or connector needs a matching three-quarter-inch BSP male thread to engage the internal connection.
Choose the fitting by its BSP thread designation. The nominal inch sizes do not directly describe the drilled hole, hose bore or finished outside diameter.
Plan the wall seal and threaded joint
Check each connection in the complete assembly before filling the tank.
Inspect the mounting surface

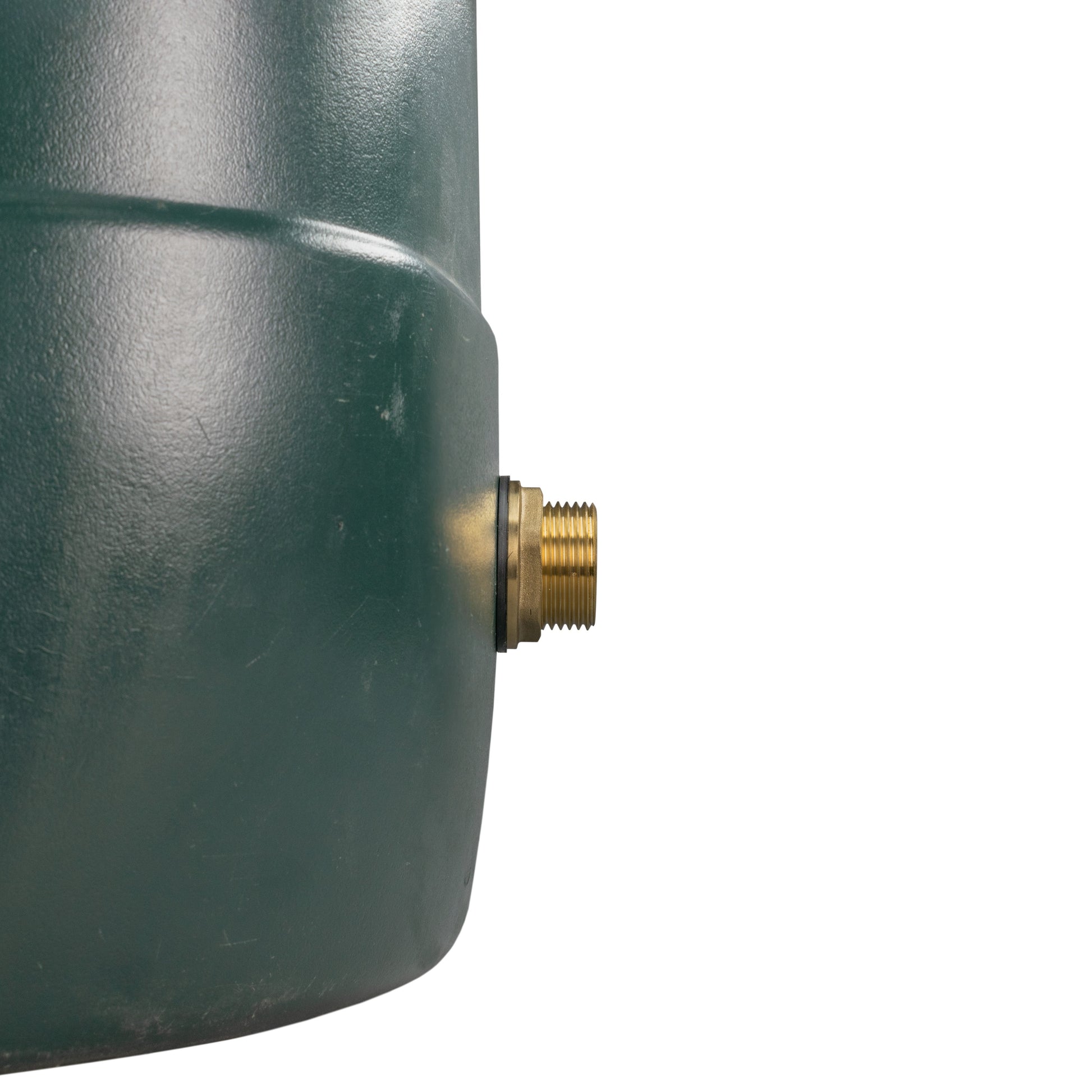

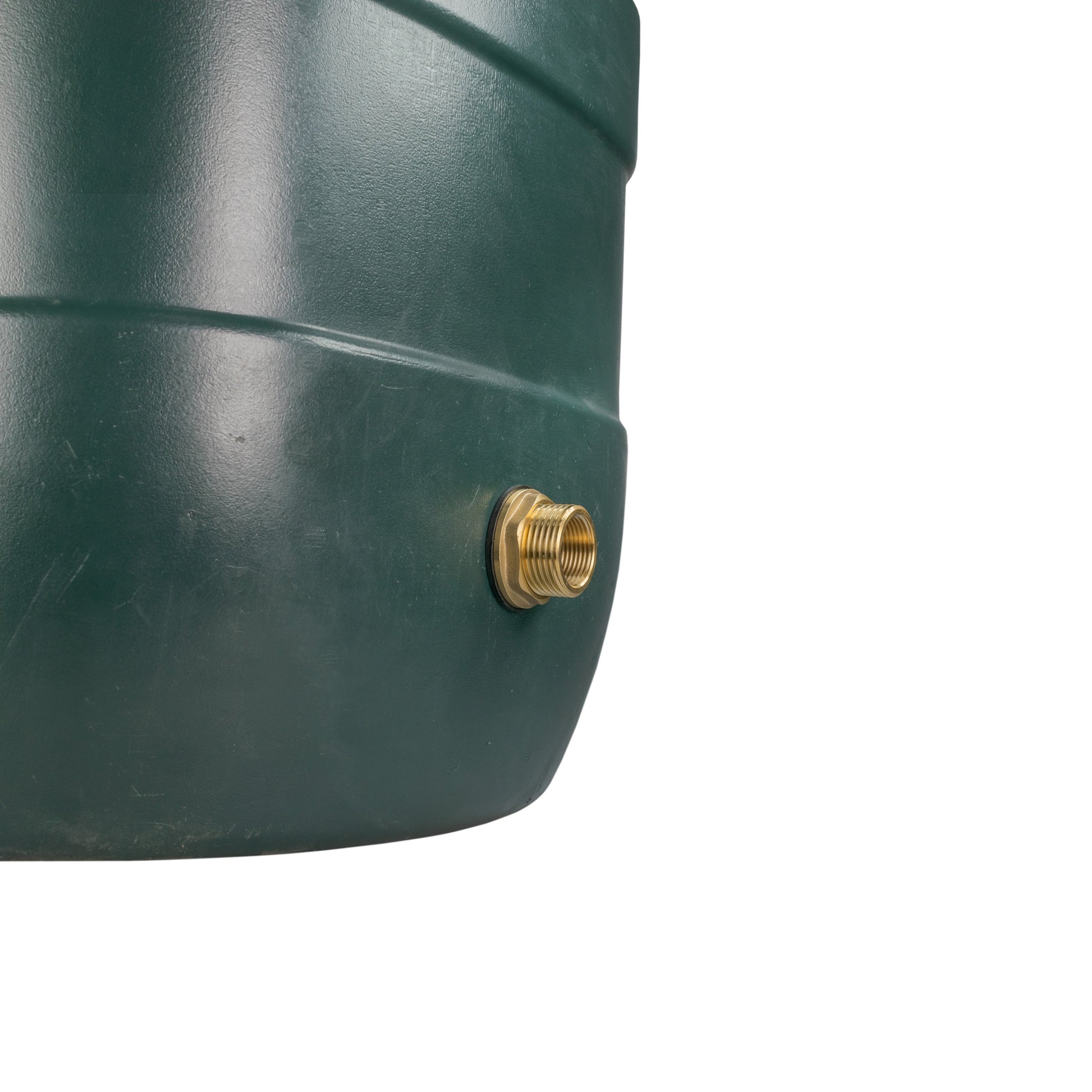

For a new through-wall installation, check the wall is suitable, the sealing face is clean and the nut can be reached. Confirm the opening and wall thickness suit the actual connector before drilling.
Seat the washer

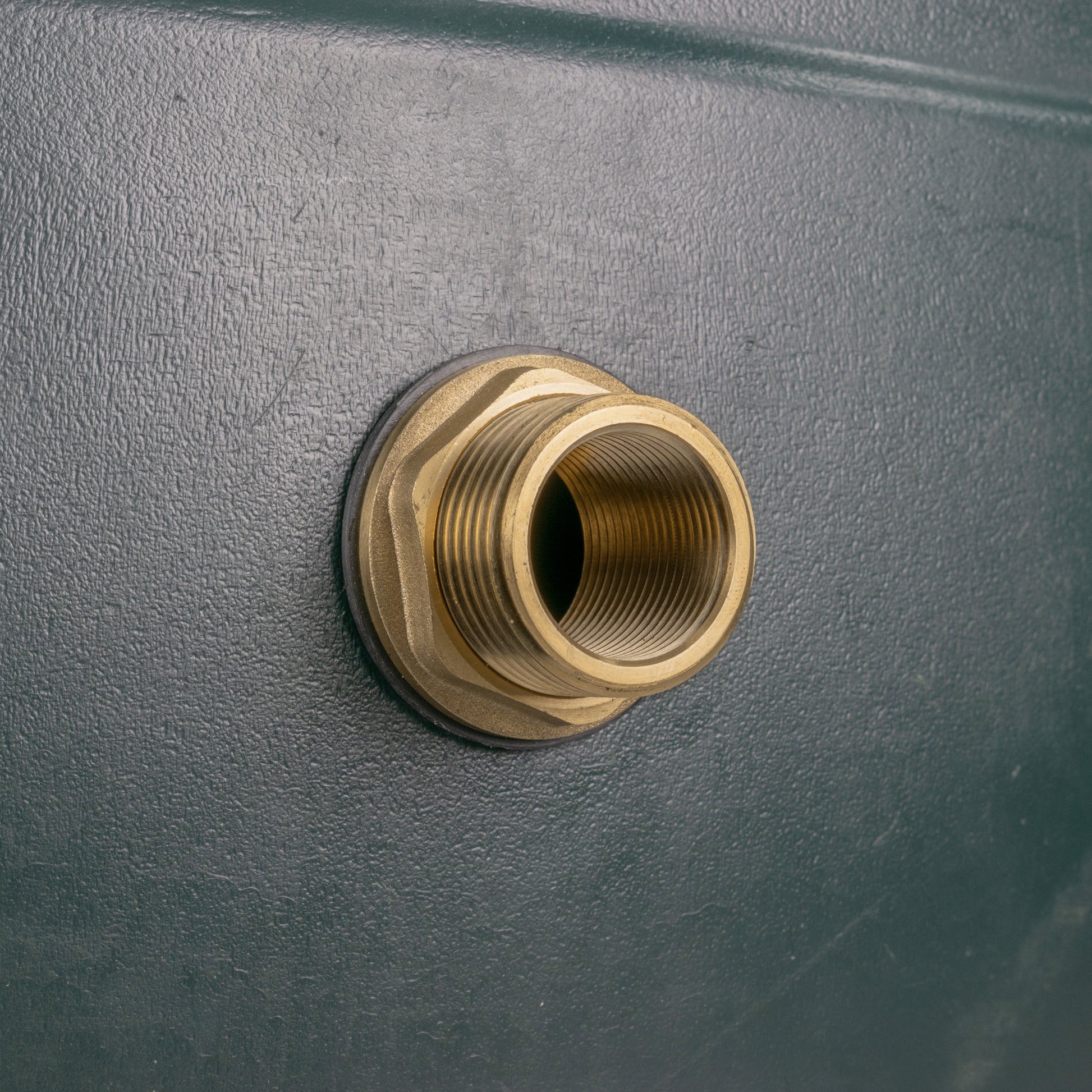

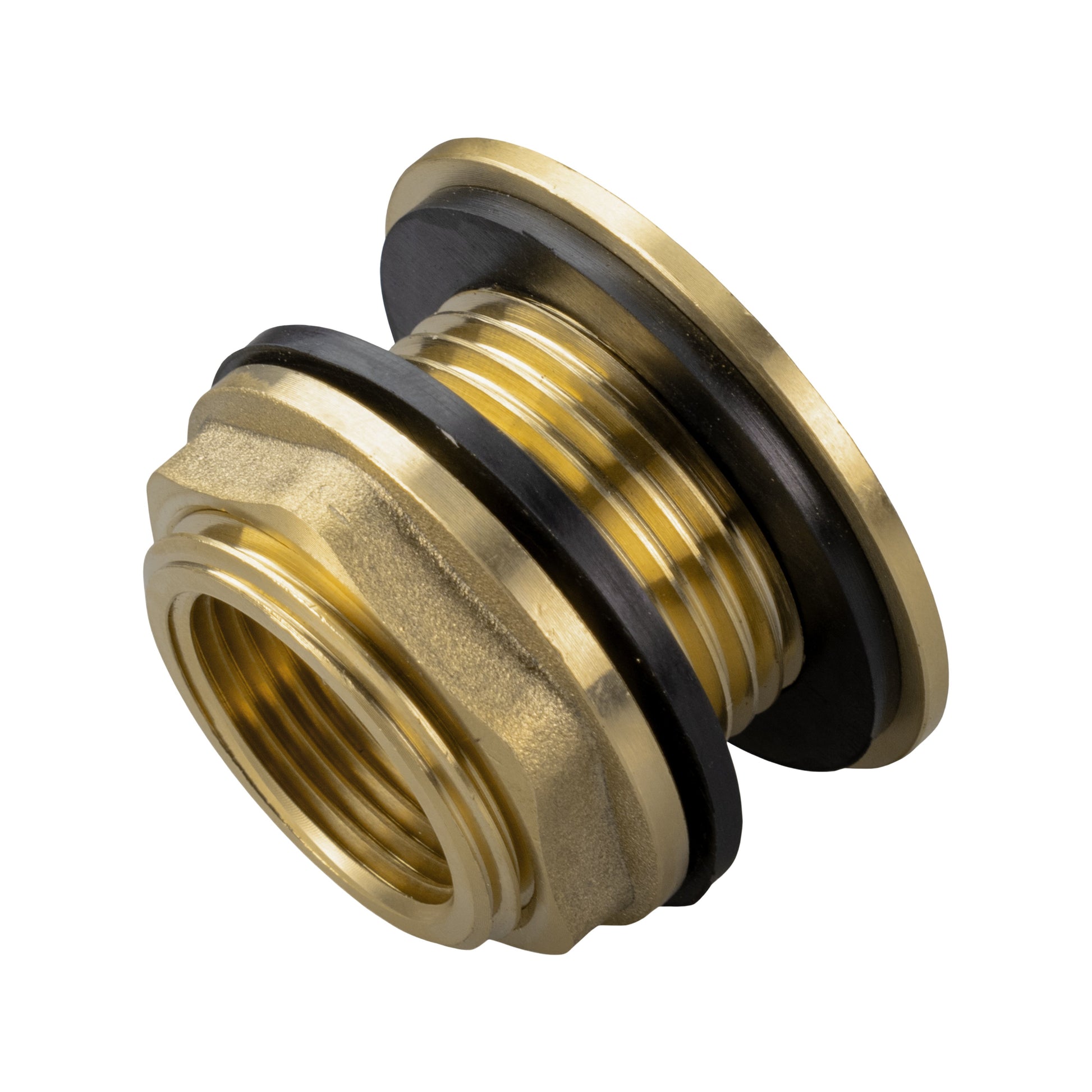

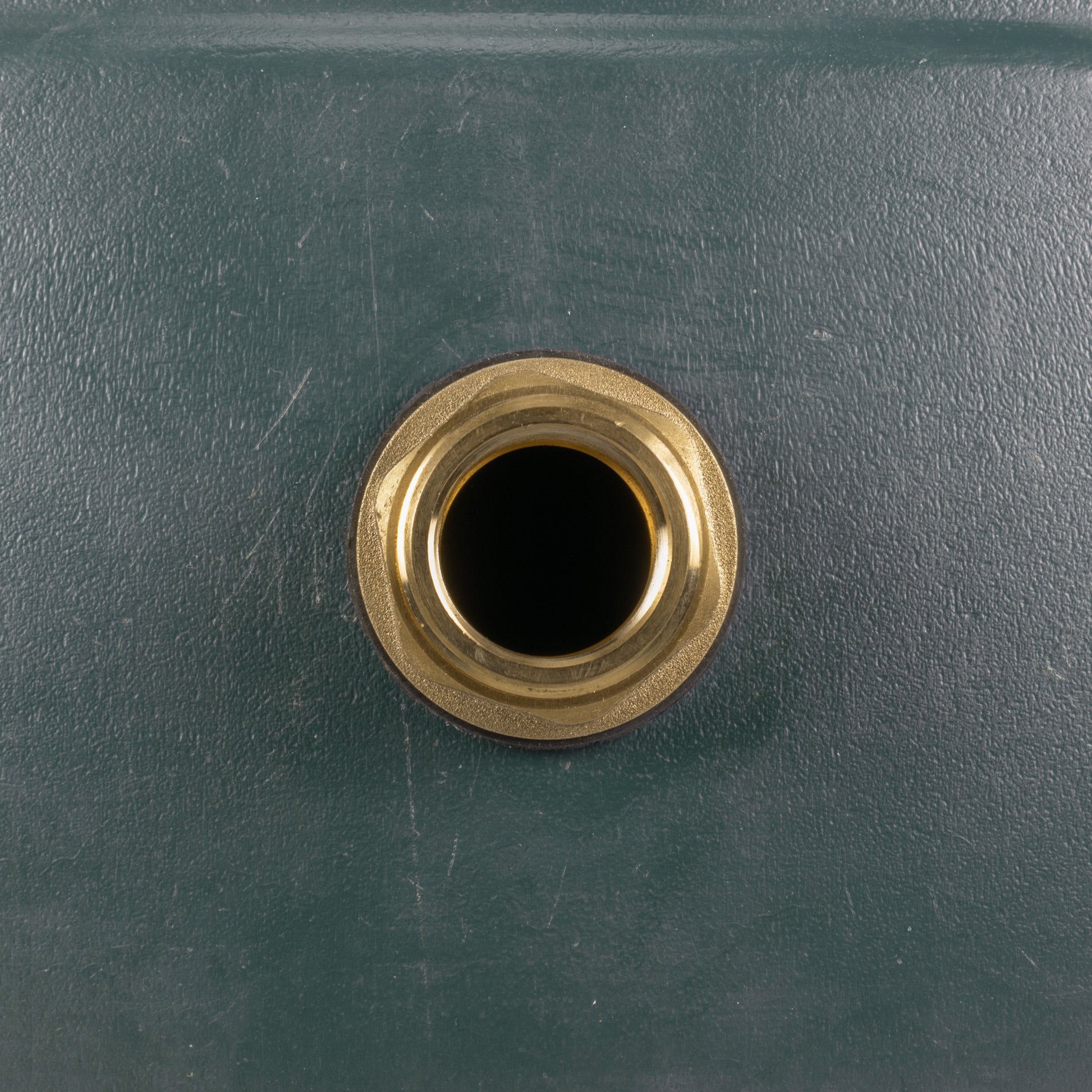

Position the supplied black washer against the flange at the tank wall, with the back nut retaining the connector on the opposite side. Support the fitting and avoid distorting the tank wall when tightening.
Connect the chosen fitting
Use a matching male fitting in the female thread and an appropriate sealing arrangement for that joint. The tank-wall washer does not replace the seal needed at a separate tap connection. Inspect every joint for leaks before use.
Questions about the brass reducer
Which connection is one-inch BSP?
The external male thread is one-inch BSP. The internal female thread is three-quarter-inch BSP. For a tank with an existing threaded outlet, the external male side needs a matching one-inch BSP female connection.
What comes in the pack?

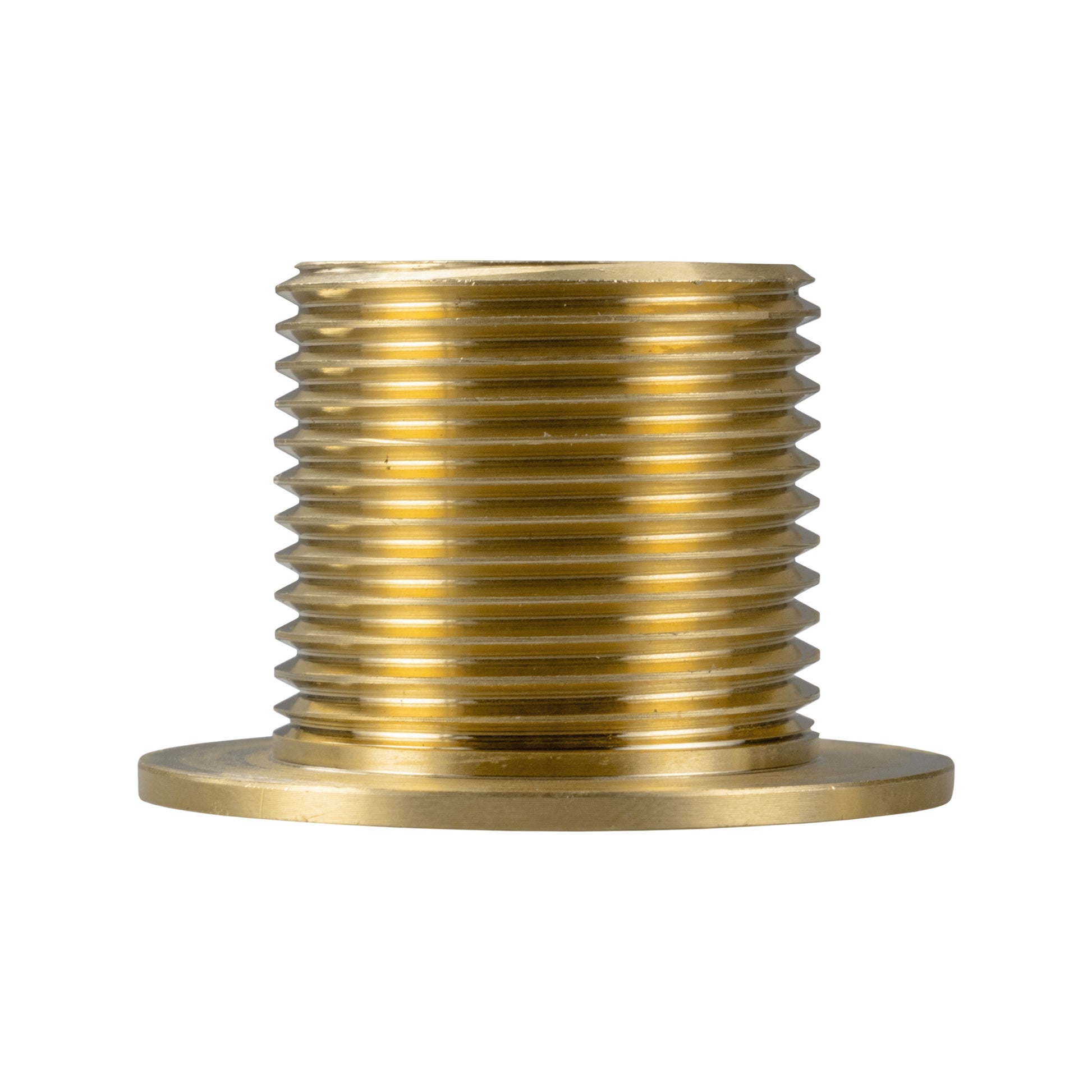

One brass adapter body, one brass back nut and one black sealing washer. The close-up labelled image shows the bare body to identify the threads. A tap, hose, tank and any additional thread-sealing materials are not included.
Can I screw a hose straight onto it?
The adapter provides BSP threads rather than a hose barb or quick-connect outlet. Choose a matching threaded tap or hose connector separately, then match that fitting to your hose. Thread size and hose bore are different measurements.
Does the included washer seal the tap thread as well?
The black washer is provided for the tank mounting, seated against the flange. A separately attached tap or connector needs its own suitable sealing arrangement at the threaded joint. Check both the tank seal and any attached fitting for leakage.
Product information & technical details
| SKU | WB-BR-34BSPF-1BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Male, Female |
| Colour | Brass |
| Material | Brass |
| External male thread | 1-inch BSP male |
|---|---|
| Internal female thread | 3/4-inch BSP female |
| Back nut | 1 brass nut included |
| Sealing washer | 1 black washer included |
| Supplied contents | 1 adapter, 1 back nut and 1 washer |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
