Description
Connect a one-inch fitting

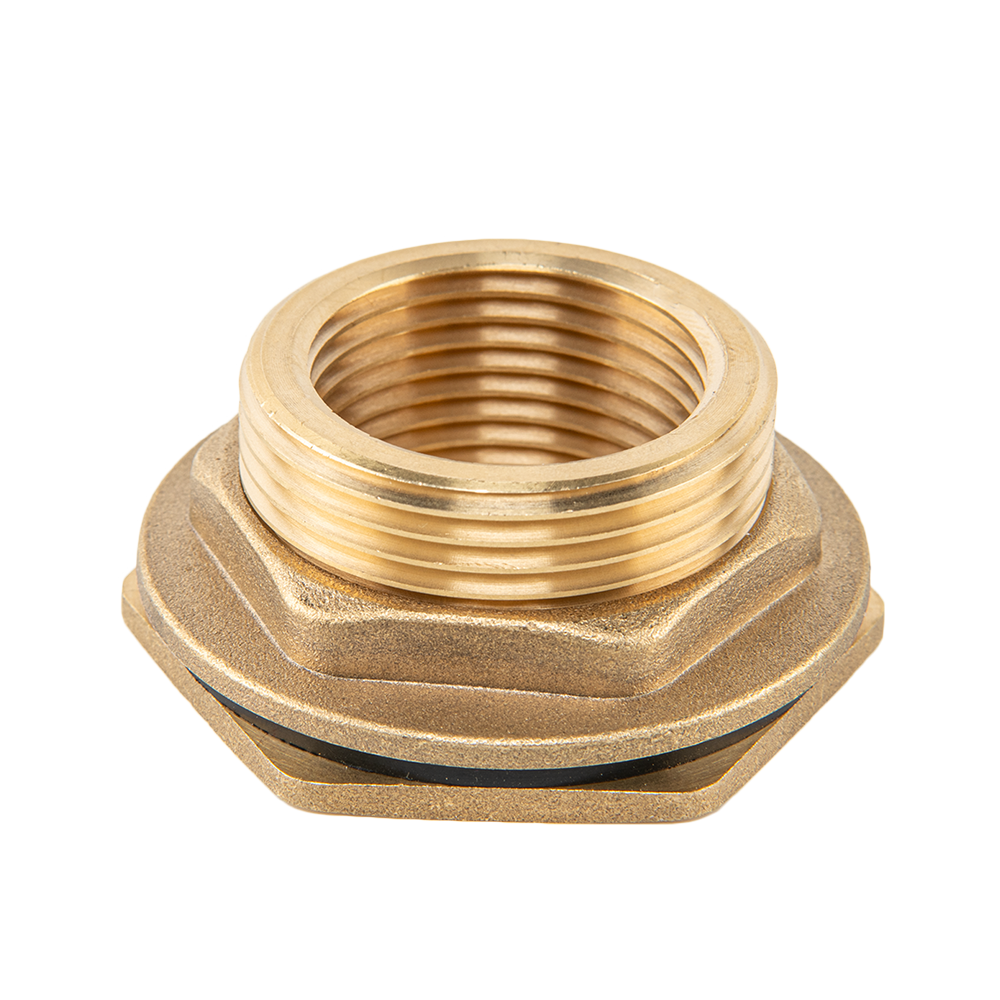

A compact brass tank reducer with a 1¼-inch BSP external male thread and a 1-inch BSP internal female thread.
The short body has a hexagonal base. One brass back nut and one black sealing washer are included.
For a compatible tank mounting and a separately chosen tap or connector.
Check the outside and inside threads
The labelled photograph identifies the two connections: 1¼-inch BSP male around the outside and 1-inch BSP female through the centre.
For a tank with an existing thread, the outer male side needs a matching 1¼-inch BSP female outlet. The internal thread accepts a separately purchased one-inch BSP male tap or connector.
These are nominal BSP sizes. They identify the threads rather than the hose bore. Check the fitting at each connection so the reducer suits the complete setup.
Plan the mounting before drilling
Check the wall seal, retaining nut and tap connection together.
Check the opening
The mounting-hole guide for this adapter is 42mm. Confirm this against the actual fitting and tank before drilling. Check that the wall thickness and shape allow the washer to seat and the nut to engage.
Seat the washer and nut
Position the black washer against the connector’s base at the tank wall, with the back nut retaining the fitting on the opposite side. Hold the body while tightening and avoid distorting the wall or washer.
Finish the threaded connection
Attach a matching male fitting to the internal thread with a suitable sealing arrangement for that joint. The wall washer seals the tank mounting; inspect that seal and the separate fitting connection for leakage before use.
Questions about the larger reducer
What does 1.25-inch BSP mean on this adapter?
It is another way of writing 1¼-inch BSP, the external male thread size. The internal female thread is one-inch BSP. Check these two nominal thread designations against the tank outlet and the fitting you intend to connect.
Is the back nut supplied separately from the body?
Yes. The pack includes one brass adapter body, one removable brass back nut and one black sealing washer. The original exploded product photo shows the nut above the body to identify the parts; it is refitted when assembling the mounting.
What hole size should I check for a new tank outlet?
The mounting guide is a 42mm hole. Check the actual connector, tank wall thickness and shape before drilling. You also need a suitable sealing surface and enough access to position the washer and tighten the retaining nut.
Does it include a tap or hose connection?
No. One adapter body, one back nut and one washer are supplied. Choose a separate fitting with a matching one-inch BSP male inlet, then match its outlet to your hose or dispensing arrangement. Check clearance and sealing for the complete assembly.
Product information & technical details
| SKU | WB-BR-1BSPF-125BSPM001 |
|---|---|
| Product type | |
| BSP thread size | 1", 1.25" |
| Thread gender | Male, Female |
| Colour | Brass |
| Material | Brass |
| External male thread | 1.25-inch BSP male |
|---|---|
| Internal female thread | 1-inch BSP female |
| Back nut | 1 brass nut included |
| Sealing washer | 1 black washer included |
| Mounting-hole guide | 42mm; check actual fitting before drilling |
| Supplied contents | 1 adapter, 1 back nut and 1 washer |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
