Description
A better angle for your hose

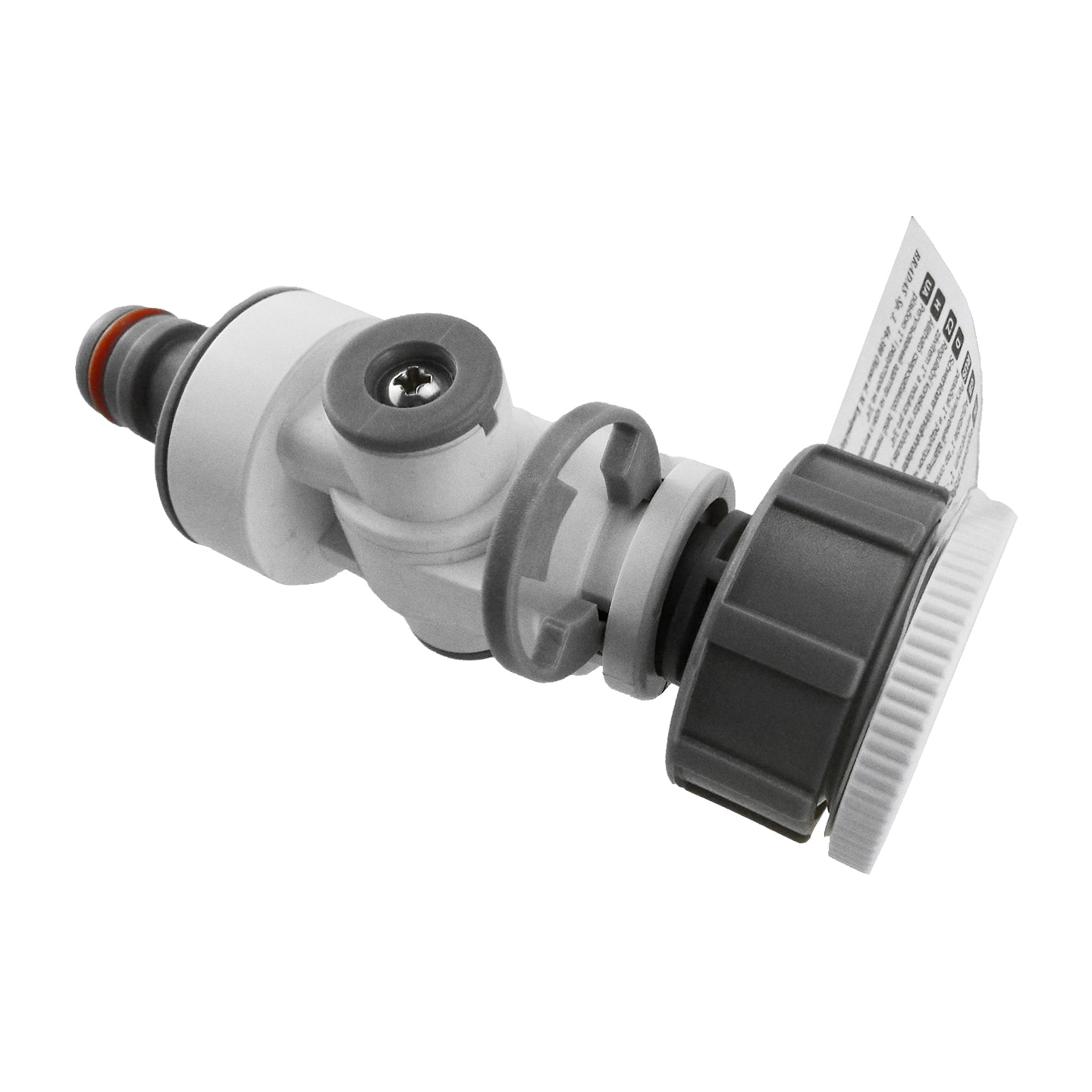

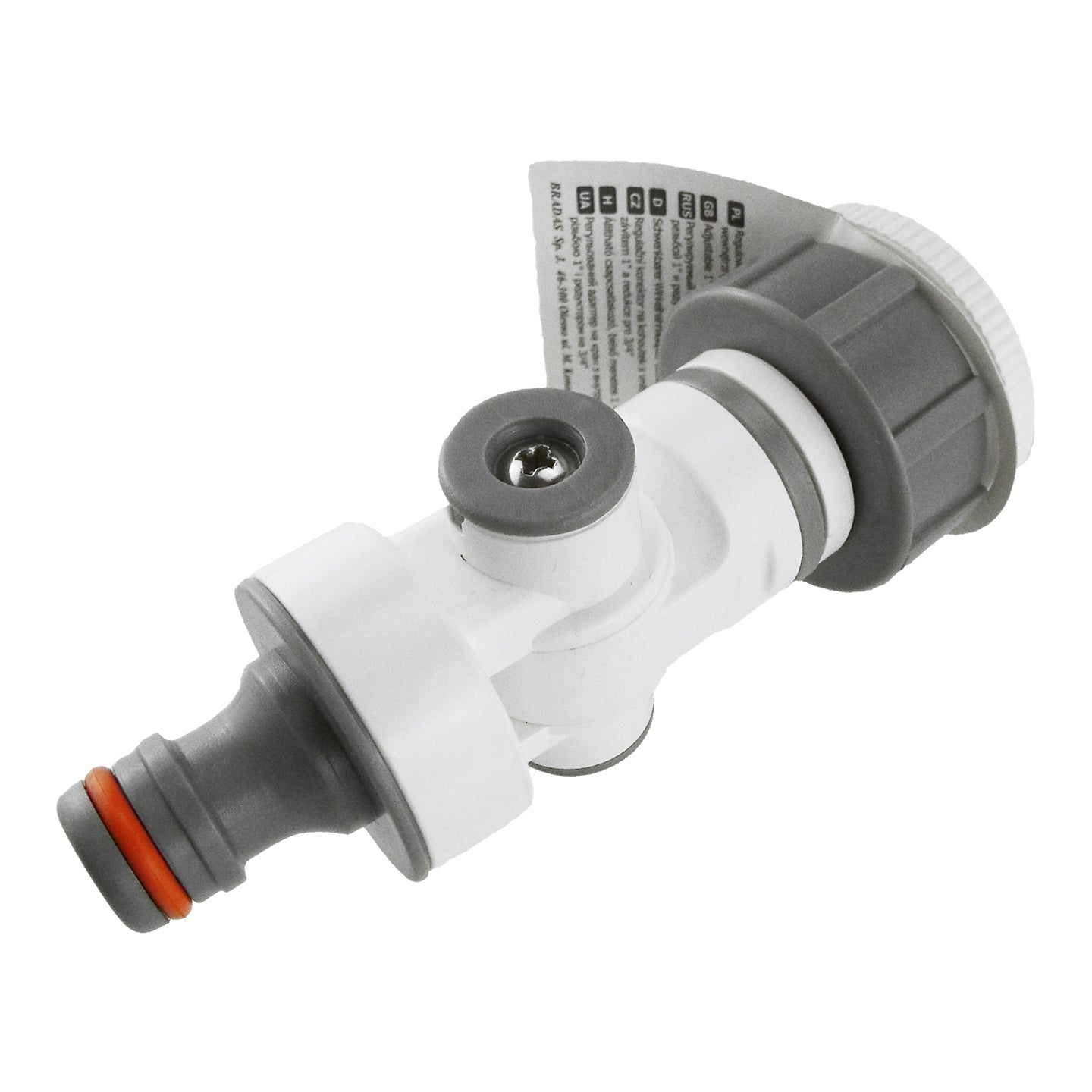

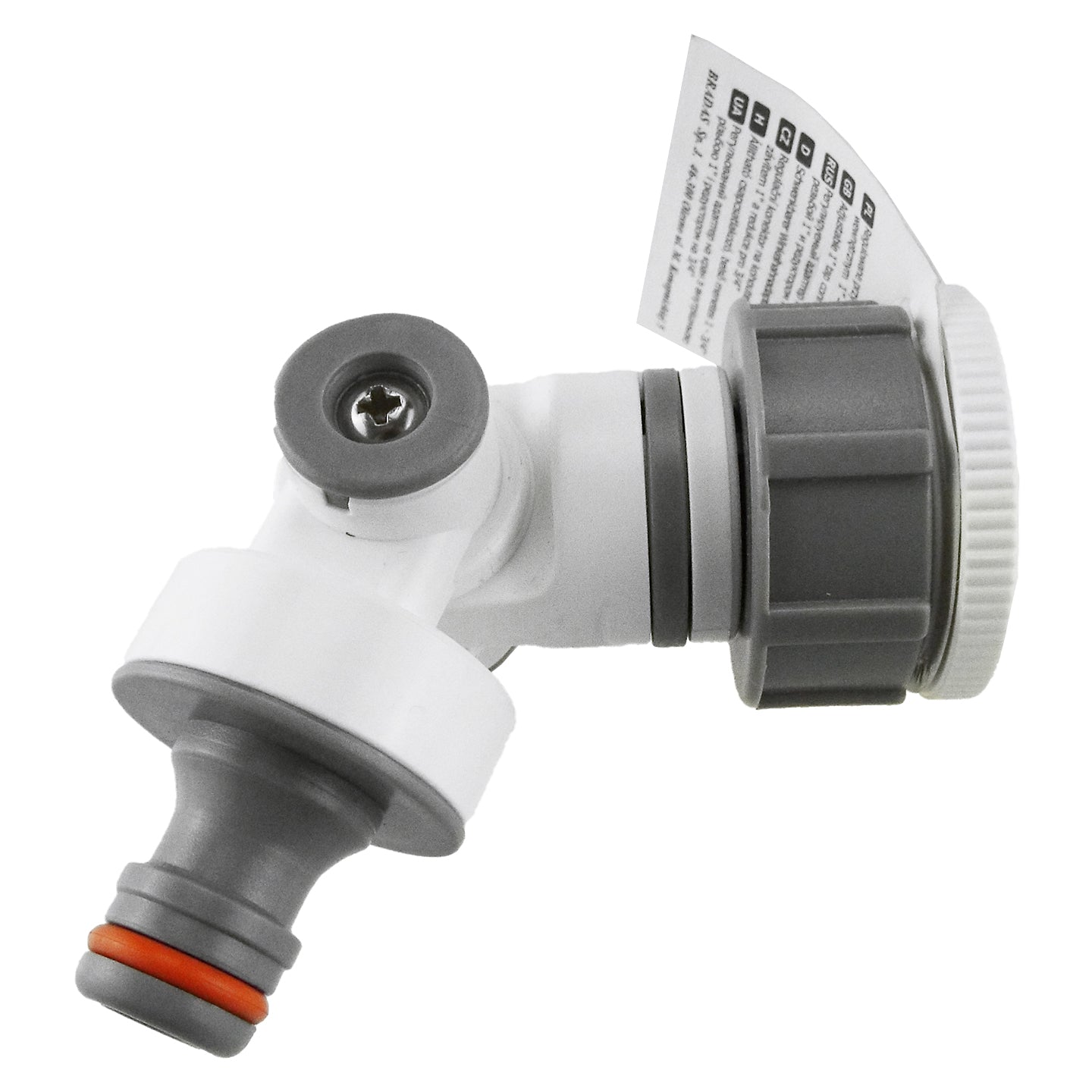

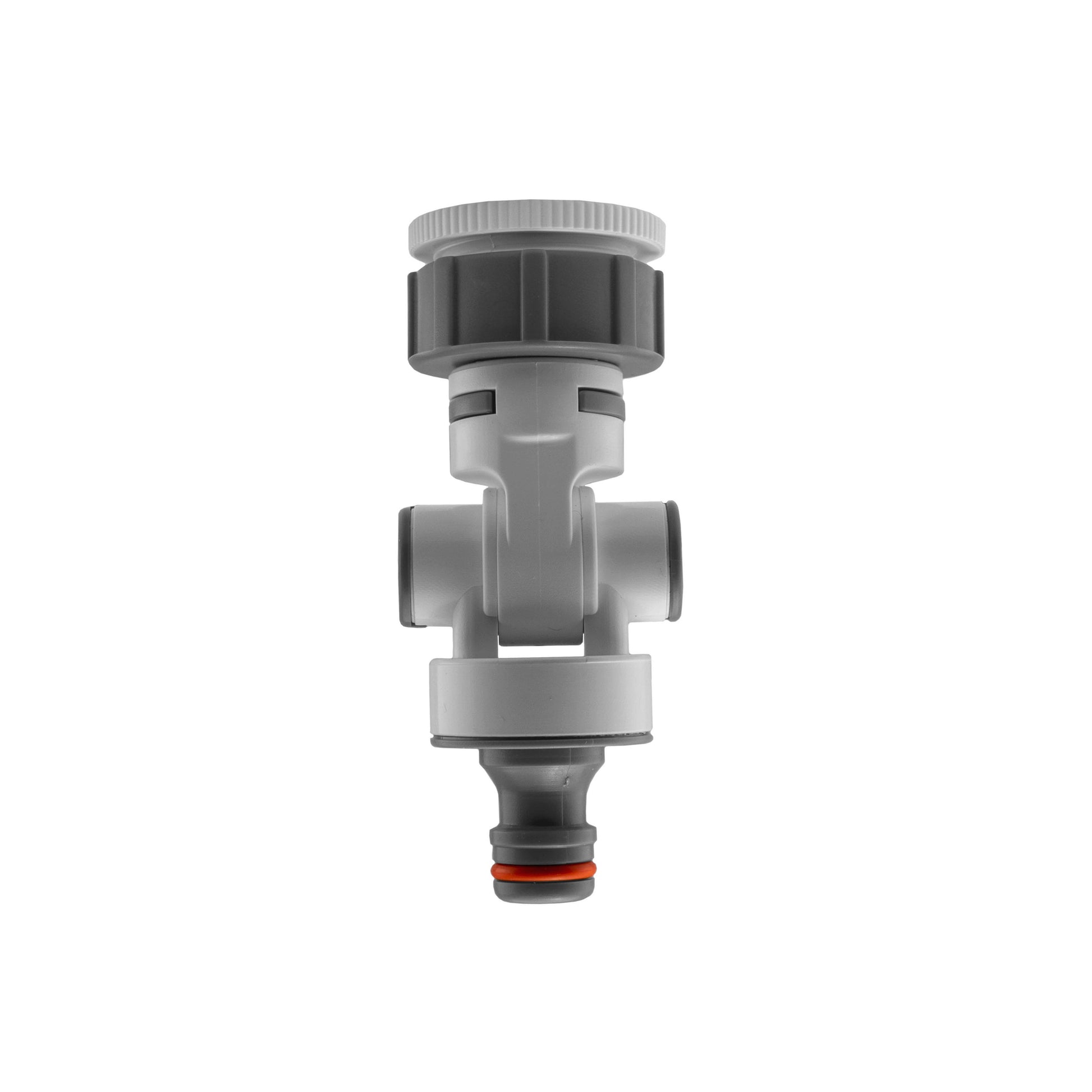

This White Line adjustable tap connector lets you change the direction your hose leaves a threaded garden tap. It is useful where a fixed downward connection would make the hose turn sharply or sit awkwardly against a wall.
The female inlet screws onto the tap, while the pivoting body carries a familiar male garden quick-connect plug. Set the outlet to suit your hose route, then click your hose socket onto it.
One connector with thread reducer supplied. Tap, hose and female hose socket are separate.
Match the tap before you connect
The inlet is 1-inch BSP female, reduced to ¾-inch BSP female by the removable insert. Use the insert for a matching ¾-inch male tap outlet, or remove it for a matching 1-inch outlet.
BSP sizes are nominal thread sizes, not measurements across the opening. They also do not specify your hose bore: the hose connects through a separate female quick-connect socket.
This adapter needs a compatible threaded tap. It is not a clamp-on fitting for a smooth kitchen spout, and it does not adapt every tap type.
Three steps to a tidier connection
- Fit the inlet. Turn the tap off, choose the matching thread size and check the inlet seal is seated. Screw the nut on by hand without forcing a mismatched thread.
- Choose the angle. Adjust the joint with the water off so the hose can leave in a natural curve. Leave slack rather than hanging a taut hose from the fitting.
- Click on the hose. Push a compatible female socket fully onto the male plug, then turn the water on and check the connections. The optional socket above is for ½-inch hose; use a socket sized for your own hose.
Tap connector questions
Does it fit a ½-inch BSP tap?
The supplied inlet sizes are ¾-inch and 1-inch BSP female. A ½-inch BSP male tap needs a different suitable adapter.
Can I push a bare hose onto the outlet?
No. The outlet is a male garden quick-connect plug, not a barbed hosetail. Fit a compatible female socket to your hose first.
Does it control or spray the water?
No. Its job is to connect the hose at an adjustable angle. Use the tap to control the supply and a separate nozzle or sprinkler at the other end.
Are the hose socket and tap included?
No. You receive one angle-adjustable connector with its thread reducer. The tap, hose and female socket shown in the installation illustration are separate.
Product information & technical details
| SKU | TAPCONADJ1/34BSPF001WL |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | White, Grey |
| Material | Plastic |
| Range | White Line |
|---|---|
| Construction | Plastic body with adjustable joint |
| Inlet arrangement | 1-inch BSP female with removable ¾-inch BSP female reducer |
| Outlet | Male garden quick-connect plug; female hose socket separate |
| Function | Changes hose connection angle; not a flow-control valve |

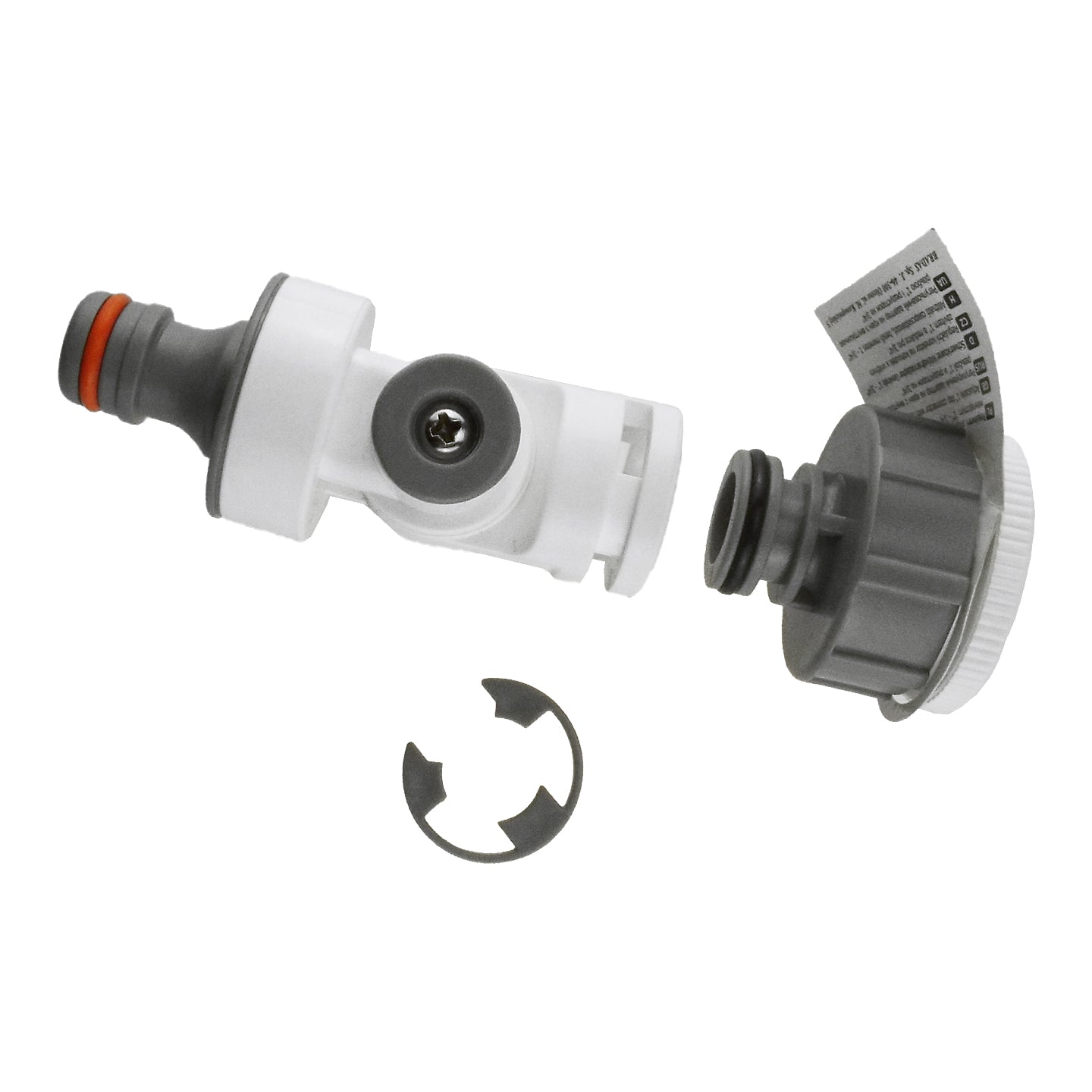

| Pack contents | One adjustable tap connector with thread reducer |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
