Description
Keep your hoses connected

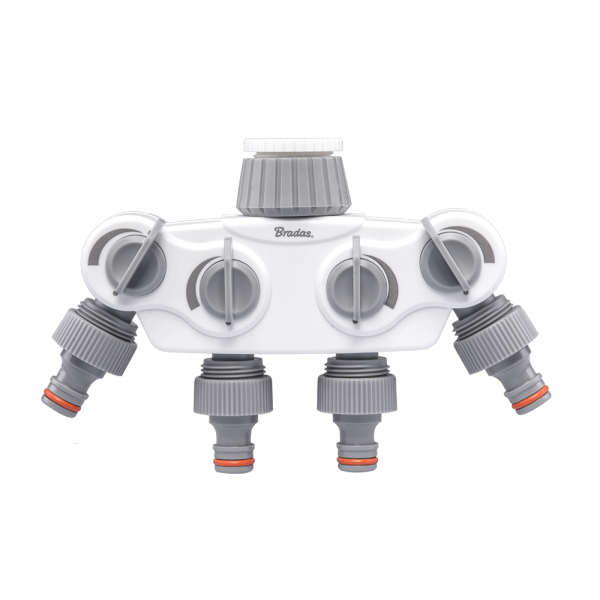

A lawn sprinkler, a border hose and a hand-watering line need not take turns occupying the tap connection. The WHITE LINE four-way tap manifold gives you four garden quick-connect outlets, each with its own manual valve.
The outer outlets angle away from the centre pair, separating the connection points. Leave your lines attached and select the branches you need using the four grey controls.
One manifold supplied with inlet reducer and four outlet plugs. Tap, hoses and female hose sockets are separate.
Connect and control
The top female BSP inlet joins a matching male threaded tap. Its 1-inch internal thread is brass; the included PVC reducer provides the ¾-inch connection. Check your tap thread before ordering.
At each outlet, a female garden hose socket clicks onto the fitted male plug. Bare hose does not screw onto the plug. The optional white connector above fits ½-inch hose and is sold singly; choose enough suitable sockets for the hoses you intend to connect.
Opening several branches divides the available supply. Check performance at the connected sprinklers or watering tools and use fewer branches together if necessary. The valves control branch flow; they do not regulate pressure.
Set up your watering lines
Match the inlet
Turn the tap off. Select the matching BSP connection, check the seal and start the inlet squarely by hand. Do not force a mismatched thread.
Attach the hoses
Fit suitable female sockets to your hose ends, then engage them on the male outlet plugs. Support the hoses so their weight does not pull on the manifold.
Open and check
Open the tap gradually and inspect the joints. Set each branch with its own control. Turn off the main tap and relieve pressure before disconnecting; drain exposed fittings before freezing weather.
Before you connect
Are hoses and hose-end sockets included?
No. You receive one manifold with its inlet reducer and four fitted male outlet plugs. Hoses, female quick-connect sockets and watering tools are separate.
Do all four outlets have to be used?
No. Each branch has an individual manual valve, so you can close unused outlets and keep other hoses connected. Turn off the main tap when watering is finished.
Is the whole manifold made from brass?
No. It has a white and grey plastic body with a brass 1-inch internal inlet thread. The included ¾-inch inlet reducer is PVC.
Will it run four sprinklers at full flow?
That depends on your tap supply and the connected equipment. All branches share the available water; this manifold does not increase flow or act as a pump, timer or pressure regulator.
Product information & technical details
| SKU | WL-3034K-001 |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | White, Grey |
| Material | Plastic |
| Tap inlet | Female BSP connection for matching 1-inch or ¾-inch BSP male tap threads |
|---|---|
| Hose connections | Four fitted male garden quick-connect plugs; separate female hose sockets required |
| Outlet controls | Four white manual valve levers, one per branch; all open outlets share the tap supply |

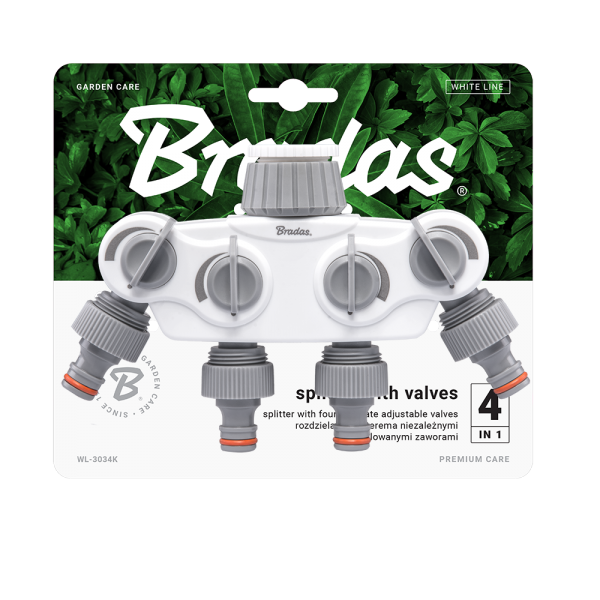

| Package contents | One Bradas White Line plastic four-outlet splitter with fitted male plugs; hoses, tap, female sockets and watering tools separate |
| Supplied contents | One WHITE LINE manifold with reducer and four outlet plugs; tap, hoses and female sockets sold separately |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
