Description
Leave four lines ready

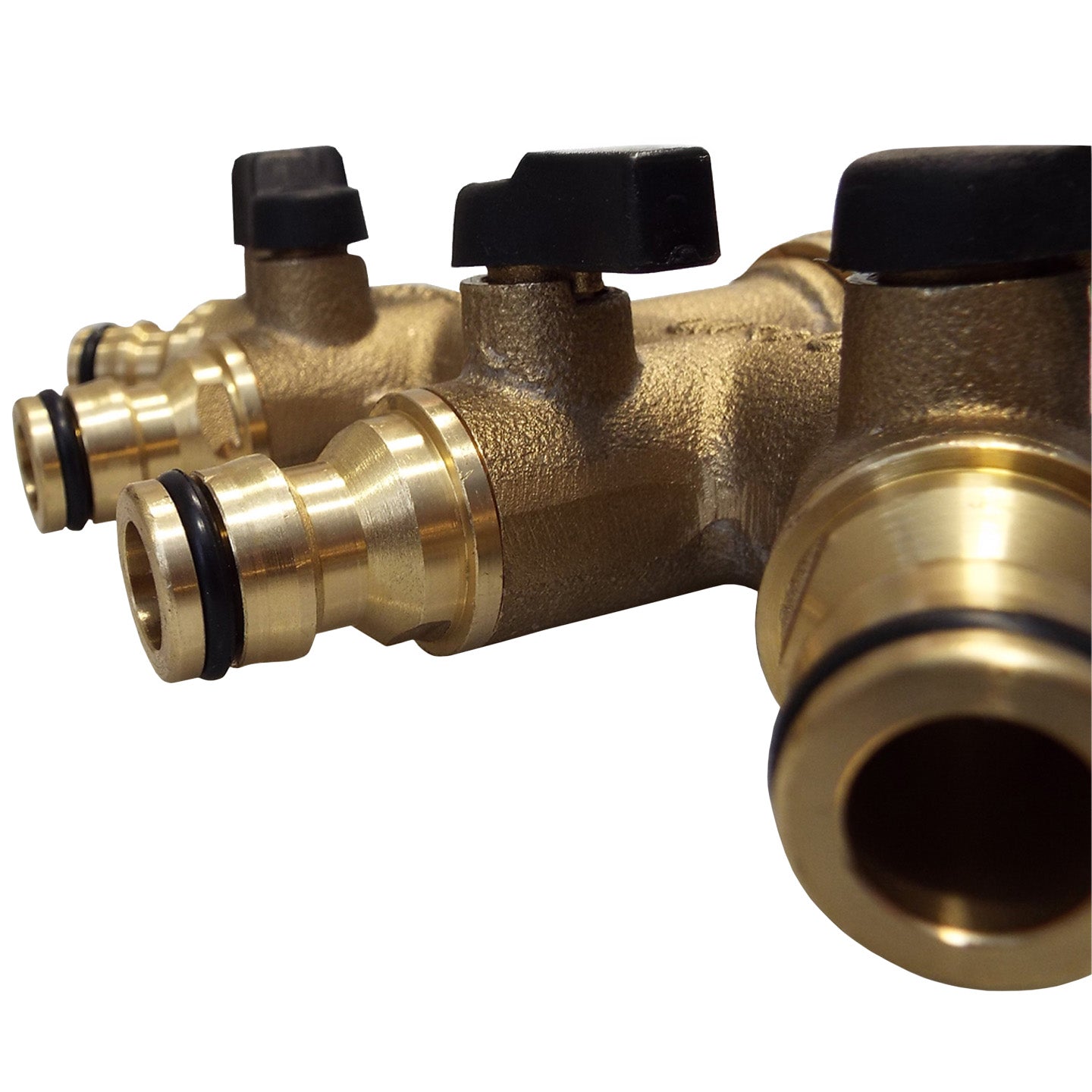

Keep your watering hoses connected at one point with this brass four-way manifold. Each branch has a fitted male garden quick-connect plug, ready to accept a compatible female socket on the hose.

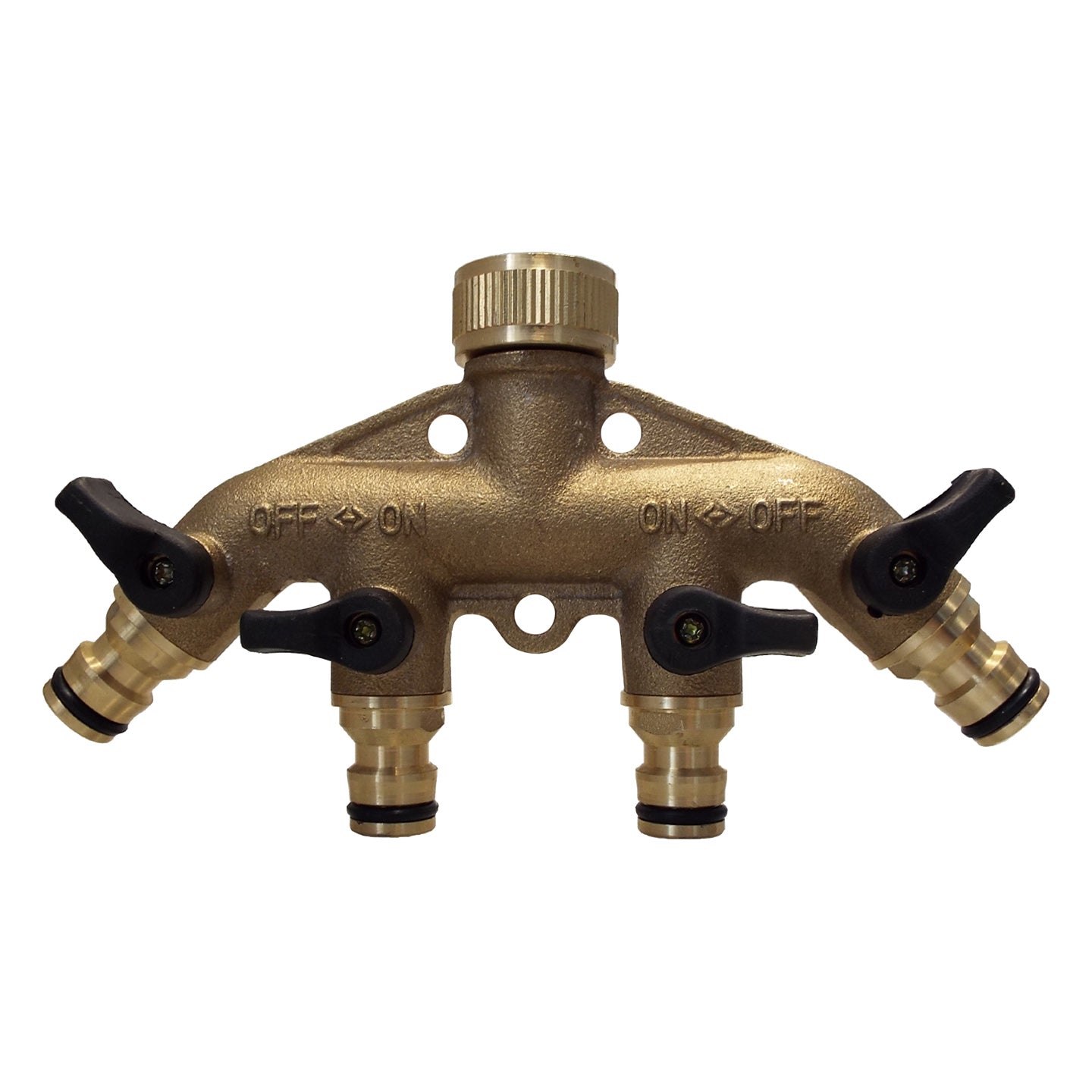

Four black wing controls let you select the branches you need. The centre pair point downwards, while the outer outlets angle away from the body.
One manifold supplied with four valves and four fitted plugs. Tap, hoses and female hose sockets are separate.
Click on at the outlet
The illustration shows separate female hose sockets covering the two centre male plugs. The unused outer plugs remain visible. You do not need to add a threaded garden-plug adapter to each outlet on this version.
Choose a socket to suit each hose bore. The optional brass connector above is for ½-inch garden hose and is sold singly, so select the quantity needed for your setup. Bare hose does not fit directly onto a garden plug.
All four lines draw from the same tap. Opening several branches can reduce flow at each connected tool; check the equipment’s requirements and use fewer lines together where necessary. The valves adjust flow rather than regulate pressure.
Set up, then select
Fit at the tap
Turn off the supply and match the female inlet to your ¾-inch BSP male tap thread. Check the seal and start the connection squarely by hand without forcing it.
Connect the hoses
Fit suitable female sockets to the hose ends, then engage them on the brass plugs. Support the hoses so they do not pull on the manifold. Close branches that are not in use.
Check each branch
Open the tap gradually and inspect the joints. Operate the four controls and check flow at the tools. Turn off the main tap and release pressure before disconnecting; drain exposed fittings before freezing weather.
Choosing this version
How is it different from a threaded-outlet manifold?
This model has four brass male garden quick-connect plugs fitted. Your female hose sockets engage directly on those plugs; the bare-threaded version requires separate outlet adapters.
Are female hose sockets included?
No. One manifold with four valves and fitted plugs is supplied. The illustrated tap, hoses and female sockets are separate.
Can I leave unused branches closed?
Yes. Each outlet has an individual manual control, so you can keep other hoses connected while selecting the branches you need. Turn off the main tap after watering.
Will it run four sprinklers at their normal flow?
That depends on your tap supply and the sprinklers. The manifold shares the available water between open branches; it does not boost flow or replace a pump or pressure regulator.
Product information & technical details
| SKU | TC4-WAY001QBRASS |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Female |
| Colour | Brass |
| Material | Brass |
|---|---|
| Tap inlet | ¾-inch BSP female threaded connection |
| Branch connections | Four fitted brass male garden quick-connect plugs |
| Controls | Four individually operated black wing controls |
| Supplied contents | One brass manifold with four valves and plugs; tap, hoses and female sockets sold separately |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
