Description
Water two ways

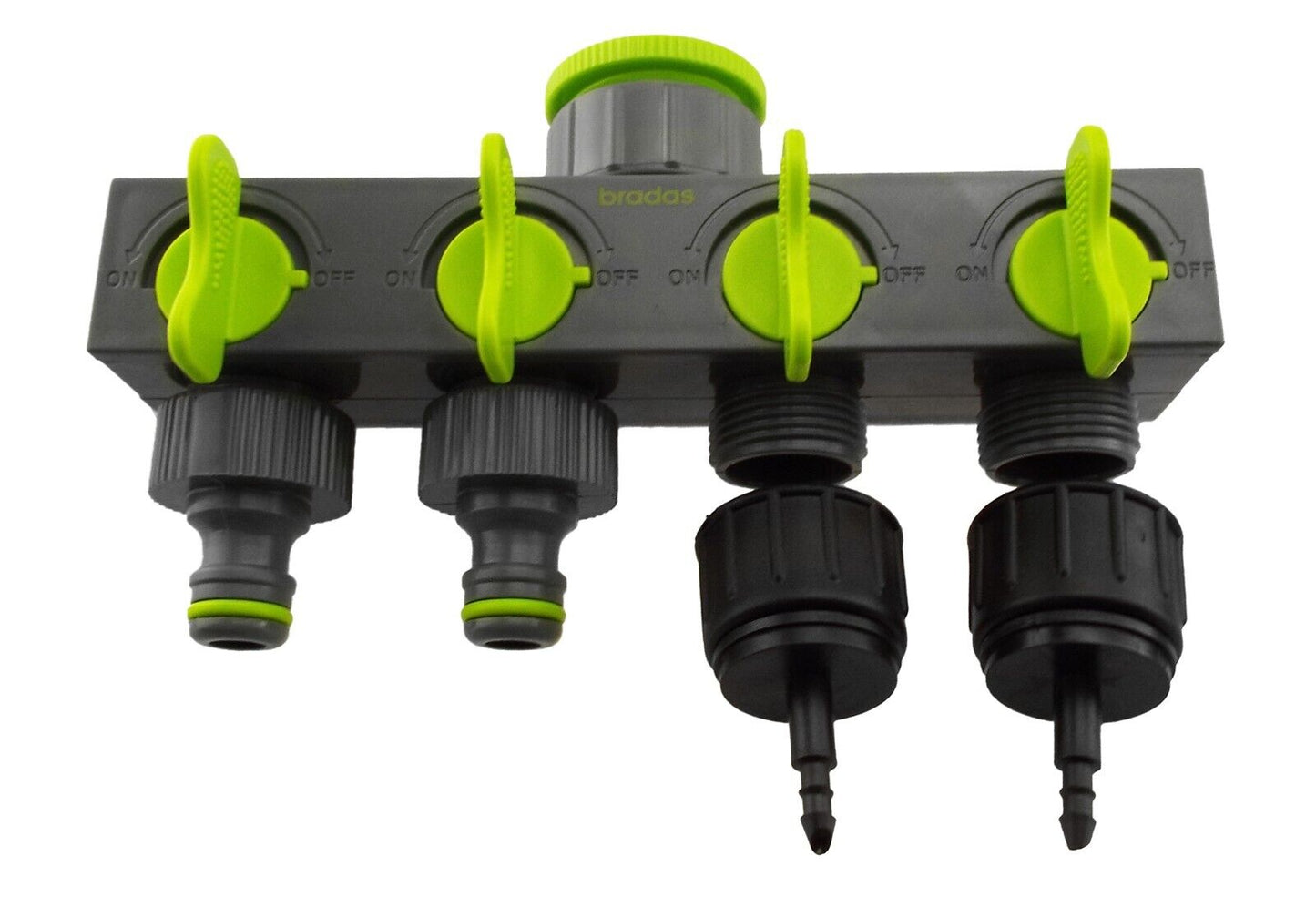

Keep garden hoses and small irrigation lines connected to the same tap. This lime four-way tap splitter kit includes two screw-on adapters for 4mm micro tube, giving you a choice of outlet connections for different watering jobs.
Fit both micro adapters to use two branches for small tubing while retaining two garden quick-connect plugs for hose sockets. Four manual valve controls let you adjust or close the branches separately.
Supplied: one grey/lime splitter and two micro-tube adapters. Tap, hoses, hose sockets, tubing and emitters are separate.
Match the outlet to the line
For a garden hose: leave a male quick-connect plug fitted and attach a compatible female hose-end socket. Choose the socket to suit your hose bore; the optional lime connector above is for ½-inch hose and is sold singly.
For micro irrigation: replace a quick-connect outlet plug with a supplied female-threaded micro adapter. Compatible 4mm micro tube pushes onto its small barb. The optional tubing above has a 4mm internal diameter; choose the length needed for your installation.
All four branches share the tap supply. This kit does not filter water, regulate pressure or time your watering. Check the requirements of your tubing and emitters, adding suitable separate equipment where needed.
Prepare your connections
Start at the tap
Turn off the supply and match the inlet to your 1-inch or ¾-inch BSP male tap thread. Check the seal and start the connection squarely by hand without forcing it.
Choose each outlet
Fit the two micro adapters where required and attach suitable tubing. Use female hose sockets on the remaining garden plugs. Support attached lines to avoid pulling on the splitter.
Test the setup
Open the tap gradually and inspect every joint. Adjust the four lime controls and check flow at the connected equipment. Turn off the tap and relieve pressure before disconnecting; drain exposed fittings before freezing weather.
Before you order
Does the kit include micro tubing or hose sockets?
No. It contains one four-way splitter and two screw-on micro-tube adapters. The illustrated tap, garden hoses, female hose sockets, black micro tubing and emitters are separate.
Does micro tube clip onto a garden outlet plug?
No. Use a supplied barbed adapter in place of a garden quick-connect plug for that branch. The small barb accepts compatible 4mm micro tube; garden hoses use separate female sockets on the larger plugs.
Can I use only one or two branches?
Yes. Each outlet has its own manual valve. Close the branches you do not need, and turn off the main tap when the system is not in use.
Will it reduce pressure for a drip system?
No. The controls adjust or close branch flow, but the splitter is not a pressure regulator. Use the filtration and pressure-control equipment specified for your irrigation components.
Product information & technical details
| SKU | 4-WAYTAPCON001LIME+2X4MM |
|---|---|
| Product type | |
| BSP thread size | 3/4", 1" |
| Thread gender | Female |
| Colour | Grey, Green |
| Material | Plastic |
| Tap inlet | Female BSP connection for 1-inch and ¾-inch male threaded taps |
|---|---|
| Garden hose outlets | Two male garden quick-connect plugs when both micro adapters are fitted |
| Micro-tube adapters | Two ¾-inch BSP female screw-on adapters for 4mm micro tube |
| Controls | Four individually operated lime valve controls |
| Kit contents | One grey/lime four-way splitter and two micro-tube adapters; hoses, sockets and tubing sold separately |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
