Description
Choose the spray and the sweep
Water an open lawn or set a smaller sector beside your planting. The Bradas WHITE LINE four-pattern gear-drive sprinkler combines a choice of spray modes with an adjustable 10°-360° watering arc.

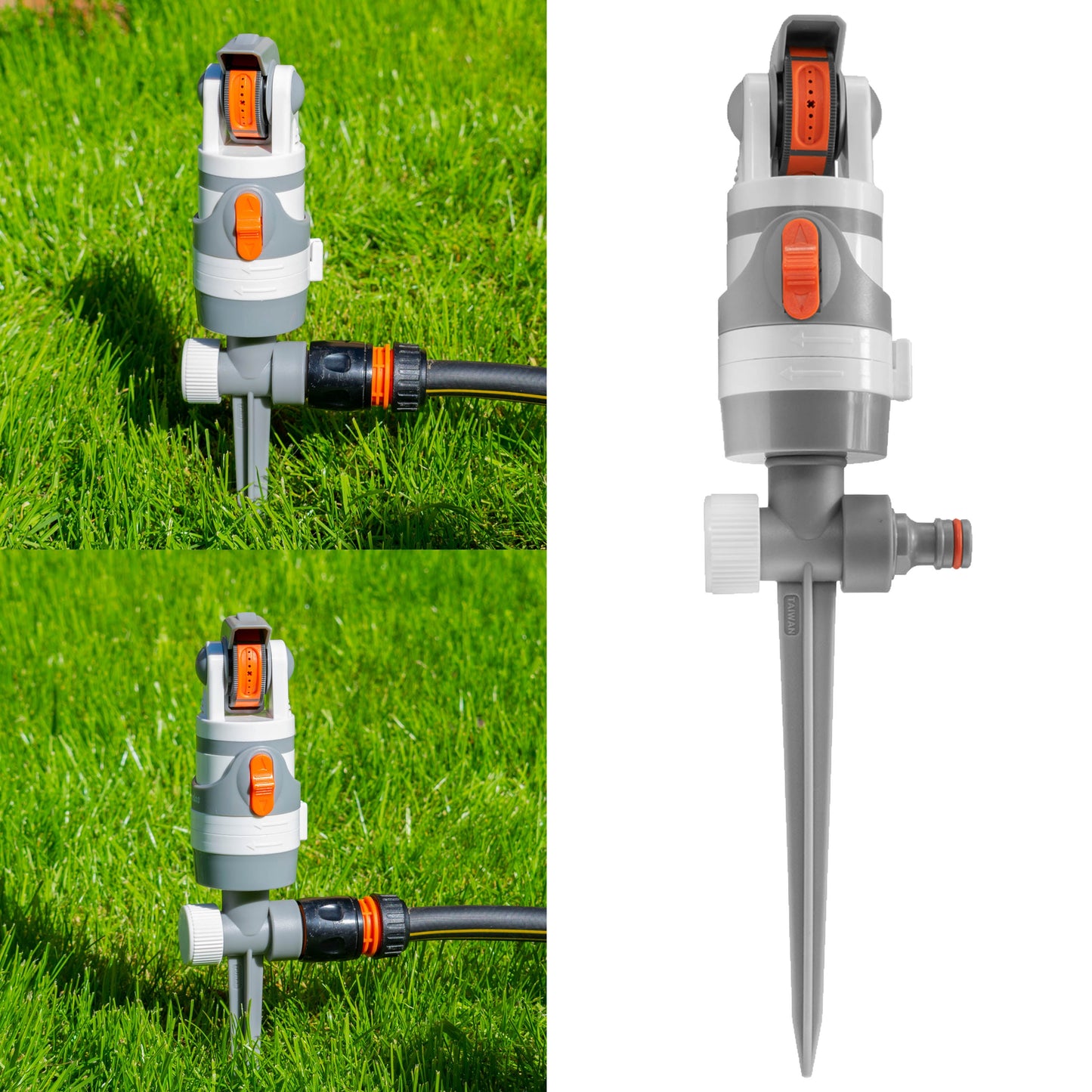

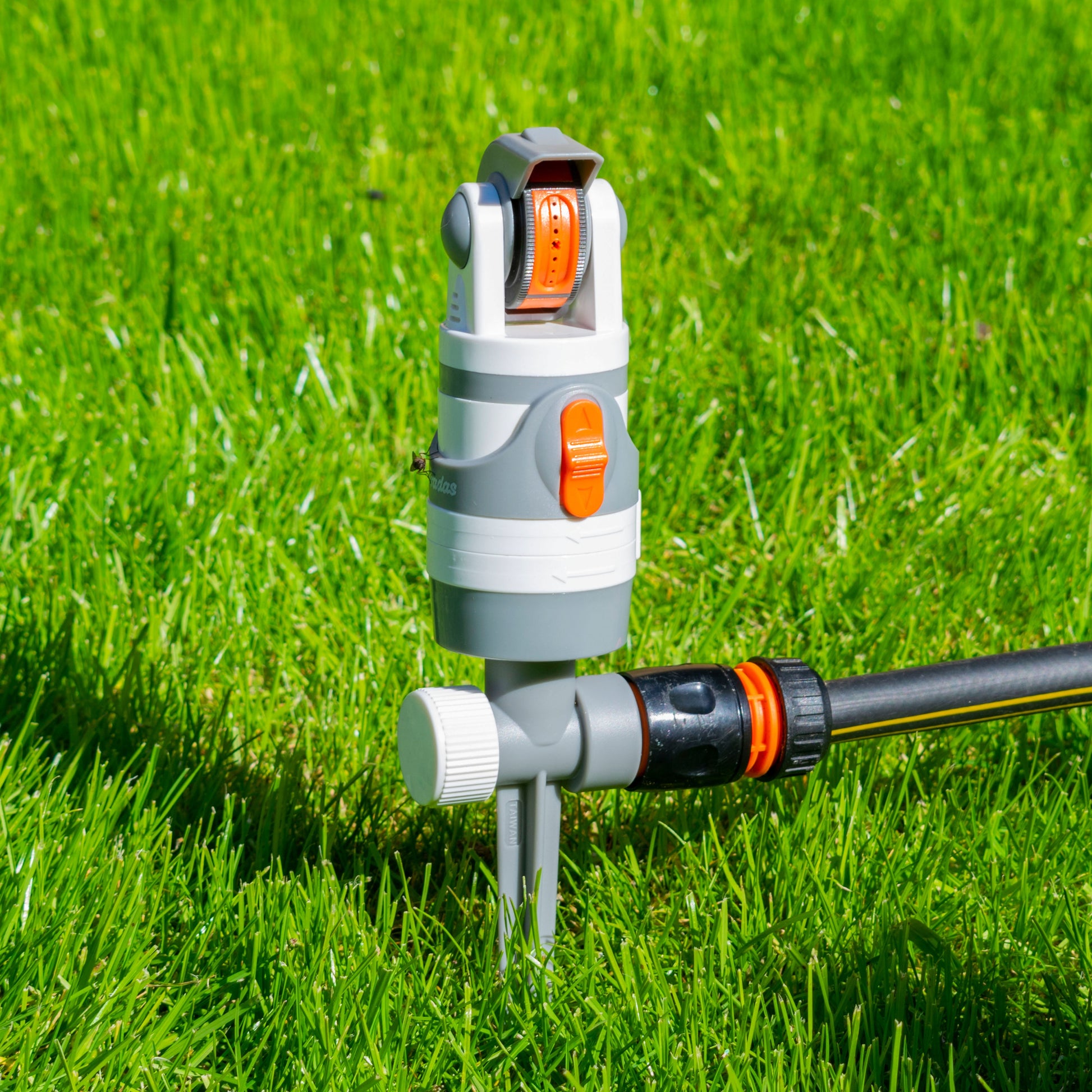

Place the spike in soil, connect your hose and select the pattern at the head. Separate adjustments let you change the throw and choose full-circle or part-circle watering, helping you keep the spray within the space you intend to water.
One sprinkler supplied. Hose and female garden quick connector are separate; use a compatible socket already on your hose, or select one to suit its size.

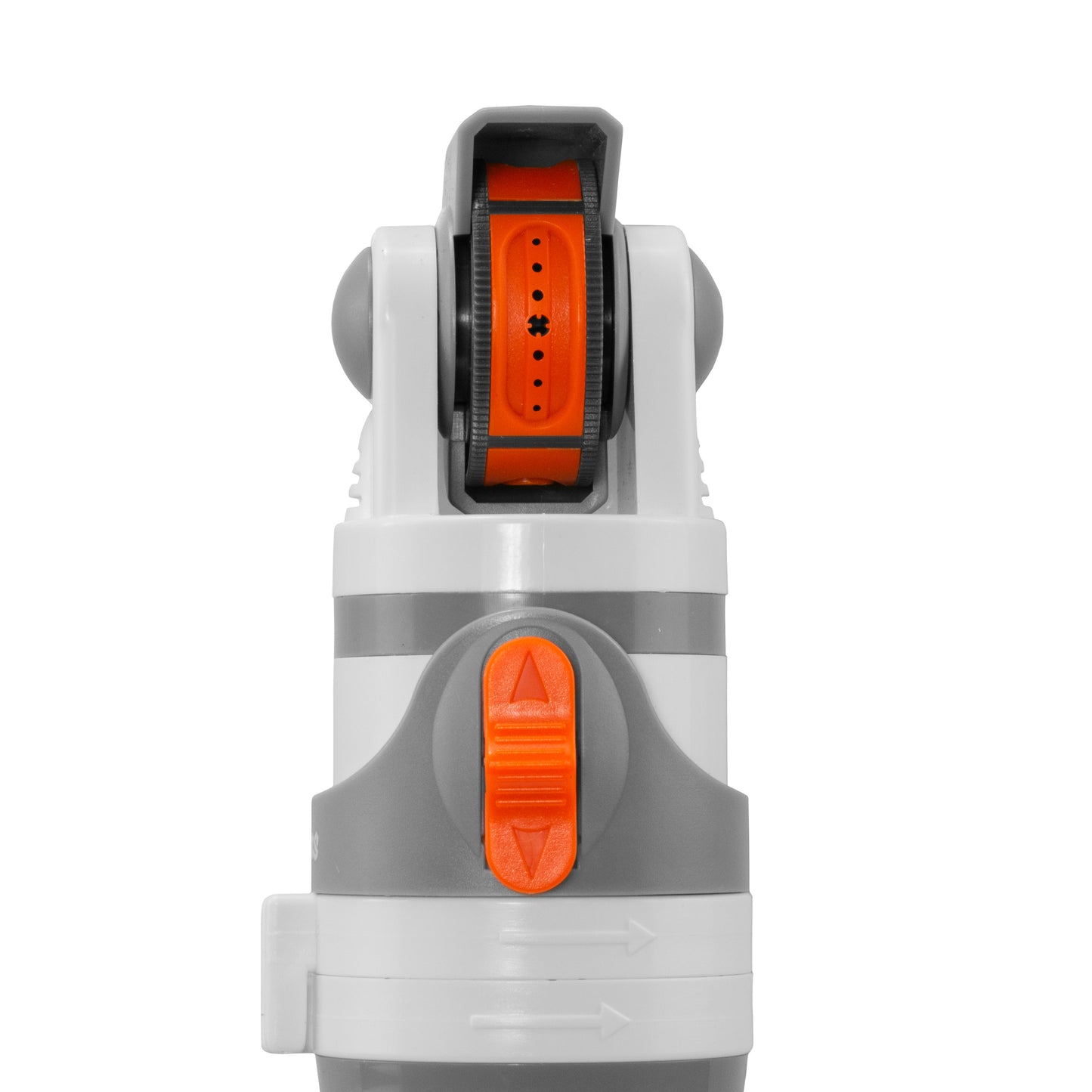

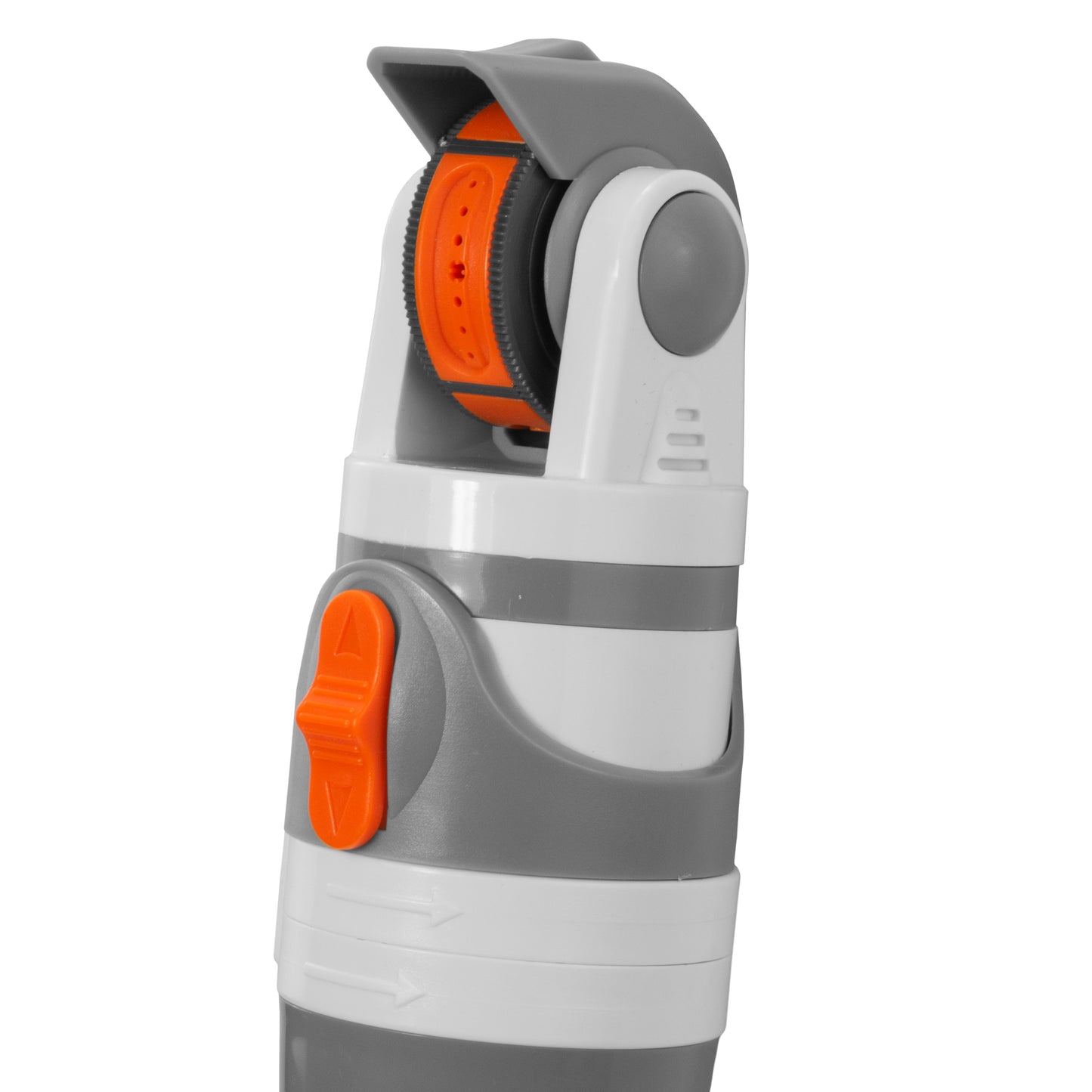

Four modes at the head
The selector gives you multi, mist, jet and fountain settings. Try the modes on your own supply and choose the spray that suits the area; their reach and water distribution will differ.
The watering arc is a separate adjustment. Set a sector between 10° and 360°, or use the manual switch for full-circle operation. Turning to another spray mode does not mean you have selected a different watering arc.
Use the adjustable head to control spray distance. Start with a shorter throw, then check a complete sweep before leaving the sprinkler in position. Keep the rotating head clear of stems, edging and other obstacles.
Plan the coverage around your supply
Read diameter as the whole circle
The stated watering diameter is up to 21m, with approximately 350m² full-circle coverage. These are maximum coverage figures, not a 21m reach from the sprinkler. Available pressure and flow, hose losses, mode, adjustment and wind affect the actual area watered.
Test before extending the layout
The base supports series connection to another sprinkler. Each extra unit needs connecting hose and enough supply flow and pressure; adding sprinklers can reduce reach. Check the assembled layout rather than multiplying the maximum coverage figure.
Setting up the four-pattern sprinkler
Does it need a female hose connector?
Yes. The side inlet is a male garden quick-connect plug. A compatible female socket connects the hose to it. The optional WHITE LINE connector shown above fits ½-inch or ⅝-inch hose; hose and connector are not included with the sprinkler.
Can I water only part of a circle?
Yes. Adjust the watering arc to the required sector within the 10°-360° range, then check where the spray lands. The separate distance adjustment helps control its reach.
Will all four modes cover the same distance?
No single reach is guaranteed across the settings. Changing the spray pattern, head adjustment or supply changes the result, so check each mode on your own installation.
Can I stand it on paving?
This model uses a ground spike and needs suitable soil to hold it upright. A sprinkler with a freestanding base is more suitable where you cannot insert a spike.
Product information & technical details
| SKU | WL-Z01-001 |
|---|---|
| Product type | |
| Colour | Grey, White, Orange |
| Material | Plastic |
| Brand / range | Bradas WHITE LINE |
| Mechanism | Gear drive |
| Spray modes | Multi, mist, jet and fountain |
|---|---|
| Watering arc | 10°-360°, part or full circle |
| Maximum watering diameter | 21m; depends on supply and settings |
| Stated full-circle coverage | Approximately 350m² maximum |
| Mounting | Plastic ground spike |
| Supply connection | Male garden quick-connect inlet |
