Description
A threaded outlet for your water butt
A compact black plastic tank connector with a 3/4-inch BSP male thread and female socket.
Supplied with one back nut and two red washers for a suitable through-wall mounting arrangement. It can also connect to an appropriate existing female thread.
Choose a matching tap separately. Tank, tap and hose are not included.
Match the thread at each end

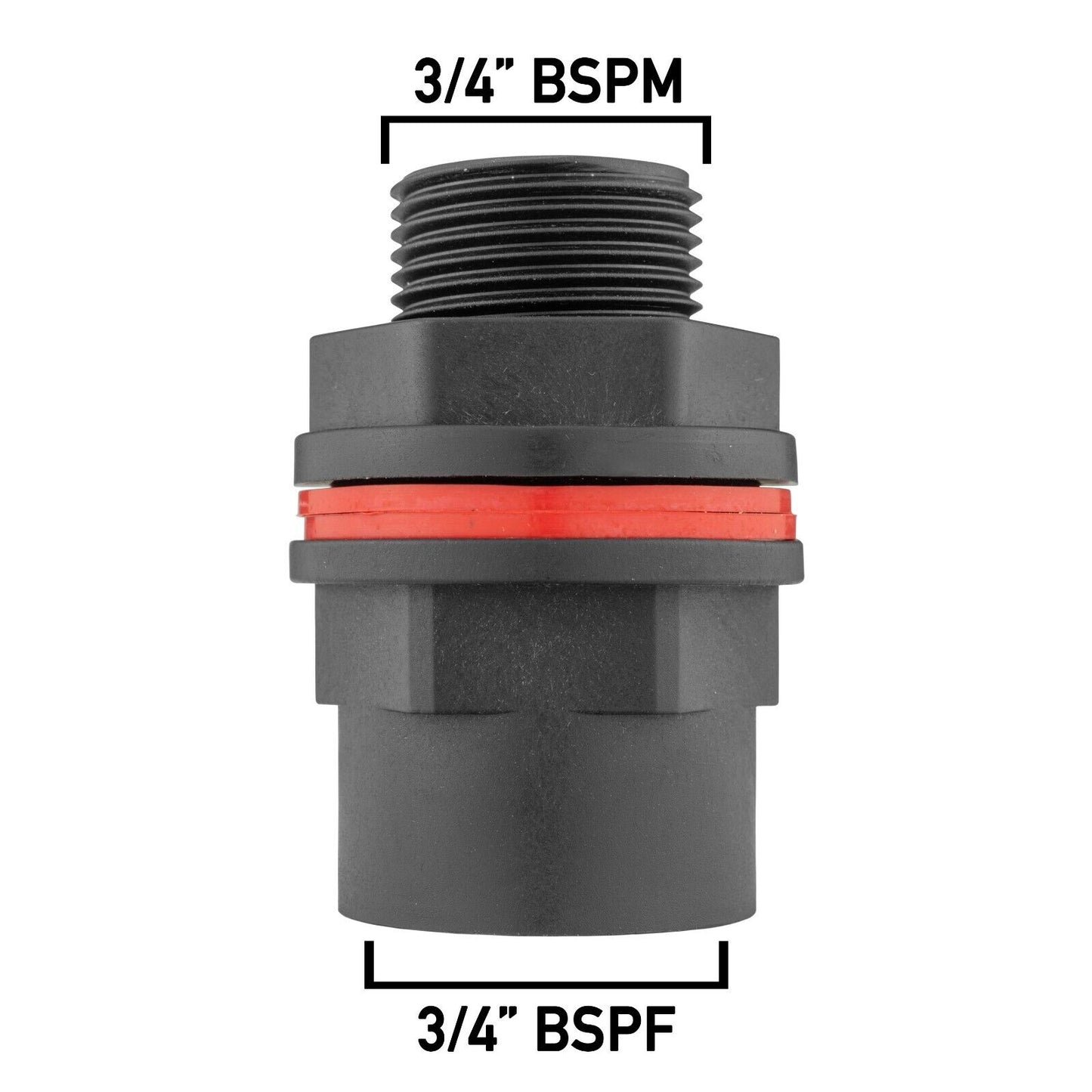

The labelled photograph shows the external male thread and the female socket on the opposite end. Both are three-quarter-inch BSP, so this connector does not reduce the size of the connection.
The back nut and two red washers secure a suitable through-wall installation. In the loose product photograph the washers sit together; during fitting, one is positioned on each side of the tank wall.
BSP is a nominal thread designation. Check the actual fitting and its mounting requirements before choosing a hole size; do not use the thread name as a drilling measurement.
Fit around the tank you have
Check the mounting surface and access before assembling the connector.
Prepare the mounting point
For a new through-wall outlet, check the wall is suitable and that you can reach the inside. Remove the back nut and one washer, keeping the other washer against the connector flange.
Seat the two washers
Pass the threaded part through the prepared opening. Refit the second washer and nut inside the tank so a washer sits on each side of the wall. Support the body and avoid overtightening the plastic parts.
Connect and check
Fit a matching male-threaded tap or connector into the female socket using an appropriate sealing arrangement. Check the completed mounting and tap connection for leakage before leaving water stored in the tank.
If using an existing female-threaded outlet instead, check its thread and sealing face first. The through-wall nut-and-washer arrangement is not automatically appropriate for every threaded outlet.
Questions about the tank fitting
What is included in this adapter set?
One black plastic male-to-female adapter, one back nut and two red mounting washers. The tap, tank and hose are sold separately. This is the compact tank connector, rather than an extended adapter or a complete tap kit.
Where do the two red washers go?
For the through-wall mounting arrangement, one washer sits against the flange outside the tank and the other is refitted inside before the back nut. They seal opposite sides of the wall; they are not two separate washers to place inside the female socket.
Can I fit a half-inch BSP tap?
The female socket on this connector is three-quarter-inch BSP and takes a matching male fitting. It does not reduce the thread to half-inch. Check the inlet thread on your chosen tap before ordering any separate connection parts.
Do I need access inside the water butt?
Yes for a new through-wall installation, because the inner washer and back nut need to be positioned and tightened from inside. For an existing threaded outlet, check the thread, sealing face and access required by that particular arrangement.
Product information & technical details
| SKU | BUTT34BSPM-F001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male, Female |
| Colour | Black |
| Material | Plastic |
| Male connection | 3/4-inch BSP male |
|---|---|
| Female connection | 3/4-inch BSP female |
| Back nut | 1 included |
| Mounting washers | 2 red washers included |
| Supplied contents | 1 adapter, 1 back nut and 2 washers |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm
- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
