Description
Extend your tap connection
Position a compatible tap further from its mounting point with this straight black plastic water-butt adapter.
The 3/4-inch BSP male end connects to a matching female outlet. The socket at the other end accepts a 3/4-inch BSP male fitting.
One adapter with a fitted red washer. Tap and retaining nut sold separately.
Check the thread and the sealing face

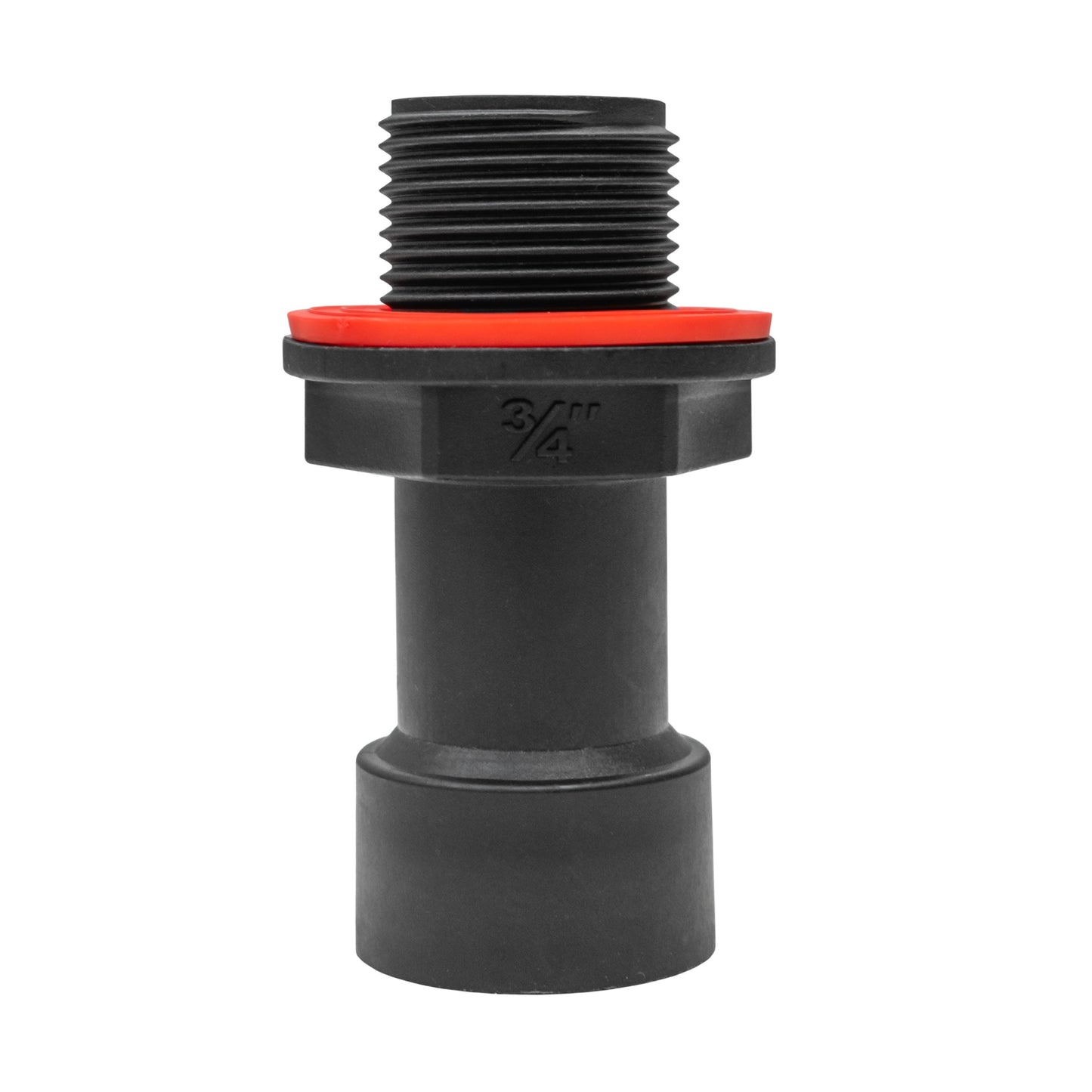

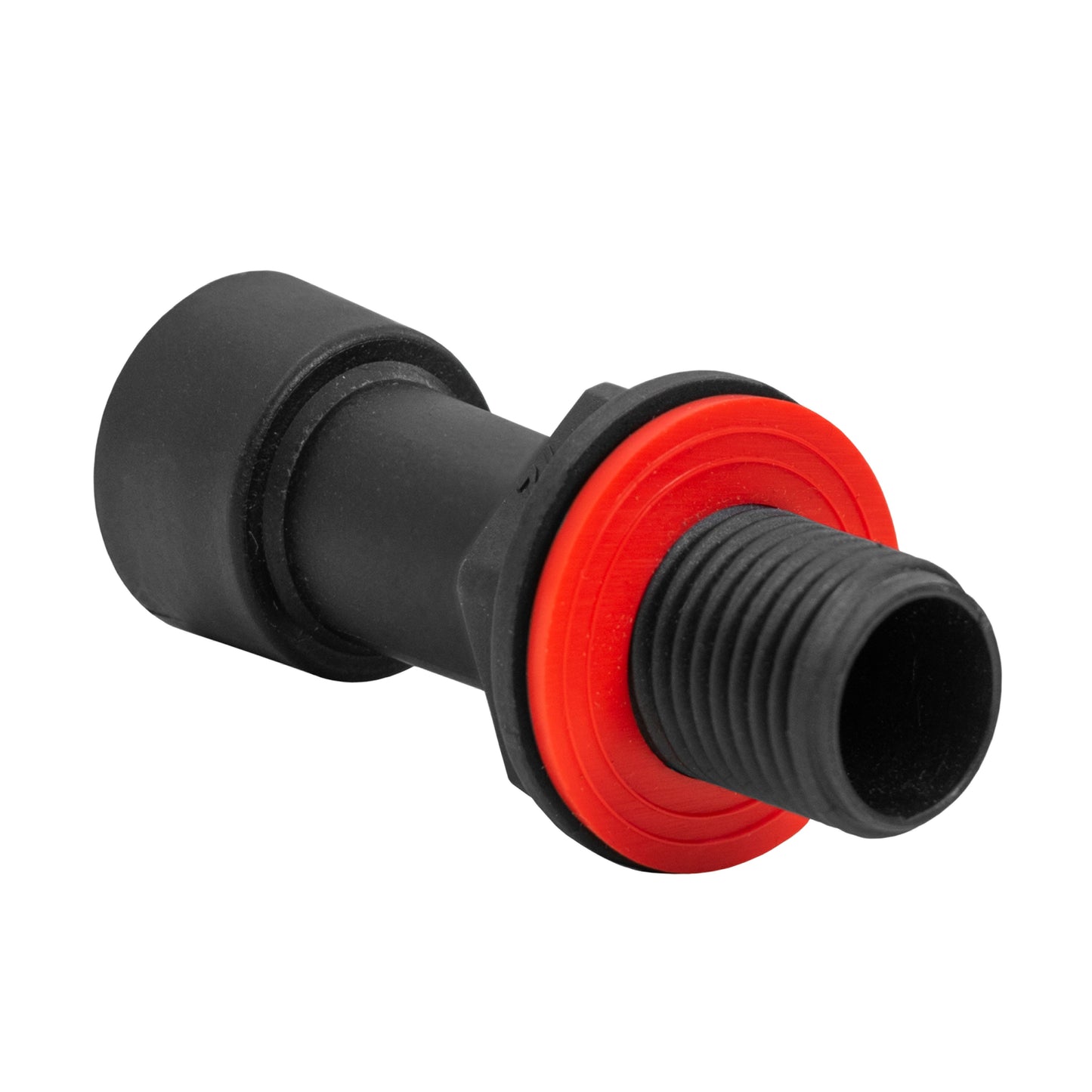

The close-up shows the male thread, flange and fitted red washer. Check that the tank connection matches the thread and gives the washer an appropriate surface to seal against.

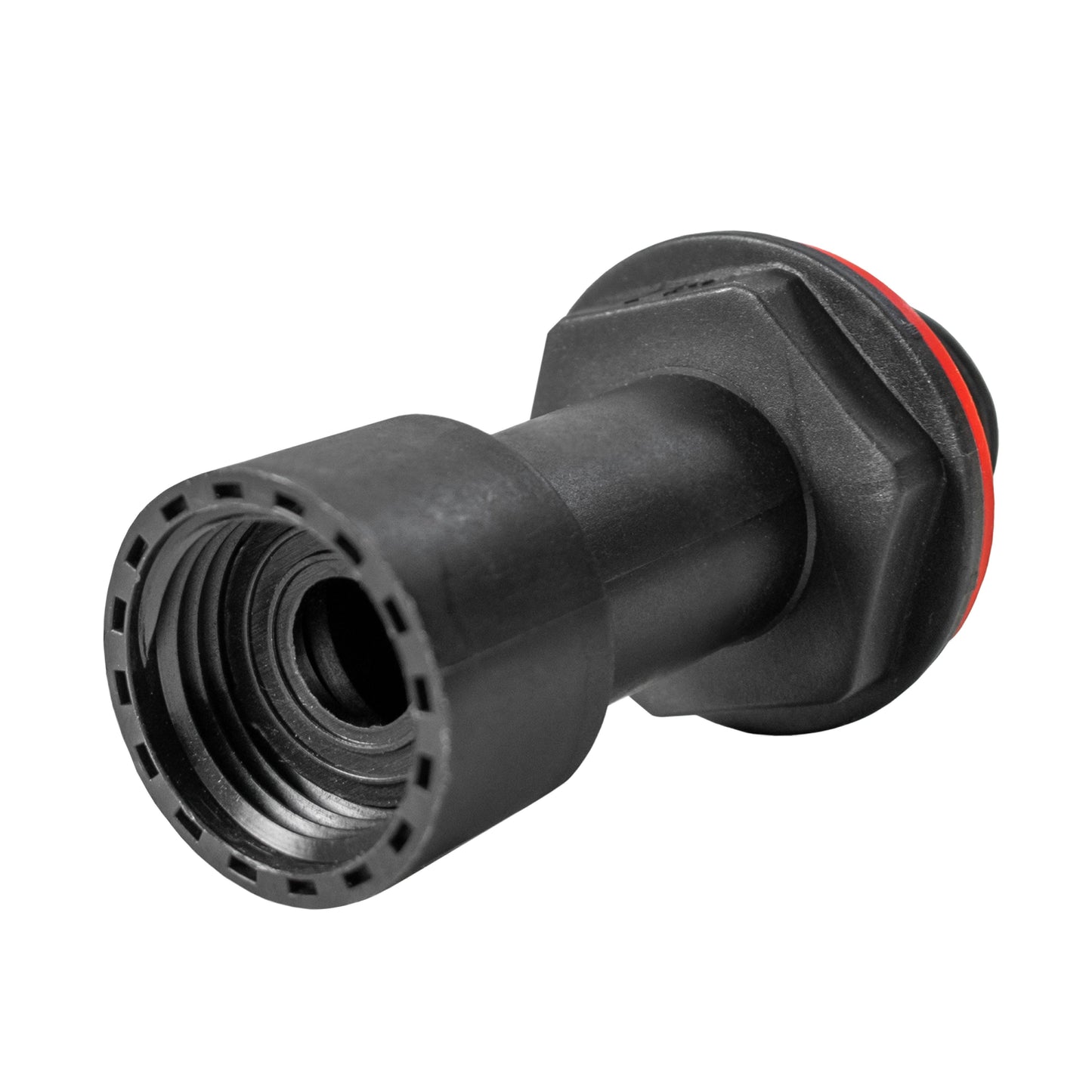

The extended body separates the two threaded ends. This can be useful when a tap needs to sit forward of a tank recess, but clearance depends on the outlet, how far each fitting engages, and the shape of the chosen tap.
Both connections are three-quarter-inch BSP. This is not a reducing adapter, and the nominal thread size is not a hose bore, drill size or measurement of usable extension.
Choose the fitting arrangement
Check the tank end first, then match the tap end.
Threaded tank outlet
Use a matching female BSP outlet with a suitable sealing face. Start the thread carefully and keep the adapter supported while attaching the tap to the female socket.
Plain tank wall
This adapter does not include a retaining nut. A through-wall installation needs compatible separate mounting and sealing parts, enough access to fit them, and a suitable wall surface.
Tap and final checks
Choose a matching three-quarter-inch BSP male fitting. Leave room to operate it and support any connected hose so it does not pull on the adapter. Check the completed joints for leakage before use.
Before choosing your extension
Does this reduce a three-quarter-inch outlet to half-inch?
No. Both ends use three-quarter-inch BSP: one male thread and one female socket. If your tap has a half-inch male inlet, this adapter does not provide that reduction. Check the thread at both ends of your intended setup.
What comes with the adapter?
One black plastic extended adapter with a fitted red sealing washer at the male flange. A retaining nut, tap, hose and tank are not included. Any additional mounting or sealing parts for your installation must be selected separately.
Will it connect directly to a garden hose?
No. The outlet is a female BSP socket, not a hose barb or snap-on connector. A matching male threaded tap or connector is needed before attaching an appropriate hose connection. Choose that separate fitting for your hose and installation.
What should I check for a recessed tank outlet?
Check the outlet thread, the washer seating surface and the space around the tap body and handle. The extended adapter brings the female connection forward, but the complete fitting arrangement determines the clearance available at your tank.
Product information & technical details
| SKU | EXTENSION34BSPM-F001 |
|---|---|
| Product type | |
| BSP thread size | 3/4" |
| Thread gender | Male, Female |
| Colour | Black |
| Material | Plastic |
| Male connection | 3/4-inch BSP male |
|---|---|
| Female connection | 3/4-inch BSP female |
| Adapter format | Extended straight male-to-female |
| Supplied contents | 1 adapter with fitted red sealing washer |
| Retaining nut | Not included |
What is BSP?
What is BSP thread size?
BSP (British Standard Pipe) is a nominal pipe-thread size, not a direct measurement of a fitting’s bore or outside diameter. For example, a ½-inch BSP male thread measures about 21mm across its outer thread crests.
These figures are approximate outside diameters of male BSP threads, to help identify the nominal size. They are not inch-to-millimetre unit conversions:
- 3/8" BSP → 16.66 mm
- 1/2" BSP → 20.95 mm

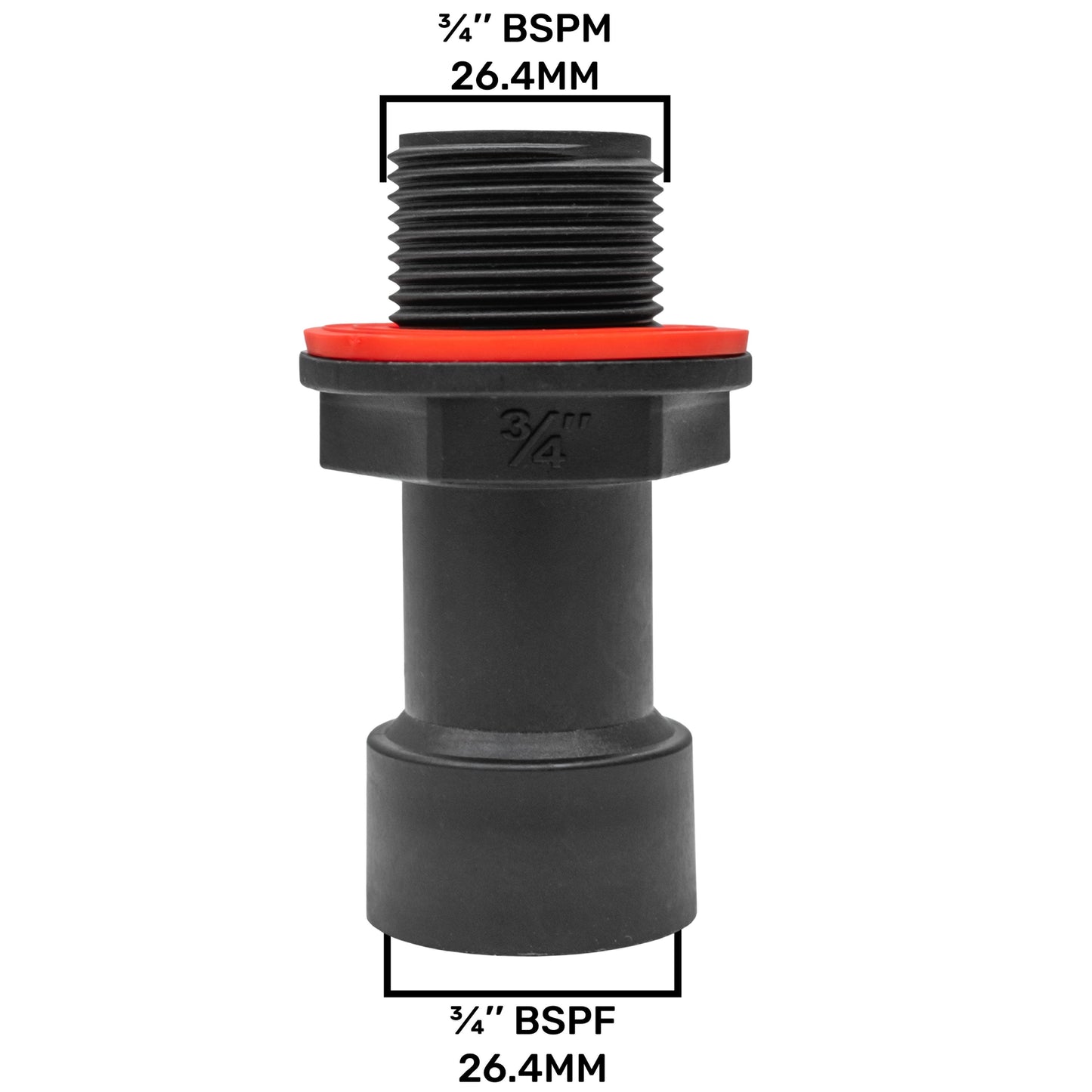

- 3/4" BSP → 26.44 mm
- 1" BSP → 33.25 mm
- 1.25" BSP → 41.91 mm
- 1.5" BSP → 47.80 mm
- 2" BSP → 59.61 mm
- 3" BSP → 87.88 mm
- 4" BSP → 113.03 mm
All our BSP threads are parallel (BSPP, to ISO 228), not tapered.
Measure across the outside of a male thread, then check its pitch and whether it is parallel or tapered. Diameter alone does not confirm compatibility. Check the product’s stated thread specification before connecting.
